Crestron SRD-SPL-4
Four-Way Amplified Splitter
Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2008 Crestron Electronics, Inc.
Crestron SRD-SPL-4 Four-Way Amplified Splitter
Contents
Four-Way Amplified Splitter: SRD-SPL-4 1
Introduction................................................................................................................................1
Block Diagram.............................................................................................................2
Specifications...............................................................................................................2
Included Items .............................................................................................................3
Installation ...................................................................................................................4
Problem Solving.........................................................................................................................5
Troubleshooting...........................................................................................................5
Further Inquiries ..........................................................................................................6
Future Updates.............................................................................................................6
Return and Warranty Policies ....................................................................................................7
Merchandise Returns / Repair Service.........................................................................7
CRESTRON Limited Warranty...................................................................................7
Installation Guide – DOC. 6727A Contents • i
Crestron SRD-SPL-4 Four-Way Amplified Splitter
Four-Way Amplified Splitter:
SRD-SPL-4
Introduction
The SRD-SPL-4 is a high quality amplified splitter optimized to split a
single antenna signal to feed up to four satellite radio tuners as part of a
Crestron
line amplifier is rated to provide 8 dB (minimum) of gain in the satellite
radio band (2320-2345 MHz), and is powered from the DC bias voltage
(4.5 VDC to 6.5 VDC nominal) provided by the antenna connections on
any of the satellite radio tuners downstream. It is also designed to pass
DC voltage to provide power to the antenna and other line amplifiers
installed upstream.
Accessories furnished with the SRD-SPL-4 include four 3-foot F
(female)-to-SMB (male) adapter cables, four F (male)-to-F (male)
couplers, and one SMB (female)-to-F (male) adapter. Standard RG-6
cable with male F connectors (not supplied) may be used to extend the
output cable length up to 70 feet from each individual output to each
satellite radio tuner. Adding an SRD-AMP-1 line amplifier (sold
separately) at the input of the splitter will enable longer output cable
lengths of up to 200 feet each.
®
XM or SIRIUS® satellite radio distribution network. Its built-in
NOTE: Unused outputs do not have to be terminated for proper operation.
A 20 dB power passing attenuator is also included for use in preventing
overload of the splitter input in any installation that is located near a high
power satellite radio terrestrial repeater.
NOTE: The SRD-SPL-4 is designed for indoor or outdoor mounting.
Installation Guide – DOC. 6727A Four-Way Amplified Splitter: SRD-SPL-4 • 1
Four-Way Amplified Splitter Crestron SRD-SPL-4

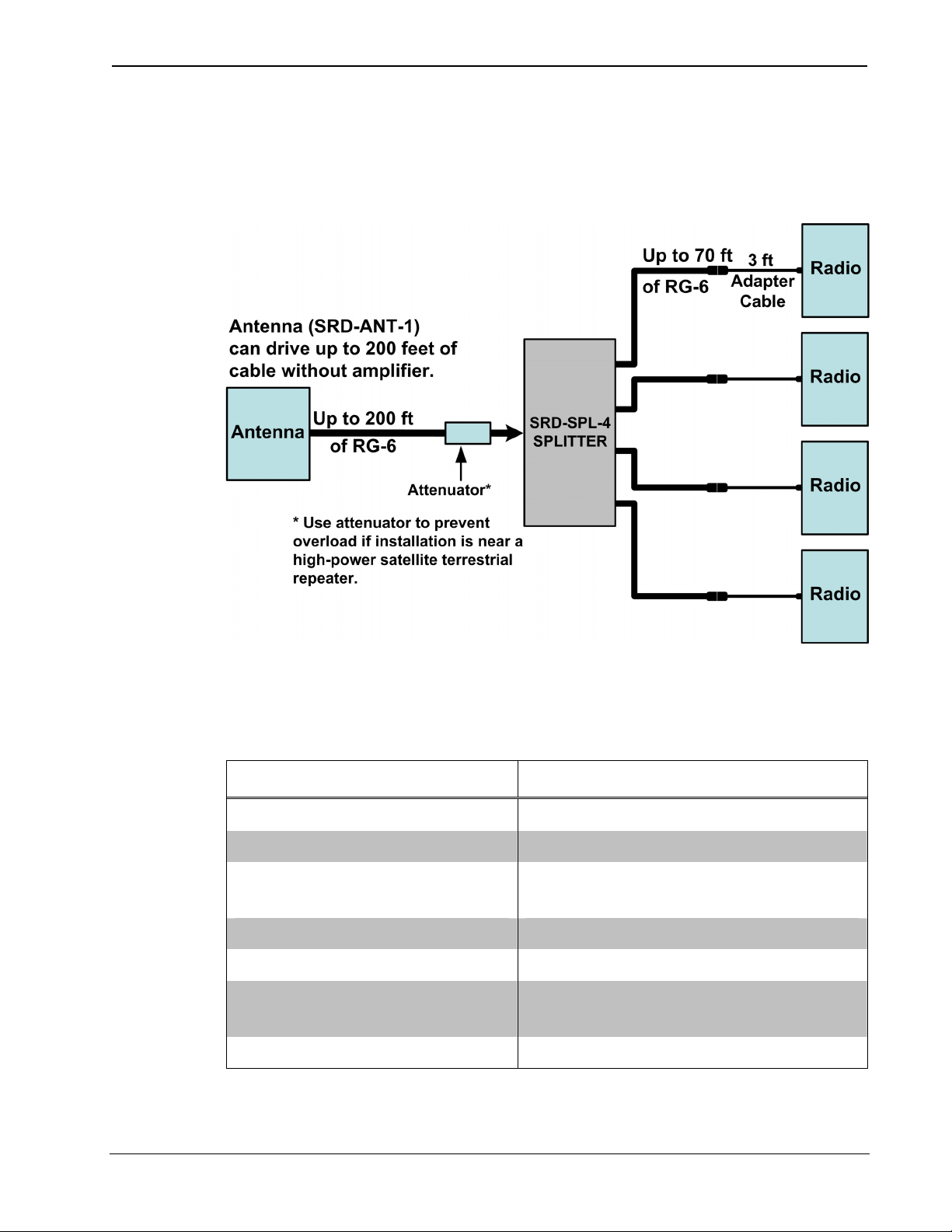

Block Diagram
The following diagram illustrates a typical application using the
SRD-SPL-4 splitter.
SRD-SPL-4 Block Diagram
Specifications
Following are specifications for the SRD-SPL-4.
SRD-SPL-4 Specifications
SPECIFICATION
Splitter gain @ 2.335 GHz 8 dB minimum
Max noise figure 3 dB
Max input signal -10 dBm (with supplied 20 dB
attenuator)
Current consumption 40 – 100 milliamps
DETAILS
DC power passing All ports diode protected
DC voltage drop (output to
input)
Environmental temperature -40° to 150°F (-40° to 66°C)
(Continued on following page)
2 • Four-Way Amplified Splitter: SRD-SPL-4 Installation Guide – DOC. 6727A
0.5 VDC typical
Crestron SRD-SPL-4 Four-Way Amplified Splitter
SRD-SPL-4 Specifications (Continued)
SPECIFICATION
Humidity 0% to 98% RH
(non-condensing)
Overall dimensions:
Height
Width
Depth
0.88 in (2.24 cm)
3.75 in (9.53 cm)
2.82 in (7.17 cm)
DETAILS
Included Items
The items included in the SRD-SPL-4 are listed and shown below.
SRD-SPL-4 Included Items
DESCRIPTION PART NUMBER QTY
4-way Splitter with Mounting Screws SRD-SPL-4 1
F-female to SMB-plug, 3 ft cables 2021515 4
SMB-jack to F-male Adapter 2021579 1
20 dB Power Passing Attenuator 2021580 1
F-male to F-male Coupler 2021526 4
Installation Guide – DOC. 6727A Four-Way Amplified Splitter: SRD-SPL-4 • 3
Four-Way Amplified Splitter Crestron SRD-SPL-4
Industry Compliance
As of the date of manufacture, the SRD-SPL-4 has been tested and found
to comply with specifications for CE marking and standards per EMC
and Radiocommunications Compliance Labelling.
Installation
Installation of the SRD-SPL-4 splitter consists of the following. Refer
also to the “Block Diagram” on page 2.
Attach the RG-6 cable from the antenna to the port labeled IN on the
•
splitter.
• Attach RG-6 cables (up to 70 ft) to the splitter OUT ports and route
them to the radios. Use the four supplied 3-foot cables to adapt the
F-male connector on the RG-6 cables to the SMB-jacks on the radios.
NOTE: For best results in all configurations, use quad-shielded RG-6
cable whenever possible.
4 • Four-Way Amplified Splitter: SRD-SPL-4 Installation Guide – DOC. 6727A
Crestron SRD-SPL-4 Four-Way Amplified Splitter
Problem Solving
Troubleshooting
The table after this paragraph provides corrective action for possible
trouble situations. If further assistance is required, please contact a
Crestron customer service representative.
SRD-SPL-4 Installation Troubleshooting
TROUBLE
No signal
reception. Radio
display shows:
“Antenna
Disconnected”,
or “Acquiring
Signal”
“Check
Antenna” or “No
Signal”
POSSIBLE
CAUSES
Short circuits
or
discontinuities
Antenna is
connected
properly but
signal is too
weak for
reception.
CORRECTIVE ACTION
With radio on and all
antenna cables connected
at the radio, check for 4 - 7
VDC at antenna end of
cable.
With radios on and all
antenna cables connected
at the radios, check for AC
voltage at antenna end of
cable; should be < 1 VAC.
If AC voltage is found,
check for ground loops.
Ensure proper cable type
and length(s) per the block
diagram on page 2.
Ensure any amplifiers are
oriented properly with the
output (marked with an
arrow labeled Radio)
oriented towards the radio.
Refer to the instructions
supplied with the antenna
to ensure the antenna is
pointed accurately.
(Continued on following page)
Installation Guide – DOC. 6727A Four-Way Amplified Splitter: SRD-SPL-4 • 5
Four-Way Amplified Splitter Crestron SRD-SPL-4
SRD-SPL-4 Installation Troubleshooting (Continued)
TROUBLE
Limited
reception or
channels
available for
XM and/or
SIRIUS tuners.
POSSIBLE
CAUSES
Problem with
tuner card.
CORRECTIVE ACTION
Ensure that the tuner card
is registered/activated.
Further Inquiries
If you cannot locate specific information or have questions after
reviewing this guide, please take advantage of Crestron's award winning
customer service team by calling Crestron at 1-888-CRESTRON
[1-888-273-7876].
You can also log onto the online help section of the Crestron website
(www.crestron.com/onlinehelp
First-time users will need to establish a user account to fully benefit from
all available features.
) to ask questions about Crestron products.
Future Updates
As Crestron improves functions, adds new features and extends the
capabilities of the SRD-SPL-4, additional information may be made
available as manual updates. These updates are solely electronic and
serve as intermediary supplements prior to the release of a complete
technical documentation revision.
Check the Crestron website periodically for manual update availability
and its relevance. Updates are identified as an “Addendum” in the
Download column.
6 • Four-Way Amplified Splitter: SRD-SPL-4 Installation Guide – DOC. 6727A
Crestron SRD-SPL-4 Four-Way Amplified Splitter
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange or service without prior
authorization from CRESTRON. To obtain warranty service for CRESTRON products,
contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may
contact the factory and request an RMA (Return Merchandise Authorization) number.
Enclose a note specifying the nature of the problem, name and phone number of contact
person, RMA number and return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries,
with RMA number clearly marked on the outside of all cartons. Shipments arriving
freight collect or without an RMA number shall be subject to refusal. CRESTRON
reserves the right in its sole and absolute discretion to charge a 15% restocking fee plus
shipping costs on any products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by
CRESTRON, shipping by standard ground carrier. In the event repairs are found to be
non-warranty, return freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in
materials and workmanship under normal use for a period of three (3) years from the date of purchase
from CRESTRON, with the following exceptions: disk drives and any other moving or rotating
mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year;
touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps
are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON
dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty,
if any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended or if it has been subjected to misuse, accidental
damage, modification or improper installation procedures. Furthermore, this warranty does not cover
any product that has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic
damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any
claim made by a third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts
or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only
by the unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or
implied, nor authorizes any other party to offer any warranty, including any implied warranties of
merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law
are limited to the terms of this limited warranty. This warranty statement supersedes all previous
warranties.
