Crestron PMK-6X-DSW
Pre-Construction Wall Mount Kit for
TPS-6X-DSW
Installation Guide
Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW
Contents
Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW 1
Description.................................................................................................................................1
Setup..........................................................................................................................................4
Mounting.....................................................................................................................4
Installation...................................................................................................................6
Other Mounting Option Accessories...........................................................................7
Resources...................................................................................................................................8
Industry Compliance ...................................................................................................8
Reference Documents..................................................................................................8
Further Inquiries..........................................................................................................8
Future Updates ............................................................................................................8
Return and Warranty Policies....................................................................................................9
Merchandise Returns / Repair Service ........................................................................9
CRESTRON Limited Warranty...................................................................................9
All brand names, product names and trademarks are the property of their respective owners.
©2009 Crestron Electronics, Inc.
Installation Guide – DOC. 6778A Contents • i
Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW
Pre-Construction Wall Mount Kit
for TPS-6X-DSW: PMK-6X-DSW
Description
The PMK-6X-DSW is a pre-construction mount kit for the TPS-6X-DSW Wall
Mount Docking Station. The PMK-6X-DSW is used for installation on a stud. For
custom placement of the TPS-6X-DSW without a stud, use the WMKT-6X-DSW or
WMKM-6X-DSW.
The PMK-6X-DSW includes a 12-inch long, 18 AWG jumper wire to secure
docking station cabling prior to drywall installation and to avoid damaging the cables
when the opening is routed. Refer to the physical views of the PMK-6X-DSW shown
on the following pages. The table that follows lists all parts included with the
PMK-6X-DSW.
NOTE: If mounting into a material other than drywall (for example, wood lectern,
concrete or rock) use the cutout template, available in the post-construction kit
WMKM-6X-DSW or WMKT-6X-DSW. For concrete and rock mounting material,
allow for proper ventilation before mounting the TPS-6X-DSW.
NOTE: This mounting kit is to be used only with the TPS-6X-DSW Wall Mount
Docking Station.
Supplied Hardware for the PMK-6X-DSW
DESCRIPTION PART NUMBER QUANTITY
Metal, Plate, Pre-Construction 4507464 1
Metal, Plate, Cover 2022825 1
Screw, #06-32 x 1-1/2”, Pan, Phil 2007254 4
Jumper wire, 12”, 18 AWG, Black 2007838 1
Installation Guide – DOC. 6778A Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW • 1
Pre-Construction Wall Mount Kit for TPS-6X-DSW Crestron PMK-6X-DSW
The dimensions of the PMK-6X-DSW are shown below and on the following page.
Dimensional Drawing (1 of 2)
0.56 i n
(1.4 2 cm)
11. 90 i n
(30.23 cm )
8.00 in
(20 .32 cm )
#06-32 TAPPED HOLE IN EACH CORN ER
0.06 in
(0.15 cm)
8.82 in
(22 .41 c m)
(16.13 cm)
6.35 in
SECURE 18 A W G JUMPER W IR E IN
NOTCH TO HANG CABLES AWAY FROM
CUTTING TOOLS
FOR DRYWALL SCREWS (NOT IN C LUDED)
FOR DRYWALL NAILS (NOT INCLUDED)
2 • Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW Installation Guide – DOC. 6778A
Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW

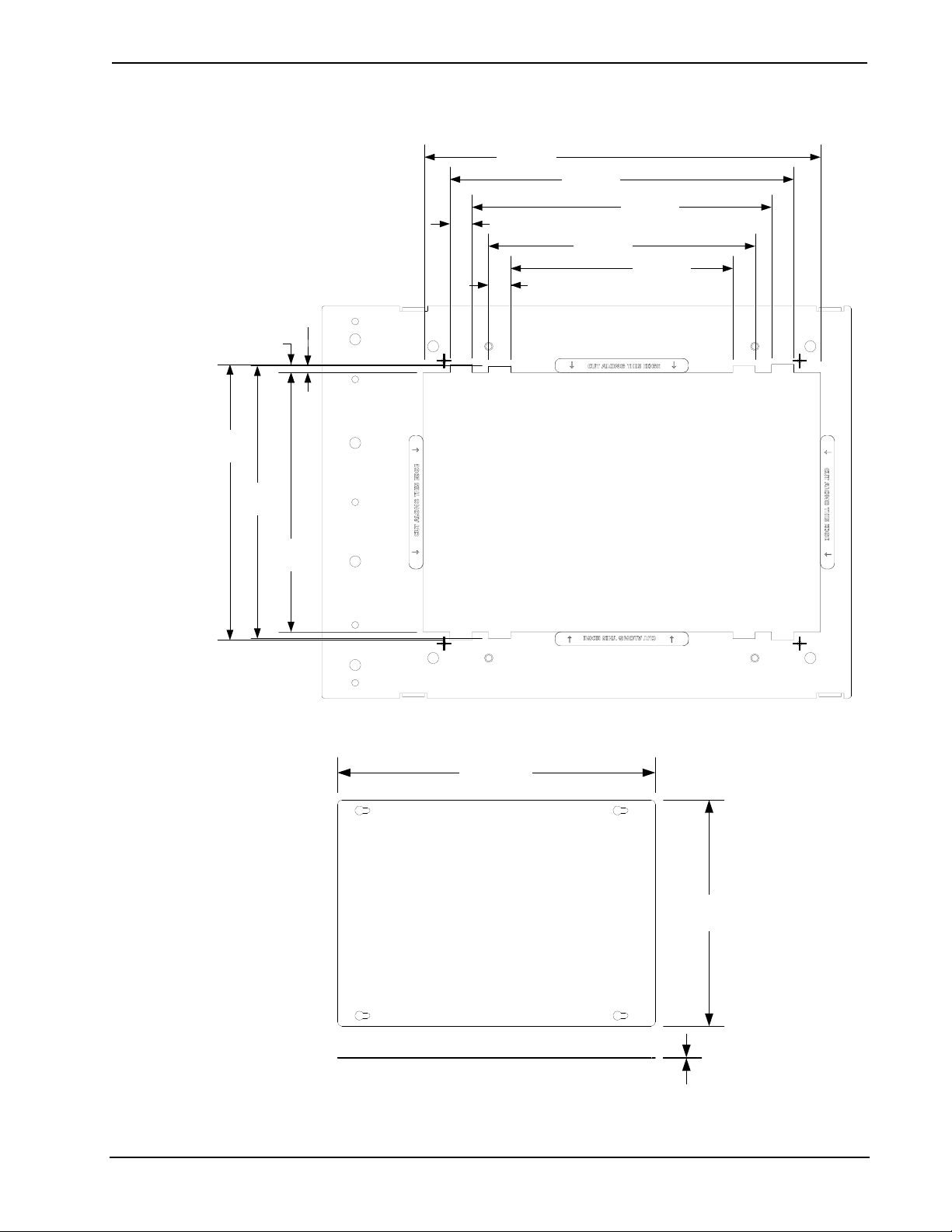

Dimensional Drawing (2 of 2)
8 15/16 in
(226 mm)
1/2 i n
(13 mm)
1/8 in
(4 mm)
3/16 in
(5 mm)
6 3/16 in
(158 mm )
6 1 /8 in
(156 mm)
(196 mm )
1/2 in
(13 m m )
7 3/4 in
6 in
(152 mm)
6 3/4 in
(171 m m)
5 in
(127 mm)
5 13/16 i n
(148 m m)
Dimensional Drawing - Cover Plate
5.85 i n
(1 4.86 cm)
4 .16 in
(1 0.57 cm )
0.02 i n
(0.05 cm)
Installation Guide – DOC. 6778A Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW • 3
Pre-Construction Wall Mount Kit for TPS-6X-DSW Crestron PMK-6X-DSW
Setup
Mounting
The PMK-6X-DSW consists of a single metal plate, which fastens to the stud of a
framed wall prior to hanging drywall. Standard drywall nails or screws to attach the
PMK-6X-DSW are not supplied (length can vary).
The plate is designed to provide the necessary support for the TPS-6X-DSW and can
mount to the right or left side of a stud. Confirm that the PMK-6X-DSW is level
before applying drywall.

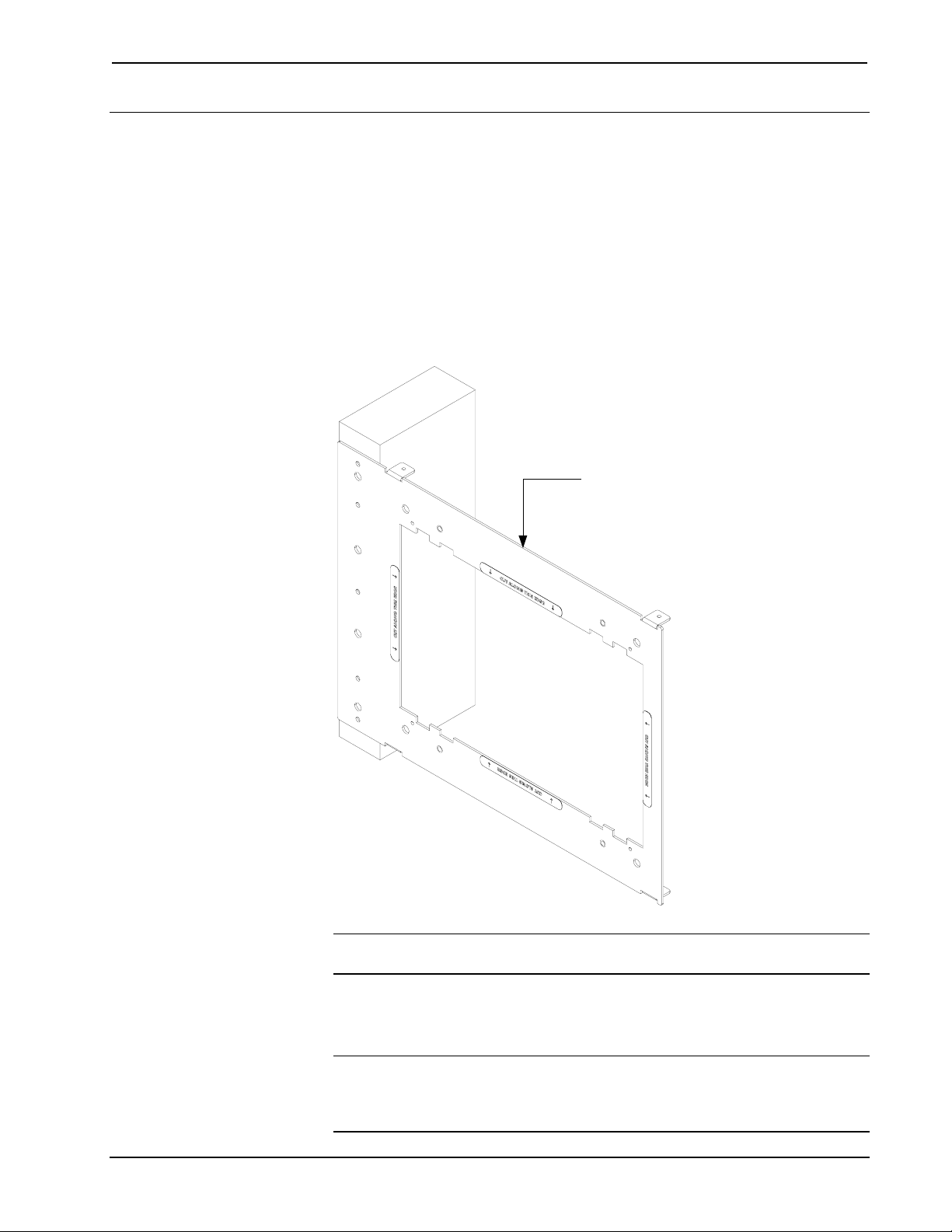

Mounting the PMK-6X-DSW
PMK-6X-D SW
(4507464 )
NOTE : BE SUR E
THE PLATE IS
LEV E L WH E N
MOUNTED.
CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity
above and below the TPS-6X-DSW for heat dissipation.
After drywall is positioned, a rectangular opening must be made. Position the
opening to expose the #06-32 tapped holes just outside the four corners of the plate.
NOTE: Cut the drywall along the inside edge of the front of the mounting plate.
The labels on the front of the mounting plate indicate the perimeter of the opening
that should be cut out. Refer to the NOTE in “Mounting the PMK-6X-DSW” shown
in the illustration above.
4 • Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW Installation Guide – DOC. 6778A
Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW

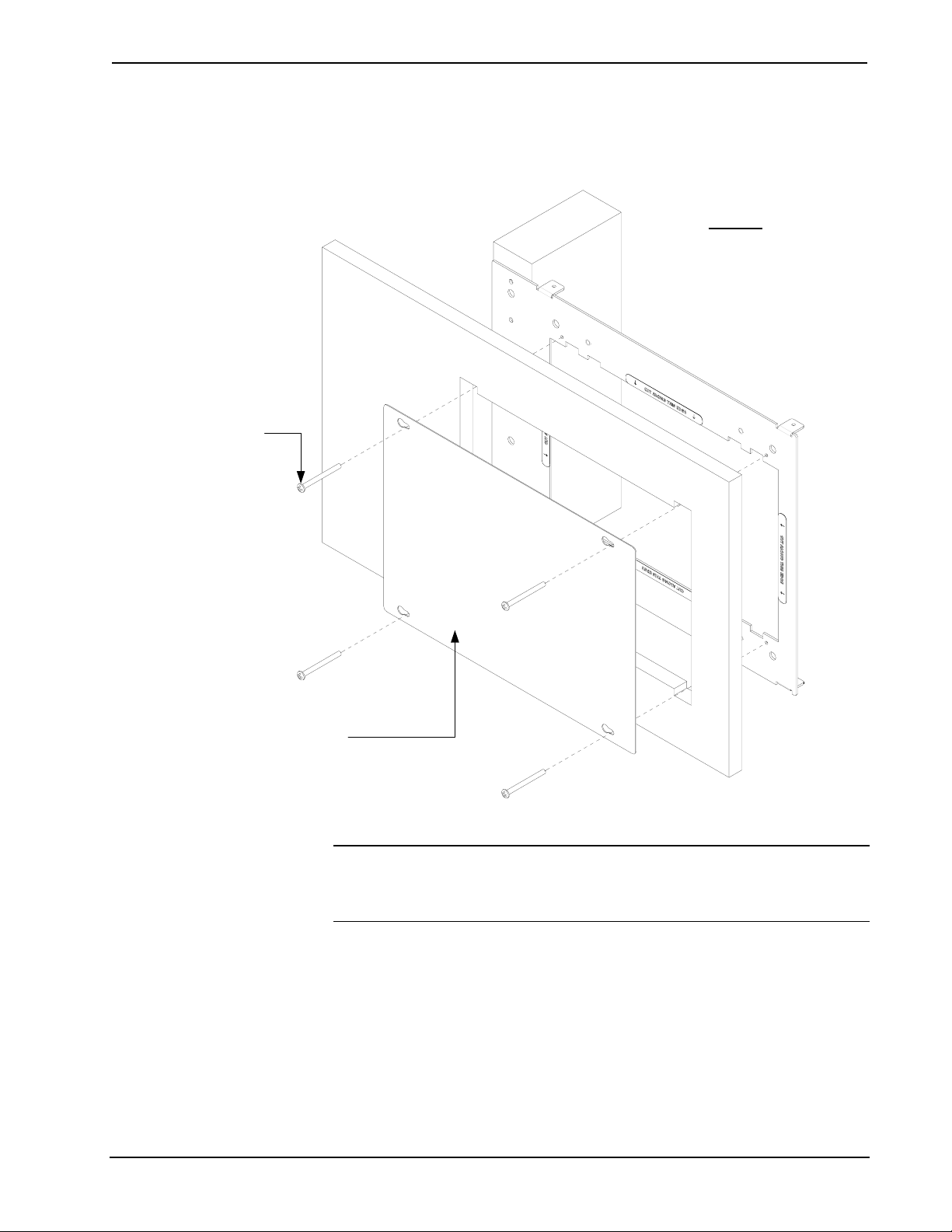

Mounted View with Cover Plate (Mounting Example Prior to Drywall Installation)
NOTE: BE SUR E TO LEAVE
THE FOUR TAPPED HOLES
ON THE FR ON T OF TH E
PLATE EXPOSED TO ACCEPT
THE MOUNTING SCREWS.
SCREWS (4)
#06-32 X 1 1 /2" PAN ,
HEAD (2007254)
NOTE: MOUNTING PLATE
IS TO BE C OVERED WITH
DRYW ALL AND THEN
CUTOUT MADE AROUND
THE INSIDE
OF THE
OPENING.
METAL COVER PLATE
(2022825) TO COVER DRY WALL
BEFOR E TPS-6X-DSW IS
INSTALLED ( MAY BE REQUIRED
BY LOCAL BUILDING CODES).
NOTE: The four tapped holes on the front of the mounting plate mu st be exposed to
accept the TPS-6X-DSW mounting screws. These holes are found beneath the
drywall just outside the four corners of the opening and made by cutting out the
drywall. Refer to the NOTE in “Mounted View with Cover Plate” illustration above.
Installation Guide – DOC. 6778A Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW • 5
Pre-Construction Wall Mount Kit for TPS-6X-DSW Crestron PMK-6X-DSW
Installation
Complete the installation by either installing the wall mount docking station, leaving
the hole open (if permitted by local building codes) or installing the optional cover
plate with the included #06-32 x 1-1/2” screws. If the TPS-6X-DSW is to be
installed, refer to the latest revision of the TPS-6X-DSW Operations and Installation
Guide (Doc. 6708) for installation instructions. The document is available from the
Crestron
illustration below.
TPS-6X-DSW Mounting – Exploded View
TPS-6X- D SW
®
website (www.crestron.com/manuals). Refer also to the comprehensive
PMK-6X-D SW
DRYWALL
SCREW S (4) #06-32 X 1 1/2"
PA N HE AD (2007254)
6 • Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW Installation Guide – DOC. 6778A
Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW
Other Mounting Option Accessories
If too much of the mounting plate is exposed after the drywall is cut, you may need
to patch the area. Crestron provides the following accessories:
• MMK-6X-DSW (Doc. 6779) - for larger repairs and to fill in larger
irregularities around the opening (requires plastering).
• TMK-6X-DSW (Doc. 6780) - for smaller repairs and to provide a smooth
edge at the opening. This option provides a finished appearance and is
preferred when wallpaper is hung.
The manuals for the MMK-6X-DSW and TMK-6X-DSW are available from the
Crestron website.
Installation Guide – DOC. 6778A Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW • 7
Pre-Construction Wall Mount Kit for TPS-6X-DSW Crestron PMK-6X-DSW
Resources
Industry Compliance
As of the date of manufacture, the PMK-6X-DSW has been tested and found to
comply with specifications for CE marking.
Reference Documents
The latest version of all documents mentioned within the guide can be obtained from
the Crestron website (
product manuals arranged in alphabetical order by model number.
List of Related Reference Documents
www.crestron.com/manuals). This link will provide a list of
DOCUMENT TITLE
MMK-6X-DSW Mud Mount Kits for the TPS-6X-DSW
TMK-6X-DSW Trim Ring Mount Kits for the TPS-6X-DSW
TPS-6X-DSW Wall Mount Docking Assembly for TPS-6X
Further Inquiries
If you cannot locate specific information or have questions after reviewing this
guide, please take advantage of Crestron's award winning customer service team by
calling Crestron at 1-888-CRESTRON [1-888-273-7876].
You can also log onto the online help section of the Crestron website
www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time
(
users will need to establish a user account to fully benefit from all available features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities of
the PMK-6X-DSW, additional information may be made available as manual
updates. These updates are solely electronic and serve as intermediary supplements
prior to the release of a complete technical documentation revision.
Check the Crestron website periodically for manual update availability and its
relevance. Updates are identified as an “Addendum” in the Download column.
8 • Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW Installation Guide – DOC. 6778A
Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange or service without prior authorization
from CRESTRON. To obtain warranty service for CRESTRON products, contact an
authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory
and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying
the nature of the problem, name and phone number of contact person, RMA number and
return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with
RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect
or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its
sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any
products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in mat erial s
and workmanship under normal use for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical
parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and
overlay components are covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON
dealer. Purchasers should inquire of the dealer regard ing the nature and extent of the dealer's warranty, if
any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended or if it has been subjected to misuse, accidental
damage, modification or improper installation procedures. Furthermore, this warranty does not cover any
product that has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a
third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or
labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the
unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or
implied, nor authorizes any other party to offer any warranty, including any implied warranties of
merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are
limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark
of Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation.
Installation Guide – DOC. 6778A Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW • 9
Crestron Electronics, Inc. Installation Guide – DOC. 6778A
15 Volvo Drive Rockleigh, NJ 07647 (2023089)
Tel: 888.CRESTRON 01.09
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Loading...
