Crestron electronic MLX-2 User Manual

Crestron MLX-2
infiNET EX
LCD Handheld Remote
Operations Guide
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2009 Crestron Electronics, Inc.
Crestron MLX-2 infiNET EX™ LCD Handheld Remote
Contents
infiNET EX™ LCD Handheld Remote: MLX-2 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................ 1
Specifications ..............................................................................................................2
Physical Description.................................................................................................... 3
Industry Compliance ...................................................................................................5
Setup .......................................................................................................................................... 6

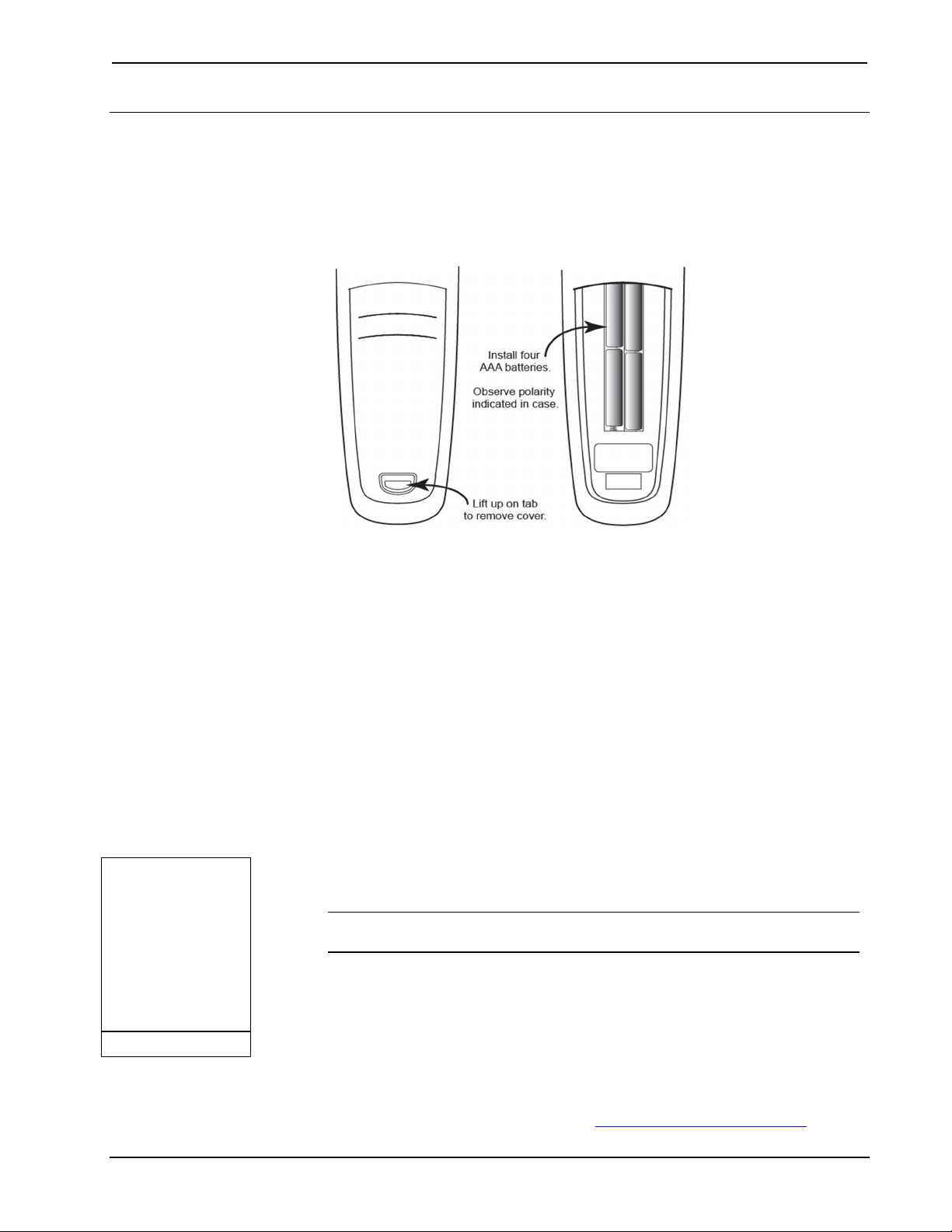

Battery Installation ......................................................................................................6
Identity Code ............................................................................................................... 6
Configuring the MLX-2 ..............................................................................................6
Factory Reset Procedure............................................................................................ 11
Programming Software............................................................................................................12
Earliest Version Software Requirements for the PC .................................................12
Programming with Crestron SystemBuilder™...........................................................12
Programming with SIMPL Windows........................................................................ 12
Programming with VisionTools® Pro-e..................................................................... 14
Example Program...................................................................................................... 14
Uploading and Upgrading........................................................................................................ 15
Loading Projects........................................................................................................ 15
Projects and Firmware............................................................................................... 16
Program Checks ........................................................................................................16
Operation .................................................................................................................................17
Problem Solving ......................................................................................................................18
Troubleshooting......................................................................................................... 18
Check Network Wiring..............................................................................................18
Reference Documents................................................................................................19
Further Inquiries........................................................................................................ 19
Future Updates ..........................................................................................................19
Appendix: Firmware Upgrades................................................................................................20
Return and Warranty Policies.................................................................................................. 21
Merchandise Returns / Repair Service ......................................................................21
CRESTRON Limited Warranty.................................................................................21
Operations Guide – DOC. 6739B Contents i
Crestron MLX-2 infiNET EX™ LCD Handheld Remote
infiNET EX MLX-2

Introduction

LCD Handheld Remote:

Features and Functions

Ergonomic handheld design
Elegant high-gloss finish
infiNET EX
57 programmable buttons with blue EL backlight
2-way RF wireless technology
Backlit LCD screen with dynamic text display
Operates on four AAA alkaline batteries
The MLX-2 is a state-of-the-art handheld remote featuring Crestron® infiNET EX™
2-way RF wireless communications. Its backlit LCD screen is capable of displaying
dynamic text with true feedback capability, supporting scrolling menus of channels,
media titles, and numerous other commands. An array of 57 individual pushbuttons
provides intuitive, tactile control over everything from home theater to whole-house
automation as part of a complete Crestron system. Its compact size and ergonomic
design offer easy one-handed operation, while infiNET EX technology affords
reliable 2-way wireless operation.
The MLX-2 has been designed to provide immediate responses for all functions like
volume control, channel changing, and more, combined with a real-time LCD
display for feedback. As a result, when a user picks up the remote to press a function
such as volume, the command is transmitted and the LCD wakes up. In some cases,
users will want to wake the LCD without transmitting a control function. This can
easily be accomplished by designating one or more buttons on the remote, such as
“HOME,” to wake the screen but, by default, not transmit a command.
The large, easy-to-read LCD screen supports the creation of numerous pages of
custom menu functions, with electroluminescent backlighting for optimal visibility
in a range of lighting environments. Bidirectional communication with the control
system and other devices enables menu items to be updated dynamically, supporting
Operations Guide – DOC. 6739B infiNET EX™ LCD Handheld Remote: MLX-2 1
infiNET EX™LCD Handheld Remote Crestron MLX-2
anything from AV sources and TV channels, to lighting and climate control presets,
to artist names and song titles. Each menu item can be executed simply using a set of
ten corresponding pushbuttons. In addition to menu commands, the LCD can also
display the time and date, lighting levels, room temperature, and other real-time
information synched to the central control system.
An optimized button layout enables easy access to every system function, with 44 of
the 57 programmable buttons labeled for power, volume, mute, channel selection,
onscreen menu navigation, transport control, and alphanumeric entry.
Electroluminescent blue button backlighting creates an alluring appearance while
facilitating control in a darkened room.

Specifications

Specifications for the MLX-2 are listed in the following table.
MLX-2 Specifications
SPECIFICATION DETAILS
LCD Display
Backlight
LCD Screen
Buttons
RF Wireless
RF Transceiver
Range (typical) 100 feet indoor, subject to site-specific conditions
Gateway
Battery Power
Default RF ID 03
Minimum 2-Series Control System Update File
Environmental
Temperature
Humidity
Enclosure Injection-molded plastic, high-gloss black finish
Dimensions
Height
Width
Depth
Weight 6 oz (168 gm) without batteries
Required Accessory
CEN-RFGW-EX infiNET EX Gateway
1. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes.
1, 2
Monochrome 1.5 inch LCD screen (102 x120 Resolution); Displays static and dynamic text in 5 lines plus header and footer (7 lines total) with horizontal and vertical scrolling, dual-state text, and gauge/bargraph objects support
White EL
Blue EL
infiNET EX 2-way RF, 2.4 GHz ISM Channels 11-26 (2400 to 2483.6 MHz), IEEE 802.15.4 compliant
Requires a CEN-RFGW-EX infiNET EX Gateway (sold separately)
Four (4) disposable 1.5V AAA alkaline batteries (included)
3.155.1240 (.CUZ file)
32 to 122° F (0 to 50° C)
10% to 90% RH (non-condensing)
9.18 in (23.3 cm)
2.56 in (6.5 cm)
1.11 in (2.8 cm)
2 infiNET EX™ LCD Handheld Remote: MLX-2 Operations Guide – DOC. 6739B
Crestron MLX-2 infiNET EX™ LCD Handheld Remote
2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems.
NOTE: Crestron software and any files on the website are for authorized Crestron dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may be required to register to obtain access to certain areas of the site (including the FTP site).

Physical Description

This section provides information on the connections, controls, and indicators available on your MLX-2.
MLX-2 Physical View
Operations Guide – DOC. 6739B infiNET EX™ LCD Handheld Remote: MLX-2 3
infiNET EX™LCD Handheld Remote Crestron MLX-2
MLX-2 Overall Dimensions
MLX-2 Controls, Connectors, & Indicators
# CONNECTORS,
DESCRIPTION
CONTROLS, &
INDICATORS
1 POWER (1) programmable button for power functions.
2 LIGHTS (1) programmable button for lighting functions.
3
4 i, HOME, h
5 Device Control
6 USB Port
4 infiNET EX™ LCD Handheld Remote: MLX-2 Operations Guide – DOC. 6739B
Menu Buttons
(10) programmable buttons to actuate LCD menu commands.
(3) programmable buttons to select LCD menu pages.
(42) programmable function buttons labeled for volume, mute, channel, onscreen menu navigation, transport control, and alphanumeric entry.
(1) USB port used only for uploading firmware, using supplied USB cable.
Crestron MLX-2 infiNET EX™ LCD Handheld Remote

Industry Compliance

As of the date of manufacture, the MLX-2 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off or on, the user should:
Relocate or reorient the TV or radio antenna
Increase the separation between the device and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s right to operate this equipment.
Any changes or modifications to the equipment without Crestron’s express consent will void the user’s right to operate this equipment.
FCC ID: MG3-30700 Compliance with IC Rules and Regulations IC: 2575A-30700 Model: MLX-2
Object is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
Operations Guide – DOC. 6739B infiNET EX™ LCD Handheld Remote: MLX-2 5
