InfiNET™ TableTop Controller:
HTT-B10X
Introduction
The HTT-B10X provides a simple, convenient wireless controller for lighting, home
automation and entertainment in the home or office. Two-way infiNET™ wireless
operation supports true feedback, allowing lighting and security settings to be
checked and changed with confidence from any room. A clean array of 10 backlit
pushbuttons with individual feedback LEDs affords easy, tactile control of any
custom function. The HTT-B10X is a fully programmable controller designed to
operate as part of a complete Crestron
infiNET wireless control network.
The HTT-B10X (120 Volts AC) and HTTI-B10X (230 Volts AC) are functionally
identical. For simplicity within this guide, HTT-B10X is used except where noted.
®
automation system, communicating via the
Features and Functions
• Stylish wireless pushbutton controller
• 10 engravable backlit buttons
• Configurable for up to three functions per button
• White LED light pipe feedback indicators
• True feedback and dual bar graph capability
• InfiNET two way RF wireless communications
• Powered by batteries or external power pack
• Wakes instantly when touched or picked up
• Auto-dimmable backlight and LED intensity
• Available in black or white
Multifunction Pushbuttons
Ten simple pushbuttons provide just the right amount of control without clutter or
complication – perfect for most applications. For situations requiring a little more,
each button can be configured to enable up to three separate functions simply by
tapping, double-tapping or holding the button. “Shift key” functionality is even
possible, allowing any button to be held while pressing another.
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 1
InfiNET™ TableTop Controller Crestron HTT-B10X
Auto Dimming Backlight
High quality backlit laser engraving provides customizable button text that is easy to
read under any lighting condition. A built-in light sensor controls the backlight
intensity automatically to achieve a crisp, legible appearance in both darkened and
fully lit rooms.
True Feedback
Elegant white LED light pipes beside each button provide reliable status feedback
for everything from lighting presets to motorized windows and door locks. Ten
different blink patterns are built in, enabling all kinds of blinking LED feedback
while simplifying programming and minimizing traffic on the infiNET network.
Additional bar graph capability uses the same LEDs to display actual level settings in
the form of two vertical five segment bar graphs. True feedback for every status and
level setting is achieved via infiNET’s fully bidirectional wireless protocol. The
overall LED intensity is auto-dimmable, adjusting automatically for optimal
visibility under varying lighting conditions.
Battery or AC Powered
The HTT-B10X can be powered by its external power pack or two AA batteries,
permitting use as a stationary controller on a desk or table or as a portable wireless
remote. Its auto-sleep function affords battery operation for up to eight months on a
single set of alkaline batteries. Simply moving or pressing a button on the
HTT-B10X instantly wakes it from sleep mode. Connecting the power pack
overrides the sleep/wake function completely for “always on” operation.
InfiNET™
Crestron’s groundbreaking infiNET wireless technology affords reliable two way
communications throughout a home or office structure without the need for physical
control wiring. Numerous infiNET controllers, dimmers, thermostats and other
devices can be linked to a central control system via a single RF gateway. Employing
a 2.4 GHz mesh network topology, each infiNET device functions as an RF repeater,
increasing effective range and reinforcing the complete network by providing
multiple redundant signal paths within the mesh network.
NOTE: The HTT-B10X itself does not function as a repeater.
Easy Installation
Setting up a complete network of infiNET devices including the HTT-B10X is
simple. The C2N-MNETGW gateway (sold separately) utilizes discovery (self
install) to locate and acquire each infiNET device automatically. Setting the RF ID
of each device employs the same convention as Crestron’s familiar TSID method
and each device is programmable using Crestron SIMPL™ Windows
SystemBuilder™ or D3Pro™ software just like any wired Cresnet
firmware updates are performed over the wireless network.
No further action is required to configure the infiNET network. Each device assigned
to a common gateway automatically behaves as a repeater for any other devices
within range, approximately 150 feet (46 meters) indoors and additional repeaters
may be added if necessary. At all times, the infiNET gateway monitors each device
on the network, ignoring any other 2.4 GHz signals and reconfiguring the entire
network automatically in response to new sources of interference and other changes
in RF conditions.
®
,
®
device. Even
2 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
NOTE: The HTT-B10X itself does not function as a repeater.
Color and Engraving Options
The HTT-B10X is available in either black or white, with an attractive brushed
aluminum inlay. Custom backlit engraving is available for each individual column of
five buttons.
Specifications
Specifications for the HTT-B10X are listed in the following table.
HTT-B10X Specifications
SPECIFICATION DETAILS
Backlight
Movement Sensor
Low Battery Warning Beep sound indicates low battery condition
Wireless1
RF Transceiver
RF Output Power 100 mW
Range (typical)
Power Requirements
Batteries
12 VDC 6 Watts (0.5 Amps) @ 12 Volts DC
Power Supply
Default MNET ID2 01
Minimum 2-Series Control
System Update File
Minimum infiNET Gateway
Version
Environmental
Temperature 32º to 104º F (0º to 40º C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 3.4 BTU/Hr
3, 4
White LED light pipe backlight for button
engraving; software adjustable intensity,
auto-dimmable
Vibration sensor wakes unit from sleep
mode if operating on battery
2-way RF, 2.4 GHz ISM Channels 11-26
(2400 to 2483.6 MHz), IEEE 802.15.4
compliant
150 feet (46 meters) indoor,
250 feet (76 meters outdoor;
Subject to site specific conditions; range is
increased by adding additional devices or
C2N-MNETRPT repeater (sold separately)
(2) AA alkaline batteries required, estimated
eight months usage under normal operation
HTT-B10X:
120 Volts AC, 60 Hz
(PW-1205 included)
HTTI-B10X:
230 Volts AC, 50 Hz
(PW-1205RU included)
Version 3.155.1240 or later
Firmware version 2.001.0003 or later
(Continued on following page)
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 3
InfiNET™ TableTop Controller Crestron HTT-B10X
HTT-B10X Specifications (Continued)
SPECIFICATION DETAILS
Enclosure
Dimensions
Height 1.46 in (3.71 cm)
Width 3.60 in (9.14 cm)
Depth 4.69 in (11.91 cm)
Weight
Without batteries 5.0 oz (143 g)
With batteries 6.8 oz (192 g)
Available Models (120 VAC)
HTT-B10X-B-T
HTT-B10X-W-T
International Version (230 VAC)
HTTI-B10X-B-T
HTTI-B10X-W-T
Included Accessories
HTT-B10X:
PW-1205
HTTI-B10X:
PW-1205RU
Available Accessories
C2N-MNETGW
C2N-MNETRPT infiNET Repeater
B10-BTN(B,W)-T
1. C2N-MNETGW gateway/transceiver required (sold separately).

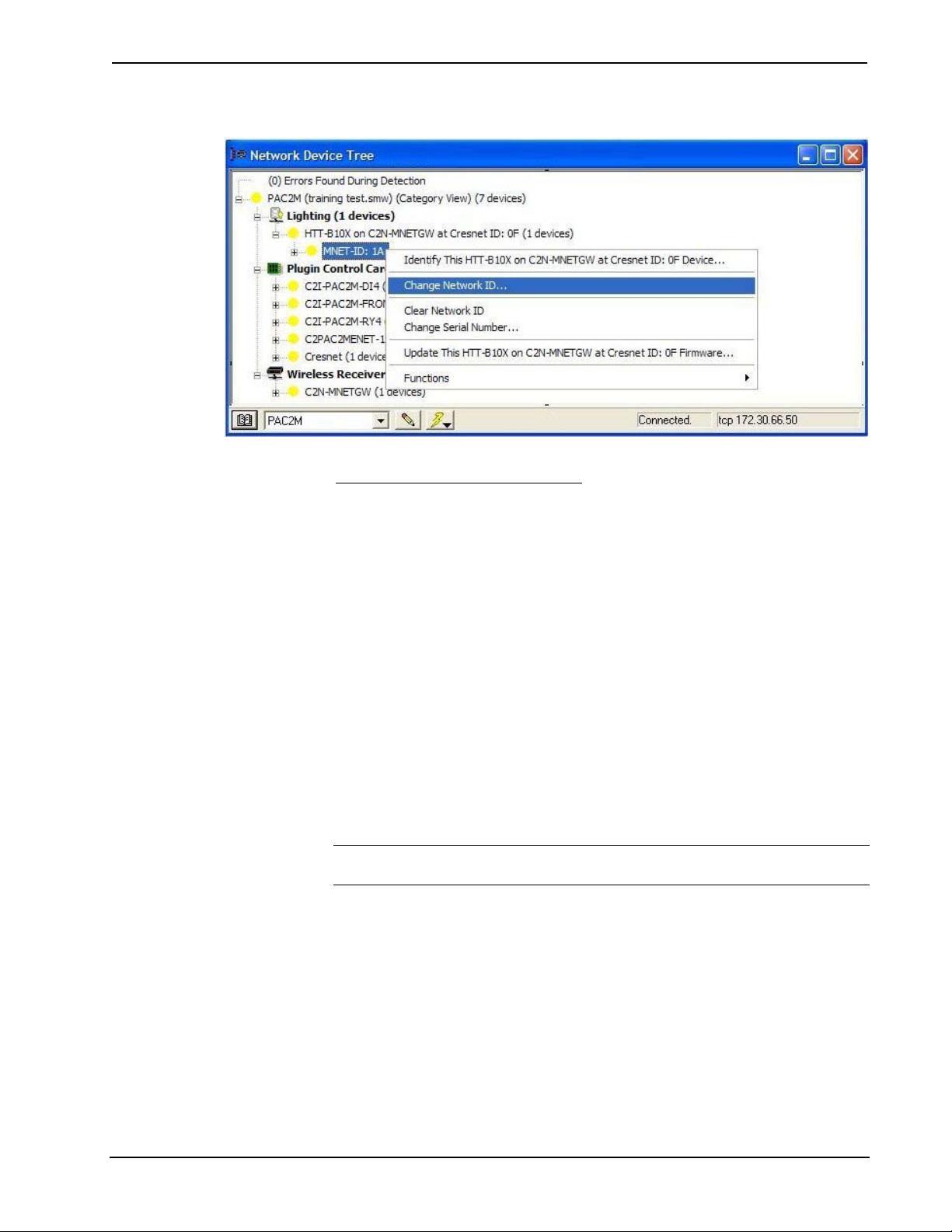

2. Requires setup with Crestron Toolbox™.
3. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following
these footnotes.
4. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product
Catalog for a complete list of 2-Series control systems.
Injection molded plastic, painted, textured,
brushed aluminum inlay
infiNET TableTop Controller,
Black Textured
infiNET TableTop Controller,
White Textured
infiNET TableTop Controller,
Black Textured
infiNET TableTop Controller,
White Textured
12 Volt Power Pack (US)
12 Volt Power Pack (International)
infiNET Gateway (firmware version
2.001.0003 or later required)
Strip of five engravable button caps, backlit
(black or white, textured)
NOTE: Crestron software and any files on the website are for authorized Crestron
dealers and Crestron Authorized Independent Programmers (CAIP) only. New users
may be required to register to obtain access to certain areas of the site (including the
FTP site).
4 • infiNET™ TableTop Controller: HTT-B10X Operations Guide – DOC. 6583B
Crestron HTT-B10X infiNET™ TableTop Controller
Physical Description
This section provides information on the connections, controls and indicators
available on your HTT-B10X.

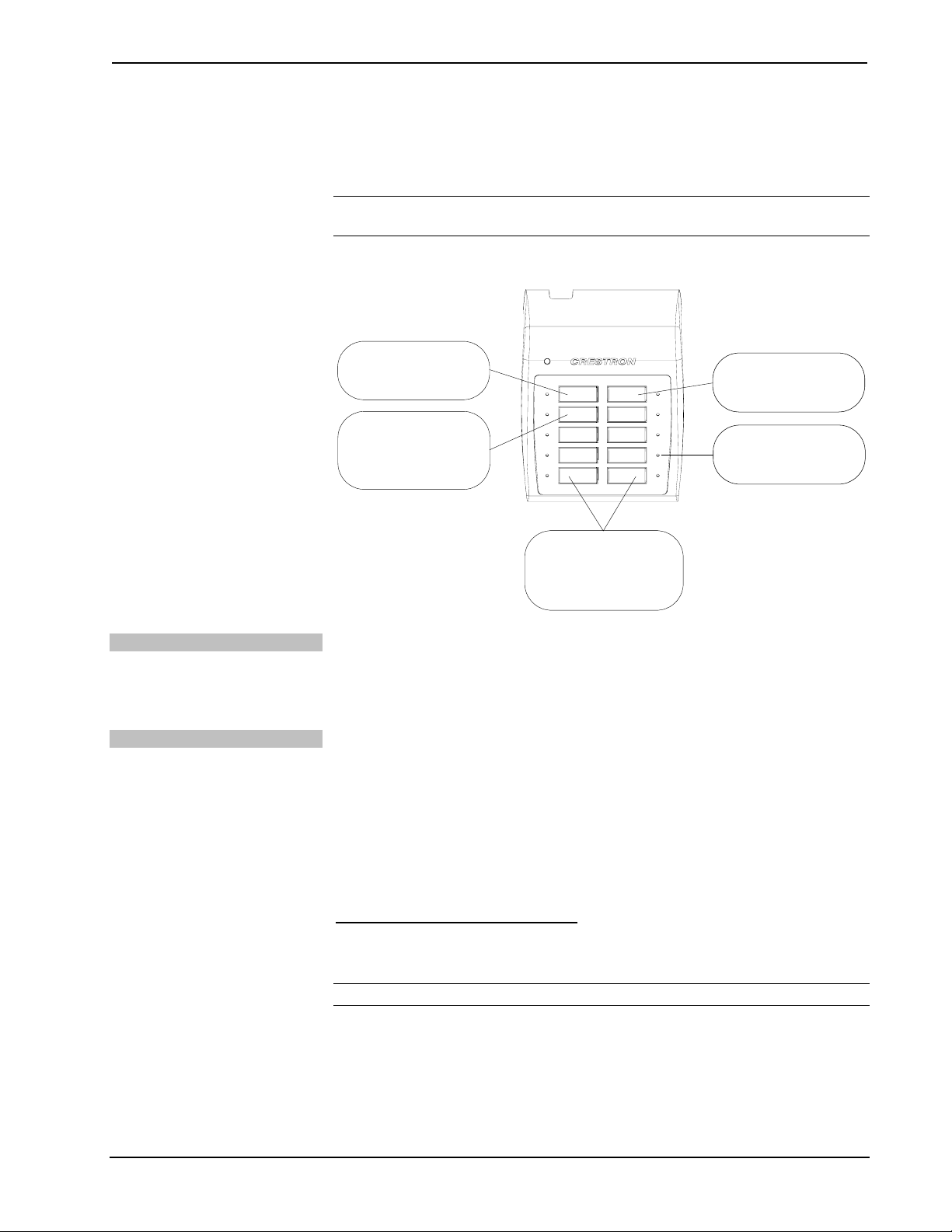

HTT-B10X Physical View
HTT-B10X Overall Dimensions (Top View)
1
2
3
4.69 in
(11.91 cm)
2
Operations Guide – DOC. 6583B infiNET™ TableTop Controller: HTT-B10X • 5
Loading...
