GLA-PWSI50
Functional Summary
The GLA-PWSI50 is a 50 Watt Cresnet® Power Supply
designed for use with a Crestron
or anywhere a wall-mountable Cresnet power supply is
needed. It is compatible with any line voltage from 100 to
240 Volts, 50 or 60 Hz.
The GLA-PWSI50 mounts conveniently over the fron t of
an electrical box, with all connections made inside the
box via flying leads using terminal block connectors. An
adapter plate is included for installation over a 1 or
2-gang UK or Euro style electrical box. Without the
adapter plate, the GLA-PWSI50 may be mounted over a 4
inch square or 2-gang US electrical box.
• 50 Watt Cresnet power supply
• Powers the IPAC and other Cresnet devices
• Provides backup power for Crestron Green Light
cabinets
• Compatible with 100 to 240 VAC mains
• Mounts to a 1 or 2-gang UK (BS 4662) or Euro
(DIN 49073) electrical box
• Also compatible with 4 inch square or 2-gang US
electrical boxes

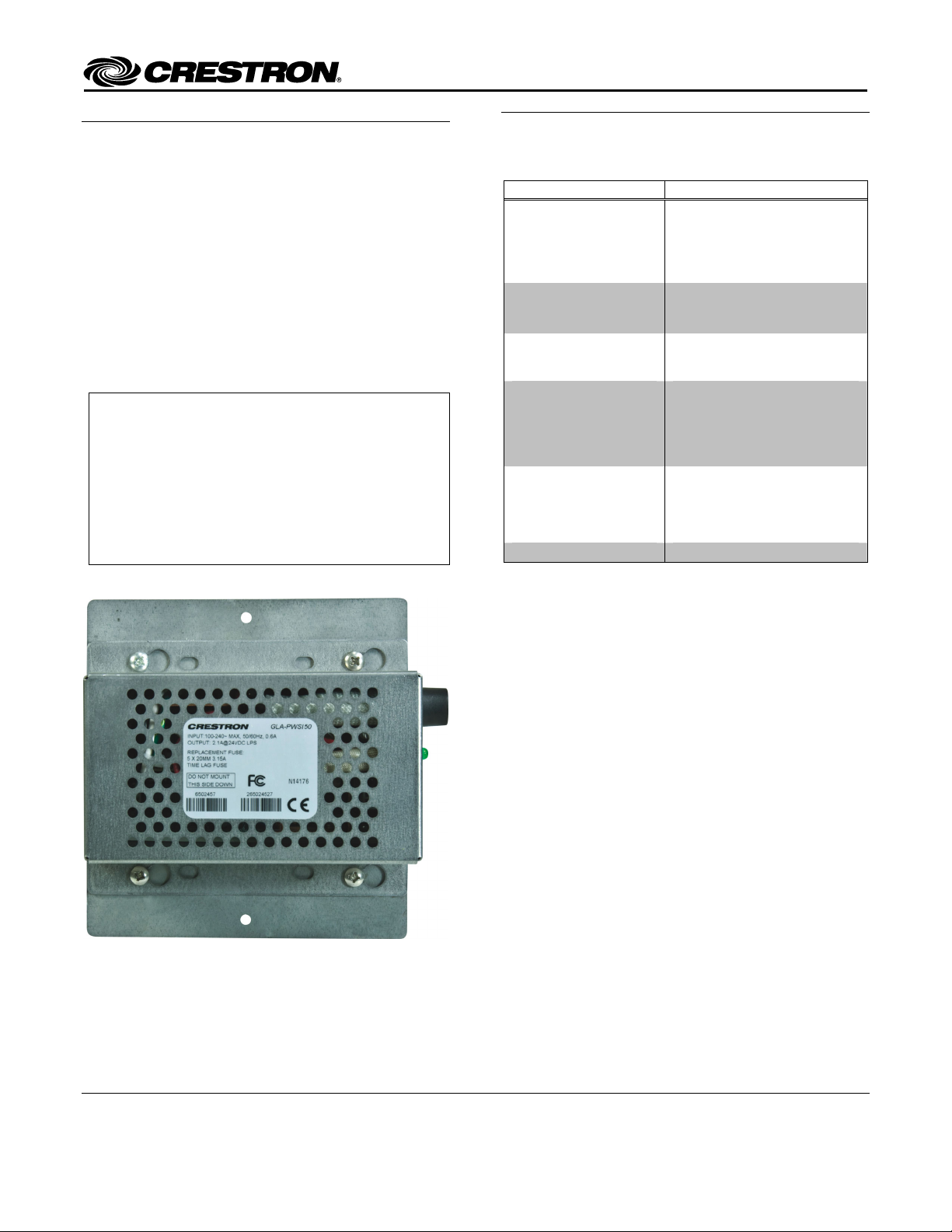

GLA-PWS50 (shown with Adapter Plate) Physical View
®
Green Light™ system,
Specifications
GLA-PWSI50 Specifications
SPECIFICATION DETAILS
Output Power
Output Power
Ripple/Noise
Power Requirements
Input
Enclosure Metal construction, 1- or 2-gang
Environmental
Temperature
Humidity
Heat Dissipation
Dimensions
(without adapter plate)
Height
Width
Depth
Weight 0.54 kg (1.2 lbs)
50 Watts (2.1 Amps) @ 24 Volts
DC, regulated, limited power
source
<1%
0.6 Amps @ 100-240 Volts AC,
50/60 Hz
(BS4662 UK or DIN 49073)
backbox, includes adapter plate
0° to 40°C (32° to 104°F)
10% to 90% RH
(non-condensing)
26 BTU/Hr
10.16 cm (4.00 in)
14.09 cm (5.55 in)
5.76 cm (2.27 in)
Crestron Electronics, Inc. Installation Guide – DOC. 6747A
15 Volvo Drive Rockleigh, NJ 07647 (2022674)
Tel: 888.CRESTRON 02.09
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
50 Watt Cresnet Power Supply Crestron GLA-PWSI50
Industry Compliance
As of the date of manufacture, the GLA-PWSI50 has been test ed and found to comply with specifications for CE marking.
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to radio comm unications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
2 • Wall Mount 50 Watt Cresnet Power Supply: GLA-PWSI50 Installation Guide – DOC. 6747A
Crestron GLA-PWSI50 50 Watt Cresnet Power Supply
Application
The following diagram shows a GLA-PWSI50 module in a typical application.
GLA-PWSI50 in a Lighting Application
Installation Guide – DOC. 6747A Wall Mount 50 Watt Cresnet Power Supply: GLA-PWSI50 • 3
50 Watt Cresnet Power Supply Crestron GLA-PWSI50
Connectors, Controls & Indicators
Physical Description
This section provides information on the connections,
controls and indicators available on the GLA-PWSI50.
GLA-PWSI50 Overall Dimensions
5.45 cm
(2.15 in)
0.31 cm
(0.12 in)
12.77 cm)
GLA-PWSI50
14.09 cm
(5.55 in)
(5.03 in)
10.16 cm
(4.00 in)
# CONNECTORS,
CONTROLS &
INDICATORS
1 LINE POWER (3) 152 mm flying leads, 0.75
2 OUTPUT (2) 152 mm flying leads, 0.75
3 FUSE DC output fuse, T3.15AH
4
24VDC LED
mm
Line (brown), neutral (blue),
and ground (green/yellow)
connections
mm2, Cresnet power output
+24 VDC (red), G (black/white)
connections
Connects to “24” and “G”
connections of the Cresnet
control network, or directly to a
24 Volt DC powered Crestron
device
(5x20mm, 250V, 3.15A, timelag, ceramic cartridge).
(1) green LED, indicates 24
Volts DC output, extinguishes
when fuse is blown
Setup
DESCRIPTION
2
, line power input
Important Notes
Read before installation.
• Permits: An electrical permit shall be obtained
prior to each installation.
• Codes: Install in accordance with all local and
national electrical codes.
• Wiring: Use 75°C copper wire only.
• Not suitable for Hazardous/Classified areas.
Supplied Hardware
The hardware supplied with the GLA-PWSI50 is listed in
the following table.
Supplied Hardware for the GLA-PWSI50
DESCRIPTION PART NUMBER QUANTITY
Metal, Plate, Adapter 2022080 1
Screw M3.5 x 25mm, Flat,
Phil
Screw, 8-32, 3/8”, Pan, Phil 2007269 4
Terminal Block, 2 Position,
Single Row
Terminal Block, 3 Position,
Single Row
2023756 1
2023704 1
2023705 1
4 • Wall Mount 50 Watt Cresnet Power Supply: GLA-PWSI50 Installation Guide – DOC. 6747A
Crestron GLA-PWSI50 50 Watt Cresnet Power Supply
Preparation
The GLA-PWSI50 comes with an adapter plate for
mounting the power supply on a BS4662 UK backbox or
a 1- or 2-gang DIN 49073 backbox.
1. Route the line and control wires from the backbox
through the opening on the adapter plate as shown
in the following diagram.
Route Wires Through Adapter Plate (1-Gang DIN 49073
Backbox Shown)
ADAPTER PLATE
BACKBOX
WIRES
Adapter Plate Usage
LOC. USE WITH SCREW TYPE/QUANTITY
A 1-GANG BS 4662
UK BACKBOX
B 2-GANG BS 4662
UK BACKBOX
C 1-GANG DIN
49073 BACKBOX
D 2-GANG DIN
49073 BACKBOX
Top: (1) M3.5 (Not Supplied)
Bottom: (1) M3.5x25 (Supplied)
(2) M3.5 (Not Supplied)
(2) M3 (Not Supplied)
(4) M3 (Not Supplied)
Hardware Hookup
WARNING: RISK OF SERIOUS PERSONAL
INJURY. Turn off power at the circuit breaker(s) prior to
installation. Installing with power on can result in serious
personal injury and damage to the device.
1. Use the included 2-position terminal block to connect
the Class 2 wiring to the Cresnet network as shown in
the following diagram.
Connect Class 2 Wiring (High Voltage Wiring Removed
for Clarity)
2. Secure the adapter plate to the backbox. Refer to
the following diagram and table to determine
which holes and screws to use.
Adapter Plate Holes
A,B
C,D
C,D
A
D
D
B
RED: 24
BLACK/WHITE: G
2. Use the included 3-position terminal block to connect
the line input wires to the line power as shown in the
following diagram.
Connect High Voltage Wiring (Class 2 Wiring Removed
for Clarity)
Installation Guide – DOC. 6747A Wall Mount 50 Watt Cresnet Power Supply: GLA-PWSI50 • 5
50 Watt Cresnet Power Supply Crestron GLA-PWSI50
Installation
The GLA-PWSI50 mounts to the adapter plate using the
four included screws. Refer to the following diagram
when installing the GLA-PWSI50.
NOTE: Ensure that the wires will not be pinched during
the installation process by pushing the wires into the
backbox.
Install GLA-PWSI50 (Wires Removed for Clarity)
ADAPTER PLATE
GLA-PWSI50
ELECTRICAL BOX COVER SCREWS,
(SUPPLIED), QUAN 4
NOTE: The GLA-PWSI50 should never be installed
with the label facing down.
• To ensure proper ventilation, do not cover the
ventilation holes on the front of the unit.
• Turn on the circuit breaker after completing
installation. The green LED will illuminate
CAUTION: Only use the specified type of fuse
when replacing a blown fuse. Failure to do so
may cause damage to the GLA-PWSI50.
FUSE TYPE: 5 x 20mm 3.15A Time Lag
5. Insert the fuse holder into the GLA-PWSI50.
6. Push in the fuse holder with a flat head
screwdriver. While pushing in the fuse holder,
turn the screwdriver clockwise until the fuse
holder sinks in.
7. Push in the fuse holder a little further and turn
the screwdriver clockwise until the fuse holder
locks in place.
8. Connect power to the GLA-PWSI50.
Problem Solving
Troubleshooting
The following table provides corrective action for
possible trouble situations. If further assistance is
required, please contact a Crestron customer service
representative.
GLA-PWSI50 Troubleshooting
TROUBLE POSSIBLE
LED does
not turn on.
CAUSE(S)
Circuit breaker is off. Verify that circuit
Fuse is blown. Check fuse and
GLA-PWSI50 is not
properly connected.
CORRECTIVE
ACTION
breaker is on.
replace if necessary.
Verify wiring.
Fuse Replacement
If the GLA-PWSI50 does not power up when it is
connected to line power, the fuse may need to be replaced.
The fuse holder is located on the right side of the power
supply (next to the LED). To replace the fuse:
1. Disconnect power to the GLA-PWSI50.
2. Use a flat-head screwdriver to push in the fuse
holder.
3. While pushing in the fuse holder, turn
screwdriver counterclockwise until the fuse
Further Inquiries
If you cannot locate specific information or have
questions after reviewing this guide, pl ease t ake
advantage of Crestron's award winning customer service
team by calling Crestron at 1-888-CRESTRON
[1-888-273-7876].
You can also log onto the online help section of the
Crestron website (www.crestron.com/onlinehelp) to ask
questions about Crestron products. First-time users will
need to establish a user account to fully benefit from all
available features.
holder pops out.
4. Remove the fuse from the fuse holder and insert
a new fuse.
6 • Wall Mount 50 Watt Cresnet Power Supply: GLA-PWSI50 Installation Guide – DOC. 6747A
50 Watt Cresnet Power Supply Crestron GLA-PWSI50
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be retu rned for credit, exchange or service without prior authorization from
CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized
CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an
RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the
problem, name and phone number of contact person, RMA number and return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return Merchandise
Authorization (RMA) number. Authorized returns must be shipped freight prepaid to
CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number
clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA
number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute
discretion to charge a 15% restocking fee plus shipping costs on any products returned with an
RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials and
workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON,
with the following exceptions: disk driv es and any other moving or rotating mechanical parts, pan/tilt heads and
power supplies are covered for a period of one (1) year; touchscreen display and overlay components are
covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer.
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended or if it has been subjected to misuse, accidental damage,
modification or improper installation procedures. Furthermore, this warranty does not cover any product that
has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON
be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising
from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by
the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor.
Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired
portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied,
nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or
fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of
this limited warranty. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of
Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corpora tion.
Installation Guide – DOC. 6747A Wall Mount 50 Watt Cresnet Power Supply: GLA-PWSI50 • 7
50 Watt Cresnet Power Supply Crestron GLA-PWSI50
This page is intentionally left blank.
8 • Wall Mount 50 Watt Cresnet Power Supply: GLA-PWSI50 Installation Guide – DOC. 6747A
Loading...
