Connectors
HHDDMMII OOUUTT::
(1) 19-pin Type A HDMI female;
HDMI digital video/audio output;
Provides pass-thru signal from HDMI IN for system expansion
HHDDMMII IINN::
(1) 19-pin Type A HDMI female;
HDMI digital video/audio input
UUSSBB HHIIDD::
(1) USB Type B female;
USB 1.1 port for connection to source device’s mouse, keyboard, or game controller input
AAUUDDIIOO OOUUTT LL –– RR::
(2) RCA female;
Unbalanced stereo line-level audio output;
Provides analog audio pass-thru signal converted from HDMI INPUT to feed multi-room
audio distribution system;
Maximum Output Level: 2 V
RMS
;
Output Impedance: 100 ohms nominal
Construction
Plug-in card, occupies (1) DM Switcher input card slot, includes steel faceplate
w/black matte powder coat finish
Weight
8.0 oz (227 g)
CCrreessttrroonn DDMMCC--HHDD--DDSSPP

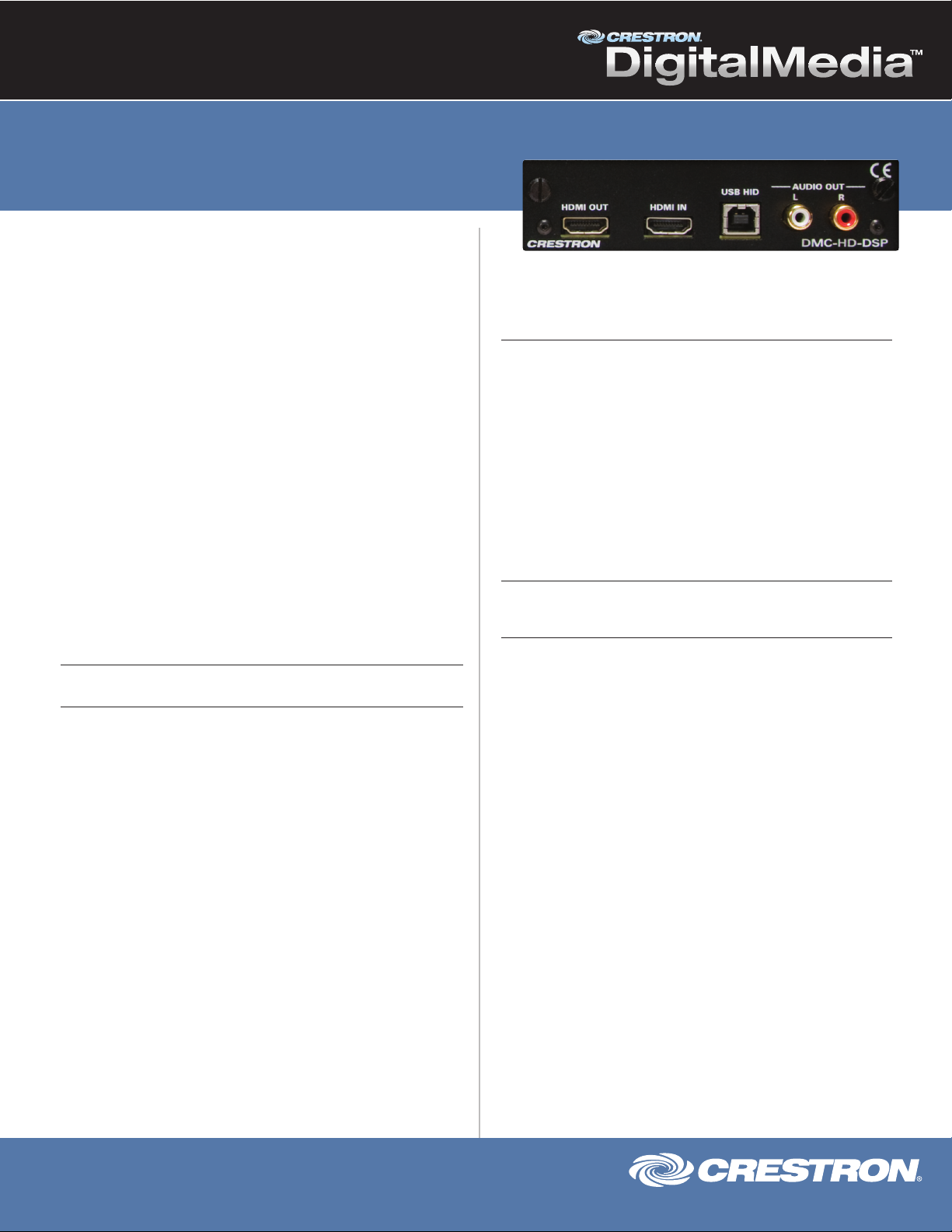

The DMC-HD-DSP is an input card for a Crestron DigitalMedia™Switcher, providing
one HDMI input. The DMC-HD-DSP supports HDMI 1.3 w/Deep Color and HDCP,
handling 1080p/60 HDTV and WUXGA computer resolutions, and multi-channel
HD lossless audio - all through a single HDMI cable.
The DMC-HD-DSP provides all of the features of the DMC-HD with the addition of
internal DSP processing to enable the simultaneous distribution of uncompressed
7.1 channel HD surround sound and 2-channel audio. The DMC-HD-DSP is
recommended for use with Blu-ray Disc™ players and other HD sources that output
multi-channel surround sound audio via HDMI, allowing the multi-channel signal
to reach the surround sound system without requiring any decoding, while also
providing a 2-channel down-mix to feed a stereo zone or audio distribution system.
Additional connections on the card include an HDMI pass-thru output, a stereo
analog audio pass-thru output, and a USB HID port. The HDMI output simply
passes the input signal through to feed a local device, or to feed a second DM
switcher for output expansion purposes. The analog audio output breaks out
the stereo audio signal from the HDMI input and passes it through to feed a
CNX-PAD8A, AAE, or other multi-room audio distribution system.*
The USB HID port allows a remote mouse/keyboard or game controller, connected
at the display location, to control a centralized source device (i.e. computer, game
console, media server, etc.) at the equipment rack.
SPECIFICATIONS
Video
SSiiggnnaall TTyyppeess::
HDMI 1.3 w/Deep Color w/HDCP 1.1 copy protection protocol
Audio
SSiiggnnaall TTyyppeess::
HDMI 1.3 supporting HD lossless multi-channel up to 7.1, analog converted
stereo pass-thru, 2-channel down-mix enabling simultaneous uncompressed multi-channel
and stereo output signals
PPrroocceessssoorr::
Cirrus Logic
®
CS49700 HD Audio Decoder DSP with dual 32-bit cores
SSuurrrroouunndd SSoouunndd FFoorrmmaattss
: Bypass, Stereo, PCM 96/24, MLP Lossless
™
, Dolby®Pro Logic IIx,
Dolby Digital 5.1, Dolby Digital EX, Dolby TrueHD, DTS Neo:6, DTS Virtual, DTS Digital 5.1
Discrete, DTS ES 6.1 Discrete, DTS ES 6.1 Matrix, DTS 96/24, DTS-HD Master Audio
™
DDiiggiittaall--TToo--AAnnaalloogg CCoonnvveerrssiioonn::
24-bit 48 kHz
PPeerrffoorrmmaannccee ((aannaalloogg))::
Frequency Response: 20Hz to 20kHz ±0.5dB;
S/N Ratio: >95dB, 20Hz to 20kHz A-weighted;
THD+N: <0.005% @ 1kHz;
Stereo Separation: >90dB
HDMI Input Card w/DSP
for DM Switchers
www.crestron.com|800.237.2041
Crestron Electronics, Inc.
15 Volvo DrivelRockleigh, NJ 07647
Tel: 800.237.2041 / 201.767.3400lFax: 201.767.1903
Specifications subject to change without notice. Doc.4770 01/09
