SmarTouch
TM
overview
Crestron’s SmarTouchTMfamily of compact touchpanels has
long been a popular choice for all types of control applications.
A 5.7” touchscreen display and sleek, portable design result
in an ideal user-interface for controlling home theater,
boardrooms, training rooms, house of worship, and a
host of other uses.
A wide selection of SmarTouch touchpanels is offered.
All 1700-Series models feature 16-bit Isys®color graphics
on a bright QVGA display, plus optional hard-buttons
for improved tactile response. Take you pick of the
STX-1700CXP for long-range 2-way RF wireless
performance, the STX-1700C for 2-way wireless with
roaming capability, or the ST-1700C for cost-effective
1-way RF wireless. The new ST-1700CIR provides an IR
SmarTouchTMTouchpanels
wireless alternative, enabling wireless touchpanel control
in RF-prohibitive environments. For non-wireless applications,
choose the TPS-1700, providing all the same features in a
wired Cresnet configuration.
The STX-1700CXPW and STX-1700CW provide the
benefits of 2-way RF wireless with the added convenience
of a wall mount docking station. And, where cost is of the
greatest significance, the economical ST-1550C and
CT-1550 afford a choice of 1-way RF wireless or wired
operation in a low-cost package featuring a ColorTouch
passive matrix display.
With 9 models in all, SmarTouch touchpanels are clearly an
easy – and smart – choice.
TM
SmarTouch
TM
cross reference
Wireless Wall Mount Wireless Wired
STX-1700CXP STX-1700C ST-1700C ST-1550C ST-1700CIR STX-1700CXPW STX-1700CW TPS-1700 CT-1550
Touchscreen Display
Display Size & Type 5.7" Active 5.7" Active 5.7" Active 5.7" Passive 5.7" Active 5.7" Active 5.7" Active 5.7" Active 5.7" Passive
TFT Active Matrix
Aspect Ratio 4:3 QVGA 4:3 QVGA 4:3 QVGA 4:3 QVGA 4:3 QVGA 4:3 QVGA 4:3 QVGA 4:3 QVGA 4:3 QVGA
Resolution
Color Depth
Touchpanel Graphics
Color Depth 16-bit 64k 16-bit 64k 16-bit 64k 8-bit 256k 16-bit 64k 16-bit 64k 16-bit 64k 16-bit 64k 8-bit 256k
Synapse Image Rendering
Multimode Objects
True Feedback
Dynamic Text
Animation
Memory
RAM 8MB 8MB 8MB 8MB 8MB 8MB 8MB
Flash 4MB 4MB 4MB 1MB 4MB 4MB 4MB 4MB 1MB
Maximum Project Size
320 x 240 320 x 240 320 x 240 320 x 240 320 x 240 320 x 240 320 x 240 320 x 240 320 x 240
16-bit 64k 16-bit 64k 16-bit 64k 8-bit 256k 16-bit 64k 16-bit 64k 16-bit 64k 16-bit 64k 8-bit 256k
3MB 3MB 3MB 768k 3MB 3MB 3MB 3MB 768k
Audio
Audible “Key Click”
Enclosure
Tabletop or Handheld
Wall Mount Docking Station
Hard Buttons (optional)
Programmable 10 10 10 10 10 10 10
Engravable 10 10 10 10 10 10 10
Network
Cresnet
Wireless
2-Way RF 2.4 GHz Spread
Spectrum via TPS-RFGWX
2-Way RF 418 MHz via STRFGWX
1-Way RF 434 MHz via CNRFGWA
or MC2W
1-Way IR 38 kHz RC5 via
C2N-IRGW or CNXRMIRD
Batteries
NiMH Rechargable (Docking
Station/Charger Included)
This chart intended for summary comparison only; see each product specification for complete information.
® 2007 Crestron Electronics, Inc. Specifications subject to change.
All copyrights and trademarks property of their respective owners.
SMARTOUCH
TOUCHPANELS
SmarTouch Wireless Touchpanels
SmarTouch™ 2-Way Spread Spectrum Wireless Touchpanel STX-1700CXP
The STX-1700CXP is a high-performance 2-way wireless
touchpanel featuring a brilliant 5.7" active matrix touchscreen
and optional pushbuttons in a stylish and compact portable
design. Long-range spread spectrum RF and Isys color
graphics combine to deliver outstanding touchpanel
performance with complete freedom of movement for
the most demanding control applications.
SmarTouchTM—A SmarTouch touchpanel offers an ideal
user-interface for controlling home theater, boardroom AV
and a host of other applications, providing a wide open
canvas for the creation of custom control screens tailored to
the user’s unique needs and tastes. Incredibly compact and
portable, the SmarTouch touchpanel does away with piles of
remotes and cryptic control panels, affording true “one-
touch” control over a broad range of complex devices and
systems.
2-Way Spread Spectrum RF Wireless—Crestron’s 2.4
GHz spread spectrum RF technology provides reliable
long-range wireless operation up to 150 feet indoors
using a single TPS-RFGWX RF gateway (sold separately).
Bidirectional communication supports true-feedback and
dynamic text capability to enable display of all kinds of data –
from system power status and audio settings to digital media
playlists, satellite radio program guides, alert messages,
room temperature, lighting levels, and much more.
Extended bandwidth makes the STX-1700CXP ideal for
applications employing large amounts of dynamic text or
multiple wireless touchpanels. “WiFi friendly” technology
permits selection from 10 possible bands within the 2.4 GHz
spectrum to prevent interference with 802.11 devices and
other non-Crestron RF equipment.
Isys®—The powerful Isys engine produces astonishing
16-bit full-color graphics with lightning-fast performance
and incredible versatility. The 32-bit Freescale ColdFire
microprocessor combines with an ingenious and ultra
efficient operating system to support high-resolution
graphics and images, dynamic text, animations, multimode
objects, subpages, and more.
Synapse™—Crestron's exclusive Synapse Image Rendering
Algorithm enables system programmers to produce amazing
graphics – faster and easier. Advanced antialiasing delivers
crisper, sharper objects and text. Enhanced 3D effects add
new depth and style. And because Synapse is native to the
touchpanel, memory requirements and upload time are
substantially reduced.
TM
Quick-Touch Pushbuttons—The STX-1700CXP includes
smartouch
a button bezel kit which may be installed to provide ten
tactile pushbuttons for quick-touch access to frequently
used commands. In standby, the pushbuttons may be
operated without waking the touchscreen for extended
battery life. Custom engraving of the pushbuttons may be
attained using Crestron Engraver software.
Long-Life NiMH Batteries—A fast-charging NiMH battery
pack is included to provide long-lasting wireless operation,
with adjustable power management built in to preserves
battery life up to 20 hours in standby.
Docking Station/Charger—Without removing the battery
pack, the touchpanel can be placed in the ST-DSN docking
station (included) for easy recharging, simultaneously
providing operating power to the touchpanel. The docking
station may also be used to recharge a spare ST-BTPN
battery pack (sold separately). And if necessary, the
touchpanel may even be powered directly using the
PW-1215 power pack (included).
®
“WiFi Friendly” 2-way Spread Spectrum RF wireless
5.7" active matrix touchscreen display |320 x 240 resolution
Isys®graphics engine |SynapseTMImage Rendering Algorithm
10 quick-touch pushbuttons (optional) |audible “key click”
Long-lasting NiMH batteries |docking station/charger included
Lightweight contoured design for tabletop and handheld use
SPECIFICATIONS
Touchscreen Display
Display Type: TFT Active matrix color LCD
Size: 5.7 inch (14.5 cm) diagonal
Aspect Ratio: 4:3 QVGA
Resolution: 320 x 240 pixels
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
> continued
155
SMARTOUCH
SmarTouchTMWireless Touchpanels
STX-1700CXP SmarTouch™ 2-Way Spread Spectrum Wireless Touchpanel (continued)
TM
TOUCHPANELS
Color Depth: 16-bit, 64k colors
Illumination: Backlit fluorescent
Viewing Angle: ±65° horizontal, +65°/-40° vertical
Touchscreen: Resistive membrane
Buttons
(10) Replaceable engravable buttons, programmable
Requires installation of button bezel kit (included)
Wireless
RF Transceiver: “Wi-Fi friendly” 2.4 GHz spread spectrum 2-way
RF (2400 to 2483 MHz)
Range: 3 to 150 feet min/max indoor, 1000 feet outdoor
TPS-RFGWX RF Gateway required (maximum 15 touchpanels
per gateway)
Processor
CPU: 32-bit Freescale ColdFire
Memory
DRAM: 8 MB
Flash: 4 MB
Maximum Project Size: 3 MB
Graphic Engine
Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse
touchpanels
image rendering algorithm; multi-mode objects; animation
TM
Audio
Built-in transducer for “key click” sound
Connectors
Power: (1) 2.5mm barrel DC power jack
12 Volt DC power input (PW-1215 power supply included)
Cresnet Upload: (1) 3.5 mm mini TRS phone jack
Connects to Cresnet control network while uploading only
smartouch
Battery
Model/Type: ST-BTPN battery pack, NiMH, 4.8 Volt, 4100 mAh
Usage per Charge: ~3 hours continuous use at full brightness,
20 hours in standby
Charging Time: 2.7 to 6 hours (depending upon use
while charging)
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (ST-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PW-1215 included): 120 Volts AC @ 60Hz
®
Microprocessor
Environmental
Temperature: 50° to 113°F (10° to 45°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Construction: High impact black/silver injection-molded case
Dimensions
Height: 3.85 in (9.78 cm)
Width: 8.75 in (22.23 cm)
Depth: 5.51 in (14.00 cm)
Weight
1.85 lbs (0.84 kg) – not including battery or docking station
INTERNATIONAL VERSION (230 VAC)
STXI-1700CXP
All the features and specifications of the STX-1700CXP except:
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (STI-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PWI-1215 included): 230 Volts AC @ 50Hz
INCLUDED ACCESSORIES
(See individual product specifications for complete information)
ST(I)-DSN
Docking Station
ST-BTPN
Battery Pack
PW(I)-1215
12 Volt Power Pack
1700C-BTNB-BEZELS-BLANK
Button and Bezel Kit
(engraving sold separately)
156
AVAILABLE ACCESSORIES
TPS-RFGWX
2-Way Spread Spectrum
RF Gateway
1700C-BTNB
Set of 10 Black Button Caps
with Engraving
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
1700C-BTNS
Set of 10 Silver Button Caps
with Engraving
ST-PK
Programming Cable Kit
> continued
SMARTOUCH
TOUCHPANELS
SmarTouchTMWireless Touchpanels
SmarTouch™ 2-Way Wireless Touchpanel STX-1700C
The STX-1700C is a stylish and compact 2-way wireless
touchpanel featuring a brilliant 5.7" active matrix touchscreen
and optional pushbuttons. Isys color graphics and reliable RF
communications combine to deliver amazing touchpanel
performance with complete freedom of movement.
SmarTouchTM—A SmarTouch touchpanel offers an ideal user-
interface for controlling home theater, boardroom AV and a
host of other applications, providing a wideopen canvas for
the creation of custom control screens tailored to the user’s
unique needs and tastes. Incredibly compact and portable,
the SmarTouch touchpanel does away with piles of remotes
and cryptic control panels, affording true “one-touch” control
over a broad range of complex devices and systems.
2-Way RF Wireless with Roaming—With an indoor range of
50 feet using a single STRFGWX RF gateway (sold separately),
the STX-1700C is excellent for small, single room applications,
and for roaming applications utilizing multiple gateways.
Bidirectional communication supports true-feedback and
dynamic text capability to enable display of all kinds of data –
from system power status and audio settings to digital media
playlists, satellite radio program guides, alert messages, room
temperature, lighting levels, and much more.
Isys®—The powerful Isys engine produces astonishing
16-bit full-color graphics with lightning-fast performance
and incredible versatility. The 32-bit Freescale ColdFire
microprocessor combines with an ingenious and ultra
efficient operating system to support high-resolution graphics
and images, dynamic text, animations, multimode objects,
subpages, and more.
TM
smartouch
Docking Station/Charger—Without removing the battery
pack, the touchpanel can be placed in the ST-DSN docking
station (included) for easy recharging, simultaneously providing
operating power to the touchpanel. The docking station may
also be used to recharge a spare ST-BTPN battery pack (sold
separately). And if necessary, the touchpanel may even be
powered directly using the PW-1215 power pack (included).
2-way RF wireless with roaming capability
®
5.7" active matrix touchscreen display |320 x 240 resolution
Isys®graphics engine |SynapseTMImage Rendering Algorithm
10 quick-touch pushbuttons (optional) |audible “key click”
Long-lasting NiMH batteries |docking station/charger included
Lightweight contoured design for tabletop and handheld use
TM
touchpanels
Synapse™—Crestron's exclusive Synapse Image Rendering
Algorithm enables system programmers to produce amazing
graphics – faster and easier. Advanced antialiasing delivers
crisper, sharper objects and text. Enhanced 3D effects add
new depth and style. And because Synapse is native to the
touchpanel, memory requirements and upload time are
substantially reduced.
Quick-Touch Pushbuttons—The STX-1700C includes
a button bezel kit which may be installed to provide ten
tactile pushbuttons for quick-touch access to frequently
used commands. In standby, the pushbuttons may be
operated without waking the touchscreen for extended
battery life. Custom engraving of the pushbuttons may be
attained using Crestron Engraver software.
Long-Life NiMH Batteries—A fast-charging NiMH battery
pack is included to provide long-lasting wireless operation,
with adjustable power management built in to preserves
battery life up to 20 hours in standby.
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SPECIFICATIONS
Touchscreen Display
Display Type: TFT Active matrix color LCD
Size: 5.7 inch (14.5 cm) diagonal
Aspect Ratio: 4:3 QVGA
Resolution: 320 x 240 pixels
Color Depth: 16-bit, 64k colors
Illumination: Backlit fluorescent
Viewing Angle: ±65° horizontal, +65°/-40° vertical
Touchscreen: Resistive membrane
Buttons
(10) Replaceable engravable buttons, programmable
Requires installation of button bezel kit (included)
Wireless
RF Transceiver: 418 MHz 2-way RF
Range: 3 to 50 feet min/max indoor, 150 feet outdoor
STRFGWX RF Gateway required (maximum 15 touchpanels
per gateway)
> continued
157
SMARTOUCH
SmarTouchTMWireless Touchpanels
STX-1700C SmarTouch™ 2-Way Wireless Touchpanel (continued)
TM
TOUCHPANELS
Processor
CPU: 32-bit Freescale ColdFire
Memory
DRAM: 8 MB
Flash: 4 MB
Maximum Project Size: 3 MB
Graphic Engine
Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse
image rendering algorithm; multi-mode objects; animations
Audio
Built-in transducer for “key click” sound
Connectors
Power: (1) 2.5mm barrel DC power jack
12 Volt DC power input (PW-1215 power supply included)
Cresnet Upload: (1) 3.5 mm mini TRS phone jack
Connects to Cresnet control network while uploading only
Battery
Model/Type: ST-BTPN battery pack, NiMH, 4.8 Volt, 4100 mAh
Usage per Charge: ~3 hours continuous use at full brightness,
20 hours in standby
Charging Time: 2.7 to 6 hours (depending upon use
touchpanels
TM
while charging)
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (ST-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PW-1215 included): 120 Volts AC @ 60Hz
Environmental
Temperature: 50° to 113°F (10° to 45°C)
smartouch
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Construction: High impact black/silver injection-molded case
Dimensions
Height: 3.85 in (9.78 cm)
Width: 8.75 in (22.23 cm)
Depth: 5.51 in (14.00 cm)
Weight
1.85 lbs (0.84 kg) – not including battery or docking station
®
Microprocessor
INTERNATIONAL VERSION (230 VAC)
STXI-1700C
All the features and specifications of the STX-1700C except:
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (STI-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PWI-1215 included): 230 Volts AC @ 50Hz
INCLUDED ACCESSORIES
(See individual product specifications for complete information)
ST(I)-DSN
Docking Station
ST-BTPN
Battery Pack
PW(I)-1215
12 Volt Power Pack
1700C-BTNB-BEZELS-BLANK
Button and Bezel Kit (engraving sold separately)
158
AVAILABLE ACCESSORIES
STRFGWX(I)
2-Way 418 MHz RF Gateway
1700C-BTNB
Set of 10 Black Button Caps
with Engraving
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
1700C-BTNS
Set of 10 Silver Button Caps
with Engraving
ST-PK
Programming Cable Kit
SMARTOUCH
TOUCHPANELS
SmarTouchTMWireless Touchpanels
SmarTouch™ 1-Way Wireless Touchpanel ST-1700C
The ST-1700C is a stylish and compact 1-way wireless
touchpanel featuring a brilliant 5.7" active matrix
touchscreen and optional pushbuttons. Isys color
graphics and long-range RF communications combine
to deliver amazing touchpanel performance with complete
freedom of movement.
SmarTouchTM—A SmarTouch touchpanel offers an ideal
user-interface for controlling home theater, boardroom
AV and a host of other applications, providing a wideopen
canvas for the creation of custom control screens tailored
to the user’s unique needs and tastes. Incredibly compact
and portable, the SmarTouch touchpanel does away with
piles of remotes and cryptic control panels, affording true
“one-touch” control over a broad range of complex devices
and systems.
1-Way RF Wireless—Crestron's proven RF wireless
technology affords an operational range of up to 300
feet without the line-of-sight limitations typical of cheaper
IR (infrared) methods. Long-range 434 MHz 1-way RF
communication enables compatibility with any Crestron
control system via the CNRFGWA gateway (sold separately).
The ST-1700C is also ideal for use with Crestron's MC2W
Integrated Wireless Control System, providing a very cost-
effective yet powerful room control solution.
Isys®—The powerful Isys engine produces astonishing 16-bit
full-color graphics and images. Programmable logic built into
the ST-1700C enables virtual button feedback and subpages,
affording considerable versatility for a 1-way touchpanel to
deliver the “feel” of a more expensive 2-way panel.
TM
Docking Station/Charger—Without removing the battery
pack, the touchpanel can be placed in the ST-DSN docking
station (included) for easy recharging, simultaneously
providing operating power to the touchpanel. The docking
station may also be used to recharge a spare ST-BTPN
battery pack (sold separately). And if necessary, the
touchpanel may even be powered directly using the
PW-1215 power pack (included).
1-way RF wireless |300 foot range
5.7" active matrix touchscreen display |320 x 240 resolution
Isys®graphics engine |SynapseTMImage Rendering Algorithm
10 quick-touch pushbuttons (optional) |audible “key click”
Long-lasting NiMH batteries |docking station/charger included
Lightweight contoured design for tabletop and handheld
smartouch
TM
touchpanels
Synapse™—Crestron's exclusive Synapse Image Rendering
Algorithm enables system programmers to produce amazing
graphics – faster and easier. Advanced antialiasing delivers
crisper, sharper objects and text. Enhanced 3D effects add
new depth and style. And because Synapse is native to the
touchpanel, memory requirements and upload time are
substantially reduced.
Quick-Touch Pushbuttons—The ST-1700C includes a
button bezel kit which may be installed to provide ten
tactile pushbuttons for quick-touch access to frequently
used commands. In standby, the pushbuttons may be
operated without waking the touchscreen for extended
battery life. Custom engraving of the pushbuttons may
be attained using Crestron Engraver software.
Long-Life NiMH Batteries—A fast-charging NiMH battery
pack is included to provide long-lasting wireless operation,
with adjustable power management built in to preserves
battery life up to 20 hours in standby.
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SPECIFICATIONS
Touchscreen Display
Display Type: TFT Active matrix color LCD
Size: 5.7 inch (14.5 cm) diagonal
Aspect Ratio: 4:3 QVGA
Resolution: 320 x 240 pixels
Color Depth: 16-bit, 64k colors
Illumination: Backlit fluorescent
Viewing Angle: ±65° horizontal, +65°/-40° vertical
Touchscreen: Resistive membrane
Buttons
(10) Replaceable engravable buttons, programmable
Requires installation of button bezel kit (included)
Wireless
RF Transmitter: 433.92 (434) MHz 1-way RF
Range: 300 feet maximum
CNRFGWA RF Gateway required
(maximum 15 touchpanels per gateway)
> continued
159
SMARTOUCH
SmarTouchTMWireless Touchpanels
ST-1700C SmarTouch™ 1-Way Wireless Touchpanel (continued)
TM
TOUCHPANELS
Processor
CPU: 32-bit Freescale ColdFire
Memory
DRAM: 8 MB
Flash: 4 MB
Maximum Project Size: 3 MB
Graphic Engine
Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse
image rendering algorithm; local animation
Audio
Built-in transducer for “key click” sound
Connectors
Power: (1) 2.5mm barrel DC power jack
12 Volt DC power input (PW-1215 power supply included)
Cresnet Upload: (1) 3.5 mm mini TRS phone jack
Connects to Cresnet control network while uploading only
Battery
Model/Type: ST-BTPN battery pack, NiMH, 4.8 Volt, 4100 mAh
Usage per Charge: ~3 hours continuous use at full brightness,
20 hours in standby
Charging Time: 2.7 to 6 hours (depending upon use
touchpanels
TM
while charging)
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (ST-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PW-1215 included): 120 Volts AC @ 60Hz
Environmental
Temperature: 50° to 113°F (10° to 45°C)
smartouch
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Construction: High impact black/silver injection-molded case
Dimensions
Height: 3.85 in (9.78 cm)
Width: 8.75 in (22.23 cm)
Depth: 5.51 in (14.00 cm)
Weight
1.85 lbs (0.84 kg) – not including battery or docking station
®
Microprocessor
INTERNATIONAL VERSION (230 VAC)
STI-1700C
All the features and specifications of the ST-1700C except:
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (STI-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PWI-1215 included): 230 Volts AC @ 50Hz
INCLUDED ACCESSORIES
(See individual product specifications for complete information)
ST(I)-DSN
Docking Station
ST-BTPN
Battery Pack
PW(I)-1215
12 Volt Power Pack
1700C-BTNB-BEZELS-BLANK
Button and Bezel Kit (engraving sold separately)
160
AVAILABLE ACCESSORIES
CNRFGWA
1-Way 434 MHz
RF Gateway
1700C-BTNB
Set of 10 Black Button Caps
with Engraving
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
1700C-BTNS
Set of 10 Silver Button Caps
with Engraving
ST-PK
Programming Cable Kit
SMARTOUCH
TOUCHPANELS
SmarTouchTMWireless Touchpanels
SmarTouch™ Economical 1-Way Wireless Touchpanel ST-1550C
The ST-1550C is an economical wireless touchpanel featuring
a 5.7" passive matrix color touchscreen in a stylish and
compact portable design. Long-range RF communications
and 256 color graphics combine to deliver excellent, cost-
efficient touchpanel performance with complete freedom
of movement.
SmarTouchTM—A SmarTouch touchpanel offers an ideal
user-interface for controlling home theater, boardroom AV
and a host of other applications, providing a wideopen
canvas for the creation of custom control screens tailored to
the user’s unique needs and tastes. Incredibly compact and
portable, the SmarTouch touchpanel does away with piles of
remotes and cryptic control panels, affording true “one-
touch” control over a broad range of complex devices and
systems.
1-Way RF Wireless—Crestron’s proven RF wireless
technology affords an operational range of up to 300 feet
without the line-of-sight limitations typical of cheaper IR
(infrared) methods. Long-range 434 MHz 1-way RF
communication enables compatibility with any Crestron
control system via the CNRFGWA gateway (sold separately).
The ST-1550C is also ideal for use with Crestron's MC2W
Integrated Wireless Control System, providing a very cost-
effective yet powerful room control solution.
Programmable logic built into the ST-1550C enables virtual
button feedback and subpages, affording considerable
versatility for a 1-way touchpanel to deliver the “feel” of a
more expensive 2-way panel.
Long-Life NiMH Batteries—A fast-charging NiMH battery
pack is included to provide long-lasting wireless operation,
with adjustable power management built in to preserves
battery life up to 20 hours in standby.
Docking Station/Charger—Without removing the battery
pack, the touchpanel can be placed in the ST-DSN docking
station (included) for easy recharging, simultaneously
providing operating power to the touchpanel. The docking
station may also be used to recharge a spare ST-BTPN
battery pack (sold separately). And if necessary, the
touchpanel may even be powered directly using the
PW-1215 power pack (included).
1-way RF wireless |300 foot range
5.7" passive matrix touchscreen display |320 x 240 resolution
256 color graphics |audible “key click” feature
Long-lasting NiMH batteries |docking station/charger included
Lightweight contoured design for tabletop and handheld use
TM
SPECIFICATIONS
Touchscreen Display
Display Type: Passive matrix color LCD
Size: 5.7 inch (14.5 cm) diagonal
Aspect Ratio: 4:3 QVGA
Resolution: 320 x 240 pixels
Color Depth: 8-bit, 256 colors
Illumination: Backlit fluorescent
Viewing Angle: ±50° horizontal, +40°/-50° vertical
Touchscreen: Resistive membrane
Wireless
RF Transmitter: 433.92 (434) MHz 1-way RF
Range: 300 feet maximum
CNRFGWA RF Gateway required
(maximum 15 touchpanels per gateway)
Memory
Flash: 1MB
Maximum Project Size: 768 kB
Graphic Engine
ColorTouch
Audio
Built-in transducer for “key click” sound
Connectors
Power: (1)) 2.5mm barrel DC power jack
12 Volt DC power input (PW-1215 power supply included)
Cresnet Upload: (1) 3.5 mm mini TRS phone jack
Connects to Cresnet control network while uploading only
Battery
Model/Type: ST-BTPN battery pack, NiMH, 4.8 Volt, 4100 mAh
Usage per Charge: ~4.3 hours continuous use at full brightness,
20 hours in standby
Charging Time: 2.7 to 6 hours (depending upon use
while charging)
TM
256 colors
> continued
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
161
SMARTOUCH
SmarTouchTMWireless Touchpanels
ST-1550C SmarTouch™ Economical 1-Way Wireless Touchpanel (continued)
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (ST-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PW-1215 included): 120 Volts AC @ 60Hz
Environmental
Temperature: 50° to 113°F (10° to 45°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Construction: High impact black/silver injection-molded case
Dimensions
Height: 3.69 in (9.37 cm)
Width: 8.75 in (22.23 cm)
Depth: 5.42 in (13.77 cm)
Weight
1.85 lbs (0.84 kg) – not including battery or docking station
TM
TOUCHPANELS
INTERNATIONAL VERSION (230 VAC)
STI-1550C
All the features and specifications of the ST-1550C except:
Power Requirements
touchpanels
TM
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (STI-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PWI-1215 included): 230 Volts AC @ 50Hz
INCLUDED ACCESSORIES
(See individual product specifications for complete information)
ST(I)-DSN
Docking Station
smartouch
ST-BTPN
Battery Pack
PW(I)-1215
12 Volt Power Pack
162
AVAILABLE ACCESSORIES
CNRFGWA
1-Way 434 MHz
RF Gateway
ST-PK
Programming Cable Kit
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
SmarTouchTMWireless Touchpanels
TM
TOUCHPANELS
SmarTouch
The ST-1700CIR is a stylish and compact IR wireless
touchpanel featuring a brilliant 5.7" active matrix touchscreen
and optional pushbuttons. Isys color graphics and infrared
communications combine to deliver outstanding wireless
touchpanel performance for applications that may not allow
the use of RF-based technologies.
SmarTouchTM—A SmarTouch touchpanel offers an ideal
user-interface for controlling home theater, boardroom AV
and a host of other applications, providing a wideopen
canvas for the creation of custom control screens tailored to
the user’s unique needs and tastes. Incredibly compact and
portable, the SmarTouch touchpanel does away with piles of
remotes and cryptic control panels, affording true “one-
touch” control over a broad range of complex devices and
systems.
IR Wireless—Affords an operational range of up to 50 feet
line-of-sight. The ST-1700CIR is compatible with any Crestron
control system via a C2N-IRGW IR Gateway or with select
systems using the CNXRMIRD IR Receiver (both sold
separately).
Isys®—The powerful Isys engine produces astonishing
16-bit full-color graphics and images. Programmable logic
built into the ST-1700CIR enables virtual button feedback
and subpages, affording considerable versatility for a
1-way touchpanel to deliver the “feel” of a more expensive
2-way RF-based panel.
SynapseTM—Crestron’s exclusive Synapse Image Rendering
Algorithm enables system programmers to produce amazing
graphics - faster and easier. Advanced antialiasing delivers
crisper, sharper objects and text. Enhanced 3D effects add
new depth and style. And because Synapse is native to the
touchpanel, memory requirements and upload time are
substantially reduced.
Quick-Touch Pushbuttons—The ST-1700CIR includes
a button bezel kit which may be installed to provide ten
tactile pushbuttons for quick-touch access to frequently
used commands. In standby, the pushbuttons may be
operated without waking the touchscreen for extended
battery life. Custom engraving of the pushbuttons may
be attained using Crestron Engraver software.
Long-Life NiMH Batteries—A fast-charging NiMH battery
pack is included to provide long-lasting wireless operation,
with adjustable power management built in to preserves
battery life up to 20 hours in standby.
Docking Station/Charger—Without removing the battery
pack, the touchpanel can be placed in the ST-DSN docking
TM
IR Wireless Touchpanel ST-1700CIR
station (included) for easy recharging, simultaneously
providing operating power to the touchpanel. The docking
station may also be used to recharge a spare ST-BTPN
battery pack (sold separately). And if necessary, the
touchpanel may even be powered directly using the
PW-1215 power pack (included).
1-way IR wireless
5.7" active matrix touchscreen display |320 x 240 resolution
Isys graphics engine |Synapse Image Rendering Algorithm
10 quick-touch pushbuttons (optional) |audible “key click”
Long-lasting NiMH batteries |docking station/charger included
Lightweight contoured design for tabletop and handheld use
SPECIFICATIONS
Touchscreen Display
Display Type: TFT active matrix color LCD
Size: 5.7 inch (14.5 cm) diagonal
Aspect Ratio: 4:3 QVGA
Resolution: 320 x 240 pixels
Color Depth: 16-bit, 64k colors
Illumination: Backlit fluorescent
Viewing Angle: ±65° horizontal, +65°/-40° vertical
Touchscreen: Resistive membrane
Buttons
(10) Replaceable engravable buttons, programmable
Requires installation of button bezel kit (included)
Wireless
IR Carrier: 38 kHz
Format: RC5
Range: 3 to 50 feet typical
C2N-IRGW IR Gateway or CNXRMIRD IR Receiver required
> continued
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
163
SMARTOUCH
SmarTouchTMWireless Touchpanels
TM
TOUCHPANELS
ST-1700CIR SmarTouch
Processor
CPU: 32-bit Freescale ColdFire
Memory
DRAM: 8 MB
Flash: 4 MB
Maximum Project Size: 3 MB
Graphic Engine
Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse
image rendering algorithm; local animation
Audio
Built-in transducer for “key click” sound
Connectors
Power: (1) 2.5mm barrel DC power jack
12 Volt DC power input (PW-1215 power supply included)
Cresnet Upload: (1) 3.5 mm mini TRS phone jack
Connects to Cresnet control network while uploading only
Battery
Model/Type: ST-BTPN battery pack, NiMH, 4.8 Volt, 4100 mAh
Usage per Charge: ~3 hours continuous use at full brightness,
20 hours in standby
Charging Time: 2.7 to 6 hours (depending upon use
touchpanels
TM
while charging)
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (ST-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PW-1215 included): 120 Volts AC @ 60Hz
Environmental
Temperature: 50° to 113°F (10° to 45°C)
smartouch
Humidity: 10% to 90% RH (non-condensing)
Enclosure
High impact black/silver injection-molded case
®
Microprocessor
TM
IR Wireless Touchpanel (continued)
Dimensions
Height: 3.85 in (9.78 cm)
Width: 8.75 in (22.23 cm)
Depth: 5.51 in (14.00 cm)
Weight
1.85 lbs (0.84 kg) – not including battery or docking station
INTERNATIONAL VERSION (230 VAC)
STI-1700CIR
All the features and specifications of the ST-1700CIR except:
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
Docking Station/Charger (STI-DSN included):
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PWI-1215 included): 230 Volts AC @ 50Hz
INCLUDED ACCESSORIES
(See individual product specifications for complete information)
ST(I)-DSN
Docking Station/Charger
ST-BTPN
Battery Pack
PW(I)-1215
12 Volt Power Pack
1700C-BTNB-BEZELS-BLANK
Button and Bezel Kit (engraving sold separately)
164
AVAILABLE ACCESSORIES
C2N-IRGW-1G
IR Gateway, Wall Mount
C2N-IRGW-F
IR Gateway, Flush Mount
CNXRMIRD
IR Receiver
1700C-BTNB
Set of 10 Black Button
Caps with Engraving
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
1700C-BTNS
Set of 10 Silver Button
Caps with Engraving
ST-PK
Programming Cable Kit
SMARTOUCH
SmarTouchTMWall Mount Wireless Touchpanels
TM
TOUCHPANELS
SmarTouch
The STX-1700CXPW is a stylish and compact 2-way
wireless touchpanel featuring a brilliant 5.7" active matrix
touchscreen, optional pushbuttons and in-wall docking
station. Long-range spread spectrum RF and Isys color
graphics combine to deliver outstanding touchpanel
performance with the added combination of portable
wireless and wired wall mount versatility.
SmarTouchTM—
user-interface for controlling home theater, boardroom
AV and a host of other applications, providing a wide-
open canvas for the creation of custom control screens
tailored to the user’s unique needs and tastes. Incredibly
compact and portable, the SmarTouch touchpanel does
away with piles of remotes, cryptic control panels and
cluttered wall switches, affording true “one-touch” control
over a broad range of complex devices and systems.
2-Way Spread Spectrum RF Wireless—
GHz spread spectrum RF technology provides reliable
long-range wireless operation up to 150 feet indoors
using a single TPS-RFGWX RF gateway (sold separately).
Bidirectional communication supports true-feedback and
dynamic text capability to enable display of all kinds of
data – from system power status and audio settings to
digital media playlists, satellite radio program guides,
alert messages, room temperature, lighting levels, and
much more.
Extended bandwidth makes the STX-1700CXPW ideal for
applications employing large amounts of dynamic text or
multiple wireless touchpanels. “WiFi friendly” technology
permits selection from 10 possible bands within the
2.4 GHz spectrum to prevent interference with 802.11
devices and other non-Crestron RF equipment.
Isys®—
16-bit full-color graphics with lightning-fast performance
and incredible versatility. The 32-bit Freescale ColdFire
microprocessor combines with an ingenious and ultra
efficient operating system to support high-resolution
graphics and images, dynamic text, animations,
multimode objects, subpages, and more.
SynapseTM—
Rendering Algorithm enables system programmers to
produce amazing graphics – faster and easier. Advanced
antialiasing delivers crisper, sharper objects and text.
Enhanced 3D effects add new depth and style. And
TM
Spread Spectrum Wireless Touchpanel w/Wall Mount STX-1700CXPW
A SmarTouch touchpanel offers an ideal
Crestron’s 2.4
The powerful Isys engine produces astonishing
Crestron's exclusive Synapse Image
smartouch
because Synapse is native to the touchpanel, memory
requirements and upload time are substantially reduced.
Quick-Touch Pushbuttons—
a button bezel kit which may be installed to provide ten
tactile pushbuttons for quick-touch access to frequently
used commands. In standby, the pushbuttons may be
operated without waking the touchscreen for extended
battery life. Custom engraving of the pushbuttons may
be attained using Crestron Engraver software.
Long-Life NiMH Batteries—
battery pack is included to provide long-lasting wireless
operation, with adjustable power management built in
to preserves battery life up to 20 hours in standby.
In-Wall Docking Station—
STX-1700CXPW operates as a wired touchpanel
with a direct connection to the Cresnet network. The
docking assembly also provides operating power to
®
the touchpanel while simultaneously charging the battery
pack. A software-controlled latch secures the touchpanel
when docked and is released upon pressing a button
or entering a code on the touchpanel. When released,
the STX-1700CXPW switches automatically to wireless
operation.
The STX-1700CXPW ships complete with docking
assembly and back box. The backbox includes
knockouts to accommodate conduit fittings and is
suitable for both pre- and post-construction installation.
The STX-1700CXPW includes
TM
touchpanels
A fast-charging NiMH
When docked, the
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
> continued
165
SMARTOUCH
SmarTouchTMWall Mount Wireless Touchpanels
TM
TOUCHPANELS
STX-1700CXPW SmarTouch
“WiFi Friendly” 2-way Spread Spectrum RF wireless
5.7" active matrix touchscreen display |320 x 240 resolution
Isys®Graphics Engine |SynapseTMImage Rendering Algorithm
10 quick-touch pushbuttons (optional) |audible “key click”
Long-lasting NiMH batteries |in-wall docking station/charger
Lightweight contoured design for tabletop and handheld use
SPECIFICATIONS
Touchscreen Display
Display Type: TFT Active matrix color LCD
Size: 5.7 inch (14.5 cm) diagonal
Aspect Ratio: 4:3 QVGA
Resolution: 320 x 240 pixels
Color Depth: 16-bit, 64k colors
Illumination: Backlit fluorescent
Viewing Angle: ±65° horizontal, +65°/-40° vertical
Touchscreen: Resistive membrane
Buttons
(10) Replaceable engravable buttons, programmable
Requires installation of button bezel kit (included)
Wireless
touchpanels
TM
RF Transceiver: “Wi-Fi friendly” 2.4 GHz spread spectrum 2-way
RF (2400 to 2483 MHz)
Range: 3 to 150 feet min/max indoor, 1000 feet outdoor
TPS-RFGWX RF Gateway required
(maximum 15 touchpanels per gateway)
Processor
CPU: 32-bit Freescale ColdFire
Memory
smartouch
DRAM: 8 MB
Flash: 4 MB
Maximum Project Size: 3 MB
Graphic Engine
Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse
image rendering algorithm; multi-mode objects; animation
Audio
Built-in transducer for “key click” sound
®
Microprocessor
TM
Spread Spectrum Wireless Touchpanel w/Wall Mount
Connectors
Power: (1) 2.5mm barrel DC power jack
12 Volt DC power input (PW-1215 power supply sold separately)
Cresnet Upload: (1) 3.5 mm mini TRS phone jack
Connects to Cresnet control network while uploading only
Battery
Model/Type: ST-BTPN battery pack, NiMH, 4.8 Volt, 4100 mAh
Usage per Charge: ~3 hours continuous use at full brightness,
20 hours in standby
Charging Time: 2.7 to 6 hours (depending upon use
while charging)
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
(PW-1215 power supply sold separately)
Docking Assembly (DA-1700CW included):
34 Watts Cresnet Power Usage (1.42 Amps @ 24 Volts DC)
Environmental
Temperature: 50° to 113°F (10° to 45°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Construction: High impact black/silver injection-molded case with
metal docking plate
Dimensions
Height: 3.85 in (9.78 cm)
Width: 8.75 in (22.23 cm)
Depth: 5.51 in (14.00 cm)
Weight
1.85 lbs (0.84 kg) – not including battery or docking assembly
INCLUDED ACCESSORIES
(See individual product specifications for complete information)
DA-1700CW
Docking Assembly
BB-1700CW
Back Box
ST-BTPN
Battery Pack
1700C-BTNB-BEZELS-BLANK
Button and Bezel Kit (engraving sold separately)
166
AVAILABLE ACCESSORIES
TPS-RFGWX
2-Way Spread Spectrum
RF Gateway
PW(I)-1215
12 Volt Power Pack
1700C-BTNB
Set of 10 Black Button Caps
with Engraving
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
1700C-BTNS
Set of 10 Silver Button Caps
with Engraving
ST-PK
Programming Cable Kit
SMARTOUCH
SmarTouchTMWall Mount Wireless Touchpanels
TM
TOUCHPANELS
SmarTouch
The STX-1700CW is a stylish and compact 2-way
wireless touchpanel featuring a brilliant 5.7" active matrix
touchscreen, optional pushbuttons and in-wall docking
station. Reliable RF communications and Isys color
graphics combine to deliver outstanding touchpanel
performance with the added combination of portable
wireless and wired wall mount versatility.
SmarTouchTM—
user-interface for controlling home theater, boardroom
AV and a host of other applications, providing a wide-
open canvas for the creation of custom control screens
tailored to the user’s unique needs and tastes. Incredibly
compact and portable, the SmarTouch touchpanel does
away with piles of remotes, cryptic control panels and
cluttered wall switches, affording true “one-touch” control
over a broad range of complex devices and systems.
2-Way RF Wireless with Roaming—
range of 50 feet using a single STRFGWX RF gateway
(sold separately), the STX-1700CW is excellent for small,
single room applications, and for roaming applications
utilizing multiple gateways. Bidirectional communication
supports true-feedback and dynamic text capability to
enable display of all kinds of data – from system power
status and audio settings to digital media playlists,
satellite radio program guides, alert messages, room
temperature, lighting levels, and much more.
Isys®—
The powerful Isys engine produces astonishing
16-bit full-color graphics with lightning-fast performance
and incredible versatility. The 32-bit Freescale ColdFire
microprocessor combines with an ingenious and ultra
efficient operating system to support high-resolution
graphics and images, dynamic text, animations,
multimode objects, subpages, and more.
SynapseTM—
Rendering Algorithm enables system programmers to
produce amazing graphics – faster and easier. Advanced
antialiasing delivers crisper, sharper objects and text.
Enhanced 3D effects add new depth and style. And
because Synapse is native to the touchpanel, memory
requirements and upload time are substantially reduced.
Quick-Touch Pushbuttons—
a button bezel kit which may be installed to provide ten
tactile pushbuttons for quick-touch access to frequently
used commands. In standby, the pushbuttons may be
operated without waking the touchscreen for extended
battery life. Custom engraving of the pushbuttons may
be attained using Crestron Engraver software.
A SmarTouch touchpanel offers an ideal
Crestron's exclusive Synapse Image
TM
2-Way Wireless Touchpanel with Wall Mount STX-1700CW
With an indoor
®
The STX-1700CW includes
Long-Life NiMH Batteries—
battery pack is included to provide long-lasting wireless
operation, with adjustable power management built in
to preserves battery life up to 20 hours in standby.
In-Wall Docking Station—
STX-1700CW operates as a wired touchpanel with
a direct connection to the Cresnet network. The
docking assembly also provides operating power to
the touchpanel while simultaneously charging the battery
pack. A software-controlled latch secures the touchpanel
when docked and is released upon pressing a button
or entering a code on the touchpanel. When released,
the STX-1700CW switches automatically to wireless
operation.
The STX-1700CW ships complete with docking assembly
and back box. The backbox includes knockouts to
accommodate conduit fittings and is suitable for both
pre- and post-construction installation.
2-way RF wireless with roaming capability
5.7" active matrix touchscreen display |320 x 240 resolution
Isys®graphics engine |SynapseTMImage Rendering Algorithm
10 quick-touch pushbuttons (optional) |audible “key click”
Long-lasting NiMH batteries |in-wall docking station/charger
Lightweight contoured design for tabletop and handheld use
A fast-charging NiMH
When docked, the
> continued
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
167
SMARTOUCH
SmarTouchTMWall Mount Wireless Touchpanels
TM
TOUCHPANELS
STX-1700CW SmarTouch
SPECIFICATIONS
Touchscreen Display
Display Type: TFT Active matrix color LCD
Size: 5.7 inch (14.5 cm) diagonal
Aspect Ratio: 4:3 QVGA
Resolution: 320 x 240 pixels
Color Depth: 16-bit, 64k colors
Illumination: Backlit fluorescent
Viewing Angle: ±65° horizontal, +65°/-40° vertical
Touchscreen: Resistive membrane
Buttons
(10) Replaceable engravable buttons, programmable
Requires installation of button bezel kit (included)
Wireless
RF Transceiver: 418 MHz 2-way RF
Range: 3 to 50 feet min/max indoor, 150 feet outdoor
STRFGWX RF Gateway required
(maximum 15 touchpanels per gateway)
Processor
CPU: 32-bit Freescale ColdFire
Memory
touchpanels
DRAM: 8 MB
TM
Flash: 4 MB
Maximum Project Size: 3 MB
Graphic Engine
Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse
image rendering algorithm; multi-mode objects; animation
Audio
Built-in transducer for “key click” sound
smartouch
Connectors
Power: (1)2.5mm barrel DC power jack
12 Volt DC power input (PW-1215 power supply sold separately)
Cresnet Upload: (1) 3.5 mm mini TRS phone jack
Connects to Cresnet control network while uploading only
®
Microprocessor
TM
2-Way Wireless Touchpanel with Wall Mount (continued)
Battery
Model/Type: ST-BTPN battery pack, NiMH, 4.8 Volt, 4100 mAh
Usage per Charge: ~3 hours continuous use at full brightness,
20 hours in standby
Charging Time: 2.7 to 6 hours (depending upon use
while charging)
Power Requirements
Touchpanel: 18 Watts (1.5 Amps) @ 12 Volts DC
(PW-1215 power supply sold separately)
Docking Assembly (DA-1700CW included):
34 Watts Cresnet Power Usage (1.42 Amps @ 24 Volts DC)
Environmental
Temperature: 50° to 113°F (10° to 45°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Construction: High impact black/silver injection-molded case with
metal docking plate
Dimensions
Height: 3.85 in (9.78 cm)
Width: 8.75 in (22.23 cm)
Depth: 5.51 in (14.00 cm)
Weight
1.85 lbs (0.84 kg) – not including battery or docking assembly
INCLUDED ACCESSORIES
(See individual product specifications for complete information)
DA-1700CW
Docking Assembly
BB-1700CW
Back Box
ST-BTPN
Battery Pack
1700C-BTNB-BEZELS-BLANK
Button and Bezel Kit (engraving sold separately)
168
AVAILABLE ACCESSORIES
STRFGWX(I)
RF Gateway
PW(I)-1215
12 Volt Power Pack
1700C-BTNB
Set of 10 Black Button Caps
with Engraving
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
1700C-BTNS
Set of 10 Silver Button Caps
with Engraving
ST-PK
Programming Cable Kit
SMARTOUCH
TOUCHPANELS
SmarTouchTMWired Touchpanels
The TPS-1700 is a very compact and stylish tabletop
touchpanel featuring a brilliant 5.7" active matrix touchscreen
and optional pushbuttons. Isys color graphics and a wired
Cresnet connection combine to deliver a low-profile,
space-efficient control solution with exceptional graphics
capabilities and performance.
SmarTouchTM—A SmarTouch touchpanel offers an ideal
user-interface for controlling home theater, boardroom AV
and a host of other applications, providing a wide open
canvas for the creation of custom control screens tailored to
the user’s unique needs and tastes. Incredibly compact and
portable, the SmarTouch touchpanel does away with piles of
remotes and cryptic control panels, affording true “one-
touch” control over a broad range of complex devices and
systems.
Isys®—The powerful Isys engine produces astonishing
16-bit full-color graphics with lightning-fast performance
and incredible versatility. The 32-bit Freescale ColdFire
microprocessor combines with an ingenious and ultra
efficient operating system to support high-resolution
graphics and images, dynamic text, animations, multimode
objects, subpages, and more.
SynapseTM—Crestron's exclusive Synapse Image Rendering
Algorithm enables system programmers to produce amazing
graphics – faster and easier. Advanced antialiasing delivers
crisper, sharper objects and text. Enhanced 3D effects add
new depth and style. And because Synapse is native to the
touchpanel, memory requirements and upload time are
substantially reduced.
Quick-Touch Pushbuttons—The TPS-1700 includes a
button bezel kit which may be installed to provide ten
tactile pushbuttons for quick-touch access to frequently
used commands. Custom engraving of the pushbuttons
may be attained easily using Crestron Engraver software.
Cresnet®—Cresnet connectivity provides a single-cable
connection to the control system, delivering reliable
wired performance with fully bidirectional communication
to support true-feedback, dynamic text, and animation
capabilities.
Portable Tabletop Design—The TPS-1700 features a
sleek, contoured design optimized for tabletop use. Its
compact size and single cable connection make it easy
to disconnect and relocate for portable applications.
TM
SmarTouch™ Compact Touchpanel TPS-1700
5.7" active matrix touchscreen display |320 x 240 resolution
Isys®graphics engine |SynapseTMImage Rendering Algorithm
®
10 quick-touch pushbuttons (optional) |audible “key click”
Cresnet communications |single-cable connection
Lightweight contoured design for tabletop and handheld use
SPECIFICATIONS
Touchscreen Display
Display Type: TFT Active matrix color LCD
Size: 5.7 inch (14.5 cm) diagonal
Aspect Ratio: 4:3 QVGA
Resolution: 320 x 240 pixels
Color Depth: 16-bit, 64k colors
Illumination: Backlit fluorescent
Viewing Angle: ±65° horizontal, +65°/-40° vertical
Touchscreen: Resistive membrane
Buttons
(10) Replaceable engravable buttons, programmable
Requires installation of button bezel kit (included)
Processor
CPU: 32-bit Freescale ColdFire
Memory
DRAM: 8 MB
Flash: 4 MB
Maximum Project Size: 3 MB
Graphic Engine
Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse
image rendering algorithm; multi-mode objects; animation
®
Microprocessor
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
> continued
169
SMARTOUCH
SmarTouchTMWired Touchpanels
TPS-1700 SmarTouch™ Compact Touchpanel (continued)
Audio
Built-in transducer for “key click” sound
Connectors
NET: (1) 6-pin RJ11 female; Cresnet slave port
Connects to CNRJ11 interface module (included) via 12 foot modular
cable provided
Power Requirements
Cresnet Power Usage: 10 Watts (0.42 Amp @ 24 Volts DC)
Environmental
Temperature: 50° to 113°F (10° to 45°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
High impact black/silver injection-molded case
Dimensions
Height: 3.85 in (9.78 cm)
Width: 8.75 in (22.23 cm)
Depth: 5.51 in (14.00 cm)
Weight
1.85 lbs (0.84 kg)
touchpanels
INCLUDED ACCESSORIES
TM
(See individual product specifications for complete information)
CNRJ11
Interface Module
1700C-BTNB-BEZELS-BLANK
Button and Bezel Kit (engraving sold separately)
TM
TOUCHPANELS
smartouch
170
AVAILABLE ACCESSORIES
1700C-BTNB
Set of 10 Black Button
Caps with Engraving
1700C-BTNS
Set of 10 Silver Button
Caps with Engraving
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
TOUCHPANELS
SmarTouchTMWired Touchpanels
SmarTouch™ Economical Compact Touchpanel CT-1550C
The CT-1550 is a low-cost tabletop touchpanel featuring a
5.7” passive matrix color touchscreen in a stylish and
compact portable design. ColorTouchTMgraphics and a
wired Cresnet connection combine to deliver a reliable,
space-efficient touchpanel control solution.
SmarTouchTM—A SmarTouch touchpanel offers an ideal
user-interface for controlling home theater, boardroom
AV and a host of other applications, providing a wide open
canvas for the creation of custom control screens tailored
to the user’s unique needs and tastes. Incredibly compact
and portable, the SmarTouch touchpanel does away with
piles of remotes and cryptic control panels, affording true
“one-touch” control over a broad range of complex devices
and systems.
Cresnet®—Cresnet connectivity provides a single-cable
connection to the control system, delivering reliable wired
performance with fully bidirectional communication to
support true-feedback, dynamic text, and animation
capabilities.
Portable Tabletop Design—The CT-1550 features a sleek,
contoured design optimized for tabletop use. Its compact
size and single cable connection make it easy to disconnect
and relocate for portable applications.
5.7" passive matrix touchscreen display
320 x 240 resolution
256 color ColorTouch graphics
Audible “key click”
Cresnet communications
Single-cable connection
Lightweight contoured design for tabletop and handheld use
SPECIFICATIONS
Touchscreen Display
Display Type: Passive matrix color LCD
Size: 5.7 inch (14.5 cm) diagonal
Aspect Ratio: 4:3 QVGA
Resolution: 320 x 240 pixels
Color Depth: 8-bit, 256 colors
Illumination: Backlit fluorescent
Viewing Angle: ±50° horizontal, +40°/-50° vertical
Touchscreen: Resistive membrane
Memory
Flash: 1 MB
Maximum Project Size: 768 kB
TM
Graphic Engine
ColorTouch™ 256 colors
Audio
Built-in transducer for “key click” sound
Connectors
NET: (1) 6-pin RJ11 female; Cresnet slave port
Connects to CNRJ11 interface module (included) via 12 foot modular
cable provided
Power Requirements
Cresnet Power Usage: 8 Watts (0.34 Amp @ 24 Volts DC)
Environmental
Temperature: 50° to 113°F (10° to 45°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
High impact black/silver injection-molded case
Dimensions
Height: 3.69 in (9.37 cm)
Width: 8.75 in (22.23 cm)
Depth: 5.42 in (13.77 cm)
Weight
1.85 lbs (0.84 kg)
INCLUDED ACCESSORIES
(See individual product specifications for complete information)
CNRJ11
Interface Module
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
171
SMARTOUCH
SmarTouchTMTouchpanel Accessories
BUTTON AND BEZEL KITS
1700C-BTNB-BEZELS Button Bezel Kit - Black Buttons
The 1700C-BTNB-BEZELS is a button bezel kit
used to add ten pushbuttons to any 1700 model
touchpanel. Includes (10) black engravable
pushbuttons, (2) membrane switches, and front
bezel with button holes. Engraving is included.
For a replacement set of pushbuttons with
engraving, order the 1700C-BTNB for black
buttons or 1700C-BTNS for silver buttons.
TM
TOUCHPANELS
touchpanels
TM
smartouch
1700C-BTNS-BEZELS Button Bezel Kit - Silver Buttons
The 1700C-BTNS-BEZELS is a button bezel
kit used to add ten pushbuttons to any 1700
model touchpanel. Includes (10) silver engravable
pushbuttons, (2) membrane switches, and front
bezel with button holes. Engraving is included.
For a replacement set of pushbuttons with
engraving, order the 1700C-BTNB for black
buttons or 1700C-BTNS for silver buttons.
172
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
SmarTouchTMTouchpanel Accessories
1700C-BTNB Black Replacement Buttons for 1700 Touchpanels
The 1700C-BTNB is a replacement set of (10) black
engravable buttons for any 1700 model touchpanel
that is already equipped with the button bezel kit.
Engraving is included.
TM
TOUCHPANELS
BUTTON AND BEZEL KITS
smartouch
1700C-BTNS Silver Replacement Buttons for 1700 Touchpanels
The 1700C-BTNS is a replacement set of (10) silver
engravable buttons for any 1700 model touchpanel
that is already equipped with the button bezel kit.
Engraving is included.
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
173
SMARTOUCH
SmarTouchTMTouchpanel Accessories
DOCKING STATION
TM
TOUCHPANELS
touchpanels
TM
smartouch
ST-DSN Docking Station for SmarTouch
The ST-DSN Docking Station is a microprocessor
based battery charger for Crestron SmarTouch
wireless touchpanels. The docking station design
facilitates fast recharging of the ST-BTPN battery
pack while it is installed in the touchpanel. The ST-DSN
also provides operating power to the touchpanel while
the battery is recharging. LED indicators clearly show
charging status.
For ultimate flexibility, the ST-DSN also supports
recharging of a standalone ST-BTPN while it is not
installed in a touchpanel. This makes it possible
to keep one battery pack charged while another
is in use.
The ST-DSN includes a PW-1215 power supply, which
is ordinarily used to power the docking station but
may alternately be connected directly to the DC
power jack on the touchpanel itself.
TM
SPECIFICATIONS
Connectors
Power: (1) 2.5mm barrel DC power jack
12 Volt DC power input (PW-1215 power supply included)
LED Indicators
Power (Logo): (green) Indicates 12 Volts DC from
power supply
CHG: (red) Indicates battery charging status
RDY: (green) Indicates battery is fully charged
Power Requirements
Docking Station/Charger:
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PW-1215 included): 120 Volts AC @ 60Hz
Environmental
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
" Wireless Touchpanels
Enclosure
High impact black injection-molded case
Dimensions
Height: 0.935 in (2.375 cm)
Width: 6.715 in (17.056 cm)
Depth: 6.765 in (17.183 cm)
Weight
15.8 oz (0.49 kg) – not including power supply
INTERNATIONAL VERSION (230 VAC)
STI-DSN
All the features and specifications of the ST-DSN except:
Power Requirements
Docking Station/Charger:
18 Watts (1.5 Amps) @ 12 Volts DC
Power Supply (PWI-1215 included): 230 Volts AC @ 50Hz
INCLUDED ACCESSORIES
PW(I)-1215
12 Volt Power Pack
174
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
SmarTouchTMTouchpanel Accessories
ST-BTPN Battery Pack for SmarTouch™ Wireless Touchpanels
The ST-BTPN is a high-performance NiMH (Nickel
Metal Hydride) rechargeable battery pack for Crestron
SmarTouch wireless touchpanels. The battery pack is
easily installed and removed without tools from the
bottom panel of the touchpanel. One (1) ST-BTPN is
included with each SmarTouch wireless touchpanel.
Additional spares or replacements may be purchased
individually.
SPECIFICATIONS
General
Output Voltage: 4.8 Volts DC nominal
Capacity: 4100 mAh fully charged
Composition: Nickel-metal hydride (NiMH)
Estimated Life: 500 charging/discharging cycles
Charging Time: 2.7 to 6 hours (depending upon touchpanel
use while charging)
Docking Station/Charger: ST-DSN (sold separately)
Environmental
Operating Temperature: ~ 50° to 104° F (10° to 40° C)
Charging Temperature: ~ 50° to 95° F (10° to 35° C)
Storage Temperature: ~ -4° to 113° F (-20° to 45° C)
Dimensions
Height: 1.16 in (2.94 cm)
Width: 4.25 in (10.78 cm)
Depth: 2.28 in (5.79 cm)
Weight
0.79 lb (0.36 kg)
TM
TOUCHPANELS
BATTERY PACK
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
175
SMARTOUCH
SmarTouchTMTouchpanel Accessories
WALL MOUNT DOCKING ASSEMBLY
DA-1700CW Wall Mount Docking Assembly
The DA-1700CW Docking Assembly is a wall mounted
microprocessor based battery charger designed
specifically for the STX-1700CW and STX-1700CXPW
wireless touchpanels. When docked in the
DA-1700CW, the touchpanel operates as a wired
touchpanel with a direct connection to the Cresnet
network. The docking assembly also provides
operating power to the touchpanel while
simultaneously charging the battery pack. A software-
controlled latch secures the touchpanel into the
docking assembly, and is released upon pressing
a button or entering a code on the touchpanel.
One DA-1700CW is included with the STX-1700CW or
STX-1700CXPW. Additional units may be installed to
provide multiple docking locations. Installation of each
DA-1700CW requires one BB-1700CW back box.
TM
TOUCHPANELS
touchpanels
TM
smartouch
SPECIFICATIONS
Connectors
NET: (1) 4-pin 5mm detachable terminal block
Cresnet slave port, connects to Cresnet control network
Power Requirements
Cresnet Power Usage: 34 Watts
(1.42 Amps @ 24 Volts DC) including touchpanel
Environmental
Temperature: 50° to 113° F (10° to 45° C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Black metal assembly with electrically operated
latching mechanism
Dimensions
Height: 6.51 in (16.54 cm)
Width: 5.57 in (14.14 cm)
Depth: 3.56 in (9.05 cm)
Weight
3.21 lbs (1.46 kg)
176
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
SmarTouchTMTouchpanel Accessories
BB-1700CW Back Box for DA-1700CW
The BB-1700CW is the recess-mounted steel
enclosure required for installing the DA-1700CW
touchpanel docking assembly. The BB-1700CW is
suitable for both pre- and post-construction
applications, and includes knockouts to accommodate
conduit fittings. One BB-1700CW is included with the
STX-1700CW or STX-1700CXPW wireless touchpanel.
SPECIFICATIONS
Enclosure
Metal recessed wall mount
Dimensions*
Height: 6.63 in (16.85 cm)
Width: 5.99 in (15.21 cm)
Depth: 3.75 in (9.53 cm)
TM
TOUCHPANELS
WALL MOUNT DOCKING ASSEMBLY
smartouch
*Dimensions shown do not include mounting/support
brackets and are not intended as cutout dimensions.
Consult the installation manual for complete mounting
instructions.
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
177
SMARTOUCH
SmarTouchTMTouchpanel Accessories
RF GATEWAYS

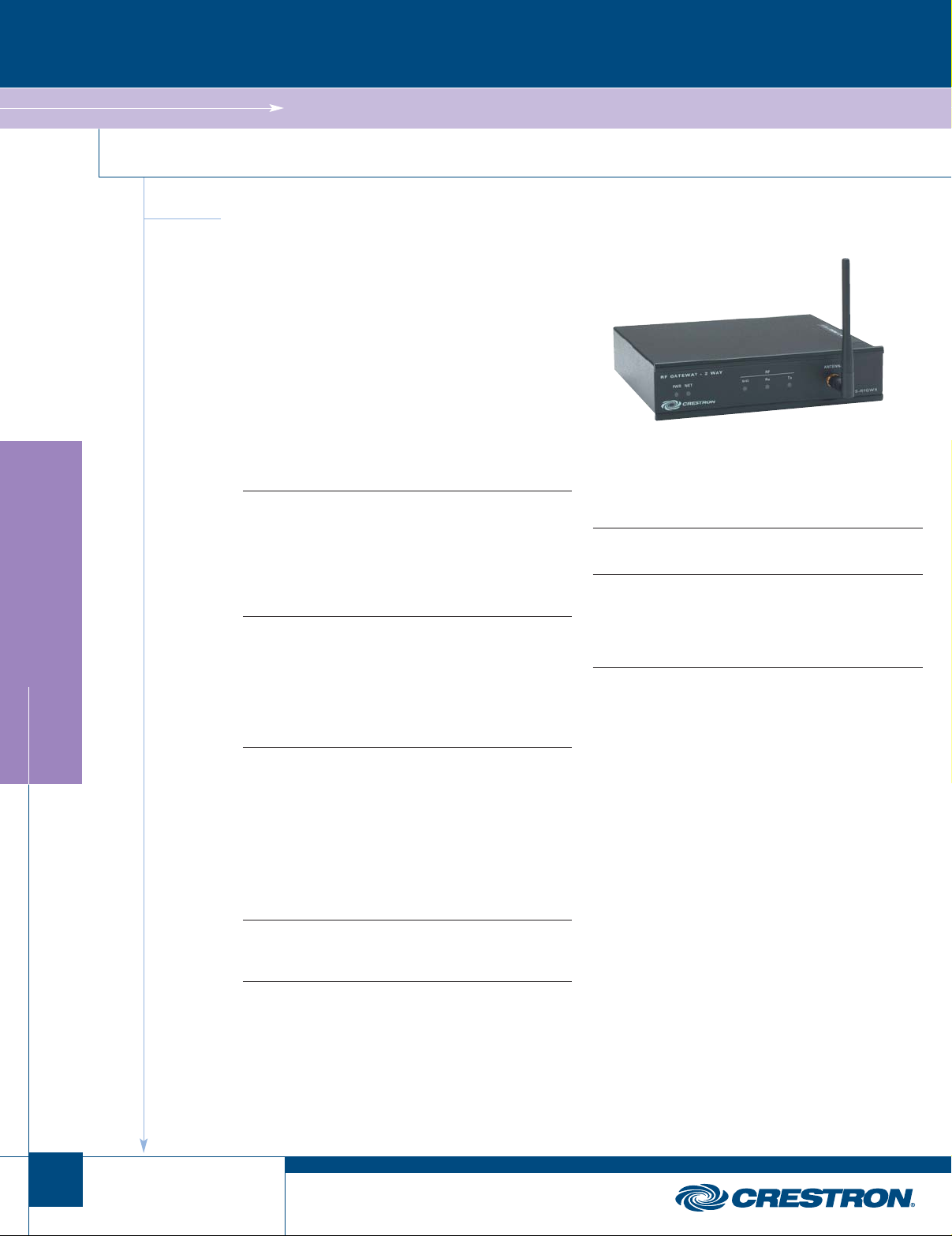

TPS-RFGWX 2.4 GHz Spread Spectrum 2-Way RF Gateway
The TPS-RFGWX gateway is an RF transceiver that
allows Crestron 2.4 GHz 2-way wireless touchpanels
to communicate with the control system via the
Cresnet network. Crestron’s “Wi-Fi friendly” spread
spectrum technology permits selection from 10
possible bands within the 2.4 GHz spectrum to
minimize the possibility of interference with non-
Crestron RF equipment including all 802.11 devices.
The TPS-RFGWX affords a range of approximately
150 feet indoors and up to 1000 feet outdoors.
SPECIFICATIONS
Wireless
RF Transceiver: “WiFi friendly” 2.4 GHz spread spectrum
2-way RF (2400 to 2483 MHz)
RF Transmitting Power: 100 mW
Range: 3 to 150 feet min/max (typical indoor), 1000
feet outdoor
Maximum 15 touchpanels per gateway
touchpanels
TM
smartouch
Connectors
NET: (2) 6-pin RJ11 female, Cresnet slave port
Connects to Cresnet control network
All NET connectors paralleled
NET: (1) 4-pin 5mm detachable terminal block
Cresnet slave port; connects to Cresnet control network
All NET connectors paralleled
LED Indicators
PWR: (green) Indicates 24 Volts DC power supplied from
Cresnet control network
NET: (yellow) Indicates communication with the
Cresnet system
SIG: (red) Indicates communication with a valid RF signal
Rx: (red) Indicates when a command is received from
a touchpanel
Tx: (red) Indicates when feedback is transmitted to
a touchpanel
Power Requirements
Cresnet Power Usage: 3 Watts
(0.125 Amps @ 24 Volts DC)
Environmental
Temperature: 41° to 113° F (5° to 45° C)
Humidity: 10% to 90% RH (non-condensing)
TM
TOUCHPANELS
Enclosure
Black metal, freestanding
Dimensions
(Without antenna)
Height: 1.70 in (4.32 cm)
Width: 7.07 in (17.95 cm)
Depth: 6.32 in (16.06 cm)
Weight
2.38 lbs (0.93 kg)
178
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
SmarTouchTMTouchpanel Accessories

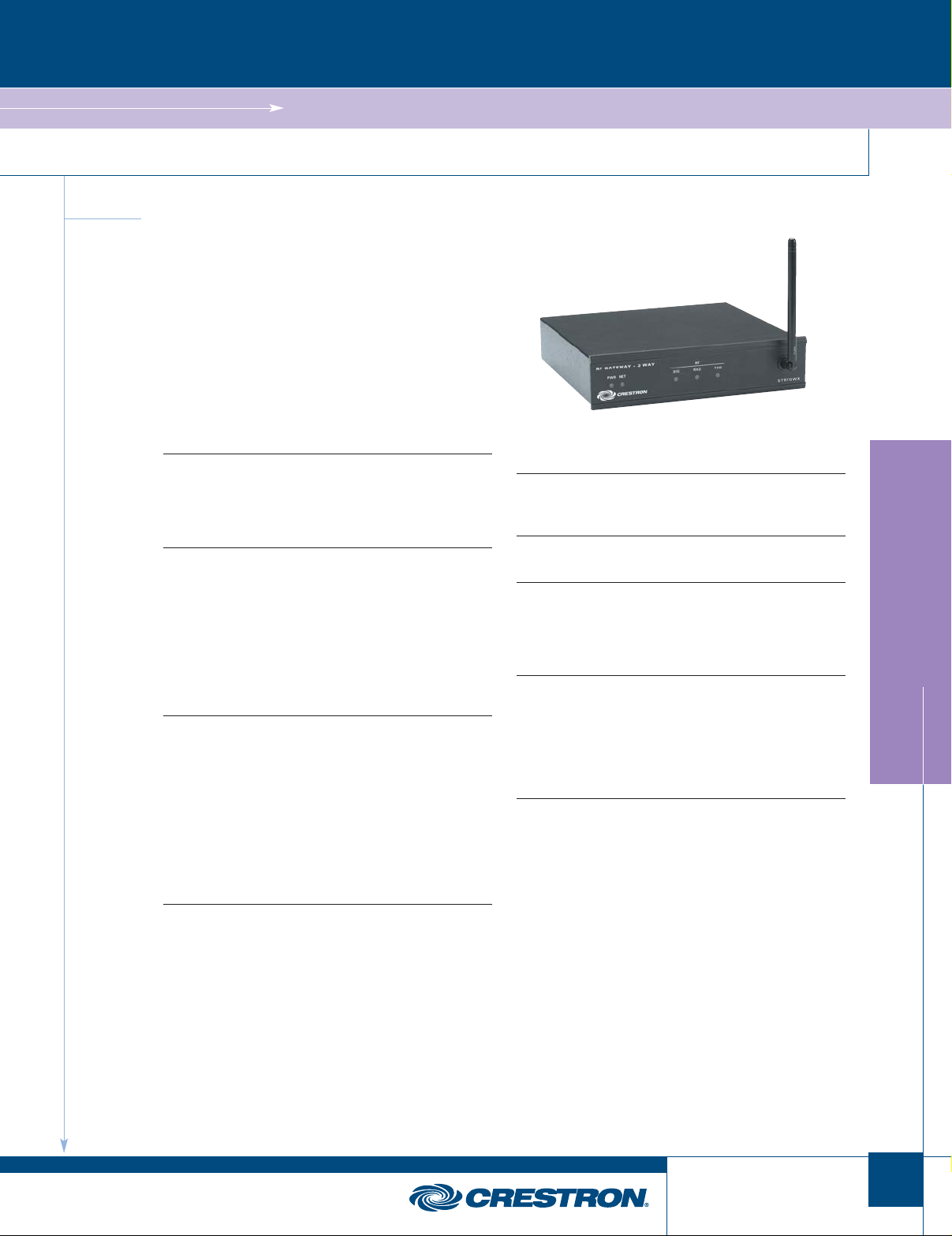

STRFGWX 418 MHz 2-Way RF Gateway
The STRFGWX gateway is an RF transceiver that
allows Crestron 418 MHz 2-way wireless touchpanels
to communicate with the control system via the
Cresnet network. Each STRFGWX affords a range
of approximately 50 feet indoors and up to 150 feet
outdoors. Extended range can be achieved by
distributing multiple gateways (up to 16 per control
system) throughout a structure.
SPECIFICATIONS
Wireless
RF Transceiver: 418 MHz 2-way RF
Range: 3 to 50 feet min/max (typical indoor), 150
feet outdoor
Maximum 15 touchpanels per gateway
Connectors
NET: (2) 6-pin RJ11 female, Cresnet slave port
Connects to Cresnet control network
All NET connectors paralleled
NET: (1) 4-pin 5mm detachable terminal block,
Cresnet slave port, connects to Cresnet control network
All NET connectors paralleled
12VDC: (1) 2.5mm barrel DC power jack
12 Volt DC power input (PW-1205 power supply included)
LED Indicators
PWR: (green) Indicates 24 Volts DC power supplied from
Cresnet control network
NET: (yellow) Indicates communication with the
Cresnet system
SIG: (red) Indicates communication with a valid
RF signal
Rx: (red) Indicates when a command is received from
a touchpanel
Tx: (red) Indicates when feedback is transmitted to
a touchpanel
Power Requirements
12VDC: 6 Watts (0.5 Amps) @ 12 Volts DC
Power Supply (PW-1205 included): 120 Volts AC @ 60Hz
Cresnet Power Usage: 3 Watts (0.125 Amp @ 24 Volts
DC) with no power supply connected to the 12VDC
connector
TM
TOUCHPANELS
Environmental
Temperature: 41° to 113° F (5° to 45° C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Black metal, freestanding, attached antenna
Dimensions
(Without antenna)
Height: 1.70 in (4.32 cm)
Width: 7.07 in (17.95 cm)
Depth: 6.32 in (16.06 cm)
Weight
2.10 lbs (0.95 kg)
INTERNATIONAL VERSION (230 VAC)
STRFGWXI
All the features and specifications of the STRFGWX except:
Power Requirements
12VDC: 6 Watts (0.5 Amps) @ 12 Volts DC
Power Supply (PW-1210RU): 230 Volts AC @ 50Hz
Cresnet Power Usage: 3 Watts (0.125 Amp @ 24
Volts DC) with no power supply connected to the
12VDC connector
INCLUDED ACCESSORIES
PW-1205 (or PW-1210RU)
12 Volt Power Pack
RF GATEWAYS
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
179
SMARTOUCH
SmarTouchTMTouchpanel Accessories
RF GATEWAYS
CNRFGWA 1-Way RF Gateways
The CNRFGWA is an RF receiver that allows Crestron
1-way RF wireless touchpanels and handheld remotes
to communicate with the control system via the
Cresnet network. Each CNRFGWA affords a range of
approximately 300 feet. Extended range can be
achieved by distributing multiple gateways throughout
a structure. Each gateway behaves as a Cresnet
slave device requiring just one Cresnet wire to each
gateway location.
Two CNRFGWA models are available, the CNRFGWA
and the CNRFGWA-418. The CNRFGWA is compatible
with Crestron devices that transmit 1-way RF at
434 MHz only. For 418 MHz 1-way devices, use the
CNRFGWA-418. For installations employing both 434
MHz and 418 MHz devices, both gateway models
must be installed.
Note: CNRFGWA gateways are only compatible with
Crestron 1-way RF devices.
touchpanels
TM
smartouch
AVAILABLE MODELS
CNRFGWA
434 MHz 1-Way RF Gateway
CNRFGWA-418
418 MHz 1-Way RF Gateway
SPECIFICATIONS
Wireless
RF Receiver: 433.92 (434) or
418 MHz 1-way RF, crystal locked
Range: Up to 300 feet
Maximum 15 touchpanels or 240 handheld remotes
per gateway;
Minimum distance allowed between gateways is 50 feet
Connectors
NET: (1) 4-pin 5mm detachable terminal block
Cresnet slave port, connects to Cresnet control network
ANTENNA: (1) BNC female
Impedance: 50 ohms (antenna included)
Controls
ID CODE: (2) Rotary DIP Switches
Used for setting the unit’s Cresnet ID
TM
TOUCHPANELS
LED Indicators
SIGNAL: (red) Indicates reception of a valid RF signal
I.D. SELECT: (red) Indicates communication established
with control system
NET PWR: (green) Indicates 24 Volts DC power supplied
from Cresnet control network
Power Requirements
Cresnet Power Usage: 3 Watts
(0.125 Amps @ 24 Volts DC)
Environmental
Temperature: 41° to 113° F (5° to 45° C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Black metal, freestanding
Dimensions
Height: 7.28 in (18.49 cm) without antenna
Height: 15.20 in (38.61 cm) with antenna
Width: 3.25 in (8.25 cm)
Depth: 1.35 in (3.44 cm)
Weight
1.1 lbs (0.5 kg)
AVAILABLE ACCESSORIES
CNANT
High-performance extension antenna
180
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
SmarTouchTMTouchpanel Accessories

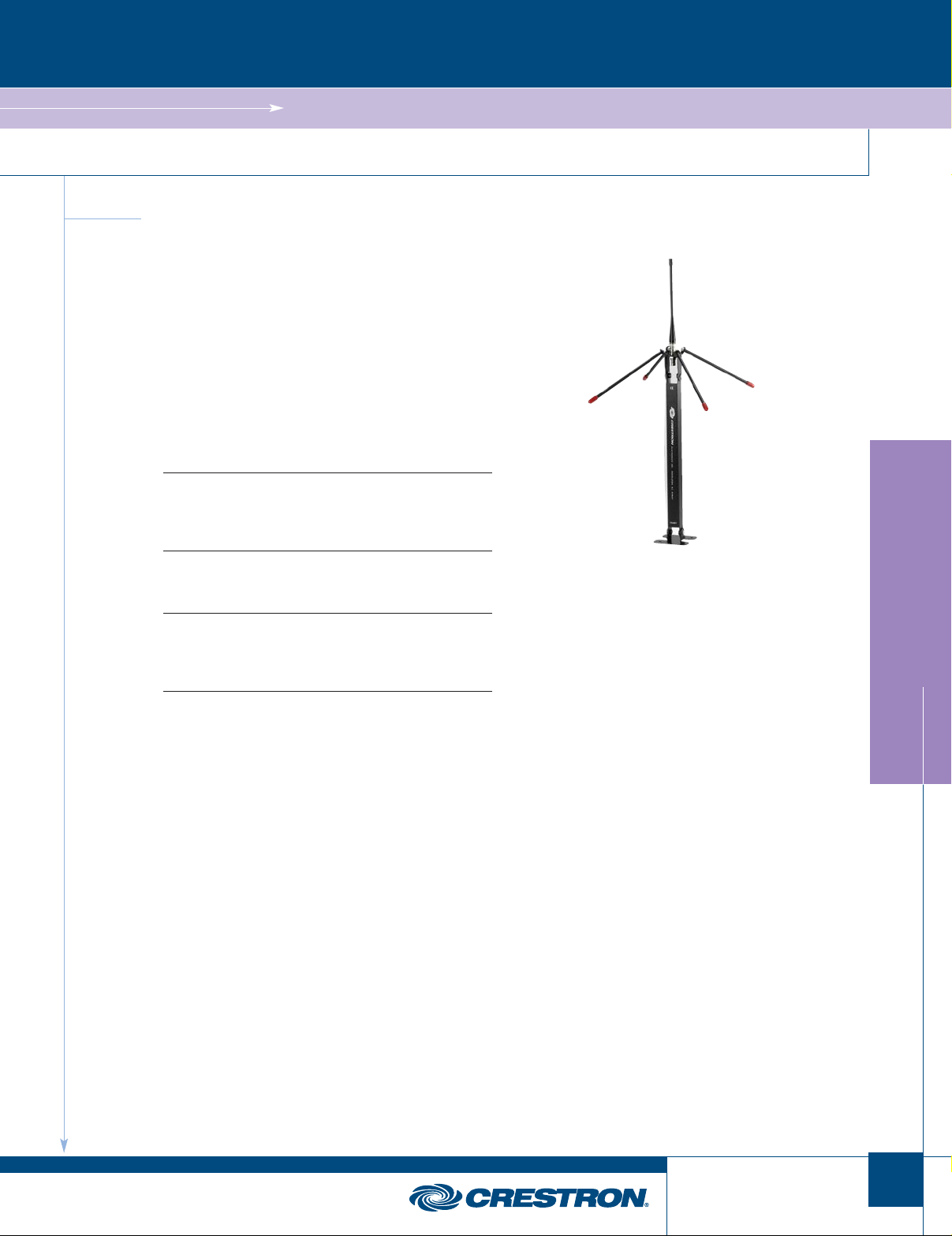

CNANT High-Performance Extension Antenna
The CNANT is a high performance indoor antenna
designed to surpass the performance of the standard
antenna supplied with Crestron 1-way RF gateways
such as the CNRFGWA, CNRFGWA-418, and MC2W.
Its ground plane design and omni-directional
reception pattern afford extended range in all
directions. The CNANT may be mounted anywhere
indoors within fifteen feet of the gateway, or up to
fifty feet using a longer cable (not included).
TM
TOUCHPANELS
RF GATEWAYS
SPECIFICATIONS
RF Performance
Frequency Range: 400 – 440 MHz
Gain: Unity
Reception Pattern: Omnidirectional
Connectors
Antenna: (1) BNC female, 15 ft (4.57 m) BNC cable included
Impedance: 50 ohms
Dimensions
Height: 21.5 in (54.61 cm)
Width: 13.5 in (34.29 cm)
Depth: 13.5 in (34.29 cm)
Weight
0.51 lb (1.12 kg) without cable
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
181
SMARTOUCH
SmarTouchTMTouchpanel Accessories
IR GATEWAYS

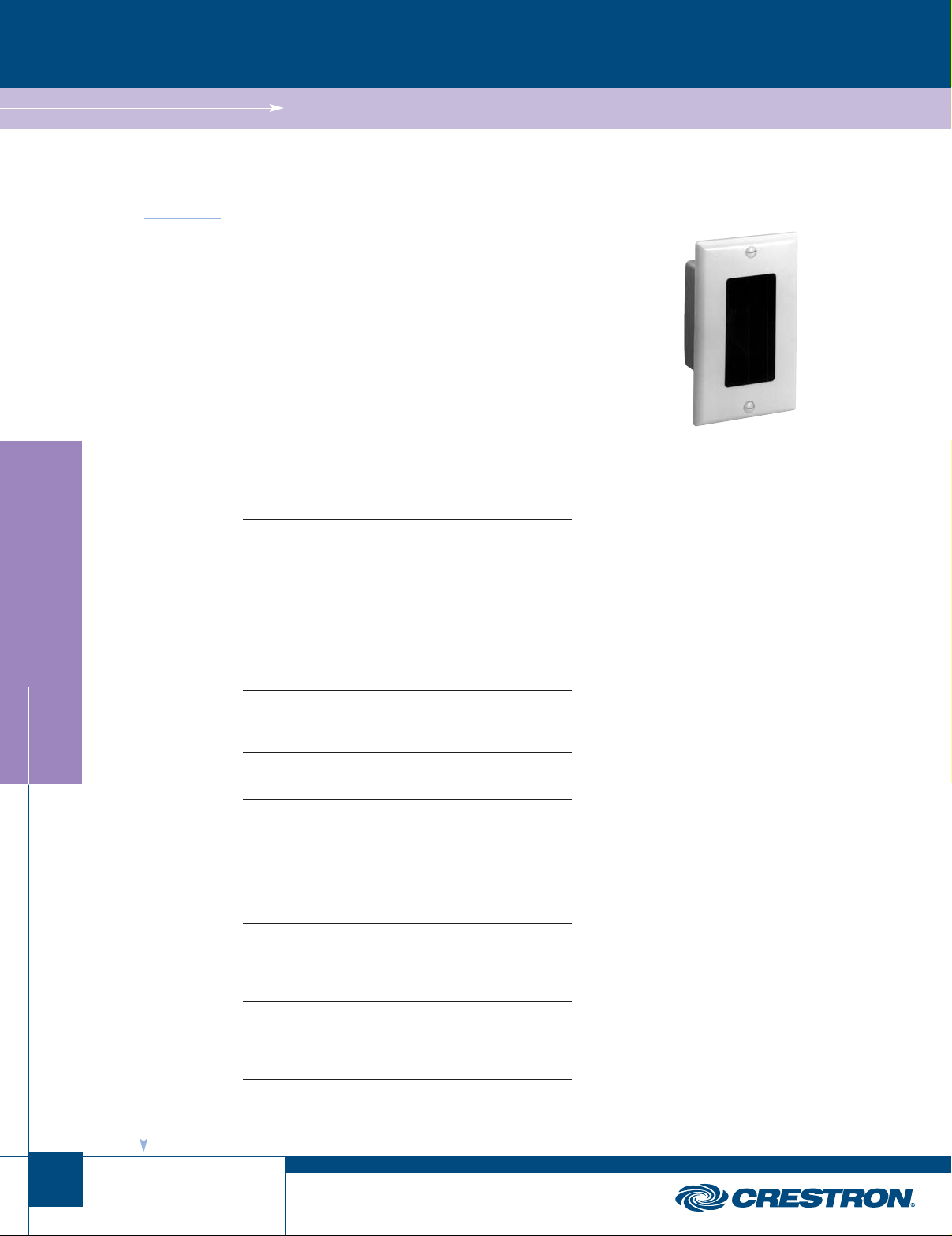

C2N-IRGW-1G IR Gateway, Wall Mount
The C2N-IRGW-1G IR Gateway is a 1-way infrared
receiver for Crestron IR wireless handheld remotes
and touchpanels. It is also compatible with third-party
IR remotes utilizing the RC5 command set.
The C2N-IRGW-1G is designed to fit in a 1-gang
electrical box using a Decora®style faceplate (not
included). Its entire visible face consists of a smoked
plastic lens providing a neutral appearance suitable
for use with any color scheme. The C2N-IRGW-1G
is a Cresnet device compatible with any 2-Series
control system.
SPECIFICATIONS
IR Wireless
IR Frequency: 36 to 38 kHz IR
Formats: Crestron format, RC5
Range: Up to 50 ft line of sight (typical), dependent
upon angle, obstructions, IR interference, and IR remote
touchpanels
TM
smartouch
signal strength
Connectors
NET: 4-pin 3.5mm detachable terminal block
Cresnet slave port, connects to Cresnet control network
LED Indicators
(1 red) Indicates IR signal reception, Cresnet network
communication, and setup/update functions
Controls
(1) Recessed miniature pushbutton for setup
Power Requirements
Cresnet Power Usage:
1 Watt (0.042 Amps @ 24 Volts DC)
Environmental
Temperature: 41° to 104°F (5° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Injection-molded plastic with smoked plastic face, 1-gang
mountable in an electrical box using Decora
(not included)
Dimensions (Without Faceplate)
Height: 4.13 in (10.48 cm)
Width: 1.75 in (4.45 cm)
Depth: 1.37 in (3.45 cm)
Weight
2.4 oz (68 g)
TM
TOUCHPANELS
®
faceplate
182
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
SmarTouchTMTouchpanel Accessories

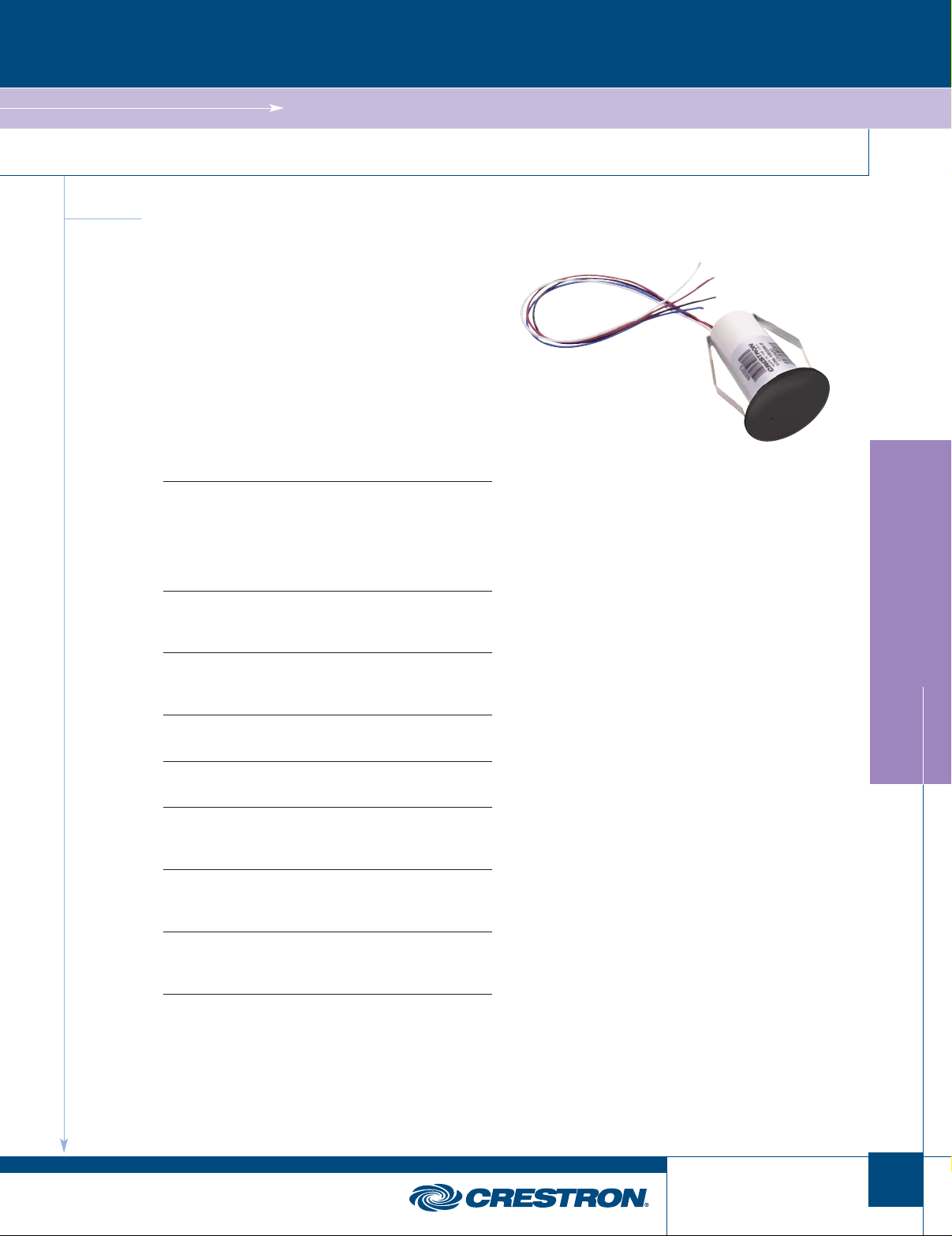

C2N-IRGW-F IR Gateway, Flush Mount
The C2N-IRGW-F IR Gateway is a 1-way infrared
receiver for Crestron IR wireless handheld remotes
and touchpanels. It is also compatible with any third-
party IR remote utilizing the RC5 command set.
The C2N-IRGW-F is designed to install flush into any
drywall or ceiling tile surface. Its visible face consists
of a smoked plastic lens measuring 1-1/2 inch
diameter. The C2N-IRGW-F is a Cresnet device
compatible with any 2-Series control system.
TM
TOUCHPANELS
IR GATEWAYS
SPECIFICATIONS
IR Wireless
IR Frequency: 36 to 38 kHz IR
Formats: Crestron format, RC5
Range: Up to 50 ft line of sight (typical), dependent upon
angle, obstructions, IR interference, and IR remote
signal strength
Connections
~10 inch (~25 cm) 4-wire pigtail
Connects to Cresnet control network
LED Indicators
(1 red) Indicates IR signal reception, Cresnet network
communication, and setup/update functions
Controls
(1) Recessed miniature pushbutton for setup
Power Requirements
Cresnet Power Usage: 1 Watt (0.042 Amps @ 24 Volts DC)
Environmental
Temperature: 41° to 104°F (5° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Cylindrical plastic, drywall or ceiling tile mountable in a 1 inch
(2.54 cm) diameter round hole
Dimensions
Diameter: 1.50 in (3.81 cm)
Depth: 2.19 in (5.54 cm)
Weight
0.9 oz (25.52 g)
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
183
SMARTOUCH
SmarTouchTMTouchpanel Accessories
IR RECEIVER
CNXRMIRD IR Receiver
The CNXRMIRD is an optional infrared (IR) receiver
designed for use with a control system or room
solution box that includes an IR input port. The
CNXRMIRD affords cost-effective control from
any Crestron or third-party universal IR remote
transmitting RC5 commands at 38 kHz.
SPECIFICATIONS
IR Wireless
IR Frequency: 38 kHz IR
Format: RC5
Range: Up to 50 ft line of sight (typical), dependent upon
angle, obstructions, IR interference, and IR remote
signal strength
Connectors
(1) Attached 6 ft (1.83 m) long cable with 3.5 mm mini phone
plug (male) for connection to a Crestron IR IN port,
extendable up to 500 feet;
(Not compatible with ST-SPL or ST-MB)
touchpanels
TM
smartouch
Environmental
Temperature: 41° to 104°F (5° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Black plastic cube
Dimensions
Height: 1.0 in (2.54 cm)
Width: 1.0 in (2.54 cm)
Depth: 1.0 in (2.54 cm)
Weight
2.4 oz (68.0 g) without cable
TM
TOUCHPANELS
184
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
SmarTouchTMTouchpanel Accessories
12 Volt Power Packs
Crestron 12 Volt power packs are designed to
provide 12 Volts DC to power various wireless
touchpanels, battery chargers, gateways, Cresnet
expansion modules, and other Crestron products.
AVAILABLE MODELS
US (120 Volts AC, 60 Hz)
PW-1205
Wall-Mounted Power Pack 12VDC, 0.5A
PW-1210
Wall-Mounted Power Pack 12VDC, 1A
PW-1215
Wall-Mounted Power Pack 12VDC, 1.5A
International (230 Volts AC, 50 Hz)
PW-1210RU
Desktop Power Pack 12VDC, 1A Regulated
PWI-1215
Desktop Power Pack 12VDC, 1.5A
TM
TOUCHPANELS
POWER SUPPLIES
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
185
SMARTOUCH
SmarTouchTMTouchpanel Accessories
INTERFACE MODULES
CNRJ11 4-Wire Terminal Block to RJ11 Cresnet Converter
The CNRJ11 is a 1-to-1 converter used to adapt
between a standard 4-wire Cresnet cable and a
modular Cresnet cable. One 4-pin connector and
one 6-pin RJ11 jack are provided, wired in parallel.
A single CNRJ11 is included with each SmarTouch
wired touchpanel.
SPECIFICATIONS
Connectors
NET: (1) 4-pin 5mm detachable terminal block
Connects to standard 4-wire Cresnet cables
NET: (1) 6-pin RJ11 female
Connects to RJ11 modular Cresnet cables
LED Indicators
PWR: (Green) indicates that 24VDC Cresnet power
is present
Enclosure
touchpanels
TM
Black metal, surface mount box with (2) integral
mounting flanges
Dimensions
Height: 1.24 in (3.14 cm)
Width: 3.25 in (8.26 cm)
Depth: 2.00 in (5.08 cm)
Weight
0.3 lb (0.15 kg)
TM
TOUCHPANELS
smartouch
186
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
SMARTOUCH
SmarTouchTMTouchpanel Accessories
ST-PK Programming Cable Kit
TM
TOUCHPANELS
INTERFACE CABLES
The ST-PK is a programming cable kit for SmarTouch
wireless touchpanels and most Isys®touchpanels. It
is used only for loading touchpanel files, updating
firmware, and configuring the touchpanel prior to
operation. The ST-PK may also be used to update
firmware and adjust the digital audio signal processing
in Crestron’s 7.1 surround sound processors and
room solution boxes.
TM
SPECIFICATIONS
Cables
3.5mm to RJ11 Cable Assembly (CNSP-585)
Provides connection between a SmarTouch wireless
touchpanel and the control processor via a RJ11 Cresnet
port; may require an additional CNRJ11 , ST-CNB, or
C2N-HBLOCK accessory.
RJ11-to-RJ11 Cable plus RJ11-to-DB9F
Adapter (STCP-502)
Provides connection between an Isys touchpanel, surround
processor, or room solution box RS-232 port and
PC COM port.
smartouch
TM
touchpanels
www.crestron.com | 800.237.2041 | 201.767.3400
© 2007 Specifications subject to change without notice
187
Notes
Loading...
