Crestron electronic C2N-DAP8RC User Manual

Crestron C2N-DAP8RC
Digital Audio Processor With Room Control
Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “Pro Logic II”, “Dolby Digital”,

“Dolby Digital 5.1”, and the double-D symbol are trademarks of Dolby laboratories.

Manufactured under license from Digital Theater Systems, Inc. “DTS”, “DTS Digital Surround Sound”, “DTS-ES Extended

Surround”, “DTS Virtual 5.1”, “NEO:5”, and “Neo:6” are trademarks of Digital Theater Systems, Inc.

All other brand names, product names and trademarks are the property of their respective owners.

©2004 Crestron Electronics, Inc.

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Contents

Digital Audio Processor with Room Control: C2N-DAP8RC 1

Introduction...................................................................................................................1

Features and Functions ....................................................................................1

Surround Sound Modes ...................................................................................2

Parametric Equalizer........................................................................................5

Room Control Options.....................................................................................5

Specifications...................................................................................................5

Physical Description ........................................................................................7

Industry Compliance......................................................................................11

Setup ...........................................................................................................................11

Network Wiring .............................................................................................11

Identity Code .................................................................................................12

Rack Mounting ..............................................................................................15

Hardware Hookup..........................................................................................16

Video Input Compensation for CAT5 Inputs.................................................23

Universal Remotes.........................................................................................23

Surround Sound System Setup ...................................................................................26

Test Equipment..............................................................................................26

Crestron Digital Audio Tools ...................................................................27

Setup Procedures ...........................................................................................27

DAT Program Procedures..............................................................................28

Example Program ..........................................................................................41

Programming Software ...............................................................................................47

C2Net-Device Slot in Configuration Manager ..............................................48

Setting the Net ID in Device Settings............................................................49

C2N-DAP8RC Symbols in Programming Manager ......................................49

Uploading and Upgrading...........................................................................................55

Communication Settings................................................................................55

Uploading a SIMPL Windows Program........................................................57

Firmware Upgrade .........................................................................................59

Problem Solving .........................................................................................................60

Troubleshooting.............................................................................................60

Further Inquiries ............................................................................................62

Future Updates...............................................................................................62

Appendix: Advanced Programming Symbols ............................................................63

Return and Warranty Policies .....................................................................................75

Merchandise Returns / Repair Service...........................................................75

CRESTRON Limited Warranty.....................................................................75

Operations Guide – DOC. 8187A Contents • i

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Digital Audio Processor with
Room Control: C2N-DAP8RC

Introduction

Features and Functions

The C2N-DAP8RC is an eight-channel surround sound processor with local room

control, designed to work in a Crestron

process either digital audio streams (S/PDIF) or analog signals, and generate up to 7.1

surround sound preamp outputs. Designed for the ultimate in home theater

entertainment, the C2N-DAP8RC provides multiple surround sound modes for

virtually any room size and speaker configuration, with unmatched accuracy to satisfy

the most discerning ear.

The functional summaries below and on the following page highlight the main

features of the C2N-DAP8RC.

Functional Summary –Audio

• Multiple surround sound modes

• Automatic recognition of digital input audio coded format

• Up to eight channels (7.1) of home theater outputs

• One RJ-45 stereo differential input/output via CAT5

• Two coax digital inputs (S/PDIF)

• Two TOSLINK

• Five local (analog) stereo inputs

• Two stereo output pairs, one with volume/tone control; one fixed

output.

• Eight-channel, six-band parametric equalizer per channel

• PC-based software tool to set speaker configuration & bass

management, delay control, input settings, output settings, and
equalizers

• Two-channel audio decoding modes:
Two-channel, Dolby Pro Logic, Dolby Pro Logic II, DTS NEO:6

• Multi-channel audio decoding modes:
Dolby Digital, Dolby Digital EX, DTS 5.1, DTS ES Discrete 6.1,

DTS ES Matrix 6.1

™

fiber optic digital inputs

®

2-Series control system. This unit will

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 1

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Functional Summary – Video I/O & Miscellaneous

• One RJ-45 - four channels of balanced video input; three
channels with input level compensation adjustments

• One RJ-45 - four channels of balanced video output

• Twelve RCA local (analog) video inputs - any combination of

composite, S, or component (including HDTV); each input
includes built-in video sensor.

• Twelve RCA local (analog) video outputs

• RJ-11 for RS-232 control of serial devices, or for

uploading/upgrading firmware for the C2N-DAP8RC

• Mini-Cresnet for connection to Cresnet devices and main
processor

• Four infrared (IR) output ports for control of third-party IR
devices (using STIRP), or for one-way RS-232.

• One IR input jack for CNXRMIRD sensor

• Front panel PWR and NET LEDs

• Touch-settable ID capable

The CNAMPX-7x200 7-channel, 200 watts per channel surround sound amplifier is
the ideal companion product to the C2N-DAP8RC surround sound processor.

The C2N-DAP8RC provides digital surround sound processing along with CAT5
head end/local AV distribution and room control functions. The result is cost­effective surround sound in any room of the house.

Surround Sound Modes

The C2N-DAP8RC provides the following surround sound modes, permitting choice
of the format that best suits the entertainment medium selected, the specific
characteristics of the listening/viewing area, and the personal preferences of the
listener.

Dolby Digital 5.1

Typically, 5.1-channel audio consists of five discrete, full-range main channels (left,
center, right, left surround, and right surround) plus an optional band-limited low
frequency effects (LFE) channel for added bass (subwoofer). Dolby Digital
bitstreams deliver full frequency bandwidth main channels, from 3 Hz to 20 kHz,
and a limited frequency bandwidth LFE channel, from 3 Hz to 120 Hz.

Dolby Pro Logic

As a descendent of the advanced technology used in Dolby Stereo theaters, Dolby
Pro Logic Surround decoders give enhanced spatial and directional effects when
used in the home environment. Sophisticated logic steering techniques are used to
extend the impact of the soundtrack over a wider listening area. Wide separation,
smooth dynamic action, and proper spatial imaging are key characteristics of Pro
Logic decoders.

Dolby Pro Logic II

Dolby Pro Logic II creates five full-bandwidth output channels from two-channel
sources. This is done using an advanced, high-purity matrix surround decoder that
extracts the spatial properties of the original recording without adding any new
sounds or tonal colorations.

2 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Movie Mode

The Movie mode is for use with VCRs, television shows, and all programs encoded
in Dolby Surround. The result is an enhanced soundfield that approaches the quality
of discrete 5.1-channel sound.

Music Mode

The Music mode is for use with any stereo music recordings, and provides a wide
and deep sound space. The Music mode includes controls that allow the sound to be
tailored to individual listening tastes.

• Center Width. This control allows center-channel sounds to be positioned
between the center speaker and the left/right speakers over a range of eight
steps. Step “3” uses a combination of all three front speakers to give the
best vocal imaging and most seamless soundstage presentation, and is
recommended for most recordings. Step “0” places all center sound in the
center speaker. Step “7” places all center sound equally in the left/right
speakers, just as in conventional stereo.

• Dimension. This control allows the user to gradually adjust the soundfield
either toward the front or the rear. This can be useful to help achieve the
desired balance from all the speakers with certain recordings that may
contain either too much or too little spatial effect. Step “3” is the
recommended setting, which has no effect on the sound. Steps “4” through
“6” gradually move the sound forward, and steps “2” through “0” move the
sound toward the surrounds.

• Panorama. This control extends the front stereo image to include the
surround speakers for an exciting “wraparound” effect with side-wall
imaging. It is particularly effective for recordings that have strong left- or
right-channel elements in the mix, since these are detected and accentuated
by the Panorama process.

All three of the above controls may be used alone or in any combination. After
experimenting with them on a few programs, it is easy to understand their effect and
which settings are preferable.

Dolby Digital EX

Dolby Digital EX creates six full-bandwidth output channels from 5.1 channel
sources by adding a rear center channel. This is done using a matrix decoder that
derives three surround channels from the two in the original recording. The center
rear is matrixed into the rear 2-channels of the 5.1 soundtrack, like what Pro Logic
does with the front three channels in the Pro Logic mode. The decoder takes the right
rear and left rear information, which also contains the center rear information, and
extracts the information so that the center rear channel is active. Thus, sound will be
heard out of the center rear speaker as well as the right rear and left rear speakers.
For best results, Dolby Digital EX should be used with movie soundtracks recorded
with Dolby Digital Surround EX.

DTS 5.1

DTS 5.1 is a multi-channel digital signal format developed by Digital Theater
Systems, Inc., that provides channels for the front left, right, and center, surround left
and right, and LFE. The process used by DTS produces audio tracks that closely
match the original master recording, with very little data compression.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 3

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

DTS ES Discrete 6.1

With the DTS-ES Discrete 6.1 format, all 6.1 channels, including the surround back
(SB) channel, are recorded independently using a digital discrete system. The main
feature of this format is that because the SL, SR and SB channels are fully
independent, the sound can be designed with total freedom and it is possible to
achieve a sense that the acoustic images are moving about freely among the
background sounds surrounding the listener from 360 degrees. Though maximum
performance is achieved when sound tracks recorded with this system are played
using a DTS-ES decoder, when played with a conventional DTS decoder the SB
channel signals are automatically down-mixed to the SL and SR channels, so none of
the signal components are lost.

DTS ES Matrix 6.1

With this format, the additional SB channel signals undergo matrix encoding and are
input to the SL and SR channels beforehand. Upon playback, they are decoded to the
SL, SR and SB channels. The performance of the encoder used at the time of
recording can be fully matched using a high precision digital matrix decoder
developed by DTS, thereby achieving surround sound more faithful to the producer's
sound design aims than with conventional 5.1- or 6.1-channel systems. In addition,
the bit stream format is 100% compatible with conventional DTS signals, so the
effect of the Matrix 6.1 format can be achieved even with 5.1-channel signal sources.

When DTS-ES Discrete 6.1 or Matrix 6.1 encoded sources are decoded with a DTS­ES decoder, the format is automatically detected upon decoding and the optimum
playing mode is selected. However, some Matrix 6.1 sources may be detected as
having a 5.1-channel format, so the DTS-ES Matrix 6.1 mode must be set manually
to play these sources.

DTS Neo:6 Cinema

This mode is optimum for playing movies. Decoding is performed with emphasis on
separation performance to achieve the same atmosphere with 2-channel sources as
with 6.1-channel sources.

This mode is effective for playing sources recorded in conventional surround formats
as well, because the in-phase component is assigned mainly to the center channel and
the reversed phase component to the surround (left, right, and back) channels.

DTS Neo:6 Music

This mode is suited mainly for playing music. The front (left and right) channel
signals bypass the decoder and are played directly, so there is no loss of sound
quality, and the effect of the surround signals output from the center and the
surround (left, right, and back) channels add a natural sense of expansion to the
sound field.

Two-Channel

This mode is used to play stereo source material in its pure unprocessed form.

Low Frequency Effects (LFE)

In 5.1, 6.1, and 7.1 surround formats, the point 1 represents an extra channel for LFE
sounds (120 Hz and below) that is decoded and routed to a subwoofer (if present).
The LFE channel signal is added to any other low frequency signals routed to the
subwoofer from channels unable to produce effective low frequency sound.

4 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Parametric Equalizer

The parametric equalizer consists of eight channels (one for each speaker) of six
bandpass filter sections that permit you to correct for acoustic anomalies in the
listening area or in the speakers themselves, and/or to establish preset values that
enhance the sound conditions for favorite music or recording types.

The six bands are identical in function. Each delivers up to 12 dB of boost or
attenuation, has an adjustable bandwidth control (from .02 octaves to 2 octaves), and
a center frequency control range from 10 Hz to 20 kHz. Use each band anywhere in
the audio spectrum, not just pre-selected ranges as typically found on graphic
equalizers. In addition, you can select from among five filter types (low pass, high
pass, EQ filter, bass shelf, and treble shelf) or select no filter.

Room Control Options

The C2N-DAP8RC also functions as a Cresnet® room control interface to local AV
and other devices such as TVs, projectors, VCRs, and DVD players. The unit may
receive video and digital audio from the Crestron CNX-PVID8, as well as analog
audio from the CNX-BIPAD8, all via CAT5 cabling. In addition, it receives video,
digital audio and analog audio from local sources via standard RCA connections.
The unit’s built-in audio/video matrix switcher distributes these inputs to local
outputs.

One bi-directional RS-232 and four IR ports are provided. A current sensor input
accepts power status feedback from the optional CNXRMCS current sensor
(available separately). In addition, a powered IR input allows connection of the
optional CNXRMIRD IR sensor (available separately) to receive IR commands from
a Philips Pronto

®

with RC5 commands or a similar universal remote control, which
may be programmed to control any device connected to the Cresnet system.
Naturally, any Crestron touchpanel or pushbutton control panel may be used with the
C2N-DAP8RC as well.

Finally, the unit provides outputs for directing video and analog audio back to the
head end.

Specifications

The following table summarizes the specifications for the C2N-DAP8RC.

C2N-DAP8RC Specifications

SPECIFICATION DETAILS

Power Requirements 21 Watts (0.875 Amp @ 24 VDC)
Default Net ID 50
Control System Update Files
2-Series Control System

Update File

C2N-DAP8RC Firmware C2N-DAP8RC.1.04.44d.upg or later

Audio I/O

AUDIO

S/PDIF – A, B

OPTICAL – C, D

AUDIO IN – 2 to 6

1, 2

Version 3.044.CUZ or later

RJ-45 Stereo differential I/O – Connects to CNX-BIPAD8
2 RCA connectors for coax digital input (S/PDIF)
2 Toslink fiber optic inputs (S/PDIF)
10 RCA connectors for 5 local stereo input sources

Input level = 2.5 V
Input impedance = 50K Ohms

RMS

(continued on next page)

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 5

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

C2N-DAP8RC Specifications (continued)

SPECIFICATION DETAILS

AUDIO OUT – A

AUDIO OUT – B

AUDIO OUT – FRONT

(L/R), SURROUND (L/R),
BACK (L/R), CENTER,
SUBWOOFER

Video I/O

VIDEO IN – 1 to 4; VIDEO

INPUT COMP 1 to 3
VIDEO OUT
VIDEO IN – 5 to 16

VIDEO OUT
Video Specifications:

Miscellaneous I/O
RS-232

NET
IR OUT3
IR IN
SENS

Front Panel Indicators 2 LEDs – PWR, NET
Surround Sound Modes PCM up to 96 kHz; Dolby Pro Logic; Dolby Pro Logic II;

Environmental Temperature 41° to 113°F (5° to 45°C)

2 RCA connectors for stereo output of analog crosspoint –

no processing

2 RCA connectors for stereo output but with volume/tone
control

- can be used w/TV if surround sound is not active

- Output level = 1.8 V

- THD+N < 0.05% @ unity gain

- S/N <-96 dB @ maximum output level

- Volume control range –80 dB to +20 dB

- Output impedance 50 Ohms

8 RCA connectors for 7.1 surround sound output

- Output level = 3 V

- Subwoofer output level = 8.5 V

- THD+N < 0.005% @ unity gain

- S/N <-94 dB

- Dynamic range >113 dB

- Output impedance 200 Ohms

- Volume control range –80 dB to +12 dB

Analog to Digital Converters: 24 bit 96 kHz
Digital to Analog Converters: 24 bit 192 kHz
Frequency Response: 20 Hz to 20 kHz ±0.2 dB

RJ-45: CAT5 input; cable length compensation on 3 of the 4
signals.

RJ-45 - 4 channels of balanced video output
12 RCA connectors for video input (any combination of

composite, S, or component, including HDTV), with built-in
75 Ohm termination, and built-in video sensor.

12 RCA connectors for video output
Active switching circuitry – full 16X16 crosspoint
Input impedance: 75 Ohms
Signal levels: 6 V
Differential gain: <0.05%
Differential phase: <0.05%
Gain: 0 dB
S/N: >70 dB
Video bandwidth: >100 MHz (unbalanced)

RJ-11 connector for RS-232 communication; supports baud
rates of up to 115 K and RTS/CTS hardware handshaking

Mini-Cresnet for Cresnet connection
4 IR output jacks for control of IR devices (use STIRP)
1 IR input jack for CNXRMIRD receiver with third-party

remote using RC5 codes
2-pin connector for contact closure input

Dolby Digital 5.1; Dolby Digital EX; DTS 5.1; DTS ES
Discrete 6.1; DTS ES Matrix 6.1; DTS Neo:6 Cinema; DTS
Neo:6 Music

p-p

max

maximum

RMS

maximum

RMS

maximum

RMS

(continued on next page)

6 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

C2N-DAP8RC Specifications (continued)

SPECIFICATION DETAILS

Humidity 10% to 90% RH (non-condensing)
Dimensions Height: 3.48 in (8.84 cm) – with optional feet

Width: 19.0 in (48.26 cm) – with ears

17.1 in (43.43 cm) – without ears
Depth: 8.44 in (21.44 cm)

Weight 5.56 lb (2.50 kg)

1 The latest versions can be obtained from the Downloads | Software Updates section of the Crestron

website (www.crestron.com). Refer to NOTE below.

2 Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product

Catalog for a complete list of 2-Series control systems.

3 Ports can also support one-way RS-232. Can not combine IR and RS-232 on same port.

NOTE: Crestron software and any files on the website are for Authorized Crestron
dealers and Crestron Authorized Independent Programmers (CAIP) only. New users
may be required to register to obtain access to certain areas of the site (including the
FTP site).

Physical Description

The C2N-DAP8RC digital audio surround sound processor is housed in a black
enclosure with labeling on the front and rear panels.

The front panel of the unit includes two standard LEDs (PWR and NET). All
connections to the unit are made through the rear panel.

C2N-DAP8RC Physical Views

The dimensions for the C2N-DAP8RC are shown in the illustrations on the next
page.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 7

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

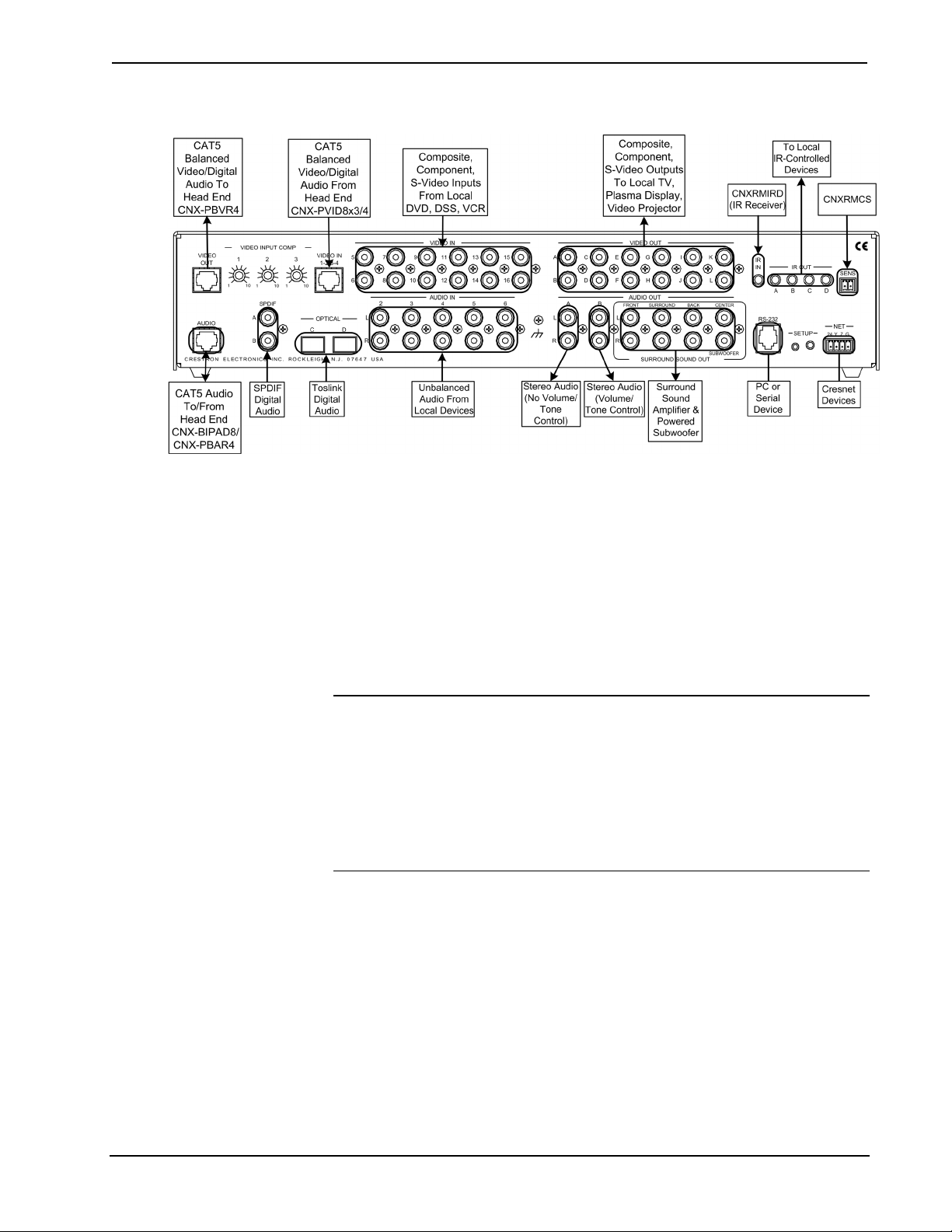

For information on audio and video wiring, refer to “Hardware Hookup” which
begins on page 16.

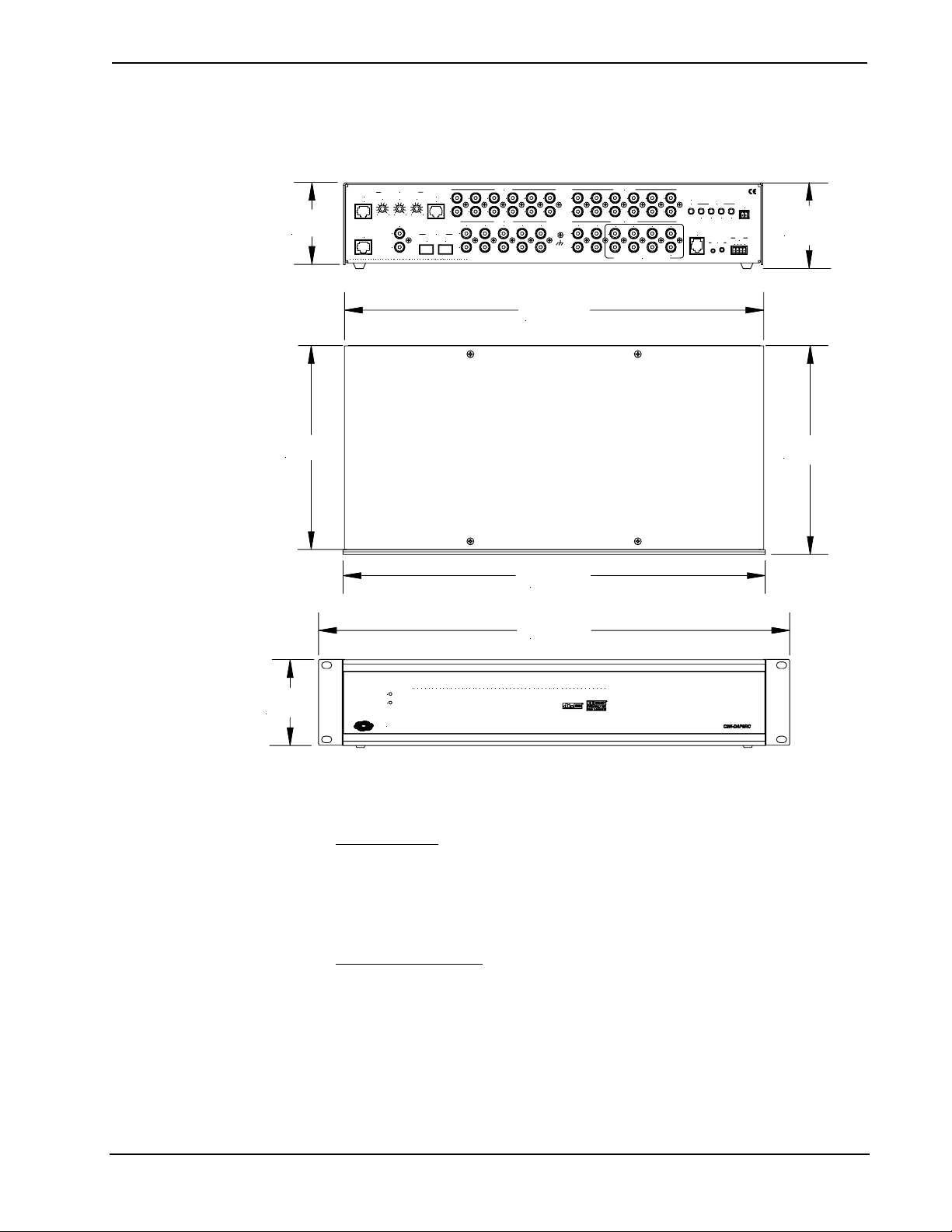

C2N DAP8RC Overall Dimensions

VIDEO OUT

ECA

FDB

AUDIO OUT

A

B

FRONT

L

L

R

R

SURROUND

BACK CENTER

SURROUND SOUND OUT

KIG

LJH

SUBWOOFER

IR

RS-232

IR OUT

SETUP

SENS

DCBINA

NET

Y24 GZ

3.48 in
(8.84 cm)

3.31 in
(8.41 cm)

VIDEO

AUDIO

OUT

VIDEO INPUT COMP

SPDIF

A

B

11 101 10 10

VIDEO IN

321

1-2-3-4

OPTICAL

C

D

VIDEO IN

1513

11

75

9

86

10

2 3

L

R

ASU 74670 .J.N ,HGIELKCOR .CNI SCINORTCELE NORTSERC

AUDIO IN

4

161412

5 6

16.91 in
(42.95 cm)

8.25 in
(20.95 cm)

3.47 in
(8.81 cm)

8.44 in
(21.44 cm)

17.10 in
(43.43 cm)

19.00 in
(48.26 cm)

PWR

NET

CRESTRON

ROSSECORP DNUOS DNUORRUS OIDUA LATIGID LANOISSEFORP

Input and Output Ports

VIDEO OUT

The RJ-45 VIDEO OUT port can be used to send up to four baseband/balanced
video signals out of the unit and back to the head end. A Crestron video receiver
such as the CNX-PBVR4 or CNXRMCLV must be used to convert the signals to
single-ended RCA for input to the CNX-PVID8.

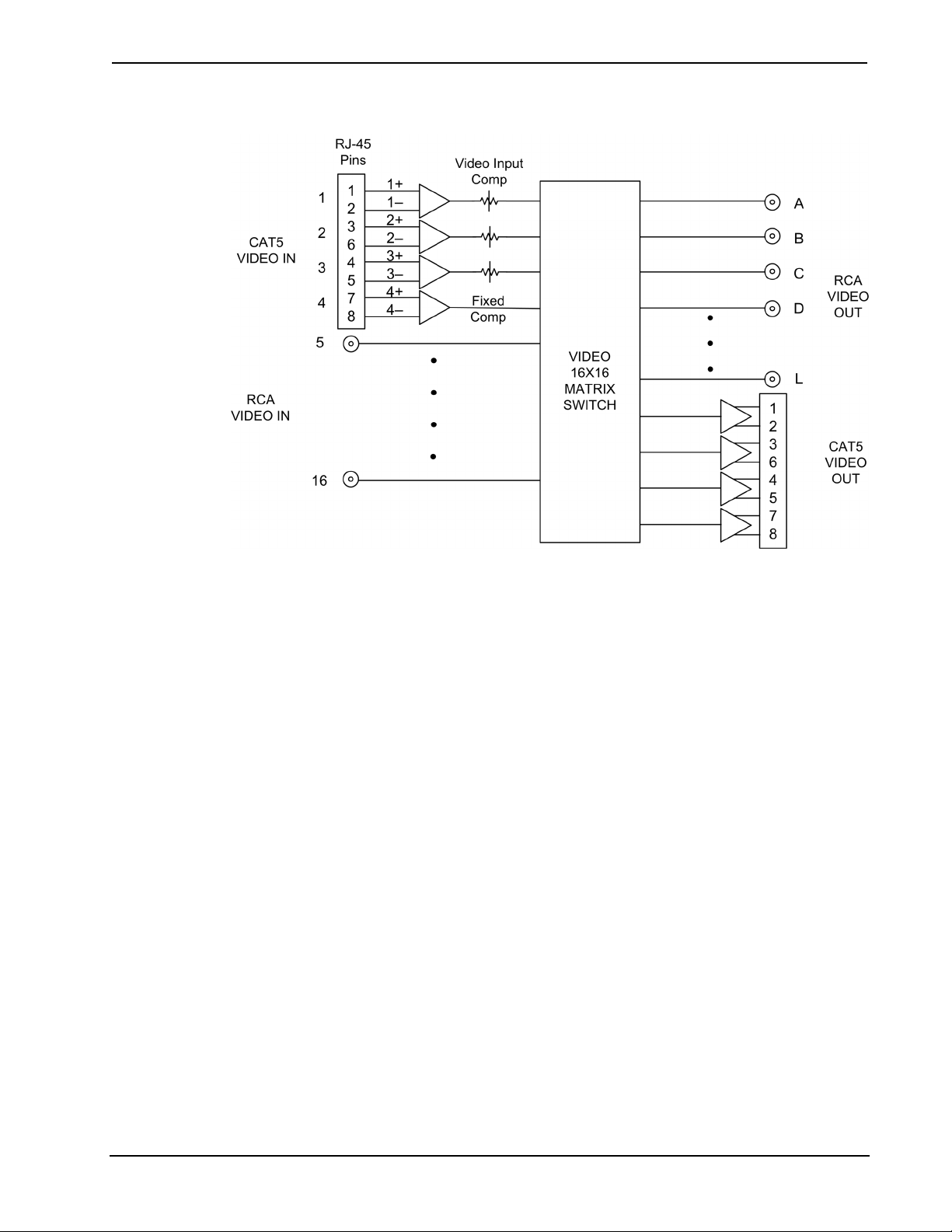

VIDEO IN 1-2-3-4

The RJ-45 VIDEO IN port connects to a video distribution box such as the CNX­PVID8 and accepts four baseband/balanced video signals corresponding to each of
the four levels provided by the CNX-PVID8. This connection can distribute high
definition component video and multi-channel digital audio, or combinations of S­video and/or composite video. Three of the video signals have cable length
compensation. The fourth video signal has fixed compensation and can be used for
composite video or digital audio distribution.

Each local video source input has a built-in video sensor.

8 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

VIDEO IN

These twelve RCA connectors (5 – 16) provide for video input (any combination of
composite, S, or component, including HDTV), with built-in 75 Ohm termination.

VIDEO OUT

These twelve RCA connectors provide local (analog) video outputs.

IR Ports

The C2N-C2N-DAP8RCRC provides one infrared input (IR IN), which is a mini
phone jack that can connect to a Crestron IR detector (CNXRMIRD) to detect fixed
low frequency (38 kHz) IR formats generated by most universal remote control
transmitters. This port supports RC5 IR control and some IR control codes from
Sharp Electronics Corporation.

The four IR outputs (A – D) are used to control IR and one-way serial devices. These
outputs can also be connected to optional Crestron equipment such as the STIRP,
ST-MB, and ST-SPL.

NOTE: IR and one-way RS-232 outputs cannot be combined on a single port.

NOTE: One-way RS-232 communication supports baud rates up to 9600 Hz.

Hardware/software handshaking is not supported.

NOTE: Transmission levels on the infrared – serial output connectors are in the 0 to
+5VDC range, which may not be compatible with all RS-232 devices.

SENS

The two-pin terminal block connector is used for contact closure type input. The port
can be connected to a Crestron current sensor (CNXRMCS) or any other device that
provides a dry contact closure to detect the power status of a high-power device such
as a television.

AUDIO

The RJ-45 AUDIO port is used to transmit and receive analog stereo audio from the
head end.

SPDIF (Coaxial Digital Audio)

These two RCA connectors (A & B) are used for coaxial digital input from local
sources.

OPTICAL

These two Toslink ports (C & D) are used for fiber optic S/PDIF inputs.

AUDIO IN

These ten RCA connectors (2 – 6, L & R) provide for five local stereo input sources.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 9

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

(Chassis Ground)

Use this chassis screw to connect the audio source(s) common ground(s) to the C2N­DAP8RC.

AUDIO OUT

The two RCA connectors labeled A provide stereo output of the unit’s analog
crosspoint, without any processing. This is a unity gain output.

The two RCA connectors labeled B provide stereo output of analog crosspoint, but
with volume/tone control.

The eight RCA connectors that comprise the SURROUND SOUND OUT group,
provide surround sound encoded output to the FRONT, SURROUND, BACK,

CENTER, and SUBWOOFER channels. Typically, the FRONT, SURROUND,
BACK, and CENTER outputs are routed to a surround sound amplifier such as the
CNAMPX-7X200; the SUBWOOFER output goes to a powered subwoofer.

RS-232

The C2N-DAP8RC provides one RJ-11 connector for RS-232 communication with a
PC or third-party serial devices. This port supports baud rates up to 115K and
RTS/CTS hardware handshaking. Data Set Ready (DSR) and Data Terminal Ready
(DTR) are not supported. The pins are configured as shown in the following table.

PIN FUNCTION

1 CTS (Clear to Send)

2 GND

3 RXD (Receive)

4 TXD (Transmit)

5 RTS (Request to Send)

6 Not connected

NET

This four-pin terminal block connector is used to supply unit power (24 VDC) and
for connection to other four-wire devices in the Cresnet system.

LED Indicators

The front panel PWR (Power) indicator illuminates when the unit is supplied with
24 volts DC from the network. The NET indicator flashes whenever communication
occurs between the control system and the C2N-DAP8RC (when the unit is polled on
the network). The NET LED indicates that the current SIMPL Windows program
has a network device defined at the same Net ID as the C2N-DAP8RC.

SETUP LED and Pushbutton

The SETUP pushbutton and its associated LED are located on the rear panel and are
to be used for setup of the unit’s network ID during the initial configuration of a
Cresnet
(Touch Settable IDs)” on page 13 for detailed information.

®

system or when the device is being added/replaced. Refer to “Method B

10 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

VIDEO INPUT COMP 1, 2, 3 (Potentiometers)

These three potentiometers are used to adjust the respective video input signal to
compensate for signal losses due to long cable runs. Refer to the section titled
“Video Input Compensation for CAT5 Inputs” on page 23 for detailed procedures.

Industry Compliance

As of the date of manufacture, this unit has been tested and found to comply with
specifications for CE marking and standards per EMC and Radiocommunications
Compliance Labelling (N11785).

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.

Setup

Network Wiring

CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do
so could cause equipment damage or void the Crestron warranty.

CAUTION: Provide sufficient power to the system. Insufficient power can lead to
unpredictable results or damage to the equipment. Please use the Crestron Power
Calculator to help calculate how much power is needed for the system.
http://www.crestron.com/dealer-tech_resources/power_calculator.asp

NOTE: When installing network wiring, refer to the latest revision of the wiring
diagram(s) appropriate for your specific system configuration, available from the
Downloads | Product Manuals | Wiring Diagrams section of the Crestron website
(www.crestron.com)

When calculating the wire gauge for a network run, the length of the run and the
power factor (power usage in watts) of each network unit must be taken into
consideration. If multiple network units are to be daisy-chained, the power factors of
each unit must be added to determine the power factor of the entire chain. The length
of the run in feet and the power factor of the run (in watts) should then be used in the
following resistance equation.

.

40,000

Where:

R <

L x PF

The required wire gauge should be chosen such that the resistance value is less than
the value calculated in the resistance equation. Refer to the table after this paragraph.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 11

R = Resistance (refer to table below).
L = Length of run (or chain) in feet.

PF = Power factor of entire run (or chain).

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Wire Gauge Values

RESISTANCE (R) WIRE GAUGE

4

6

10

15

13

8.7

NOTE: All network wiring must consist of two twisted-pairs. One twisted pair is the
+24V conductor and the GND conductor; the other twisted pair is the Y conductor
and the Z conductor.

NOTE: When daisy-chaining Cresnet units, strip the ends of the wires carefully to
avoid nicking the conductors. Twist together the ends of the wires that share a pin on
the network connector, and tin the twisted connection. Apply solder only to the ends
of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle.
Insert the tinned connection into the Cresnet connector and tighten the retaining
screw. Repeat the procedure for the other three network conductors.

16

18

20

22

Doubled CAT5

Tripled CAT5

Refer to the note on page 55 for
a definition of Viewport.

Identity Code

Every equipment and user interface within the network requires a unique identity
code (Net ID). These codes are two-digit hexadecimal numbers from 03 to FE. The
Net ID of each unit must match an ID code specified in the SIMPL Windows
program. Refer to “Setting the Net ID in Device Settings” on page 49 for details of
the SIMPL Windows procedure.

The Net ID of the C2N-DAP8RC has been factory set to 50. The Net IDs of
multiple C2N-DAP8RCs in the same system must be unique. Net IDs are changed
from a personal computer (PC) via the Crestron Viewport.

NOTE: For detailed information on establishing communication between the PC and
control system, refer to “Communication Settings” on page 55. If communication
cannot be established, refer to the “Troubleshooting Communications” section in the
respective Operations Guide for the control system.

There are two different methods for setting the C2N-DAP8RC Net IDs:

Method A (Cresnet address-settable ID), described below, requires that a single unit
be the only network device connected to the control system. This method is
necessary with a 2-Series control system upgrade file (CUZ) version prior to 3.008.
It is optional with later versions of the operating system.

Method B (Touch-Settable IDs), which begins on page 13, applies to C2N­DAP8RCs in a Cresnet system with 2-Series control system upgrade file (CUZ)
version 3.029 or later. These upgrades enable Touch-Settable ID (TSID)
functionality, which makes it possible for the control system to recognize a network
device via its serial number, which is stored in the device’s memory. This method
does not require that any devices be disconnected from the network; Net IDs may be
set with the entire Cresnet system intact. This method requires the use of the
Crestron Viewport version 3.35 or later.

Use the appropriate method to set the C2N-DAP8RC Net ID.

12 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Method A (Cresnet address-settable ID)

1. Ensure that the C2N-DAP8RC is the only device connected to the
control system.

2. Open the Crestron Viewport.

3. From the Viewport Functions menu, select Set Network ID. The
Viewport will check the baud rate and then display the "Set Network
ID" window.

4. In the "Set Network ID" window, select the C2N-DAP8RC from the
Current Network Devices text window.

5. Select the new Net ID for the C2N-DAP8RC from the Choose the new
network ID for the selected device (Hex): text box.

6. Click Set ID to initiate the change. This will display the message "ID
command has been sent.”

7. In the "Command Complete" window, click OK.

8. In the Current Network Devices window, verify the new Net ID code.
(The Net ID can also be verified from the Diagnostics menu. Select the
Report Network Devices command.)

9. In the "Set Network ID" window, click Close.

NOTE: The new Net ID code may also be verified by selecting Diagnostic | Report
Network Devices in the Viewport (alternately, select F4).

10. Repeat this procedure for each C2N-DAP8RC to be added to the
system.

Method B (Touch Settable IDs)

Before using this method, you should have a list of all current network devices and
their Net IDs, to avoid assigning duplicate IDs.

Set Net ID by TSID

These procedures are for TSID-enabled network devices during the initial
configuration of a Cresnet system or when such devices are being added/replaced.

1. Ensure that all C2N-DAP8RCs are connected to the control system.

2. Open the Crestron Viewport version 3.35 or later.

3. From the Viewport menu, select Functions | Assign Cresnet ID by
Serial Number. The “Set Net ID by TSID” window appears. The
window is first displayed with the data fields empty.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 13

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

“Set Net ID by TSID” Window

4. Click on the Search for Touch Settable Devices button. The system
searches the network and lists all TSID-enabled devices found. The list
is similar to the report produced by pressing F4 (Report Network
Devices); the first eight digits of each line constitute the TSID number
(hexadecimal form of the serial number).

5. As you enter either the serial number or TSID number of the device
that requires a change, the corresponding TSID or serial number
automatically appears in its appropriate field, and the list scrolls to and
highlights the device listing. The listing should show the device’s
current Cresnet ID.

6. Enter the Cresnet ID that the device should be set to and click OK. The
number you enter should appear on the list.

CAUTION: This function does not prevent you from setting duplicate IDs. Be sure
to check current assignments before entering the desired Cresnet ID number.

Serial Number to TSID Conversion

This utility is useful in a case where there are multiple devices of the same type on a
network, you need to locate a particular one, you know the TSID but not the serial
number, and your site installation list is based on device serial numbers. In this (or
the reverse) situation, do the following:

1. Open the Crestron Viewport.

2. From the Viewport menu, select Functions | Serial Number 
TSID Conversion Tool. The “Serial Number TSID Conversion
Tool” window is displayed.

14 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

“Serial Number to TSID Conversion Tool” Window

3. Enter the serial number or TSID number as instructed; press the
appropriate button to obtain the corresponding number.

NOTE: Enter serial numbers, including spaces, exactly as they appear on the unit
label. Alpha characters in serial numbers or TSID numbers may be entered in upper
or lower case.

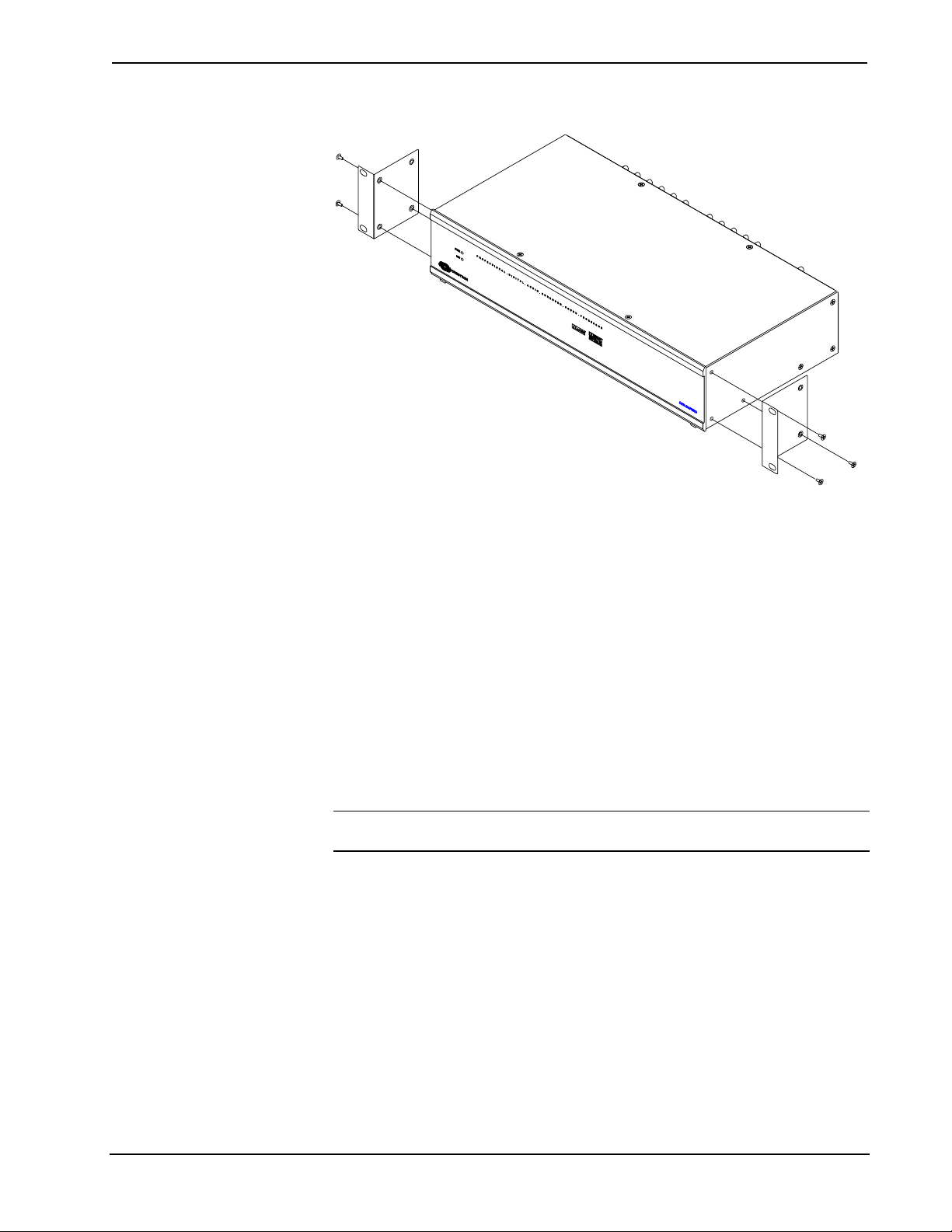

Rack Mounting

WARNING: To prevent bodily injury when mounting or servicing this unit in a
rack, you must take special precautions to ensure that the system remains stable. The
following guidelines are provided to ensure your safety.

 If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

 When mounting this unit assembly in a partially filled rack, load the rack from

the bottom to the top with the heaviest component at the bottom of the rack.

NOTE: If rack mounting is not required, rubber feet are provided for tabletop
mounting or stacking. Apply the feet near the corner edges on the underside of the
unit.

NOTE: Reliable grounding of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct
connections to the branch circuit. (e.g., use of power strips).

Two “ears” are provided with the unit and must be installed so that it can be rack
mounted. Refer to the illustration on the next page and complete the procedures to
attach ears to the unit. The only tool required is a Phillips screwdriver.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 15

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Ear Attachment for Rack Mounting

1. Using a Phillips screwdriver, remove and retain the three side screws
closest to the front panel.

2. Position a rack ear so that its mounting holes align with the vacated
holes, and secure the ear to the unit with the three screws from step 1.

3. Repeat the procedure to attach the remaining ear to the opposite side.

Hardware Hookup

In addition to its capabilities as a surround sound processor, the C2N-DAP8RC
provides tremendous flexibility in audio and video signal distribution. Refer to
“Audio/Video Distribution” below for detailed information. Refer to the basic
hookup diagram following this paragraph, and, other than making the power
connection (NET) last, complete the connections in any order.

NOTE: Refer to “Network Wiring” on page 11 when making connections to the
port labeled NET.

16 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Typical Hookup Connections for C2N-DAP8RC

Audio/Video Distribution

The C2N-DAP8RC provides local inputs and outputs for audio and video. Each local
video source input has a built-in video sensor. In addition, the unit provides a contact
closure type input that can be used with the CNXRMCS current sensor to detect the
power status of a high power device such as a television.

Typically, the C2N-DAP8RC receives video and digital audio from the CNX­PVID8, as well as analog audio from the CNX-BIPAD8, all via CAT5 cabling. In
addition, it receives video, digital audio and analog audio from local sources via
standard RCA connections. The unit’s built-in audio/video matrix switcher
distributes these inputs to local outputs.

NOTE: For additional information on video connections over CAT5, refer to the
latest version of the Crestron CAT5 Wiring Reference Guide (Doc. 6137) which is
available from the Downloads | Product Manuals section of the Crestron website
(www.crestron.com).

NOTE: The coax connection to audio inputs A and B and the optical connection to
inputs C and D carry the same signal type, S/PDIF, but Toslink cabling is only good
up to a maximum of 10 meters; the coax version can go 10 - 15 meters. This should
be considered in your hookup planning.

The following paragraphs and the audio and video routing diagrams below and on
the next page describe signal distribution arrangements that are typical for the C2N­DAP8RC. Refer also to the Typical Surround Sound Configuration diagram on page

20.

Distribution of Analog Audio to/from the Head End

Analog audio from distributed source devices is supplied by the CNX-BIPAD8 (or
CNX-PAD8) via CAT5 to the C2N-DAP8RC, then passed through a Crestron
amplifier (CNAMPX-7X200), and delivered as speaker level audio to the local set of
speakers. Analog audio can be directed from the C2N-DAP8RC back to the CNX­BIPAD8 directly, via CAT5.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 17

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Distribution of both Analog and Digital Audio from the Head
End

The C2N-DAP8RC also allows the user to choose digital audio as a video source
from the head end. In the room, the digital audio is supplied to the C2N-DAP8RC
surround sound decoder, passed through the CNAMPX- 7X200 amplifier, and
distributed to the local speakers. The listener can only select digital or analog audio
at any given time.

Audio Routing

18 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Video Routing

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 19

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Typical Surround Sound Configuration

20 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Recommended Audio/Video Input Configurations

Recommended Balanced Video Input Configurations

BALANCED

VIDEO INPUT

1 Composite 1 S Video 1 (Y) Component (Y)
2 Composite 2 S Video 1 (C) Component (Pb)
3 Composite 3 S Video 2 (Y) Component (Pr)
4 Composite 4 S Video 2 (C) Digital Audio

SOURCE CONFIGURATIONS

1 2 3

Refer to the diagram below and make the appropriate connections between the C2N­DAP8RC surround sound outputs and the CNAMPX-7X200 surround sound
amplifier and speakers.

NOTE: Each of the CNAMPX-7X200 amplifier’s seven channels is functionally
identical and can be connected to the surround-sound processor in any convenient
arrangement.

NOTE: Match the output of the processor to the corresponding speaker via the
CNAMPX-7X200.

NOTE: Connect the subwoofer output to a powered subwoofer.

Connection to Surround Sound Amplifier and Speakers

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 21

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Speaker Types

Different speaker types have different sound reproduction characteristics, which
affect their performance in a home theater environment. Crestron makes no specific
recommendations, and provides the following information for reference purposes
only.

To create the most realistic surround sound experience, it is recommended that you
match your speakers’ tonal characteristics. This is also known as ‘timbre matching.’

Direct Radiating

Direct radiating speakers provide a focused image, which makes it relatively easy to
detect the general location of the sound (localization). This opposes the type of open
sound you would expect in a large theater or concert hall.

Bipolar

Bipolar speakers have drivers on opposite sides of their cabinets, wired in phase, and
provide a diffuse sound. Sound radiates from both sides, so the sounds seem to be
coming from all around instead of from a specific location. Because the sound is
very open, it creates a larger ideal listening area, and speaker localization becomes
more difficult.

LEFT
SURROUND

LEFT
FRONT

CENTER

RIGHT

FRONT

SURROUND

RIGHT

Dipolar

Dipolar speakers also have drivers on opposite sides of their cabinets and provide a
diffuse sound. These speakers operate 180°out of phase and create a sound field that
is more open than either the direct radiating or bipolar types. These speakers are
typically used in surround channel applications, and speaker localization becomes
the most difficult. This type of speaker is not recommended for front channels.

Subwoofers

Subwoofers are specially designed to reproduce the lowest ranges of audible
sound-usually from 120 Hz down to 20 Hz. These speakers are either powered or
non-powered. Non-powered subwoofers require an external amplifier and power
supply. Subwoofer output typically includes the information from the decoded LFE
channel and will include the low frequency information from the left, right, center
and surround channels when the speakers for those channels are unable to reproduce
the low frequency sounds, and bass management is enabled.

Speaker Arrangements

Refer to the diagram to the left of this paragraph and arrange the speakers in the
listening area according to these general guidelines. Refer to the instructions given in
“Surround Sound System Setup” on page 26 for optimum placement.

• Place front speakers so their front surfaces are as flush as possible with the
front of the viewing screen, and at an angle to the listening position of 45 to
60 degrees, with the primary drivers at ear level. Refer to manufacturer’s
instructions. Most recommend placement one to three feet from the wall.

• Depending upon the type of speakers used, surround speakers are usually
placed slightly behind and above ear level of the primary listening position,
approximately six feet above the finished floor.

LEFT
BACK
SURROUND

RIGHT

BACK

SURROUND

• Place the surround back speakers at the rear of the listening area and at an
angle to the listening position of 60 to 90 degrees, with the primary drivers

22 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

at or slightly above ear level, approximately six feet above the finished
floor.

• Place the subwoofer according to the owners manual supplied with the
speaker.

Video Input Compensation for CAT5 Inputs

After the system is connected, it may be necessary to adjust the video input
compensation pots on the C2N-DAP8RC to achieve the best picture on the monitor.
This requires a narrow slotted screwdriver and an audio/video calibration DVD (or
laser disc). Crestron recommends one of the following:

• Avia Guide to Home Theater, from Ovation Software (www.ovationsw.com)

• Video Essentials, from DVD International (www.videoessentials.com).

To adjust the video input compensation:

1. Place the calibration disk in the system's DVD player.

2. Search the DVD for the chapter that displays the multi-burst pattern, as

shown in the following figure:

Refer to the note on page 55 for a
definition of Viewport.

NOTE: For S-video and component video sources, be sure to adjust the pot for
luminance compensation first (VIDEO INPUT COMP 1). The pots for chrominance
compensation should be adjusted last.

3. While the pattern is being displayed on the monitor, use the

screwdriver to adjust the VIDEO INPUT COMP 1 compensation pot
until the line intensity on the monitor appears uniform. Note the
numeric value.

4. Adjust the other two compensation pots (VIDEO INPUT COMP 2 & 3)

to the same value as the VIDEO INPUT COMP 1 compensation pot.

Universal Remotes

The C2N-DAP8RC can communicate with any universal remote control transmitter
that uses standard RC5 code, as well as some Sharp codes. An RC5 code is 14 bits
long and includes a 5-bit address (or “System Number”) and a 6-bit “Command
Number.”

The setup procedure for a universal remote is completed in two steps. First, the
Crestron Viewport is used to verify that the transmitter sends an identifiable code
that is compatible with the C2N-DAP8RC. Second, the buttons on the transmitter
are mapped so that they can be programmed in SIMPL Windows.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 23

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

NOTE: The Philips Pronto model transmitter contains built-in RC5 commands for
out-of-the-box use. The Pronto transmitter’s RC5 System Number is equivalent to
the Crestron Transmitter ID; similarly, the RC5 Command Number is equivalent to
the Crestron Button ID. This means that setting up the Phillips Pronto requires only
the code verification procedure described below, but not the mapping procedure.

NOTE: The Phillips Pronto can also generate non-RC5 codes.

Code Verification

All IR transmitters provide manufacturer’s documentation that lists IR codes by
device and manufacturer. Code verification involves choosing the appropriate code
so that the transmitter can communicate with the C2N-DAP8RC. This requires the
following:

• Crestron interface box, such as C2N-DAP8RC, connected to CNXRMIRD

• PC running the Crestron Viewport. The Crestron Viewport is available as a

pull-down command from SIMPL Windows or Crestron VisionTools
Pro-e (VT Pro-e), or as a standalone utility

• Crestron control system connected to the PC (the control system should be
running a valid SIMPL Windows program so that the C2N-DAP8RC can be
polled)

The procedure is completed as follows:

1. From the Viewport Diagnostics menu, select Identify Transmitter ID. The
Viewport will check the baud rate and then display the "Transmitter
Identification" window.

2. Point the transmitter at the CNXRMIRD and select a code, as outlined in
the manufacturer's documentation.

®

3. Press a button on the transmitter and take note of the "Transmitter
Identification" window.

4. If no activity is listed next to Button Action, the code is not acceptable.
Repeat steps 2 and 3 with another code. If activity is indicated next to
Button Action with each button press, the code was successfully
programmed.

Once the code has been successfully programmed, the transmitter is automatically
assigned a unique hexadecimal Transmitter ID that can range from 00 to 3F.

24 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

“Transmitter Identification” Window Showing Transmitter ID

Map the Universal Remote

Every button press on a transmitter is assigned a decimal Button ID. These button
presses must be mapped to commands that will be programmed in SIMPL Windows.
This is accomplished simply by pressing each button and taking note of its Button
ID, via the “Transmitter Identification” window.

1. Click Clear in the “Transmitter Identification” window.

2. Press a button on the transmitter and manually record its Button Action
name and Button ID.

3. Repeat for every button on the transmitter.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 25

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

E

Surround Sound System Setup

After completing the hardware hookup procedures, perform these procedures to set
the C2N-DAP8RC surround sound default values according to the actual
environment of the listening area.

Crestron recommends the use of its Digital Audio Tools program (DAT) to configure
the surround sound system because of the program’s simplicity, speed, and ease of
operation. However, Crestron also supplies an Example Program with the C2N­DAP8RC that can demonstrate the various features of the unit and serve as a model
program for those individuals who wish to do the system setup and room balancing
functions via a touchpanel.

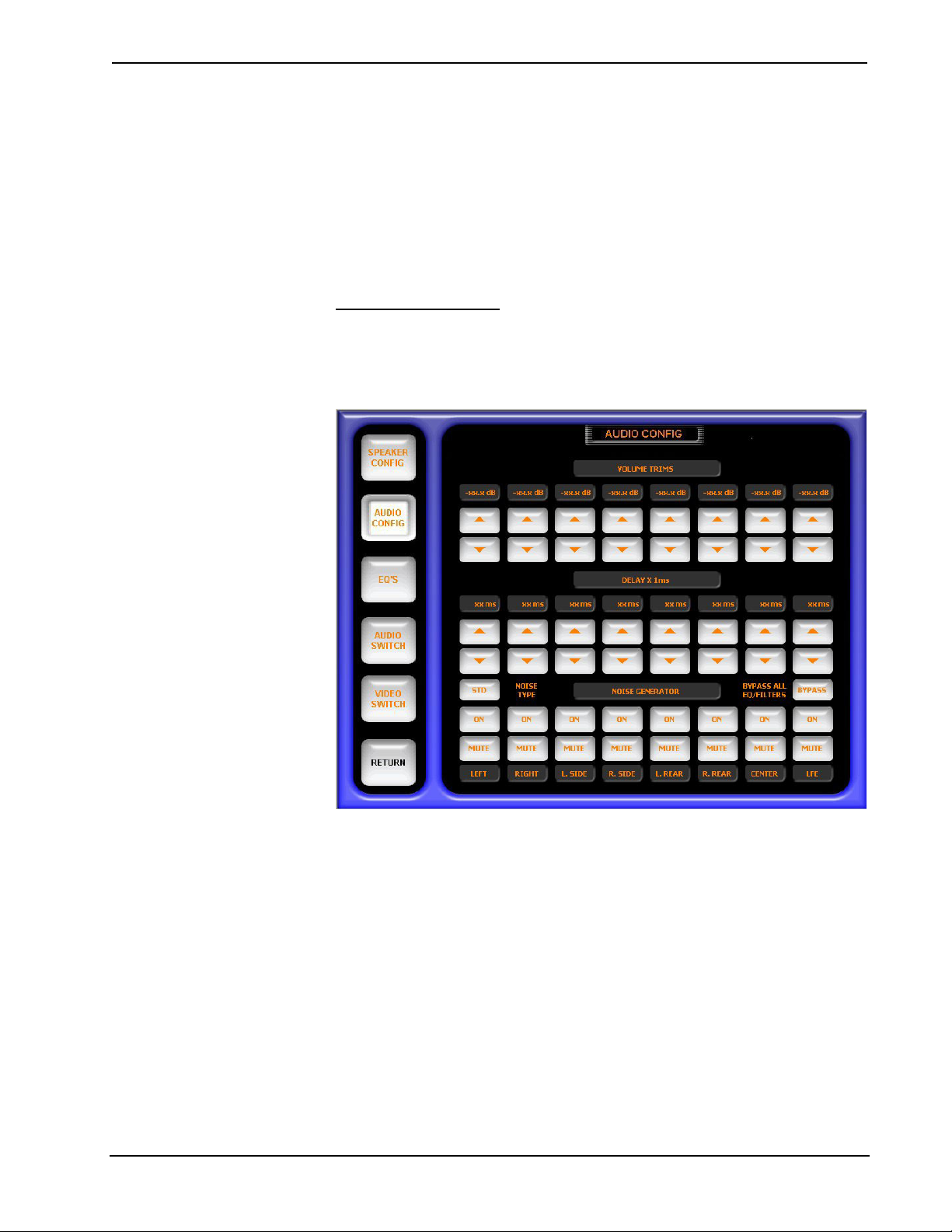

xample Program

NOTE: Crestron recommends setting the analog parameters of the C2N­DAP8RC in only one way—either through the DAT software or through the
SIMPL Windows program. However, if you must allow both, please read and
understand this warning. There are some subtleties that must be handled in a way

that is a bit different from what you may be familiar with when using similar
devices. For example, if you intend to directly set the C2N-DAP8RC <Volume>
analog input in your program, keep in mind that the <Volume_FB> signal can be set
to a different value through some other method (e.g., using the DAT software). In
other words, the C2N-DAP8RC actually stores these parameters, as opposed to a
CNXVTC-3 or ST-VC, where the value is stored solely in the control system. If you
were to just use an Analog RAMP symbol and send the output of the RAMP to the
<Volume> input and jam it with the <Volume_FB> output of the C2N-DAP8RC,
Oscillations might result between the RAMP and the actual <Volume_FB> value
from the C2N-DAP8RC. This could cause damaging volume levels to be sent to
your speakers.

Instead, use the "Analog Increment with Optional Feedback" (AINC) symbol.
Connect the <aout> output of the AINC to the <Volume> input of the C2N-
DAP8RC, then connect the <Volume_FB> output of the C2N-DAP8RC to the
<[FbckSignal]> input of the AINC. This way, the program will always be updated
with the true value of the C2N-DAP8RC. The same applies to any analog value that
can be changed from two places (EQ, Trim, etc.).

Test Equipment

No matter which method is used to set up the surround sound system in the listening
area, the following items are required:

• SPL (Sound Pressure Level) Meter. Used to measure sound in decibels
(dB). This is used to calibrate the speakers so each produces the same sound
level at a given volume setting.

• Tape Measure. Used to measure distance from speakers to main listening
position.

The following equipment is recommended to optimize the performance of the C2N­DAP8RC relative to the listening area, speaker arrangement, and the user’s
preferences:

• Audio Spectrum Analyzer. Used to “see” a speaker’s frequency response in
a room. This is used with equalizers to adjust for a proper room response.

26 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

• Avia Guide to Home Theater, from Ovation Software
(www.ovationsw.com)

OR

Video Essentials, from DVD International (www.videoessentials.com).

The Avia Guide to Home Theater and the Video Essentials DVD discs provide
information and extensive instructions, including video test patterns and audio test
signals, for setting up a home theater environment.

Crestron Digital Audio Tools

The Crestron Digital Audio Tools software program is available from the Crestron
website. This program allows you to customize the configuration of the audio
processor to match the requirements of the listening/viewing area. You can specify
the speaker configuration, adjust the delay settings (to permit sound from all the
speakers to reach the listener at the same time), select the decoding mode for every
signal type input, and adjust the output setting (gain) for each speaker. The program
also provides the easiest method to configure the 8-channel, 6-band parametric
equalizer that lets you set the frequency, gain, bandwidth, and filter type for each
speaker to balance the listening area.

Refer to the help file that accompanies the software for more detailed information.

Setup Procedures

Setting up the C2N-DAP8RC surround sound processor consists of a number of
steps that need to be accomplished in the order presented here.

1. Place an SPL meter at the designated “sweet-spot” location in the room.
Measure the distance, to the nearest half foot, from the SPL meter to each
speaker in the room, including the subwoofer.

2. Launch the DAT program, and set communications parameters as described
in “Communications” on page 31.

3. Specify the room speaker arrangement as described in “Speaker Sizes / Bass
Management” on page 33.

4. Using the measurements obtained in Step 1 above, set up the system delays
as described in “Delay Settings” starting on page 34.

5. Select Tools | Realtime Mode from the menu bar (or click the Realtime
Mode icon on the toolbar). Then, select Tools | Source/Noise Steering (or
click the Source/Noise Steering icon), and use the information given in
“Source/Noise Steering” on page 28, to send pink noise to each speaker to
verify that the speakers are connected and functioning.

6. Using the instructions in “Using Source/Noise Steering for Calibration” on
page 30, and in ”Room Calibration” on page 34, perform room calibration
procedures.

7. Perform the instructions given in “Input Settings” on page 35 to set the
input levels for each of your audio sources.

8. Perform the instructions given in “Output Settings” on page 37 to set the
relative gain for each speaker in the room for each decoding mode.

9. Follow the instructions given in “Graphic EQ” on page 38 to specify the
number of graphic equalizers to be used in the system and to set their
gain/attenuation level.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 27

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

10. Refer to “Parametric Equalizers” on page 39 adjust the frequency response
interaction within the room for each speaker in the system.

DAT Program Procedures

After launching DAT, either open an existing program for the C2N-DAP8RC, or
start a new program and choose the C2N-DAP8RC template. The following
paragraphs describe the features and functions of the DAT program. Use the DAT
software to perform the setup procedures for the C2N-DAP8RC in the order
specified in the previous section.

Toolbar Icons

The following paragraphs describe some of the unique toolbar icons that provide
quick access to important digital audio tools functions.

Realtime Mode

The Digital Audio Tools Realtime Mode permits all changes to be transferred to the
device immediately. This is especially useful during calibration of the room

To select Realtime Mode, click the Realtime Mode icon on the Digital Audio Tools
toolbar, or select Tools | Realtime Mode. The system displays the following
message:

As suggested in the message, synchronize the application and the device by
performing a “Send To Device” or “Load From Device” transfer from the
Communications tab screen before attempting any real-time equalizer configuration
changes. Refer to “Communications” on page 31 for additional details.

Source/Noise Steering

The Digital Audio Tools program “Source/Noise Steering” window is for selecting
internal noise and external audio sources for calibrating the other parameters in the
system. Refer to “Using Source/Noise Steering for Calibration” on page 30. The
option is only available if you are working in Realtime mode. Clicking the
Source/Noise Steering icon displays the screen shown on the next page.

28 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

This screen lets you select any available source signal from any of the C2N­DAP8RC audio ports or internal noise and direct it to a particular speaker to enable
setting the filters for optimum response.

If you select one of the Internal Noise sources (Pink or Dolby), the Source Select
drop down list is dimmed and unavailable.

If you select the Internal Noise Off setting, you may instead select an external audio
source from any of the ports and select a speaker for the left channel of that audio
source to be routed to. You would use this if you wanted to calibrate your system
using an external noise source (i.e., a CD or DVD or calibration tool) or with a
specific music or movie track.

View Error Log

Clicking this button displays the error log (if one exists) as shown in the following
illustration:

Mute

Mute on the toolbar acts as a toggle. Clicking this icon immediately mutes the sound
in all channels; clicking it again turns mute off.

Mute can also be accomplished by selecting Tools | Mute from the menu bar, or by
pressing F8. To turn Mute off, you must select Tools | Mute again or press Shift F8.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 29

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

The Mute button on the lower right of all screens is intended as a “panic” button to
prevent damage to speakers in the event of sudden large increases in sound level,
which can occur when switching from one sound source to another. Pressing this
button again does not turn mute off. Turn mute off, after the problem is resolved, as
stated above.

Using Source/Noise Steering for Calibration

Calibrating a room is a critical part of setting up a home theater. Without proper
calibration, the impact of a movie or musical soundtrack will lack what the sound
engineer had originally intended.

The Source/Noise Steering feature gives you three options to choose from to suit
your calibration needs. The definitions below give you the function of each type of
noise and its intended use for system calibration. The Source/Noise Steering feature
should be used with an SPL Meter and/or a Real Time Analyzer (RTA) for the best
possible calibration of the room.

Pink Noise:

Pink noise is sound that is comprised of a random signal, with all audio frequencies
present, over time, and at various signal levels. It provides equal energy per octave to
provide a flat response over all frequencies. (Refer to Graph 1 after the next
paragraph for visual reference.)

The main function of pink noise is to calibrate a speaker’s interaction within its
given room. The reason that pink noise is used over other generated noises such as
white noise is because of its equal power to all octaves. This makes it easier to
calibrate for a flat plot on a real time analyzer, since the level will be uniform across
every octave. Pink noise is provided by DAT software or you can use an external
source such as a DVD or CD. This would be used with the Room Calibration, Output
Settings, Graphic EQ and Parametric EQ tabs.

Graph 1:

30 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Dolby Noise:

Dolby Noise is Dolby Laboratories version of noise intended for calibrating a room
that uses only Dolby’s Surround formats for its listening modes. Dolby specifically
created this noise to represent what a home theater frequency response should be. A
flat response is not intended when using this noise in calibration of a room.

White Noise (External Source Only):

White noise is a sound that is comprised of a random signal, with all audio
frequencies present, over time, and at various signal levels. It provides equal energy
per Hz, which will give a 3 dB per octave increase starting from the lower frequency
range (20 Hz) to the upper frequency range (20,000 Hz). (Refer to Graph 2 after the
next paragraph for a visual reference.)

CAUTION: White noise is used to calibrate electronic equipment. It provides a
signal to measure levels and drives the circuitry at all signals simultaneously. IT
SHOULD NOT BE USED TO CALIBRATE SPEAKERS IN A ROOM. It can cause
a speaker’s tweeter to burn out and cause undesired response in the room due to the
levels you would set based upon the calibration.

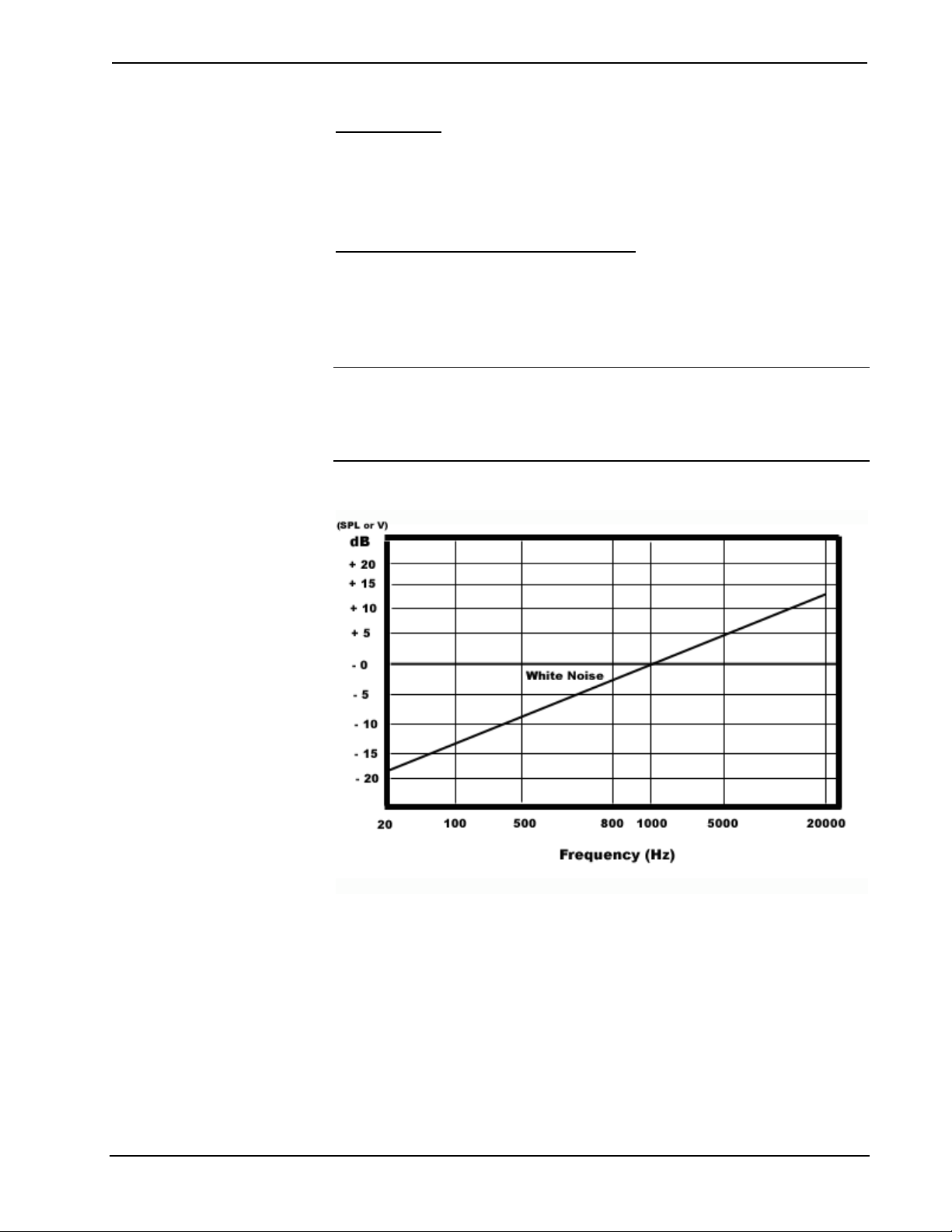

Graph 2:

Communications

The Communications tab allows you to define the settings for communication with
the C2N-DAP8RC in order to download existing files and upload new ones. It is
important that you set the communication parameters first before doing any of the
other setup procedures.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 31

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Set up for communications as follows:

1. Initially, the Pass To check box is not selected indicating a direct
connection from your PC to the C2N-DAP8RC. Select Pass To if your PC
and the C2N-DAP8RC are connected through the control system via
Cresnet. Make certain the Cresnet ID setting is correct (50 is the default for
the C2N-DAP8RC). Refer to “Identity Code” on page 12 for more
information on setting the Cresnet ID.

2. Click on the Connection Settings Viewport Settings button to display the
“Port Settings” window. Select RS-232 as the connection type. Verify that
an available COM port is selected, and that all communication parameters
and necessary options from the “Port Settings” window are selected as
shown in the illustration on the next page. Click the OK button to save the
settings and close the window.

3. Synchronize communication between the PC and the device by clicking the
Transfer Configuration Load From Device button. This transfers any
current settings of the C2N-DAP8RC to the DAT program.

NOTE: Before making any adjustments via the DAT program, immediately save the
program (use File | Save As) to preserve the current device settings. This is
especially important if you are working on a device that has already been configured
and you subsequently need to restore those settings.

32 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

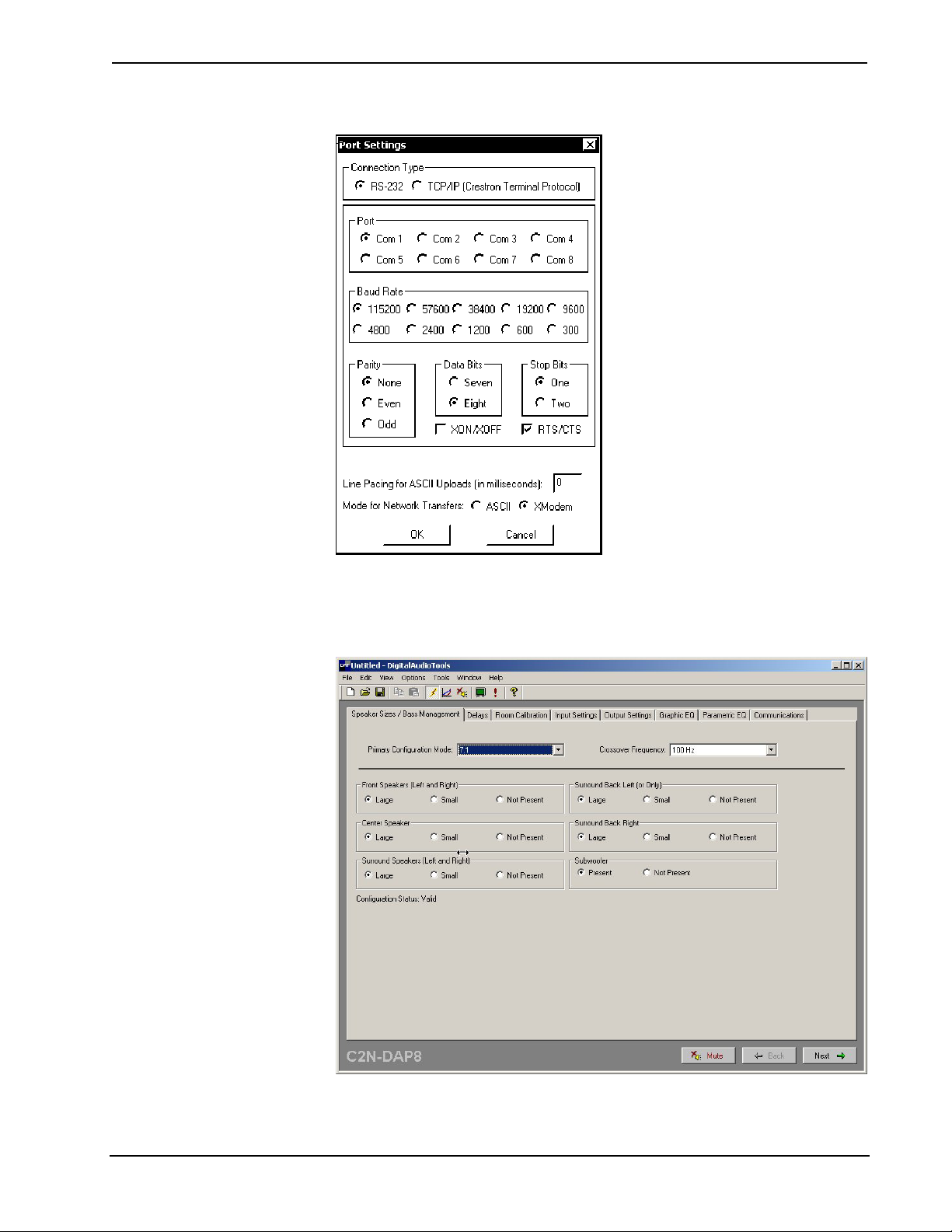

“Port Settings” Window

Speaker Sizes / Bass Management

This screen lets you specify the room speaker arrangement, and set the crossover
frequency for the subwoofer.

Click on the appropriate buttons to identify the existing speaker arrangement; use the
Crossover Frequency drop-down list to specify the crossover frequency for the

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 33

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

subwoofer (if present). The distinction between Large and Small speakers here is
their ability to provide effective sound in the low frequency range (120 Hz and
below), not their physical size. Speakers designated as Large will receive low
frequency signals. Low frequency signals appearing in channels with speakers
designated as Small will be filtered out and routed to the subwoofer. Check the
frequency range rating of all speakers to determine their proper setting.

Delay Settings

Select the Delays tab to display the following window.

This screen lets you specify the distance—in feet or meters—between the speakers
and the primary listener location (the so-called “sweet spot”). This is done to ensure
that the sound from all speakers reach the listener’s ears at exactly the same time.
Measure the distances and enter the values to the nearest half-foot (or nearest 0.15
meter); the software will calculate any necessary delays. Enter distances as
accurately as possible.

You may also enter the delays in milliseconds by using a Real Time Analyzer (RTA)
equipped to give a millisecond value from the time the sound was produced to the
time it reaches the listener’s position. One example of such a device is the Audio
Controls Iasys RTA.

Note that the delays are not sent automatically in Realtime Mode. Click on the Send
button to transfer the delay settings to the device.

Room Calibration

Any listening/viewing area has its own characteristics that can affect the quality of
sound reproduction. The goal is to analyze the room and compensate for any
unwanted effects (such as reflections from hard surfaces, and resonance at particular
frequencies) so the listener hears what was intended when the material was recorded.

34 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

During room calibration, this screen lets you set the master volume (e.g., -10 dB) and
then modify the gain of each speaker in the system to make the sound of each
speaker heard at the same level. Generally, a calibration level is chosen between 75
dB and 85 dB when playing Dolby Noise and all speakers are adjusted to the same
level. The zero button to the left of the Front Left slider resets all speaker sliders to

0.00 dB; the Master Volume and LFE settings are not affected.

Input Settings

This screen allows you to set the input levels for analog audio sources. Using the
Input Level Gain (dB) adjustment properly lets you compensate for analog sources
with different input levels to obtain a seamless transition between sources at a given
volume level. This screen also allows you to specify decoding modes for the various
analog and digital inputs.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 35

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Selecting the button to the right of the Input Source pull-down list produces a
window with a field where you can enter a specific name, such as CD Changer,
VCR, or DVD, to help you keep track of multiple sources.

Each input source signal type can be assigned a specific decoding mode. The signal
type for all analog sources is 2-channel. You can assign a decoding mode to each
analog source via the Decoding Mode drop-down list. For example, you may want
the input from your CD Changer to always be played in DTS-Neo:6 Music mode.

The C2N-DAP8RC automatically recognizes the signal type that appears on its
digital input sources. You can select the preferred decoding mode for each input type
for each source from among the available types. Certain types have limited decoding
modes available. For example, a DTS-ES Discrete input is limited to the DTS-ES
Discrete or user controlled decoding modes. Refer to the table on the next page for a
complete listing of the input modes and corresponding available decoding modes.

NOTE: The availability of decoding modes depends on your primary configuration
mode (5.1, 6.1, 7.1) and your speaker configuration settings. The available decoding
modes listed in the above table are based on a 7.1 primary configuration, with all
speakers selected as Large and the subwoofer selected as Present.

NOTE: For configuration settings, one or more signal type(s) and decoding mode(s)
are dimmed to indicate they are not applicable.

Input Source Decoding Modes

INPUT TYPE AVAILABLE DECODING MODES

Stereo
Dolby Pro Logic II Movie
Dolby Pro Logic II Music

2-Channel

Dolby Digital 5.1

Dolby Digital 2/0

Dolby Digital 2/0 Prologic

Dolby Digital EX

DTS Digital Surround

DTS-ES Matrix 6.1

DTS-ES Discrete 6.1

Dolby Pro Logic II Matrix
Dolby Pro Logic
DTS Neo:6 Cinema
DTS Neo:6 Music
User Controlled

Dolby Digital 5.1
Dolby Digital EX
User Controlled

Stereo
Dolby Pro Logic II Movie
Dolby Pro Logic II Music
Dolby Pro Logic II Matrix
Dolby Pro Logic
User Controlled

Stereo
Dolby Pro Logic II Movie
Dolby Pro Logic II Music
Dolby Pro Logic II Matrix
Dolby Pro Logic
User Controlled

Dolby Digital 5.1
Dolby Digital EX
User Controlled

DTS 5.1
DTS-ES Matrix
User Controlled

DTS 5.1
DTS-ES Matrix
User Controlled

DTS-ES Discrete
User Controlled

36 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Output Settings

Select the Output Settings tab to specify the relative gain for each speaker in the
room for each decoding mode.

These settings allow you to make adjustments in the surround sound configuration to
suit your personal preferences.

To adjust the gain settings, either click on the slider controls and drag them to
achieve the desired setting, use the up and down arrow keys on the PC to adjust the
setting, or type the value in the window. The Zero button to the left of the Front Left
slider resets all speaker sliders to 0.00 dB (the Master Volume and LFE sliders are
not affected). Use the Decoding Mode drop-down to select among the available
modes to alter their default settings (if there are default settings).

The Panorama, Center Width, and Dimension values are only available for Dolby
Prologic II Music decoding. Center Gain is available only for DTS NEO:6 decoding
and is used to adjust the gain of the center channel. (Refer to “DTS Neo:6 Cinema”
and “DTS Neo:6 Music” on page 4.)

Panorama

This control extends the front stereo image to include the surround speakers for an
exciting “wraparound” effect with side-wall imaging. It is particularly effective for
recordings that have strong left- or right channel elements in the mix, as these are
detected and accentuated by the panorama process.

Center Width

This control allows center-channel sounds to be positioned between the center
speaker and the left/right speakers over a range of eight steps. Step “3” uses a
combination of all three front speakers to give the best vocal imaging and most
seamless soundstage presentation, and is recommended for most recordings.
Step “0” places all center sound in the center speaker. Step “7” places all center
sound equally in the left/right speakers, just as in conventional stereo.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 37

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Dimension

This control allows the user to gradually adjust the soundfield either towards the
front or the rear. This can be useful to help achieve the desired balance from all the
speakers with certain recordings that may contain either too much or too little spatial
effect. Step “0” is the recommended setting, which has no effect on the sound. Steps
1 through 7 gradually move the sound forward, and steps –1 through –7 move the
sound toward the surround speakers.

NOTE: The Panorama, Center Field and Dimension settings are only used in
Prologic II music mode.

Graphic EQ

This tab lets you specify how many (0, 3, or 5) of the six available filters for each
speaker will function like a standard graphic equalizer (with fixed frequencies and
settable gain/attenuation only), and how many (the remainder) will function as
parametric equalizers with settable frequency, gain, bandwidth, and filter type.

If you select 0 bands, all six filters will function as parametric equalizers. If you
select 3 or 5 bands, the following warning appears:

When you click YES, the display includes the appropriate one of the two screens
shown on the next page.

38 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

In either case, the filter frequencies are fixed, and the gain for each frequency is
adjustable from 5 dB to –10 dB. The default gain is 0 dB.

If you choose either three or five graphic equalizer filters, you can also specify up to
10 trim presets using the EQ Trim Preset drop-down list.

Parametric Equalizers

The Parametric EQ tab allows you to adjust the frequency response interaction
within the room for each speaker in the system. You can attempt to achieve a flat
room response, or you can enhance or attenuate the response at up to six different
frequencies. In general, a flat room response is not pleasing to most ears. The
purpose of achieving a flat response is to remove all unwanted audio conditions in
the equipment and listening environment before making adjustments to satisfy the
user’s personal listening preferences.

For each speaker in the system (up to eight), you can set the gain, bandwidth and
filter type at up to six different frequencies in the spectrum, for each of the five
preset listening modes. Use the Filter drop-down list to select the filter to be set. You
can set the frequency, gain and bandwidth values by typing them into the appropriate
boxes, or by clicking and dragging the control handles in the display.

The DAT software helps simplify a system setup by permitting you to copy and
paste filter or speaker or preset values from one to another.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 39

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

The screen can also be set to display two equalizers at the same time. Select Options
| Number of Equalizers and click on 1 or 2 as desired. (Refer to the following

illustration.)

40 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Example Program

The Example Program for the C2N-DAP8RC demonstrates the various features of
the unit. The program also serves as a basic model for those individuals who wish to
do system setup and room balancing functions via a touchpanel. The program does
virtually all of the functions that can be accomplished via the DAT software, and lets
you immediately hear the results of your adjustments.

The example program for the C2N-DAP8RC is available from the Crestron FTP site
(ftp://ftp.crestron.com/Examples). Search for C2N-DAP8RC.Basic Example.zip.

The program is supplied designed to work with a Crestron TPS-4500 touchpanel and
a 2-Series processor. If your system uses a different touchpanel, convert the program
for that touchpanel.

Preparation

In preparation for running the Example Program, do the following:

1. Verify that all the necessary procedures detailed in “Setup” on page 11 have
been completed.

2. Verify that communication setup procedures described in “Communication
Settings” on page 55 have been completed.

3. After downloading the Example Program from the Crestron website, use the
instructions given in “Upload via Crestron Viewport” on page 57, to load
the .spz program to the control system and load the .vtz program to the
touchpanel.

Running the Example Program

Once the programs are loaded to the touchpanel and the control system, the main
screen appears on the touchpanel.

Example Program Main Screen

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 41

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

The MUTE button and the up and down arrows at the lower right control the sound
being supplied to the available speakers indicated by the LEDs in the upper right
corner. The gauge shows the relative sound level.

The SOURCE SELECT pane is used to select the digital or analog audio source
material connected to the unit’s input ports.

The UTILITY pane lets you select the AUDIO or VIDEO switching utilities, or
SYSTEM SETUP.

The TONE CONTROL pane provides controls appropriate to the chosen audio
source and decoding mode. For example, the DYNAMIC RANGE selections MIN,
STD, and MAX, shown in the illustration, apply the indicated amount of
compression for Dolby Digital sources, as follows:

 MIN provides the highest compression ratio, bringing dynamic range

close to that of a TV broadcast.

 STD provides the dynamic range recommended by sound engineers for

general home viewing.

 MAX provides the full dynamic range of a cinema.

System Setup

To begin, select SYSTEM SETUP. The display provides a set of buttons you use to
select the parts of the system to be configured—SPEAKER CONFIG, AUDIO
CONFIG, and EQ’S—plus AUDIO SWITCH and VIDEO SWITCH, which are
used to set the internal routing of audio and video signals. Initially, the large screen
area to the right is blank.

Select the first button, SPEAKER CONFIG. The screen displays the SPEAKER
CONFIG window.

SPEAKER CONFIG Window

Use this screen to specify the speaker arrangement of your system and to set the
crossover frequency for the subwoofer.

42 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Click on the appropriate buttons to identify the existing speaker arrangement. Note
that the front and the surround speakers are treated as pairs. Select the appropriate
one of the X-OVER buttons to specify the crossover frequency for the subwoofer (if
present). The distinction between large and small speakers here is their ability to
provide effective sound in the low frequency range (120 Hz and below), not their
physical size. Speakers designated as large will receive low frequency signals. Low
frequency signals appearing in channels with speakers designated as small will be
filtered out and routed to the subwoofer. Check the frequency range rating of all
speakers to determine their proper setting.

Audio Configuration

Select the AUDIO CONFIG button. The screen displays the AUDIO CONFIG
window. Use this screen to set up the volume trims, the delays, and the noise
generator settings. These settings are used together during room calibration.

AUDIO CONFIG Window

Use the VOLUME TRIMS settings to specify the relative gain for each speaker in
the room. Settings range from –12 dB to 12 dB in 0.5 dB increments.

Use the DELAY X 1ms settings to specify the delays needed to ensure that the sound
from all speakers reach the listener’s ears at exactly the same time. Enter the delays,
from 0 to 15 milliseconds, for each speaker by using a Real Time Analyzer (RTA)
equipped to give a millisecond value from the time the sound was produced to the
time it reaches the listener’s position. One example of such a device is the Audio
Controls Iasys RTA.

Use the NOISE GENERATOR buttons to select the noise source. The default STD
(Dolby) button toggles to PINK. Press BYPASS to bypass all equalization filters
and volume/tone controls. Use the ON and MUTE buttons to turn each speaker on
and off.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 43

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Equalization

Select the EQ’s button to display the EQUALIZATION window used to specify the
various filter settings for each speaker in the system.

EQUALIZATION Window

Within the PARAMETRIC EQ section, you can specify parametric filters for up to
eight speaker channels, up to six bands per channel, and specify the filter type, and
the gain, center frequency, and bandwidth for each filter.

1. Press the CHANNEL SELECT button to specify the channel (LEFT,
RIGHT, L. SIDE, R. SIDE, L. REAR, R. REAR, CENTER, and LFE).

2. Press the BAND SELECT button to select the band (1 through 6).

3. Press the FILTER TYPE SELECT button to select the filter type (EQ,
BASS SHELF, TREB SHELF, LOW PASS, HIGH PASS, or
BANDPASS).

4. Press the GAIN k and j buttons to set the gain from –20 dB to +20 dB, in

0.5 dB increments.

5. Press the FREQ k and j buttons to set the center frequency to 20 Hz,
40 Hz, 80 Hz, 160 Hz, 320 Hz, 640 Hz, 1280 Hz, 2560 Hz, 5120 Hz, or
10 kHz.

6. Press the B.WIDTH k and j buttons to set the bandwidth, in octaves, to

0.10, 0.14, 0.20, 0.28, 0.40, 0.56, 1.00, 1.40, 2.00, or 2.80.

In the GRAPHIC EQ section, you can trim the gain for each of the filter bands from
–12 dB to +5 dB, in 0.5 dB increments. Note that these are overall trims. That is, any
adjustment you make to one of these BAND selections affects all filter settings for
that band.

The SAVE/RECALL SETTINGS section lets you save up to five parametric EQ
presets and up to five graphic EQ presets. Following the on-screen instructions, press

44 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

a preset button (1 through 5), make adjustments, and press SAVE to store the
settings. To recall a preset, select the preset button; the stored settings are applied.

Audio Switching

Select the AUDIO SWITCH button to display the AUDIO SWITCHING window
used to select the analog audio source you wish to appear on the three possible
outputs.

AUDIO SWITCHING Window

This window lets you select the analog audio source that will appear on the CAT5,
OUTPUT A, and OUTPUT B audio output connectors. You can also choose to mute
the signal to those outputs.

The OUTPUT B CONTROLS section affects only the signals to OUTPUT B. The
BASS, TREBLE, and BALANCE controls are initially set to their middle positions;
the VOLUME control is set to its zero position.

The three buttons at the bottom provide both electronic and relay mute control of all
outputs, and a standard ‘loudness’ selection that provides emphasized treble and
bass. The electronic mute reduces the level of the output to –80 dB (effectively
silent); the relay mute opens the output circuits.

Video Switching

Select the VIDEO SWITCH button to display the VIDEO SWITCHING window to
specify the video output channel.

This screen lets you select any video source and route it to any video destination.
Choices range from routing the inputs from individual sources to individual
destinations through routing one source to all destinations. The VIDEO SENSE
indicators are lit if a video source is detected on VIDEO IN 5 through 16 connectors.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 45

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Video Switching Window

Selecting Sources

After performing all the system setup procedures, press RETURN to display the
default main screen. Use the SOURCE SELECT buttons to choose the desired audio
source.

In the above illustration, CAT5 AUDIO is selected as the input source, and DOLBY
PROLOGIC II MUSIC is the selected analog decoding mode. The TONE
CONTROL setting area changes to provide controls for WIDTH, DIMENSION, and

46 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

PANORAMA. The purpose of these controls, unique to the Dolby Prologic II Music
mode, is described in “Dolby Pro Logic II” beginning on page 2.

When any of the digital audio inputs are chosen as the source selection, the system
automatically detects the encoding method of the incoming signal and displays the
appropriate decoding mode choices.

Programming Software

Have a comment about Crestron
software?

Direct software related suggestions
and/or complaints to Crestron via
email ([e-mail]).
Do not forward any queries to this
address. Instead, refer to “Further
Inquiries” on page62 for
assistance.

Setup is easy thanks to Crestron’s Windows-based programming software. The
following are recommended software version requirements for the PC:

• SIMPL Windows, version 2.04.1.1 or later, with Library update 227 or
later.

• Crestron Database, version 15.9.6 or later.

• Crestron VisionTools

®

Pro-e (VT Pro-e) software for designing

touchpanel pages.

• Digital Audio Tools version 1.01.05 or later, with configuration template
for C2N-DAP8RC including surround sound modes and parametric
equalizer settings.

NOTE: The following are acceptable file extensions for programs that include a
C2N-DAP8RC, developed for specific control system types:
.smw projectname.smw (source file)
.spz projectname.spz (compiled file for 2-series)
.umc projectname.umc (SIMPL Windows user macro)
.ush projectname.ush (compiled for SIMPL+)
.usp projectname.usp (source code module for SIMPL+)
.daf projectname.daf (DAT program output)

SIMPL (Symbol Intensive Master Programming Language) is an easy-to-use
programming language that is completely integrated and compatible with all
Crestron system hardware. The objects that are used in SIMPL are called symbols.
SIMPL Windows offers drag and drop functionality in a familiar Windows



environment.

SIMPL Windows is Crestron's software for programming Crestron control systems.
It provides a well-designed graphical environment with a number of workspaces
(i.e., windows) in which a programmer can select, configure, program, test, and
monitor a Crestron control system.

NOTE: The following assumes that the reader has knowledge of SIMPL Windows.
If not, refer to the extensive help information provided with the software.

NOTE: In the following description, the PRO2 control system is used.

This section describes a sample SIMPL Windows program that includes a C2N­DAP8RC.

Configuration Manager is where programmers “build” a Crestron control system by
selecting hardware from the Device Library. In Configuration Manager, drag the
PRO2 from the Control Systems folder of the Device Library and drop it in the upper
pane of the System Views. The PRO2 with its associated communication ports is
displayed in the System Views upper pane.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 47

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

PRO2 System View

The System Views lower pane displays the PRO2 system tree (refer to figure below).
This tree can be expanded to display and configure the communications ports.

Expanded PRO2 System Tree

C2Net-Device Slot in Configuration Manager

To incorporate a C2N-DAP8RC into the system, drag the unit’s symbol from the
Cresnet Control Modules | Cresnet Audio Modules folder of the Device Library and
drop it in System Views. The PRO2 system tree displays the unit in Slot 9, with a
default Net ID of 50, as shown in the following illustration.

NOTE: The first C2N-DAP8RC in a system is preset with a Net ID of 50 when its
symbol is dragged into the upper pane of System Views. Additional C2N-DAP8RCs
are automatically assigned different Net ID numbers as they are added.

C2Net Device, Slot 9

48 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Setting the Net ID in Device Settings

Double-click the C2N-DAP8RC icon to open the “Device Settings” window. This
window displays the C2N-DAP8RC device information. If necessary, select the Net
ID tab to change the unit’s Net ID, as shown in the following figure.

C2N-DAP8RC “Device Settings” Window

NOTE: SIMPL Windows automatically changes Net ID values of a device added to
a program if a duplicate device or a device with the same default Net ID already
exists in the program. Always ensure that the hardware and software settings of the
Net ID match. For Net ID hardware setting details, refer to “Identity Code” on page

12.

C2N-DAP8RC Symbols in Programming Manager

Programming Manager is where programmers “program” a Crestron control system
by assigning signals to symbols. Due to the extensive functionality of the unit, a
single C2N-DAP8RC symbol in SIMPL Windows would be too complex. Instead,
the C2N-DAP8RC is broken up into slots. In Program Manager, expand the C2N­DAP8RC to view the individual slots; then drag the desired symbol to Detail View.
The C2N-DAP8RC slots, sub-slots, and corresponding symbols are described in the
following paragraphs. Because of their complexity, the description of the symbols
for the Surround Sound Decoder symbol, Slot 08; the Speaker Settings symbol, Slot
09 Sub-Slot 1; the Full Parametric EQ Controls symbol, Slot 09 Sub-Slot 2; and the
Graphic EQ Controls symbol, Slot 09 Sub-Slot 3, are described in the Appendix
“Advanced Programming Symbols,” beginning on page 63, for those advanced
programmers who wish to program them in SIMPL Windows.

Slot 01: Built-in 4 Port IR Card

This slot can contain up to four IR devices, selected from the Crestron or User IR
Databases. The actual symbols associated with this slot vary depending on the
devices in the system. As a sample, the IR Device Symbol illustration after this
paragraph is for a system that contains a Sony DVD player (model DVD-S7000).
Typical of all IR devices, it has a number of inputs to control its many functions.
These inputs are driven by a user interface (i.e., touchpanel or an acceptable third­party transmitter).

These ports also support one-way RS-232 serial communication, up to 9600 baud.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 49

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

IR Device Symbol

Slot 02: IR Receiver

This symbol is only used in systems containing an acceptable third party transmitter
(Pronto/RC5/Universal IR Remote). To include a compatible third party transmitter
as part of the program, you must first drop a wireless receiver (CNXRMIRD) from
the Wireless Receivers | Wireless Receivers (IR) folder of the Device Library into
slot 2. Then, from the Wireless Remotes (IR) folder, drop the Pronto/RC5/Universal
IR Remote symbol onto the CNXMIRD. The symbol, shown below, consists of a
number of outputs (presses), which correspond to the actual buttons on the
transmitter. Recall that when mapping the buttons on the third party transmitter, a list
was developed (refer to "Map the Universal Remote" on page 25 for the actual
procedure). That list needs to be transcribed to this symbol. Match the button ID
numbers from the list to the numbered press. These outputs are the driving source for
the IR devices.

Pronto/RC5/Universal Remote Symbol

Slot 03: DAP8 Video Switch

The DAP8 Video Switch is a 16x16 video matrix switcher built into slot 03 of the
C2N-DAP8RC surround sound processor. The symbol is illustrated on the next page.
The C2N-DAP8RC provides one CAT5 input, labeled VIDEO IN 1-2-3-4 (where
twisted pair #4 can carry digital audio) and 12 RCA video inputs labeled 5 through

16. The C2N-DAP8RC accepts any combination of composite, S-video, and
component video, and switches these sources to up to sixteen outputs. Typically, the
RCA inputs are connected to local video sources, while the CAT5 input receives
video and digital audio from the CNX-PVID8.

50 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

The C2N-DAP8RC provides one CAT5 video output labeled VIDEO OUT, for
distribution of up to four video sources, and 12 RCA video outputs labeled A
through L (any of the video outputs can carry digital audio).

Video Switch Symbol

To select a source, each <Video_Out> analog is initialized, using decimal format, to
a value that corresponds to the source, as shown in the table on the next page.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 51

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Video Switch Symbol Input Descriptions (in Decimal Format)

VIDEO SOURCE VALUE

CAT5 1d – 4d
RCA 5d – 16d
No Source 0d

The C2N-DAP8RC also provides 12 video sensors, plus one SENS input for
connection of an external current sensor. The <Sense_In> outputs will go high
whenever the sensor detects the presence of a video signal on RCA inputs 5 through

16.

The <SENS> input is a TTL input with pull-up resistor, designed to sense a contact
closure.

Slot 04: Built-in RS-232 Port

This port serves two purposes: an RS-232 port for two-way communication with
serial devices, and a console port for upgrading firmware. (Refer to “Uploading and
Upgrading” on page 55.)

The symbol, shown below, is only used when the C2N-DAP8RC communicates with
a serial device. The bidirectional port supports baud rates up to 115K baud N81 and
has RTS/CTS handshake signals. The tables below and on the next page list the
inputs/outputs and their functional description. Input and outputs enclosed by
brackets ([…]) are optional.

Two-Way Serial Driver Symbol

Built-in RS-232 Symbol Input Descriptions

INPUT(S) FUNCTION(S)

[tx$] More advanced signal processing can be done through serial strings and

the tx$ input line on the symbol.

[enable] If signal is present on this input, it must be high to permit activity of the

symbol. If the signal is low, the symbol is disabled.

[break] Some devices use a break character before sending out any serial data.

Break characters are sent out the port separated pace parameter.

[rts] RTS is an output from the program to the C2N-DAP8RC RS-232 port when

the state of the RTS line is set.

str1 The C2N-DAP8RC RS-232 port is capable of receiving complex serial data

in the form of serial data strings on this input line.

52 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Built-in RS-232 Symbol Output Descriptions

OUTPUT(S) FUNCTION(S)

[rx$] More advanced signal processing can be done through serial strings and

[cts] CTS is an input to the program that monitors the “Clear to Send” line status

str2 The C2N-DAP8RC RS-232 port is capable of sending complex serial data in

NOTE: When present, the delimiter is appended to every string of text in the port
definition (both transmitted and received strings).

Slot 06: DAP8 Analog Audio Switch

The DAP8 Analog Audio Crosspoint is a 6x3 stereo analog audio crosspoint built
into slot 06 of the C2N-DAP8RC surround sound processor. The DAP8 Analog
Audio Crosspoint allows each of three stereo outputs to independently select one of
six stereo audio inputs.

the rx$ output line on the symbol.

of the C2N-DAP8RC RS-232 port.

the form of serial data strings on this output line.

The C2N-DAP8RC provides one CAT5 connector, labeled AUDIO, for stereo audio
input and output. That is, one twisted pair carries stereo audio to the unit, and the
other twisted pair carries stereo audio from the unit. The remaining audio inputs are
RCA left/right connectors, labeled AUDIO IN 2 through 6.

In addition to the CAT5 audio output, the C2N-DAP8RCprovides two left/right RCA
outputs, labeled A and B. Output A flows directly from the crosspoint with no
additional processing. Output B is passed through a volume/tone controller on slot 07
of the C2N-DAP8RC. Thus output B can be adjusted for volume, bass, and treble.
Refer to “Slot 07: Audio Output B Controls” on page 54.

Analog audio that is sent to output B will also be sent to the C2N-DAP8RC's internal
DSP (digital signal processor) if analog source is selected. The DSP settings are
controlled by the Surround Sound Decoder on slot 08; in some cases, the
programming of the Surround Sound Decoder may affect the Analog Audio Switch
settings. For example, if the program selects a different analog audio source for the
DSP, then that source will also be sent to output B (and the feedback will be updated
accordingly).

To switch a source to an output, each <Src> analog is initialized to a value that
corresponds to the source, as shown in the following table.

Analog Audio Symbol Source Signal Description (in Decimal Format)

AUDIO SOURCE VALUE

CAT5 1d
RCA 2d – 6d
No Source 0d

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 53

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

For example, to route the CAT5 audio input to output B, use an Analog Initialize
symbol to set the value of <DSP/OutB_Src> to 1. (Here, if no digital audio source is
being used, the CAT5 audio will also be sent to the DSP.)

Similarly, to switch RCA input 4 to output A, initialize <OutA_Src> to 4.
The feedback signals report the currently selected audio source for each output.
Again, in the case of output B, the feedback signal will be updated if the DSP selects
a different analog audio source.

Slot 07: Audio Output B Controls

The Audio Output B Controls module is a volume/tone controller built into slot 07 of
the C2N-DAP8RC surround sound processor. The C2N-DAP8RC provides three
outputs for analog audio: one CAT5 output and two left/right RCA outputs labeled A
and B. Output A flows directly from the processor's internal Analog Audio Switch
without additional processing, while output B is passed through the Audio Output B
Controls volume/tone controller. The symbol is shown below.

Audio Output B Controls

Digitals

The <Mute-On> and <Mute_Relay_On> inputs cuts audio for as long as their
respective signal remains high. The <Loudness-On> input activates the loudness
function for as long as the input remains high, while the <Mono-On> input switches
the audio setting from stereo to mono.

Analogs

The <Volume> analog input sets the volume level from 0% to 100%, which
corresponds to a gain range of –80 to +20 dB. The other analog inputs control bass,
treble and balance settings relative to the 50% mark. That is, a <Balance> input with
a value of 50% results in even distribution of audio between the left and right
speakers (0% = full left; 100% = full right). Likewise, 50% indicates a neutral level
for <Treble> and <Bass>.

NOTE: The symbols for the surround sound processor’s Surround Sound Decoder
symbol, Slot 08; the Speaker Settings symbol, Slot 09 Sub-Slot 1; the Full
Parametric EQ Controls symbol, Slot 09 Sub-Slot 2; and the Graphic EQ Controls
symbol, Slot 09 Sub-Slot 3, are very complex. Crestron strongly recommends using
its Digital Audio Tools (DAT) software to configure these modules. However, they
are described in “Appendix: Advanced Programming Symbols” beginning on page
63, for those advanced programmers who wish to program them in SIMPL
Windows.

54 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Uploading and Upgrading

Assuming a PC is properly connected to the entire system, Crestron programming
software allows the programmer to upload programs and projects to the system and
touchpanel after their development. However, there are times when the files for the
program and projects are compiled and not uploaded. Instead, compiled files may be
distributed from programmers to installers, from Crestron to dealers, etc. Even
firmware upgrades are available from the Crestron website as new features are
developed after product releases. In those instances, one has the option to upload via
the programming software or to upload and upgrade via the Crestron Viewport.

NOTE: The Crestron Viewport utility accomplishes multiple system tasks, primarily
via an RS-232 or TCP/IP connection between the control system and a PC. It is used
to observe system processes, upload new operating systems and firmware, change
system and network parameters, and communicate with network device consoles and
touchpanels, among many other tasks. Viewport can also function as a terminal
emulator for generic file transfer. All of these functions are accessed through the
commands and options in the Viewport menus. Therefore, for its effectiveness as a
support and diagnostic tool, the Crestron Viewport may be preferred over
development tools when uploading programs and projects.

The following sections define how one would upload a SIMPL Windows program or
upgrade the firmware of the C2N-DAP8RC. However, before attempting to upload
or upgrade, it is necessary to establish communications.

Communication Settings

NOTE: For laptops and other PCs without a built-in RS-232 port, Crestron
recommends the use of PCMCIA cards, rather than USB-to-serial adapters. If a
USB-to-serial adapter must be used, Crestron has tested the following devices with
good results:

Belkin (large model) F5U103
I/O Gear GUC232A
Keyspan USA-19QW

Other models, even from the same manufacturer, may not yield the same results.

The procedure in this section provides details for RS-232 communication between
the PC and the 2-Series control system. If TCP/IP communication is preferred,
consult the latest version of the Crestron e-Control Reference Guide (Doc. 6052) or
the respective Operations Guide for the control system. These documents are
available from the Downloads | Product Manuals section of the Crestron website
(www.crestron.com). Refer to the figure on the next page for a typical connection
diagram when uploading files.

NOTE: Use a standard DB9 male to female “straight-through” cable.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 55

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Typical Connection Diagram when Uploading

1. Open the Crestron Viewport.

Either launch the stand-alone version of Viewport, or start SIMPL
Windows and from the menu bar, select Tools | Viewport.

2. Refer to the figure after this step. From the Viewport menu, select

Setup | Communications settings (alternatively, press Alt+D) to open
the “Port Settings” window.

Setup | Communications Settings Command

3. Select RS-232 as the connection type. Verify that an available COM

port (COM 1 is shown after this step) is selected, and that all
communication parameters and necessary options from the “Port
Settings” window are selected as shown after this step. Click the OK
button to save the settings and close the window.

56 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

“Port Settings” Window

A control system source file has
the extension .smw. A compiled
SIMPL Windows file has the
extension .spz for a 2-Series
control system.

NOTE: The parameters shown in the illustration above are the port settings for a
PRO2 control system. Consult the Operations Guide for the control system being
used for exact parameter selection.

4. To verify communication, select Diagnostics | Establish

Communications (Find Rack). This should display a window that
gives the COM port and baud rate. If communication cannot be
established, refer to the “Troubleshooting Communications” section in
the respective Operations Guide for the control system.

Uploading a SIMPL Windows Program

The SIMPL Windows file can be uploaded to the control system using SIMPL
Windows or via the Crestron Viewport.

Upload via SIMPL Windows

1. Start SIMPL Windows.

2. Select File | Open to view the “Open” window, navigate to the SIMPL
Window file (.smw), and click Open.

3. Select Project | Transfer Program.

Upload via Crestron Viewport

1. Verify that the procedure for “Communication Settings” that begins on
page 55 has been performed.

2. As shown after this step, select File Transfer | Send Program
(alternatively, press Alt+P) from the Viewport menu.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 57

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

File Transfer | Send Program Command

3. The “Send Program” window appears, as shown after this step. Click
Browse, locate the compiled file (.spz) and click Open. This will
display the program's header information and enable one or both of the
What to Send check boxes. If the program does not contain any
SIMPL+ modules, only the SIMPL Program check box will be enabled.
If it does contain SIMPL+ modules, then the SIMPL+ Program(s)
check box will also be enabled. Select one or both check boxes and
then click Send Program to begin the transfer.

NOTE: Refer to the respective Operations Guide for the control system for details
about the other fields shown on the “Send Program” window.

“Send Program” Window

4. To verify that the program has been transferred successfully, select
Diagnostics | Report Program Information. This should display a
window that provides details about the current program loaded into the
control system.

58 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Firmware Upgrade

A firmware upgrade file has the
extension .upg

To take advantage of all the C2N-DAP8RC features, it is important that the unit
contains the latest firmware available. Therefore, please check the Crestron website
(http://www.crestron.com/downloads/software_updates.asp) for the latest version of
firmware. Not every product has a firmware upgrade, but as Crestron improves
functions, adds new features, and extends the capabilities of its products, firmware
upgrades are posted. To upgrade the firmware, complete the following steps.

1. Make sure that “Communication Settings” that begins on page 55 has
been performed.

NOTE: It is possible to communicate with the C2N-DAP8RC directly from a PC,
using the Viewport and an STCP-501 interface cable (DB9 to RJ11). Use this
method if you are uploading/upgrading only to a C2N-DAP8RC that is already
installed and you do not need to communicate to any other devices on the network,
or uploading/upgrading to one or more C2N-DAP8RCs before they are installed. If
you encounter a communication problem, enter Alt-K a few times (3-4) to clear it.

2. As shown after this step, select File Transfer | Load Network Device
from the Viewport menu.

File Transfer | Load Network Device Command

3. As shown after this step, select the Net ID of the C2N-DAP8RC and
then click OK. The “Open” window appears (refer to the subsequent
graphic).

“Select Network ID” Window

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 59

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

NOTE: If problems arise when transferring any Cresnet file (touchpanel
project/firmware), lower the port speed baud rate to 38400 to match the Cresnet bus
speed.

“Open” Window

Problem Solving

4. Browse to the .upg file and click Open to begin the transfer.

Future upgrades may include upgrades to the DSP. In that event, the upgrade will
consist of an upgrade file (xxx.upg) plus one or more DSP files. The uploading
process would be the same, except that it will be important to load the accompanying
.upg file first, and then upload the DSP files.

Troubleshooting

The following table provides corrective action for possible trouble situations. If
further assistance is required, please contact a Crestron customer service
representative.

C2N-DAP8RC Troubleshooting

TROUBLE

C2N-DAP8RC
does not
function.

PWR LED
does not
illuminate.

POSSIBLE

CAUSE(S)

Incorrect power
supply.

C2N-DAP8RC is
not receiving
power.

CORRECTIVE ACTION

Use a Crestron power supply with sufficient
power for the network.

Verify that cable plugged into NET port is
secure.

(continued on next page)

60 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

C2N-DAP8RC Troubleshooting (continued)

TROUBLE

NET LED

does not
illuminate.

There is no
response
from
commands
sent to C2N­DAP8RC.

Improper

Unexpected
display on
video
monitor.

No sound
from some or
all speakers.

POSSIBLE

CAUSE(S)

Improper Net ID. Verify that C2N-DAP8RC Net ID matches Net

Loose network
connection.

Universal remote
is not
communicating
with C2N­DAP8RC.

placement or
connection of the
IR probes.

Improper
connections to
the VIDEO OUT
ports on the
C2N-DAP8RC.

The C2N­DAP8RC Video
Matrix Control
symbol has
been improperly
programmed.

Improper Video
Input
Compensation
Adjustment.

Power to the
amplifier is not
on.

Speaker
connections do
not match
program
configuration.

Incorrect or no
source selected.

Surround sound
mode setting is
not correct.

CORRECTIVE ACTION

ID in software program.
Verify that cable plugged into NET port is

secure.
Verify that the universal remote has been

properly mapped and the commands are
properly identified in the SIMPL Windows
program.

Verify that the CNXRMIRD is properly
connected to the IR IN port on the C2N­DAP8RC.

Verify that the IR probe is properly connected
to one of the IR OUT ports on the C2N­DAP8RC.

Review the IR probe manual and make sure
that it is properly placed on or near the IR
window of the equipment.

Review the combination of acceptable video
formats delivered via the VIDEO OUT ports on
the C2N-DAP8RC. Refer to “Hardware
Hookup” in this Operations Guide.

Review the combination of acceptable video
formats delivered via the VIDEO OUT ports on
the C2N-DAP8RC. Refer to “Hardware Hookup”
in this Operations Guide.

Review the Video Input Compensation
procedures which begin on page 23 in this
Operations Guide.

Verify that amplifier power is on and that
speaker connections are secure.

Verify that program configuration and speaker
connections match.

Verify that selected source has audio output.

Check surround sound mode if rear/center
speakers are silent.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 61

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Further Inquiries

If, after reviewing this Operations Guide, you cannot locate specific information or
have questions, please take advantage of Crestron's award winning customer service
team in your area. Dial one of the following numbers.

• In the US and Canada, call Crestron's corporate headquarters at
1-888-CRESTRON [1-888-273-7876].

• In Europe, call Crestron International at [phone].

• In Asia, call Crestron Asia at [phone].

• In Latin America, call Crestron Latin America at [phone].

• In Australia and New Zealand, call Crestron Pacific at

[phone].

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of
the C2N-DAP8RC, additional information may be made available as manual
updates. These updates are solely electronic and serve as intermediary supplements
prior to the release of a complete technical documentation revision.

Check the Crestron website (www.crestron.com) periodically for manual update
availability and its relevance. Updates are available from the Downloads | Product
Manuals section and are identified as an “Addendum” in the Download column.

62 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Appendix: Advanced Programming Symbols

The symbols for the surround sound processor’s Surround Sound Decoder symbol,
Slot 08; the Speaker Settings symbol, Slot 09 Sub-Slot 1; the Full Parametric EQ
Controls symbol, Slot 09 Sub-Slot 2; and the Graphic EQ Controls symbol, Slot 09
Sub-Slot 3, are very complex. Crestron strongly recommends using its Digital Audio
Tools (DAT) software to configure these modules. However, they are described in
this Appendix for those advanced programmers who wish to program them in
SIMPL Windows.

Slot 08: Surround Sound Decoder

The Surround Sound Decoder is a digital signal processor (DSP) built into slot 08 of
the C2N-DAP8RC surround sound processor. The DSP can be programmed via
SIMPL Windows and/or Crestron's Digital Audio Tools software. The Surround
Sound Decoder symbol is complex, and is illustrated in two parts: the digital inputs
and outputs, and the analog inputs and outputs, as shown on the next two pages. The
tables following the illustrations describe the input and output signals. For additional
details, press F1 to access the SIMPL Windows help file.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 63

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

C2N- DAP8RC Surround Sound Decoder - Digital Inputs and Outputs

64 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

C2N- DAP8RC Surround Sound Decoder - Analog Inputs and Outputs

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 65

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Surround Sound Decoder Digital Inputs and Outputs

SIGNAL TYPE

FUNCTION

(I/O)

Master_Mute I Mutes all surround sound audio for as long as the input is

Bypass I When high, this function bypasses the Global_Bass and

Alt_Mix I When high, allows the selection of alternative downmixing

Noise_Type I Selects between Standard Noise (if 0) and pink noise (if

Noise_L through
Noise_Sub

Mode_Trim I When high, this function stores the volume, volume trims,

Mute_L through
Mute_Sub

Dyn_Range_MIN,
Dyn_Range_STD,
Dyn_Range_MAX

Panorama I This setting applies to Dolby Pro Logic II Music mode.

high. When the input goes low, all eight channels un-mute.

Global_Treble settings, as well as Graphic/Parametric EQ.
When in Bypass mode, the signal path is 24 bits rather
than 20 bits, resulting in slightly improved audio fidelity.

modes L
means that a single surround signal is generated, even
though the signal is directed to both the left surround and
right surround speakers.

In most applications, this signal can equal 0, as the C2N­DAP8RC provides fixed functions for downmixing n
channels to any fewer number, such as n-1 channels or n-
2 channels.

1). Standard noise (Dolby Noise) is bandpass-filtered
noise centered at 750 Hz with a 12 dB/octave roll off. The
Subwoofer channel has its noise centered at 50 Hz. Pink
noise rolls off at 3 dB per octave starting at 23 Hz.

I The noise generator is activated when a Noise_L through

Noise_Sub enable input is high.
To generate noise, the DSP stops decoding and enters

noise generation mode. This means that the previous
source needs to be manually re-selected after noise
generation is complete.

and LFE trim values such that they are applied only to
whichever decoding mode is currently running. This allows
the volume and gain settings for a CD source, for
example, to differ from those for a Dolby Digital DVD.

If unused or set to zero, the trim values apply to all
decoding modes, and the feedback signals will report the
current settings.

If set to 1, the feedback signals will show the system trims
plus the mode-dependent trims for the current mode. The
factory default for all the mode-dependent trims is zero;
thus all modes default to the system trims. Adjusting the
trims with Mode_Trim =1 alters values stored in the mode­dependent trims for the current mode.

I When high, cuts audio to indicated channel for as long as

input remains high. Audio un-mutes when input goes low.

I When high, will apply the indicated amount of

compression for Dolby Digital sources, as follows:
Dyn_Range_MIN provides highest compression ratio,

bringing dynamic range close to that of a TV broadcast.
Dyn_Range_STD provides dynamic range recommended

by sound engineers for general home viewing.
Dyn_Range_MAX provides full dynamic range of a

cinema.
The dynamic range digital inputs affect and will update the

High_Dyn_Range_fb and Low_Dyn_Range_fb signals
described later.

According to Dolby Laboratories, it extends the front
stereo image to include the surround speakers for an
exciting wraparound effect with side-wall imaging.

2/1, or 3/1. Note that the "/1" in 2/1 and 3/1

T RT,

(continued on next page)

66 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Surround Sound Decoder Digital Inputs and Outputs (continued)

SIGNAL TYPE

FUNCTION

(I/O)

Freeze I The auto-detect mode will be suspended for as long as

Store I By default, the C2N-DAP8RC operates in auto-detect

Next I With each rising edge of Next, the DSP will cycle through

ProLogic_Status O When high, indicates that Pro Logic decoding is active
Spdif_Present O When high, indicates that a valid SPDIF signal is present

Left_Active
through
LFE_Active

DTS_5.1,
DTS_Matrix

DTS_5.1_FB, ,
DTS_Matrix_FB

DD_5.1, DD_EX
DD_5.1_FB>,

DD_EX_FB

O When high, indicates the presence of a signal coming in to

O

O

the Freeze input is high. This allows the C2N-DAP8RC to
be put into a specific decoding mode

mode, whereby the decoding mode is automatically
selected depending on the incoming signal stream and the
selected source. If the program selects an alternative
decoding mode for a source, a rising edge of the Store will
save the new decoding parameters for that type of signal
stream.

the different decoding modes: PCM, Dolby Digital 2ch,
Dolby Digital 2ch +Lt/Rt, Dolby Digital 5.1, Dolby Digital

5.1 EX, DTS 5.1, DTS ES Matrix, DTS ES Discrete.

on the last selected digital source when the C2N-DAP8RC
is processing an analog signal.

the decoder on the corresponding channel. (This does not
necessarily correspond directly to the physical outputs of
the C2N-DAP8RC.)

Surr_Active refers to the presence of a surround channel,
such as with a Pro Logic Encoded source, while
Back_Active indicates a 6.1 or 7.1 encoded signal that will
drive one or both of the back surround channels.

I

Control matrix generation of a rear surround channel (to
left back and right back speakers) for DTS Digital 5.1 and
DTS Digital ES Matrix encoded signals. Since the C2N­DAP8RC contains automatic modes to control this, the
user interface should use the _fb signals to indicate the
current es matrix mode.

I

Control matrix generation of a rear surround channel (to
Sbl/Sbr) for Dolby Digital 5.1 and Dolby Digital 5.1 EX
encoded signals. Since the C2N-DAP8RC contains
automatic modes to control this, the user interface should
use the _fb signals to indicate the current Dolby Digital
matrix mode.

Surround Sound Decoder Analog Input and Output Signals

SIGNAL TYPE

FUNCTION

(I/O)

Decode_Mode
Decode_Mode_FB

O

I

The Decode_Mode input is reserved for future use.
The feedback signal indicates the current decoding

mode being used by the DSP, as follows:
Decode Mode Value
PCM 0
Dolby 1
DTS 2
Reserved 3
Analog 4
Reserved 5

(continued on next page)

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 67

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Surround Sound Decoder Analog Input and Output Signals (continued)

SIGNAL TYPE

Volume
Volume_FB

Decoder_Src
Decoder_Src_FB

High_Dyn_Range,
Low_Dyn_Range

High_Dyn_Range_Fb,
Low_Dyn_Range_FB

Sub_Limit
Sub_Limit_FB

LFE_Trim
LFE_Trim_FB

Trim_L through
Trim_Sub

Trim_L_FB through
Trim_Sub_FB

Delay_Left through
Delay_Sub

Delay_Left_FB through
Delay_Sub_FB

Global_Bass,
Global_Treble

Global_Bass_FB,
Global_Treble_FB

(I/O)

I

O

I

O

I

O

I

O

I

O

I

O

I

O

I

O

FUNCTION

Sets the master volume for all digital output channels.
The volume is adjustable within a range of –80 dB to
+12 dB. Thus valid values range from -800 (-80 dB)
to +120 (+12 dB).

Controls and reports the source currently used by the
decoder.

Source
Noise Generator (Special Case) 0

SPDIF A 1
SPDIF B 2
Optical E 3
Optical F 4
CAT5 Video In 1-2-3-4 5
CAT5 Audio In 6
Audio In #2 7
Audio In #3 8
Audio In #4 9
Audio In #5 10
Audio In #6 11

Enabling any of the Noise generators sets
Decoder_Src to zero, thus the previous source needs
to be manually re-selected after noise generation is
complete.

Selecting any of the analog audio inputs (CAT5
through Audio In #6) will also affect the DAP8 Stereo
Audio Switch setting on slot 06.

Controls dynamic range compression in Dolby Digital
sources. The control range is 0 to 100% (for
minimum to maximum compression).

For most applications, these signals need not be
used, since the DYN_Range inputs described before
offer adequate control of compression ratios.

Sets the peak limit, or maximum output level of the
subwoofer. The peak level is adjustable within a
range of –25 dB to 0 dB. Values more negative than

-24.0 dB disable peak limiting (the default setting).
Sets the amount of gain to the LFE, or Low

Frequency Effects channel during bass management.
The LFE trim is adjustable within a range of –15 dB
to 0 dB.

Sets the gain of the indicated channel. The trim is
adjustable within a range of –30 dB to +30 dB,
although Dolby recommends a range of –12 dB to
+12 dB. The Master Volume and the trim volume
(and possibly other compensation terms) are added
together to produce the output volume.

Sets the delay, in milliseconds, for the indicated
channel. The delay is adjustable within a range of 0
ms to 20 ms, although the Dolby recommendations
are 0 ms to 5 ms for the center channel and 0 ms to
15 ms for all other channels.

Certain Pro Logic decoding modes add a 10 ms
delay that is not displayed or accounted for here.

Sets the bass and treble settings for all digital output
channels. The bass and treble are adjustable within a
range of -18.0 dB to +18.0 dB.

Decoder Source

(continued on next page)

68 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Surround Sound Decoder Analog Input and Output Signals (continued)

SIGNAL TYPE

FUNCTION

(I/O)

Detected_Mode

2CH_DEC_Mode
2CH_DEC_Mode_FB

PL2_Width,
PL2_Dimension

Neo_Cgain I Sets the center image adjustment for DTS Neo:6

Extra_Delay O This analog signal is normally 0 and assumes a value

Trim_Mode O Indicates the index used for mode-dependent

O Indicates the type of signal currently being decoded,

O

facilitating the use of mode-specific controls via
subpages on a touchpanel.

Format
Undefined 0

Detecting 1
PCM audio, i.e., CD 2
Analog 3
Dolby Digital 5.1 4
Dolby Digital 2-Channel 5
Dolby Digital EX 6
DTS 7
DTS ES 5.1 Matrix 8
Dolby Digital 2-Channel w/ Pro Logic Flag 9
DTS ES 6.1 Discrete 10

I

Selects the decoding mode for a two channel signal
(PCM, analog or Dolby 2-channel), as follows:

Mode 2CH_DEC_Mode
Stereo 0

Dolby Pro Logic 1
Dolby Pro Logic II Movie 2
Dolby Pro Logic II Music 3
Dolby Pro Logic II Matrix 4
DTS Neo:6 Cinema 5
DTS Neo:6 Music 6

Note that the C2N-DAP8RC has automatic modes
that can change the 2-channel decoding mode, and
that the user interface should use the feedback from
the C2N-DAP8RC to indicate the current mode.

I In Dolby Pro Logic II Music Mode (and only in that

mode), several options may be selected: PL2 Width,
PL2 Dimension, and Panorama.

Valid values for PL2_Width range from 0 to 7.
Valid values for PL2_Dimension range from 0 (for -3)

to 6 (for +3).
(Panorama is defined within the list of digital inputs

and outputs.)

Music sources only. Valid values range from 0 (for

0.0) to 5 (for 0.5).

of 10 if Pro Logic emulation or Pro Logic II Movie
mode is active. These two modes provide an
additional 10 ms of delay; if desired, Extra_Delay can
be summed into the surround delay values to display
the actual delay rather than only the added delay.

streams.
Stream Type Trim_Mode
Undefined 0

PCM (Stereo) 1
Dolby Pro Logic 2
Dolby Pro Logic II Music 3
Dolby Pro Logic II Movie 4
Dolby Pro Logic II Matrix 5
DTS NEO:6 Music 6
DTS NEO:6 Cinema 7
Dolby Digital 5.1 8
Dolby Digital EX 9
DTS 5.1 10
DTS-ES Matrix 11

Detected_Mode

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 69

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Slot 09, Sub-Slot 1 Speaker Settings Symbol

The C2N-DAP8RC Speaker Settings module is built into slot 09 of the C2N­DAP8RC surround sound processor. The digital input signals select the presence and
size of the system speakers as well as the LFE crossover frequency; the digital output
signals report the selections. Alternatively, the speakers can be configured via
Crestron's Digital Audio Tools software, with no programming in SIMPL Windows.

C2N- DAP8RC Speaker Settings Module

Slot 09, Sub-Slot 2 Full Parametric EQ Controls Symbol

The Full Parametric EQ Controls symbol allows you to define the characteristics of
the parametric equalization filters and presets. The table following the symbol on the
next page explains the inputs and outputs.

70 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

C2N- DAP8RC Full Parametric EQ Controls Module

Parametric Equalizer Control Signals

SIGNAL TYPE

FUNCTION

(D/A, I/O)*

Store_PRE DI On the rising edge of Store_PRE, the current

Recall_PRE DI On the rising edge of Recall_PRE, the filter

Recall_PRE1 through
Recall_PRE5

Filter_Channel

Filter_Band AI Each channel has 6 programmable filter sections.

DI These inputs offer a simpler way to recall a

AI Selects the digital output channel as follows:

filter values will be stored in the preset specified
by Preset#.

values of the specified Preset#_FB will be
recalled and propagated to the outputs.

preset directly. Preset#_FB will be updated, thus
Store_PRE will store the last preset recalled.

Filter_Channel Value
Left Front 1
Right Front 2
Left Surround 3
Right Surround 4
Left Back 5
Right Back 6
Center 7
Subwoofer 8
No channel 0

This variable selects which band (from 1 to 6, or
0 for no band selected) to operate on. Specifying
a band will display the current mode, frequency,
bandwidth and gain for that filter. (Not all
parameters apply to all filters types.)

(continued on next page)

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 71

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

Parametric Equalizer Control Signals (continued)

SIGNAL TYPE

(D/A, I/O)*

Filter_Mode
Filter_Mode_FB

Filter_Freq
Filter_Freq_FB
Filter_BW
Filter_BW_FB

Filter_Gain
Filter_Gain_FB

Preset#
Preset#_FB

AI

AO

AI

AO

AI

AO

AI

AO

AI

AO

FUNCTION

Sets the type of filter or EQ, as follows:

Filter_Mode
Off (no EQ) 1
EQ Filter - boosts or attenuates

specified frequency, as in a
graphic equalizer band.

Bass Shelf - uniformly boosts or
attenuates all frequencies below
the Filter_Freq level. The amount
of modification is given by
Filter_Gain.

Treble Shelf - uniformly boosts or
attenuates all frequencies above
the Filter_Freq level. The amount
of modification is given by
Filter_Gain.

Low Pass - filters out all audio
above the Filter_Freq level.

High Pass - filters out all audio
below the Filter_Freq level.

Selects the center frequency. Valid values range
from 20 (20 Hz) to 20000 (20 kHz).

Controls the bandwidth of a given filter, and is
expressed in octaves. Although ‘bandwidth’
applies only to the EQ filters, the CN2-DAP8RC
can derive Q or slope from bandwidth to control
the sharpness of high pass, low pass, and shelf
filters. Use of uniform units permits clean
transitions between filter types, such as from EQ
filter to lowpass.

For EQ, lowpass, and highpass, bandwidths in
the range of 0.02 to 2.0 are appropriate. For the
shelf filters, a range of 1.0 to 3.0 is appropriate.
Smaller values represent a narrow band of boost
or attenuation; larger ones represent a wide band
of boost or attenuation.

Boosts or attenuates the center frequency, or
with shelving filters, all frequencies above or
below the center frequency. Valid values range
from -240 (-24 dB) to +240 (+24 dB).

The Preset# input defines the preset to be stored
or recalled; thus valid values range from 1
through 5, or 0 for no preset. The Preset#_FB
output reports the current preset.

Value

2

3

4

5

6

*Signal types are shown as DI (digital input), DO (digital output), AI (analog input), or AO (analog

output). The filter feedback signals report the state of the filter defined by Filter_Channel and Filter_Band.

72 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Slot 09, Sub-Slot 3, Graphic EQ Controls Symbol

The Graphic EQ Controls symbol allows you to define the characteristics of the
graphic equalizer filters and presets.

The symbol’s input and output signals are as follows:

Preset store/recall signals:

• Digital inputs: <Store_EQ>, <Recall_EQ>, <Recall_EQ1> through
<Recall_EQ10>

• Analog input: <Preset#>

• Analog output: <Preset#_FB>

Trim Values:

• Analog inputs: <EQ_1> through <EQ_6>

• Analog outputs: <EQ_1_FB> through <EQ_6_FB>

Operation of the module is described following the symbol illustration.

C2N- DAP8RC Graphic EQ Controls Module

The C2N-DAP8RC provides ten trim presets, where a trim preset is a set of all six
<EQ> values.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 73

Digital Audio Processor with Room Control Crestron C2N-DAP8RC

On the rising edge of <Store_EQ>, the six trim band values will be stored in the
preset specified by <Preset#>. Valid values for <Preset#> range from 1 to 10. The
<Preset#_F> output reports the current trim preset.

On the rising edge of <Recall_EQ> the values stored in the indicated <Preset#> will
be recalled and propagated to the outputs. Here the <EQ_FB> outputs may have
different values than the inputs.

Alternatively, a rising edge of a <Recall_EQ#> (1 through 10) input will recall that
trim preset.

The <EQ> inputs adjust the gains of the 6 filters; thus <EQ_1> corresponds to filter
#1, <EQ_2> corresponds to filter #2, and so forth. The gains are adjustable within a
range of –10 dB to +5 dB, and are applied equally to 7 of the 8 channels (the
subwoofer channel is excluded). All trim band values propagate immediately to the
outputs.

Valid values for <EQ> range from -100 (-10 dB) to +50 (+5 dB). An <EQ> value of
0 (0 dB) means that the signal will pass unaffected. Values above and below 0 will
boost or attenuate the gain in increments of .1 dB. That is, changing the analog value
by 1 signifies a 0.1 decibel boost or attenuation.

74 • Digital Audio Processor with Room Control: C2N-DAP8RC Operations Guide - DOC. 8187A

Crestron C2N-DAP8RC Digital Audio Processor with Room Control

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange, or service without prior
authorization from CRESTRON. To obtain warranty service for CRESTRON
products, contact the factory and request an RMA (Return Merchandise
Authorization) number. Enclose a note specifying the nature of the problem, name
and phone number of contact person, RMA number, and return address.

2. Products may be returned for credit, exchange, or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped
freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J., or its authorized
subsidiaries, with RMA number clearly marked on the outside of all cartons.
Shipments arriving freight collect or without an RMA number shall be subject to
refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a
15% restocking fee, plus shipping costs, on any products returned with an RMA.

3. Return freight charges following repair of items under warranty shall be paid by
CRESTRON, shipping by standard ground carrier. In the event repairs are found to
be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in
materials and workmanship under normal use for a period of three (3) years from the date of
purchase from CRESTRON, with the following exceptions: disk drives and any other moving or
rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1)
year; touchscreen display and overlay components are covered for 90 days; batteries and
incandescent lamps are not covered.

This warranty extends to products purchased directly from CRESTRON or an authorized
CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the
dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in
any application other than that for which it was intended, or if it has been subjected to misuse,
accidental damage, modification, or improper installation procedures. Furthermore, this warranty
does not cover any product that has had the serial number altered, defaced, or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic
damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for
any claim made by a third party or made by the purchaser for a third party.

CRESTRON shall, at its option, repair or replace any product found defective, without charge for
parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be
covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed
or implied, nor authorizes any other party to offer any warranty, including any implied warranties
of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed
by law are limited to the terms of this limited warranty. This warranty statement supercedes all
previous warranties.

Trademark Information

All brand names, product names, and trademarks are the sole property of their respective owners. Windows is a registered
trademark of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft
Corporation.

Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 75

Crestron Electronics, Inc. Operations Guide – DOC. 8187A

15 Volvo Drive, Rockleigh, NJ 07647 05.04
Tel: 888.CRESTRON
Fax: [phone] Specifications subject to
www.crestron.com change without notice.
