Crestron AV2 & PRO2 2-Series Integrated Dual Bus Control System
Contents
2-Series Integrated Dual Bus Control System: AV2 & PRO2 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................ 1
Specifications ..............................................................................................................3
Physical Description.................................................................................................... 5
Industry Compliance ...................................................................................................9
Setup ........................................................................................................................................ 10
Network Wiring......................................................................................................... 10
Identity Code ............................................................................................................. 10
Hardware Hookup .....................................................................................................10
Programming Software............................................................................................................14
Earliest Version Software Requirements for the PC .................................................14
Programming with Crestron SystemBuilder.............................................................. 14
Programming with SIMPL Windows........................................................................ 14
Example Program...................................................................................................... 15
Uploading and Upgrading........................................................................................................ 16
Establishing Communication.....................................................................................16
Programs and Firmware ............................................................................................17
Operation .................................................................................................................................18
Problem Solving ......................................................................................................................23
Possible Problems with the Control System.............................................................. 23
Serial Communication Difficulties with Other Devices Connected to the Control
System ....................................................................................................................... 24
Check Network Wiring..............................................................................................26
Reference Documents................................................................................................27
Further Inquiries........................................................................................................27
Future Updates ..........................................................................................................27
Software License Agreement................................................................................................... 28
Return and Warranty Policies.................................................................................................. 30
Merchandise Returns / Repair Service ......................................................................30
CRESTRON Limited Warranty.................................................................................30
Operations Guide – DOC. 5957B Contents • i
Crestron AV2 & PRO2 2-Series Integrated Dual Bus Control System
2-Series Integrated Dual Bus
2-Series Integrated Dual Bus
Control System: AV2 & PRO2
Control System: AV2 & PRO2
Introduction Introduction
Features and Functions
• 2-Series engine with Dual-bus architecture
• 36 MB of Internal Memory
• 4 GB Compact Flash memory card slot
• Cresnet
• 10/100 Ethernet capable with SSL encryption
• Crestron e-Control
• Built-in firewall, NAT and router
• Six Com ports, eight IR/serial ports, eight Versiport I/O ports, eight
1. For more information on internal memory, refer to “2-Series Memory & Directory Structure” in the
2. Optional on AV2.
relay ports
• Three Y-Bus
• Internal power supply
• 2-Space EIA rack-mountable
• Front panel control with LCD display (PRO2 only)
latest version of the Crestron 2-Series Control System Reference Guide (Doc. 6256), which is available
from the Crestron website (http://www.crestron.com/manuals
port – master/slave selectable
2
/ One Z-Bus control card expansion slots
2-Series Engine
At the heart of the AV2 & PRO2 is the powerful 32-bit Freescale ColdFire®
processor. Crestron's exclusive enhanced real-time operating system makes the AV2
& PRO2 the fastest, most reliable control systems available.
1
2 and Crestron RoomView enabled
).
Dual Bus Architecture
The AV2’s & PRO2's unique dual-bus architecture affords ultra fast
communications. The 40 Mbps Y-Bus provides a high-speed backplane for IR, serial
and other integrated control ports. Additional control ports and interfaces like MIDI
and digital audio processing may be added by installing up to three Y-Bus control
Operations Guide – DOC. 5957B 2-Series Integrated Dual Bus Control System: AV2 & PRO2 • 1
2-Series Integrated Dual Bus Control System Crestron AV2 & PRO2
cards (expansion cage option required for AV2). At a blazing 300 Mbps, the Z-Bus
supports Fast Ethernet with future support for other emerging technologies.
Cresnet®
Cresnet is the communications backbone for many Crestron touchpanels, keypads,
lighting controls and other devices. The Cresnet bus is a simple, yet flexible 4-wire
network that provides rock-solid bidirectional communication and power for up to
252 Cresnet devices.
Cresnet Slave Mode
Selectable Cresnet Slave Mode enables the AV2 & PRO2 to be configured as
Cresnet slave devices, effectively transforming them into Cresnet expansion
modules. Such flexibility can offer a cost-effective solution for system expansion,
providing a host of additional control ports in a single module.
Ethernet
Crestron pioneered the IP-based control system to harness the vast possibilities of
Ethernet and the Internet for remote control, monitoring, programming and
diagnostics. The AV2 & PRO2 are designed to deliver the world's most advanced IP
control solutions. A choice of single or dual port Ethernet cards enables a full-duplex
10/100 Ethernet connection with built-in Web server and email client and support for
both static and dynamic IP addressing.
Crestron e-Control®2
Crestron's award-winning e-Control 2 XPanel solutions offer the most flexible range
of IP control possibilities available. Using a Windows® computer or CE/PocketPC™
PDA device, e-Control 2 provides an amazing control GUI that looks and behaves
just like a Crestron Isys® touchpanel.
Crestron RoomView®
Every Ethernet-enabled 2-Series control system works directly with Crestron's
exclusive RoomView Help Desk software for the industry's most comprehensive
facility-wide asset management solution.
SSL
All Ethernet-enabled 2-Series control systems support SSL (Secure Sockets Layer),
the industry standard for protecting sensitive network communications.
NAT
The AV2’s & PRO2's onboard NAT (Network Address Translator) acts as a firewall
and router to facilitate the configuration of a private control LAN with a single-point
connection to the client's LAN (Dual-port Ethernet card required).
Memory Expansion
A memory card slot accessible on the rear panel allows for easy expansion of the
AV2’s & PRO2's internal memory using any Type II Compact Flash memory card
up to 4 GB. Note that compact flash memory supports FAT file structure.
2 • 2-Series Integrated Dual Bus Control System: AV2 & PRO2 Operations Guide – DOC. 5957B
Crestron AV2 & PRO2 2-Series Integrated Dual Bus Control System
Front Panel Control (PRO2 only)
The PRO2 includes a programmable front control panel with LCD display and
control port status indicators. The PRO2's front panel serves as a ready user interface
for system configuration and diagnostics and can also be custom programmed to
enable menu-driven control capability.
Specifications
Specifications for the AV2 & PRO2 are listed in the following table.
AV2 & PRO2 Specifications
SPECIFICATION DETAILS
Processor
CPU
Processing Speed 257 MIPS (Dhrystone 2.1 benchmark)
Memory
SDRAM 32 MB
NVRAM 256 kB
Flash 4 MB
Compact Flash expandable up to 4 GB (not included)
Operating System
Ethernet
With C2ENET-1
With C2ENET-2
Expansion Slots
Y-Bus1
Z-Bus2 (1) Accepts all Z-Bus control cards
Power Requirements
Internal Universal Power
Supply
Available Cresnet Power
Network Power Fuse Rating
Environmental
Temperature 41º to 113ºF (5º to 45ºC)
Humidity 10% to 90% RH (non-condensing)
32-bit Freescale Coldfire
Real-time preemptive multithreaded/multitasking kernel; FAT32 file
system with long names; supports SIMPL
Windows and SIMPL+
10/100BaseT, auto-negotiating, full/half
duplex, static IP or DHCP/DNS, SSL,
TCP/IP, UDP/IP, CIP, SMTP, built-in Web
server and e-mail client; supports Crestron
e-Control2 Xpanel and RoomView
applications
All above features plus: built-in firewall,
router and network address translator
(NAT)
(3) (AV2 requires CAGE2 accessory, sold
separately); Accept all Y-Bus control cards
2.3 Amps, 100-250 Volts AC, 50/60 Hz
50 Watts (shared with control card
expansion slots)
4A, 250V (1 ¼” x ¼” Slow Blow Fuse
Series)
50 watts (DC) available for Cresnet devices
Microprocessor
(Continued on following page)
Operations Guide – DOC. 5957B 2-Series Integrated Dual Bus Control System: AV2 & PRO2 • 3
2-Series Integrated Dual Bus Control System Crestron AV2 & PRO2
AV2 & PRO2 Specifications (Continued)
SPECIFICATION DETAILS
Enclosure
Dimensions
Height 3.47 in (8.82 cm)
Width
Depth 9.69 in (24.61 cm)
Weight
AV2 7.1 lbs (3.22 kg) – with line cord
PRO2 8.0 lbs (3.63 kg) – with line cord
Available Accessories
CAGE2 (AV2 only) 3-Card expansion cage
C2ENET-1 Single port Ethernet card
C2ENET-2 Dual port Ethernet card
C2COM-2 Dual COM port card3
C2COM-3 Three COM port card3
C2IR-8 8 IR/Serial output card3
CNXIO-16 16 I/O Versiport card3
CNXAO-8 8 Analog output card3
CNXRY-8 8 Relay card3
CNXRY-16 16 Relay card3
CNXMIDI MIDI Interface card3
C2VEQ-4
CNXTA
C2N-HBLOCK Cresnet Network Distribution Block
C2N-NPA8 Cresnet Network Poll Accelerator
C2N-SPWS300 300 Watt Cresnet Power Supply
CNSP-XX Custom Serial Interface Cable
IRP2 IR Probe
1. 40 Mb/s parallel communications; Internal backplane for integrated control ports and Y-Bus expansion
slots.
2. 300 Mb/s parallel communications; Backplane for Z-Bus expansion slots.
3. AV2 requires CAGE2 for card installation.
Black metal, 2U 19” rack-mountable
(rack ears included)
19.00 in (48.26 cm) with ears;
17.03 in (43.25 cm) without ears
4-Channel Volume/EQ and 4x4 matrix
mixer card3
Telephone interface and Voice/WAV sound
card3
4 • 2-Series Integrated Dual Bus Control System: AV2 & PRO2 Operations Guide – DOC. 5957B
Crestron AV2 & PRO2 2-Series Integrated Dual Bus Control System
Physical Description
This section provides information on the connections, controls and indicators
available on your AV2 & PRO2.

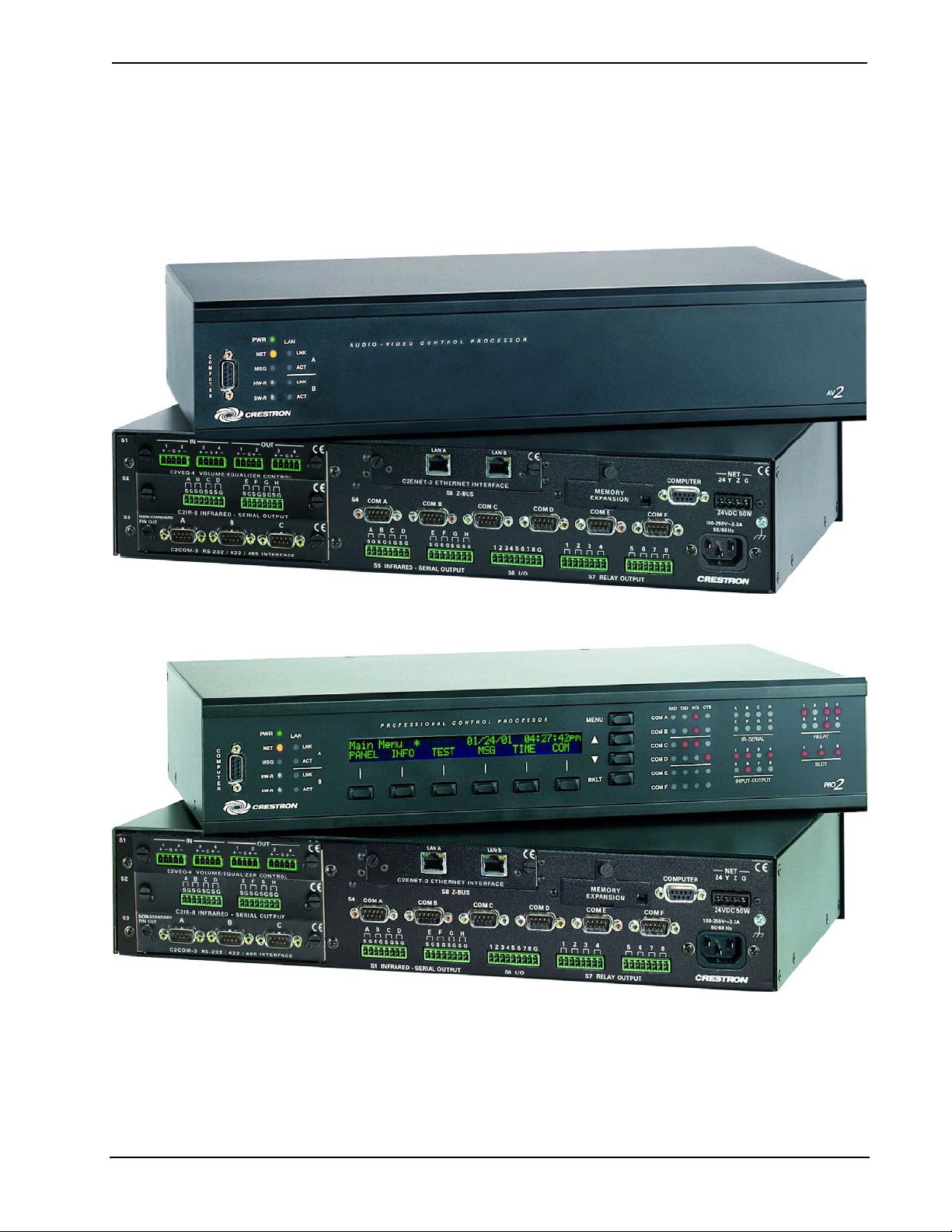

AV2 Physical View (shown with accessory cards installed in CAGE2; optional)
PRO2 Physical View (shown with accessory cards installed)
Operations Guide – DOC. 5957B 2-Series Integrated Dual Bus Control System: AV2 & PRO2 • 5
2-Series Integrated Dual Bus Control System Crestron AV2 & PRO2
AV2 & PRO2 Overall Dimensions
2
111098
765431
12
9.69 in
(24.61 cm)
17.03 in
(43.25 cm)
1
13
3.47 in
(8.82 cm)
14
15
16
17
18
19
6 • 2-Series Integrated Dual Bus Control System: AV2 & PRO2 Operations Guide – DOC. 5957B
Crestron AV2 & PRO2 2-Series Integrated Dual Bus Control System

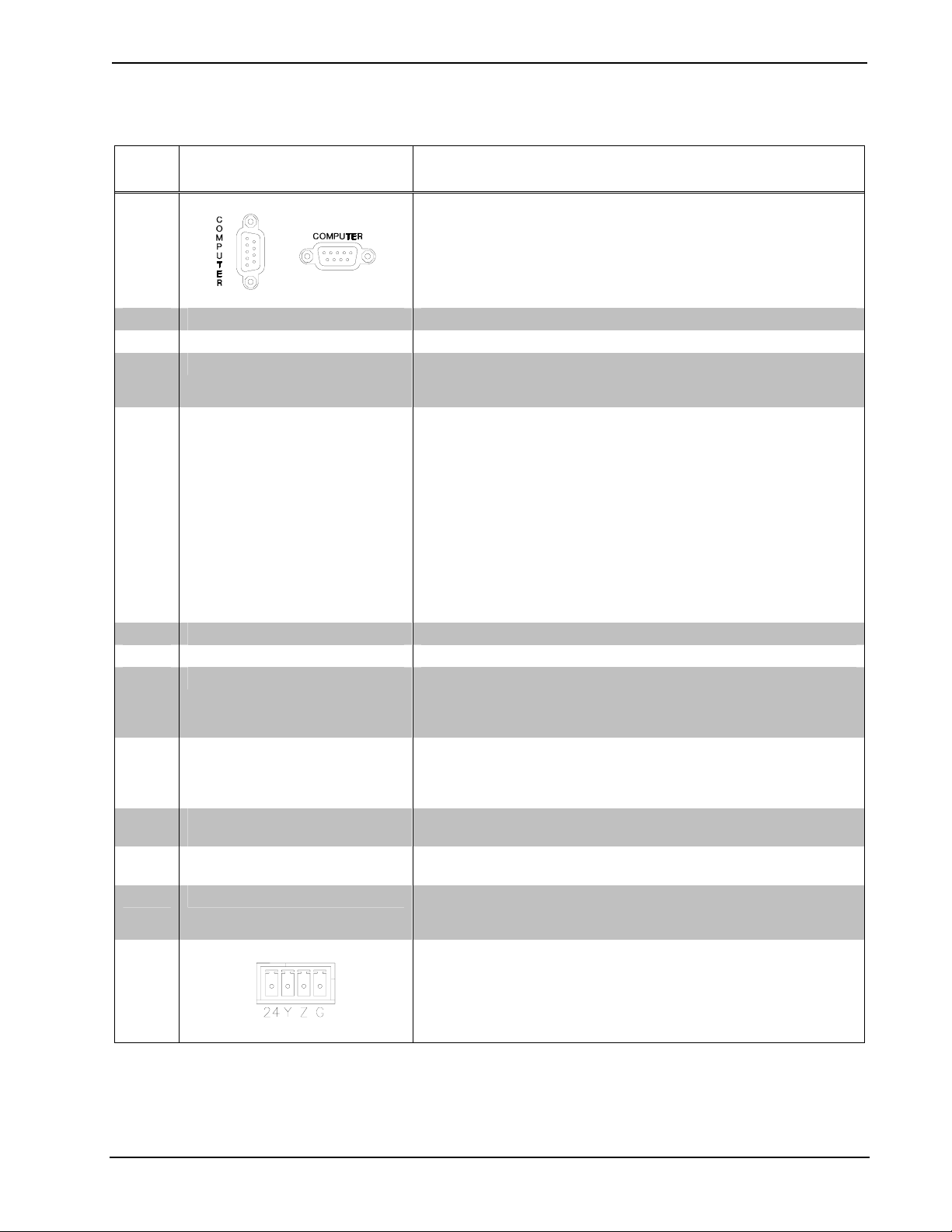

Connectors, Controls & Indicators
#
CONNECTORS
CONTROLS & INDICATORS
1
,
DESCRIPTION
1
COMPUTER
DB9F connectors (one on front panel and one on rear) are used
when programming with a PC. Each port is modem compatible.
(Modem and PC cables not included.)
FRONT PANEL REAR PANEL
2 PWR LED Indicates 24 Volts DC power supplied from Cresnet control network.
3 NET LED Indicates communication with Cresnet System.
4 MSG LED2
Illuminates when a message is detected. To decipher content,
examine the message available from the menu function buttons or
through the Crestron Toolbox™.
5 COM (A – F) LEDS3
RXD - Illuminate during reception of data from serial devices
attached to the respective COM ports.
TXD – Illuminate during transmission of data to serial devices
attached to the respective COM ports.
RTS – Illuminate to reflect state of the RTS pin on the respective
COM port. If no handshaking is specified, the RTS line will be high
and the associated LED is also high. When RTS flow control is
enabled, RTS indicates the unit is ready to receive data from serial
devices attached to the respective COM ports.
CTS – Illuminate to reflect state of the CTS pin on the respective
COM port. An illuminated LED means the CTS line is high. When
CTS flow control is enabled, CTS indicates the serial devices on the
respective COM ports are ready to accept data.
6 IR – SERIAL (A – H) LEDS3 Indicate activity on the respective IR-SERIAL lines.
7 RELAY (1 – 8) LEDS3 Indicate the respective relay is closed.
8 RESET BUTTONS
HW-R - Initiates system hardware reset.
SR-R - Pressing this in combination with HW-R button performs a
system restart without loading the program. Pressing it alone
momentarily while the system is running restarts the program.
9 LAN (A – B) LEDS4
LNK – Indicate the Ethernet card has established a valid Ethernet
connection.
ACT – Indicate communication (activity) at the respective port on the
Ethernet card.
10
LCD SCREEN & MENU
Permits local control; refer to “Operation” on page 18 for details.
BUTTONS3
11
INPUT – OUTPUT
(1 – 8) LEDS
3
12 SLOT (1 – 3) LEDS3
Indicate when input voltage thresholds for the respective I/O ports
are exceeded or when the output is active.
Indicate an expansion card is inserted into the respective slot.
These LEDS turn off momentarily when data is sent to the card or
received from the card.
13
NET
Four-position terminal block connector for data and power.
Connects to Cresnet control network.
Pin 1 (24) Power
Pin 2 (Y) Data
Pin 3 (Z) Data
Pin 4 (G) Ground
(Continued on following page)
Operations Guide – DOC. 5957B 2-Series Integrated Dual Bus Control System: AV2 & PRO2 • 7
Loading...
