Crestron TPS-6X User Manual
Crestron TPS-6X
®
Isys
5.7” Wireless Touchpanel
Operations Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2008 Crestron Electronics, Inc.
Crestron TPS-6X Isys® 5.7” Wireless Touchpanel
Contents
Isys® 5.7” Wireless Touchpanel: TPS-6X 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................ 2
Specifications ..............................................................................................................5
Physical Description.................................................................................................... 8
Industry Compliance .................................................................................................11
Setup ........................................................................................................................................ 12
Network Wiring......................................................................................................... 12
Identity Code ............................................................................................................. 12
Battery Switch ........................................................................................................... 13
Configuring the Touchpanel...................................................................................... 13
Hardware Hookup .....................................................................................................33
Recommended Cleaning............................................................................................ 35
Programming Software............................................................................................................36
Earliest Version Software Requirements for the PC .................................................36
Programming with Crestron SystemBuilder.............................................................. 36
Programming with SIMPL Windows........................................................................ 36
Programming with VisionTools® Pro-e..................................................................... 42
Example Program...................................................................................................... 46
Uploading and Upgrading........................................................................................................ 47
Establishing Communication.....................................................................................47
Programs, Projects and Firmware.............................................................................. 48
Program Checks ........................................................................................................48
Problem Solving ......................................................................................................................49
Troubleshooting......................................................................................................... 49
Check Network Wiring..............................................................................................50
Reference Documents................................................................................................51
Further Inquiries........................................................................................................51
Future Updates ..........................................................................................................52
Appendix A: The RF Spectrum .............................................................................................. 53
Appendix B: Optimum RF Reception Guidelines ..................................................................54
Minimize Interference ............................................................................................... 54
Gateway Placement ................................................................................................... 54
Antenna Orientation ..................................................................................................54
Software License Agreement................................................................................................... 57
Return and Warranty Policies.................................................................................................. 59
Merchandise Returns / Repair Service ......................................................................59
CRESTRON Limited Warranty.................................................................................59
Operations Guide – DOC. 6575B Contents • i
Crestron TPS-6X Isys® 5.7” Wireless Touchpanel
Isys® 5.7” Wireless Touchpanel:
TPS-6X
Introduction
The TPS-6X and TPSI-6X are functionally identical. For simplicity within this
guide, TPS-6X is used except where noted.
®
The Crestron
performance in a very versatile, ergonomic design. Featuring a bright, beautiful, high
contrast color touchscreen, the TPS-6X offers an ideal user interface for controlling
home theater and multimedia presentations, as well as a host of other uses, providing
a wide open canvas for the creation of custom control screens tailored to each unique
application. Compact and portable, the TPS-6X does away with piles of remotes and
cryptic control panels, affording true one touch control over a broad range of
complex devices and systems.
The TPS-6X is available in six different models.
Models
DESCRIPTION MODEL NUMBER COLOR
Domestic Models
International Models
Isys® TPS-6X Wireless Touchpanel delivers high end style and
TPS-6X High Gloss Black
TPS-6X-B-T Matte Black
TPS-6X-W-S High Gloss White
TPSI-6X High Gloss Black
TPSI-6X-B-T Matte Black
TPSI-6X-W-S High Gloss White
Operations Guide – DOC. 6575B Isys® 5.7” Wireless Touchpanel: TPS-6X • 1
Isys® 5.7” Wireless Touchpanel Crestron TPS-6X
Features and Functions
• Lightweight contoured design for handheld and tabletop use
• Elegant high gloss black or white or matte black finishes
• Non-slip rubber grips on rear
• Illuminated buttons for common functions
• Engravable backlit text (black models only)
• 5.7” active matrix color touchscreen display
• 16-bit Isys
• Dynamic graphics and text capability
• Synapse™ image rendering algorithm
• Windows
• Displays full motion video while docked
• High power, high speed 2.4 GHz RF wireless technology
• Up to 200 feet (61 meters) RF range indoors
• 1-way IR wireless capability also built in
• Includes tabletop tilt docking station, interface module and NiMH
rechargeable battery pack
• Wired Ethernet, Cresnet
connectivity
• No-button front bezel option included
®
graphics with 640 x 480 resolution
®
SideShow™ enabled
®
and Crestron Home® CAT5 video
Isys® Color Touchscreen
Its brilliant 5.7” active matrix display and powerful Isys engine combine to produce
stunning 16-bit color graphics with extreme versatility and lightning fast
performance. Dynamic graphics and text capability enable the display of all kinds of
useful data and alluring eye candy, from audio settings, TV channels and lighting
levels to changing icons, photos and logos, to digital media playlists complete with
album cover art.
Crestron’s exclusive Synapse™ image rendering algorithm enables system
programmers to produce amazing graphics faster and easier, featuring advanced
antialiasing for crisper, sharper objects and text, plus 3D effects for enhanced depth
and style. Additional capabilities like animations, multimode objects, PNG
translucence and full motion video enhance the palette for creating GUIs that are
both eye catching and easy to use.
NOTE: Full motion video requires a wired connection via a TPS(I)-6X-DS Docking
Station (included).
New support for Windows® SideShow™ gives the TPS-6X access to all kinds of PC
and Web-based content such as news feeds, sports scores, stock tickers, weather
alerts, media guides, email messages and appointment notifications all through a
simple network connection to a Windows Vista™ computer.
Tactile Pushbuttons
In addition to its touchscreen, the TPS-6X features illuminated tactile pushbuttons
(black models only) for quick access to volume adjustment, channel selection and
on-screen menu navigation functions. Eight additional pushbuttons, elegantly
trimmed by illuminated button dividers, flank the edges of the touchscreen to support
additional programmable functions.
2 • Isys® 5.7” Wireless Touchpanel: TPS-6X Operations Guide – DOC. 6575B
Crestron TPS-6X Isys® 5.7” Wireless Touchpanel
High quality backlit laser engraving (black models only) lends a crisp, legible
appearance to button text in both darkened and fully lit rooms. The pushbuttons
come pre-engraved with labeling suited to a typical home theater or multimedia
presentation application. If needed, customized engraving can be attained simply
using Crestron Engraver software. A no-button front bezel is also included with the
TPS-6X, which may be installed in place of the button bezel for a very clean
appearance with no front panel pushbuttons.
Two additional “trigger” style buttons are positioned on top of the TPS-6X for easy
control of the display brightness, Sleep mode and other programmable functions.
High Powered Wireless
The TPS-6X brings a new level of wireless versatility to the Isys family of
touchpanels. With both 2-way RF and 1-way IR wireless capabilities built in, the
TPS-6X offers a choice of wireless platforms to suit the environment.
Crestron’s high power 2.4 GHz RF technology allows long range performance up to
200 feet (61 meters) indoors using the CEN(I)-HPRFGW High Powered RF
Gateway (sold separately). A range of selectable RF channels and power levels helps
to maximize performance for both small and large facilities, from boardrooms,
classrooms and home theaters to auditoriums and convention centers. High speed
bidirectional communication supports true feedback with dynamic graphics and text,
affording the capabilities of a wired Isys touchpanel in a fully wireless portable
package.
NOTE: Indoor RF range is 100-200 feet (30-61 meters), subject to site-specific
conditions.
Built in IR capability affords a wireless alternative that is immune to extremely noisy
RF environments and suitable for sensitive applications where RF may not be
permitted. An operational range of up to 50 feet (15 meters) line-of-sight is possible
using a C2N-IRGW-1G or C2N-IRGW-F IR Gateway or CNXRMIRD IR Receiver
(all sold separately).
TableTop Tilt Docking Station
Placing the touchpanel onto the TPS(I)-6X-DS Docking Station (included) converts
it to a stylish tilt touchpanel, providing wired communications and video capability
while charging the touchpanel’s internal battery. Both wired Ethernet and Cresnet®
connectivity are available. When the touchpanel is placed on the docking station, it
will switch automatically from RF wireless to fully wired operation if either Ethernet
or Cresnet is connected. Without a wired Ethernet or Cresnet connection present, the
touchpanel will continue to operate wirelessly while it charges.

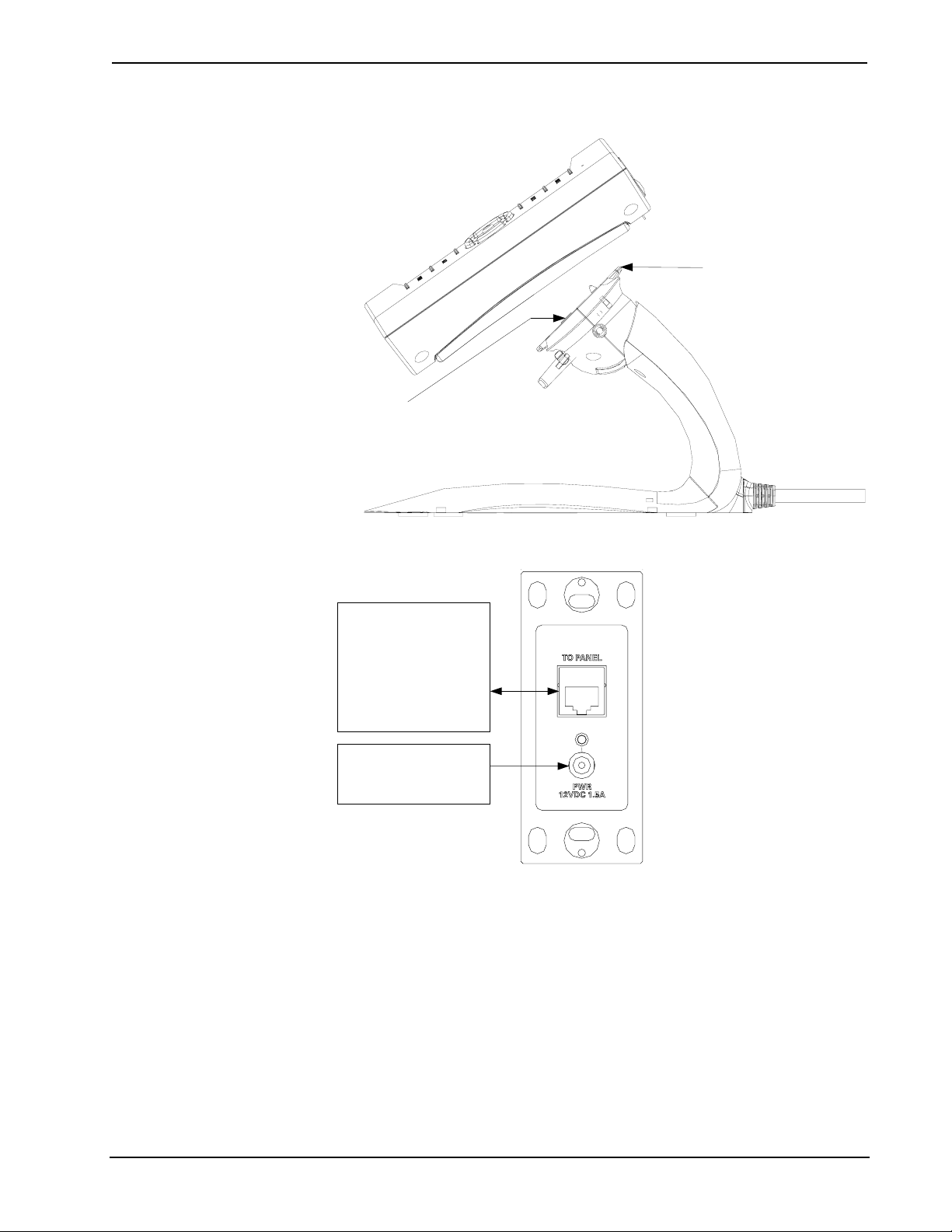

The docking station features a triple lock tiltable docking port, allowing the
touchpanel to be tilted at any angle up to 45 degrees for optimal viewing and
operation when docked. The angle can be freely adjusted during use or locked down
at a fixed angle. A finger operated latch can be engaged at any time to lock the
touchpanel securely to the docking station or left unlocked for easiest removal after
recharging. The touchpanel can even be semi-permanently attached to the docking
station for a sleek, full time tabletop touchpanel solution.

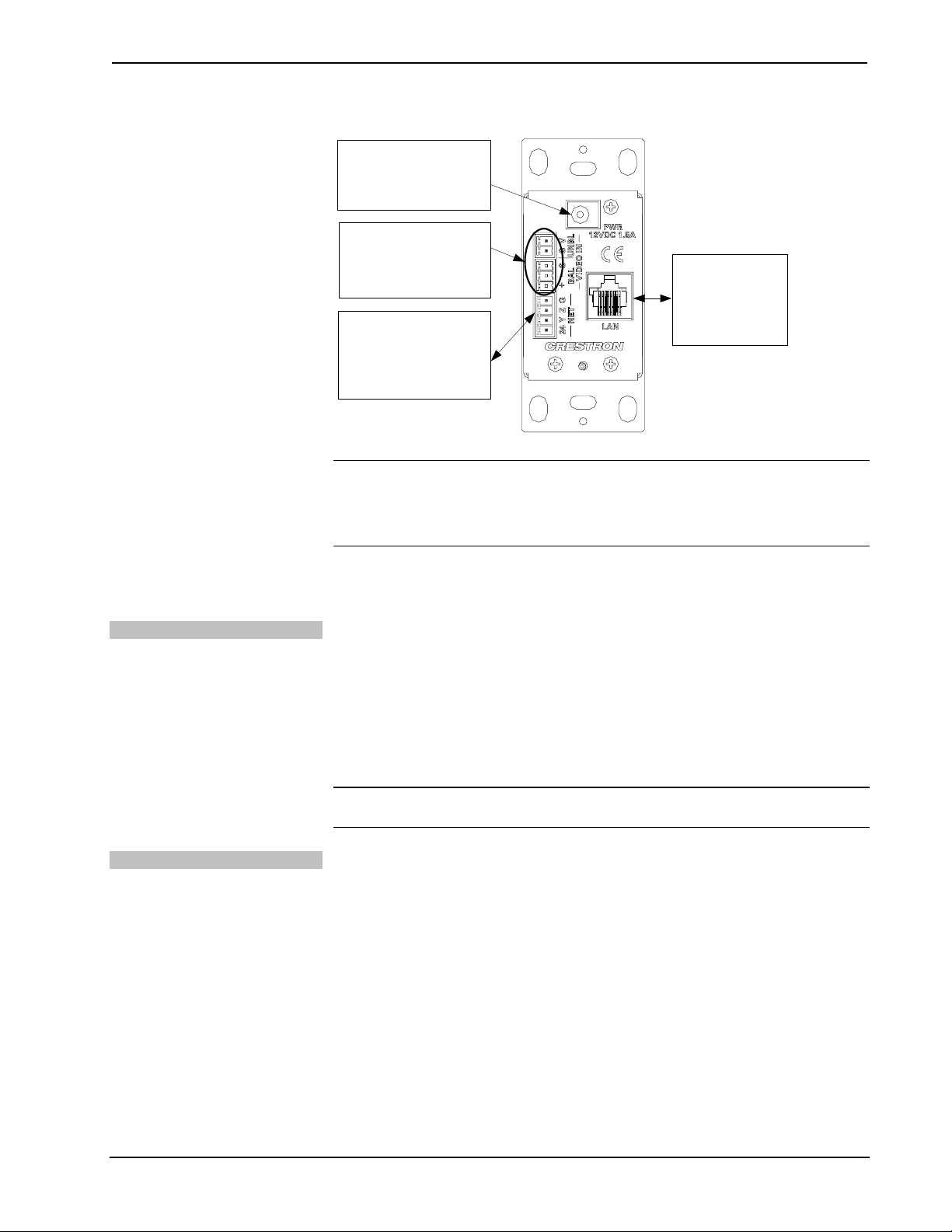

A single cable exits the rear of the docking station base, extending to a wall or
surface mounted TPS-6X-IMCW Interface Module (included). The cable can also be
repositioned to exit the bottom for a very clean, cordless appearance.
Operations Guide – DOC. 6575B Isys® 5.7” Wireless Touchpanel: TPS-6X • 3
Isys® 5.7” Wireless Touchpanel Crestron TPS-6X
Full Motion Video
When docked, the TPS-6X can display full motion video, providing the ability to
monitor a security camera or preview a DVD or television channel, right on the
touchscreen display. The video image is fully scalable for viewing in any sized
window or full screen. The choice of balanced or unbalanced composite inputs
allows compatibility with both conventional coaxial and Crestron Home® Balanced
AV distribution systems.
NOTE: Full motion video requires a wired connection via a TPS(I)-6X-DS Docking
Station (included).
Long Life NiMH Batteries
An internal NiMH (Nickel Metal Hydride) battery pack provides fast charging, long
lasting wireless operation, with adjustable power management built in to allow up to
24 hours typical usage per charge.
4 • Isys® 5.7” Wireless Touchpanel: TPS-6X Operations Guide – DOC. 6575B
Crestron TPS-6X Isys® 5.7” Wireless Touchpanel
Specifications
Specifications for the TPS-6X are listed in the following table.
TPS-6X Specifications
SPECIFICATION DETAILS
Touchscreen Display
Display Type TFT Active matrix color LCD
Size 5.7 inch (14.48 cm) diagonal
Aspect Ratio 4:3 QVGA
Resolution 640 x 480 pixels
Brightness 350 nits
Contrast 400:1
Color Depth 18-bit, 256 k colors
Illumination Backlit fluorescent
Viewing Angle ±80º horizontal, +80º/-70º vertical
Touchscreen Resistive membrane
Processor
CPU 32-bit Freescale ColdFire® Microprocessor
Memory
SDRAM 32 MB
Flash 32 MB
Maximum Project Size 28 MB
Graphic Engine
RF Wireless
RF Transceiver
Transmitting Power
Range
Gateway
IR Wireless1
IR Transmitter 38 kHz, RC5 format
Range 50 feet (15 meters) typical
Gateway
Isys engine; 16-bit non-palette graphics;
65,536 colors; Synapse™ image rendering
algorithm; multi-mode objects; dynamic
graphics; Windows® SideShow™ enabled,
PNG translucence, full motion (60 fps)
animation; color key video windowing
2-way RF, 2.4 GHz ISM Channels 11-26
(2400 to 2483.6 MHz), IEEE 802.15.4
compliant
75 mW (Ch. 11), 100 mW (Ch. 12-23),
15 mW (Ch. 24), 3.5 mW (Ch. 25),
1 mW (Ch. 26) @ High setting;
1 mW (Ch. 11-25), 0.5 mW (Ch. 26)
@ Low setting
100-200 feet (30-61 meters) maximum
indoor, 1000 feet (305 meters) outdoor,
subject to site-specific conditions
Requires a CEN(I)-HPRFGW RF Gateway
(sold separately)
Requires a C2N-IRGW-1G or C2N-IRGW-F
IR Gateway or CNXRMIRD IR Receiver
(all sold separately)
(Continued on following page)
Operations Guide – DOC. 6575B Isys® 5.7” Wireless Touchpanel: TPS-6X • 5
Isys® 5.7” Wireless Touchpanel Crestron TPS-6X
TPS-6X Specifications (Continued)
SPECIFICATION DETAILS
Ethernet2
10BASE-T/100BASE-TX, auto-switching,
auto-negotiating, auto-discovery, full/half
duplex, TCP/IP, UDP/IP, CIP, DHCP, IEEE
802.3U compliant
Video2
Signal Types Composite
Formats NTSC 480i or PAL 576i
Color Depth 18-bit, 262,144 colors
Windowing
Single window, deinterlaced and scalable up
to full screen
Audio Internal transducer for key click sound
Battery
Internal Battery
NiMH, 4.8 Volt, 2000 mAh,
model TPS-6X-BTP (included)
Usage Per Charge
~2 hours continuous, 2 days under normal
use with factory settings
Charging Time3 ~2.5 hours (~2.5 to 3 hours when in use)
Power Requirements4
12 VDC Power Consumption
1.5 Amps @ 12 Volts DC via TPS-6X-IMCW
module (included);
PW(I)-1215 power supply (included)
Cresnet Power Usage
15 Watts (0.63 Amps @ 24 Volts DC) via
TPS-6X-IMCW module (included); refer to
TPS-6X-IMCW specification for additional
power requirements
Default Net ID 03
Minimum 2-Series Control
System Update File
5, 6, 7
Version 3.155.1240 or later
Environmental
Temperature
32º to 112ºF (0º to 45ºC)
50º to 104ºF (10º to 40ºC) while charging
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 51 BTU/Hr
Enclosure
Construction
Injection molded plastic, non-slip grips/feet,
integral docking station port
Front Bezels
Button and no button bezels included; button
bezel includes white translucent illuminated
Up/Down and Thumbpad buttons and eight
hard key buttons with illuminated dividers
and default backlit
custom backlit
8
text engraving, optional
8
text engraving for black
models sold separately
Dimensions
Height 5.10 in (12.96 cm)
Width 8.08 in (20.51 cm)
Depth 1.57 in (3.98 cm)
(Continued on following page)
6 • Isys® 5.7” Wireless Touchpanel: TPS-6X Operations Guide – DOC. 6575B
Crestron TPS-6X Isys® 5.7” Wireless Touchpanel
TPS-6X Specifications (Continued)
SPECIFICATION DETAILS
Weight 1.59 lbs (720 g)
Available Models (Domestic)
TPS-6X
TPS-6X-B-T Isys 5.7” Wireless Touchpanel, Matte Black
TPs-6X-W-S
Available Models (International)
TPSI-6X
TPSI-6X-B-T Isys 5.7” Wireless Touchpanel, Matte Black
TPSI-6X-W-S
Included Accessories
PW(I)-1215 12 Volt Power Pack
TPS-6X-BTP Internal Battery Pack
TPS(I)-6X-DS Desktop Docking Station (specify color)
TPS-6X-FP
TPS-6X-FP-NB No Button Bezel (specify color)
TPS-6X-IMCW Interface Module
Available Accessories
C2N-IRGW-1G Wall Mount IR Gateway
C2N-IRGW-F Flush Mount IR Gateway
CEN(I)-HPRFGW High Powered RF Gateway
CNXRMIRD IR Receiver
SMK-6X Swivel Mount Kit
TPS(I)-6X-DS-C
TPS-6X-FP
1. When IR is enabled, the RF transceiver is disabled and wired communication is restricted to console
functions only (i.e. programming and configuration).
2. Requires a wired connection via TPS(I)-6X-DS Docking Station (included).
3. When the battery switch on the rear of the unit has been in the OFF position, as when the unit is
shipped or stored, the TPS-6X should be placed on its docking station/charger for a minimum of four
hours before using. Refer to “Battery Switch” on page 13 for details.
4. May be powered by 12 Volts DC or Cresnet network power but not both.
5. The latest software versions can be obtained from the Crestron
following these footnotes.
6. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product
Catalog for a complete list of 2-Series control systems.
7. When loading VisionTools
system, be sure that the baud rate is at 38400 (Cresnet speed) or lower. Otherwise, Crestron
Toolbox™ may post the “Transfer Failed” message.
8. Text engraving on the TPS-6X-W-S white model is not backlit.
®
Pro-e (VT Pro-e) files or firmware through the RS-232 port of the control
Isys 5.7” Wireless Touchpanel, High Gloss
Black
Isys 5.7” Wireless Touchpanel, High Gloss
White
Isys 5.7” Wireless Touchpanel, High Gloss
Black
Isys 5.7” Wireless Touchpanel, High Gloss
White
Button Bezel with Default Engraving
(specify color)
Desktop Docking Station, Charging only
(specify color)
Button Bezel w/Custom Engraving
(specify color)
®
website. Refer to the NOTE
NOTE: Crestron® software and any files on the website are for authorized Crestron
dealers and Crestron Authorized Independent Programmers (CAIP) only. New users
Operations Guide – DOC. 6575B Isys® 5.7” Wireless Touchpanel: TPS-6X • 7
Isys® 5.7” Wireless Touchpanel Crestron TPS-6X
may be required to register to obtain access to certain areas of the site (including the
FTP site).
Physical Description
This section provides information on the connections, controls and indicators
available on your TPS-6X.
TPS-6X Physical View (Front)
TPS-6X Physical View (Rear)
8 • Isys® 5.7” Wireless Touchpanel: TPS-6X Operations Guide – DOC. 6575B
Crestron TPS-6X Isys® 5.7” Wireless Touchpanel
TPS-6X Overall Dimensions (Front and Side Views)
8.08 in
(20.51 cm)
5.60 in
(14.23 cm)
4.51 in
(11.46 cm)
TPS-6X Overall Dimensions (Rear View)
7.02 in
(17.81 cm)
1.57 in
(3.98 cm)
1.07 in
(2.72 cm)
3.38 in
(8.58 cm)
5.10 in
(12.96 cm)
TPS-6X (Top View)
3
4.37 in
(11.09 cm)
1
2
4
Operations Guide – DOC. 6575B Isys® 5.7” Wireless Touchpanel: TPS-6X • 9
Isys® 5.7” Wireless Touchpanel Crestron TPS-6X
TPS-6X (Front View)
5
6
7
6
Connectors, Controls & Indicators
# CONNECTORS,
CONTROLS &
INDICATORS
1
2 BATTERY SWITCH
3 SLEEP
4 BRIGHTNESS
5 BATTERY LED
6 HARD KEYS
7 UP/DOWN
8 THUMBPAD
* Text engraving on the TPS-6X-W-S white model is not backlit.
DOCKING STATION
CONNECTOR
(1) Multi-pin connector;
Mates with the docking port on the
TPS(I)-6X-DS Docking Station.
(1) Rear panel recessed DIP switch, shuts off
battery for long term storage.
(1) Programmable top-mounted pushbutton
(left “trigger” key), initiates Sleep mode when
docked; turns power on/off when undocked;
also resets touchpanel if held for five
seconds, starting up at first page of the
installed project.
(1) Programmable top-mounted pushbutton
(right “trigger” key), normally sets display
brightness level. Toggles between high,
medium, low and standby. Toggling can be
enabled/disabled from setup menu (refer to
“BACKLIGHT” which starts on page 30 for
details).
(1) Green LED, indicates battery condition
and charging status when docked.
Flashing indicates battery is charging;
Steady on indicates battery is fully charged.
(8) Optional programmable pushbuttons;
engravable backlit* text (sold separately);
default engraving included.
(2) Optional programmable “up/down”
pushbuttons, backlit, engravable backlit* text
on bezel (sold separately); default engraving
included.
(5) Optional programmable pushbuttons for
4-way directional navigation and “enter”,
backlit.
DESCRIPTION
6
8
6
10 • Isys® 5.7” Wireless Touchpanel: TPS-6X Operations Guide – DOC. 6575B
Crestron TPS-6X Isys® 5.7” Wireless Touchpanel
Industry Compliance
As of the date of manufacture, the TPS-6X has been tested and found to comply with
specifications for CE marking and standards per EMC and Radiocommunications
Compliance Labelling.
Contains FCC ID: EROCWD1015
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Operations Guide – DOC. 6575B Isys® 5.7” Wireless Touchpanel: TPS-6X • 11
Isys® 5.7” Wireless Touchpanel Crestron TPS-6X
Setup
Network Wiring
When wiring the Cresnet or Ethernet network, consider the following:
• Use Crestron Certified Wire.
• Use Crestron power supplies for Crestron equipment.
• Provide sufficient power to the system.
CAUTION: Insufficient power can lead to unpredictable results or damage
to the equipment. Please use the Crestron Power Calculator to help calculate
how much power is needed for the system (www.crestron.com/calculators
).
Cresnet
Ethernet
Net ID
For larger networks, use a Cresnet Hub/Repeater (CNXHUB) to maintain signal
quality.
For more details, refer to “Check Network Wiring” which starts on page 50.
The TPS-6X can also use high-speed Ethernet for communications between the
device and a control system, computer, digital media server and other IP-based
devices.
For information on connecting Ethernet devices in a Crestron system, refer to the
latest version of the Crestron e-Control
available for download from the Crestron website (www.crestron.com/manuals
Reference Guide (Doc. 6052), which is
).
Identity Code
The Net ID of the TPS-6X has been factory set to 03. The Net IDs of multiple
TPS-6X devices in the same system must be unique. The Net ID is set using the
internal setup menu (refer to “CRESNET” on page 29). Net ID may also be set from
a personal computer (PC) via Crestron Toolbox™ (refer to “Establishing
Communication” which starts on page 47).
When setting the Net ID, consider the following:
• The Net ID of each unit must match an ID code specified in the SIMPL™
Windows
• Each network device must have a unique Net ID.
For more details, refer to the Crestron Toolbox help file.
®
program.
IP ID
12 • Isys® 5.7” Wireless Touchpanel: TPS-6X Operations Guide – DOC. 6575B
The IP ID is set within the TPS-6X’s table using the internal setup menu (refer to
“COMM” which starts on page 19). The IP ID may also be set from a personal
computer (PC) using Crestron Toolbox. For information on setting an IP table, refer
to the Crestron Toolbox help file. The IP IDs of multiple TPS-6X devices in the
same system must be unique.
When setting the IP ID, consider the following:
• The IP ID of each unit must match an IP ID specified in the SIMPL
Windows program.
Crestron TPS-6X Isys® 5.7” Wireless Touchpanel
• Each device using IP to communicate with a control system must have a
unique IP ID.
RF ID
IR ID
Every TPS-6X touchpanel communicating via RF with a Cresnet control system
through a CEN(I)-HPRFGW gateway requires a unique RF ID. The RF ID is a twodigit hexadecimal number that can range from 03 to 12. The RF ID of the unit, set
using the internal setup menu (refer to “WIRELESS” which starts on page 27) or in
Crestron Toolbox, must match the RF ID specified in the SIMPL Windows program.
Every TPS-6X touchpanel communicating via IR with a Cresnet control system
through a CNXRMIRD receiver, a C2N-IRGW gateway or directly with an MC2W
control system, requires a unique IR ID to secure IR communications. There are two
useable codes (two-digit hexadecimal numbers): 00 and 10; the default is 00. The IR
ID of the unit, set using the internal setup menu (refer to “WIRELESS” which starts
on page 27), must match the IR ID specified in the SIMPL Windows program.
Battery Switch
The TPS-6X ships with the battery switch (on the rear) in the OFF (downward)
position. The OFF position is used for shipping and long term storage only.
Use the included T-pin to turn the switch ON (slide it upward) and place the TPS-6X
on the included docking station/charger for a minimum of four hours before using.
NOTE: When the TPS-6X is on the docking station/charger, the front panel battery
LED will flash to indicate the battery is charging. When fully charged, it will remain
on, without flashing.
Via the Trigger Keys
To charge the internal battery, the TPS-6X must be placed on the TPS(I)-6X-DS
Docking Station, which must be connected to a powered TPS-6X-IMCW Interface
Module (both included).
Configuring the Touchpanel
NOTE: The only connection required to configure the touchpanel is power. Refer to
“Hardware Hookup” which starts on page 33 for details.
To configure the TPS-6X it may be necessary to access a series of setup menus prior
to viewing run-time screens that are loaded into the touchpanel for normal operation.
The MAIN MENU is the starting point for configuring the touchpanel.
NOTE: If no project has been loaded or if an invalid project has been loaded, the
touchpanel displays an error message and asks the user to touch the screen to enter
setup, which defaults to the MAIN MENU.
NOTE: Trigger key functionality is not available in the setup menus.
If a project is running, the MAIN MENU can be accessed using one of two methods:
via the trigger keys on the top of the touchpanel or via Crestron Toolbox.
1. Press and hold the right trigger key on the top of the touchpanel and at the
same time, touch the upper right corner of the screen.
Operations Guide – DOC. 6575B Isys® 5.7” Wireless Touchpanel: TPS-6X • 13
Isys® 5.7” Wireless Touchpanel Crestron TPS-6X
2. Continue holding the right trigger key and touching the upper right corner
of the screen. At the same time, press and hold the left trigger key on the
top of the touchpanel. After four seconds, the panel will reset.
3. Once the screen turns black, release the left trigger key and the panel will
enter the MAIN MENU, as shown in the illustration below.
4. Release the right trigger key and the touch screen.
Via Crestron Toolbox
1. Establish communication with the touchpanel (refer to “Establishing
Communication” which starts on page 47 for details).
2. Right-click on the device and select Functions | Setup Mode….
3. Select Enter Setup Mode. The MAIN MENU will be displayed, as shown
in the illustration below.
NOTE: Select Exit Setup Mode to exit the setup menu.
The MAIN MENU displays four large buttons: Touch Screen Calibration, Exit
and Run Program, Setup and Diagnostics, as shown in the following illustration.
MAIN MENU
The Exit and Run Program button verifies that all of the setup information has
been saved to the EEPROM and displays the main page that has been programmed
into your system. The remaining buttons on the MAIN MENU open other menus and
displays which are discussed in subsequent paragraphs.
14 • Isys® 5.7” Wireless Touchpanel: TPS-6X Operations Guide – DOC. 6575B
Crestron TPS-6X Isys® 5.7” Wireless Touchpanel
CALIBRATION MENU
Touch the Touch Screen Calibration button to enter the CALIBRATION MENU.
CALIBRATION MENU
Touch Perform Calibration. The message “Touch Upper Left +” appears centered
on the panel with a crosshair in the upper left corner. Touch the center of the
crosshair in the corner of the screen to initiate calibration. Another message, “Touch
Upper Right +”, appears with a crosshair in the correct corner. Touch the center of
the crosshair in the corner of the screen. A final message, “Touch Lower Right +”,
appears with the crosshair in the correct corner. Touch the center of the crosshair in
the corner of the screen to conclude calibration and return to the MAIN MENU.
NOTE: When touching the screen during calibration, be as accurate as possible.
Use the tip of a capped pen or the eraser end of a pencil. To cancel calibration and
return to the MAIN MENU without saving calibration data, create a calibration error
by touching the screen in the same spot two times. If calibration has not been started,
you can return to the MAIN MENU by touching RETURN.
Operations Guide – DOC. 6575B Isys® 5.7” Wireless Touchpanel: TPS-6X • 15
Isys® 5.7” Wireless Touchpanel Crestron TPS-6X
SETUP
To enter the SETUP MODE menu, touch Setup on the MAIN MENU.
SETUP MODE Menu
The SETUP MODE menu offers a series of buttons which open additional menus
and displays that are detailed in subsequent paragraphs. After setup parameters have
been selected, touch RETURN to go to the previous menu. When all setup
parameters have been selected, touch RETURN repeatedly to go back to the MAIN
MENU.
NOTE: All touchpanel settings are automatically saved in non-volatile memory.
The SETUP MODE menu also provides data for COMMUNICATION STATUS,
BATTERY, DOCKING STATION STATUS and FIRMWARE.
The Crestron Swirl logo in the COMMUNICATION STATUS section
illuminates to indicate the status of your connection to the control system(s). For
details, refer to “COMM” which starts on page 19.
The COMMUNICATION STATUS section also displays wireless signal strength, RF
ID, gateway connection and ID, Ethernet connection, IP and MAC addresses,
Cresnet connection status and ID and infrared ID.
The BATTERY section displays battery charge level and has indicators to show when
the battery is charging and when AC power is connected.
NOTE: When battery power is low, the TPS-6X will show a warning message. The
key backlight will be turned off and the display backlight will dim to minimum until
the battery is recharged or the unit is docked. If battery power drops to 4%, saving of
panel settings is not guaranteed.
NOTE: The battery charge level percentage indicator gets more accurate after a few
charge/discharge cycles. Periodic full discharge (i.e. once a month) is recommended
to maintain accuracy of the percentage measurement.
The DOCKING STATION STATUS section has an indicator to show docked status.
The RELEASE button is reserved for future applications.
16 • Isys® 5.7” Wireless Touchpanel: TPS-6X Operations Guide – DOC. 6575B
Loading...
