Introduction
Functions and Features
The TPS-1700 is a compact Isys™ wired 5.7-inch tabletop touchpanel that provides
user interface to a Crestron
Cresnet
confirmation of commands.
Functional Summary
* Supplied with standard legends. Additional set of blank buttons and installation instructions also
supplied. Customizable Engraving Button Kit sold separately.
™
system). The unit provides dynamic onscreen feedback for real-time
• 5.7 in (14.78 cm) Active Color Matrix Display
• 320x240 Screen Resolution
• 63MIPs ColdFire Processor Running Isys Generation Firmware
• 16-Bit, Non-Palette Graphics
• 64,000-color Isys engine
• 4 MB of Flash (approx. 3MB For User Display Lists)
• 8 MB of SDRAM
• Built-in 10 "quick" Pushbuttons (Fixed Joins 1-10)
− Engraveable*
− Operate Without Waking Display
• Connection to Cresnet via 6-pin RJ-11 Port in Base
− CN-RJ11 4-Wire to RJ-11 Converter and Cable Supplied
™
remote control system (herein referred to as the
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 1
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
Specifications
The table below provides a summary of specifications for the TPS-1700.
Specifications of the TPS-1700 Touchpanel
SPECIFICATION DETAILS
Power Requirements 10 Watts, 24 VDC, 0.40 Amp
Default NET ID 03
Default Standby Timeout 10 minutes
Signal Join Maximums 4K (digital), 4K (analog), 999 (serial)
Control System Update Files
2-Series Control System Update
CEN/CN-TVAV Update File
CNMSX-AV/Pro Update File
CNRACKX/-DP Update File
ST-CP Update File
Acceptable File Extensions4
SIMPL Windows
.smw
.spz
.bin
.csz
VT Pro-e
.vtp
.vtz
Firmware
.csf
Memory 4 MB flash memory (3.5 Mbytes available
Touchscreen Dimensions Height: 3.50 in (8.89 cm)
Touchscreen Angles ±50° for X dir, +40/-50° for Y dir
Touchscreen Resolution 320 x 240 pixels, 64K colors (16 bit)
Touchscreen LCD Active matrix
Touchscreen Illumination Backlit fluorescent
Touchscreen Composition Resistive Membrane
Operating Temperature 50° to 113°F (10° to 45°C)
Humidity 10% to 90% RH (non-condensing)
Overall Dimensions Width: 8.75 in (22.23 cm)
Weight 1.85 lb (0.84 kg)
1. The latest versions can be obtained from the Downloads | Software Updates section of the Crestron
website (www.crestron.com)
2. Crestron 2-Series control systems include the AV2, PAC2, PRO2, and RACK2.
3. CNX update files are required for either CNMSX-AV/Pro or CNRACKX/-DP. Filenames for CNX
update files have a UPZ extension and are in one EXE or zipped UPZ file. To avoid program problems,
make certain you are using the update file with the correct suffix letter (e.g., S, V, W, X).
4. Extension requires a prefix specific to the touchpanel type. In DETAILS, projectname represents the
assigned project name, and xxxxxx represents a version number.
1, 2, 3
. Refer to NOTE after last footnote.
Version C2-2004.CUZ or later
Version 5.13.12V.UPZ or later
Version 5.12.63X.UPZ or later
Version 5.10.11W.UPZ or later
Version 4.02.04S.UPZ or later
projectname.smw (source file)
projectname.spz (compiled file for 2-Series)
projectname.bin (compiled file for CNX generation)
projectname.csz
(compiled file for CNX generation with SIMPL+)
projectname.vtp (source file)
projectname.vtz (compiled file)
TPS-1700xxxxxx.csf (panel firmware)
for user programming)
8 MB SDRAM
Width: 4.60 in (11.68 cm)
Diagonal: 5.70 in (14.48 cm)
Height: 3.62 in (9.20 cm)
Depth: 5.43 in (13.80 cm)
2 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
NOTE: Crestron software and any files on the website are for Authorized Crestron
dealers only. New users may be required to register to obtain access to certain areas
of the site (including the FTP site).
Physical Description
The touch-sensitive viewing screen and “quick” pushbuttons are located on the front
of the TPS-1700. The electronic hardware is housed in a high impact, black molded
plastic enclosure. Connection to the control system is via a 6-pin RJ-11 connector
mounted on the bottom of the unit base. Refer to the illustrations below and on the
next page.

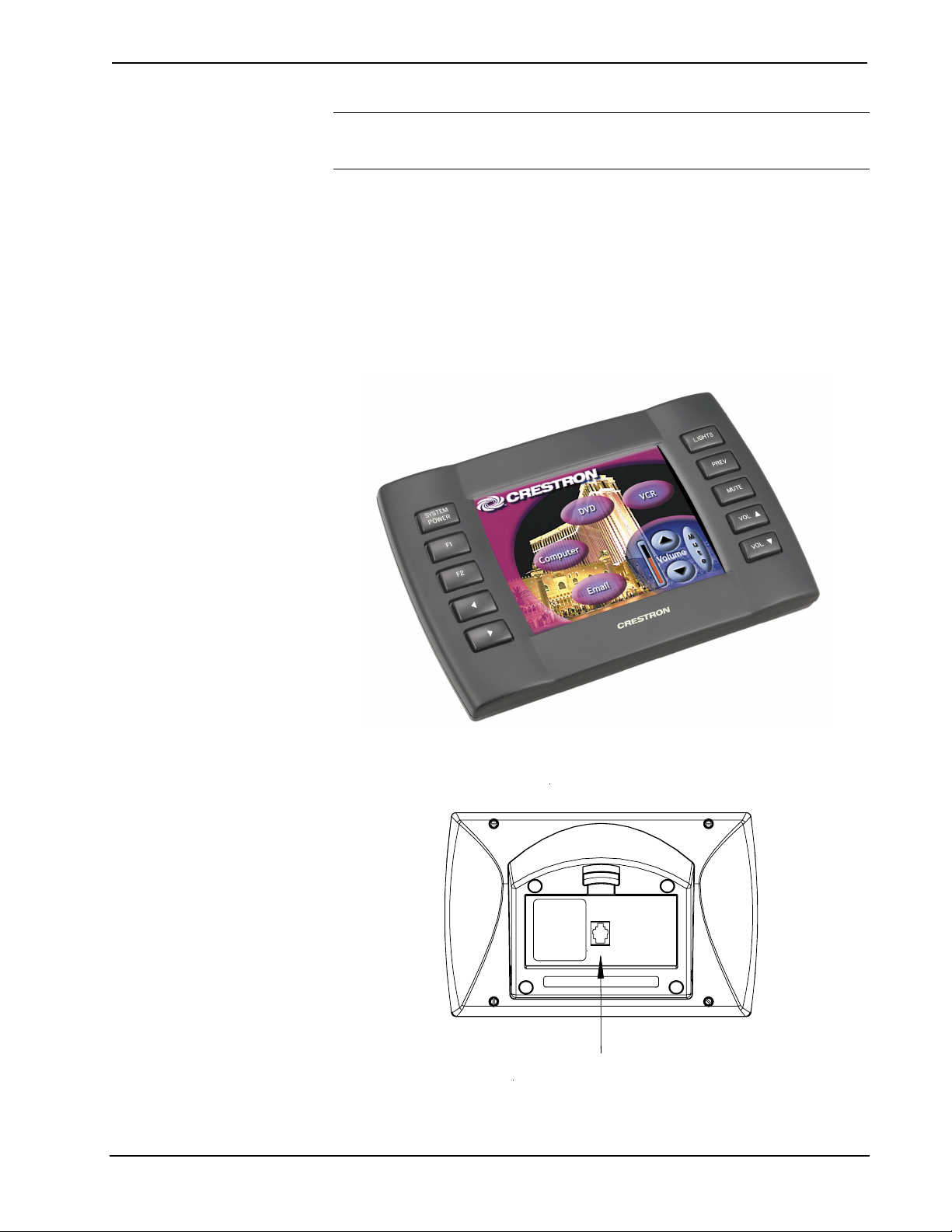

Physical Views of TPS-1700
Bottom view
(6 - - -1)
6-Pin RJ-11
Connector
(Refer to page 9 for pinout.)
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 3
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700

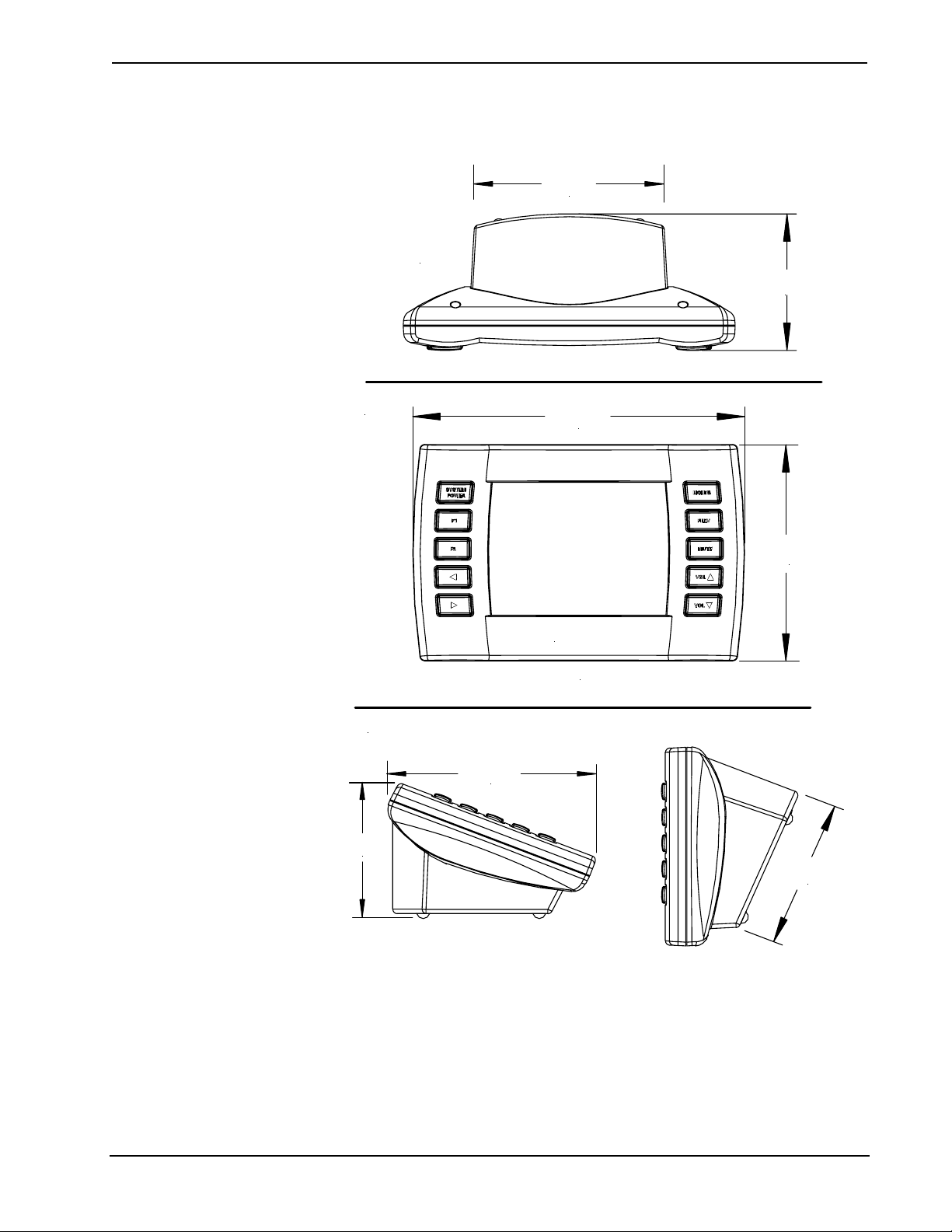

Physical Views of TPS-1700 (continued)
5.012 in
12.730 cm
Top view
Front view
Refer to "Quick Pushbuttons" on page 16 for button orientation.
8.750 in
22.225 cm
CRESTRON
3.596 in
9.134 cm
5.700 in
14.478 cm
4 • Isys
Side views
5.430 in
13.793 cm
3.620 in
9.195 cm
4.236 in
10.760 cm
Four rubber feet on the underside of the unit are for stability and to prevent slippage
on flat surfaces.
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
Industry Compliance
As of the date of manufacture, this unit has been tested and found to comply with
specifications for CE marking and standards per EMC and Radio Communications
Compliance Labeling (N11785).
NOTE: These devices comply with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) these devices may not cause harmful interference,
and (2) these devices must accept any interference received, including interference
that may cause undesired operation.
Setup
Network Wiring
NOTE: When installing network wiring, refer to the latest revision of the wiring
diagram(s) appropriate for your specific system configuration, available from the
Downloads | Product Manuals | Software and Wiring Diagrams section of the
Crestron website (www.crestron.com)
.
When calculating the wire gauge for a particular Cresnet run, the length of the run
and the power factor of each network unit to be connected must be taken into
consideration. If Cresnet units are to be daisy-chained on the run, the power factor of
each unit to be daisy-chained must be added together to determine the power factor
of the entire chain. The length of the run in feet and the power factor of the run
should be used in the following resistance equation to calculate the value on the right
side of the equation.
Resistance Equation
R = Resistance (refer to table below).
R <
40,000
L x PF
Where:
L = Length of run (or chain) in feet .
PF = Power factor of entire run (or chain).
The required wire gauge should be chosen such that the resistance value is less than
the value calculated in the resistance equation. Refer to the following table.
Wire Gauge Values
RESISTANCE (R) WIRE GAUGE
4
6
10
15
13
8.7
16
18
20
22
Doubled CAT5
Tripled CAT5
NOTE: All Cresnet wiring must consist of two twisted pairs. One twisted pair is the
+24V conductor and the GND conductor, and the other twisted pair is the Y
conductor and the Z conductor.
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 5
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
b
NOTE: When daisy-chaining Cresnet units, strip the ends of the wires carefully to
avoid nicking the conductors. Twist together the ends of the wires that share a pin on
the network connector, and tin the twisted connection. Apply solder only to the ends
of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle.
Insert the tinned connection into the Cresnet connector and tighten the retaining
screw. Repeat the procedure for the other three conductors.
NOTE: For larger networks (i.e., greater than 28 network devices), it may be
necessary to add a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality
throughout the network. Also, for networks with lengthy cable runs, it may be
desirable to add a hub/repeater after only 20 network devices.
Identity Code
Every equipment and user interface within the Cresnet system requires a unique
Cresnet identity code (NET ID). These codes are two-digit hexadecimal numbers
from 03 to FE. Refer to “Select Interface” on page 7 for instructions on setting the
unit’s NET ID. The NET ID of the unit must match the NET ID specified in the
SIMPL Windows program. Refer to “Setting the Net ID in Device Settings” on page
12 for details of the SIMPL Windows procedure.
Configuring the Touchpanel
MAIN MENU
This menu can also be obtained via
digital reserved join number, 17242.
CALIBRATION MENU
NOTE: The only connection required to configure the touchpanel is power. Refer to
“Hardware Hookup” on page 9 for details.
To configure the unit, it may be necessary to access a series of setup screens prior to
viewing run-time screens that are loaded into the touchpanel for normal operation.
The MAIN MENU for configuring the touchpanel appears when a finger is held
(approx. 5 seconds) to the touchscreen when power is applied.
Upon entering SETUP MODE, the MAIN MENU, shown to the left, displays four
buttons: Touch Screen Calibration, Exit and Run Program, Setup, and
Diagnostics.
Selecting Exit and Run Program verifies that all of the setup information has been
saved to EEPROM and displays the main page that has been programmed into the
touchpanel. The remaining buttons on the MAIN MENU open other menus, which
are discussed in subsequent paragraphs.
Calibration Menu
Calibration of the touchscreen is required if the active touch area of a button does
not coincide with the button's image. Select the Touch Screen Calibration
display the CALIBRATION MENU, as shown to the left. The CALIBRATION
MENU offers the choice to initiate calibration with the Perform Calibration button
or return to the previous screen with the Return button. Choose an option by
touching the appropriate button.
If you need to calibrate the touchpanel, the screen displays the message "Touch
Upper Left" centered on the panel with a cross hair in the upper left corner. Touch
the cross hair to initiate calibration. Another message, "Touch Upper Right", appears
with a cross hair in the correct corner. Touch the cross hair. A final message, “Touch
Lower Right”, appears with a cross hair in the correct corner. Touch the crosshair to
finish the calibration and return to the MAIN MENU.
utton to
6 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
y
b
NOTE: When touching each crosshair during calibration, be as accurate as possible.
Use the tip of a capped pen or the eraser end of a pencil. To cancel calibration and
return to the CALIBRATION MENU without saving calibration data, create a
calibration error by touching the screen in an area that is opposite from the instructed
area.
Setup Menu
SETUP MENU
SELECT INTERFACE
To obtain the SETUP MENU, shown to the left, press the Setup button from the
MAIN MENU. The SETUP MENU offers a series of buttons, which open additional
menus and screens that are detailed in subsequent paragraphs. After setup parameters
have been set, select the Return button to return to the MAIN MENU.
NOTE: For convenience, the current CRESNET ID setting is displayed in the lower
left corner.
NOTE: All touchpanel settings are automatically saved in non-volatile memory.
Select Interface
The touchpanel communicates with a control system to activate commands or to
display feedback from components within the system. The communication interface
must be correctly specified or communication will not occur. To set communication
parameters, first select the Interface button on the SETUP MENU to display the
SELECT INTERFACE screen, shown to the left. Then, select the CRESNET button
to display the CRESNET INTERFACE MENU. Use that screen to set the Cresnet
network identity (CRESNET ID).
KEY CLICK SETUP
SCREEN SETTINGS BRIGHTNESS
After the Cresnet ID setting has been verified, touch the Return button at the bottom
of the screen to save the setting and display the SELECT INTERFACE menu.
Key Click Setup
From the SETUP MENU, press the Key Click Enabled button to open KEY CLICK
SETUP screen. (If the function is currently disabled, the button legend is “Ke
Disabled.”) To enable an audible tone (beep) when the touchpanel buttons are
pressed, select among the Short, Med, or Long KEY CLICK ENABLE/LEN
uttons to set the duration of the tone. The touchpanel responds with a corresponding
signal. To disable the feature, select Click Off.
Use the KEY CLICK VOLUME UP and DOWN buttons to increase and decrease
the volume of the signal. The area to the right of the buttons shows the relative
volume from 0% to 100%, both as a numeric value and, for a quick visual reference,
as an analog bar.
Select the Return button to return to the SETUP MENU.
Brightness
From the SETUP MENU, press the Brightness button to open the SCREEN
SETTINGS – BRIGHTNESS screen. The UP and DOWN buttons increase and
decrease screen brightness, respectively. The area to the right of the buttons shows
the relative brightness from 0% to 100%.
Select the Return button to return to the SETUP MENU.
Click
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 7
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
STARTUP PREFERENCE
POWER MANAGEMENT TIMEOUT
SETTINGS
Startup Preference
The Startup Preference option allows (when the touchpanel is off or in standby) the
display to come on or stay off when a “quick” pushbutton is pressed. From the
SETUP MENU, press the Startup Preference button to open the STARTUP
PREFERENCE screen.
When pressed, the DISPLAY ON FROM HARDKEY button toggles between
ENABLED and DISABLED. With ENABLED selected, the display comes on when
one of the “quick” pushbuttons is pressed. With DISABLED selected, the display
stays off when a “quick” pushbutton is pressed (if touchpanel was off). The default
is DISABLED.
Select the Return button to return to the SETUP MENU.
Power Management Timeout Settings
The Power Management Timeout feature is a screen saver. From the SETUP menu,
press the Timeout button to display the POWER MANAGEMENT TIMEOUT
SETTINGS screen. Use the STANDBY UP and DOWN buttons to set the timeout
from 0 through 120 minutes, where 0 disables the timeout. Adjustment is in oneminute increments from 1 to 10; in ten-minute increments from 20-120.
STANDBY timeout turns the display and backlight off when the touchpanel is
inactive for the specified time. When the touchpanel is reactivated, the last screen to
be displayed reappears. The specified time is displayed in minutes. The default
STANDBY timeout is 10 minutes.
Press Return to save the settings and return to the SETUP MENU.
DIAGNOSTICS MEMU
Diagnostics Menu
The Diagnostics button from the MAIN MENU should only be used under
supervision from a Crestron customer service representative during telephone
support. Many options available from the DIAGNOSTICS MENU, shown to the left,
are numeric in nature and their interpretation is beyond the scope of this manual.
8 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
Hardware Hookup
CAUTION: Do not apply excessive pressure to the touchscreen display during
handling. Doing so can crack the screen and damage the touchpanel.
The TPS-1700 touchpanel has rubber pads on the underside of its base so that it can
rest on a horizontal surface. The only connection necessary is made to the 6-pin
RJ-11 connector mounted in the bottom of the unit base. The Crestron CN-RJ11 4
Wire to RJ11 Converter and a 12-foot interface cable are supplied to convert a 4-pin
Cresnet connection on the control system to the 6-pin connection in the touchpanel.
The following figure shows the pinout for the 6-pin RJ-11
Recommended Touchpanel Cleaning
Keep the surface of the touchscreen free of dirt, dust, or other materials that could
degrade optical properties. Long-term contact with abrasive materials can scratch the
surface that may detrimentally affect image quality.
For best cleaning results, use a clean, damp, non-abrasive cloth with any
commercially available non-ammonia glass cleaner. Surrounding plastic enclosure
may not provide a complete watertight seal. Therefore, apply cleaning solution to the
cloth rather than the surface of the touchscreen. Wipe touchscreen clean and avoid
ingress of moisture beneath panels.
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 9
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
Programming Software
Have a comment about
Crestron software?
Direct software related suggestions
and/or complaints to Crestron via
email (software@crestron.com).
Do not forward any queries to this
address. Instead refer to “Further
Inquiries” on page 26 for assistance.
Setup is easy thanks to Crestron’s Windows-based programming software. The
Crestron Application Builder™ (Appbuilder) creates a complete project, with no
special programming required. Crestron Appbuilder completes all necessary
programming for a base system including all touchpanel screens and the control
system program. Once Crestron Appbuilder creates the project, the system interfaces
and program logic can be customized. It can easily be modified with Crestron
development tools (i.e., SIMPL™ Windows
and VisionTools™ Pro-e (VT Pro-e)
software packages).
The program output of Crestron Appbuilder is a SIMPL Windows program with
much of the functionality encapsulated in macros. Therefore, extending the
capabilities of the system is very easy. Crestron AppBuilder and SIMPL Windows
are intended for users with different levels of programming knowledge. Crestron
AppBuilder is easier to use for the beginning programmer, and much faster for all
programmers. However, it does not allow the degree of control and flexibility that
SIMPL Windows does. Of course, one can initiate programming using the easiest
method (Crestron AppBuilder) and use advanced techniques that are available from
SIMPL Windows to customize the job.
Crestron Appbuilder comes with templates for all supported interfaces. If a user
wishes to create a touchpanel project using templates with a different look-and-feel
this can be accomplished by making a custom template. This custom template can
then be used by Crestron Appbuilder to create the final project files to be loaded into
the panels. Alternatively, VT Pro-e can be used to tweak projects created with the
Crestron AppBuilder or develop original touchpanel screen designs.
The following are recommended software version requirements for the PC:
• Application Builder version 1.1.6 or later. Requires SIMPL Windows.
• SIMPL Windows version 2.02.11 or later with library update file.
Requires SIMPL+ Cross Compiler version 1.1.
• Crestron Database version 15.7.5 or later. Required by SIMPL Windows.
• VisionTools Pro-e version 2.4.1.6 or later. Used for graphical touchscreen
design.
NOTE: The TPS-1700 touchpanel is supplied with 10 blank pushbuttons. Customengraved keys can be obtained by using the Crestron Engraver software. Version
1.1.1.6 or later is available from the Downloads | Software Updates section of the
Crestron website (www.crestron.com
).
Digital, analog and serial join numbers are a common thread between VT Pro-e and
SIMPL Windows. These numbers define how the objects on a touchpanel page of a
VT Pro-e project interface to the outside world, specifically the Cresnet system as
defined in the SIMPL Windows program. There are digital join numbers that carry
out some predetermined function (a logical high or low); analog join numbers for
displaying incremental values, sliders, gauges and bar graphs; and serial join
numbers that allow for the display of variable text and transmission/reception of
serial commands from other manufacturers. Unjoined objects are not interfaced with
the system and thus cannot initiate any functions.
10 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
p
Programming with Crestron AppBuilder
The easiest method of
rogramming, but does not
offer as much flexibility as
SIMPL Windows.
Crestron AppBuilder offers automatic programming for such residential and
commercial applications as audio distribution, home theater, video conferencing, and
lighting. The interface of this tool guides you through a few basic steps for
designating rooms and specifying the control system, touchpanels, devices, and
functionality. Crestron AppBuilder then programs the system, including all
touchpanel projects and control system logic.
Crestron AppBuilder is fully integrated with Crestron's suite of software
development tools, including SIMPL Windows, VT Pro-e, and the Crestron
Database. Crestron AppBuilder accesses these tools behind the scenes, enabling you
to easily create robust systems.
Programming with SIMPL Windows
NOTE: The following assumes that the reader has knowledge of SIMPL Windows.
If not, refer to the extensive help information provided with the software.
NOTE: In the following description, the PRO2 control system is used.
SIMPL Windows is Crestron's software for programming Crestron control systems.
It provides a well-designed graphical environment with a number of workspaces
(i.e., windows) in which a programmer can select, configure, program, test, and
monitor a Crestron control system. SIMPL Windows offers drag and drop
functionality in a familiar Windows
®
environment.
PRO2 System View
This section describes a sample SIMPL Windows program that includes a TPS-1700.
Configuration Manager is where programmers “build” a Crestron control system by
selecting hardware from the Device Library. In Configuration Manager, drag the
PRO2 from the Control Systems folder of the Device Library and drop it in the upper
pane of the System Views. The PRO2 with its associated communication ports is
displayed in the System Views upper pane.
The System Views lower pane displays the PRO2 system tree (refer to graphic
below). This tree can be expanded to display and configure the communications
ports.
Expanded PRO2 System Tree
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 11
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
C2Net-Device Slot in Configuration Manager
To incorporate a TPS-1700 into the system, drag the TPS-1700 from the
Touchpanels | Touchpanels (Cresnet) folder of the Device Library and drop it in
System Views. The PRO2 system tree displays the touchpanel in Slot 9, with a
default NET ID of 03 as shown in the following illustration.
NOTE: The first touchpanel in a system is preset with a NET ID of 03, when its
symbol is dragged into the upper pane of System Views. Additional touchpanels are
assigned different NET ID numbers as they are added.
C2Net Device, Slot 9
Setting the Net ID in Device Settings
Double-click the TPS-1700 icon to open the “Device Settings” window. This
window displays the TPS-1700 dervice information. If necessary, select the NET ID
tab to change the touchpanel NET ID, as shown in the following figure.
Touchpanel “Device Settings” Window
NOTE: SIMPL Windows automatically changes NET ID values of a device added
to a program if a duplicate device or a device with the same default NET ID already
exists in the program. Always ensure that the hardware and software settings of the
NET ID match. For NET ID hardware setting details, refer to “Select Interface” on
page 7.
12 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
TPS-1700 Symbol in Programming Manager
Programming Manager is where programmers “program” a Creston control system
by assigning signals to symbols. The graphic on the next page shows the TPS-1700
symbol in the SIMPL Windows’ Programming Manager.
Detail View of the TPS-1700 in SIMPL Windows’ Programming Manager
Signal Types
Signals interconnect the various devices and logic symbols that comprise a SIMPL
program. Signals can be one of three types: digital, analog, or serial. For any given
signal, the signal type is determined by its driving source. That is, if the symbol that
drives the signal has an analog output, then, by definition, the signal connected there
will be an analog signal.
In SIMPL Windows, the signal types are color-coded as follows:
Digital = Blue
Analog = Red
Serial = Black
Other = Green
NOTE: “Other” signals are a combination of the three basic types (e.g. many
symbols accept either analog or serial signals where the combination is shown as a
green signal). The signal type is displayed on the Status Bar when the signal is
highlighted.
For additional information, refer to Doc. 6120, Crestron SIMPL Windows Symbol Guide. It
may be downloaded from the Downloads | Product Manuals | Software section of the Crestron
website (www.crestron.com)
Digital Signals
.
A digital signal contains one bit of information and usually takes on one of two
values: 1 or 0. These two digits can represent the logical values true and false, and
they can be represented in an electronic device by the states on/off or high/low,
recognized as two voltage levels. (Other common descriptors are active/inactive.)
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 13
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
Analog Signals
Unlike digital signals, analog signals can vary continuously in value, in the same
manner as a parameter such as volume, temperature, or pressure. Analog signals
contain 16 bits of information, which means that this type of signal can have values
ranging from 0 to 65535 (2
controlling devices that do not have discrete settings, such as volume controllers,
pan/tilt head controllers, and lighting dimmers.
Serial Signals
Serial signals are much like analog signals, in that they, too, contain 16 bits of
information. However, whereas the value of an analog signal is used directly–to
control volume or temperature, for instance–the value of the serial signal is used as a
pointer to a location in memory that contains a string of characters. When a serial
signal is routed to a symbol, that symbol can identify the signal as serial rather than
analog and it will automatically look at the data to which it points.
Thus, serial signals are used to facilitate the transmission of serial data (strings of
characters). These signals can be generated by incoming data on a COM port or by a
symbol that has a serial output.
TPS-1700 Input/Output Signals
16
-1). This 16-bit property makes analog signals useful for
The TPS-1700 symbol provides up to 4K digital and/or analog input and output
joins, up to 999 serial input and up to 127 serial output joins. The programmer
selects the signal types by clicking on the appropriate button at the top of the Symbol
Detail view when programming the panel.
The following tables list functional descriptions for the touchpanel outputs and
inputs.
Digital Output Signal Descriptions
OUTPUT DESCRIPTION
press 1 through press 4000 Notifies control system of button press (1 – 4000).
High/1 = press On
Low/0 = press Off
Digital Input Signal Descriptions
INPUT DESCRIPTION
fb 1 through fb 4000
Analog Output Signal Descriptions
Notifies panel to display feedback (1 – 4000). This can
represent that the button was pressed, or can be actual
device feedback, e.g., that power was turned on.
OUTPUT DESCRIPTION
an_act 1 through an_act 4000 Notifies control system of an analog action (1 - 4000).
Any value from 0 through 65535
Analog Input Signal Descriptions
14 • Isys
INPUT DESCRIPTION
an_fb 1 through an_fb 4000 Notifies panel of analog feedback (1 – 4000).
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
p
Serial Input Signal Descriptions
INPUT DESCRIPTION
text-o1 through text-o999
Serial Output Signal Descriptions
OUTPUT DESCRIPTION
text-i1 through text-i127 For remapping of system reserved joins (1 – 127).
Notifies panel of text string (1 – 999). Also called
indirect text.
Device Extenders
Device extenders provide additional logic and functionality to a device. The Poll
Manager and Sleep/Wake Manager symbols are device extenders for touchpanels.
Poll Manager takes the touchpanel on and off line during polling by the control
system. Sleep/Wake Manager suspends and restores operation of the touchpanel. For
additional information about Device Extenders, refer to the latest version of the
Crestron SIMPL Windows Symbol Guide (Doc. 6120), or the on-line help included
with SIMPL Windows.
Example Program
An example program for the TPS-1700 is available from the Crestron FTP site
(ftp://ftp.crestron.com). Select the Examples folder and search for TPS-1700.ZIP that
contains the example program, associated files and a README.TXT file that
describes the program.
Programming with VisionTools™ Pro-e
Multi-mode objects offer high-
erformance programming!
VT Pro-e, a design and programming Windows-based software, permits the
creation of unlimited control screen variations incorporating two and threedimensional graphics and text. A set of pages, which make up a project, can be
designed for each TPS-1700 touchpanel application. Each page contains objects such
as custom control graphics, two and three-dimensional buttons, sliders, and digital
readouts which allow the user to interface with the control system via join numbers.
Unjoined objects are not interfaced with the system and thus cannot initiate any
functions. The completed and compiled project is uploaded to the touchpanel and
programmed into the flash PROM via the File | Upload Project command. The
touchpanel uses the programmed project until another set is uploaded from the PC.
The PC may be disconnected from the control system or panel except during
reprogramming. VT Pro-e also allows users the option to generate projects destined
for web browsers rather than for physical touchpanels.
For additional software information, refer to the help file provided with the software.
The latest version of VT Pro-e can be obtained from the Downloads | Software
Updates section of the Crestron website (www.crestron.com)
The single most-advanced VT Pro-e high-performance programming technique
involving the TPS-1700 is the concept of multi-mode objects. A multi-mode object
(i.e., button, legend, etc.) is an object drawn on a VT Pro-e page that can have one or
more active and inactive visible settings (modes).
For examples, refer to the MULT-MOD.ZIP file. It is available from the Crestron
FTP site <ftp://ftp.crestron.com>
VT Pro-e touchpanel files and SIMPL Windows files that illustrate the highperformance capabilities of multi-mode objects.
. Select the Examples Folder. This file contains the
.
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 15
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
“Quick” Pushbuttons
Pushbutton Layout and Join
Number Assignment
1
Ten “quick” pushbuttons flank the LCD display. You can use these buttons to access
any frequently used commands. Each button has a permanently fixed digital join
number; refer to the illustration shown to the left. The sequence of digital join
numbers is (top to bottom) 1 through 5 on the left side and 6 through 10 on the right
6
side.
5
CRESTRON
10
NOTE: A VT Pro-e sample project, TPS-1700.VTP, is available from the
Downloads page (VTPRO-E Library) of the Crestron website (www.crestron.com).
This project provides guides for panel designers so that they can line up objects with
the 10 “quick” pushbuttons that flank the LCD display. New users are required to
register in order to obtain access to the FTP site.
NOTE: A user may not want the LCD display to come on after a pushbutton is
pressed when the unit is in Standby mode. The Startup Preference option allows the
user to select whether the touchpanel’s display comes on or stays off after a
pushbutton is pressed. For more information, refer to “Startup Preference” on page 8.
Reserved Join Numbers
A reserved join number is a feature of the software that enables a designer to create a
button that completes a predetermined function. The tables on the next page provide
lists of reserved join numbers available within the software.
NOTE: Many touchpanel configuration “shortcuts” are available via the software.
A button can be created on a page that either calls up the Preferences Menu, adjusts
brightness, etc., via reserved join numbers.
Analog Reserved Join Numbers for TPS-1700
JOIN NUMBER FUNCTION VALUE
17201 Brightness* 1-100%
17203 Standby Timeout* 0-120 minutes
17300 Keyclick Volume* 1-100%
* Defaults:
LCD Brightness – 48%; Standby Timeout – 10 minutes;
Key Click Volume – 50%
16 • Isys
NOTE: Standby Timeout adjusts in 1-minute increments from 1 to 10 minutes, and
in ten-minute increments from 20-120 minutes.
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
Digital Reserved Join Numbers TPS-1700
JOIN NUMBER FUNCTION VALUE
17216 Brightness Up
17217 Brightness Down
17218 Brightness High
17219 Brightness Medium (Default)
17220 Brightness Low
17230 Standby N/A
17231 Standby Timeout Up
17232 Standby Timeout Down
17242 Setup N/A
17302 Keyclick On
17303 Keyclick Off
17304 Keyclick Volume Up
17305 Keyclick Volume Down
17322 Keyclick Short Short (Default)
17323 Keyclick Medium Medium
17324 Keyclick Long Long
MultiByte International Characters
Most languages use a single byte of 8 bits to represent a character, e.g. English,
French, German, Hebrew, Russian, Thai, etc.
Multibyte character fonts require more than the usual 8 bits to specify a character.
This occurs when a language has more than 256 characters (2
example, Chinese fonts contain several thousand characters. Other multibyte
languages include Japanese and Korean.
There are two separate issues with multibyte characters - static text on buttons and
indirect text on buttons. No Isys touchpanel firmware changes are required in either
case.
Static text on a button, entered in the standard way in VTPro-e, always works under
Windows 98. Under Windows XP, you must use VTPro-e 3.0 or later.
Indirect text on a button is entered in VTPro-e and the actual string to be displayed is
entered in SIMPL Windows. You must use VTPro-e 3.0 or later to guarantee that the
full set of characters in the font is stored on the touchpanel. You must use SIMPL
Windows 2.03.11 or later to enter Chinese characters directly. As of this publication
date, only completely single byte or completely multibyte strings may be entered or
they will not be compiled correctly in SIMPL Windows. In other words, you cannot
enter Chinese character interspersed with numbers. You can enter Chinese characters
or numbers in separate strings. Crestron is scheduling time to fix this in the near
future and the release notes for SIMPL Windows will mention it.
Of course, you can always use the workaround of showing a graphic that displays the
string, but it is not dynamic.
8
) in a font. For
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 17
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
Uploading and Upgrading
Assuming a PC is properly connected to the entire system, Crestron programming
software allows the programmer to upload programs and projects to the system and
touchpanel after their development. However, there are times when the files for the
program and projects are compiled and not uploaded. Instead, compiled files may be
distributed from programmers to installers, from Crestron to dealers, etc. Even
firmware upgrades are available from the Crestron website as new features are
developed after product releases. In those instances, one has the option to upload via
the programming software or to upload and upgrade via the Crestron Viewport.
NOTE: Currently, the Crestron Viewport is only available as a pull-down command
from SIMPL Windows and VT Pro-e (Tools | Viewport). The Viewport utility
accomplishes multiple system tasks, primarily via an RS-232 or TCP/IP connection
between the control system and a PC. It is used to observe system processes, upload
new operating systems and firmware, change system and network parameters, and
communicate with network device consoles and touchpanels, among many other
tasks. Viewport can also function as a terminal emulator for generic file transfer. All
of these functions are accessed through the commands and options in the Viewport
menus. Therefore, for its effectiveness as a support and diagnostic tool, the Crestron
Viewport may be preferred over development tools when uploading programs and
projects.
The following sections define how one would upload a SIMPL Windows program,
VT Pro-e project or upgrade the firmware of the TPS-1700 touchpanel. However,
before attempting to upload or upgrade, it is necessary to establish communications.
Communication Settings
Connection to the TPS-1700 touchpanel is via a 6-pin RJ-11 connector in the base of
the unit. Therefore, uploading or upgrading must be accomplished through a control
system. The procedure in this section provides details for RS-232 communication
between the PC and the control system. If TCP/IP communication is preferred,
consult the latest version of the Crestron e-Control Reference Guide (Doc. 6052) or
the respective Operations Guide for the control system. These documents are
available from the Downloads | Product Manuals section of the Crestron website
(www.crestron.com). Refer to the figure on the next page for a typical connection
diagram when uploading files.
18 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
Typical Connection Diagram when Uploading Files
1. Start SIMPL Windows or VT Pro-e.
2. From the menu bar, select Tools | Viewport to open the Crestron
Viewport.
3. Refer to the figure after this step. From the Viewport menu, select
Setup | Communications settings (alternatively, press Alt+D) to open
the “Port Settings” window.
Setup | Comunications Settings Command
4. Select RS-232 as the connection type. Verify that an available COM
port (COM 1 is shown after this step) is selected, and that all
communication parameters and necessary options from the “Port
Settings” window are selected as shown after this step. Click the OK
button to save the settings and close the window.
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 19
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
“Port Settings” Window
A control system source file has
the extension .smw. A compiled
SIMPL Windows file has the
extension .spz for a 2-Series
control system, .bin for CNX
generation, and .csz for CNX
generation with SIMPL+.
5. To verify communication, select Diagnostics | Establish
Communications (Find Rack). This should display a window that
gives the COM port and baud rate. If communication cannot be
established, refer to the “Troubleshooting Communications” section in
the respective Operations Guide for the control system.
Uploading a SIMPL Windows Program
The SIMPL Windows file can be uploaded to the control using SIMPL Windows or
via the Crestron Viewport.
Upload via SIMPL Windows
1. Start SIMPL Windows.
2. Select File | Open to view the “Open” window, navigate to the SIMPL
Window file (.smw), and click Open.
3. Select Project | Transfer Program.
Upload via Crestron Viewport
1. Verify that the procedure for “Communication Settings” that begins on
page 18 has been performed.
2. As shown after this step, select File Transfer | Send Program
(alternatively, press Alt+P) from the Viewport menu.
20 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
File Transfer | Send Program Command
3. The “Send Program” window appears, as shown after this step. Click
Browse, locate the compiled file (.spz) and click Open. This will
display the program's header information and enable one or both of the
What to Send check boxes. If the program does not contain any
SIMPL+ modules, only the SIMPL Program check box will be
enabled. If it does contain SIMPL+ modules, then the SIMPL+ check
box will also be enabled. Select one or both check boxes and then click
Send Program to begin the transfer.
NOTE: Refer to the respective Operations Guide for the control system for details
about the other fields shown on the “Send Program” window.
“Send Program” Window
4. To verify that the program has been transferred successfully, select
Diagnostics | Report Program Information. This should display a
window that provides details about the current program loaded into the
control system.
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 21
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
Uploading a VT Pro-e Project
The TPS-1700 touchpanel
source file has the extension
.vtp. A compiled VT Pro-e file
has the extension .vtz.
The VT Pro-e file can be uploaded to the touchpanel using VT Pro-e or via the
Crestron Viewport.
Upload via VT Pro-e
1. Start VT Pro-e.
2. Select File | Open | Project to view the “Open” window, navigate to
the VT Pro-e file (.vtp), and click Open.
3. Select File | Upload Project.
Upload via Crestron Viewport
1. Verify that the procedure for “Communication Settings” that begins on
page 18 has been performed.
2. As shown after this step, select File Transfer | Send Touchpanel
(alternatively, press Alt+T) from the Viewport menu.
File Transfer | Send Touchpanel Command
3. As shown after this step, select the NET ID of the TPS-1700
touchpanel and then click OK. The “Touch Panel Transfer” window
appears (refer to graphic on next page).
“Select Network ID” Window
NOTE: When transferring any Cresnet file (touchpanel project/firmware), lower the
port speed baud rate to 38400 to match the Cresnet bus speed.
22 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
“Touch Panel Transfer” Window
4. Click Browse. The “Open” window appears as shown below.
“Open” Window
5. Select the VT Pro-e (vtz) file and click Open. The transfer will
complete automatically.
Firmware Upgrade
A firmware upgrade file has the
extension .csf.
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 23
To take advantage of all the TPS-1700 touchpanel features, it is important that the
unit contains the latest firmware available. Therefore, please check the Crestron
website (http://www.crestron.com/downloads/software_updates.asp
version of firmware. Not every product has a firmware upgrade, but as Crestron
improves functions, adds new features, and extends the capabilities of its products,
firmware upgrades are posted. To upgrade the firmware, complete the following
steps.
1. Make sure that “Communication Settings” that begins on page 18 has
been performed.
) for the latest
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
2. As shown after this step, select File Transfer | Update Touchpanel
Firmware from the Viewport menu.
File Transfer | Update Touchpanel Firmware Command
3. As shown after this step, select the NET ID of the TPS-1700
touchpanel and then click OK. The “Open” window appears (refer to
the subsequent graphic).
“Select Network ID” Window
“Open” Window
24 • Isys
4. Browse to the .csf file and click Open to begin the transfer.
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
Problem Solving
Troubleshooting
The table below provides corrective action for possible trouble situations. If further
assistance is required, please contact a Crestron customer service representative.
TPS-1700 Troubleshooting
TROUBLE
Touchpanel does not
function.
Touchpanel is not
Project can not be
uploaded to
touchpanel.
Wrong screens
appear on touchpanel.
Active area does not
coincide with button
on screen.
One or more "quick"
pushbuttons do not
function as expected.
Touchpanel display is
dark or too light.
POSSIBLE
CAUSE(S)
No power to the
touchpanel.
communicating to the
control system.
Incorrect NET ID
setting.
Communications
error between PC
and control system.
Transfer speed
discrepencies.
Incorrect NET ID
setting.
Problem with cable
between control
system and
touchpanel.
Wrong screens
uploaded.
Touchpanel is
incorrectly calibrated.
Wrong SIMPL
Windows program
uploaded.
Screen brightness is
improperly set.
CORRECTIVE ACTION
Verify that the touchpanel is connected to the
system as described in the "Hookup and
Preparation" procedures on page 'n'.
Poll the network (F4 in Viewport, VT Pro-e or
SIMPL Windows) to verify communication.
Verify that panel NET ID matches the NET ID
specified in the SIMPL Windows program.
Refer to "Identity Code."
Verify upload preferences is set to the COM
port being used to communicate to the control
system.
Do the following:
1. Lower the baud rate to 38400 to match the
Cresnet bus speed.
2. Confirm RTS/CTS is checked; Xon/Xoff is
unchecked.
3. Confirm that Xmodem is selected for Mode
for Network Transfers.
Verify that panel NET ID matches the NET ID
specified during upload. Refer to "Select
Interface Menu."
Check the cable for damage or bad
connections.
Upload correct screens. Refer to "Uploading a
VT Pro-e Project."
Remove power and then reapply power while
holding finger to touchscreen (for about 5
seconds). The Main Menu appears. Select
"Touchscreen Calibration". The Calibration
Menu appears. Select "Perform Calibration"
and follow prompts.
Upload correct SIMPL Windows program.
Refer to the SIMPL Windows Help file for more
information.
Remove power and then reapply power while
holding finger to touchscreen (for about 5
seconds). Set brightness using the Setup
menu.
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 25
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
TPS-1700 Troubleshooting (continued)
TROUBLE
Touchpanel exhibits
slow operation.
Touchpanel display is
dark.
POSSIBLE
CAUSE(S)
Compressed
graphics take time to
decompress.
NET ID conflict
between devices
Standby timeout has
elapsed.
CORRECTIVE ACTION
If there are no memory problems,
decompressed graphics decrease the drawing
time of panel pages.
Verify that panel NET ID matches the NET ID
set in the program. Eliminate any duplicate
NET ID settings.
Touch screen to reactivate.
Further Inquiries
If after reviewing this Operations Guide, you cannot locate specific information or
have questions, please take advantage of Crestron's award winning customer service
team by calling:
• In the US and Canada, call Crestron’s corporate headquarters at
1-888-CRESTRON [1-888-273-7876].
• In Europe, call Crestron International at +32-15-50-99-50.
• In Asia, call Crestron Asia at +852-2341-2016.
• In Latin America, call Crestron Latin America at +5255-5093-2160.
• In Australia and New Zealand, call Creston Pacific at +613-9480-2999
Future Updates
As Crestron improves functions, adds new features, and extends the capabilities of
the TPS-1700, additional information may be made available as manual updates.
These updates are solely electronic and serve as intermediary supplements prior to
the release of a complete technical documentation revision.
Check the Crestron website (www.crestron.com
availability and its subjective value. Updates are available from the Download |
Product Manuals section and are identified as an “Addendum” in the Download
column.
) periodically for manual update
26 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
Appendix: Engraveable Pushbutton Installation
Perform the following to install engraveable pushbuttons on the TPS-1700.
A #1 Phillips screwdriver is required. Refer to the illustration below.
NOTE: Use the Crestron Engraver software to submit an Engraver file. The
Engraving Software package, version 1.1.1.6, is available from the Downloads |
Software Updates section of the Crestron website (www.crestron.com
1. Place the touchpanel face down on a clean work surface.
2. Remove the four screws securing the front bezel to the base, and return the
unit to its normal position (use care to prevent the bezel from dropping and
becoming damaged).
3. Lift the bezel from the touchpanel, and remove the pushbuttons being
replaced. Note that the pushbutton sets fit snugly.
4. Put the new pushbuttons in place (see following Note), press firmly to
ensure they are seated, and place the bezel back in position.
).
NOTE: The rear of the pushbuttons are marked TOP 1-5 and 6-10 to ensure correct
orientation when installed. Do not separate buttons from their plastic framing.
NOTE: The pushbutton sets are not interchangeable with each other
5. Hold the bezel in place and turn the unit over on its face.
6. Reinstall the four screws to secure the bezel to the base. Tighten the screws,
being careful not to strip the threads.
7. Verify that the pushbuttons function properly.
Engraveable Pushbutton Installation
ScrewScrew
Bezel
Bottom view
Pushbuttons
Top view with
bezel removed
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 27
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
Software License Agreement
This License Agreement (“Agreement”) is a legal contract between you (either an individual or a single business entity) and
Crestron Electronics, Inc. (“Crestron”) for software referenced in this guide, which includes computer software and, as applicable,
associated media, printed materials, and “online” or electronic documentation (the “Software”).
BY INSTALLING, COPYING, OR OTHERWISE USING THE SOFTWARE, YOU REPRESENT THAT YOU ARE AN
AUTHORIZED DEALER OF CRESTRON PRODUCTS OR A CRESTRON AUTHORIZED INDEPENDENT PROGRAMMER
AND YOU AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THE TERMS OF
THIS AGREEMENT, DO NOT INSTALL OR USE THE SOFTWARE.
IF YOU HAVE PAID A FEE FOR THIS LICENSE AND DO NOT ACCEPT THE TERMS OF THIS AGREEMENT,
CRESTRON WILL REFUND THE FEE TO YOU PROVIDED YOU (1) CLICK THE DO NOT ACCEPT BUTTON, (2) DO NOT
INSTALL THE SOFTWARE AND (3) RETURN ALL SOFTWARE, MEDIA AND OTHER DOCUMENTATION AND
MATERIALS PROVIDED WITH THE SOFTWARE TO CRESTRON AT: CRESTRON ELECTRONICS, INC., 15 VOLVO
DRIVE, ROCKLEIGH, NEW JERSEY 07647, WITHIN 30 DAYS OF PAYMENT.
LICENSE TERMS
Crestron hereby grants You and You accept a nonexclusive, nontransferable license to use the Software (a) in machine
readable object code together with the related explanatory written materials provided by Creston (b) on a central processing unit
(“CPU”) owned or leased or otherwise controlled exclusively by You, and (c) only as authorized in this Agreement and the related
explanatory files and written materials provided by Crestron.
If this software requires payment for a license, you may make one backup copy of the Software, provided Your backup copy
is not installed or used on any CPU. You may not transfer the rights of this Agreement to a backup copy unless the installed copy of
the Software is destroyed or otherwise inoperable and You transfer all rights in the Software.
You may not transfer the license granted pursuant to this Agreement or assign this Agreement without the express written
consent of Crestron.
If this software requires payment for a license, the total number of CPU’s on which all versions of the Software are installed
may not exceed one per license fee (1) and no concurrent, server or network use of the Software (including any permitted back-up
copies) is permitted, including but not limited to using the Software (a) either directly or through commands, data or instructions from
or to another computer (b) for local, campus or wide area network, internet or web hosting services; or (c) pursuant to any rental,
sharing or “service bureau” arrangement.
The Software is designed as a software development and customization tool. As such Crestron cannot and does not
guarantee any results of use of the Software or that the Software will operate error free and You acknowledge that any development
that You perform using the Software or Host Application is done entirely at Your own risk.
The Software is licensed and not sold. Crestron retains ownership of the Software and all copies of the Software and
reserves all rights not expressly granted in writing.
OTHER LIMITATIONS
You must be an Authorized Dealer of Crestron products or a Crestron Authorized Independent Programmer to install or use
the Software. If Your status as a Crestron Authorized Dealer or Crestron Authorized Independent Programmer is terminated, Your
license is also terminated.
You may not rent, lease, lend, sublicense, distribute or otherwise transfer or assign any interest in or to the Software.
You may not reverse engineer, decompile, or disassemble the Software.
You agree that the Software will not be shipped, transferred or exported into any country or used in any manner prohibited
by the United States Export Administration Act or any other export laws, restrictions or regulations (“Export Laws”). By downloading
or installing the Software You (a) are certifying that You are not a national of Cuba, Iran, Iraq, Libya, North Korea, Sudan, or Syria or
any country to which the United States embargoes goods (b) are certifying that You are not otherwise prohibited from receiving the
Software and (c) You agree to comply with the Export Laws.
If any part of this Agreement is found void and unenforceable, it will not affect the validity of the balance of the Agreement,
which shall remain valid and enforceable according to its terms. This Agreement may only be modified by a writing signed by an
authorized officer of Crestron. Updates may be licensed to You by Crestron with additional or different terms. This is the entire
agreement between Crestron and You relating to the Software and it supersedes any prior representations, discussions, undertakings,
communications or advertising relating to the Software. The failure of either party to enforce any right or take any action in the event
of a breach hereunder shall constitute a waiver unless expressly acknowledged and set forth in writing by the party alleged to have
provided such waiver.
28 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
If You are a business or organization, You agree that upon request from Crestron or its authorized agent, You will within
thirty (30) days fully document and certify that use of any and all Software at the time of the request is in conformity with Your valid
licenses from Crestron of its authorized agent.
Without prejudice to any other rights, Crestron may terminate this Agreement immediately upon notice if you fail to comply
with the terms and conditions of this Agreement. In such event, you must destroy all copies of the Software and all of its component
parts.
PROPRIETARY RIGHTS
Copyright. All title and copyrights in and to the Software (including, without limitation, any images, photographs,
animations, video, audio, music, text, and “applets” incorporated into the Software), the accompanying media and printed materials,
and any copies of the Software are owned by Crestron or its suppliers. The Software is protected by copyright laws and international
treaty provisions. Therefore, you must treat the Software like any other copyrighted material, subject to the provisions of this
Agreement.
Submissions. Should you decide to transmit to Crestron’s website by any means or by any media any materials or other
information (including, without limitation, ideas, concepts or techniques for new or improved services and products), whether as
information, feedback, data, questions, comments, suggestions or the like, you agree such submissions are unrestricted and shall be
deemed non-confidential and you automatically grant Crestron and its assigns a non-exclusive, royalty-tree, worldwide, perpetual,
irrevocable license, with the right to sublicense, to use, copy, transmit, distribute, create derivative works of, display and perform the
same.
Trademarks. CRESTRON and the Swirl Logo are registered trademarks of Crestron Electronics, Inc. You shall not remove
or conceal any trademark or proprietary notice of Crestron from the Software including any back-up copy.
GOVERNING LAW
This Agreement shall be governed by the laws of the State of New Jersey, without regard to conflicts of laws principles.
Any disputes between the parties to the Agreement shall be brought in the state courts in Bergen County, New Jersey or the federal
courts located in the District of New Jersey. The United Nations Convention on Contracts for the International Sale of Goods, shall
not apply to this Agreement.
CRESTRON LIMITED WARRANTY
CRESTRON warrants that: (a) the Software will perform substantially in accordance with the published specifications for a
period of ninety (90) days from the date of receipt, and (b) that any hardware accompanying the Software will be subject to its own
limited warranty as stated in its accompanying written material. Crestron shall, at its option, repair or replace or refund the license fee
for any Software found defective by Crestron if notified by you within the warranty period. The foregoing remedy shall be your
exclusive remedy for any claim or loss arising from the Software.
CRESTRON shall not be liable to honor warranty terms if the product has been used in any application other than that for
which it was intended, or if it as been subjected to misuse, accidental damage, modification, or improper installation procedures.
Furthermore, this warranty does not cover any product that has had the serial number or license code altered, defaced, improperly
obtained, or removed.
Notwithstanding any agreement to maintain or correct errors or defects Crestron, shall have no obligation to service or
correct any error or defect that is not reproducible by Crestron or is deemed in Crestron’s reasonable discretion to have resulted from
(1) accident; unusual stress; neglect; misuse; failure of electric power, operation of the Software with other media not meeting or not
maintained in accordance with the manufacturer’s specifications; or causes other than ordinary use; (2) improper installation by
anyone other than Crestron or its authorized agents of the Software that deviates from any operating procedures established by
Crestron in the material and files provided to You by Crestron or its authorized agent; (3) use of the Software on unauthorized
hardware; or (4) modification of, alteration of, or additions to the Software undertaken by persons other than Crestron or Crestron’s
authorized agents.
ANY LIABILITY OF CRESTRON FOR A DEFECTIVE COPY OF THE SOFTWARE WILL BE LIMITED
EXCLUSIVELY TO REPAIR OR REPLACEMENT OF YOUR COPY OF THE SOFTWARE WITH ANOTHER COPY OR
REFUND OF THE INITIAL LICENSE FEE CRESTRON RECEIVED FROM YOU FOR THE DEFECTIVE COPY OF THE
PRODUCT. THIS WARRANTY SHALL BE THE SOLE AND EXCLUSIVE REMEDY TO YOU. IN NO EVENT SHALL
CRESTRON BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND
(PROPERTY OR ECONOMIC DAMAGES INCLUSIVE), EVEN IF A CRESTRON REPRESENTATIVE HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY THIRD PARTY. CRESTRON MAKES NO
WARRANTIES, EXPRESS OR IMPLIED, AS TO TITLE OR INFRINGEMENT OF THIRD-PARTY RIGHTS,
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY OTHER WARRANTIES, NOR
AUTHORIZES ANY OTHER PARTY TO OFFER ANY WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY FOR THIS PRODUCT. THIS WARRANTY STATEMENT SUPERSEDES ALL PREVIOUS
WARRANTIES.
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 29
Isys™ Wired 5.7 Inch Tabletop Touchpanel Crestron TPS-1700
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange, or service without prior authorization
from CRESTRON. To obtain warranty service for CRESTRON products, contact the factory
and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying
the nature of the problem, name and phone number of contact person, RMA number, and
return address.
2. Products may be returned for credit, exchange, or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, Cresskill, N.J., or its authorized subsidiaries, with RMA number
clearly marked on the outside of all cartons. Shipments arriving freight collect or without an
RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and
absolute discretion to charge a 15% restocking fee, plus shipping costs, on any products
returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in
materials and workmanship under normal use for a period of three (3) years from the date of
purchase from CRESTRON, with the following exceptions: disk drives and any other moving or
rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1)
year; touchscreen display and overlay components are covered for 90 days; batteries and
incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized
CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the
dealer's warranty, if any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in
any application other than that for which it was intended, or if it has been subjected to misuse,
accidental damage, modification, or improper installation procedures. Furthermore, this warranty
does not cover any product that has had the serial number altered, defaced, or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic
damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for
any claim made by a third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for
parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be
covered only by the unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed
or implied, nor authorizes any other party to offer any warranty, including any implied warranties
of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed
by law are limited to the terms of this limited warranty. This warranty statement supercedes all
previous warranties.
Trademark Information
All brand names, product names, and trademarks are the sole property of their respective owners. Windows is a registered
trademark of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft
Corporation.
30 • Isys
™
Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 Operations Guide - DOC. 6117
Crestron TPS-1700 Isys™ Wired 5.7 Inch Tabletop Touchpanel
This page intentionally left blank.
Operations Guide - DOC. 6117 Isys™ Wired 5.7 Inch Tabletop Touchpanel: TPS-1700 • 31
Crestron Electronics, Inc. Operations Guide – DOC. 6117
15 Volvo Drive Rockleigh, NJ 07647 11.02
Tel: 888.CRESTRON
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Loading...
