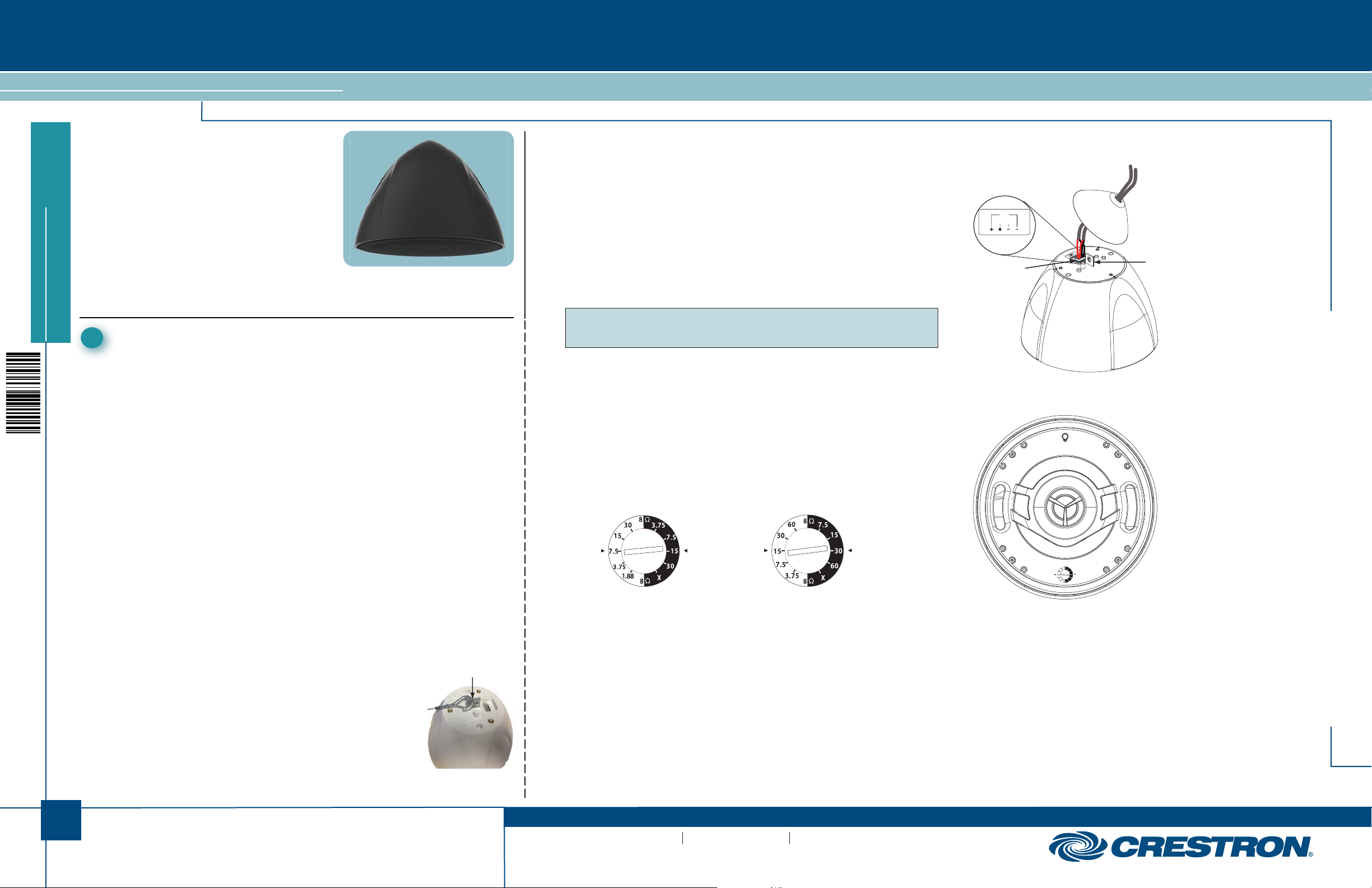

SAROS_PD4T/PD6T/PD8T/PDS8T
Saros® Pendant Speakers
Saros® speakers by Crestron® deliver professional grade
performance and flexible installation in a range of popular
sizes for demanding commercial applications. Solid
construction and high end components are hallmarks of the
complete Saros speaker line.
Ideal for use in background or foreground music, paging,
and sound reinforcement systems, Saros speakers are
engineered to achieve smooth, even coverage, high output,
and clear, natural sound quality through the employment of
horn loaded titanium dome tweeters, high efficiency
damped cone woofers, ported enclosures, and precisely
tuned crossovers.
Saros Pendant Speakers include a top cover which conceals the wiring connections and suspension
hardware for a very clean, contoured appearance. The speakers are available in white or black, and
can be painted to blend with the surrounding architecture.
quickstart guide
Installation
1
Paint the Speaker and Grille
Speaker and grille painting should be done prior to mounting.
1. Carefully remove the material on the underside of the grille and set it aside for
reinstallation. It may be necessary to use a knife or other sharp instrument to free an
edge of the material so it can be peeled away. Use care to avoid cutting or tearing the
material.
2. Dry brush or lightly spray the surface to be painted. Use care to avoid clogging the
holes in the grille.
3. Once the paint is dry, reinstall the material to the underside.
4. Remove the speaker top cover and paint the top cover and main speaker assembly
separately, being careful to mask areas that should not be painted.
Install/Remove Grille
The zero-bezel frameless grille is held in place by powerful magnets. A safety tether is
included to prevent any possibility of the grille falling from the ceiling. With the tether
attached, place the grille in position on the speaker. To remove the grille, grip the edges and
pull away from the speaker.
Install Speaker Cable
Observe all local codes and install speaker cable from the audio source location to the
closest ceiling truss location where a speaker will be suspended, allowing sufficient length to
hang down slightly below the planned speaker height. If the speakers are to be connected in
parallel, install a second cable at that location and route it to the next speaker location.
Repeat this process at each speaker location.
Install Wire Rope
1. For each speaker to be installed, remove the top cover and route
the free end of the supplied 12 ft (3.66 m) wire rope up through the
top cover. Connect the attached snap hook assembly to secure the
wire rope to the speaker rigging point.
2. Attach the free end of the wire rope to the ceiling truss, adjust the
length so the speaker is at the desired height, and secure it using
the supplied Gripple
instructions for proper use of the Gripple.)
®
wire rope grip. (Refer to the supplied
Speaker
Rigging Point
Connect/Disconnect Speakers
1. Refer to the illustration to the right, with the top cover off to expose the supplied
terminal block.
2. At each speaker location, route the speaker cable(s) hanging from the ceiling area
through the top cover, and dress the cables to the wire rope using plastic cable ties.
3. If using a supplied weather boot, slide the speaker cables through the weather boot.
Strip the ends of the cables approximately 1/8” to 3/16” (~3 mm to ~5 mm) and, if the
wire is stranded, twist the strands.
4. Connect the wires from the amplifier (or the previous speaker) to the supplied terminal
block, using the outer IN terminals: red to + and black to –. Use the inner + and –
THRU terminals to connect the speaker wires to the next (parallel) speaker.
5. Speaker removal is accomplished by reversing steps 1 through 4 above.
Set the Transformer Tap Selector Switches
NOTE: If the speakers are to be connected in parallel, the sum of the power settings
for all speakers must be less than the power amplifier’s power/channel rating.
The speakers are equipped with a 70 V/100 V matching transformer for distributed audio
systems. The transformer tap selector switch on the front panel is used to set the speaker
power level. Use a flat blade screwdriver to adjust the switch.
1. For SAROS_PD4T 70 V systems, use the left side settings and select from 1.88,
3.75, 7.5, 15, or 30 watts.
2. For SAROS_PD4T 100 V systems, use the right side settings and select from 3.75,
7.5, 15, or 30 watts. The X position should not be used.
3. For SAROS_PD6T, SAROS_PD8T, and SAROS_PDS8T 70 V systems, use the left
side settings and select from 3.75, 7.5, 15, 30, or 60 watts.
4. For SAROS_PD6T, SAROS_PD8T, and SAROS_PDS8T 100 V systems, use the
right side settings and select from 7.5, 15, 30, or 60 watts. The X position should not
be used.
For SAROS_PD4T
100V70V
For SAROS_PD6T/PD8T/PDS8T
100V70V
Connect Speaker Cables
To p
Cover
IN
THRU
Terminal
Block
Front View - Grille Removed
100V
70V
Speaker
Cables
Speaker
Rigging Point
(Wire Rope Not
Shown)
SAROS_PD4T/PD6T/PD8T/PDS8T
1
QUICKSTART DOC. 7488A (2037418) 11.13
www.crestron.com
Specifications subject to
change without notice.
888.273.7876 201.767.3400
SAROS_PD4T/PD6T/PD8T/PDS8T
Saros® Pendant Speakers
Physical Views
2
Front View - Grille Removed (Typical)
100V
quickstart guide
70V
Top View - Cover Removed (Typical)
Diameter
Side View (Typical)
Height
3
Specifications
SAROS_PD4T, PD6T, PD8T, PDS8T
SPECIFICATION
Woofer
Tweeter
Crossover Frequency
Impedance
Transformer Taps
Frequency Response
Frequency Range
Power Handling
Sensitivity
Coverage
Connections
Input (1) 4-pin 5 mm detachable terminal block with screw-down flanges;
Speaker input with parallel pass-through;
Maximum wire size: 12 AWG
Controls
Transformer Tap (1) Recessed 5-position screwdriver adjustable rotary switch on baffle;
Used to select 70/100 V tap settings or 8Ω (bypass)
Environmental
Temperature -2° to 120° F (-19° to 49° C)
Humidity 5% to 95% RH (non-condensing)
Construction
Enclosure Glass fiber reinforced ABS plastic, textured finish, paintable, removable top cover (meets UL94V0)
Baffle Glass fiber reinforced ABS plastic (meets UL94V0)
Grille Steel with textured finish, paintable, magnetically-held zero-bezel frameless, safety tether
Mounting Single rigging point beneath top cover for suspension; Gripple 12 ft (3.66 m) wire rope (aircraft cable) with
attached snap hook and self-locking wire rope grip included.
Dimensions
Height
Diameter
Weight
SAROS_PD4T SAROS_PD6T
4.0 in (102 mm)
polypropylene with ring
mode decoupled cloth
surround and steel basket
0.79 in (20 mm) titanium
dome, horn-loaded
2.0 kHz
8 Ω nominal with
transformer set to 8Ω
1.875, 3.75, 7.5, 15, 30
watts at 70 V; 3.75, 7.5,
15, 30 watts at 100 V
60 Hz to 20 kHz (±3 dB)
45 Hz to 20 kHz (-10 dB)
50 watts program (8 Ω)
85.0 dB @ (1W/1m)
90° conical (nominal)
8.33 in (212 mm)
9.02 in (223 mm)
7.0 lb (3.2 kg)
6.5 in (165 mm)
polypropylene with ring
mode decoupled cloth
surround and steel basket
0.98 in (25 mm) titanium
dome, horn-loaded
2.5 kHz
8 Ω nominal with
transformer set to 8Ω
3.75, 7.5, 15, 30, 60 watts
at 70 V; 7.5, 15, 30, 60
watts at 100 V
55 Hz to 20 kHz (±3 dB)
45 Hz to 20 kHz (-10 dB)
60 watts program (8 Ω)
89 dB @ (1W/1m)
90° conical (nominal)
10.49 in (267 mm)
11.07 in (282 mm)
9.8 lb (4.5 kg)
SAROS_PD8T
8.0 in (203 mm)
polypropylene with ring
mode decoupled cloth
surround and steel basket
0.98 in (25 mm) titanium
dome, horn-loaded
2.5 kHz
8 Ω nominal with
transformer set to 8Ω
3.75, 7.5, 15, 30, 60 watts
at 70 V; 7.5, 15, 30, 60
watts at 100 V
50 Hz to 20 kHz (±3 dB)
40 Hz to 20 kHz (-10 dB)
75 watts program (8 Ω)
89 dB @ (1W/1m)
95° conical (nominal)
10.58 in (269 mm)
12.57 in (320 mm)
11.1 lb (5.1 kg)
SAROS_PDS8T
8.0 in (203 mm)
polypropylene with rubber
surround steel basket and
phase plug
N/A
N/A
8 Ω nominal with
transformer set to 8Ω
3.75, 7.5, 15, 30, 60 watts
at 70 V; 7.5, 15, 30, 60
watts at 100 V
45 Hz to 125 Hz (±3 dB)
35 Hz to 125 Hz (-10 dB)
75 watts program (8 Ω)
89 dB @ (1W/1m)
95° conical (nominal)
10.58 in (269 mm)
12.57 in (320 mm)
13.1 lb (6.0 kg)
Problem Solving
4
Troubleshooting
The following table provides corrective action for possible trouble situations.
If further assistance is required, please contact a Crestron customer service
representative.
TROUBLE
No sound or
intermittent
sound is
coming from
the speakers.
Constant noise
such as buzz,
hum, or hiss is
coming from
the speakers.
Low frequency
output is poor.
POSSIBLE CAUSE(S)
There is a cable
connection error.
The amplifier is not
receiving an input signal
or there is a malfunction.
There is a faulty device in
the system.
There is a system
grounding fault.
There is an incorrect
polarity connection at the
speaker or amplifier.
CORRECTIVE ACTION
Verify the cable connections
between the amplifier and
speakers.
Verify that the amplifier is
functioning correctly, that it is
receiving an input signal, and
that the correct input source
is selected.
Verify all devices in system
are functioning properly.
Verify system grounding.
Verify speaker connection
polarity (+ on amplifier to +
on speaker).
Further Inquiries
To locate specific information or resolve questions after reviewing this
guide, contact Crestron's True Blue Support at 1-888-CRESTRON
[1-888-273-7876] or, for assistance within a particular geographic region,
refer to the listing of Crestron worldwide offices at www.crestron.com/offices.
To post a question about Crestron products, log onto Crestron’s Online Help
at www.crestron.com/onlinehelp. First-time users must establish a user
account to fully benefit from all available features.
Future Updates
As Crestron improves functions, adds new features, and extends the
capabilities of the SAROS_PD4T/PD6T/PD8T and PDS8T, additional
information may be made available as manual updates. These updates
are solely electronic and serve as intermediary supplements prior to the
release of a complete technical documentation revision.
Check the Crestron website periodically for manual update availability
and its relevance. Updates are identified as an “Addendum” in the
Download column.
The specific patents that cover crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo and Saros are either trademarks or registered trademarks
of Crestron Electronics, Inc. in the United States and/or other countries. Gripple is
either a trademark or registered trademark of Gripple Limited in the United States
and/or other countries. Other trademarks, registered trademarks, and trade names may
be used in this document to refer to either the entities claiming the marks and names or
their products. Crestron disclaims any proprietary interest in the marks and names of
others. Crestron is not responsible for errors in typography or photography.
This document was writtren by the Technical Publications department at Crestron.
©2013 Crestron Electronics, Inc.
