Crestron ML-500 User Manual

Crestron ML-500
Mini LCD RF Wireless Handheld Remote
Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

©2003 Crestron Electronics, Inc

Crestron ML-500 Mini LCD RF Wireless Handheld Remote

Contents

Mini LCD RF Handheld Remote: ML-500 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................ 1

Specifications ..............................................................................................................2

Physical Description.................................................................................................... 2

Miscellaneous ............................................................................................................................8

Using the Backlight ..................................................................................................... 8

Installing/Changing the Batteries ................................................................................8

Adjusting the Display.................................................................................................. 9

Cleaning the Screen..................................................................................................... 9

Problem Solving ......................................................................................................................10

Troubleshooting......................................................................................................... 10

Further Inquiries........................................................................................................ 10

Industry Compliance .................................................................................................11

Operations & Installation Guide - DOC. 6246 Contents • i

Crestron ML-500 Mini LCD RF Wireless Handheld Remote

Mini LCD RF Handheld Remote:
ML-500

Introduction

Features and Functions

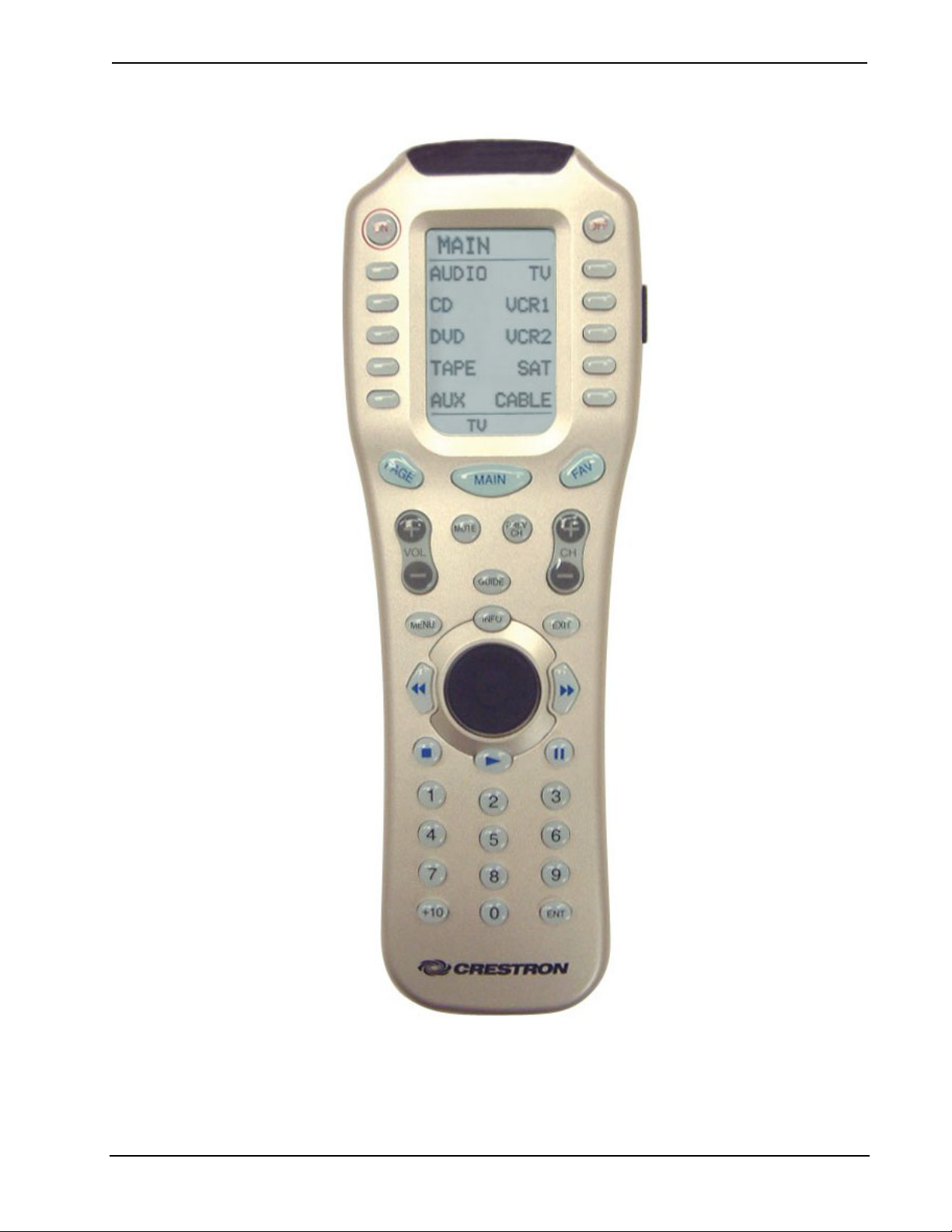

The Crestron® Mini LCD RF Handheld Remote (ML-500) is a universal remote
control that can be used to control a Crestron system. A liquid-crystal display (LCD)
with switchable backlighting provides the user with a listing of available functions
and system commands. With a wireless range of up to 200 feet, the ML-500 can be
used almost anywhere in a home or facility. The remote is powered by four AAA
batteries (included).

Functional Summary

• Easy-to-use preprogrammed functions for your Crestron
system

• 2.1” x 1.4” backlit, LCD screen for function selection

• Ten preprogrammed soft keys which can be used to access

custom command sequences, system functions, and
preferences

• Storage for 50 preprogrammed “favorite” functions and/or
settings

• Up to 200-foot RF wireless range allows system control
from almost anywhere in a building

• Intuitive interface for easy operation

• Five-way thumbpad for navigating on-screen menus found

on A/V devices

• Transport controls for controlling a variety of audio and
video sources

• Volume and channel controls

• Numeric keypad for entry of numeric data

• Switchable backlighting for viewing display and buttons in a

variety of lighting conditions

Operations Guide – DOC. 6246 Mini LCD RF Wireless Handheld Remote • 1
