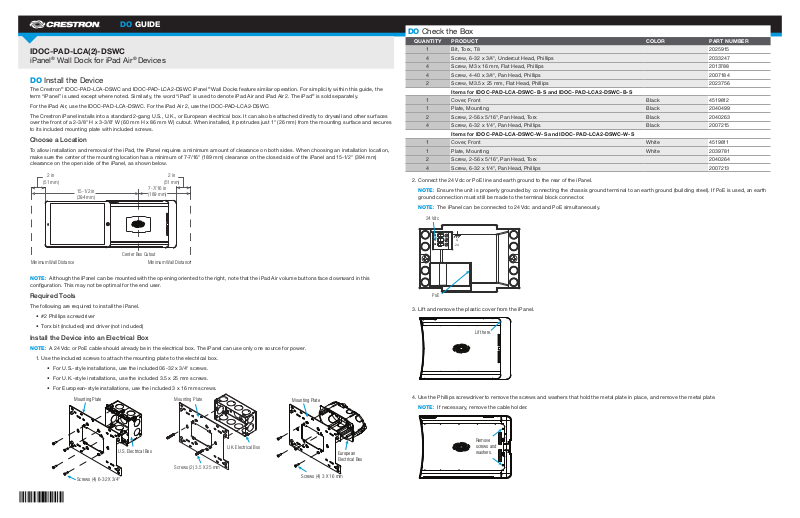

DO GUIDE
24 Vdc
PoE
Minimum Wall Distance Minimum Wall Distance
IDOC-PAD-LCA(2)-DSWC
iPanel® Wall Dock for iPad Air® Devices
DO Install the Device
The Crestron® IDOC-PAD-LCA-DSWC and IDOC-PAD-LCA2-DSWC iPanel® Wall Docks feature similar operation. For simplicity within this guide, the
term “iPanel” is used except where noted. Similarly, the word “iPad” is used to denote iPad Air and iPad Air 2. The iPad® is sold separately.
For the iPad Air, use the IDOC-PAD-LCA-DSWC. For the iPad Air 2, use the IDOC-PAD-LCA2-DSWC.
The Crestron iPanel installs into a standard 2-gang U.S., U.K., or European electrical box. It can also be attached directly to drywall and other sur faces
over the front of a 2-3/8" H x 3-3/8" W (60 mm H x 86 mm W) cutout. When installed, it protrudes just 1" (26 mm) from the mounting surface and secures
to its included mounting plate with included screws.
Choose a Location
To allow installation and removal of the iPad, the iPanel requires a minimum amount of clearance on both sides. When choosing an installation location,
make sure the center of the mounting location has a minimum of 7-7/16" (189 mm) clearance on the closed side of the iPanel and 15-1/2" (394 mm)
clearance on the open side of the iPanel, as shown below.
2 in
(51 mm)
15-1/2 in
(394 mm)
7-7/16 in
(189 mm)
2 in
(51 mm)
DO Check the Box
QUANTITY PRODUCT COLOR PART NUMBER
1 Bit, Torx, T8 2025915
4 Screw, 6-32 x 3/4", Undercut Head, Phillips 2033247
4 Screw, M3 x 16 mm, Flat Head, Phillips 2013788
4 Screw, 4-40 x 3/4", Pan Head, Phillips 2007184
2 Screw, M3.5 x 25 mm, Flat Head, Phillips 2023756
Items for IDOC-PAD-LCA-DSWC-B-S and IDOC-PAD-LCA2-DSWC-B-S
1 Cover, Front Black 4519812
1 Plate, Mounting Black 2040499
2 Screw, 2-56 x 5/16", Pan Head, Torx Black 2040263
4 Screw, 6-32 x 1/4", Pan Head, Phillips Black 2007215
Items for IDOC-PAD-LCA-DSWC-W-S and IDOC-PAD-LCA2-DSWC-W-S
1 Cover, Front White 4519811
1 Plate, Mounting White 2039781
2 Screw, 2-56 x 5/16", Pan Head, Torx 2040264
4 Screw, 6-32 x 1/4", Pan Head, Phillips 2007213
2. Connect the 24 Vdc or PoE line and earth ground to the rear of the iPanel.
NOTE: Ensure the unit is properly grounded by connecting the chassis ground terminal to an earth ground (building steel). If PoE is used, an earth
ground connection must still be made to the terminal block connector.
NOTE: The iPanel can be connected to 24 Vdc and and PoE simultaneously.
Center Box Cutout
NOTE: Although the iPanel can be mounted with the opening oriented to the right, note that the iPad Air volume buttons face downward in this
conguration. This may not be optimal for the end user.
Required Tools
The following are required to install the iPanel.
• #2 Phillips screwdriver
• Torx bit (included) and driver (not included)
Install the Device into an Electrical Box
NOTE: A 24 Vdc or PoE cable should already be in the electrical box. The iPanel can use only one source for power.
1. Use the included screws to attach the mounting plate to the electrical box.
• For U.S.-style installations, use the included 06-32 x 3/4" screws.
• For U.K.-style installations, use the included 3.5 x 25 mm screws.
• For European-style installations, use the included 3 x 16 mm screws.
Mounting Plate
Mounting Plate
Mounting Plate
G
24
3. Lift and remove the plastic cover from the iPanel.
Lift here.
4. Use the Phillips screwdriver to remove the screws and washers that hold the metal plate in place, and remove the metal plate.
NOTE: If necessary, remove the cable holder.
U.S. Electrical Box
Screws (4) 6-32 X 3/4"
Screws (2) 3.5 X 25 mm
U.K. Electrical Box
Screws (4) 3 X 16 mm
European
Electrical Box
Remove
screws and
washers.
5. Using the included 1/4" screws, attach the iPanel to the mounting plate.
iPanel
Mounting Plate
Screws (4) 6-32 x 1/4"
6. Replace the metal plate and secure it to the iPanel using the screws and washers removed in
step 4.
NOTE: When replacing the metal plate, slide the metal plate between the cable holder’s top
prong and the bottom prongs, as shown in the following diagram.
Metal
Plate
Bottom
Prong
®
Lightning
Connector
Top
Prong
Bottom
Prong
8. (Optional) Install the antitheft lock.
a. Place the iPad in the iPanel as described in “Insert the iPad” below.
b. Slide the antitheft lock over the end of the iPad, and secure it to the iPanel using the
included Torx screws and bit, as shown in the following diagram. Do not overtighten the
Torx screws.
DO Use the Device
Insert the iPad
1. Hold the iPad horizontally (with the iPad dock connector facing into the dock), and position it so
that it rests behind the iPanel’s top and bottom retaining lips.
2. Slide the iPad into the iPanel until the cable holder pops out, as shown in the following diagram.
7. Snap the plastic cover that was removed in step 3 into place.
3. Hold the iPad in place and press the cable holder so that it is ush with the iPanel. The iPad is
now connected to the iPanel.
Remove the iPad
To remove the iPad, hold the left side of the iPad and slide it out of the iPanel.
As of the date of manuf acture, the produ ct has be en teste d and found to comply with specications for CE m arking.
Federal Communications Commission (FCC) Compliance Statement
This device comp lies with part 15 of the FCC Rules. Operation is sub ject to the followin g conditions:
(1) This devic e may not cause harm ful interference and (2) this devic e must accept any interference re ceived, includi ng inter ference that may c ause undesire d operation.
Caution: Chang es or modications not exp ressly approved by the manu facturer responsible f or compl iance could void the user’s authorit y to operate the equipment.
Note: This equipment ha s been tested and fo und to comply with th e limits fo r a Class B digital device, pursuant to part 15 of the FCC Rules. These li mits are d esigned to provide reasonable pr otection
agains t harmful inter ference in a residential installation. T his equipment generates, uses a nd can radiate radio frequ ency ene rgy and, if not inst alled and used in a ccordance with the instr uctions, may
cause harmful interfe rence to r adio com munica tions. H owever, there is no guara ntee that interference will not occur in a par ticular installation.
If this equipment does cause harm ful inter ference to radi o or television rec eption, which ca n be deter mined by tu rning the equipm ent off a nd on, the user is enc ouraged to try to c orrec t the inter ference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation betwe en the equipment and rece iver.
• Connect the equipment into an outlet on a circuit different from that to which the re ceiver i s connected.
• Consult the dealer or an experien ced radio/T V technician for help.
IDOC-PAD-LCA-DSWC
Cable Holder
DO Learn More
Visit the website for additional information and the latest rmware updates. To learn
more about this product, use a QR reader application on your mobile device to scan
the QR images.
