DO GUIDE
Bottom
Prong
Metal
Plate
Bottom
Prong
Top
Prong
Lightning
Connector

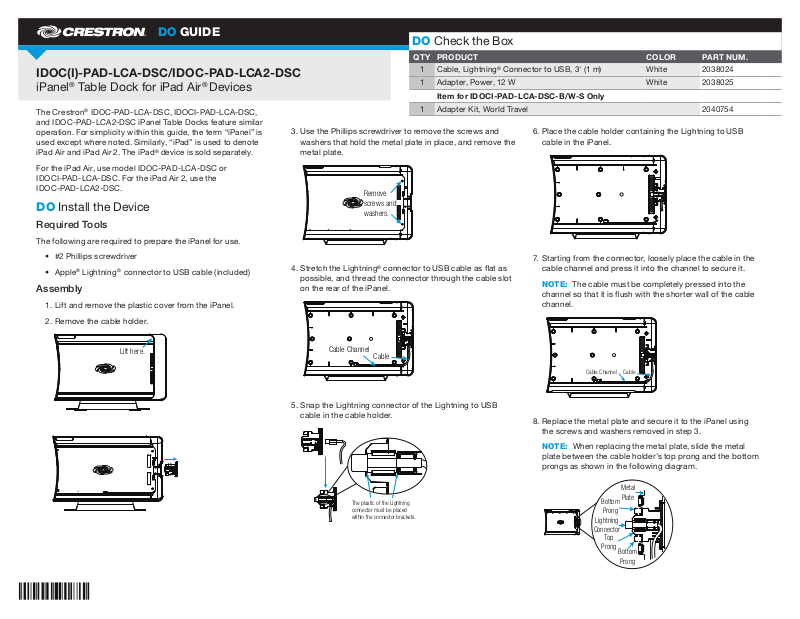

IDOC(I)-PAD-LCA-DSC/IDOC-PAD-LCA2-DSC
®
iPanel
The Crestron® IDOC-PAD-LCA-DSC, IDOCI-PAD-LCA-DSC,
and IDOC-PAD-LCA2-DSC iPanel Table Docks feature similar
operation. For simplicity within this guide, the term “iPanel” is
used except where noted. Similarly, “iPad” is used to denote
iPad Air and iPad Air 2. The iPad® device is sold separately.
For the iPad Air, use model IDOC-PAD-LCA-DSC or
IDOCI-PAD-LCA-DSC. For the iPad Air 2, use the
IDOC-PAD-LCA2-DSC.
Table Dock for iPad Air® Devices
3. Use the Phillips screwdriver to remove the screws and
DO Install the Device
Required Tools
The following are required to prepare the iPanel for use.
• #2 Phillips screwdriver
• Apple® Lightning® connector to USB cable (included)
Assembly
1. Lift and remove the plastic cover from the iPanel.
2. Remove the cable holder.
4. Stretch the Lightning
DO Check the Box
QTY PRODUCT COLOR PART NUM.
1 Cable, Lightning
1 Adapter, Power, 12 W White 2038025
Item for IDOCI-PAD-LCA-DSC-B/W-S Only
1 Adapter Kit, World Travel 2040754
washers that hold the metal plate in place, and remove the
metal plate.
Remove
screws and
washers.
®
connector to USB cable as at as
possible, and thread the connector through the cable slot
on the rear of the iPanel.
®
Connector to USB, 3' (1 m) White 2038024
6. Place the cable holder containing the Lightning to USB
cable in the iPanel.
7. Starting from the connector, loosely place the cable in the
cable channel and press it into the channel to secure it.
NOTE: The cable must be completely pressed into the
channel so that it is ush with the shorter wall of the cable
channel.
Lift here.
Cable Channel
5. Snap the Lightning connector of the Lightning to USB
cable in the cable holder.
Cable
The plastic of the Lightning
connector must be placed
within the connector brackets.
Cable Channel
8. Replace the metal plate and secure it to the iPanel using
the screws and washers removed in step 3.
NOTE: When replacing the metal plate, slide the metal
plate between the cable holder’s top prong and the bottom
prongs as shown in the following diagram.
Cable
9. Snap the plastic cover that was removed in step 1 into place.
10. Connect the USB connector of the Lightning to USB cable to the included power pack, and
connect the power pack to a wall outlet.
DO Use the Device
Insert the iPad
1. Hold the iPad horizontally (with the iPad dock connector facing into the dock), and position
it so that it rests behind the iPanel’s top and bottom retaining lips.
2. Slide the iPad into the iPanel until the cable holder pops out, as shown in the following
diagram.
Cable Holder
3. Hold the iPad in place and press the cable holder so that it is ush with the iPanel. The iPad
is now connected to the iPanel.
Remove the iPad
To remove the iPad, hold the left side of the iPad and slide it out of the iPanel.
As of the date of manufacture, the product has been tes ted and fo und to com ply with s peci cations for CE marking.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rule s. Operation is subjec t to the foll owing conditions:
(1) This devic e may not cause har mful interfer ence, and (2) this device must accept any interfere nce rec eived, including inter feren ce
that may cause undesired operation.
Caution: Chang es or mod ications not ex press ly approved by the ma nufacturer re spons ible for c omplia nce cou ld void the user’s
author ity to operate the equipm ent.
Note: This equipment ha s been te sted and found to co mply with the limits for a Cla ss B digital device, pursuant to pa rt 15 of the
FCC Rules. These limits are designed to provide rea sonab le protection ag ainst harmful interferenc e in a residentia l installation.
This equipmen t gener ates, us es and can radiate radio frequen cy energy and, if n ot installed an d used in a ccordance with the
instruction s, may cau se harm ful interfere nce to radio communications. However, there is no guara ntee that interference will not
occur in a parti cular install ation.
IDOC-PAD-LCA2-DSC
DO Learn More
Visit the website for additional information and the latest rmware updates. To
learn more about this product, use a QR reader application on your mobile device
to scan the QR images.
Crestron Electronics
15 Volvo Drive, Rockleigh, NJ 07647
888.CRESTRON | www.crestron.com
If this equipmen t does ca use har mful interference to radio or tel evisio n reception, which can be determined by tur ning the
equipment off and on, the user is encouraged to tr y to corr ect the interference by one or more of the following me asure s:
• Reorient or relocate the receiving antenna.
• Increase the separation be tween the equip ment and receiver.
• Connect the e quipment into an outlet on a circuit different fro m that to which the re ceiver i s conne cted.
• Consult the dealer or an exper ience d radio/TV technician for help.
Industry Canada (IC) Compliance Statement
CAN ICES-3(B)/NMB-3(B)
The speci c patents that c over Crestron pro ducts are listed a t patents.crestron.com. The produ ct warranty ca n be found at www.crestron.com/warranty.
Certa in Crestron pro ducts contain op en source soft ware. For speci c information, ple ase visit www.crestron.com/opensource.
Crestr on, the Cres tron logo , and iPanel a re either tr ademarks o r register ed tradema rks of Cres tron Elec tronics , Inc. in the Un ited Sta tes and/or o ther count ries. App le, iPad, iP ad Air, and
Lightnin g are either t rademark s or registe red tradema rks of Apple, Inc. in the U nited States and /or other countries . Other tra demarks, r egistere d trademar ks, and tra de names may be us ed
in this docum ent to refer t o either the e ntities cl aiming the mar ks and names o r their produ cts. Cre stron disc laims any proprieta ry intere st in the mark s and names of others. C restron is not
responsi ble for errors in t ypography or phot ography.
This docum ent was written by t he Technical Publicat ions departmen t at Crestron.
©2016 Crestron Electronics, Inc.
IDOC-PAD-LCA-DSC
DO GUIDE
DOC. 776 7D (20 434 61) 04.16
Specic ations subject to c hange without not ice.
