Crestron IDOC-PAD-DSWC and

IDOC-PAD2-DSWC

In-Wall Docking Station for iPad

and iPad 2

Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Regulatory Compliance

As of the date of manufacture, the IDOC-PAD-DSWC and IDOC-PAD2-DSWC have been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help

Industry Canada (IC) Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Crestron, the Crestron logo, and Crestron Mobile Pro G are trademarks or registered trademarks of Crestr on Electronics, Inc. in

the United States and other countries. Apple and iPad are either trademarks or registered trademarks of Apple, Inc. in the United

States and/or other countries. Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.

Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad®

Contents

In-Wall Docking Station for iPad®: IDOC-PAD-DSWC and IDOC-PAD2-DSWC 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................1

Specifications ..............................................................................................................2

Physical Description....................................................................................................3

Setup..........................................................................................................................................5

Network Wiring...........................................................................................................5

Mounting Options........................................................................................................5

Installation...................................................................................................................5

Docking Station Removal............................................................................................9

Hardware Hookup .......................................................................................................9

Operation.................................................................................................................................11

iPad Sleeve................................................................................................................11

Insert the iPad............................................................................................................11

Remove the iPad........................................................................................................12

Problem Solving......................................................................................................................13

Troubleshooting.........................................................................................................13

Check Network Wiring..............................................................................................13

Reference Documents................................................................................................14

Further Inquiries........................................................................................................14

Future Updates ..........................................................................................................14

Return and Warranty Policies..................................................................................................15

Merchandise Returns / Repair Service ......................................................................15

CRESTRON Limited Warranty.................................................................................15

Operations & Installation Guide – DOC. 7084A Contents • i

Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad®

In-Wall Docking Station for iPad®: IDOC-PAD-DSWC and IDOC-PAD2-DSWC

Introduction

The Crestron® IDOC-PAD-DSWC and IDOC-PAD2-DSWC provide a truly elegant in-wall solution for charging your Apple simultaneously using it to control your home, office, or classroom. The iPad slides easily into the docking station, instantly transforming it into a stationary wall mount Crestron touch panel. With a gentle press, the iPad can be removed just as easily for portable use.

The IDOC-PAD-DSWC and IDOC-PAD2-DSWC are installed in the same manner and feature similar operation. For simplicity within this guide, the term “IDOC-PAD-DSWC” is used except where noted. Similarly, “iPad” will be used to denote iPad and iPad 2.

NOTE: The IDOC-PAD-DSWC is designed for use with the original iPad while the IDOC-PAD2-DSWC is designed for use with the iPad 2. A conversion kit (IDOC-PAD-DSW-*-S CONVERSION KIT) is available to allow the IDOC-PAD-DSWC to be used with an iPad 2. For instructions on installing the conversion kit, refer to the latest version of the IDOC-PAD-DSW-*-S CONVERSION KIT Installation Guide (Doc. 7215) which is available from the Crestron Web site (www.crestron.com/manuals).

iPad or iPad 2 (sold separately) while

Features and Functions

• Stylish in-wall docking station for the iPad and iPad 2

• Transforms the iPad into a stationary Crestron touch panel

• Designed for seamless integration with the Crestron Mobile Pro

control app (sold separately)

• Includes post-construction drywall mounting kit included,

pre-construction kit available separately

• Powered via Cresnet

• Available in gloss white or black fini shes

or power pack (sold separately)

* Other than power, the IDOC-PAD-DSWC does not provide Cresnet network connectivity

or communications.

Operations & Installation Guide – DOC. 7084A In-Wall Docking Station for iPad

: IDOC-PAD-DSWC • 1

In-Wall Docking Station for iPad® Crestron IDOC-PAD-DSWC

As part of a complete Crestron control solution, the iPad offers a very practical and powerful touch screen controller for home theater, whole-house automation, and commercial AV applications. The Crestron Mobile Pro

G Control App (sold separately) enables the iPad to work with a Crestron control system, offering professional touchpanel functionality through a very stylish and highly-customizable graphical interface.

Adding the IDOC-PAD-DSWC affords the advantage of in-wall touch panel operation and battery charging with no messy wires. Its sleek, innovative design achieves a completely flush installation with a thoroughly modern appearance. It can be mounted in a vertical drywall surface using the mounting clips provided. A pre-construction mounting kit (PM K -I DOC-PAD-DSW, sold separately) is also available.

Specifications

Specifications for the IDOC-PAD-DSWC are listed in the following table.

IDOC-PAD-DSWC Specifications

SPECIFICATION DETAILS

Power Requirements Cresnet Power Usage

Environmental Temperature Humidity Enclosure Construction

Faceplate

Dimensions Height Width Depth

Weight 3.8 lb (1.7 kg) Available Models IDOC-PAD-DSWC-*-S

IDOC-PAD2-DSWC-*-S

Available Accessories Crestron Mobile Pro IDOC-PAD-DSW-*-S-

CONVERSION KIT PMK-IDOC-PAD-DSW Power Pack WMKB-6L

* The IDOC-PAD-DSWC does not provide Cresnet network connectivity or communications.

15 Watts (0.63 Amps @ 24 Volts DC) May be powered via Cresnet* or power

pack (sold separately)

32º to 95ºF (0º to 55ºC) 10% to 90% RH (non-condensing)

Metal, flush-mountable (post-construction mounting clips included, additional mounting accessories sold separately)

Injection-molded plastic, gloss black or white

9.54 in (243 mm)

11.29 in (287 mm)

2.68 in (68 mm)

In-Wall Docking Station for iPad, (Gloss Black or Gloss White)

In-Wall Docking Station for iPad 2, (Gloss Black or Gloss White)

Control App for Apple Conversion Kit IDOC-PAD2-DSW

(Black or White) Pre-Construction Wall Mount Kit 24 Volt DC, Universal Replacement Wall Mount Clips

iPad

2 • In-Wall Docking Station for iPad

: IDOC-PAD-DSWC Operations & Installation Guide – DOC. 7084A

Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad®

Physical Description

This section provides information on the connections, available on your IDOC-PAD-DSWC.

IDOC-PAD-DSWC Physical View

IDOC-PAD-DSWC Overall Dimensions (Front and Side Views, with Faceplate, mounting clips not shown)

11.29 in

(287 mm)

9.54 in

(243 mm)

0.24 in

(7 mm)

8.61 in

(219 mm)

Operations & Installation Guide – DOC. 7084A In-Wall Docking Station for iPad

2.68 in

(68 mm)

: IDOC-PAD-DSWC • 3

In-Wall Docking Station for iPad® Crestron IDOC-PAD-DSWC

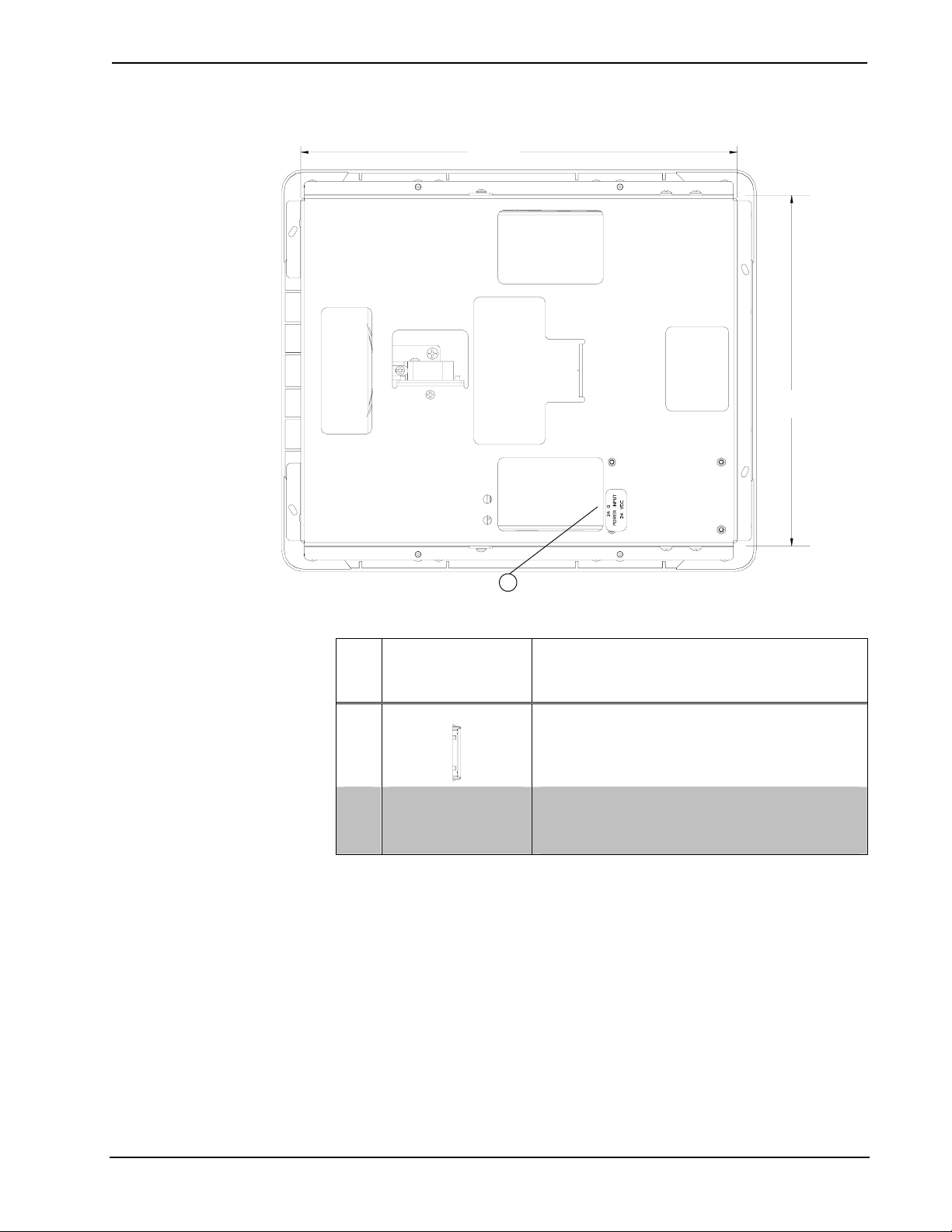

IDOC-PAD-DSWC Overall Dimensions (Rear View, with Faceplate, mounting clips not shown)

10.38 in

(264 mm)

8.32 in

(212 mm)

Connectors, Controls & Indicators

# CONNECTORS,

CONTROLS & INDICATORS

Dock Connection

(1) Multi-pin connector for connection of iPad.

DESCRIPTION

POWER INPUT

24 VDC

(1) 2-pin 3.5 mm detachable terminal block 24 Volt DC power input Wire Size: 18 AWG maximum

* An interface connectors for POWER INPUT 24 VDC port is provided with the unit.

4 • In-Wall Docking Station for iPad

: IDOC-PAD-DSWC Operations & Installation Guide – DOC. 7084A

Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad®

Setup

Wiring

When wiring the device, consider the following:

• Use Crestron Certified Wire.

• Use Crestron power supplies for Crestron equipment.

• Provide sufficient power to the system.

CAUTION: Insufficient power can lead to unpredictabl e resul t s or damage to the equipment. Use the Crestron Power Calculator to help calculate how much power is needed for the system (

For more details, refer to “Check Wiring” on page 13.

Mounting Options

www.crestron.com/calculators).

The IDOC-PAD-DSWC installs simply and cleanly into existing or newly constructed walls, with a choice of a pre-construction or post-construction mounting option. The IDOC-PAD-DSWC is supplied with four screws and clips for postconstruction installation. For a pre-construction installation, use the PMK-IDOC-PAD-DSW Pre-Construction Wall Mount Kit (sold separately).

NOTE: Pre-construction refers to framed walls prior to hanging drywall. Post-construction refers to framed walls with drywall hung.

If the PMK-IDOC-PAD-DSW is to be used and an IDOC-PAD-DSWC is not available, the installer can either leave the hole in the mounting surface open (if permitted by local building codes) or attach the cover plate supplied with the mounting kit.

Installation

Physical installation of the IDOC-PAD-DSWC without a mounting option includes mounting the unit to the wall and installing the included faceplate. The only tools required for the procedures presented here are masking tape (or equivalent), a level, a gypsum board saw (or equivalent), and a #2 Phillips tip screwdriver. The following procedures are based on the use of the supplied screws and clips for postconstruction installation.

Prepare the Installation Area

The IDOC-PAD-DSWC is designed to be mounted in a wall or lectern. Two overlay cutout templates (4513896) are supplied. One is in the shape of the required opening; the other is similar to a frame, with the inner area of the frame the shape of the required opening. (Refer to the illustrations on pages 6 and 7.) Use the template that is most convenient.

Operations & Installation Guide – DOC. 7084A In-Wall Docking Station for iPad

: IDOC-PAD-DSWC • 5

In-Wall Docking Station for iPad® Crestron IDOC-PAD-DSWC

Mounting Parts Supplied with the IDOC-PAD-DSWC

PART DESCRIPTION PART NUMBER QUANTITY

Metal Mounting Clip 2014237 4 Overlay Template Cutout 4513896 1 Connector Plug, 2-pin 2003574 1 Screw, #6-AB x 2-1/2”, Pan Head 2014276 4 Screw, #04-40 x 2”, Pan Head* 2018793 4

* The #04-40 x 2” screws are for use with IDOC-PAD-DSWC mounting kits such as the PMK-IDOC-PAD-DSW (sold separately).

NOTE: The following drawings are not to scale. Do not attempt to use them to prepare the hole in the mounting surface.

IDOC-PAD-DSWC Cutout Dimensions (4513896, 1 of 2)

1 7/8

(48 mm)

(51 mm)

2 13/16

(71 mm)

3/16"

(5 mm)

8 9/16"

(217 mm)

6 • In-Wall Docking Station for iPad

10 9/16"

(268 mm)

: IDOC-PAD-DSWC Operations & Installation Guide – DOC. 7084A

Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad®

IDOC-PAD-DSWC Cutout Dimensions (4513896, 2 of 2)

14 in

(356 mm) 1 3/4 in (44 mm)

1 1/4 in

(31 mm)

8 9/16 in

(217 mm)

11 in

(279 mm)

1 7/8 in

(48 mm)

2 in

(51 mm)

2 13/16 in

(71 mm)

3/16 in

(5 mm)

10 9/16 in

(268 mm)

1. Locate an area on the wall that is free of miscellaneous wiring and studs.

NOTE: The IDOC-PAD-DSWC requires 10 inches (254 mm) of clearance on the right side to allow the iPad to be removed from the dock.

2. Make a small hole near the middle of the designated site, and verify that the

location is suitable.

3. Using masking tape (or equivalent), fasten the template to the wall; verify

that the template is level, and trace the opening shape on the wall.

4. Remove the template, and then cut out and remove the traced shape to

produce the required opening.

Operations & Installation Guide – DOC. 7084A In-Wall Docking Station for iPad

: IDOC-PAD-DSWC • 7

In-Wall Docking Station for iPad® Crestron IDOC-PAD-DSWC

Install the Dock

NOTE: Before inserting the IDOC-PAD-DSWC in the mounting hole, ensure that a cable that is capable of supplying the required power has been installed in the wall.

NOTE: If a PMK-IDOC-PAD-DSW is to be used, refer to the latest version of the PMK-IDOC-PAD-DSW Installation Guide (Doc. 7088) which is available from the Crestron Web site.

1. Install the four supplied #6-AB x 2-1/2” screws and mounting clips as

shown in the following diagram (two on the top and two on the bottom). a. Insert the screws through the docking station’s flange and then through

the larger hole in the mounting clip.

b. Thread the screws through the smaller hole in the mounting clips and

tighten the screws only enough that the mounting clips are brought flush with the rear of the docking station’s flange. Do not compress the mounting clips at this time.

Attaching the Screws and Mounting Clips

Mounting Clips

Mounting Screws (4) 6-AB X 2-1/2"

(2014276)

Thread Screws Through Clips At This End

8 • In-Wall Docking Station for iPad

2. Using the supplied connector, connect the 24 VDC cable, to the POWER

INPUT 24 VDC port and position the IDOC-PAD-DSWC in the mounting

hole. Refer to “Hardware Hookup” which starts on page 9.

3. Tighten the mounting screws evenly and only enough to compress the

mounting clips and secure the IDOC-PAD-DSWC squarely in the mounting surface. Do not over-tighten the screws.

: IDOC-PAD-DSWC Operations & Installation Guide – DOC. 7084A

Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad®

Install the Faceplate

Install the faceplate as follows:

1. Carefully position the faceplate over the face of the docking station.

2. Ensure that the faceplate is oriented properly and press against the

IDOC-PAD-DSWC until the faceplate snaps into place.

Docking Station Removal

If it is necessary to remove the docking station after it has been installed into a mounting surface, complete the following steps in the order provided to remove the touchpanel. The only tool required is a #2 Phillips tip screwdriver.

Ventilation

1. If the iPad is in the docking station, remove it from the docking station as

described on page 12.

2. Lift one edge of the faceplate to free it from the docking station, and lift it

off.

3. Loosen and remove the screws that secure docking station to the mounting

option in use. NOTE: If the mounting clips were used, make sure that the screws stay

attached to their mounting clips.

4. Using equal pressure, carefully remove the docking station from the

opening.

If necessary, secure and label the attached power cable before disconnecting it from the back of the docking station.

Hardware Hookup

The IDOC-PAD-DSWC should be used in a well-ventilated area. The venting holes should not be obstructed under any circumstances. If the IDOC-PAD-DSWC is hot to the touch, consider using forced air ventilation.

To prevent overheating, do not operate this product in an area that exceeds the environmental temperature range listed in the table of specifications. Consideration must be given if installed in a closed or multi-unit rack assembly since the ambient operating temperature of the environment may be greater than the ambient room temperature. Contact with thermal insulating materials should be avoided on all sides of the unit.

Connect the Device

Operations & Installation Guide – DOC. 7084A In-Wall Docking Station for iPad

Make the power connection as called out in the illustration on the following page. Refer to “Wiring” on page 5 before attaching the 2-position terminal block connector. Apply power after the connection ha s been made.

: IDOC-PAD-DSWC • 9

In-Wall Docking Station for iPad® Crestron IDOC-PAD-DSWC

When making connections to the IDOC-PAD-DSWC, use Crestron power supplies for Crestron equipment.

Hardware Connections for the IDOC-PAD-DSWC (Rear View)

POWER INPUT:

From 24 VDC power source

10 • In-Wall Docking Station for iPad

: IDOC-PAD-DSWC Operations & Installation Guide – DOC. 7084A

Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad®

Operation

iPad Sleeve

The docking station contains a retractable sleeve that provides a power connection for the iPad while also providing a flush-mount appearance. The sleeve is moved from the “open” position to the “closed” position by pushing the bottom right corner of the sleeve.

Open and/or Close Sleeve

PUSH HERE TO CLOSE OR OPEN

Insert the iPad

To insert the iPad (sold separately) into the dock:

1. Hold the iPad horizontally (with the HOME button on the left) and slide it

into the dock until the iPad connects with the dock connector.

Slide the iPad into the Sleeve

Operations & Installation Guide – DOC. 7084A In-Wall Docking Station for iPad

: IDOC-PAD-DSWC • 11

In-Wall Docking Station for iPad® Crestron IDOC-PAD-DSWC

2. Push in the bottom right of the sleeve to make the iPad flush with the wall.

Remove the iPad

To remove the iPad from the dock:

1. Push in the bottom right of the sleeve to make the sleeve pop out of the

wall.

2. Hold the right side of the iPad and pull it out of the sleeve.

Remove the iPad from the Sleeve

3. If desired, push in the bottom right of the sleeve to make the sleeve flush

with the wall.

12 • In-Wall Docking Station for iPad

: IDOC-PAD-DSWC Operations & Installation Guide – DOC. 7084A

Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad®

Problem Solving

Troubleshooting

The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.

IDOC-PAD-DSWC Troubleshooting

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

Use the Right Wire

Calculate Power

The iPad does not charge.

IDOC-PAD-DSWC is not receiving power from a Crestron power source.

IDOC-PAD-DSWC is not receiving sufficient power.

Use a Crestron power source. Verify connection from the power source to IDOC-PAD-DSWC.

Use the Crestron Power Calculator to help calculate how much power is needed for the system.

Check Wiring

To ensure optimum performance over the full range of your installation topology, use Crestron Certified Wire only. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire.

CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do so could cause equipment damage or void the Crestron warranty.

CAUTION: Provide sufficient power to the system. Insufficient power can lead to unpredictable results or damage to the equipment. Use the Crestron Power Calculator to help calculate how much power is needed for the system (

www.crestron.com/calculators).

When calculating the length of wire for a particular Cresnet run, the wire gauge and the Cresnet power usage of each network unit to be connected must be taken into consideration. Use Crestron Certified Wire only. If Cresnet units are to be daisy chained on the run, the Cresnet power usage of each network unit to be daisy chained must be added together to determine the Cresnet power usage of the entire chain. If the unit is run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The wire gauge and the Cresnet power usage of the run should be used in the following equation to calculate the cable length value on the equation’s left side.

Cable Length Equation

L <

40,000

Where:

R x P

L = Length of run (or chain) in feet R = 6 Ohms (Crestron Certified Wire: 18 AWG (0.75 mm ))

or 1.6 Ohms (Cresnet HP: 12 AWG (4 mm ))

P = Cresnet power usage of entire run (or chain)

Operations & Installation Guide – DOC. 7084A In-Wall Docking Station for iPad

: IDOC-PAD-DSWC • 13

In-Wall Docking Station for iPad® Crestron IDOC-PAD-DSWC

Make sure the cable length value is less than the value calculated on the right side of the equation. For example, a Cresnet run using 18 AWG Crestron Certified Wire and drawing 20 watts should not have a length of run more than 333 feet (101 meters). If Cresnet HP is used for the same run, its length could extend to 1250 feet (381 meters).

NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One twisted pair is the +24V conductor and the GND conductor and the other twisted pair is the Y conductor and the Z conductor.

Strip and Tin Wire

When daisy chaining Cresnet units, strip the ends of the wires carefully to avoid nicking the conductors. Twist together the ends of the wires that share a pin on the network connector and tin the twisted connection. Apply solder only to the ends of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle. Insert the tinned connection into the Cresnet connector and tighten the retaining screw. Repeat the procedure for the other three conductors.

Reference Documents

The latest version of all documents mentioned within the guide can be obtained from the Crestron Web site (www.crestron.com/manuals). This link will provide a list of product manuals arranged in alphabetical order by model number.

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888- 273- 7 87 6] . For assistance in your region, please refer to the Crestron Web site ( Crestron worldwide offices.

www.crestron.com) for a listing of

You can also log onto the online help section of the Crestron Web site

www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time

( users will need to establish a user account to fully benefit from all available features.

Future Updates

As Crestron improves functions, adds new features and extends the capabilities of the IDOC-PAD-DSWC, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

Check the Crestron Web site periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.

14 • In-Wall Docking Station for iPad

: IDOC-PAD-DSWC Operations & Installation Guide – DOC. 7084A

Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad®

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange or service without prior authorization

from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number and return address.

2. Products may be returned for credit, exchange or service with a CRESTRON Return

Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any products returned with an RMA.

3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,

shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in mat erial s and workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps are not covered.

This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer. Purchasers should inquire of the dealer regard ing the nature and extent of the dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number altered, defaced or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party.

CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied, nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.

Operations & Installation Guide – DOC. 7084A In-Wall Docking Station for iPad

: IDOC-PAD-DSWC • 15

Crestron Electronics, Inc. Operations & Installation Guide – DOC. 7084A

15 Volvo Drive Rockleigh, NJ 07647 (2030457) Tel: 888.CRESTRON 05.11 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.

Crestron IDOC-PAD2-DSWC Operations & Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Features and Functions

Specifications

Physical Description

Setup

Wiring

Mounting Options

Installation

Docking Station Removal

Hardware Hookup

Operation

iPad Sleeve

Insert the iPad

Remove the iPad

Problem Solving

Troubleshooting

Check Wiring

Reference Documents

Further Inquiries

Future Updates

Return and Warranty Policies
