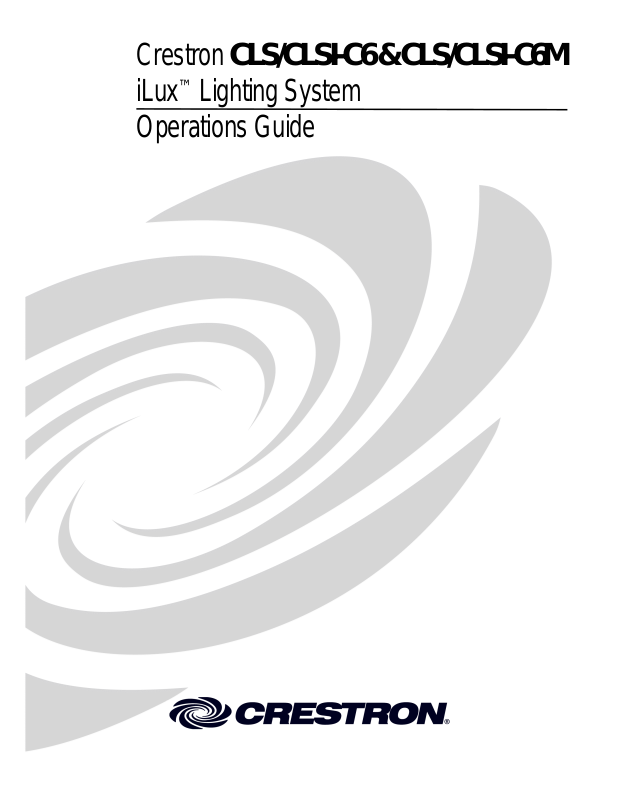

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux Operations Guide

™

Lighting System

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Contents

iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................1

Specifications ..............................................................................................................4

Physical Description....................................................................................................4

Industry Compliance ...................................................................................................8

Setup..........................................................................................................................................9

Network Wiring...........................................................................................................9

Identity Code...............................................................................................................9

Installation...................................................................................................................9

Hardware Hookup .....................................................................................................11

Adding External Power Supplies...............................................................................11

Configuring the CLS-C6..........................................................................................................12

Configuring With Front Panel Controls ....................................................................12

Configuring With iLux Designer...............................................................................21

Console Command Settings ......................................................................................23

Replacing the Function Button Label........................................................................24

Programming Software............................................................................................................26

Earliest Version Software Requirements for the PC .................................................26

Programming with Crestron SystemBuilder/D3 Pro.................................................26

Programming with SIMPL Windows........................................................................27

Example Program......................................................................................................28

Uploading and Upgrading........................................................................................................29

Establishing Communication.....................................................................................29

Programs and Firmware ............................................................................................29

Operation.................................................................................................................................31

Button Types .............................................................................................................31

IR Receiver................................................................................................................33

Occupancy Sensing ...................................................................................................34

Problem Solving......................................................................................................................37

Troubleshooting.........................................................................................................37

Check Network Wiring..............................................................................................37

Reference Documents................................................................................................38

Further Inquiries........................................................................................................38

Future Updates ..........................................................................................................39

Appendix A: Supported Devices .............................................................................................40

Keypads.....................................................................................................................40

Shade Controllers......................................................................................................40

Appendix B: Console Commands............................................................................................41

Appendix C: Factory Default Values.......................................................................................45

Appendix D: Button Functions................................................................................................46

Software License Agreement...................................................................................................53

Return and Warranty Policies..................................................................................................55

Merchandise Returns / Repair Service ......................................................................55

CRESTRON Limited Warranty.................................................................................55

Operations Guide - DOC. 6347B Contents • i

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M

Introduction

Features and Functions

• Wall-mounted integrated lighting and shade control

• Six channels of dimming or switching

• Six groups of shade or drape control

• Linkable for up to 54 lighting channels and 54 shade groups

• Up to 16 user-settable scenes | Large ON and OFF buttons

• Seven configurable “rocker” buttons with customizable label strip

• Flip-up front cover reveals setup controls and programming port

• Six bargraphs show lighting levels and shade positions

• Easy setup from front panel or iLux Designer software

• Built-in motion detector (CLS/CLSI-C6M) | Optional IR remote

• Supports multipoint control using up to 16 keypads

• Master air-gap relay | 230V AC version available

• Integrates with 2-Series control systems via Cresnet

• Available in almond, black, or white

Six Channel Dimming

The CLS-C6 features six channels of dimming for incandescent, magnetic low-

voltage, neon/cold cathode, and two-wire dimmable fluorescent loads. Each channel

can also support switching of many non-dimmable lighting loads. Each channel will

handle up to 800 watts individually, with a total rating for the complete unit of 1920

watts at 120 VAC for CLS-C6/C6M (2300 watts at 230 VAC for CLSI-C6/C6M).

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 1

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Six Group Shade Control

Using Crestron’s networked shade and drape controllers (sold separately), the CLS-C6 enables versatile control of a roomful of motorized window treatments, screens, and lifts in up to six shade groups. Each controller is connected to the CLS-C6 via the four-wire Cresnet bus.

Versatile Front Panel Controls

The deceptively clean front panel actually affords an extensive amount of control and customization to suit each unique room application. Large ON and OFF buttons provide instant access to the “On” and “All Off” scenes, while the six main buttons can be set up to recall additional scene presets, adjust shades, or perform a host of other functions. The buttons' “rocker” action enables intuitive control for adjusting lighting levels and shade positions. An additional "Up/Down” button is configurable for a variety of functions, including use as a master lighting or shade control, or as a "shift" button to expand the capabilities of the six main buttons.

With each new scene selection, window shades reposition and lights fade elegantly to their new settings. The selected scene is indicated by a white LED beside each button, and the customizable label strip allows each button to be clearly labeled using Crestron Engraver software. Dimming levels and shade positions are displayed graphically on six green LED bargraphs accessible behind the flip-up front cover. Additional controls and a numeric display hidden beneath the cover enable setup without requiring a PC. Enhanced customization is provided via the PC programming port using iLux Designer software.

Built-in Motion Detector (CLS/CLSI-C6M)

The CLS/CLSI-C6M model provides the addition of a built-in infrared motion detector, enabling automated control based on room occupancy. Lights can be programmed to turn on and shades open automatically when someone enters the room, or turn off and close when the room is left empty. Remote motion detectors are also available to expand the coverage of the CLS/CLSI-C6M, or add occupancy sensing capability to the CLS-C6 units.

IR Remote Control

The CLS-C6 units are equipped with an onboard IR receiver to allow for wireless remote control using Crestron’s optional infrared remote control (sold separately).

Multipoint Keypad Control

Up to 16 Crestron keypads (sold separately) may be connected to a single CLS-C6, providing versatile multipoint control for rooms with several entrances or work areas.

Multi-Unit Expansion

A single CLS-C6 master will support up to eight additional CLS-C6s, enabling systems of up to 54 lighting channels and 54 shade gro up s. Scene recal l , ma ster dimming, and occupancy status are shared between all the CLS-C6 units. Each individual unit can still support a complete assortment of local devices including keypads, shade controllers, and sensors.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Control System Integration

The CLS-C6 actually features two separate Cresnet control networks, one for local

devices and one for connection to a 2-Series control system.

Connecting the CLS-C6 to a control system allows its functions to be controlled

from touchpanels, RF wireless remotes, and even computers, supporting extensive

flexibility for remote control and integration with other devices and systems.

Additional functions such as on-the-fly room combining and activating operations

based on a real-time clock are also made possible by connecting the CLS-C6 to a

control system.

Connecting to an Ethernet-networked control system provides a gateway to larger

applications such as integration with facility-wide lighting, HVAC, security, and

remote monitoring via Crestron RoomView

party SNMP software.

Help Desk software as well as third-

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 3

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Specifications

The following table provides specifications for the CLS-C6.

CLS-C6 Specifications

SPECIFICATION

Load Ratings CLS-C6/C6M Max load per channel : Min load per channel Max load per unit: CLSI-C6/C6M Max load per channel : Min load per channel Max load per unit:

Power Requirements CLS-C6 Line Power, 100 –127 VAC, 50 / 60Hz

Default Net ID 1F Control System Update Files

Minimum 2-Series Control

System

Load Types Incandescent, magnetic low voltage, neon/cold

IR Receiver Reception Frequency

Motion Detector (CLS/CLSI-C6M only Type Range

Firmware clsi-c6_clsi-c6m_1.01.02.upg or later Environmental Temperature 32° to 104°F (0° to 40°C) Humidity 10% to 90% RH (non-condensing) Overall Dimensions:

Height Width Depth

Weight 1.43 lbs (0.65 kg)

1. The latest versions can be obtained from the Crestron website. Refer to NOTE after last footnote.

2. Crestron 2-Ser ies control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems.

3. These loads require an optional boost e r module. The modules are LEPB-n, where ‘n’ is a number based on the desired load type. Also, some boosters permit control of 277VAC loads. Refer to the Crestron website for details on power boosters.

1, 2

800 W/VA (6.7 Amps @ 120 VAC) 15 W/VA (0.125 Amps @ 120 VAC) 1920 W/VA (16 Amps @ 120 VAC)

800 W/VA (3.5 Amps @ 230 VAC) 25 W/VA (0.108 Amps @ 230 VAC) 2300 W/VA (10 Amps @ 230 VAC)

CLSI-C6 Line Power, 220 – 240 VAC, 50 / 60Hz

Version 2.004.CUZ or later

cathode, dimmable 2-wire fluorescent, and non-dim lighting (also: electronic low voltage, 3-wire and 4-wire fluorescent

36 kHz Requires Crestron IR remote (sold separately).

Infrared 20 to 30 feet at 4-foot elevation (6 to 9 meters at 1.2 meter elevation)

4.48 in (11.38 cm)

8.89 in (22.58 cm)

2.46 in (6.25 cm) for CLS/CLSI-C6

2.59 in (6.58 cm) for CLS/CLSI-C6M

DETAILS

)

NOTE: Crestron software and any files on the website are for Authorized Crestron dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may be required to register to obtain access to certain areas of the site (including the FTP site).

Physical Description

All controls and indicators for the CLS-C6 are located on the front of the unit. The front panel also contains a mini phone jack, under the flip-up cover, used for programming functions, and an IR port for control via an IR remote device. All other

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

ports and connectors are located on the rear panel. Refer to the table “Connectors, Controls, & Indicators” on page 6 for details .

CLS-C6 (Cover Open)

CLS-C6/C6M Overall Dimensions

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 5

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

CLS-C6/CLS-C6M Front Panel

CLS-C6/CLS-C6M Rear Panel

Connectors, Controls, & Indicators

# CONNECTORS,

DESCRIPTION

CONTROLS, &

INDICATORS

1 Bargraphs In Standard mode and Lights mode, the bargraphs,

2 Label Strip Customizable label for the six scenes. 3 Function Buttons and LEDs In Standard mode, these buttons are typically used

4 IR Detector The IR detector responds to commands from the

Continued on next page

each a series of seven LEDs, indicate the current light intensity for the six lighting loads. In Shades mode, they indicate the shade position for each of the shade groups. The bargraphs have other functions in Setup mode.

to select/recall scenes. In Lights mode, they are used to make temporary adjustments to the six lighting loads. In Shades mode they are used to make temporary adjustments to the shade groups. They can also be programmed to perform other functions.

optional Crestron remote control. The remote control can be used to recall Scenes 1 – 4, the On and Off scenes, and perform master raise and lower of the lighting loads.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Connectors, Controls, & Indicators (continued)

# CONNECTORS,

DESCRIPTION

CONTROLS, &

INDICATORS

5 Motion Detector (CLS/CLSI-

C6M only)

6 Mini Phone Jack Use this 3.5mm TRS mini-phone jack, located on

7 Two-Digit Display In Standard mode, the display is normally blank,

8 Lights Pushbutton and LED Use this switch to select the Lights mode. The LED

9 Shades Pushbutton and

LED

^, v, Save, and Cancel Pushbuttons

11 Reset Button If the unit stops functioning and does not respond to

The built-in motion detector can be used to activate a particular scene when there is activity in the room, and/or to activate a particular scene (typically Off) when there is no activity for a specified period. A limited number of actions are available when programmed locally; more are available using the iLux Designer software program.

the front panel, as an RS-232 programming port, to communicate with the iLux Designer and Crestron Toolbox to configure the unit, and to upgrade the unit’s firmware.

except when showing scene fade time. The Min and Sec LEDs illuminate when the display is indicating time in minutes or in seconds, respectively. In Setup mode, the display uses a two-character mnemonic to indicate which specific aspect of the CLS-C6 you are changing. As these are being adjusted, the display may indicate values. (Refer to “Setup Mode” on page 13 for details.)

illuminates when the mode is selected. Refer to “Lights Mode” on page 34 for details.

Use this switch to select the Shades mode. The LED illuminates when the mode is selected. Refer to “Shades Mode” on page 35 for details.

Use these pushbuttons to navigate and execute setup functions. The Save and Cancel LEDs indicate when these functions are active. Refer to “Setup Mode” on page 13 for details.

button pushes, use a thin object such as a paperclip to activate this switch. The unit reboots (all lighting loads go off, the two-digit display shows “– –,” and all lighting loads go to their previous state).

12 Shift LEDs These LEDs are covered by the label strip, but are

13 Up/Down Pushbutton This three position “rocker” switch is programmable

14 ON Button The ON button always acts as a recall scene button

15 OFF Button The OFF button always acts as a recall scene

easily visible through the strip when they are illuminated. When the Shift mode is enabled via programming, there can be two functions defined for each of the six function buttons. The unit will always be in “upper” or “lower” shift mode as indicated by the state of the LEDs.

for master lights control (all lights or last scene), master shade control, or as a “shift” button to allow a second set of functions for the six function buttons.

for the “On” scene. Refer to “Standard Mode” On page 31 for details.

button for the Off scene, which will always turn all lighting loads off and open the air-gap relay. Refer to “Standard Mode” On page 31 for details.

Continued on next page

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 7

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Connectors, Controls, & Indicators (continued)

# CONNECTORS,

CONTROLS, &

INDICATORS

16 LOAD1 – LOAD6 Use these terminals to connect the CLS-C6 dimmer

17 HOT, NEUTRAL, ((Ground) Use these terminals to connect the unit to the 120V

18 CONTROL SYSTEM Use this 4-pin terminal block to connect the CLS-

19 LOCAL DEVICES Use this 4-pin terminal block to connect the CLS-

channel outputs to the appropriate lighting loads.

(CLS-C6/M) or 230V (CLSI-C6/M) AC power source.

C6, using standard Cresnet wiring, to a 2-Series control system network. In this configuration, the CLS-C6 acts as a standard Cresnet slave device. (The CLS-C6 does not draw power from Cresnet.)

C6, using standard Cresnet wiring, to local devices. In this configuration, the CLS-C6 acts as the Cresnet Master (Net ID 02).

DESCRIPTION DESCRIPTION

Industry Compliance

This product is listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.

As of the date of manufacture, the CLS-C6 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

(E103692)

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Setup

As stated earlier, the CLS-C6 features two separate Cresnet control networks: one for local devices and one for connection to a 2-Series control system. When connected to a control system, the CLS-C6 acts as a standard Cresnet slave device. When local devices are connected to it, the CLS-C6 acts as the Cresnet Master (Net ID 02). In some configurations, the unit serves a dual role. (Refer to the configuration examples included in “Identity Code” below for more details.)

The following wiring information applies to a 2-Series control system network. The CONTROL SYSTEM port of the CLS-C6 may be connected to this network.

Network Wiring

When wiring the network, consider the following:

• Use Crestron Certified Wire.

• Use Crestron power supplies for Crestron equipment.

• Provide sufficient power to the system.

CAUTION: Insufficient power can lead to unpredictabl e resul t s or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (http://www.crestron.com/calculators

• For larger networ ks, Use a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality.

For more details, refer to “Check Network Wiring” on page 37.

Identity Code

The Net ID of the CLS-C6 has been factory set to 1F. The Net IDs of multiple CLS-C6 devices in the same system must be unique. Net IDs are changed from a personal computer (PC) via the Crestron Toolbox™ or iLux Designer software programs. When setting the Net ID, consider the following:

• The Net ID of each unit must match an ID code specified in the SIMPL Windows program.

• Each network device must have a unique Net ID.

For more details, refer to the Crestron Toolbox or iLux Designer help files.

Installation

Detailed installation procedures are provided in the latest version of the Crestron iLux Lighting Systems Installation Guide (Doc. 6394 for CLS-C6/C6M; Doc. 6413 for CLSI-C6/C6M).

The figure on the following page illustrates five installation configurations and includes brief descriptions of the rationale b ehi n d each on e.

NOTE: The power usage requirements on the local devices network is different from that described above. The CLS-C6 provides 24VDC power for up to four keypads and/or shade controllers on the local devices network. An additional power supply is required to support more than four devices. Also, each C2N-SDC-DC shade controller requires its own additional power supply.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 9

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

CLS-C6 Installation Configurations

* Refer to “ Appendix A: Supported Devices” on page 40 for details on devices supported by the CLS-C6.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Hardware Hookup

Refer to the following diagram for connection of the AC wiring. Connect each load wire to the corresponding LOAD terminals on the unit, connect the power line hot wire from the circuit breaker to the HOT terminal on the unit, connect all neutral wires to the NEUTRAL terminal on the unit, and connect all ground wires to the (ground) terminal on the unit. For details, refer to the iLux Lighting System Installation Guide, Doc. 6394 for CLS-C6/C6M units, and Doc. 6413, for CLSIC6/C6M units.

Adding External Power Supplies

Additional power supplies are required to support more than four keypads or shade controllers on the local devices network. Also, each C2N-SDC-DC shade controller requires its own additional power supply. The following diagram illustrates a scenario where an external power supply is required to add keypads and shade controllers to a network that already contains four shade controllers. The actual quantity of external power supplies required depends on your system configuration.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 11

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Configuring the CLS-C6

The overall configuration of the CLS-C6 can be accomplished in two ways: using the front panel controls, or using the supplied iLux which can be downloaded from the Crestron website.

Configuring via the front panel controls is not as extensive as what can be done using the iLux Designer, but permits basic functional setup without having to use a PC.

In addition, some aspects of the CLS-C6’s operation can be modified only Crestron Toolbox console commands. (Refer to “Console Command Settings” on page 23 for details. Refer also to “Appendix B: Console Commands” on page 41 for details on all applicable console commands.)

NOTE: Toolbox does not distinguish between the CLS-C6 and CLSI-C6 devices. All report as CLS units.

™

Designer application software,

via certain

Configuring With Front Panel Controls

You can make temporary changes to accommodate a particular circumstance, or change scene presets and replace the originals, as described below. To make more extensive changes in the configuration of the CLS-C6 without using the iLux Designer software, use the Setup Mode, as described beginning on page 13.

Temporary Changes/Adjustments

Temporary changes/adjustments to the lighting levels or shade presets can be accomplished as discussed in “Lights Mode” on page 34 and “Shades Mode” on page 35.

Changing Scene Presets

The CLS-C6 scene settings can be modified via the front panel controls without having to use a PC. Changes to the lighting load levels and shade presets for one or more scenes can be accomplished as follows:

NOTE: The iLux Designer or SIMPL programs can lock a scene to prevent it from being changed using the front panel controls. If the selected scene is “locked” in the configuration, when you try to make any adjustment, “Er” will display for three seconds, and the scene will remain in its existing state.

1. In Standard mode, press the function button of the scene you wish to modify and hold it for five seconds. (Make sure you press the center of the button so both sides make contact.)

2. The two-digit display will first count down as the lighting loads fade to their preset levels for that scene; it will then begin flashing between Sc. and the scene number; the Lights LED will be lit, and the Save and Cancel LEDs will flash.

3. Use the six function buttons to adjust the levels of the lighting loads for that scene. Press the left side of the buttons to lower the lighting loads; press the right side of the buttons to raise the lighting loads.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

4. If you would like a certain lighting load to be unaffected by that scene

recall, press and hold the center of the button (so both sides make contact) for three seconds. The top two and the bottom two LEDs of the associated bargraph will be lit (and the display will show - -) to indicate that the level of the lighting load will not change when that scene is recalled.

5. To change the shade presets for that scene press the Shades button; the

Shades LED will be lit.

6. Use the six function buttons to adjust the levels of the shade groups for that

scene. Press the right side to raise the shades; press the left side to lower them. While the shades are moving, press any part of the button to stop. Note that for shades that are not “presettable,” only full open or full closed positions can be recalled as part of a scene.

7. If you would like a certain shade group to be unaffected by that scene recall,

press and hold the center of the button (so both side make contact) for three seconds. The top two and the bottom two LEDs of the associated bargraph will be lit (and the display will show - - ) to indicate that the level of that shade group will not change when that scene is recalled.

8. To adjust the fade time, press the ^ and v buttons. When go i ng u p, t he value

will go from 0 seconds to 59 seconds, and then 1 minute to 99 minutes. When going down, the value will go from 99 minutes to 1 minute, and then 59 seconds to 0 seconds. The Min and Sec LEDs light as appropriate. Adjustment to fade time can be made when either Lights mode or Shades mode is active.

9. When all the lighting loads are at the desired level and shades are at the

desired position, press Save to save these settings as the new preset for that scene. If you make a mistake while changing a setting, press Cancel to discard changes and return to Standard mode before pressing Save.

10. Repeat the above procedures for all scenes that require changes.

Setup Mode

The Setup mode is used to change internal settings on the CLS-C6, including the scene presets as discussed in the previous paragraph.

• To enter Setup mode seconds. The Cancel button LED will blink, and the first setup option (Sc) will be displayed, to indicate that the unit is now in Setup mode.

Note that while scrolling through the list of setup options, before an option is “locked”, the Save button is not functional and its LED is off. However, the Cancel button LED will blink - since the button can be pressed to return the unit to Standard mode.

• If the unit is connected to a Cresnet control system and you are in the process of adjusting scene settings, you cannot enter Setup mode. If you try, the two-digit display will indicate “Er” (error).

• When the unit is in Setup mode, the two-digit display uses a two-character mnemonic to indicate which specific aspect of the CLS-C6 you are changing. As these are being adjusted, the display may indicate values. The following is a list of the different Setup modes, and the corresponding mnemonic codes.

, press and hold the Save and Cancel buttons for five

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 13

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Setup Mode Mnemonics

TWO-DIGIT

DESCRIPTION

DISPLAY

Sc Scene Programming Ld Setup lighting load Load types LE Setup lighting load Low-End limits HE Setup lighting load High-End limits bF button Functions (i.e. recall scene, toggle scene, shades control, etc.) ud Set function of up/down button oc Setup occupancy Sensing Ad Run Auto-discovery AS Assign Shade groups id Set the Cresnet id of this unit Fd Restore Factory default Er Error

• Press the ^ or v buttons to scroll through this list of available setup options.

Once the desired setup option appears in the display, use the various but t o ns o n the CLS-C6 to make adjustments, as described on the following pages.

• Once any adjustment is made, Setup mode is now “locked” into that particular option (this is indicated by lighting the period at the end of the mnemonic). Once locked in an option, the ^ and v buttons will no longer scroll through the options; you must exit setup before you can choose another option.

When the adjustments are complete, press Save to store the changes permanently, and exit Setup mode, or press Cancel to exit Setup mode without saving the changes. The unit reverts to Standard mode.

Scene Programming (Sc)

This setup option allows the user to adjust the scene parameters. This is another way to accomplish scene changes as discussed in “Changing Scene Presets” on page 12. This method also allows you to change the settings for scenes greater than scene 6.

Scenes can be turned off in addition to being recalled. When a scene is turned off, only the lighting loads are turned off. If the scene contains any shades, they are not affected. The fade time for turning the scene lights off is the same as for recalling the scene. Therefore, no additional parameters need to be set to define the off behavior.

Select the scene to be changed using the Up/Down button. As you cycle through the list of scenes, the lights and shades will not change, and the bargraphs will be off.

Set the lighting loads and shade positions for the scenes as discussed in “Cha nging Scene Presets” on page 12. As you set the scenes, note the following:

• When a lighting load reaches the HE (high end) limit, the lights will stop. The two-digit display will continue to rise. If lights reach the LE (low end) limit, the two-digit display will continue to go down, but lights will stay at the LE limit until they reach Off—at which point they will turn off. If you save the scene setting while the display is at a level below the LE limit, or above the HE limit, the displayed value will be saved, but the light level will be limited to the programmed limits.

• If a lighting load is defined as an “unused” load type, the bargraph for that lighting load will have all LEDs off. If you try to adjust that lighting lo ad, the two-digit display will show “Er”.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

• To mark a lighting load as "not affected" (i.e., the lighting load’s current state

will not be changed by recalling the scene), press and hold the center of the corresponding button for three seconds. Adjustments made to such lighting loads will cancel the “not affected” condition, and start adjusting from the current light level.

• While adjustments are being made to the lights or shades, the two-digit display

will show the level, just like in manual mode. The level for loads that are not affected will be shown as “—.” In manual mode, the display goes blank after three seconds; in this mode, it returns to the “Sc. ##” display.

• For SDC (or SDC-DC) shades, when you press the left or right side of the

button, the two-digit display will immediately show full open or full closed as soon as the shade starts moving, and the preset will be set to this full open or closed position even if the shade is stopped before reaching the full open or full close position.

• The iLux Designer or SIMPL programs can lock a scene to prevent it from being

changed using the front panel controls. If the selected scene is “locked” in the configuration, when you try to make any adjustment, “Er” will display for three seconds, and the scene will remain in its existing state.

• To adjust the fade time, while “Sc. ##” is displayed, press the ^ and v buttons to

adjust the time. The first time a button is pressed, current fade time will be shown, but not changed. Subsequent presses will change the displayed value. Adjustment to fade time can be made when either Lights mode or Shades mode is active.

When going up, the value will go from 0 seconds to 59 seconds, and then one minute to 99 minutes. When going down, the value will go from 99 minutes to one minute, and then 59 seconds to 0 seconds.

• To save/cancel levels, press the Save button to save the new values and return to

Standard mode. Press the Cancel button to return to Standard mode without saving – old scene parameters will be remembered.

Setup Lighting Load Types (Ld)

To set the load types for each lighting load, first enter Setup mode and scroll to the “Ld” option. The bargraphs immediately indicate the currently selected load type for each lighting load. Use the function buttons to change the load type, each load type indicated by a pattern of bargraph segments and a number on the two-digit display, as shown in the following table. Press the right and left side of the buttons to cycle through the available load types.

Load Type Number LEDs Default LowEnd

/ HighEnd

Unused 0 all off 0 / 100 Incandescent – default 1 top 1 on 0 / 100 MLV 2 top 2 on 0 / 100 NCC 3 top 3 on 0 / 100 Fluorescent (2-wire) 4 top 4 on 10 / 100 Non-dim (On at start/Off at start)¹ 5 top 5 on 0 / 100 Non-dim (On at end/Off at start)² 6 top 6 on 0 / 100

1. Whether going on or off, this load type will switch at the start of the fade.

2. If going off, this load type will switch at the start of the fade; if going on, it will switch at the end.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 15

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

• When changing the load type using the rocker buttons, the two-digit display will change to reflect the current load type. It will show “L#.” where # is the number from the table above. Whenever the two-digit display is showing a load type, the corresponding front panel LED is lit.

• During adjustment of this value, the lights will not change. If setup is exited without pressing the Save button, the original values will be retained. When the Save button is pressed, Setup mode will be exited, the new values will be saved, and the lights will be updated to reflect the new curve type.

If the load type was changed, the LE and HE limits are automatically changed to the default value for the new load type, listed in the above table.

Setup Low-End Levels (LE)

Some lights can flicker at very low levels. To avoid this, you can specify the low-end limit accordingly. Whenever you try to adjust lights to a level below this value, they will stay at the low-end limit until they are turned off. To set the low-end levels for the six lighting loads:

• First enter Setup mode and scroll to the “LE” option (using the ^ and v buttons). At this point the lights will not change, but the bargraphs should immediately indicate the low-end levels for each lighting load. (In most cases this will be 0%, which is indicated by all bargraph segments being off.) To set the low-end level, use the rocker button corresponding to that lighting load to adjust the level up or down. When the first adjustment is made, the light being adjusted will jump to the current low-end level, and start adjusting from there.

• The low-end level cannot be adjusted above 33%.

• Note that for non-dim and “unused” lighting loads, the low-end level cannot be

adjusted (always at 0%). If you try to adjust this, the light and bargraph will not change, and the two-digit display will show “Er.” to indicate an error.

If setup is exited without pressing the Save button, the original values will be retained. For lighting loads where adjustment has been made, lights will jump to the original low-end level. Light levels will not change on lighting loads where no adjustment was made. When the Save button is pressed, Setup mode will be exited, the new values will be saved, and the lights will not change.

Setup High-End Levels (HE)

This option allows you to set the “full on” level of the lighting loads below their maximum brightness. To set the high-end levels for the six lighting loads:

• Enter Setup mode and scroll to the “HE” option (using the ^ and v buttons). At this point the lights will not change, but the bargraphs immediately indicate the high-end levels for each lighting load. (In most cases this will be 100%, which is indicated by all bargraph segments being on.)

• To set the high-end level, use the rocker button corresponding to that lighting load to adjust it up or down. When the first adjustment is made, the light being adjusted will jump to the current high-end level, and start adjusting from there. As adjustments are made, the current light level for the lighting load being adjusted should appear in the bargraph and the two-digit display.

• The high-end level cannot be adjusted below 67%.

• Note that for non-dim and “unused” lighting loads, the high-end level cannot be

adjusted (always at 100%). If you try to adjust this, the light and bargraph will not change, and the two-digit display will show “Er” to indicate an error.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

If setup is exited without pressing the Save button, the original values will be retained. For lighting loads where adjustment has been made, lights will jump to the original high-end level. Light levels will not change on lighting loads wh ere no adjustment was made. When the Save button is pressed, Setup mode will be exited, the new values will be saved, and the lights will not change.

Setup Button Functions (bF)

This Setup mode is used to define the behavior of the buttons on the CLS-C6 unit itself, and on remote keypads if you want behavior other than the default. (Remote keypads must be ID’d, using auto-discovery, prior to this, which will set them to their default functions.) To enter this mode:

• First enter Setup mode and scroll to the “bF” option (using the ^ and v buttons).

Then use the Up/Down button to scroll through the available button functions and values. This will scroll through all values for each function before proceeding to the next function.

• If you press and hold the button, it will auto repeat. During auto-repeating, when

it reaches the minimum or maximum value for that function, it will stop. The next button push will then increment/decrement to the next function.

A available functions and values are as shown in the following table. (Other functions require a PC with iLux Designer software to configure them.)

BUTTON FUNCTION CODE POSSIBLE VALUES

Recall Scene F1 oF,on,1-15 Toggle Scene F2 on,1-15 Control Shade (open/stop/close/stop) F3 AL, 1-6 Master Raise/Lower (last scene) F4 uP, dn, ud (rockers only)

1. To assign a function to a certain button or buttons, first scroll to the desired function and value. Then, press each appropriate function button or remote button to assign the displayed function and value to that button.

When the button is released, the LED for that button should flash once to indicate that programming took place.

2. Next, use the Up/Down button to scroll to the next function and value to be assigned, and assign the desired buttons. Repeat this procedure for each function and value to be assigned.

3. After assigning all button functions, press Save, and the button function information will be saved. If you press Cancel, or exit by some other mechanism (e.g., timeout), the state will return to what it was before you entered Setup mode.

• Note that the ON and OFF buttons on the CLS-C6 canno t be programmed. The operation of the Up/Down button is programmed using the “ud” setup function.

• If you try to program an illegal button (e.g., the ON button, or program a remote keypad button as master raise/lower-Up/Down), LED will flash on three times to indicate that setting did not take place, and the two-digit display will show “Er.”

• Note that other button functions, including “shifted” functions, can be defined using the iLux Designer configuration program.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 17

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Setup Up/Down Button Function (ud)

To define operation of the Up/Down button, enter Setup mode and scroll to the “ud” option (using the ^ and v buttons).

• Use the Up/Down button to select the desired mode. The display will flip between “ud.” and “#”, where # is the mode, as defined in the following table.

FUNCTION MODE

Lights (Last Scene) Master Up/Down L Shades Master Up/Down S

• The first function to be displayed will be the current func tion. Since there are other functions that can be programmed via the iLux Designer, if the current function is not one of these, the display should show “ud.—”. Pressing the Up/Down button will then go to mode L.

• Press Save to save the new setting or Cancel to retain the original setting.

Setup Occupancy Sensing (oc)

To define operation of the Occupancy Sensing feature, enter Setup mode and scroll to the “oc” option (using the ^ and v buttons).

• Use the Up/Down button to select the desired mode. The display will alternate between “oc.” and the mode number, as defined in the following table.

MODE CODE

Do nothing on either exit or entry 0 Recall specified scene on exit, do nothing on entry 1 Recall specified scene on entry, do nothing on exit 2 Recall specified scenes on entry and exit 3

• The first mode to be displayed will be the current mode.

• When programming from the front panel, exit time cannot be adjusted or

displayed. If it has not been changed with iLux Designer, or SIMPL, it will be the default of 30 minutes. Scenes to be recalled also cannot be changed from the front panel. If they have not been changed with iLux Designer, the OFF scene will be recalled on exit (if enabled), and ON scene will be recalled on entry (if enabled).

• Even if these items are changed with iLux designer, they can still be enabled and disabled from the front panel without modifying the specified scenes or exit time.

• If Cancel is pressed, or Setup mode times out, the previous occupancy setting will be restored. To have the new setting take effect, you must press Save.

• Note that in mode 0, even though nothing happens locally when occupancy state changes, the occupancy status is still reported to Cresnet.

This mode can also be used to test the range of the occupancy sensor. While locked in the “oc.” mode, each time motion is sensed, the middle LED on all six bargraphs will blink.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Run Auto-Discovery (Ad)

This Setup mode is used to find which remote devices are on the network, assign Cresnet ID’s to new devices, and assign default functions to new panels and devices.

• To enter this mode, first enter Setup mode and scroll to the “Ad” option (using

the ^ and v buttons). Then press the Up/Down butt on (either top, bottom, or both), and hold for five seconds. The auto-discovery process will then start. (If you release the button before five seconds are up, nothing will happen, but “Ad.” mode will be locked in.) Once “Ad.” mode is locked in, the Cancel button will flash.

• During Auto discovery, the “Ad.” display will flash. When Auto Discovery is

done, the two-digit display will flash between “Ad.” and “##” where ## is the number of devices discovered on the network. The Save button will also start flashing. You can then press Save or Cancel.

• The CLS-C6 keeps a list of all devices on its local network. If the auto-

discovery finds devices that match the list, it will not change anything about those.

• In addition to initially configuring the system, auto-discovery can be used to add

or replace keypads or shade controllers. If you are adding a device, all previously assigned devices will not be changed. The new device will be added and assigned default functionality, if desired.

• To replace a device (because of defect or color choice), remove the device and

replace with another device of the same type. When you execute auto-discovery, the new device will take on the functionality of the original device. Use the “bF” option to change functionality, if desired.

• All shade controllers of a given type will be assigned to a single shade group.

Use the “AS” option to change them.

CAUTION: If there are SSC shade controllers on the network that do not have a functional shade connected to channel 1, shade control may not operate properly. Therefore, any SSC shade controllers without any shades attached should be removed from the network before running Auto-discover. Also, if any SSC shade controllers have only one shade attached, it must be attached to channel 1.

• There are a number of possible error conditions that can occur du ring th e

discovery process (before Save is pressed). They are:

1. Corrupt data on network.

2. Two or more devices with same TSID number.

3. Invalid device type found on network. (CLS-C6 modules only support a limited number of device types. Refer to “ Appendix A: Supported Devices” for details.

4. Too many keypads found on network. (A maximum of 16 are supported.)

5. Too many shade controllers found on network. (A maximum of 16 are supported.)

6. (For future use.)

7. Too many slave CLSI units found on network. (A maximum of eight are supported.)

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 19

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

• If any of these errors occur, when the discovery process is done, the two-digit display will flash between “Ad.” “##”, and “E#”, where “##” is the total number of devices discovered on the network (including invalid devices), and “E#” is “E1” through “E7”, per the seven error types listed above. If more than one error is present, all error codes will be displayed in sequence.

• In such case, the Save LED will not light (the Cancel LED will still be flashing). The user must press Cancel, correct the error, and try again.

• In the case where there were no errors during the Auto-discover process, and the user presses Save, the CLSI will update the Network ID’s for any devices which require it.

NOTE: The case of duplicate TSIDs cannot always be accurately detected. If you get a Corrupt Data error, or the program reports fewer devices than actually exist on the network, this may also be a result of duplicate TSIDs. In any event, troubleshooting for these errors is essentially the same.

Assign Shade Groups (AS)

This Setup mode is used to define which channels on each shade controller are assigned to which shade group.

• To enter this mode, first enter Setup mode and scroll to the “AS” option (using the ^ and v buttons). Then use the Up/Down button to scroll through the shade groups. The display will flash between “AS.” and “ #”, where # is the shade group to be assigned. The shade group number range is 1 – 6 plus 0 (zero). Enter a 0 to unassign a channel. (You can also press any of the six function front panel buttons to jump to a specific shade group.) The front panel LED corresponding to the selected shade group will be lit.

• While in AS mode, the bargraphs will indicate the status of each of the six shade groups: if no controllers are assigned, all LEDs will be off; if SDC controller(s) are assigned, the bottom two LEDs will be lit; if SDC-DC controller(s) are assigned, the bottom three LEDs will be lit; if SSC controller(s) are assigned, the top two LEDs will be lit.

• When a given “AS / #” is displayed, you can press the channel 1 or channel 2 up or down button on a shade controller to assign that chann e l of the shade controller to the current group. When the button is pressed, the Setup LED on that device will flash for one second to confirm that it has been assigned. The bargraph for that group will also flash off for one second.

• Go to a shade group and assign all channels. Then go to the next shade group and assign those channels. Repeat for all shade groups. Note that a given shade group can only have one type of shade controller (SDC, SDC-DC, or SSC). If a shade controller of a given type is assigned to a group that already contains shade controllers of the other type, the other controllers will be removed from that group. Also, a given channel on a shade controller can only belong to a single group. So if a shade controller that belongs to one group is assigned to a new group, it will be removed from the first group. Therefore, if you accidentally assign a shade controller to the wrong group, simply go to the correct group and reassign it.

Once all shade controllers are assigned, press Save to save the assignments and return to Standard mode, or press Cancel to discard the assignments.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Set Cresnet ID Of This Unit (id)

If this unit is to be connected to a Cresnet control system network, you may have to change its Cresnet ID. (When connected to another CLS-C6 unit’s local network, you do not want to set the ID – running Auto Discovery on the master device will do this automatically, as will the Set ID process of the iLux Designer.)

• To do this, enter Setup mode and scroll to the “id” option, using the ^ and v

buttons.

• The display will alternate between “id” and the current Cresnet ID. Use the

Up/Down button to adjust the ID up or down (03-FE).

Press the Save button to save the new value and return to Standard mode. Press the Cancel button to return to Standard mode without saving – the current Cresnet ID will be retained.

Restore Factory Defaults (Fd)

This setup mode is used to restore all settings to their factory defaults.

• To enter this mode, first enter Setup mode and then scroll to the “Fd” option

(using the ^ and v buttons). Then press the Up/Down button (either top, bottom, or both), and hold for five seconds.

• This setup mode will then be locked in, and the Save LED will start flashing. (If

you release the button before five seconds are up, nothing will happen.) If you then press Save, all configuration items will be set to their factory default values. (If you press Cancel, the unit exits Setup mode without changes.) The factory default configuration does not include any remote devices. If you want to re-initialize remote devices, run Auto-discover after this function. Running the factory default function also does not modify the Cresnet ID of the CLS-C6.

• The Save process may take a few seconds. During this time, the Save LED will

be lit steady, and the two-digit display will show “—”. When the process is complete, the LEDs will go off.

Refer to “Appendix C: Factory Default Values” on page 45 for a list of the system default values.

Configuring With iLux Designer

The Crestron iLux Designer application software supplied with the CLS-C6 units configures the CLS-C6 as an independent, standalone device or as a network device in a Crestron network control system (Cresnet system).

To configure the CLS-C6 using the iLux designer, use a direct serial connection as described in “Programs and Firmware” on page 29. Note that connecting the serial cable to the front panel of the CLS-C6 disconnects the control system network.

Configuring the CLS-C6 consists of setting the load schedule definition, the shade group configuration, the scene definitions, the CLS-C6 panel configuration and keypads configuration for each CLS-C6/C6M device. Note that only one CLS-C6 can be configured at a time. If there are multiple CLS-C6 units in a system, each one must be individually configured.

The following are the minimum software versions required to use the iLux Designer program.

ILux Designer version 1.02.05 or later Crestron Toolbox version 1.01.11 or later

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 21

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Crestron Engraver version 2.5.0 or later* Crestron Database version 17.3.0 or later*

*Required only if you intend to use the Crestron Engraver to prepare custom labeling.

The following sections provide a brief description of the iLux Designer functions. Refer to the iLux Designer online help for detailed explanations.

Load Schedule

The Load Schedule screen allows you to identify up to six lighting load s (circuits), add lighting load types for each channel; specify load type fixture wattage and quantity; specify the breaker size; specify the expected loss factor from magnetic transformers (magnetic low voltage, and neon/cold-cathode types only); specify upper and lower dimmer levels; and specify non-dimmer behavior.

The software issues warnings if your individual loads or total system wattage exceeds specified limits: 800 watts per load – 1920 watts system maximum with a 20A breaker (1440 watts maximum with a 15A breaker, and 1000 watts maximum with an Arc Fault breaker) for a 120 VAC installation; and 800 watts per load – 2200 watts system maximum for a 220 VAC installation, 2300 watts system maximum for a 230 VAC installation, and 2400 watts system maximum for a 240 VAC installation.

Shades

The Shades screen allows you to assign up to 16 shade controllers, define up to six shade groups; enter appropriate values for jog time, maximum time and lockout time; and select the shade controller channels to be assigned to each shade group.

With SDC and SDC-DC shade controllers, there is no way for the system to recognize when the shade has reached the limits of travel and stopped. If the shade is commanded to go to full open or full close, the system assumes it is moving until the max time is reached. To set the max time effectively, measure the time it takes the shade to travel from full close to full open and the time to travel from full open to full close. Take the longer of these two times and set max time slightly more than that. Actual experience may require that you set the time even longer.

Scenes

The Scenes screen allows you to define 15 regular scenes (lighting levels and shade positions) in addition to the standard Off and On scenes. For all scenes, enter a fade time in seconds or minutes, and the desired level for each lighting load. (Select – – if a given load should not be affected by that scene.) Similarly, set the desired position for any shade groups. To prevent changing those settings from the front panel, check the Front Panel Lockout box.

CLS-C6

The CLS-C6 screen allows you to enter the manual ramp rate used by the CLS-C6 when manually raising/lowering light levels; define the functionality of the six function buttons; define the behavior of the up/down button; specify if scene raise/lower will be enabled; and define the entry action, the exit action, and motion sensor timeout when the motion sensor function is enabled. You can also launch the Crestron Engraver software program to create an engraver project for the CLS-C6 function buttons label.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

NOTE: In systems with multiple CLS-C6 units that have the motion sensor function enabled, it is important to set the motion sensor timeout of each unit to the same value.

Keypads

The Keypads screen allows you to add up to 16 remote keypads; specify the remote keypad type; define the action type, action, and target of each button on that keypad. You can also launch the Crestron Engraver to create an engraver project for each remote keypad.

NOTE: All keypads defined in the project must be installed and present on the CLS-C6 network before setting Network IDs via the Finish screen.

Finish

The Finish screen allows you to send your iLux Designer project to the CLS-C6; set the Net IDs for network devices; retrieve configuration information from the current CLS-C6 module; and print reports that give the spreadsheet data from each of the configuration screens.

Console Command Settings

Enabling/disabling IR reception, resetting the brightness level for the white and green LEDs, and resetting the Glow mode level can be done only via console commands.

By default, IR reception is enabled, the white and green LED brightness levels are set to 70 and 63, respectively, and the white LED Glow mode level is set to 7. If the settings are acceptable, continue with the configuring procedures. If these settings are not satisfactory, open the Crestron Toolbox and click Tools | Text Console to display the “Text Console” window, and follow the instructions given below.

IR Reception

1. At the iLux> prompt, type <IR> and press Return to display the current

setting. The system displays:

IR reception is enabled (or disabled) iLux>

2. To disable IR reception, type <IR disable> and press Return. The system

displays:

IR reception is disabled iLux>

3. To enable IR reception, type <IR enable> and press Return. The system

displays:

IR reception is enabled iLux>

LED Brightness

These settings are for the white LEDs next to the function buttons and the ON button, the shift LEDs, and the green bargraph LEDs.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 23

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

1. At the prompt, type <WHITELEDLEVEL> or <GREENLEDLEVEL>

and press Return. The system displays, for example:

White led brightness level = 70 iLux>

2. To change the brightness, type <WHITELEDLEVEL ##> or

<GREENLEDLEVEL ##> where ## is any number from 1 to 100.

3. When you press Return, the respective LEDs go to their new level.

Glow Mode Brightness

Glow mode is enabled when all lighting loads are turned off. In Glow mode, all the white LEDs turn on at a very low level to make it possible to find the unit in a darkened room.

1. Press the OFF button to select the Off scene (all lights off).

2. At the prompt, type <WHITELEDGLOWLEVEL> and press Return.

The system displays:

White led glow level = 7 iLux>

3. To change the brightness, type <WHITELEDGLOWLEVEL ##> where ##

is any number from 1 to 100. (The glow level should be much lower than the normal LED brightness.)

4. When you press Return, the white LEDs go to their new level.

Replacing the Function Button Label

Each CLS-C6 is supplied with a pre-printed label sheet, in white, almond, or black to match the unit’s color. The sheet contains two labels showing the standard Scene 1 – Scene 6 button labels, three labels with clear spaces that permit you to write in single line button names, and three labels with clear spaces that permit you to write in two-line button names to accommodate shift functions. The label sheet is microperforated to make it easy to separate the desired label from the sheet. Carefully fold the sheet along the perforations to snap them apart.

1. To replace the label on the unit, remove the front panel assembly by

carefully pulling out and up from the bottom edge.

2. Carefully pull the label cover from the top edge at each side of the unit.

Refer to the following illustration.

3. Remove the original label and replace it with the new label.

4. Replace the label cover, make sure the small tabs on the bottom edge are

inserted in the slots on the unit cover, and snap into position.

5. Install the front cover assembly on the unit by lining it up at the top and

pressing the bottom edge until it snaps into position.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 25

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Programming Software

IMPORTANT NOTE: The procedures in this section relate to creating a program that can include the CLS-C6, not to programming the CLS-C6 itself. If it is to be part of a 2-Series control system, you must first configure the unit using the iLux™ Designer program or configure it manually using the front panel controls. Then use SIMPL Windows, D3 Pro™, or Crestron SystemBuilder™ to communicate with a 2-Series control system. Individual button functionality is not available except through configuring the CLS-C6 itself.

Have a question or comment about Crestron software?

Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or vie w questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. First-time users will need to establish a user account.

Earliest Version Software Requirements for the PC

NOTE: Crestron recommends that you use the latest software to take advantage of the most recently released features. The latest software is available from the Crestron website.

Crestron has developed an assortment of Windows-based software tools to develop a Cresnet system. The following are the minimum recommended software versions for the PC:

Software

TASK REQUIRED SOFTWARE VERSION

Program control system to operate a CLS-C6.

Upload program and firmware. Crestron Toolbox 1.01.11 or later. Create labels for front panel buttons. Crestron Engraver 2.5.0 or later. Program with simple wizards for

systems using a CLS-C6 (optional but recommended).

SIMPL Windows version 2.06.20 or later with SIMPL+ Cross Compiler version 1.1 or later and Library update 350 or later; Also requires Crestron Database version 17.3.0 or later.

Crestron SystemBuilder™ version 2.0.6 or later. Refer to software release notes or Crestron website for other required Crestron software packages.

Programming with Crestron SystemBuilder/D3 Pro

Crestron SystemBuilder is the easiest method of programming, but does not offer as much flexibility as SIMPL Windows. Crestron D3 Pro similarly offers automatic programming for lighting and HV AC projects.

For additional details, download SystemBuilder and D3 Pro from the Crestron website and examine their extensive help files.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Programming with SIMPL Windows

NOTE: While SIMPL Windows can be used to program a system that includes a CLS-C6, it is recommended to use SystemBuilder for configuring a Crestron control system.

SIMPL Windows is Crestron’s premier software for programming Crestron control systems. It is organized into two separate, but equally important “Managers”.

Configuration Manager

Configuration Manager is the view where programmers “build” a Crestron control system by selecting hardware from the Device Library.

• To incorporate the CLS-C6 into the system, drag the CLS-C6/CLS-C6M from the Lighting folder of the Device Library and drop it in the System Views.

Locating the CLS-C6 in the Device Library

• The system tree of the control system displays the device in the appropriate slot with a default Net ID as shown in the following illustration.

C2Net Device, Slot 9

• Additional CLS-C6 devices are assigned different Net ID numbers as they are added.

• If necessary, double click a device to open the “Device Settings” window and change the Net ID, as shown in the following figure.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 27

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

“CLS-C6 Device Settings” Window

• The ID code specified in the SIMPL Windows program must match the Net ID of each unit.

Programming Manager

Programming Manager is the view where programmers "program" a Crestron control system by assigning signals to symbols. The symbol can be viewed by double clicking on the icon or dragging it into Detail View. A descr i pt i on f or each si gnal i n the symbol is described in the SIMPL Windows help file (F1).

Example Program

An example program for the CLS-C6 is available from the Crestron website (http://www.crestron.com/exampleprograms).

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Uploading and Upgrading

Crestron recommends using the latest programming software and that each device contains the latest firmware to take advantage of the most recently released features. However, before attempting to upload or upgrade, it is necessary to establish communication.

Establishing Communication

Use Crestron Toolbox for communicating with the CLS-C6; refer to the Crestron Toolbox help file for details. There are two methods of communication

Direct Serial Communication

Indirect Serial Communication

Direct Serial Communication

• The RS-232 mini phone jack port on the CLS-C6 connects to the serial port

on the PC via the supplied serial cable.

• Use the Address Book in Crestron Toolbox to create an entry using the

expected serial communication protocol (RS232, auto-detect baud rate, no parity, 8 data bits, 1 stop bit, XON/XOFF disabled, RTS/CTS disabled).

• Display the CLS-C6’s “System Inf o” window (click the

communications are confirmed when the device information is displayed.

Indirect Serial Communication

• The CLS-C6 (CONTROL SYSTEM port) connects to the control system

via Cresnet.

• Establish communications between the PC and the control system as

described in the latest version of the 2-Series Reference Guide (Doc. 6256).

icon);

Programs and Firmware

• Upload the SIMPL Windows file to the control system using SIMPL

Windows or Crestron Toolbox.

• For Indirect Serial Communication with the CLS-C6, display the network

device tree (Tools | Network Device Tree) to show all network devices connected to the control system. Right-click on the CLS-C6 to display actions that can be performed on the CLS-C6:

Upgrade firmware ⇒

⇒

Change Net ID

⇒

Change serial number

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 29

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

• For Direct Serial Communication with the CLS-C6, display the “System Info” window (select Tools | System Info, or click the

Select Functions | Firmware… to upgrade the CLS-C6 firmware. ⇒

⇒ Select Functions | Cresnet ID… to change the CLS-C6 Net ID

For details on uploading and upgrading, refer to the SIMPL Windows help file or the Crestron Toolbox help file.

icon).

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Operation

The iLux always operates in one of four modes. The Setup mode is used to redefine many of the CLS-C6 settings. Details regarding the Setup mode are given in “Setup Mode” on page 13.

The following sections provide detailed descripti o ns of the Standard, Lights, and Shades modes. It is important to have a good understanding of these operating modes before attempting to take advantage of the extensive features available through the CLS-C6. (Refer also to “Appendix D: Button Functions” on page 46 for details on button functions.)

Standard Mode

Standard mode is the default mode; buttons are typically used to recall scenes, although they can be redefined to serve other functions.

• By default, the six function buttons acro s s the front panel are simple scene recall buttons. The buttons can be reprogrammed in Setup mode, or via the iLux Designer program, to perform different actions.

• The ON button function always recalls the “On” scene. The typical On scene is all lights at 100%; however, other value can be set just like any other scene.

• The OFF button function always recalls the “Off” scene. The “Off” scene always sets all lights to 0%; however, fade time and shade motor behavior are programmable.

• Whenever all the lighting loads are off (irrespective of how they are turned off), the “air-gap” relay will open (after a two-second delay), to allow servicing of the lighting loads.

• The Up/Down pushbutton can be defined to be either “lights master” or “shades master.”

− If defined to be lights master, it ramps the lighting loads included in the

most recently recalled scene up and down. Non-dim loads are not affected.

− If defined to be shades master, all shade groups are affected. Refer to

“Shades Mode” on page 35 for operating details.

− Using the iLux Designer program, this button may be assigned to activate

the Shift function rather than being a lights or shades master. Pressing the button will toggle between “upper” and “lower” function sets.

− Using the iLux Designer software, it is also possible to assign this button as

“all lights” master, instead of “last scene” master.

• The six bargraphs indicate current intensity for each of the six lighting loads.

• The two-digit display is normally blank, except when a scene recall is in

progress. It then shows the time remaining for lights to reach their target values.

Button Types

In Standard mode, the six function buttons can be programmed in Setup mode to be one of the following types. Using the iLux Designer software, other button functions may be specified. (Refer to “Configuring With iLux Designer” on page 21 for details.)

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 31

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

• Recall-scene (specify scene number OFF, ON, 1-15). Refer to “Recall-scene buttons” below.

• Toggle-scene (specify scene number ON, 1-15). Refer to “Toggle-scene buttons” on page 33.

• Lighting master raise/lower (last scene). Refer to “Master (Last Scene) Raise/Lower buttons” on page 33.

• Lighting master raise (last scene). Refer to “Lighting Master (Last Scene) Raise buttons” on page 33.

• Lighting master lower (last scene). Refer to “Lighting Master (Last Scene) Lower buttons” on page 33.

• Shade control (open/stop/close/stop) (specify shade group: AL, 1-6). Refer to “Shade Control (open/stop/close/stop) Buttons” on page 33.

Recall-scene buttons:

• Used to recall a scene, i.e., have the specified lighting loads and/or shade groups go to their specified levels in the specified time. (Time only affects lighting loads; shade time is function of the shade motor.)

− During scene recall, the scene LED flashes until all affected lig hting loads

reach their target levels. After this, the LED remains on steady.

− Pressing a scene button while its LED is flashing performs a scene cut

(lights immediately go to target levels).

− When a scene is recalled, the two-dig it display will initially show the fade

time of the scene, and then count down to 0 as the scene progresses.

− For the six dual buttons, if the Raise/Lower function is enabled on Recall-

scene buttons via the iLux Designer software, and a scene is selected (LED on steady), the right and left sides of the function button can be used to raise and lower all dimmable lighting loads contained in that scene.

− The ON button always acts as a recall scene button for the ON scene,

operating identically to other scene-recall buttons, except that items specific to dual buttons do not apply.

− The OFF button always acts as a recall scene button for the OFF scene,

operating identically to other scene-recall buttons, except:

1. There is no LED associated with this button. Note that “cut” during fade will still function. Note also that a feedback LED for an OFF button on remote keypads will act as all other scene recall LEDs – it will flash while the off scene is being recalled, and will be lit when the unit is in the OFF scene.

2. Items specific to dual buttons do not apply.

3. Note that if the last scene recalled was the OFF scene, the last scene master will affect all dimmable lighting channels (since they are all included in the “last scene”).

4. Any time all six lighting loads are off, all seven of these LEDs will glow at a low intensity (to allow finding the CLS-C6 unit in the dark).

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Toggle-scene buttons

• Used to alternately recall a scene or turn scene lights off (i.e., have the specified lighting loads go to off, in the specified time).

• The toggle scene function should not be assigned to any scene that includes shades.

• Note that the ON and OFF buttons are fixed recall scene buttons, and cannot be defined to be toggle. (However, a remote keypad button can be defined to toggle the ON scene, but not the OFF scene.)

• The LED is on if and only if ANY lighting load in the scene is above 0% (ignores state of shades).

• Pressing the button while all lights are off (LED off) will recall a scene. Pressing it while any lights are on (LED on) will turn that scene’s lights off.

• During scene recall, the scene LED will flash until all affected lighting loads reach their target levels. After this the LED will remain on steady until all affected lights go off.

• During scene turn off, the LED will flash until all affected lighting loads reach 0%. After this, the LED will be off until any affected light turns on.

• Pressing a scene button while its LED is flashing performs a scene cut (during either recall or turn off).

• Behavior of the two-digit display is the same as for scene recall.

Master (Last Scene) Raise/Lower buttons

• Press the right side to raise lights, the left side to lower, release to stop.

• All dimmable lighting loads will be ramped up or down at a fixed rate, which is

the same rate as used for individual up/down operation in Lights mode.

• Non-dim lighting loads will not be affected.

• The feedback LED will light while the button is being pressed.

Lighting Master (Last Scene) Raise buttons

• Same as Master Raise/Lower button, except that pressing any part of the button will raise lights.

Lighting Master (Last Scene) Lower buttons

• Same as Master Raise – except lowers lights instead of raising them.

Shade Control (open/stop/close/stop) Buttons:

• Used to control the specified shade group, or all shade groups.

• Press the right side of the function buttons to open the shades; press the left side

to close them. Press the button while the shade is moving to stop it.

• The feedback LED will be on only while a button is pressed.

IR Receiver

Functions can also be triggered through the built in RC5 IR receiver, using the optional remote control.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 33

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Occupancy Sensing

Occupancy sensing may have specific actions specified for entry and for exit. Either or both of these may be disabled. A limited number of actions are available when programmed locally; more options are available when programmed using the iLux Designer program.

If motion is detected, or some other activity takes place, a room is considered occupied. If no activity takes place for a specified time (default is 30 minutes), the room is considered unoccupied.

When the state of the room changes from occupied to unoccupied, the exit function (if enabled) will be executed. When the state of the room changes from unoccupied to occupied, due to motion detection, the entry function (if enabled) will be executed. When the state of the room changes from unoccupied to occupied due to a button press or the receipt of a command, no function will be executed.

NOTE: In systems with multiple CLS-C6 units that have the motion sensor function enabled on any of the units, it is important to set the motion sensor timeout of each unit to the same value. Otherwise, operation may not be as expected.

Lights Mode

Lights mode is used to manually adjust any of the six lighting loads. To enter Lights mode, raise the cover and press the Lights button. The

corresponding LED will light, and the six function buttons can now be used to adjust lighting loads 1 through 6. Any scenes that are currently in the middle of a fade will immediately go to their target value. The seven white front panel LEDs will go out. In this mode, these LEDs do not reflect the feedback status of the associated scenes. When you return to Standard mode, the LEDs will return to their standard feedback indication.

Pressing the right side of one of the six function buttons raises the corresponding lighting load at the ramp rate. Pressing the left side of the button lowers the corresponding load at the ramp rate. When the button is released, the lights will stop.

• The ramp rate is normally five seconds for going from full off to full on. This can be adjusted using the iLux Designer software. Non-dim lighting loads go immediately to full on or full off.

• The bargraphs indicate current light level.

• The two-digit display will indicate the current percentage level of the lighting

load being adjusted (oF, 01 to 99, on). This display goes blank three seconds after the last adjustment. While the front panel button is being pressed, the LED under the corresponding bargraph will be lit solid to indicate which light level is being reflected.

• The Up/Down button will act as an All Lights Master when in Lights mode, no matter what function is programmed for it. The top button will do Master Raise (all dimmable lighting loads), and the bottom button will do Master Lower (all dimmable lighting loads).

• The ON and OFF buttons on the CLS-C6 unit itself will operate normally while in Lights mode as will any Scene Recall, Scene Toggle, and SceneLts_Off commands from remote panels and Cresnet. However, during the fade, the twodigit display will not show the fade time on the unit that is in Lights mode.

• All other inputs and commands from any remote devices, motion detector, and Cresnet Control system will be processed as usual while in Lights mode. If they affect the lighting load (or loads) being adjusted, the manual adjustment of that

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

lighting load will terminate, and the new command will take precedence. To manually adjust this channel after that, you must release and re-press the button. The unit remains in Lights mode.

To exit Lights mode, press the Lights button again (or press Cancel), and the LED will go off. The unit is now back in Standard mode. (Also, if no adjustments are made within one minute, the unit reverts to Standard mode.)

Pressing the Shades button automatically exits Lights mode and enters Shades mode.

Shades Mode

Shades mode allows you to manually control any of the six shade groups. To enter Shades mode, raise the cover and press the Shades bu tton. The

corresponding LED will light, and now the six function buttons can be used to adjust shade groups 1 through 6. Any scenes that are currently in the middle of a fade will immediately go to their target value. The seven white front panel LEDs will go out. In this mode, these LEDs do not reflect the feedback status of the associated scenes. When the unit is returned to Standard mode, these LEDs will return to their standard feedback indication.

• The six function buttons act as open/stop/close/stop (rocker type) for each of the

corresponding six shade groups.

• Operation is as described for the Shade Control button type in Standard mode

(page 31.)

• For shade groups with C2N-SSC-2 controllers:

− While in Shades mode, the bargraphs indicate the current shade position.

− The two-digit display will indicate the current percentage level of the shade

group being adjusted (CL, 01 to 99, OP).

− The two-digit display disappears (goes blank) three seconds after the shade stops moving (due to either a stop command or reaching a limit of travel).

Note that the two-digit display only shows the shade level when being adjusted from front panel buttons in Shades mode or scene programming. It does not display when adjusting levels from a remote panel or Cresnet.

• For shade groups with C2N-SDC or C2N-SDC-DC controllers:

− Bargraphs initially display nothing while a shade is not moving. While the

shade is moving open, the bargraph LEDs scroll in an upward direction. While moving closed, the bargraph LEDs scroll in a downward direction. When the shade is stopped or the maximum time is reached, the bargraph will turn off.

− The two-digit display will show “OP” or “CL” accordingly.

− The Up/Down button will act as a shades master when in Shades mode, no

matter what function is programmed for it. Pressing the top while the shade is stopped sends it to full open; pressing the bottom while the shade is stopped sends it to full close; pressing anything while the shade is moving stops it. Pressing both while the shade is stopped causes the shade to move in the opposite direction.

− The ON and OFF buttons on the CLS-C6 unit itself, will operate normally while in Shades mode. The same is true for all scene recall or scene toggle functions triggered by remote panel or Cresnet command.

− Inputs/commands from any remote devices, motion detector, and Cresnet control system are processed as usual while in Shades mode. If they affect

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 35

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

the group (or groups) being adjusted, the manual adjustment of that shade group terminates, and the new command takes precedence. To manually adjust this channel after that, you must release and re-press the button. The unit remains in Shades mode.

To exit Shades mode, press the Shades button again (or press the Cancel button); the LED will go off and the unit returns to Standard mode. Also, pressing the Lights button automatically exits Shades mode and enters Lights mode.

If no adjustments are made for one minute, the unit automatically reverts to Standard mode.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Problem Solving

Troubleshooting

The table below provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.

CLS-C6 Troubleshooting

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

Unit does not function.

Loads turn on and off, but do not dim.

Lights flicker at low levels.

In a multi-unit room configuration, commands from a remote IR controller cause loads to cut to their settings rather than fade.

Motion detector does not function.

Unit is not receiving line power.

Loads are not connected.

Wrong load type settings.

Incorrect low-end limit setting.

More than one iLux unit picking up IR command.

Occupancy sensor function is not enabled.

Verify that the unit is properly connected to the power line and that the circuit breaker is closed.

Verify that the loads are operational and that they are connected to the CLS-C6 unit.

Correct load type settings.

Change low-end limit setting.

Disable IR function on all but one unit.

Use iLux Designer or front panel setup function to enable occupancy sensor.

Use the Right Wire

Calculate Power

Check Network Wiring

In order to ensure optimum performance over the full range of your installation topology, Crestron Certified Wire, and only Crestron Certified Wire, may be used. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire.

CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do so could cause equipment damage or void the Crestron warranty.

CAUTION: Provide sufficient power to the system. Insufficient power can lead to unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (http://www.crestron.com/calculators

When calculating the length of wire for a particular Cresnet run, the wire gauge and the Cresnet power usage of each network unit to be connected must be taken into consideration. Use Crestron Certified Wire only. If Cresnet units are to be daisy-chained on the run, the Cresnet power usage of each network unit to be daisy-chained must be added together to determine the Cresnet power usage of the entire chain. If the unit is a home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The wire gauge and the Cresnet power usage of the run should be used in the following equation to calculate the cable length value on the equation’s left side.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 37

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Cable Length Equation

Strip and Tin Wire

Add Hubs

L = Length of run (or chain) in feet R = 6 Ohms (Crestron Certifi ed Wi re: 18 AWG (0.75 MM ))

or 1.6 Ohms (Cresnet HP: 12 AW G (4 MM ))

P = Cresnet power usage of entire run (or chain)

L <

40,000

Where:

R x P

Make sure the cable length value is less than the value calculated on the right side of the equation. For example, a Cresnet run using 18 AWG Crestron Certified Wire and drawing 20 watts should not have a length of run more than 333 feet. If Cresnet HP is used for the same run, its length could extend to 1250 feet.

NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One twisted pair is the +24V conductor and the GND conductor, and the other twisted pair is the Y conductor and the Z conductor.

When daisy-chaining Cresnet units, strip the ends of t he wi r es care full y to avoi d ni cking the conductors. Twist together the ends of the wires that share a pin on the network connector, and tin the twisted connection. Apply solder only to the ends of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle. Insert the tinned connection into the Cresnet connector and tighten th e retaining screw. Repeat the procedure for the other three conductors.

For larger networks (i.e., greater than 28 network devices), it may become necessary to add a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality throughout the network. Also, for networks with lengthy cable runs, it may be necessary to add a Hub/Repeater after only 20 devices.

Reference Documents

The latest version of all documents mentioned within the guide can be obtained from the Crestron website (http://www.crestron.com/manuals). This link will provide a list of product manuals arranged in alphabetical order by model number.

List of Related Reference Documents

DOCUMENT TITLE

2-Series Control Systems Reference Guide CAT5 Wiring Reference Guide Crestron e-Control Reference Guide RoomView Reference Guide

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling the Crestron corporate headquarters at 1-888-CRESTRON [1-888-273-7876]. For assistance in your local time zone, refer to the Crestron website (http://www.crestron.com/) for a listing of Crestron worldwide offices.

You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of the CLS/CLSI-C6 and CLS/CLSI-C6M lighting systems, additional information and programming examples may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 39

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Appendix A: Supported Devices

The CLS-C6 local devices network supports up to 16 remote devices consisting of keypads, shade controllers, and additional CLS-C6 units.

Keypads

Up to 16 keypads can be added on the local devices network. The following table lists default button functions for the keypad types currently supported. These settings can be changed using the front panel Setup mode or via iLux Designer.

KEYPAD

TYPE

CNX-B2 1 Recall ON Scene 2 Recall OFF Scene

CNX-B4

CNX-B6 / C2N-DB6

CNX-B8 / C2N-DB8

CNX-B12 / C2N-DB12

BUTTON

FUNCTION BUTTON # FUNCTION

1 Recall ON Scene 2 Recall OFF Scene 3 Last Scene Up 4 Last Scene Down 1 Recall Scene 1 2 Recall Scene 2 3 Recall Scene 3 4 Recall Scene 4 5 Recall OFF Scene 6 Recall ON Scene 1 Recall Scene 1 2 Recall Scene 2 3 Recall Scene 3 4 Recall Scene 4 5 Last Scene Down 6 Last Scene Up 7 Recall OFF Scene 8 Recall ON Scene 1 Recall Scene 1 2 Recall Scene 2 3 Recall Scene 3 4 Recall Scene 4 5 Recall Scene 5 6 Recall Scene 6 7 Recall Scene 7 8 Recall Scene 8 9 Last Scene Down 10 Last Scene Up

11 Recall OFF Scene 12 Recall ON Scene

Shade Controllers

A maximum of 16 shade controllers can be added to the local devices network. The following shade controllers are currently supported:

C2N-SSC-2* C2N-SDC C2N-SDC-DC Note that the two channels on these shade controllers are labeled 1&2. SIMPL

Windows cannot address the individual Shade Controllers. Only shade groups can be addressed.

* With firmware version 2.5.0 or later

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Appendix B: Console Commands

Console commands are available through the Crestron Toolbox program.

1. Select Text Console from the Tools menu.

2. At the prompt, enter HELP ALL and press Return. The system displays:

iLux>HELP ALL

? display list of common commands CNETID display or set the cresnet id GETCONFIG get project file from iLux GREENLEDLEVEL display or set the green leds brightness level HELP display list of available categories INFO display additional device information IR display or enable/disable IR reception PROJECTINFO display detailed project file information PUTCONFIG load project file to iLux REBOOT reboot the iLux REPORTCRESNET show all devices on the local network RESTORE set all parameters to factory default SYSTEM load firmware to iLux UPLOAD load firmware to cresnet device on the local

network VERSION display firmware version number WHITELEDLEVEL display or set white leds brightness level WHITELEDGLOWLEVEL display or set white leds glow brightness level

iLux>

The commands are presented alphabetically in the following listing. Details about each command include a description of the command, a list of help menus that contain the command, the proper syntax for entering the command, and definitions of parameters that may be included in the syntax. Note that the console commands are case insensitive.

? Description: This command produces a list of the most used common commands. Help Menu(s): Main, Common Syntax: ? Parameters: None CNETID Description: Use this command to set or display the Cresnet ID of the CLS-C6 as a slave device. Help Menu(s): System, Common Syntax: CNETID <ID>

Parameters: <03…FE> to set the ID

GETCONFIG Description: Use this command to get project file information from the CLS-C6. Help Menu(s): File Syntax: GETCONFIG PROJECT Parameters: PROJECT to get the project file from iLux

CNETID none to display the current ID

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 41

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

GREENLEDLEVEL

Description: Use this command to display or set the green LED level on the CLS-C6.* Help Menu(s): Device Syntax:

Parameters: <0…000> - to set the green LED brightness level *Refer to “LED Brightness” on page 23 for details.

HELP

Description: Use this command to display a list of help categories. Help Menu(s): Main, Common Syntax:

Parameters: ALL - to display a list of all commands

INFO

Description: Use this command to display additional device information.* Help Menu(s): Common, System Syntax: INFO Parameters: None

GREENLEDLEVEL <0..100> set the green leds brightness to level <0..100> GREENLEDLEVEL display the green leds brightness level <0..100>

None – to display the current green LED brightness

HELP HELP ALL HELP [CATEGORY] - show list of commands in category

CATEGORY - to show a list of commands in that category None - to display a list of all categories

*For example, this command would produce information similar to the following:

Application version : 1.01.02 Loader version : 1.16.00 Config data version : 1.1 User data version : 1.0

IR Description: Use this command to display or enable/disable IR reception.* Help Menu(s): Device Syntax:

Parameters: ENABLE to enable the IR receiver

IR <ENABLE…DISABLE> DISABLE to disable the IR receiver

None to display the current state

*Refer to “IR Reception” on page 23 for details.

PROJECTINFO Description: Use this command to display the project file name, the date and time it was compiled, version and

Help Menu(s): Device Syntax: PROJECTINFO Parameters: None

change flags.*

*For example, this command would produce information similar to the following:

Project file name : Conference Room.ilx Date : 9/9/05 Time : 3:13:21 PM Config data version : 1.1 User data version : 1.0 Change flags : 00000000

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

PUTCONFIG*

Description: Use this command to load the project file to the CLS-C6 Help Menu(s): File Syntax: PUTCONFIG PROJECT Parameters: PROJECT – The only valid parameter value

REBOOT Description: Use this command to reboot the CLS-C6 Help Menu(s): Common Syntax: REBOOT Parameters: None

REPORTCRESNET Description: Use this command to report devices on the local network Help Menu(s): Common Syntax: REPORTCRESNET <ID>

Parameters: <03…FE> to identify a specific device

RESTORE Description: Use this command to set all project configuration and parameters to the factory default settings. Help Menu(s): System Syntax: RESTORE ALL Parameters: ALL the only valid value for this parameter

SYSTEM* Description: Use this command to load firmware to the CLS-C6. Help Menu(s): File Syntax: SYSTEM Parameters: None

UPLOAD* Description: Use this command to load firmware to the slave device on the local network. Help Menu(s): File Syntax: UPLOAD <ID> FIRMWARE Parameters: <03…FE>

VERSION Description: Use this command to display the firmware version number.* Help Menu(s): Common Syntax: VERSION Parameters: None

REPORTCRESNET ALL ALL – To show all devices on the network

FIRMWARE – the only valid value for this parameter

*For example, this command would produce information similar to the following:

CLS-C6M Lighting Controller with Motion [v1.00.04, #FFFD6899]

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 43

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

WHITELEDLEVEL

Description: Use this command to display or set white LEDs brightness level* Help Menu(s): Device Syntax:

Parameters: <0..100> to set brightness level

*Refer to “LED Brightness” on page 23 for details.

WHITELEDGLOWLEVEL Description: Help Menu(s): Device Syntax: WHITELEDGLOWLEVEL <nnn>

Parameters: <0 100> to set glow level

Refer to “Glow Mode Brightness” on page 24 for details. *These functions are typically done using Toolbox or iLux Designer menu commands.

WHITELEDLEVEL <nnn> WHITELEDLEVEL

none to display current brightness level

Use this command to display or set white LEDs glow brightness level*

WHITELEDGLOWLEVEL none to display current glow level

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Appendix C: Factory Default Values

ITEM DEFAULT VALUE

All lighting load types. Incandescent All Low End limits 0% All High End limits 100% Function buttons recall scenes 1-6 Up/Down button lights (Last Scene Master). Occupancy sensing

Off scene 2 second fade, no shades. (lighting loads fixed at 0%) On Scene 2 seconds fade, all 6 lighting loads to 100%, no shades. Scene 1 2 seconds fade, all 6 lighting loads to 15%, no shades. Scene 2 2 seconds fade, all 6 lighting loads to 30%, no shades. Scene 3 2 seconds fade, all 6 lighting loads to 45%, no shades. Scene 4 2 seconds fade, all 6 lighting loads to 60%, no shades. Scene 5 2 seconds fade, all 6 lighting loads to 75%, no shades. Scene 6 2 seconds fade, all 6 lighting loads to 90%, no shades. Scene 7 2 seconds fade, all 6 lighting loads to 15%, no shades. Scene 8 2 seconds fade, all 6 lighting loads to 30%, no shades. Scene 9 2 seconds fade, all 6 lighting loads to 45%, no shades. Scene 10 2 seconds fade, all 6 lighting loads to 60%, no shades. Scene 11 2 seconds fade, all 6 lighting loads to 75%, no shades. Scene 12 2 seconds fade, all 6 lighting loads to 90%, no shades. Scene 13 2 seconds fade, all 6 lighting loads to 15%, no shades. Scene 14 2 seconds fade, all 6 lighting loads to 30%, no shades. Scene 15 2 seconds fade, all 6 lighting loads to 45%, no shades. Scene front panel lockout All scenes not locked out Raise/Lower on scene recall

buttons Shade jog time 0.05 sec Shade max time 1 minute Shade lockout time 1 sec. Scene programming Unlocked for all scenes. Scene mastering Disabled Manual Fade Rate. Set to five seconds (for full travel) Green LED brightness level 63 White LED brightness level 70 White LED glow level 7

OFF scene on exit - disabled ON scene on entry - disabled Timeout = 30 minutes

Disabled

The Cresnet ID (default=1F) in the configuration memory will not be affected by the Fd function (unless configuration data is corrupt).

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 45

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Appendix D: Button Functions

Following is a list of button functions, in table format, one function per table. Each table lists Behavior, LED Action, Applies to, Rocker behavior, and Notes. Some topics may not apply to certain button types; this is defined in the “Applies to” row.

There are four classes of buttons to be considered:

• Standard Rocker: these are the six function buttons on the front p ane l of the

CLS-C6, while the CLS-C6 is in Standard mode and the shift flag is not set.

• Shifted Rocker: these are the same physical buttons as the Standard Rocker, but

are active when the shift flag is set.

• Up/Down Rocker: this is the vertical button on the face of the CLS-C6.

• Remote Button: these are single-action (i.e. non-rocker) buttons located on

remote keypads.

Function name Recall Scene (off, on, 1-15) Behavior Fades specified lights to specified levels in the specified time. (Non-dim

LED action Flash while lights are actively fading, Scene-interlocked* afterwards.

Applies to Standard Rocker, Shifted Rocker, Remote Button Rocker

behavior

Notes The ON and OFF buttons always recall the On and Off Scene,

loads will switch at the beginning or end of the specified time, as determined by the Load Type option for each load.)

Also, sends specified shades to specified positions, (the time is determined by the motor).

Note that the off scene is special in that you cannot specify which lighting loads are affected, or what their target levels should be – all lighting loads go to full off (definitely causing air-gap relay to open). Fade time and shade behavior can still be specified.

(Note that for Recall Off Scene, LED will be on when all lights are off.) *LED will go on when scene is recalled. LED will remain on until another

scene is recalled (or Lights_in_Scenex_Off is executed) which has overlapping lighting load or shade group programming. That is, a scene which affects at least one common lighting load or shade group.

If the “Enable Raise/Lower on Scene Recall Buttons” option is set in iLux Designer, the right and left rockers perform “Scene Raise” and “Scene Lower” functions if, and only if, the scene feedback LED for that button is lit.

If the “Enable Raise/Lower on Scene Recall Buttons” option is not set, then the right, left, and center press all do the same thing.

respectively. The assigned functions cannot be changed.

Function name Turn Off Scene Lights (on, 1-15) Behavior Same as Recall Scene button, except:

a) All lights affected by the scene go to off level. b) Shades are not affected.

Note that the list of unaffected lighting loads and the fade time are the

same as for the Recall Scene function. LED Flash while lights are fading, off when fade is done. Applies To Remote Button Rocker

Behavior Notes N/A

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

N/A

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Function name Toggle Scene (on, 1-15) Behavior Alternates between “Recall Scene” and “Turn Off Scene Lights” actions

LED Flash while lights are actively fading (either direction). On when any

Applies To Standard Rocker, Shifted Rocker, Remote Button Rocker

Behavior

Notes Toggle function intended only for scenes that do not affect shades.

Function name Raise Lighting Load (1-6) Behavior The specified lighting load will be raised as long as the button is held – it

LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes This is same as pressing the right side of front panel function button

for the specified scene. In determining which action should be executed, the CLS-C6 will check the state of all lights programmed in the scene. If any light in the scene is on, this function will cause the lights to go off. If all lights in the scene are off, this function will recall the scene.

light in scene is on, while not fading.

If the “Enable Raise/Lower on Scene Recall Buttons” option is set, then the right and left rockers perform “Scene Raise” and “Scene Lower” functions, whether or not scene feedback LED for that button is lit. To toggle the scene, center of button must be pressed.

If the “Enable Raise/Lower on Scene Recall Buttons” option is not set, then the right, left, and center press all do the same thing.

will stop when button released. Rate is the global ramp rate. If they hit the High End limit, the lights will stop at that point, but the

bargraph display will continue to rise. If going up from OFF, lights will immediately go to the Low End limit, and the bargraph display will start rising from 0. When the display (i.e.: the internal ramp value) reaches the Low End limit, the light will start moving up in sync.

For non-dim load, lights will immediately go to full on.

N/A

when in Lights Mode.

Function name Lower Lighting Load (1-6) Behavior Specified lighting load will be lowered as long as button is held – will

LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes This is same as pressing the left side of front panel function button

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 47

stop when button is released. Rate is the global ramp rate. If loads hit the Low End limit, the bargraph will continue to go down, but

lights will stay at Low End limit level until reach OFF – at which point they will turn off.

If starting from above the High End limit, the bargraph will start to go down, but lights will stay at High End limit level until display reaches the High End limit – then the light and bargraph will start moving in sync.

For non-dim load, lights will immediately go to full off.

N/A

when in Lights Mode.

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Function name Raise/Lower Lighting Load (1-6) Behavior Pressing left side of button will act same as Lower Lighting Load.

LED On while left or right button is pressed Applies To Shifted Rocker Rocker

Behavior Notes N/A

Function name Master Raise Lighting Loads (Last Scene, All Lights, On scene, Scenes

Behavior Same as Raise Lighting Load, except acts on all dimmable Lighting

LED On while button is pressed Applies To Standard Rocker, Shifted Rocker, Remote Button Rocker

Behavior Notes N/A

Pressing right side of button will act same as Raise Lighting Load.

Described in Behavior

1-15)

Loads affected by specified scene. All lights will ramp at the same rate.

Non-dim loads are not affected.

Shades are not affected.

Left, right, and center all do the same thing.

Function name Master Lower Lighting Loads (Last Scene, All Lights, On scene, Scenes

Behavior Same as Lower Lighting Load, except acts on all dimmable Lighting

LED On while button is pressed Applies To Standard Rocker, Shifted Rocker, Remote Button Rocker

Behavior Notes N/A

1-15)

Loads affected by the specified scene. All lights will ramp at the same

rate.

Non-dim loads are not affected.

Shades are not affected.

Left, right, and center all do the same thing.

Function name Master Raise/Lower Lighting Loads (Last Scene, All Lights, On scene,

Behavior Pressing left side of button will act same as Master Lower Lighting Loads.

LED On while button is pressed Applies To Standard Rocker, Shifted Rocker, Up/Down (Last Scene and All Lights

Rocker Behavior

Notes N/A

Scenes 1-15)

Pressing right side of button will act same as Master Raise Lighting

Loads.

For Up/Down button: bottom button = left button => lower.

top button = right button => raise.

only)

As specified under “Behavior”

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Function name Toggle-Dim Scene (on, 1-15) Behavior Similar to the “Toggle Scene” function, except that a maintained press

LED On when any light in scene is on Applies To Remote Button Rocker

Behavior Notes This function intended for use only on scenes that do not affect shades.

Function name Open Shades Full (All, Group 1-6) Behavior Sends the specified shades to Full Open position. LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes Shade commands with “All” parameter will only affect all the shade

of the button will cause the lights to enter “cycle-dim” mode. That is, all lights programmed in the specified scene will either raise or lower until the button is released. (Behavior is the same as Raise Scene function.) A subsequent maintained button press will cause the lights to dim in the opposite direction.

If the button is “tapped” instead of held down, it will behave identically to the “Toggle Scene” function.

N/A

groups connected to the given CLS-C6 module. They will not pass from one CLS-C6 module to another (either when directly connected or when linked through a Cresnet system). If you want to open all shades in a multi-unit system, define a scene to do that.

Function name Close Shades Full (All, Group 1-6) Behavior Sends the specified shades to Full Closed position. LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes Shade commands with “All” parameter will only affect all the shade

N/A

groups connected to the given CLS-C6 module. They will not pass from one CLS-C6 module to the other (either when directly connected or when linked through Cresnet system). If you want to close all shades in a multi-unit system, define a scene to do that.

Function name Stop Shades (All, Group 1-6) Behavior Stops the specified shades at current position. LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes Shade commands with “All” parameter will only affect all the shade

N/A

groups connected to the given CLS-C6 module. They will not pass from one CLS-C6 module to the other (either when directly connected or when linked through Cresnet system). To accomplish this function for all shades in a multi-unit system, use SIMPL programming.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 49

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Function name Open Shades Momentary (All, Group 1-6) Behavior Specified shades will move toward the Open position for as long as the

LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes Shade commands with “All” parameter will only affect all the shade

Function name Close Shades Momentary (All, Group 1-6) Behavior Specified shades will move toward the Closed position for as long as

LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes Shade commands with “All” parameter will only affect all the shade

button is pressed. Movement will stop when button is released.

N/A

groups connected to the given CLS-C6 module. They will not pass from

one CLS-C6 module to the other (either when directly connected or

when linked through Cresnet system). To accomplish this function for all

shades in a multi-unit system, use SIMPL programming.

the button is pressed. Movement will stop when button is released.

N/A

groups connected to the given CLS-C6 module. They will not pass from

one CLS-C6 module to the other (either when directly connected or

when linked through Cresnet system). To accomplish this function for all

shades in a multi-unit system, use SIMPL programming.

Function name Jog Shades Open (All, Group 1-6) Behavior Specified shades will move toward the Open position for the specified

LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes Jog time defaults to 0.05 sec. Other values can be set in iLux Designer.

Function name Jog Shades Closed (All, Group 1-6) Behavior Specified shades will move toward the Closed position for the specified

LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes Jog time defaults to 0.05 sec. Other values can be set in iLux Designer.

jog time, and then stop.

N/A

Shade commands with “All” parameter will only affect all the shade

groups connected to the given CLS-C6 module. They will not pass from

one CLS-C6 module to the other (either when directly connected or

when linked through Cresnet system). To accomplish this function for all

shades in a multi-unit system, use SIMPL programming.

jog time, and then stop.

N/A

Shade commands with “All” parameter will only affect all the shade

groups connected to the given CLS-C6 module. They will not pass from

one CLS-C6 module to the other (either when directly connected or

when linked through Cresnet system). To accomplish this function for all

shades in a multi-unit system, use SIMPL programming.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Function name Open Momentary/Open Full (All, Group 1-6) Behavior A quick tap of the button will perform a “Full Open”. A maintained press

LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes When changing direction, there may be a short time when the shade is

will perform a “Momentary Open” until the button is released. If the shade is already moving in the open direction, a tap will stop it:

So, if you tap the button once, it will start moving to full open; then if you tap it again, it will stop.

If the shade is moving in the close direction, a tap will send to full open. A longer press will do a “Momentary Open” until the button is released.

N/A

stopped before it starts moving in the opposite direction. This is the “lockout time” for the shade controllers. This time is fixed for the C2NSSC shades; it can be changed for the SDC and SDC-DC controllers via iLux Designer.

Shade commands with “All” parameter will only affect all the shade groups connected to the given CLS-C6 module. They will not pass from one CLS-C6 module to the other (either when directly connected or when linked through Cresnet system). To accomplish this function for all shades in a multi-unit system, use SIMPL programming.

Function name Close Momentary/Close Full (All, Group 1-6) Behavior Same as “Open Momentary/Open Full Shade Group 1-6”, except Close. LED On while button is pressed Applies To Remote Button Rocker

Behavior Notes Same as “Open Momentary/Open Full Shade Group 1-6.”

N/A

Function name Open/Stop/Close/Stop (All, Group 1-6) Behavior Function will alternate between the “Full Open”, “Stop” and “Full Close”

LED On while button is pressed Applies To Standard Rocker, Shifted Rocker, Remote Button, Up/Down (All only) Rocker

Behavior

Notes Shade commands with “All” parameter will only affect all the shade

commands for the specified shade group(s) each time the button is pressed.

Pressing center of the button will act same as non-rocker open/stop/close/stop. Pressing only one side of the button while stopped, will always send it in specified direction – rather than in opposite of last direction. Pressing any part of the button while shade is moving will stop it.

For Up/Down button bottom button = left button => close. top button = right button => open.

groups connected to the given CLS-C6 module. They will not pass from one CLS-C6 module to the other (either when directly connected or when linked through a Cresnet system). To accomplish this function for all shades in a multi-unit system, use SIMPL programming.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 51

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

Function name External Function (1-32) Behavior Activates the corresponding “press” digital signal (press1 – press32 on

LED On when the corresponding “fb” digital signal (fb1 – fb32 on the External

Applies To Shifted Rocker, Remote Button Rocker

Behavior Notes Note that these should only be assigned to a CLS-C6 unit that is directly

Function name Dual External Function (1/2 …31/32) Behavior Activates the corresponding “press” digital signal (press1 – press32 on

LED On if feedback for either join number is high, off if feedback for both join

Applies To Shifted Rocker Rocker

Behavior Notes Note that these should only be assigned to CLS-C6 unit that is directly

Function name Shift Behavior If Shift function is assigned to the Up/Down button in iLux Designer,

LED N/A Applies To Up/Down Rocker

Behavior Notes N/A

the External Functions slot) on the Cresnet System connected to the

CONTROL SYSTEM port. Signal will remain high for as long as the

button is pressed.

Functions slot) from the control system is high.

Left, right, and both all do the same thing

connected to a Cresnet control system, or to keypads connected to that

unit’s local devices network.

the External Functions slot) on the Cresnet System connected to the

CONTROL SYSTEM port. Signal will remain high for as long as the

button is pressed.

The left button corresponds to the lower number. The right button

corresponds to the higher number.

numbers is low.

See “behavior” above

connected to Cresnet control system. If assigned to unit that is

connected to the local devices network of another CLS-C6 unit, they will

not function.

pressing this button will alternate between lower and upper functions for

the six front panel function buttons

Top, bottom, and both all do the same thing

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Software License Agreement

This License Agreement (“Agreement”) is a legal contract between you (either an individual or a single business entity) and Crestron Electronics, Inc. (“Crestron”) for software referenced in this guide, which includes computer software and, as applicable, associated media, printed materials, and “online” or electronic documentation (the “Software”).

BY INSTALLING, COPYING, OR OTHERWISE USING THE SOFTWARE, YOU REPRESENT THAT YOU ARE AN AUTHORIZED DEALER OF CRESTRON PRODUCTS OR A CRESTRON AUTHORIZED INDEPENDENT PROGRAMMER AND YOU AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, DO NOT INSTALL OR USE THE SOFTWARE.

IF YOU HAVE PAID A FEE FOR THIS LICENSE AND DO NOT ACCEPT THE TERMS OF THIS AGREEMENT, CRESTRON WILL REFUND THE FEE TO YOU PROVIDED YOU (1) CLICK THE DO NOT ACCEPT BUTTON, (2) DO NOT INSTALL THE SOFTWARE AND (3) RETURN ALL SOFTWARE, MEDIA AND OTHER DOCUMENTATION AND MATERIALS PROVIDED WITH THE SOFTWARE TO CRESTRON AT: CRESTRON ELECTRONICS, INC., 15 VOLVO DRIVE, ROCKLEIGH, NEW JERSEY 07647, WITHIN 30 DAYS OF PAYMENT.

LICENSE TERMS

Crestron hereby grants You and You accept a nonexclusive, nontransferable license to use the Software (a) in machine readable object code together with the related explanatory written materials provided by Crestron (b) on a central processing unit (“CPU”) owned or leased or otherwise controlled exclusively by You, and (c) only as authorized in this Agreement and the related explanatory files and written materials provided by Crestron.

If this software requires payment for a license, you may make one backup copy of the Software, provided Your backup copy is not installed or used on any CPU. You may not transfer the rights of this Agreement to a backup copy unless the installed copy of the Software is destroyed or otherwise inoperable and You transfer all rights in the Software.

You may not transfer the license granted pursuant to this Agreement or assign this Agreement without the express written consent of Crestron.

If this software requires payment for a license, the total number of CPU’s on which all versions of the Software are installed may not exceed one per license fee (1) and no concurrent, server or network use of the Software (including any permitted back-up copies) is permitted, including but not limited to using the Software (a) either directly or through commands, data or instructions from or to another computer (b) for local, campus or wide area network, internet or web hosting services; or (c) pursuant to any rental, sharing or “service bureau” arrangement.

The Software is designed as a software development and customization tool. As such Crestron cannot and does not guarantee any results of use of the Software or that the Software will operate error free and You acknowledge that any development that You perform using the Software or Host Application is done entirely at Your own risk.

The Software is licensed and not sold. Crestron retains ownership of the Software and all copies of the Software and reserves all rights not expressly granted in writing.

OTHER LIMITATIONS

You must be an Authorized Dealer of Crestron products or a Crestron Authorized Independent Programmer to install or use the Software. If Your status as a Crestron Authorized Dealer or Crestron Authorized Independent Programmer is terminated, Your license is also terminated.

You may not rent, lease, lend, sublicense, distribute or otherwise transfer or assign any interest in or to the Software.

You may not reverse engineer, decompile, or disassemble the Software.

You agree that the Software will not be shipped, transferred or exported into any country or used in any manner prohibited by the United States Export Administration Act or any other export laws, restrictions or regulations (“Export Laws”). By downloading or installing the Software You (a) are certifying that You are not a national of Cuba, Iran, Iraq, Libya, North Korea, Sudan, or Syria or any country to which the United States embargoes goods (b) are certifying that You are not otherwise prohibited from receiving the Software and (c) You agree to comply with the Export Laws.

If any part of this Agreement is found void and unenforceable, it will not affect the validity of the balance of the Agreement, which shall remain valid and enforceable according to its terms. This Agreement may only be modified by a writing signed by an authorized officer of Crestron. Updates may be licensed to You by Crestron with additional or different terms. This is the entire agreement between Crestron and You relating to the Software and it supersedes any prior representations, discussions, undertakings, communications or advertising relating to the Software. The failure of either party to enforce any right or take any action in the event of a breach hereunder shall constitute a waiver unless expressly acknowledged and set forth in writing by the party alleged to have provided such waiver.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 53

iLux™ Lighting System Crestron CLS/CLSI-C6 & CLS/CLSI-C6M

If You are a business or organization, You agree that upon request from Crestron or its authorized agent, You will within thirty (30) days fully document and certify that use of any and all Software at the time of the request is in conformity with Your valid licenses from Crestron of its authorized agent.

Without prejudice to any other rights, Crestron may terminate this Agreement immediately upon notice if you fail to comply with the terms and conditions of this Agreement. In such event, you must destroy all copies of the Software and all of its component parts.

PROPRIETARY RIGHTS

Copyright. All title and copyrights in and to the Software (including, without limitation, any images, photographs, animations, video, audio, music, text, and “applets” incorporated into the Software), the accompanying media and printed materials, and any copies of the Software are owned by Crestron or its suppliers. The Software is protected by copyright laws and international treaty provisions. Therefore, you must treat the Software like any other copyrighted material, subject to the provisions of this Agreement.

Submissions. Should you decide to transmit to Crestron’s website by any means or by any media any materials or other information (including, without limitation, ideas, concepts or techniques for new or improved services and products), whether as information, feedback, data, questions, comments, suggestions or the like, you agree such submissions are unrestricted and shall be deemed non-confidential and you automatically grant Crestron and its assigns a non-exclusive, royalty-tree, worldwide, perpetual, irrevocable license, with the right to sublicense, to use, copy, transmit, distribute, create derivative works of, display and perform the same.

Trademarks. CRESTRON and the Swirl Logo are registered trademarks of Crestron Electronics, Inc. You shall not remove or conceal any trademark or proprietary notice of Crestron from the Software including any back-up copy.

GOVERNING LAW

This Agreement shall be governed by the laws of the State of New Jersey, without regard to conflicts of laws principles. Any disputes between the parties to the Agreement shall be brought in the state courts in Bergen County, New Jersey or the federal courts located in the District of New Jersey. The United Nations Convention on Contracts for the International Sale of Goods, shall not apply to this Agreement.

CRESTRON LIMITED WARRANTY

CRESTRON warrants that: (a) the Software will perform substantially in accordance with the published specifications for a period of ninety (90) days from the date of receipt, and (b) that any hardware accompanying the Software will be subject to its own limited warranty as stated in its accompanying written material. Crestron shall, at its option, repair or replace or refund the license fee for any Software found defective by Crestron if notified by you within the warranty period. The foregoing remedy shall be your exclusive remedy for any claim or loss arising from the Software.

CRESTRON shall not be liable to honor warranty terms if the product has been used in any application other than that for which it was intended, or if it as been subjected to misuse, accidental damage, modification, or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number or license code altered, defaced, improperly obtained, or removed.

Notwithstanding any agreement to maintain or correct errors or defects Crestron, shall have no obligation to service or correct any error or defect that is not reproducible by Crestron or is deemed in Crestron’s reasonable discretion to have resulted from (1) accident; unusual stress; neglect; misuse; failure of electric power, operation of the Software with other media not meeting or not maintained in accordance with the manufacturer’s specifications; or causes other than ordinary use; (2) improper installation by anyone other than Crestron or its authorized agents of the Software that deviates from any operating procedures established by Crestron in the material and files provided to You by Crestron or its authorized agent; (3) use of the Software on unauthorized hardware; or (4) modification of, alteration of, or additions to the Software undertaken by persons other than Crestron or Crestron’s authorized agents.

ANY LIABILITY OF CRESTRON FOR A DEFECTIVE COPY OF THE SOFTWARE WILL BE LIMITED EXCLUSIVELY TO REPAIR OR REPLACEMENT OF YOUR COPY OF THE SOFTWARE WITH ANOTHER COPY OR REFUND OF THE INITIAL LICENSE FEE CRESTRON RECEIVED FROM YOU FOR THE DEFECTIVE COPY OF THE PRODUCT. THIS WARRANTY SHALL BE THE SOLE AND EXCLUSIVE REMEDY TO YOU. IN NO EVENT SHALL CRESTRON BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND (PROPERTY OR ECONOMIC DAMAGES INCLUSIVE), EVEN IF A CRESTRON REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY THIRD PARTY. CRESTRON MAKES NO WARRANTIES, EXPRESS OR IMPLIED, AS TO TITLE OR INFRINGEMENT OF THIRD-PARTY RIGHTS, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY OTHER WARRANTIES, NOR AUTHORIZES ANY OTHER PARTY TO OFFER ANY WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY FOR THIS PRODUCT. THIS WARRANTY STATEMENT SUPERSEDES ALL PREVIOUS WARRANTIES.

• iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M Operations Guide - DOC. 6347B

Crestron CLS/CLSI-C6 & CLS/CLSI-C6M iLux™ Lighting System

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange, or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number, and return address.

2. Products may be returned for credit, exchange, or service with a CRESTRON Return Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a 15% restocking fee, plus shipping costs, on any products returned with an RMA.

3. Return freight charges following repair of items under warranty shall be paid by CRESTRON, shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in mat erials and workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps are not covered.

This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number altered, defaced, or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party.

CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied, nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.

Trademark Information All brand names, product names, and trademarks are the sole property of their respective owners . Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft Corporation.

Operations Guide - DOC. 6347B iLux™ Lighting System: CLS/CLSI-C6 & CLS/CLSI-C6M • 55

Crestron Electronics, Inc. Operations Guide - DOC. 6347B

15 Volvo Drive Rockleigh, NJ 07647 (2012613) Tel: 888.CRESTRON 07.06 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.

Crestron CLS-C6, CLS-C6M, CLSI-C6 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Features and Functions

Specifications

Physical Description

Industry Compliance

Setup

Network Wiring

Identity Code

Installation

Hardware Hookup

Adding External Power Supplies

Configuring the CLS-C6

Configuring With Front Panel Controls

Configuring With iLux Designer

Console Command Settings

Replacing the Function Button Label

Programming Software

Earliest Version Software Requirements for the PC

Programming with Crestron SystemBuilder/D3 Pro

Programming with SIMPL Windows

Example Program

Uploading and Upgrading

Establishing Communication

Programs and Firmware

Operation

Button Types

IR Receiver

Occupancy Sensing

Problem Solving

Troubleshooting

Check Network Wiring

Reference Documents

Further Inquiries

Future Updates

Appendix A: Supported Devices

Keypads

Shade Controllers

Appendix B: Console Commands

Appendix C: Factory Default Values

Appendix D: Button Functions

Software License Agreement

Return and Warranty Policies
