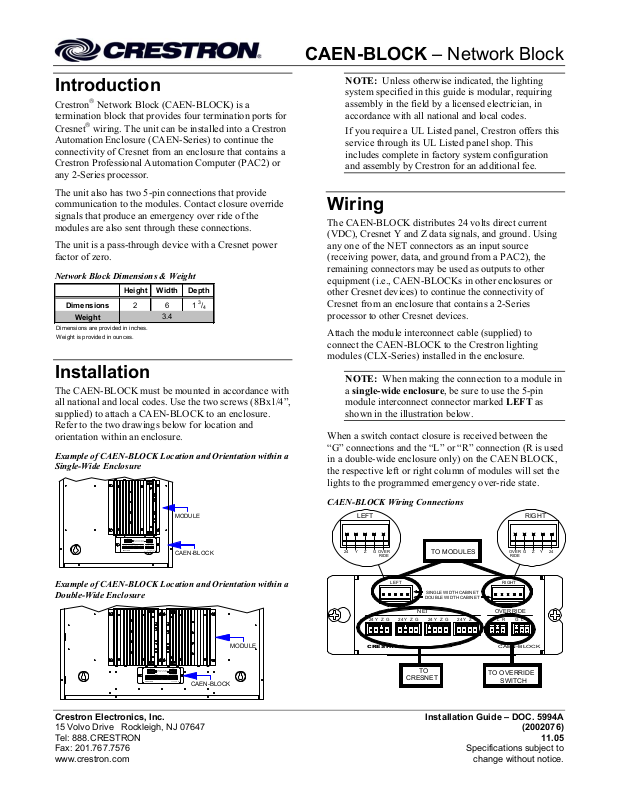

Crestron CAEN-BLOCK User Manual

CAEN-BLOCK – Network Block

Introduction

Crestron Network Block (CAEN-BLOCK) is a
termination block that provides four termination ports for
Cresnet
Automation Enclosure (CAEN-Series) to continue the
connectivity of Cresnet from an enclosure that contains a
Crestron Professional Automation Computer (PAC2) or
any 2-Series processor.

The unit also has two 5-pin connections that provide
communication to the modules. Contact closure override
signals that produce an emergency over ride of the
modules are also sent through these connections.

The unit is a pass-through device with a Cresnet power
factor of zero.

Network Block Dimensions & Weight



wiring. The unit can be installed into a Crestron

Height Width Depth

Dimensions 261

Weight

Dimensions are provided in inches.
Weight is provided in ounces.

3.4

3

/

4

NOTE: Unless otherwise indicated, the lighting
system specified in this guide is modular, requiring
assembly in the field by a licensed electrician, in
accordance with all national and local codes.

If you require a UL Listed panel, Crestron offers this
service through its UL Listed panel shop. This
includes complete in factory system configuration
and assembly by Crestron for an additional fee.

Wiring

The CAEN-BLOCK distributes 24 volts direct current
(VDC), Cresnet Y and Z data signals, and ground. Using
any one of the NET connectors as an input source
(receiving power, data, and ground from a PAC2), the
remaining connectors may be used as outputs to other
equipment (i.e., CAEN-BLOCKs in other enclosures or
other Cresnet devices) to continue the connectivity of
Cresnet from an enclosure that contains a 2-Series
processor to other Cresnet devices.

Attach the module interconnect cable (supplied) to
connect the CAEN-BLOCK to the Crestron lighting
modules (CLX-Series) installed in the enclosure.

Installation

The CAEN-BLOCK must be mounted in accordance with
all national and local codes. Use the two screws (8Bx1/4”,
supplied) to attach a CAEN-BLOCK to an enclosure.
Refer to the two drawings below for location and
orientation within an enclosure.

Example of CAEN-BLOCK Location and Orientation within a
Single-Wide Enclosure

MODULE

LEFT

RIGHT

SINGLE WIDTH CABINET
DOUBLE WIDTH CABINET

OVER RIDE

NET

GL R

ZY24 G

ZY24 G

ZY24 G

ZY24 G GL R

CAEN-BLOCK

CRESTRON

Example of CAEN-BLOCK Location and Orientation within a
Double-Wide Enclosure

CRESTRON

LEFT

ZY24 G

SINGLE WIDTH CABINET
DOUBLE WIDTH CABINET

NET

ZY24 G

ZY24 G G L R

CAEN-BLOCK

RIGHT

OVER RIDE

GL R

ZY24 G

CAEN-BLOCK

MODULE

CAEN-BLOCK

NOTE: When making the connection to a module in
a single-wide enclosure, be sure to use the 5-pin
module interconnect connector marked LEFT as
shown in the illustration below.

When a switch contact closure is received between the
“G” connections and the “L” or “R” connection (R is used
in a double-wide enclosure only) on the CAEN BLOCK,
the respective left or right column of modules will set the
lights to the programmed emergency over-ride state.

CAEN-BLOCK Wiring Connections

LEFT RIGHT

24 Y Z G OVER

RIDE

ZY24 G

CRESTRON

LEFT

TO MODULES

SINGLE WIDTH CABINET

DOUBLE WIDTH CABINET

NET

ZY24 G

TO

CRESNET

ZY24 G

ZY24 G G L R

OVER

G Z Y 24

RIDE

RIGHT

OVER RIDE

G L R

CAEN-BLOCK

TO OVERRIDE

SWITCH

Crestron Electronics, Inc. Installation Guide – DOC. 5994A

15 Volvo Drive Rockleigh, NJ 07647 (2002076)
Tel: 888.CRESTRON 11.05
Fax: [phone] Specifications subject to
www.crestron.com change without notice.

Network Block Crestron CAEN-BLOCK
