Crestron BB-1000 Back Box

Back Box: BB-1000

Description

The back Box, BB-1000, is the optional mounting hardware that is part of the
Crestron Home total control system. The BB-1000 secures a Crestron Series 1000

Touchpanel to a wall. The mounting hardware consists of :

• 1 - metal electrical box with 4 punches.

• 1 – stud mounting bracket.

• 1 – wall mounting bracket.

• 8 – 6-32 x 3/8” socket head screws.

• 4 – 4-40 x 3/4” pan head screws.

• 1 – template.

Three views and dimensions for the metal pieces of the BB-1000 are shown below.

BB-1000 Physical Views and Dimensions

3.000 in

(7.620 cm)

5.383 in

(13.673 cm)

0.253 in

(0.643 cm)

4.503 in

(11.438 cm)

0.063 in

(0.160 cm)

7.000 in

(17.780 cm)

0.063 in

(0.160 cm)

0.063 in

(0.160 cm)

4.485 in

(11.392 cm)

0.063 in

(0.160 cm)

Installation Guide - DOC. 5814 Back Box: BB-1000 •• 1

Back Box Crestron BB-1000

Installation

Complete the following installation procedure in the order provided. The only tools
required are a drywall saw ( or equivalent) and socket screwdriver.

1. Locate an area on the wall that is ¼” (0.635 cm) from either side of a

stud.

2. Fasten the supplied template to the wall; verify that the cutout is level.

3. Cut out the rectangular area illustrated on the template.

4. Remove the template and rectangular drywall cutout.

5. Use template and rectangular drywall cutout and place mounting

bracket alignment marks on wall, as shown below.

Mounting Bracket Alignment Marks

MOUNTING
BRACKET
ALIGNMENT
MARK

6. Position stud mounting bracket to front edge of stud (closest to

drywall) and align corners of the raised part of the bracket with the
mounting bracket alignment marks on the wall. Refer to the illustration
on the next page.

2 •• Back Box: BB-1000 Installation Guide - DOC. 5814

Crestron BB-1000 Back Box

Aligning Mounting Bracket Alignment Mark with Corner of Stud Bracket

CORNER
OF STUD
MOUNTING
BRACKET

MOUNTING
BRACKET
ALIGNMENT
MARK

7. Using four screws, not supplied, secure stud mounting bracket to stud,

as shown below.

Secure Stud Mounting Bracket

Installation Guide - DOC. 5814 Back Box: BB-1000 •• 3

Back Box Crestron BB-1000

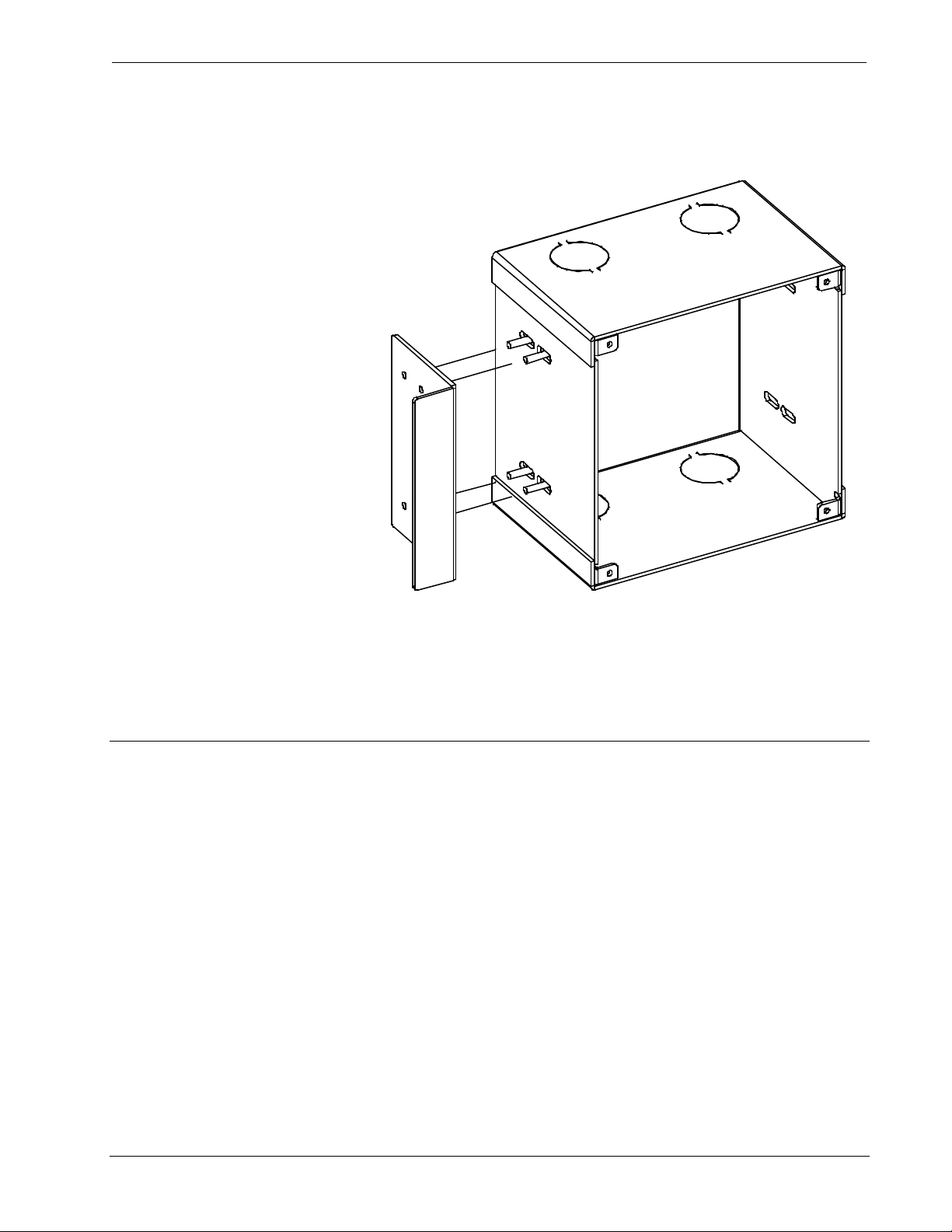

8. Use four socket head screws, supplied, to attach wall mounting bracket

to electrical box, as shown below.

Attach Wall Mounting Bracket to Electrical Box

Further Inquiries

9. Position bracket-electrical box assembly into wall opening and secure

to stud mounting bracket with four socket head screws, supplied.

10. If touchpanel is available, secure touchpanel to BB-1000 using four pan

head screws, supplied. If touchpanel is not available, insert screws into
holes for future use.

If after reviewing this Installation Guide for the BB-1000, you cannot locate specific
information or have questions, please take advantage of Crestron's award winning

technical support team by calling:

• In the US and Canada, call Crestron’s corporate headquarters at

1-888-CRESTRON [1-888-273-7876] or 1-201-767-3400.

• In Europe, call Crestron International at [phone].

• In Asia, call Crestron Asia at [phone].

• In Latin America, call Crestron Latin America at [phone].

For local support from exclusive Crestron factory-trained personnel call:

• In Australia, call Soundcorp at [phone].

• In New Zealand, call Amber Technologies at [phone].

4 •• Back Box: BB-1000 Installation Guide - DOC. 5814

Crestron BB-1000 Back Box

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange, or service

without prior authorization from CRESTRON. To obtain warranty
service for CRESTRON products, contact the factory and request an
RMA (Return Merchandise Authorization) number. Enclose a note
specifying the nature of the problem, name and phone number of
contact person, RMA number, and return address.

2. Products may be returned for credit, exchange, or service with a

CRESTRON Return Merchandise Authorization (RMA) number.
Authorized returns must be shipped freight prepaid to CRESTRON,
Cresskill, N.J., or its authorized subsidiaries, with RMA number clearly
marked on the outside of all cartons. Shipments arriving freight collect
or without an RMA number shall be subject to refusal. CRESTRON
reserves the right in its sole and absolute discretion to charge a 15%
restocking fee, plus shipping costs, on any products returned with an
RMA.

3. Return freight charges following repair of items under warranty shall

be paid by CRESTRON, shipping by standard ground carrier. In the
event repairs are found to be non-warranty, return freight costs shall be
paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its Cresnet products, denoted by a
"CN" prefix model number, to be free from manufacturing defects in materials and

workmanship for a period of three (3) years from the date of shipment to purchaser.
Disk drives and any other moving or rotating mechanical parts are covered for a
period of one (1) year. CRESTRON warrants all its other products for a period of
one year from the defects mentioned above, excluding touchscreen display
components which are covered for 90 days. Incandescent lamps are completely
excluded from Crestron's Limited Warranty. CRESTRON shall, at its option, repair
or replace any product found defective without charge for parts or labor. Repaired or
replaced equipment and parts supplied under this warranty shall be covered only by
the unexpired portion of the warranty.

CRESTRON shall not be liable to honor warranty terms if the product has been used
in any application other than that for which it was intended, or if it has been

subjected to misuse, accidental damage, modification, or improper installation
procedures. Furthermore, this warranty does not cover any product that has had the
serial number altered, defaced, or removed.

This warranty shall be the sole and exclusive remedy to the purchaser. In no event
shall CRESTRON be liable for incidental or consequential damages of any kind
(property or economic damages inclusive) arising from the sale or use of this
equipment. CRESTRON makes no other warranties nor authorizes any other party to
offer any warranty, expressed or implied, including warranties of merchantability for
this product. This warranty statement supersedes all previous warranties.
