ADDENDUM
The purpose of this addendum is to update information
contained within the original Crestron AAS - 1/2/4 User
Guide. Specically, the information contained in this
addendum is designed to replace the content on page 32,
describing the conguration of network settings.
NETWORK CONFIGURATION
This insert provides a guide to conguring network
connection settings on the Crestron Adagio Audio Server.
To access the Connection Settings menu:
•
Press the JMenu key on your remote control to
display the Function Menu.
•
Use the U and V keys to highlight the Set Up option.
•
Press the O Select key.

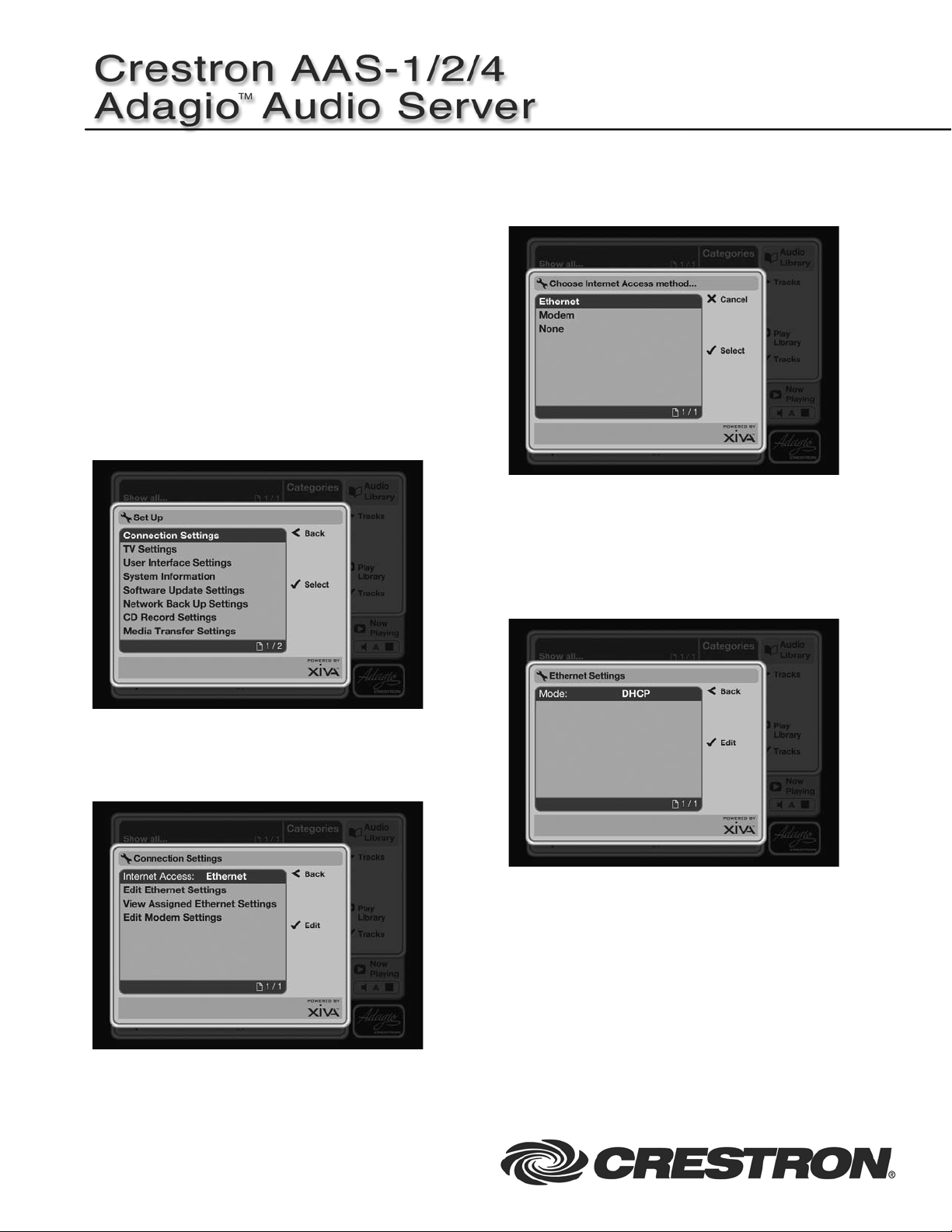

The Set Up screen is displayed:
Internet Access
Select the Internet Access option to choose the method
your Audio Server uses to access the Internet.
Choose between Ethernet, Modem or None as the access
method and press the MSave key to commit any changes
you make.
Edit Ethernet Settings
If you have selected Ethernet as your chosen Internet Access
method, use the Edit Ethernet Settings option to choose
between DHCP and Static as the Ethernet Mode.
•
Use the U and V keys again to highlight the
Connection Settings option.
•
Press the O Select key.
The Connection Settings screen is displayed:
This screen contains a number of options to allow you to
congure the method your Audio Server uses to connect to
the Internet and to your home network.
If your Audio Server is connected to a network with a DHCP
server present, specify DHCP as the Mode and the Ethernet
settings should be assigned automatically.
Alternatively, to manually enter your own Ethernet settings,
select Static as the Mode and a number of extra elds will
appear on the Ethernet Settings screen:
Enter your own Ethernet details in the IP Address, Subnet
Mask, Gateway and DNS elds. Press the MSave key to
commit any changes you make.
Assigned Ethernet Settings
Select View Assigned Ethernet Settings to see the current
conguration of your Audio Server.
Note: The Assigned Ethernet Settings screen is for
information only and has no editable options.
Modem Settings
If you select Modem as the Internet access method you must
then input your Internet Service Provider’s details on the
Edit Modem Settings screen.
Note: After making changes to any of the Connection
Settings screens, you may be prompted to restart your
Audio Server in order for the new settings to take effect.
