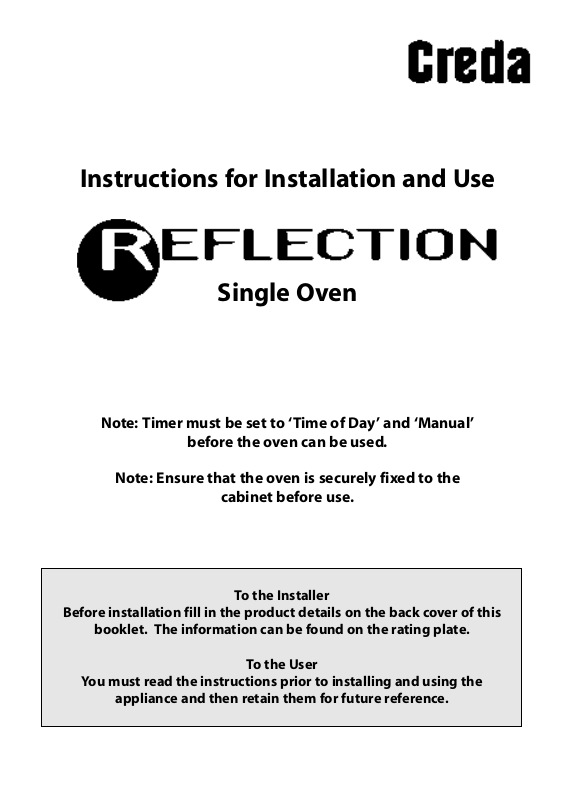

Creda REFLECTION User Manual

Instructions for Installation and Use

Single Oven

Note: Timer must be set to ‘Time of Day’ and ‘Manual’

before the oven can be used.

Note: Ensure that the oven is securely fixed to the

cabinet before use.

To the Installer

Before installation fill in the product details on the back cover of this

booklet. The information can be found on the rating plate.

To the User

You must read the instructions prior to installing and using the

appliance and then retain them for future reference.

For more information on our exciting product range ring

Creda Answer Centre 0541 54 64 74

OR

Visit us on the NET at

http://www.creda.co.uk

Our site invites you to make use of our interactive cookbook and product selector. Feel
free to

browse our product range to see what’s bubbling away at the moment or to ask

for help on our products and services

General Domestic Appliances Ltd. Morley Way Peterborough PE2 9JB

Creda Answer Centre 0541 54 64 74

Web http://www.creda.co.uk

It may be necessary from time to time to change the specification outlined in this booklet

without notice. Any change which is made will not affect your statutory rights.

CONTENTS

Introduction 4
For Your Safety – Always 5
For Your Safety – Never 6
Know Your Oven 7
Control Panel 8
Oven Timer Operation 9
Know Your Timer 10
Electronic Clock & Automatic Oven Timer Operation

Grill Pan and Handle 15
Grilling Procedure 16-17

Using the Oven as a Fan Oven 18-19

Using the Oven for Other Functions 20
Temperature Conversion Scale 21
Oven Temperature Charts 22-23

Cooking Results Not Satisfactory 24
Care & Cleaning 25-28
Installation 29-33

Something Wrong? 34
Service Back Cover

11-14

3

INTRODUCTION

Your new cooker is guaranteed* and will give lasting service. This guarantee is only
applicable if the appliance has been installed in accordance with the installation
instructions detailed in this booklet.

To help make best use of your cooking equipment,
please read this booklet carefully.

The cooker is designed specifically for domestic use and responsibility will not be
accepted for use in any other installation.

Note: When the cooker is first used, an odour may be emitted - this will cease after a
short period of use

To help remove the 'new' smell, heat up the empty oven(s) to maximum for a
minimum of two to three hours keeping the oven doors closed. Ensure that the room is
well ventilated (e.g. open a window or use an extractor fan) and that persons who may
be sensitive to the odour avoid any fumes. It is suggested that any pets be removed
from the room until the smell has ceased.
This odour is due to any temporary finish on oven linings and elements and also any
moisture absorbed by the insulation.

* The guarantee is subject to the provisions that the appliance:

(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage as stated on the

rating plate attached to this equipment.

(c) Has not been subjected to misuse or accident or been modified or repaired by

any person other than the authorised employee or agent.

(d) Has been correctly installed.

This appliance conforms to the following EEC Directives:

Low Voltage Equipment
73/23/EEC
93/68/EEC

Electromagnetic Compatibility
89/336/EEC
92/31/EEC93/68/EEC

4

FOR YOUR SAFETY

When used properly, your appliance is completely safe but as with any
electrical product there are certain precautions that must be observed.

PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR
APPLIANCE.

ALWAYS

Always make sure you remove all packaging and literature from inside the

●

oven/grill compartment before switching on for the first time.
Always make sure you understand the controls prior to using the appliance.

●

Always keep children away from the appliance when in use as the surfaces

●

will get extremely hot during and after cooking.
Always make sure all controls are turned off when you have finished cooking

●

and when not in use.
Always stand back when opening an oven door to allow any build up of steam or

●

heat to disperse.
Always use dry, good quality oven gloves when removing items from the

●

oven/grill.
Always take care to avoid heat/steam burns when operating the controls.

●

Always turn off the electricity supply at the wall switch before cleaning and

●

allow the appliance to cool.
Always make sure the shelves are in the correct position before switching on

●

the oven.
Always keep the oven/grill door closed when the appliance is not in use.

●

Always keep the appliance clean as a build up of grease or fat from cooking can

●

cause a fire.
Always follow the basic principles of food handling and hygiene to prevent the

●

possibility of bacterial growth.
Always keep ventilation slots clear of obstructions.

●

Always refer servicing to a qualified appliance service engineer.

●

Always during use the oven becomes hot. Care should be taken to avoid touching

●

heating elements inside the oven.

SAFETY ADVICE

IN THE EVENT OF A CHIP PAN OR ANY OTHER PAN FIRE:

1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.

2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the
flames and extinguish the fire.

3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT.
Injuries are often caused by picking up a hot pan and rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force of the
extinguisher is likely to tip the pan over. Never use water to extinguish oil or fat
fires.

5

FOR YOUR SAFETY

NEVER

Never leave children unsupervised where a cooking appliance is installed as

●

all cooking surfaces will be hot during and after use.
Never allow anyone to sit or stand on any part of the appliance.

●

Never store items above the appliance that children may attempt to reach.

●

Never remove the oven shelves whilst the oven is hot.

●

Never heat up unopened food containers as pressure can build up causing

●

the container to burst.
Never store chemicals, food stuffs or pressurised containers in or on the

●

appliance, or in cabinets immediately above or next to the appliance.
Never operate the grill with the door closed as this may cause the appliance

●

to overheat.
Never use the appliance as a room heater.

●

Never use the grill to warm plates.

●

Never dry any items on the oven doors.

●

Never install the appliance next to curtains or other soft furnishings.

●

Never allow children to play with the oven controls.

●

DISPOSAL OF YOUR PRODUCT

To minimise the risk of injury to children please dispose of your product carefully and safely.
Remove all doors and lids (where fitted). Remove the mains cable (where fitted) by cutting off
flush with the appliance and always ensure that no plug is left in a condition where it could be
connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the disposal of
your product.

6

KNOW YOUR OVEN

Oven Control
and Selector

Oven

Indicator

Light

❍ ❍

Oven Light

Meat/Grill pan

with anti-splash

tray

Oven Fan

Grill
Control

24 Hour Digital
Electronic Clock
and Oven Timer

Solar Plus
Grill Element

Stayclean Liners

2 Oven Shelves

Door Switch

Rating plate

Inner Door Glass

Oven
Door

7

CONTROL PANEL

A

❍❍

To release any control knob simply press its centre. After use knobs can be returned to the
storage/safety position by pressing in the knob centre.

B

CONTROL MARKINGS

Control

Knob

A

A & B

A & B

Note: Resistance will be felt when turning from fan oven operation to full grill / half grill positions

Cooling Fan

Oven Interior
Lights

Description

Oven & Grill Selector

Oven & Grill Selector &

Grill Control

1 = Low

6 = High

Oven & Grill Selector

& Grill Control

1 = Low

6 = High

A gentle flow of air will be blown below the control panel when the oven or
grill is switched on. In some instances this will continue after switching the
oven / grill off. This is not unusual. This helps to keep the control panel and
knobs cool.

The oven light is switched on automatically when the fan oven control (A) is
operated..

Turning control (A) clockwise allows use of fan oven.When
cooking turn to the required setting. The oven temperature
scale is in degrees centigrade.

Turn control (A) clockwise until the full grill symbol is
positioned centrally in the control window.. Turn control (B) in
either direction to the required grill setting.

Turn control (A) clockwise until the half grill symbol is
positioned centrally in the control window. . Turn control (B) in
either
direction to the required grill setting.

Function

Fan Oven

Full Grill

Half Grill

8

Slow Cooking

Note: It is advisable to check that all oven controls have been switched off after you
have finished using the appliance.

The oven has a “Slow Cook Setting” this can be used for slow cooking, keep­ing food warm and / or warming plates for a short period. Turn oven control
(A) to 90˚C

OVEN TIMER OPERATION

Note: Timer must be set to ‘Time of Day’ and ‘Manual’ before the oven
can be used.

AUTOMATIC COOKING

The Oven can be controlled by the Automatic Timer.

HINTS ON AUTOMATIC COOKING

1. Select foods which will require the same cooking time and temperature.

2. To ensure food does not cool down and require reheating, set the end time so
the food is ready when you require it.

3. Always ensure that meat and poultry is defrosted before placing in the oven.

4. Whenever possible, take food out of the refrigerator and keep it as cool as
possible.

5. If cooking food that requires frying before placing in the oven for automatic
cooking, keep the delay time to a minimum.

6. Never place hot or warm food in the oven for delay start cooking as it could
cause the oven to be warm and produce harmful bacteria in the food.

7. We advise that dishes containing left-over cooked poultry or meat, e.g.
Shepherd's Pie, should not be cooked automatically if there is to be a delay
period.

8. Ensure that delay start times are kept to a minimum to prevent bacterial growth in
food.

9. Wine or beer may ferment and cream may curdle during the delay period so
it is best to add these ingredients just before serving.

10. Foods which discolour should be protected by coating in fat or tossing in
water to which lemon juice has been added, prior to placing food in the oven.

11. Dishes containing liquid should not be filled too full to prevent boiling over.

12. Food should be well sealed (but not airtight) in a container to prevent the loss
of liquid during cooking. Aluminium foil gives a good seal.

13. Always ensure that food is piping hot and cooked thoroughly before serving.

14. Only reheat food once.

9

KNOW YOUR TIMER

CLOCKFACE

The timer incorporates a 24 hour clock.

Ensure the correct time of day is always set, before using you cooker.
PLEASE NOTE THAT THE DISPLA
HOURS AND 06.00 HOURS TO PREVENT GLARE.
However, should you operate the timer during these hours the display will
return to normal brightness for a few seconds and then dim again.

SYMBOLS

will light up when you select a Minute Minder Period and will remain lit for the
period set. At the end of the Minute Minder Period, the timer will emit an audible
tone for 2 minutes, the symbol will start to flash and will continue to flash until
the Minute Minder function is cancelled.

This “Cookpot” symbol will light up either:–

– When you press the Cook Period Button and set a length of time for an Auto

Cooking Programme. (It will go out again a few seconds after you release the

timer buttons).
– During the actual Cook Period.

“AUTO” will light up:–
– When the timer is first turned on it will flash. (It will go out when a time of day

is set.
– When an Auto Cooking Programme has been set.
The “Auto” symbol will flash at the end of an Auto Cooking programme to indicate
that the programme has finished.

(When the “Auto” symbol is flashing, to return the oven to Manual operation,
turn the oven controls off, ensure that the correct time of day is set, and press the
“Manual” button twice – The “Auto” symbol will go out).

Note: If at any time the display shows a ‘KEY’ symbol, it is likely that the timer has been set incorrectly. OVEN
COOKING IS NOTPOSSIBLE. The ‘KEY’ symbol can be deleted and the cooker returned to manual operation by:

- Simultaneously pressing the Minute Minder and the Cook Period buttons for a period of approximately 8
seconds.

- Releasing the buttons and pressing the ‘+’ button.

Y WILL DIM BETWEEN 22.00

TIMER FUNCTION BUTTONS

Minute Minder
Button

Here you can set a time period of up to 23 hours 59 minutes, that will count down.
When it reaches zero, the timer will emit an audible tone.

For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.

AUTO COOKING PROGRAMME

Cook Period Button

End Time Button

Manual Button

“+” and “–” Buttons

10

Cook Period is the actual length of time for which, the timer will switch the oven(s)
on as part of an “Auto Cooking” programme.
(e.g. If you set 2 hours, the food will be cooked for 2 hours).

The time of day at which you want an “Auto Cooking” programme to end
For Example: If you set a “Cook Period” for 2 hours, and “End Time” of 11:00. The

timer will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00. You will hear
a audible tone at 11:00, to indicate that the Auto Cooking Programme has finished.

Notes:

- When setting an Auto Cooking programme you will need to set the oven
controls(s) to the required temperature(s) when you set the timer.

- If an Auto Cooking programme has been set the oven(s) will only operate during
the pre-programmed time.

Needs to be pressed to cancel an Auto Cooking programme and return the ovens(s)
to Manual operation.

Used to adjust the various timer function settings.

.

ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION

SETTING THE TIME OF DAY

Step 1 Make sure all oven controls are turned Off.

Step 2 Check the electricity supply to the cooker is turned on.

Step 3 When switched on the display will show 0.00 and Auto symbol will be

flashing intermittently.

Step 4 Press & hold in both the “Minute Minder” & “Cook Period” button together.

Step 5 With the “Minute Minder” & “Cook Period” buttons still held in, press either

the “+” or “–” buttons to set the correct time of day.

Step 6 Release all the buttons simultaneously.

THE TIME OF DAY IS NOW SET.

To change the time of day repeat Steps 4, 5 & 6 above.

Note: You cannot adjust the time of day if the timer has been set for an Auto

Cooking Programme.

SETTING THE MINUTE MINDER

Step 1 Ensure the time of day is set correctly.

Step 2 Press and hold the Minute Minder Button, a symbol will light up.

Step 3 With the “Minute Minder” button held in, set the required Minute Minder

time using the “+” and “–” buttons.

Release all buttons and the timer display will revert back to the time of day. Bell
symbol will remain lit to signify that a Minute Minder period has been set.

At the end of the set time a bleeping sound will be heard, and the symbol will
flash for approximately 2 minutes.
After approximately 2 minutes the bleeping sound will stop and the symbol will
go out automatically.

Step 4 To cancel the bleeping sound within the two minutes press the Minute

Minder button.

Note 1 When the Minute Minder has been set, the time remaining can be checked at any

Note 2 If necessary the Minute Minder can be cancelled before the tone sounds by pressing

time by simply pressing the Minute Minder button.

and holding the Minute Minder button and then at the same time pressing the “–”
button until 0.00 appears in the display window.

11

ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION

AUTO COOKING PROGRAMMES

There are two Auto Cooking programmes that can be selected using your timer:–
(a) To set the timer to switch the oven(s) On and Off Automatically

(b) To set timer to switch on immediately and OFF automatically after a set cook period.

a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY

This allows you to cook at a specified time for a chosen period before the oven switches
off Automatically.

Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).

Step 3 Press and hold in the Cook Period button.

The display will read 0.00 with the cookpot ( ) symbol lit.

Step 4 With the Cook Period button still held in, set the required Cook Period

using the “+” and “–” buttons.

Release the buttons and the timer display will revert to the time of day with the
Auto symbol and Cookpot ( ) symbol lit.

Step 5 Press and hold in the “End Time” button.

The display will read the earliest possible end time for the Cook Period
that you have set above.
The Auto symbol and Cookpot ( ) symbol lit.

Step 6 With the End Time button still held in, use the “+” and “–” buttons to set

the “End Time” (i.e. The time you require the oven to switch off).

Release all the buttons and the timer will revert back to the time of day.

The “Auto” symbol will remain lit to signify that an Auto Cooking Programme has
been set. The ( ) symbol will go out.

Step 7 Turn the oven control(s) to the required temperature, and if

necessary select the appropriate oven function.

Note: If your appliance has two ovens: When the timer has been set for one oven
it is possible to use the other oven only during the same Automatic programme.

At the end of the Automatic Cook Period the Auto Symbol will flash and an
intermittent bleeping sound will be heard.
The bleeping sound will continue for approximately 2 minutes unless cancelled.
The “Auto” symbol will continue to flash until the timer is returned to Manual
operation (see below).

Step 8 Press the Manual button to cancel the bleeping sound.

(If 2 minutes has not elapsed).

Step 9 Turn the oven control(s) to the OFF position.

Step 10 Press the manual button again to return the oven(s) to Manual Operation.

(The Auto symbol will go out)

12

ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION

Note 1 When cooking automatically the Cook Period can be checked at any time by simply

pressing the Cook Period button.

Note 2 When cooking automatically the End Time can be checked at any time by simply

pressing the End Time button.

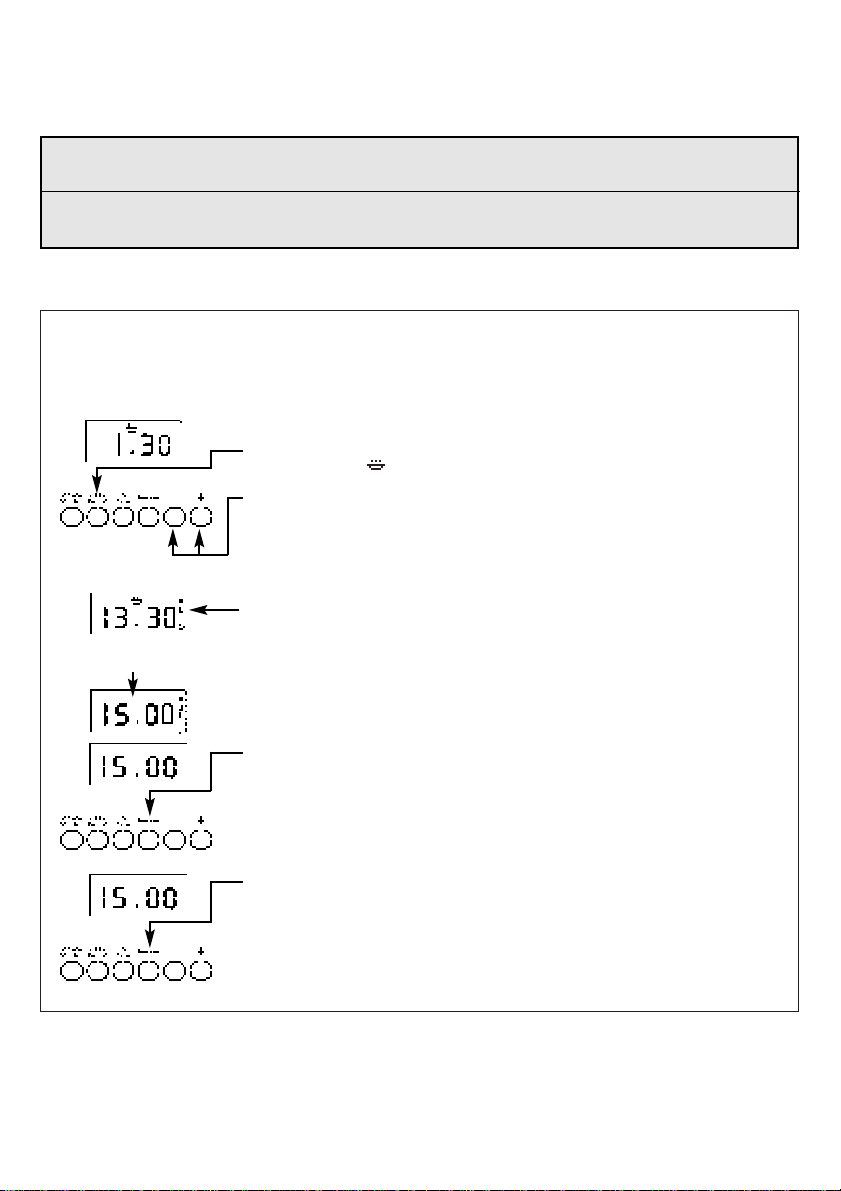

b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY AFTER A SET COOK

PERIOD

Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3 Turn the oven control(s) to the required temperature, and if necessary select the appropriate oven

NOTE: The Cookpot symbol disappears

function.

Step 4 Press & hold in the “Cook Period” button, the display will read 0.00 and the

cookpot ( ) symbol will light up.

With the Cook Period button still held set the required Cook Period using the “+”
and “–” buttons. Example: 1hr 30 minutes (as shown).

Note: Cook Period is the length of time the food requires to cook.

Step 5 Release all buttons.

The timer display will revert to the time of day with the Auto symbol lit & Cookpot
symbol remaining lit.

At the end of the Cook Period the “Auto” symbol will flash and an intermittent
bleeping sound will be heard.
The bleeping sound will continue for approximately 2 minutes unless cancelled.
The “Auto” symbol will continue to flash until the timer is returned to Manual
operation (see below).

Step 6 Press the manual button to cancel the bleeping.

(If 2 minutes has not elapsed)

Step 7 Turn the oven control(s) to the OFFposition.

Step 8 Press the “Manual” button again to return the cooker to Manual operation.

(The Auto symbol will go out).

13

ELECTRONIC CLOCK & AUTOMATIC OVEN

A
U
T
O

TIMER OPERATION

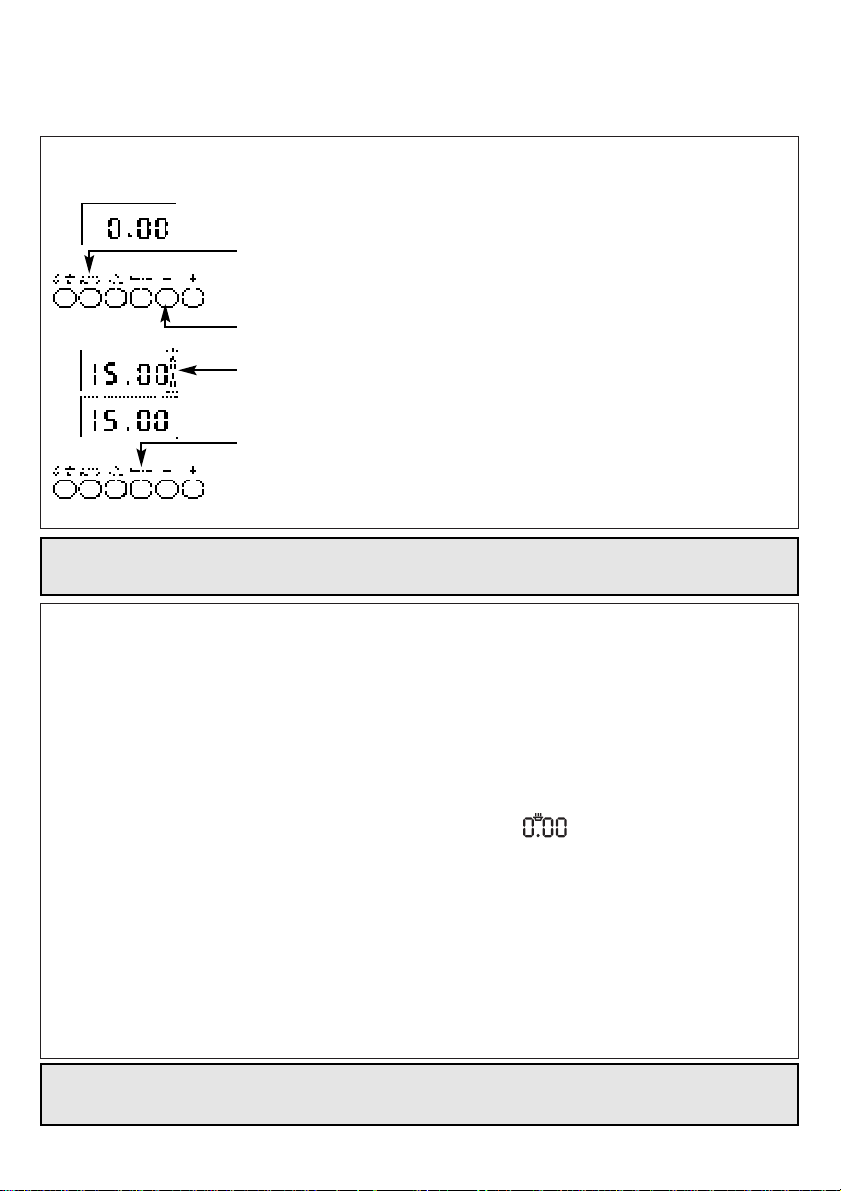

TO CANCEL AN AUTO COOKING PROGRAMME BEFORE
THE COOK PERIOD HAS FINISHED.

Step 1 Turn the oven control(s) to the OFFposition.

Step 2 Press and hold in the “Cook Period” button.

Step 3 With the “Cook Period” button still held in, return the display to 0.00 by

pressing the “–” button.

Step 4 Release the “Cook Period” and “–” buttons and the display will revert to

the time of day and the “Auto” symbol will flash.

Step 5 Press the “Manual” button to return the oven(s) to “Manual” operation.

The “Auto” symbol will go out.

Note 1 When cooking automatically the Cook Period can be checked at any time by simply pressing

OTHER NOTES ON TIMER OPERATION

1. When cooking Automatically the Cook Period can be checked at any time simply by pressing the Cook

2. When cooking Automatically the End Time can be checked at any time by simply pressing the End Time

3. Having set a Cook Period and End Time an electronic device stores the information. The device within the

4. When setting an Auto Cooking Programme and a mistake is made, to clear:–

5. If at any time the display shows three flashing zero’s 0.00. It is likely that the electricity supply to the oven

6. To set each function always press and hold the required function button and at the same time press “+” or

Note: Between the hours of 22.00 & 06.00 the display dims to prevent glare.

the Cook Period button.

Period button.

button.

timer will switch the oven(s) on and off at the required times.

(a) Press and hold in the “Cook Period” button.
(b) With the Cook Period button still held in, return the display to by pressing the “–” button.
(c) Release the “Cook Period” & “–” buttons, and the display will revert to the time of day and the “Auto”

symbol will flash.
(d) Press & release the “Manual” button.
(e) Start the sequence again.

has been interrupted. Reset the timer to the correct time of day.

Food in the oven may, therefore, not have been cooked, before serving check food is thoroughly heated
and completely cooked.

“–” buttons.

However, if you should operate a button during this period, the timer will return to normal
brightness for a few seconds and then dim again.

14

GRILL PAN & HANDLE

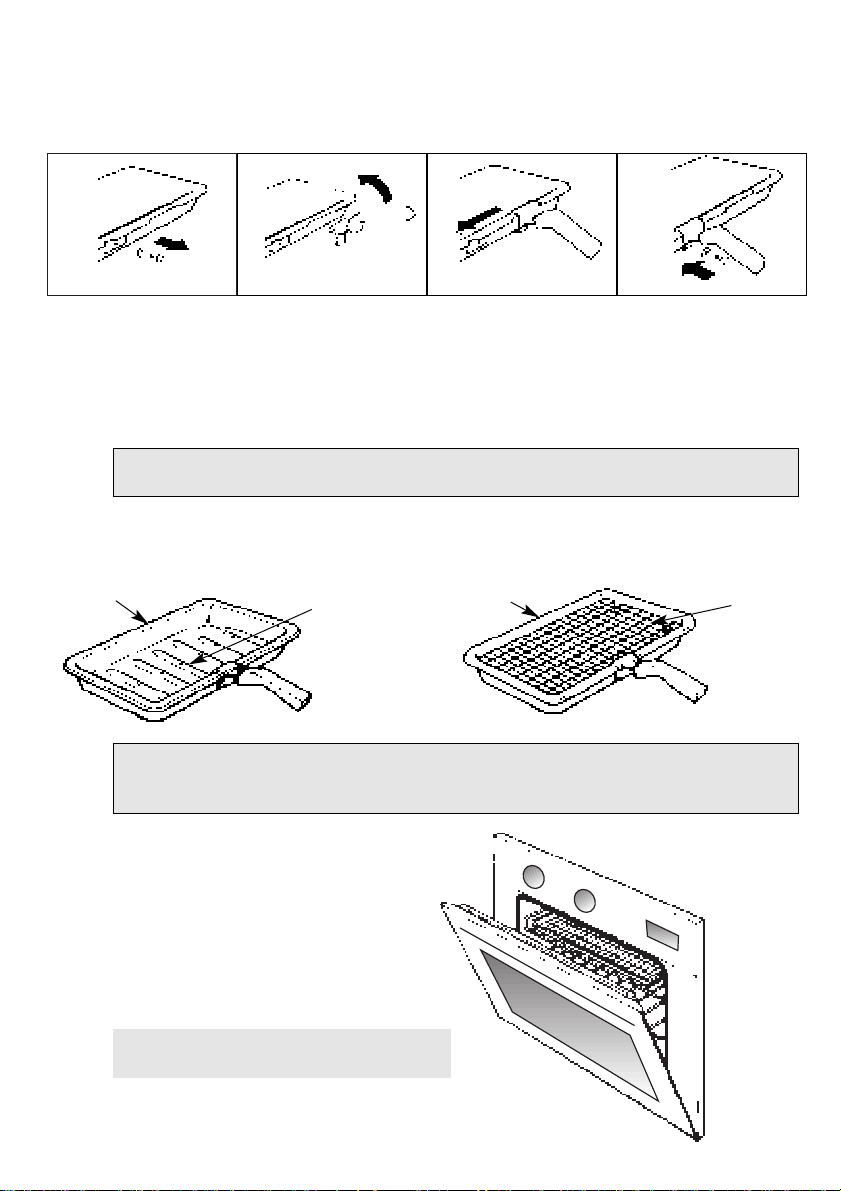

The grill pan handle is detachable from the pan, to facilitate cleaning and storage.
The grill pan handle can be fixed as follows:

(a)

(b)

(c)

Step 1 Step 2 Step 3 Step 4

Step 1 Remove screw & washers from the grill pan bracket (a).
Step 2 Tilt the handle over the recess (b).
Step 3 Slide it towards the centre of the pan (c).
Step 4 Locate the handle over the bracket (d).

For a fixed handle, replace screw & washers and ensure they are fully
tightened up. If a detachable handle is required, do not replace screw &
washers.

Note: If a fixed handle is required, the grill pan is unable to be stored in the oven with the
door closed and cannot be used as a meat pan.

GRILL PAN FOOD GRID AND ANTI-SPLASH TRAY

GRILL PAN

Note: To stop fat splashing onto the grill mesh, it is important to use the anti-splash tray as
shown in the grilling chart. Always clean the grill pan, anti-splash tray and food grid after each
use.

ANTI-SPLASH
TRAY

GRILL PAN

(d)

FOOD GRID

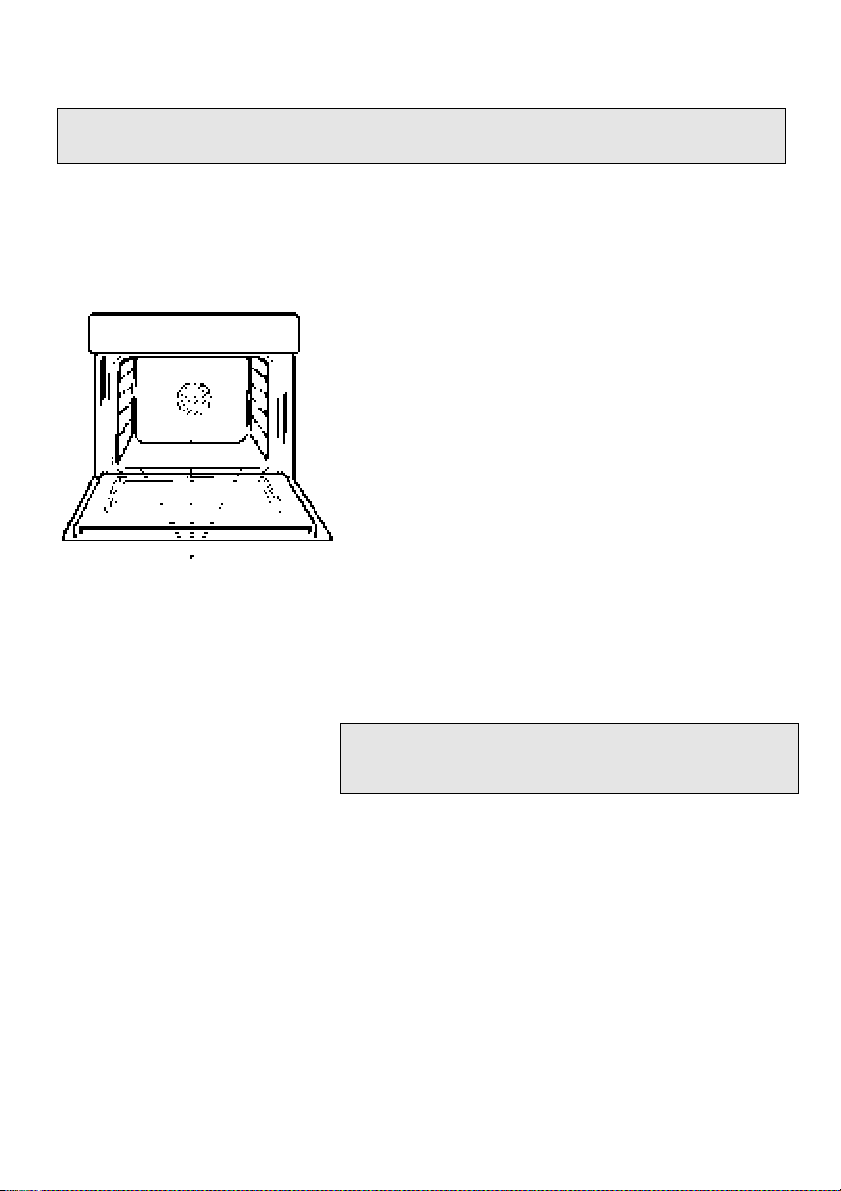

DOOR POSITION FOR GRILLING

Note: Do not grill with the grill/oven door
closed.

15

GRILLING PROCEDURE

A

❍❍

Note: DO NOT allow young children near to the appliance when the grill is in use as

the surfaces get extremely hot.

Step 1 Ensure oven timer is set to manual.

Step 2 Turn knob (A) clockwise to full or half grill function.

NOTE: Resistance will be felt when turning from fan oven operation to
full / half grill position.

Step 3 Turn knob (B) clockwise to select the Grill Setting (1–6).

NOTE: When using the grill, a gentle flow of air will be detected coming
from beneath the control panel.

Step 4 After use, turn both controls A & B to their off (0) position and close

Your cooker is not fitted with a conventional type of grill. Creda have developed a Solar Plus
high speed grill which is designed to reduce your grilling times. It is quicker because it takes less

time to warm up from cold. Conventional grills require 5 minutes
beneath them, but for normal grilling the Solar Plus grill can be used directly from cold without
any pre-heat. However, when toasting, optimum performance is achieved by preheating the grill
for about 1 minute.
You will notice that the grill elements are protected by a wire mesh. This stops you from touching
live parts, so under no circumstances should objects be inserted into the mesh. During use the
mesh may become soiled. Do not attempt to clean it while the grill is still on. Turn the cooker off
at the control unit and wait until it has cooled down before cleaning.
Care must be taken to ensure the grill mesh is not distorted.
Do not store the grill pan handle on the grill pan grid when the rod shelf is in the top runner
position.
Do not line the grill pan with aluminium foil, as this increases the amount of fat spitting.
Ensure that the grill pan is cleaned after use. Excess fat build up in the bottom of the pan could
cause a fire hazard.

After use, always return both controls to their OFF (O) position.

Ensure the oven shelf is in the correct position (see Guide to Grilling
Successfully).
Ensure door is in the grilling position (see grilling page)

(1=Low, 6=High).

the oven door.

B

preheat before food is placed

16

GUIDE TO GRILLING SUCCESSFULLY

For solarplus grill in single ovens always grill food with the anti splash tray and food
grid in position unless stated in the chart.

Shelf

Position

Pre-

Food

Toasting of Bread
Products

Small cuts of meat
– Sausages, Bacon

Chops, etc.
Gammon Steaks,

Fish: Whole, Fillets,
Fish Fingers.

Pre-cooked Potato
Products

Pizzas

Browning of Food

e.g. cauliflower

cheese

from base

heat

of oven

1 min. 5 or 6 6

None

None 5

None

None

None

1 min.

5 or 6

5 or 6

5 or 6

5 or 6

The numbers on the grill control relate to heat setting recommended on food packs.:

No. 6 = High
No. 5 = Medium High
No. 4 = Medium
No. 3 = Medium Low
No. 2 = Low
No. 1 = Very Gentle Heat

6

Setting required

for cooking

6 for 5 - 10 mins
reduced to 4 or 5

6 reduced to 4 or 5
after 8 - 10 mins

6 reduced to 4 or 5
after 8 - 10mins

5

4 or 5

6

Approx. Cooking Time

3-6 mins.

10 - 20 mins

25 - 35 mins

Cook in base of pan for 10 ­20 mins.

8 - 15 mins

In base of pan 15 - 25 mins

10 - 20 mins

Pan To Be Used

Grill Pan & food support

Grill Pan, antisplash Trivet &

Food Support

Grill Pan, antisplash Trivet &

Food Support

In Base Of Grill Pan

In Base Of Grill Pan

Grill Pan & Food Support

Dish Placed Directly On

Shelf

17

USING THE OVEN FOR FAN COOKING

Since a circulaire fan oven heats up more quickly, and generally cooks food at a lower
temperature than a conventional oven, pre-heating is often unnecessary. For guides on “pre­heating”, “cooking temperatures” and “cooking times”, see “Oven Temperature Charts” later in
book.

NOTE: Charts are a guide only, to suit personal taste and requirements, it may be necessary to
increase or decrease temperatures by 10˚C. It may also be necessary to increase or decrease
cooking times.

OVEN SHELF POSITIONING FOR FAN OVEN

Most foods will cook satisfactorily on any shelf position, due to even distribution
of heat in the oven, but the shelves must be evenly spaced.

Food or utensils should ne
for cooking as air circulation is restricted.

DO NOT allow young children near to the appliance when the oven is in use as the surfaces get
extremely hot.

OVEN UTENSILS

ver be placed directly on the floor of the oven

Fan

Oven

Do not use: Meat pans larger than 375mm x 300mm (15” x 12”)

An additional oven shelf can be purchased from your oven supplier if a third one is
required for batch baking. Never use more than three shelves in the oven as air
circulation will be seriously restricted.

Baking Trays larger than 325mm x 250mm (13” x10”)

TEMPERATURE & TIME

If three shelves are in use to cook large quantities of food, it may be necessary to
increase the cooking times given in the temperature charts by a few minutes, to
allow for the loss of heat due to extra time taken to load the oven, and the larger
mass of food. Baking trays should have an even gap around the oven.

18

USING THE OVEN FOR FAN COOKING

FAN OVEN OPERATION

Fan

Oven

A

❍❍

Step 1 Ensure oven timer is set to manual.

Ensure that the oven shelf is in the correct position.
Place food centrally on the shelf ensuring the oven door is fully closed.

Step 2 Turn knob (A) clockwise and select the required cooking temperature .

The pilot light (●) will immediately come on, and remain on until the oven
reaches the required temperature. The light will then automatically go off
and on during cooking as the oven thermostat maintains the correct
temperature.

Step 3 After use turn control (A) to its Off (O) position.

NOTE: At the end of a cooking period there may be a momentary puff of
steam when the door is opened. This will disperse in a few seconds and is a perfectly
normal characteristic of an oven with a good door seal.

B

19

USING THE OVEN FOR OTHER FUNCTIONS

E

DO NOT place food or plates directly on the oven floor as this could damage both the oven lining
and the plates which are being warmed.

“SLOW” SETTING

90

This is used for slow cooking, keeping food warm and warming plates for short
periods. Extra care should be taken when warming bone china, as it may be damaged
in a hot oven.

ADVANTAGES OF SLOW COOKING ARE:

The oven stays cleaner because there is less splashing.
Timing of food is not as critical, so there is less fear of overcooking.
Inexpensive joints of meat are tenderised.
Fully loading the oven can be economical.
Cooking times can be extended in some cases by up to 2 hours.
The kitchen stays cooler.

OPERATION:

1. Place the prepared food in the main oven and ensure the door is fully closed.

2. Turn knob A to (slow cooking temperature).

90

E

STORAGE & RE-HEATING OF FOOD:

1. If food is to be frozen or not used immediately, place it in a clean container
and cool as soon as possible.

2. Always thaw frozen food completely in the refrigerator before re-heating.

3. Always reheat food thoroughly and ensure it is piping hot before serving.

4. Only re-heat food once.

POINTS TO CONSIDER WHEN PREPARING FOOD FOR SLOW COOKING

1. Make sure that the dishes to be used will fit into the oven ensuring enough
room for air to circulate.

2. All dishes cooked on the slow setting will require a minimum of 6 hours,
however, it they are cooked for 1-2 hours longer then deterioration in their

3. Never cook joints of meat over 2.7kg (6 lb) or poultry over 2.0kg (4lb 8oz).

4. To seal in the meat juices, always cook meat or poultry at 170˚C for 30

5. Always ensure that joints of pork and poultry are thoroughly cooked by checking

6. Always thaw frozen foods completely before cooking. We do not recommend

7. Always bring soups, liquids and casseroles to the boil before placing in the oven.

8. Ensure that casserole dishes have a good seal (not airtight) and cover to the top

9. Ensure that fruit and vegetables are cut into even sized small pieces to cook

10. Always adjust seasoning before serving.

11. If using dried red kidney beans it is important that the beans are soaked and

12. When cooking fish or egg dishes it may be necessary to check during cooking to

20

appearance may be noticed.

We do not recommend that joints of meat or poultry are stuffed before cooking
on the slow setting.

minutes before wrapping in foil and placing on a rack over a tin (to allow good air
circulation) before turning the control to the slow setting and cooking
immediately.

with a meat thermometer before serving.

placing frozen food in the oven to cook.

with foil to prevent loss of moisture.

properly.

then boiled for a minimum of 10 minutes before using in any dish to destroy any
toxins.

avoid overcooking.

TEMPERATURE CONVERSION SCALE

Gas

Mark

1

2

/

1

2

3

4

5

6

7

8

9

˚F

250 100

275

300

325

350

375

400

425

450

475

Main

Convection

Oven

120

140

150

160

180

190

200

220

–

–

Main

Fan

Oven

120

130

140

160

170

180

200

210

220

21

OVEN TEMPERATURE CHARTS – MEAT

Food

Note: Up to three shelves may be used in this oven. The position
these is not important providing they are evenly spaced.

Meat

Beef

Lamb

Pork

Veal

Chicken/Turkey
up to 4kg (8lb)

Turkey up to 5.5kg
(12lb)

Turkey over 5.5kg
(12lb)

Casserole / Stews

Pre-

heat

No 160/180

No

No

No

No

No

No

No

IF USING ALUMINIUM FOIL

1. Never allow foil to touch sides of oven.

2. Never cover interior with foil.

3. Never cover shelves with foil.

Fan Oven Cooking

Temperature

˚C

20-25 mins per 450g (1lb)

160/180

160/180

160/170

160/180

150/160

150

140/150

25 mins per 450g (1lb)

25 mins per 450g (1lb)

25-30 mins per 450g (1lb)

18-20 mins per 450g (1lb)

13-15 mins per 450g (1lb) e.g. 5kg

12 mins per 450g (1lb) e.g.

10kg (22lb) = 264 mins

Time

(approx.)

+ 20 mins extra

+ 25 mins extra

+ 25 mins extra

+ 25 mins extra

+ 20 mins extra

(11lb) = 143-165 mins

1

1

⁄2 - 2 hours

of

22

The most accurate method of testing the readiness of joints of meat or whole
poultry is to insert a meat thermometer into the thickest part of a joint of meat,
or the thickest part of poultry thighs, during the cooking period. The meat
thermometer will indicate when the required internal temperature has been
reached.

Rare 60˚C

Beef

Medium 70˚C

Well Done 75

Pork Lamb Poultry Veal

˚

C

90˚C 80˚C 90˚C 75˚C

OVEN TEMPERATURE CHARTS – BAKING

Baking

Food

Scones

Small Cakes

Victoria Sandwich

Sponge Sandwich
(Fatless)

Swiss Roll

Semi-rich
Fruit Cake

Rich Fruit Cakes

Shortcrust
Pastry

Puff Pastry

Yorkshire Pudding

Individual Yorkshire
Pudding

Milk Pudding

Baked Custard

Fan Oven Cooking

Note: Up to three shelves may be used in this oven. The position
these is not important providing they are evenly spaced.

Temperature

Pre­heat

˚C

Yes 210/220 9-12 mins

170/180

No

160/170

No

170/190

Yes

180/200

Yes

140/150

No

No

No

No

Yes

Yes

No

No

130/140

190/200

190/200

180/190

190/200

130/140

140/150

Time depending on use

Time depending on use

Time depending on use

Time

15-25 mins

20-25 mins

15-20 mins

12-15 mins

1

1

1

-1

⁄4

⁄2

40-45 mins

20-45 mins

1

1

2-2 hours

⁄

35-45 mins

hours

of

Bread

Meringues

Yes

No

200/210

70/90

20-30 mins

3-4 hours

Note: If soft tub margarine is being used for cake making, we would recommend using the all in
one method and to reduce the temperature by 10˚C. Temperatures recommended in this chart
refer to cakes made with block margarine or butter only.

23

COOKING RESULTS NOT SATISFACTORY

GRILL

Uneven cooking front to back Ensure that the grill pan is positioned centrally

Fat splattering Ensure that the grill pan is not lined with foil.

below the grill element.

Ensure that the grill setting is not too high.
Remember to use the anti - splash tray.

BAKING GENERAL

Uneven rising of cakes Ensure that the oven shelves are level.

Sinking of cakes The following may cause cakes to sink:

Over/undercooking Refer to the cooking times and temperatures given in

1. Pre-heating of fan ovens – not always necessary.

2. Cooking at too high a temperature – reduce
standard temperatures by 25˚C for fan ovens.

3. Using normal creaming method with a soft
margarine. If using soft margarine, use an all in

one method instead of the traditional creaming of
the margarine and sugar. Remember when using a
food mixer or processor not to over-cream soft
margarine.

the Oven Temperature Charts provided, however, it
may be necessary to increase or decrease temperatures
by 10˚C to suit personal taste.

Do not use utensils greater than 56mm (2
for roasting.

l

⁄4'') in height

24

CARE AND CLEANING

Warning: Before cleaning, please ensure that the electricity supply to the appliance is switched off
and the appliance is fully cold.

1. “CREDACLEAN” OVEN LINERS

(a) How "Credaclean" works.

The surfaces of the "Credaclean" oven liners are
treated with a special vitreous enamel which absorbs
cooking soils. At temperatures of 220˚C (425˚F) or above,
the special surface enables these soils to be slowly
destroyed.
The higher the temperature the more effective it is.

(b) Cleaning.

In most cases normal cooking operations at 220˚C (425˚F)

will permit this cleaning operation to proceed during
cooking. However if higher cooking temperatures are not
used regularly, it may be necessary, in order to prevent

MAIN OVEN SIDE LINERS

AND REAR PANEL

heavy soiling, to run the ovens without shelves or meat
pan, at a maximum setting for a couple of hours. It should
not normally be necessary to clean the "Credaclean"
panels with water.
If the user feels it is desirable to do so, wipe them over
with a clean, soapy cloth, followed by a wipe with a
clean damp cloth.

DO NOT use biological washing powder, harsh abrasives or

chemical oven cleaners of any kind as this could damage the

“Credaclean” oven liners.

25

CARE AND CLEANING

2. CLEANING THE OVEN

(a) Base of Main Oven.

REMOVABLE GRILL ROOF PANEL (NOT

ALL MODELS OR MODELS FITTED WITH

HIGH SPEED GRILL)

OVEN
SHELVES

MAIN
OVEN
BASE

Wipe out the oven with a damp soapy cloth. For
more stubborn stains on the base of the oven use a
well soaped fine steel wool soap pad.

(b) Grill/Meat Pan & Oven Shelves.

To prevent stains from being burnt on to the grill pan,
food support and rod shelf, always wash immediately
after use in hot soapy water.

GRILL/
MEAT

Use a well soaped fine steel wool soap pad to remove

PAN

stubborn stains from the rod shelves, grill/meat pan and
the base of the oven.

DO NOT use aerosol cleaners on this oven as they could
adversely affect the fan motor unit, and cannot be wiped
off the fan blade.

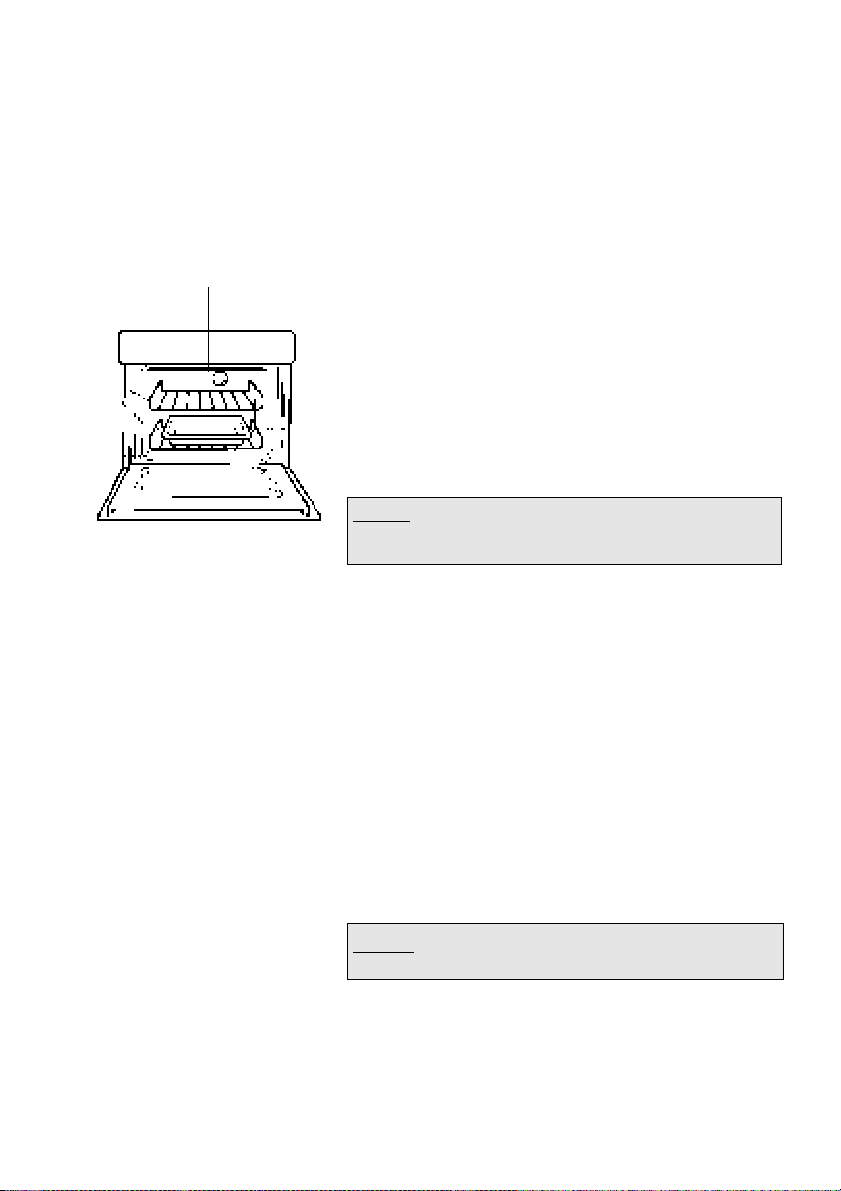

(c) Removable Grill Roof Panel (not all models).

Pull grill roof panel out slowly, being careful not to
damage the elements. Clean using a damp soapy cloth, if
stubborn stains remain gently clean with a well soaped
fine steel wool soap pad

and soapy water, and then wipe

over with a damp cloth.

(d) Solarplus Grill (not all models).

26

To clean the Solarplus grill, use a clean, damp, soapy
cloth and wipe over. If stubborn stains remain, gently
clean with a well soaped nylon scouring pad and wipe
over with a damp cloth.

DO NOT use metal cleaning utensils, wire wool or
proprietary oven cleaners on the grill element mesh.

CARE AND CLEANING

3. CONTROL PANEL / TRIMS / INNER DOOR PANEL & GLASS

(a) Control Panel

OVEN
DOOR

TRIMS

4. REPLACEMENT OF THE OVEN LAMP

Regularly wipe with a clean, damp cloth and polish with a
clean, dry cloth.

(b) Trims

It is advisable to clean the trims regularly to prevent any
build up of soiling which may detract from the
appearance

of the cooker. The recommended method of
cleaning is to wipe over the trims with a clean, soft cloth
wrung out in hot water, or mild non abrasive cleaner. (If in
doubt try the cleaner on a small area of trim which is not
noticeable in normal use), then after wiping with a cloth
wrung out in clear water, dry with a clean, soft cloth.

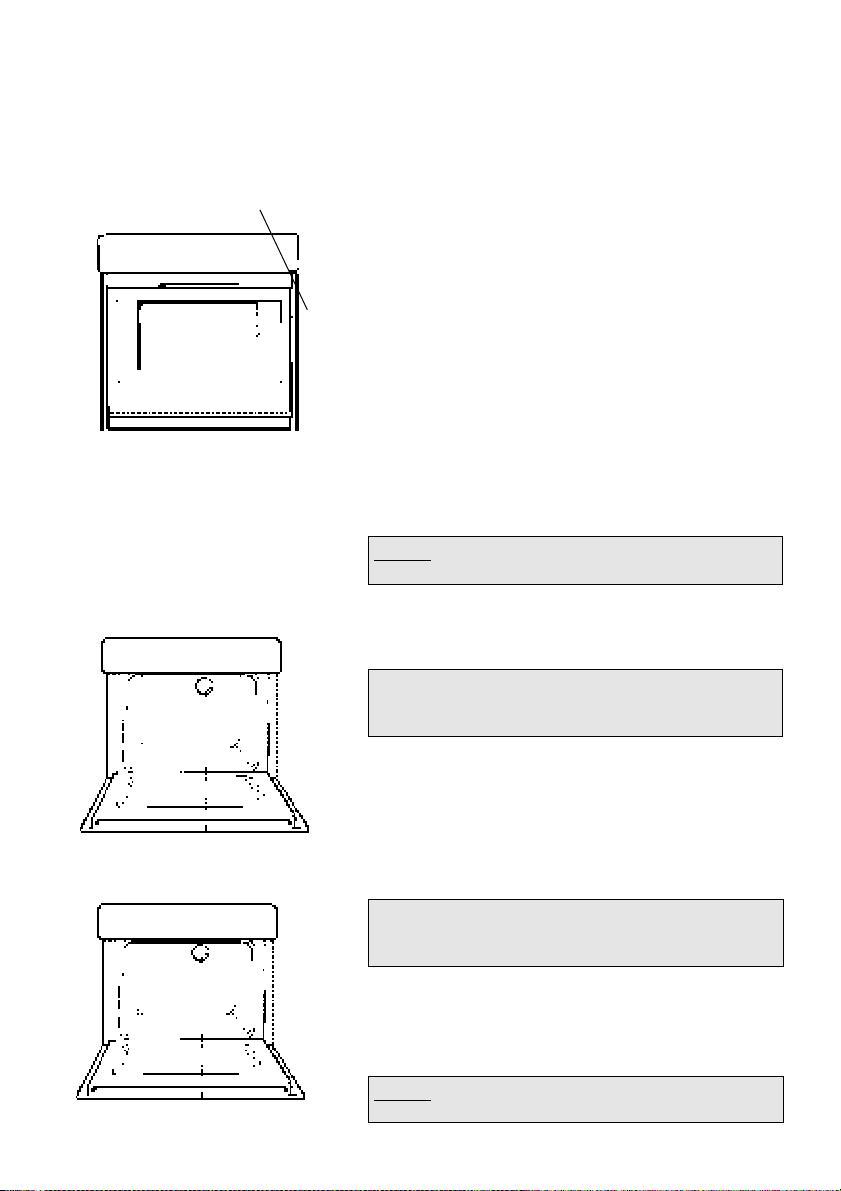

(c) Inner Door Panels & Glass

Open the door fully. The glass panel may now be washed.
Stubborn stains can be removed by using a well soaped,
fine steel wool soap pad.

DO NOT use scouring pads, or abrasive powder, which
will scratch the glass.

Warning: Before removing lamp lens, please ensure that
the electricity supply to the appliance is switched off
and the appliance is fully cold.

Open the oven door and remove the oven shelves.
Using a thick cloth, grip the lamp lens, unscrew anti­clockwise and remove the lens.
Carefully unscrew the bulb anti-clockwise. Fit
replacement bulb (15W 300˚C SES). Fit replacement

MAIN OVEN LAMP

bulb and refit lens.

5. HOW TO CLEAN THE LAMP LENS

Warning: Before cleaning lamp lens, please ensure that
the electricity supply to the appliance is switched off
and the appliance is fully cold.

Open the oven door and remove the oven shelves.
Using a thick cloth, grip the lamp lens, unscrew anti­clockwise and remove. Clean with a non-abrasive
cleansing cream and refit lamp lens.

DO NOT use scouring pads, or abrasive powder, which

MAIN OVEN LAMP

will scratch the glass lens

27

CARE AND CLEANING

Take particular care not to damage the inner surface of the door inner glass that
is coated with a heat reflective layer. Do not use scouring pads, or abrasive pow­der, which will scratch the glass. Ensure that the glass panel is not subjected to
any sharp mechanical blows.

Stubborn stains can be removed by using a fine steel wool pad.
inner glass panel may be cleaned, while still warm, without removing it from the door.
After cleaning, rinse and dry with a soft cloth.

CLEANING THE DOORS

SIDE OPENING DOORS
Cleaning the door glass is the same as the drop down doors, except take care to
support the weight of the inner glass when removing and refitting.

DROP DOWN DOORS
Remove the door inner glass as follows.

1. Open the door fully and unscrew the two screws securing the glass panel so that
the securing brackets can be turned. There is no need to remove the screws
completely.

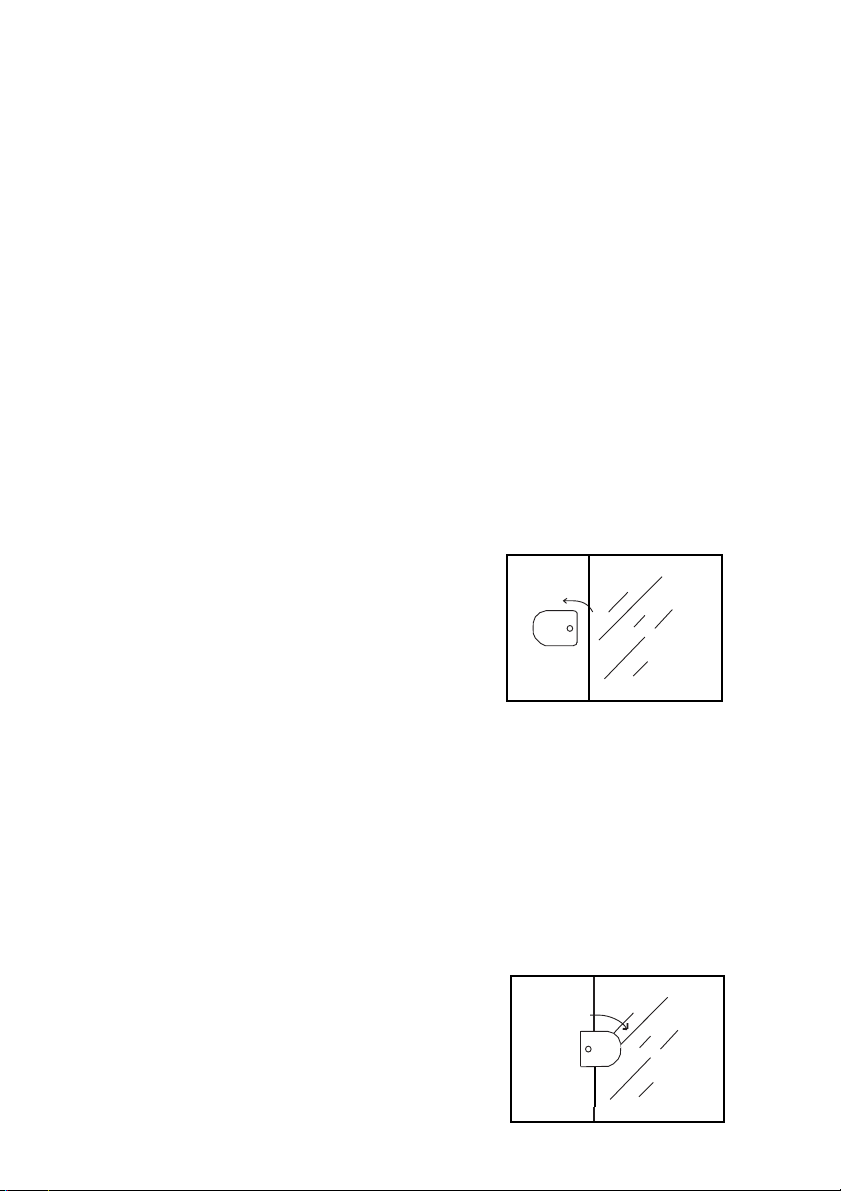

2. Turn the brackets so that the glass can be
removed and cleaned at the sink (Fig. 1.)

For slight soiling the

Fig. 1.

3. The inside of the outer door glass can now be cleaned while still fitted to the
cooker.

Glass

NEVER OPERATE THE COOKER WITHOUT THE INNER DOOR GLASS
IN POSITION.

Refit the door inner glass as follows.

1. NOTE: The inner door glass has a special reflective coating on one side.
Replace the door inner glass so that the statement: “IMPORTANT THIS FACE
TOWARDS THE OVEN” can be read from the inner side of the door.

2. Turn the two securing brackets back to their
original position to retain the glass and tighten
the screws. (Fig. 2.)

Fig. 2.

28

Glass

INSTALLATION INSTRUCTIONS

IMPORTANT

This equipment is designed specifically for domestic purposes and Creda Limited cannot
accept responsibility if used in any other type of installation.

All Creda oven units are suitable for installation under Creda hob units.

This appliance must not be installed over any appliance that generates heat.

For your own safety, we recommend that your appliance is installed by a competent per­son – such as one who is registered with NICEIC (National Inspection Council for Electrical
Installation Contracting). The cooker should be installed in accordance with the latest
Edition of the IEE Regulations.

1. GENERAL

WARNING: THIS APPLIANCE MUST BE EARTHED.

(a) The oven unit is designed for mounting at a safe level into an oven housing

which must be secured to the backing wall, or alternatively, in the case of the
single oven unit, under a worktop with or without a hob unit above.

(b) In an oven/hob arrangement where it is proposed to install the oven directly

below the hob. It is advisable that only slimline hobs are used which have the
following maximum depths.

Kitchen Worktop thickness

30mm

40mm

40mm +

It is most important that the hob installation instructions are strictly
observed.

(from worktop surface vertically down)

Maximum hob depth

55mm

65mm

Worktop thickness + 25mm

29

INSTALLATION INSTRUCTIONS

2. OVEN UNIT HOUSING CABINETS

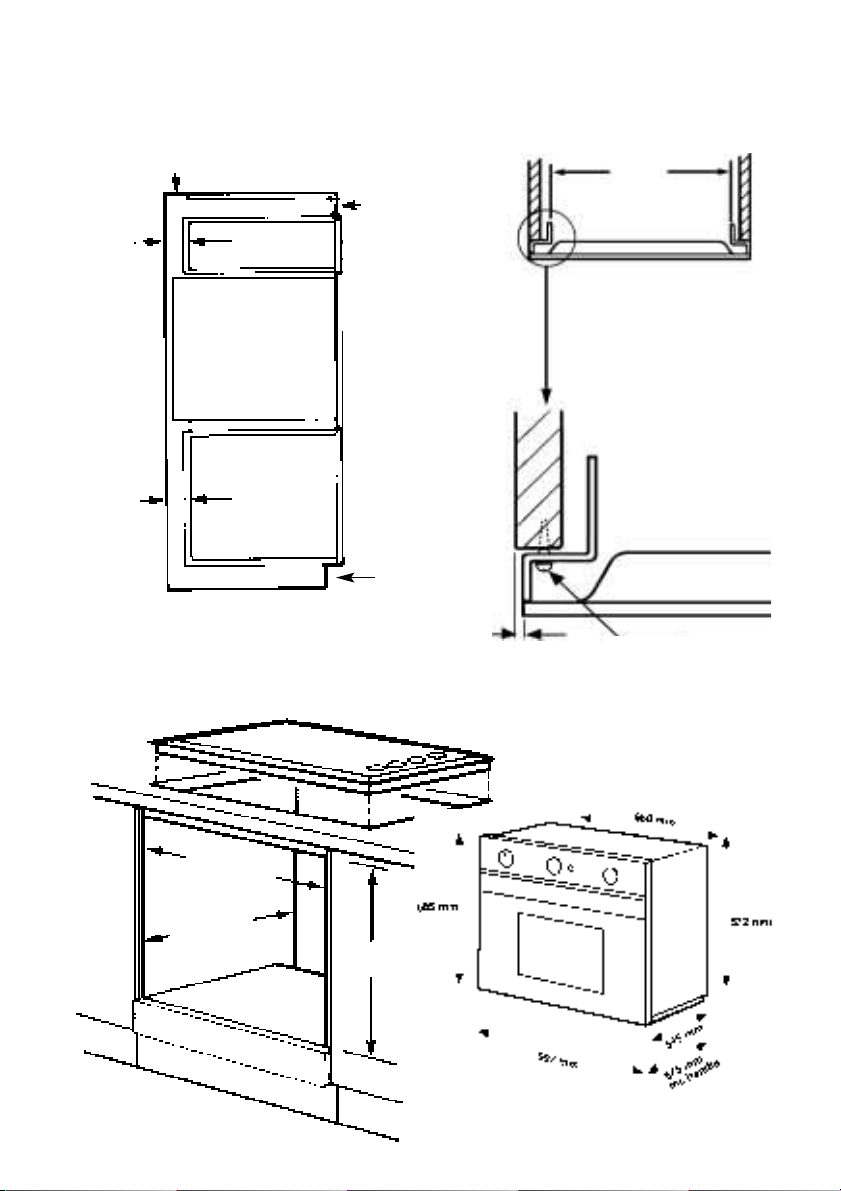

(a) The oven unit housing cabinet dimensions must comply with Fig. 3 and Fig. 4.
(b) An air gap of 50mm minimum must be provided at the rear of any top or bottom

cupboards or shelves for ventilation.

(c) Do not obstruct the ventilation slots provided on the oven trim. This is found

adjacent to the bottom of the oven door.

(d) The air gap at the rear allows the warmed air to pass out of the cabinet. If

cabinets extend up to the ceiling, the warm air must be exhausted through to the
front. Fig. 1.

(e) If an oven unit is installed adjacent to a tall cabinet, steam escaping from the oven

when the door is opened could condense on, and perhaps stain the adjacent
surface. To prevent permanent staining, the adjacent surface should be made of a
material that is heat resisting and easy to clean. Adjacent tall cabinets should not be
deeper than the oven housing cabinet.

IMPORTANT

It is essential that the lower cupboard is constructed in the manner illustrated i.e.
having side, back and roof panels so joined as to provide no apertures which could
permit access to the oven unit when installed.

3. ELECTRICAL INSTALLATION

Mains Supply

A 15 amp Double Pole control switch with a minimum contact clearance of 3mm must
be fitted on or recessed in the wall adjacent to the oven housing cabinetry and should
be accessible after installation. If the oven is to be wired into a connector unit this may
be positioned behind the oven providing:–
i. The top of the connector unit is not more than 30cm above the base of the oven

recess – see Fig. 4.

ii. The depth of the connector unit does not reduce the depth of the oven recess to

less than 55cm.

We recommend that 4mm
cooker to the control unit. This power supply cable must conform to BS 6004.

2

twin and earth PVC insulated cable is used to connect the

Alternatively the mains supply can be taken from a household 13 amp switched fused
spur. Having a minimum contact clearance of 3mm which must be fitted adjacent to the
oven housing cabinetry and accessible after installation. The oven must be fitted with a
3 core cable having a minimum cross sectional area of 1.5mm
BS6500.

The oven must not be connected using a 3 pin 13 amp plug.

2

and must conform to

30

INSTALLATION INSTRUCTIONS

Any spare cable must be coiled either behind the oven (not more than 30cm above the base of
the oven recess) or pushed into the air gap below the oven after installation.

Where a hob is fitted adjacent to or above an oven a 30 amp or 45 amp double pole switch with
a minimum contact clearance of 3mm should be used to feed both units via separate suitably
rated cables.

Where a hob unit is fitted above the oven unit we recommend that 85oC High Temperature PVC
with insulated 3 core flexible cord to table 15 of BS 6141:1991 with a conductor size of 2.5mm
must be used to connect the hob to the control unit.

Where a hob unit is fitted adjacent to the oven unit, then 4mm2twin and earth cable to BS 6004
is recommended to connect the hob unit to the control unit.

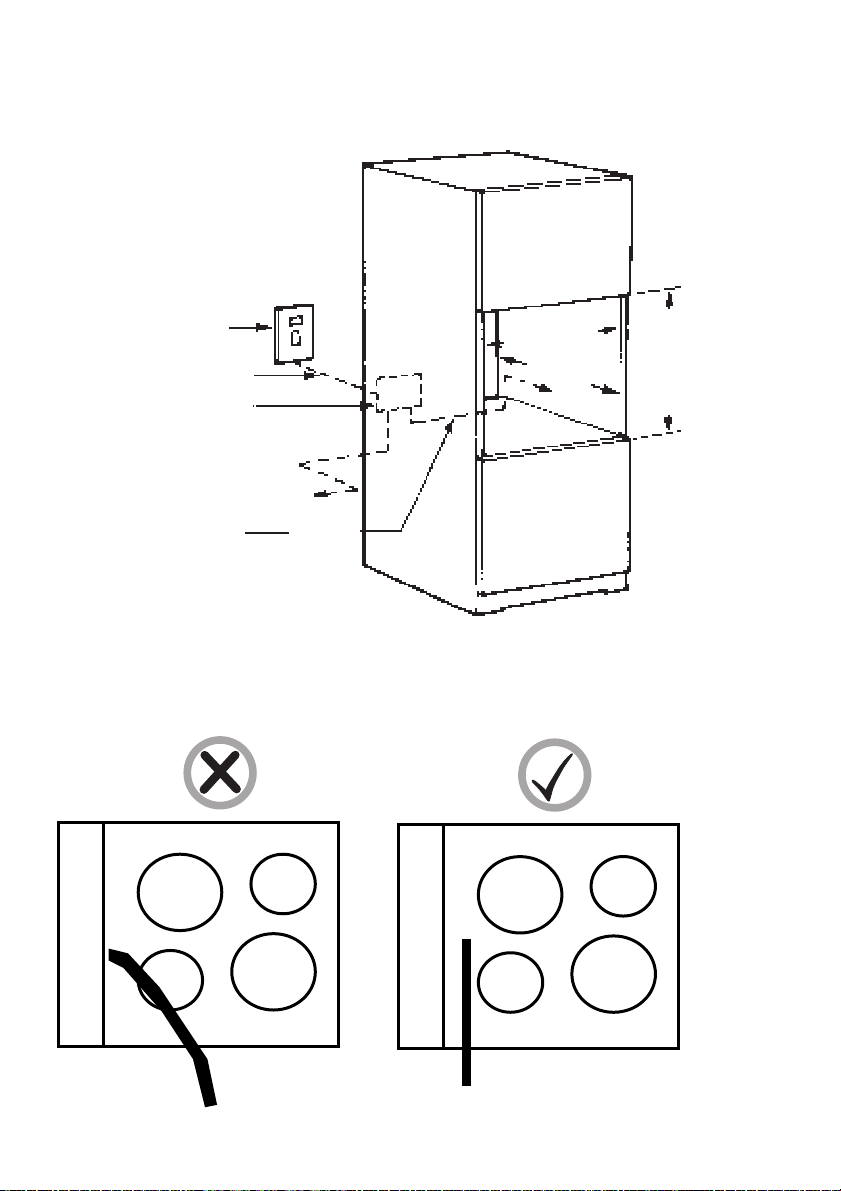

In all cases adhere to routing details (see fig. 5).

Your cooker should have been checked to ensure that the voltage corresponds with your supply
voltage, this is stated on the rating plate which is located on the oven front frame (lower).

CONDUIT BOX TO MAINS TERMINAL BLOCK

(a) The oven unit should be placed on the floor on its carton base in front of the housing

cabinet. The rear of the unit should be in line with the conduit box.
(b) Ensure there is sufficient cable for any future servicing.
(c) Remove the terminal cover. Prepare the cable, pass it through the cable entry hole in

the oven rear panel and fit to terminal block. Secure the cable clamp and replace the

terminal cover.

4. FINAL INSTALLATION

(a) Using a spirit level, check that the housing cabinet is level from side to side and from

front to back in its installed position.
(b) Correct any unevenness by placing spacers under the bottom of the cabinet.

Make sure that the cabinet rests firmly on the floor without rocking.
(c) Before the oven is fitted the cabinet must be firmly secured to the backing wall for

stability.
(d) The oven unit should now be lifted (this requires two people) into the cabinet and

pushed fully home.
(e) Finally the oven unit must be secured to the cabinet. Position the oven side trims

equally about the cabinet sides. This should give an overlap of approx. 1.5mm per side

(see Fig. 2). Secure the oven unit to the cabinet, through the side trims, by means of

the four screws provided, two each side trim.
(f) Remove all packing material from the grill and oven interior.

2

LIST OF LOOSE ITEMS

4 x No.6 Pozi Head screws

31

INSTALLATION INSTRUCTIONS

Ventilation Slot

if cabinet doesn't fit to ceiling

51 x 457mm min area

Ventilation Slot

50mm

gap

Fig. 1

50mm

air

gap

Oven

air

if cabinet fits

to ceiling

51 x 457mm min

area

Fig. 2

Cabinet

560mm

Viewed down through

cabinet

32

Tall Cabinet

When fitting a hob above an oven always
use these installation instructions
in conjunction with the hob instructions.
Use 2.5mm
Electrical Installation.

2

High Temp Cable. Refer to

Fig. 3

560mm min

Built
Under

574mm max

550mm min

excluding pipes

and other projections

As Above

575mm min
580mm max

Side
Trim

1.5mm

No. 6 x 15mm

(4 Supplied)

Oven Door

INSTALLATION INSTRUCTIONS

Fig. 4

Single Oven

in tall

Cabinet

Double Pole

Control Switch

2

6mm

Cable if Hotplate

Conduit Box

2

4mm

adjacent to oven

Refer to Electrical Installation

Fig. 5

fitted

Cable if hob fitted

2

Cable

4mm

to Oven

560mm min
574mm max

*550mm

585mm max

575mm if cooker

trim is to

overlap

top edge

of shelf

*excluding pipes

and other

projections

33

SOMETHING WRONG?

Before calling a Service Engineer, please check through the following lists.

THERE MAY BE NOTHING WRONG.

Problem

Nothing works.

Display shows 0.00 AUTO.

Fan oven does not work but the
grill works.

Fan Oven and Grill do not work.

Grill does not work.

Grill keeps turning on and off.

Check

(a) Check
If you find :­Display is blank.

Then it is likely that there is no electricity supply to your oven.

Check: (i) That the main cooker wall switch is turned on.

(ii) Check other appliances to see if you have a power cut.
(iii) Check the main circuit breaker for the property.
(iv) With the selector switch (A) turned to the oven

light does not illuminate.

The power supply to your oven has possibly been interrupted, but has
now come back on again. Reset the timer to the correct time of day
and "Manual" operation using instructions given in the timer section
of the book.

Check to ensure that the timer is in Manual Mode:
See timer section for instructions on how to return timer to

"Manual".

Operating the cooker under the following conditions may cause a
safety device to operate.

(a) Grilling with the door closed - always grill with the door open to

the correct position - see grilling.

(b) Grilling for an excessively long period at maximum setting -

see grilling guide.

(c) Grilling with inadequate ventilation in the cabinet - see

installation instructions.

Check that you have selected :- "Grill" function on the "Fan oven/Grill
Select" knob (A) and
page.

When the Grill control (B) is operating at less than "6", the grill will
cycle on and off, this is normal and is not a fault.

a Grill setting on theGrill Knob (B) - see grilling

Can not set an “Auto Cook”
programme

Draught from beneath control
panel.

Timer buzzer/bleeper operates
continually

If you have been through the above list and there is still a problem;

34

Remember: "Cook Period" is the actual length of time for which, the
timer will switch the oven on as part of an "Auto Cooking"
programme.

A gentle flow of air will be blown from beneath the control panel
when the appliance is used. If the appliance is still warm, this
cooling fan may run on, or restart itself after all of the controls have
been turned off.
The fan will stop once the appliance has been cooled. This is normal
and not a fault.

Buzzer/Bleeper should stop automatically after 2 minutes (Camargue)
4 minutes Colonial. If not, press minute minder
button to silence.

Contact Service (see Key Contacts back page).

Key Contacts

Service

Creda has the largest appliance manufacturer’s service team in Europe, trained

specialists directly employed by us to ensure your complete confidence.

Repair Service

UK: 08709 066 066

Republic of Ireland: 1850 302 200

You will be asked for the following information:-

Name, address and postcode.

Telephone number

Model / Serial number of the appliance

Clear and concise details of the query or fault

Place and Date of purchase

(Please keep the receipt as evidence will be required when the engineer calls).

Extended Warranty

To join: UK 08709 088 088

Republic of Ireland: 1850 502 200

Genuine Parts & Accessories

Mail Order Hotline

UK: 08709 077 077

Republic of Ireland: [phone]

For further product information

All Creda Services are offered as an extra benefit and do not affect your statutory rights.

General Domestic Appliances Limited, Morley Way, Peterborough, PE2 9JB

PRINTED BY SIMLEX .FOUR ASHES, WOLVERHAMPTON. October 2002 Part No. 4866200135-01

08701 546474
