PUZZLE DESK
HARDWARE
Thank you for purchasing the Puzzle Desk. This page
lists all the contents included in the box. Please take
time to identify the hardware as well as the individual
components of this product. As you unpack and
prepare for assembly, place the contents on a carpeted
or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
2 - bolts
2 - pull
bolts
Missing hardware? Please call 800.606.6387 for replacements.
39 - cam
screws
2 - catch
screws
39 - cams
76 - wood
dowels
39 - cams
covers
TOOLS REQUIRED
screwdriver
(included)
phillips head screwdriver
allen wrench
(included)
(We recommend the use of hand tools instead of power tools)
1 - desktop 1 - desk right
side panel
1 - crossbar 1 - support
1 - back panel 1 - bottom panel 1 - pull1 - door front
Made in China - r07 Page 1 of 6
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
2 - side panels
(1 left, 1 right)
1 - shelf
1 - desk shelf 1 - desk left
side panel
1 - top panel
1 - magnetic
catch
PUZZLE DESK
ASSEMBLY
top panel
shelf
1 Insert 6 cams into top panel, 4 cams into shelf and
4 cams into back panel as shown. Make sure arrows
on each cam points toward nearest edge with holes.
NOTE: Make sure arrows
on each cam points toward
nearest edge with holes
back
panel
NOTE: Do not over
tighten the cam screws
left and right
side panel
2 Insert 3 cams, 14 wood dowels and 7 cam screws
into left and right side panels as shown. Secure, but do
not over tighten, each cam screw using a phillips head
screwdriver.
bottom panel
3 Insert 12 wood dowels and 6 cam screws into
bottom panel as shown.
top panel
left side
panel
4 Fit dowels of left side panel into corresponding
holes of top panel as shown. Using a screwdriver, turn
each cam clockwise until it securely engages each cam
screw.
Made in China - r07 Page 2 of 6
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
PUZZLE DESK
back
panel
shelf
5 Fit dowels of assembled unit into corresponding
holes of back panel as shown. Secure all cams.
right side
panel
6 Fit dowels of assembled unit into corresponding
holes of shelf as shown. Secure all cams.
NOTE: Do not over
tighten the bolts
pull
door front
8 Attach pull to door front with 2 pull bolts as shown.
7 Fit dowels of right side panel into corresponding
holes of assembled unit. Secure all cams with screw-
Secure, but do not over tighten, bolts using a
screwdriver.
driver (included) as shown.
Made in China - r07 Page 3 of 6
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
PUZZLE DESK
door
front
B
A
9 A. Attach magnetic catch with 2 catch screws into
assembled unit as shown. Secure, but do not over
tighten, screws with a screwdriver.
B. Fit dowel of door front into corresponding hole of
assembled unit as shown.
bottom
panel
10 Fit dowels of bottom panel into corresponding
holes of assembled unit. Secure all cams. With the
assistance of another adult, position unit upright.
desk right
side panel
11 Insert 12 wood dowels, 6 cam screws and 3 cams
into desk right side panel and desktop.
A
desk left
side panel
B
desktop
12 Insert 6 wood dowels, 3 cam screws and 3 cams
into desk left side panel.
B. Insert 14 wood dowels and 8 cam screws into
desktop as shown.
Made in China - r07 Page 4 of 6
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
PUZZLE DESK
A
desk shelf
B
C
crossbar
13 A. Insert 6 cams, 2 cam screws and 4 wood
dowels into desk shelf as shown.
B. Insert 4 cams into crossbar.
C. Insert 3 cams into support panel.
support
panel
support
panel
desk shelf
NOTE: Do not over
tighten the bolts
14 Fit dowels of desk shelf into corresponding holes of
support panel. Secure with 2 bolts using an allen
wrench. Do not over tighten the bolts.
crossbar
desk left
side panel
15 With the assistance of another adult, fit dowels of
desk left side panel into corresponding holes of
assembled unit as shown. Secure all cams.
Made in China - r07 Page 5 of 6
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com

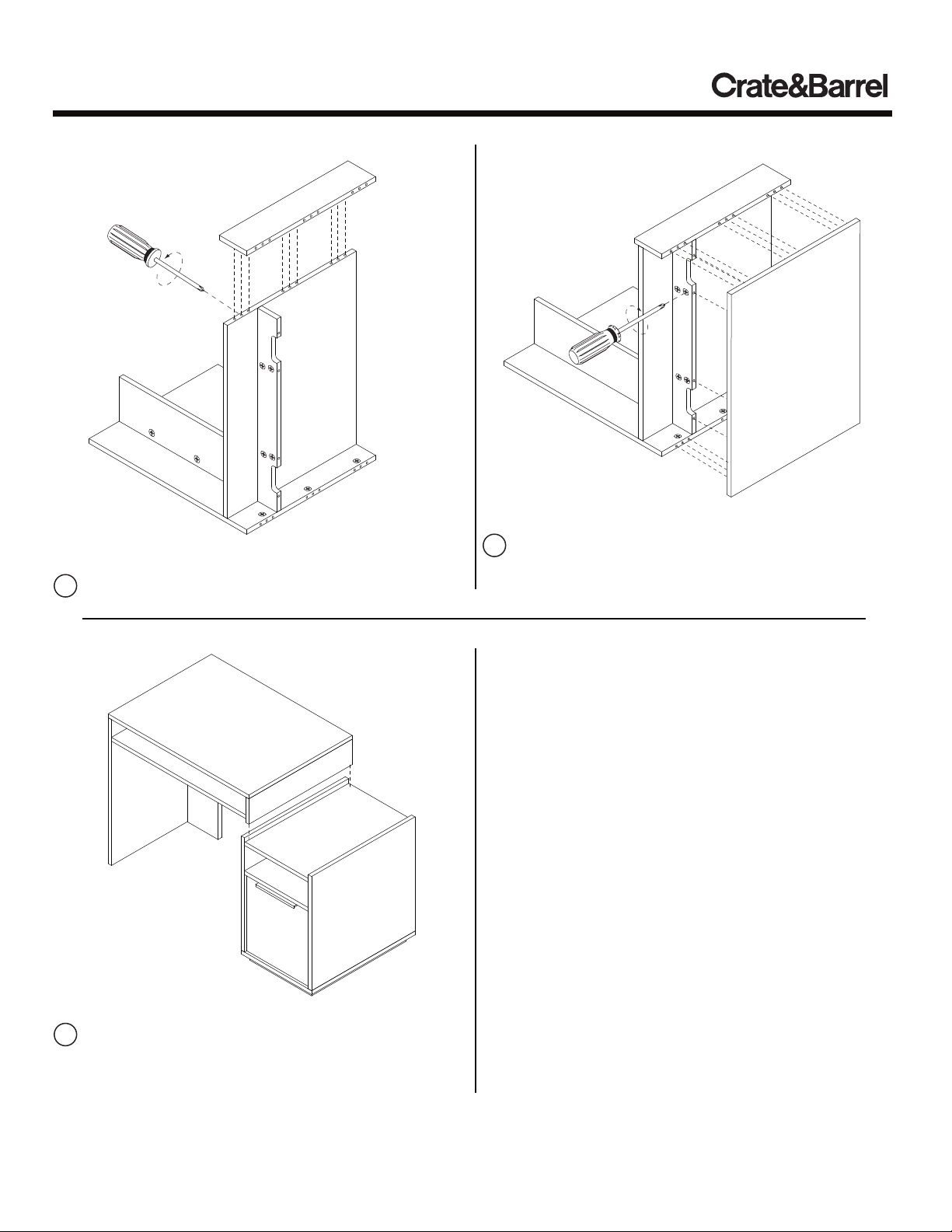

16 Fit dowels of assembled unit into corresponding
holes of crossbar as shown. Secure 2 cams on
crossbar.
PUZZLE DESK
desktop left
side panel
desktop
17 Fit dowels of desktop left side panel into corrseponding holes of assembled unit as shown. Secure cams.
18 With the assistance of another adult, fit dowels of
desktop into corrseponding holes of assembled unit as
shown. Secure cams. Carefully position unit upright. At
this point, cover all exposed cams with cam covers.
CLEANING & CARE
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners. Do not use furniture
wax or polish as the unit is finished with a protective
clear lacquer.
19 With the assistance of another adult, place desk
assembly onto file assembly as shown. Make sure desk is
securely supported by file.
Assembly is now complete.
