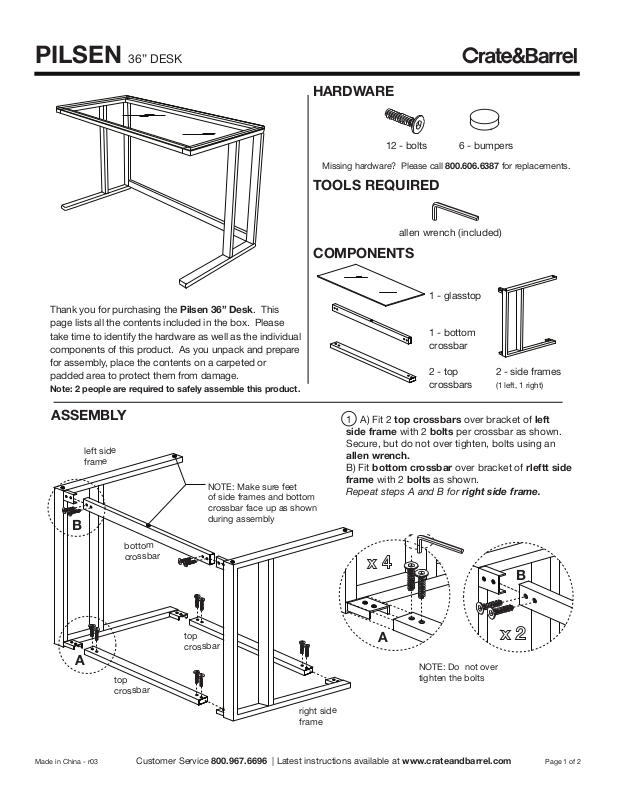

PILSEN 36” DESK
Thank you for purchasing the Pilsen 36” Desk. This page lists all the contents included in the box. Please take time to identify the hardware as well as the individual components of this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
HARDWARE
12 - bolts 6 - bumpers
Missing hardware? Please call 800.606.6387 for replacements.
TOOLS REQUIRED
allen wrench (included)
COMPONENTS
1 |
- glasstop |
|
1 |
- bottom |
|
crossbar |
|
|
2 |
- top |
2 - side frames |
crossbars |
(1 left, 1 right) |
|
ASSEMBLY
left side frame
B
bottom crossbar
NOTE: Make sure feet
of side frames and bottom crossbar face up as shown during assembly
1 A) Fit 2 top crossbars over bracket of left side frame with 2 bolts per crossbar as shown. Secure, but do not over tighten, bolts using an allen wrench.
B) Fit bottom crossbar over bracket of rleftt side frame with 2 bolts as shown.
Repeat steps A and B for right side frame.
B
top crossbar
A
top crossbar
A
NOTE: Do not over tighten the bolts
right side frame
Made in China - r03
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
Page 1 of 2
