PIVOT BUFFET
HARDWARE
Thank you for purchasing the Pivot Buffet. This page
lists all the contents included in the box. Please take
time to identify the hardware as well as the individual
components of this product. As you unpack and
prepare for assembly, place the contents on a carpeted
or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
4 - adjustable
1 - top
panel
shelves
8 - cams 8 - cam
screws
44 - spring
washers
Missing hardware?
Please call 800.606.6387 for replacements.
8 - screws
44 - bolts 44 - flat
16 - shelf
pins
TOOLS REQUIRED
phillips head screwdriver
washers
2 - side panels
1 - bottom
panel
1 - front
frame
1 - drawer
bottom
Made in Vietnam - r07 Page 1 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
1 - back
panel
2 - fixed
shelves
2 - drawer
sides
(1 left, 1 right)
2 - wine rack
panels
1 - drawer
back
2 - middle
partitions
(1 left, 1 right)
1 - drawer
front
4 - feet
PIVOT BUFFET
A
fixed
shelf
NOTE: Make sure
arrows on each cam
point towards nearest
edge with holes
B
partition
1 A) Insert 4 cams into 2 fixed shelves as shown. Make
sure arrows on each cam point towards nearest edge with
holes.
B) Insert 4 cam screws into 2 middle partitions. Secure cam
screws with a phillips head screwdriver.
NOTE: Make sure “BOTTOM” labeled
on each fixed shelf is facing towards
left
partition
NOTE: Make sure arrows labeled
“UP” on left/right partition are
pointing towards the top of assembly
the bottom
fixed
shelf
BOTTOM
BOTTOM
right
partition
2 Fit pre-assembled dowels of fixed shelves into
corresponding holes of left/right partitions as shown.
With a screwdriver, turn each cam clockwise until it
securely engages each cam screw.
NOTE: Make sure arrow
labeled “UP” on back panel
is pointing towards the top
of assembly
back
frame
3 Fit dowels of assembled unit into corresponding
holes of back panel as shown.
NOTE: Make sure arrow labels
left side
panel
on left/right sides points towards
the top of assembly
right side
panel
4 Attach back frame of assembled unit to left/right side
panels with 6 bolts, 6 spring washers, and 6 flat washers.
Secure bolts with a phillips head screwdriver.
Made in Vietnam - r07 Page 2 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
PIVOT BUFFET
front
frame
front
frame
frame
support
5 Remove frame support from front frame as shown.
With a screwdriver, turn pre-attached screws
counter-clockwise to detach and discard.
bottom
foot
panel
6 With the assistance of another adult, attach front
frame to assembled unit with 6 bolt, 6 spring washers,
and 6 flat washers as shown.
bottom
assembly
NOTE: Make sure arrow
labeled “FRONT” on underside of
bottom assembly is pointing
towards the front
7 Attach 4 feet to bottom panel with 1 bolt, 1 spring
washer, and 1 flat washer per foot as shown.
Made in Vietnam - r07 Page 3 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
8 Attach assembled unit to bottom panel assembly with 9
bolts, 9 spring washers, and 9 flat washers as shown.
PIVOT BUFFET
top
panel

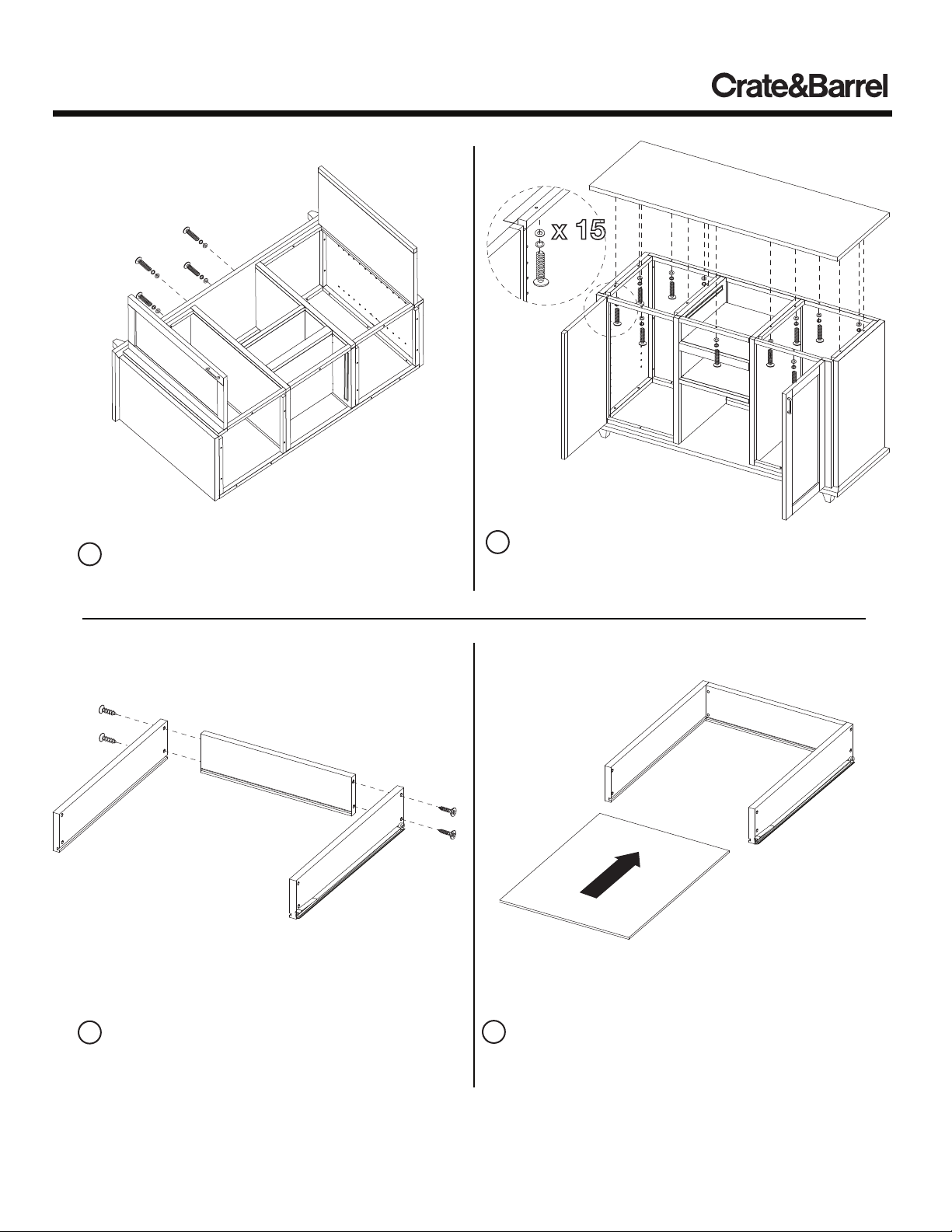

9 Secure bottom panel assembly to partitions of
assembled unit with 4 bolts, 4 spring washers, and
4 flat washers as shown.
drawer
back
left drawer
side
right drawer
side
10 With the assistance of another adult, carefully position
unit upright as shown. Attach top panel to assembled unit
with 15 bolts, 15 spring washers, and 15 flat washers as
shown.
drawer
bottom
11 Attach left and right drawer sides to drawer
back with 4 screws as shown. Secure screws with a
screwdriver.
Made in Vietnam - r07 Page 4 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
12 Slide drawer bottom into grooves of drawer assmebly
as shown.
PIVOT BUFFET
drawer
front
13 Fit drawer front to drawer assembly and secure
with 4 screws as shown.
wine rack
panel
wine rack
panel
16 Fit slot of wine rack panel into corresponding
slot of remaining wine rack panel as shown.
15 Fit drawer glides of drawer assembly into
corresponding drawer glides of assembled unit as
shown.
A
A
B
C
17 A) Insert 16 shelf pins at desired shelf heights as shown.
B) Insert 4 adjustable shelves into assembled unit. Make
sure each shelf is securely supported by shelf pins.
C) Insert wine rack assembly into assembled unit as shown.
Assembly is now complete.
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
Made in Vietnam - r07 Page 5 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
PIVOT HUTCH

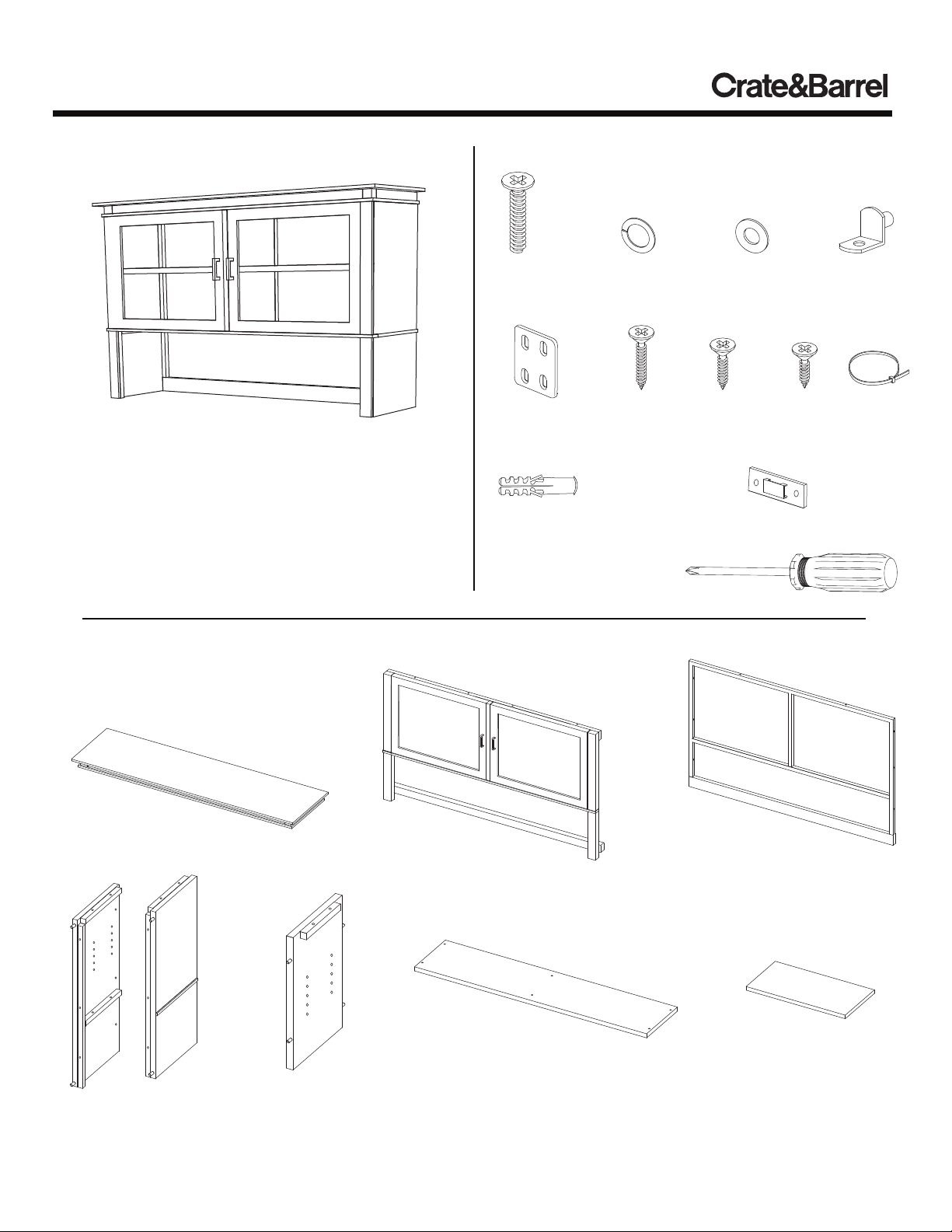

Thank you for purchasing the Pivot Hutch. This page
lists all the contents included in the box. Please take
time to identify the hardware as well as the individual
components of this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
HARDWARE
32 - bolts 32 - spring
washers
2 - connecting
brackets
4 - large
screws
4 - plastic anchors
Missing hardware? Please call
800.606.6387 for replacements.
TOOLS REQUIRED
phillips head screwdriver
32 - flat
washers
4 - medium
screws
8 - small
screws
8 - shelf
pins
2 - wall
straps
4 - wall
brackets
COMPONENTS
1 - top
panel
1 - front
frame
1 - bottom
panel
1 - back
panel
2 - adjustable
shelves
2 - side panels
(1 left, 1 right)
Made in Vietnam - r03 Page 1 of 5
1 - partition
Customer Service 800.967.6696 | www.crateandbarrel.com
PIVOT HUTCH
partition
bottom
panel
NOTE: Make sure “THIS SIDE UP” labeled
on bottom panel is facing toward the
partition when assembling as shown

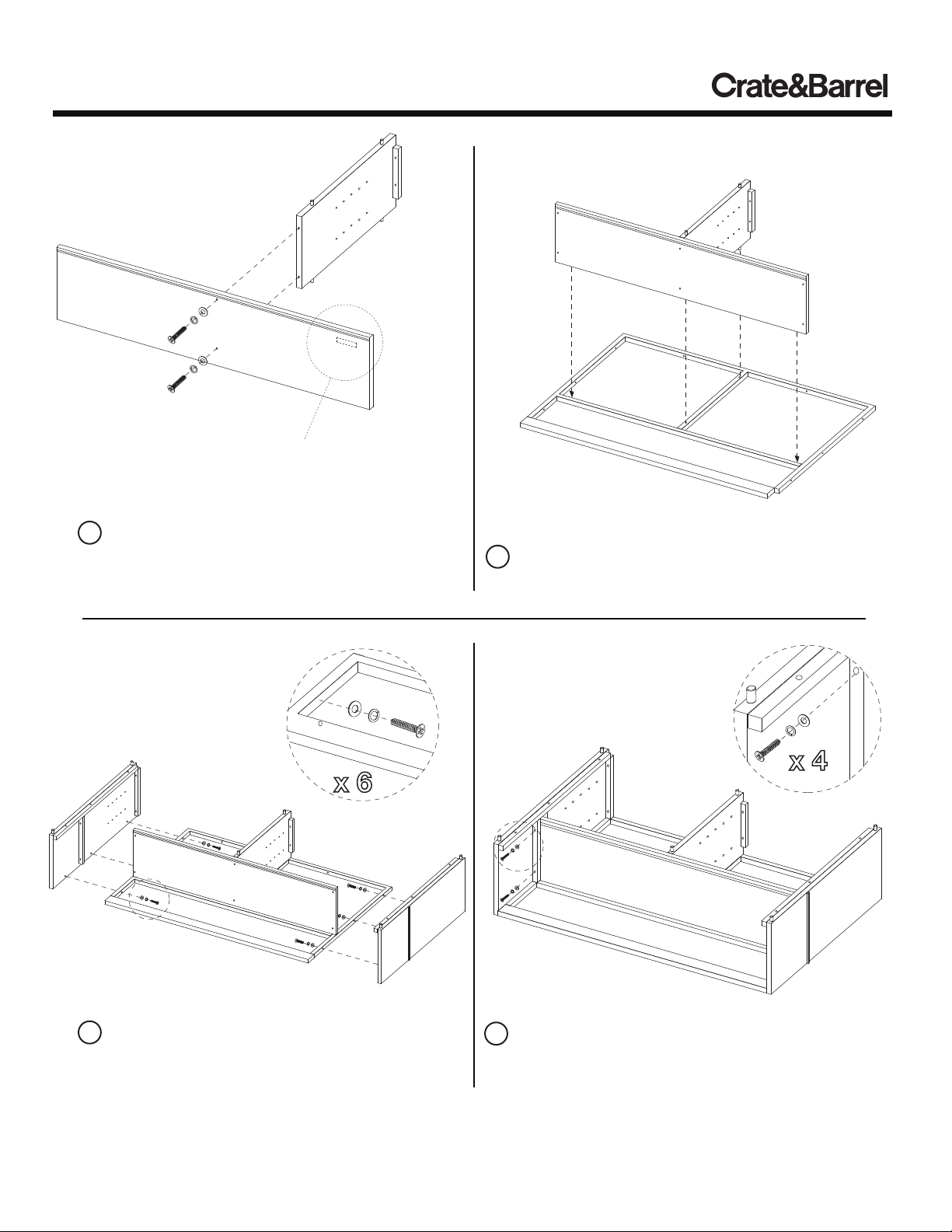

1 Attach bottom panel and partition with 2 bolts, 2
spring washers, and 2 flat washers as shown.
Secure bolts with a phillips head screwdriver.
back panel
2 Fit dowels of partition into corresponding holes of
back panel as shown.
left side
panel
right side
panel
3 Attach left/right side panels to assembled unit
with 6 bolts, 6 spring washers, and 6 flat washers
as shown.
Made in Vietnam - r03 Page 2 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
4 Secure left/right side panels to bottom panel of
assembled unit with 4 bolts, 4 spring washers, and 4
flat washers as shown.
PIVOT HUTCH
frame
support
front
frame
front
frame
5 Remove frame support from front frame as shown.
With a screwdriver, turn pre-attached bolts
counter-clockwise to detach. Set frame support and
hardware aside and discard.
top
panel
NOTE: Make sure arrow
labeled “FRONT” on
underside of top panel is
pointing towards the front
6 Fit dowels of assembled unit into corresponding
holes of front frame. Secure front frame with 6 bolts,
6 spring washers, and 6 flat washers as shown.
A
A
B
adjustable
shelves
7 With the assistance of another adult, position
assembled unit upright as shown. Attach top panel to
assembled unit with 14 bolts, 14 spring washers, and
14 flat washers as shown.
Made in Vietnam - r03 Page 3 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
8 A) Insert 8 shelf pins as desired heights as shown.
B) Place 2 adjustable shelves into assembled unit as
shown. Make sure each shelf is securely supported by each
shelf pin.
PIVOT HUTCH

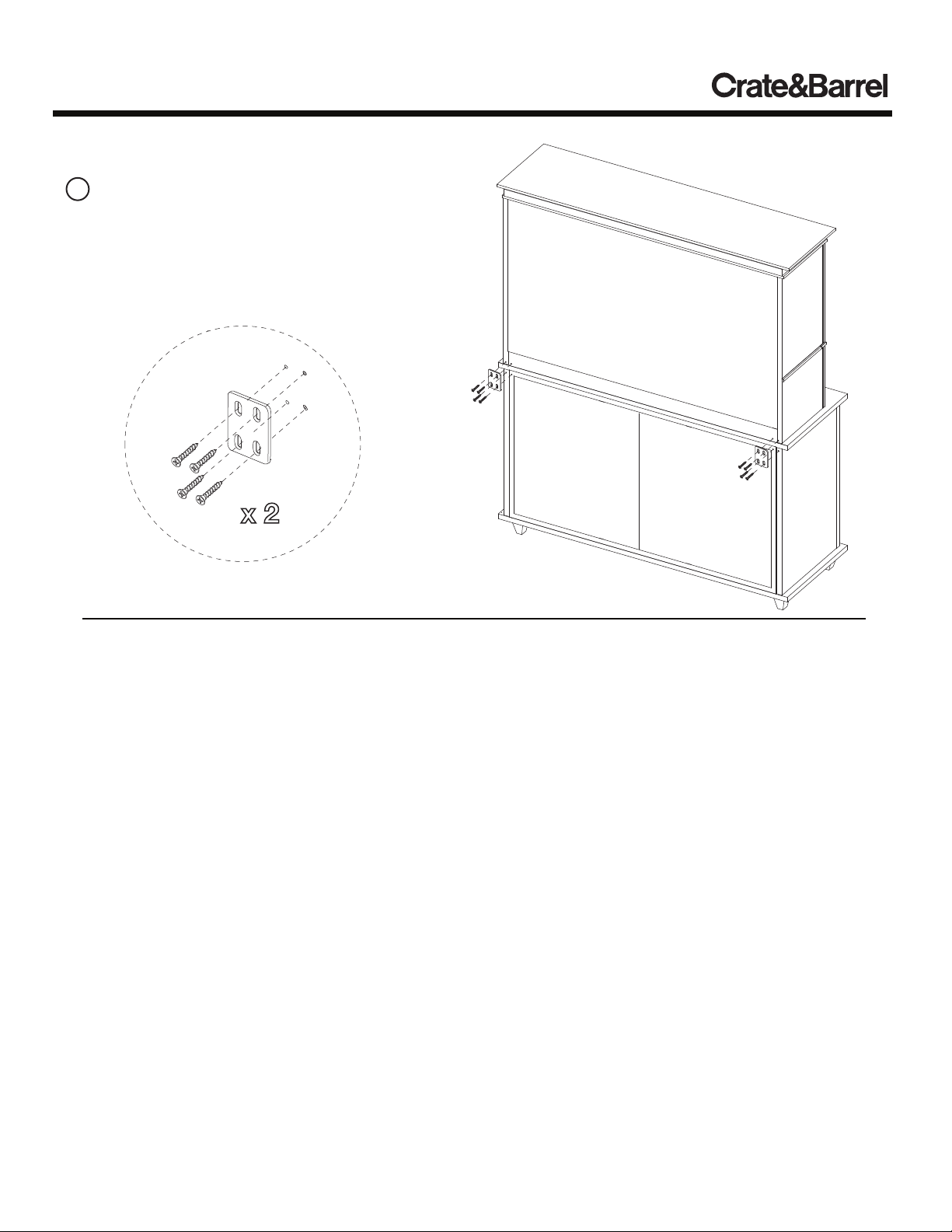

7 With the assistance of another adult, carefully place
hutch onto buffet as shown. Attach 2 connecting
brackets to back of hutch and buffet (sold seperately)
with 4 small screws per bracket as shown. Secure
screws with a screwdriver.
Assembly is now complete.
hutch
(sold seperately)
buffet
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
Made in Vietnam - r03 Page 4 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
PIVOT HUTCH
Safety Mounting Instructions
C
plastic
anchor
For added safety and stability, it is recommended
that the wall mounting hardware be installed. For
safe mounting, it is essential to use wall anchors
appropriate to your wall type (i.e. plaster, drywall,
concrete, etc.). Mount to wood studs whenever
possible.
A) Attach wall bracket to top of bookcase using 2
medium screws as shown.
B) Determine the final location of bookcase. Mark
position on the wall, approximately 2" below the
wall bracket mounted to the back of the cabinet.
C) Drill a hole in the wall stud. If the wall stud is
not available, drill a hole in the wall that is slightly
smaller in diameter than the anchor. Gently tap the
plastic anchor until the flange of the anchor is
flush with the wall.
D) Attach wall bracket to the wall by inserting 2
large screws, and into the plastic anchor in the
wall.
E) Place the unit so the wall brackets on the back
edge are aligned with the wall brackets on the wall.
F) Lace one end of the wall strap through both
brackets, and into the other end of the strap.
G) Pull the strap tightly until secure.
H) Repeat steps A-G for remaining wall brackets
and wall straps.
wall
bracket
D
large
screw
A
medium
screw
F
wall
strap
wall
bracket
NOTE:
If you are unsure about your wall type or what
mounting method you should use, consult a
qualified professional or your local hardware
store.
Made in Vietnam - r03 Page 5 of 5
Customer Service 800.967.6696 | www.crateandbarrel.com
