Thank you for purchasing the Paterson Bath Tower.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
TOOLS REQUIRED
phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
4 - barrel
nuts
16 - cam
screws
12 - hinge
screws
24 - wood
dowels
6 - small
bolts
16 - cams2 - hinges12 - shelf
1 - pull
bolt
supports
4 - large
bolts
WALL MOUNTING HARDWARE
1 - wall
strap
Missing hardware? Please call 800.606.6387 for replacements.
1 - wall
bracket
1 - anti-tip
bracket
1 - plastic
anchor
1 - large
screw
2 - small
screws
COMPONENTS
1 - pull
1 - top panel2 - side panels
(1 left, 1 right)
1 - base1 - front door3 - glass shelves1 - back frame
1 - front frame1 - fixed shelf1 - back panel
Made in China - r05Page 1 of 7
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
PATERSON BATH TOWER
NOTE: Do not over
tighten the cam screws
NOTE: Make sure arrow on
each cam points toward nearest
edge with holes
left and right
A
side panels
fixed shelf
B
1 A) Insert 5 cam screws, 3 cams, and 4 wood dowels into left and right side panels as shown.
Secure, but do not over tighten, cam screws with a phillips head screwdriver. Make sure arrow on
each cam points toward nearest edge with holes.
B) Insert 4 wood dowels and 4 cams into fixed shelf as shown.
fixed shelf
right side panel
back frame
NOTE: Make sure grooves
are on the same side during
assembly
2 Fit dowels of fixed shelf into corresponding holes of
right side panel as shown. Using a screwdriver, turn
3 Insert 4 wood dowels and 6 cams into back frame
as shown.
each cam clockwise until it securely engages each cam
screw.
Made in China - r05Page 2 of 7
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
PATERSON BATH TOWER
back frame
4 Fit dowels of back frame into corresponding holes of
right side panel as shown. Secure all cams.
left side panel
5 Fit dowels of assembly into corresponding holes of
left side panel as shown. Secure all cams. Make sure
grooves of side panels are facing the same side during
assembly.
front frame
back panel
6 Fit back panel into grooves of assembled unit as
shown.
Made in China - r05Page 3 of 7
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com

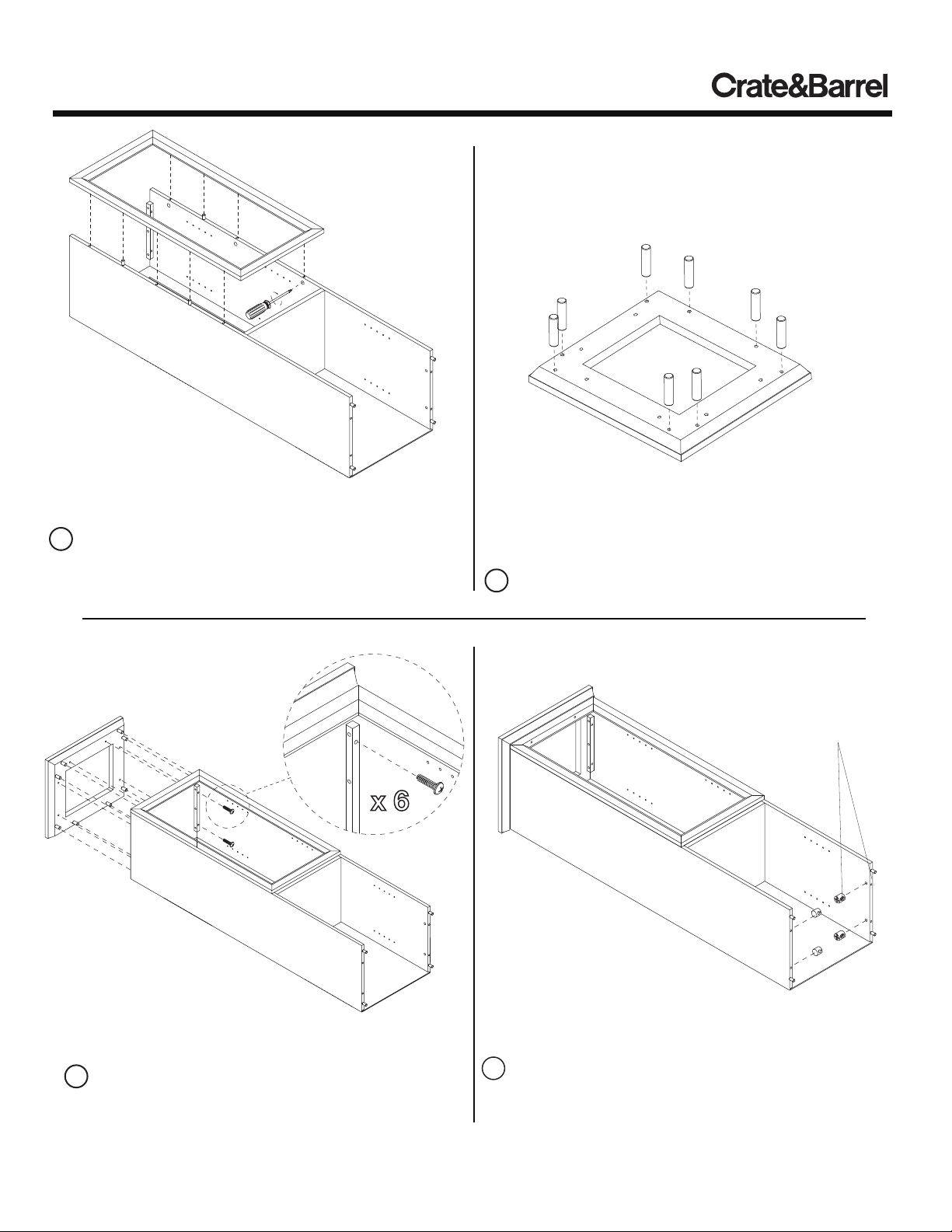

7 Insert 6 cam screws into front frame as shown.
PATERSON BATH TOWER
front frame
8 With assistance of another adult, turn unit 90º as
shown. If possible, place unit onto a raised surface to help
with assembly. Fit dowels of assembly into corresponding
holes of front frame as shown. Secure all cams.
top panel
9 Insert 8 wood dowels into top panel as shown.
top panel
NOTE: Do not over
tighten the bolts
10 With assistance of another adult, fit dowels of top panel into corresponding holes of assembly as shown.
Secure top panel with 6 small bolts, using a
screwdriver. Do not over tighten bolts.
NOTE: Make sure hole of
barrel nut aligns with holes
in nearest edge
11 Insert 2 barrel nuts into left and right side panels as
shown. Using a screwdriver, align hole of barrel nuts with
nearest edge.
Made in China - r05Page 4 of 7
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
PATERSON BATH TOWER
base
NOTE: Do not over tighten the screws
door frame

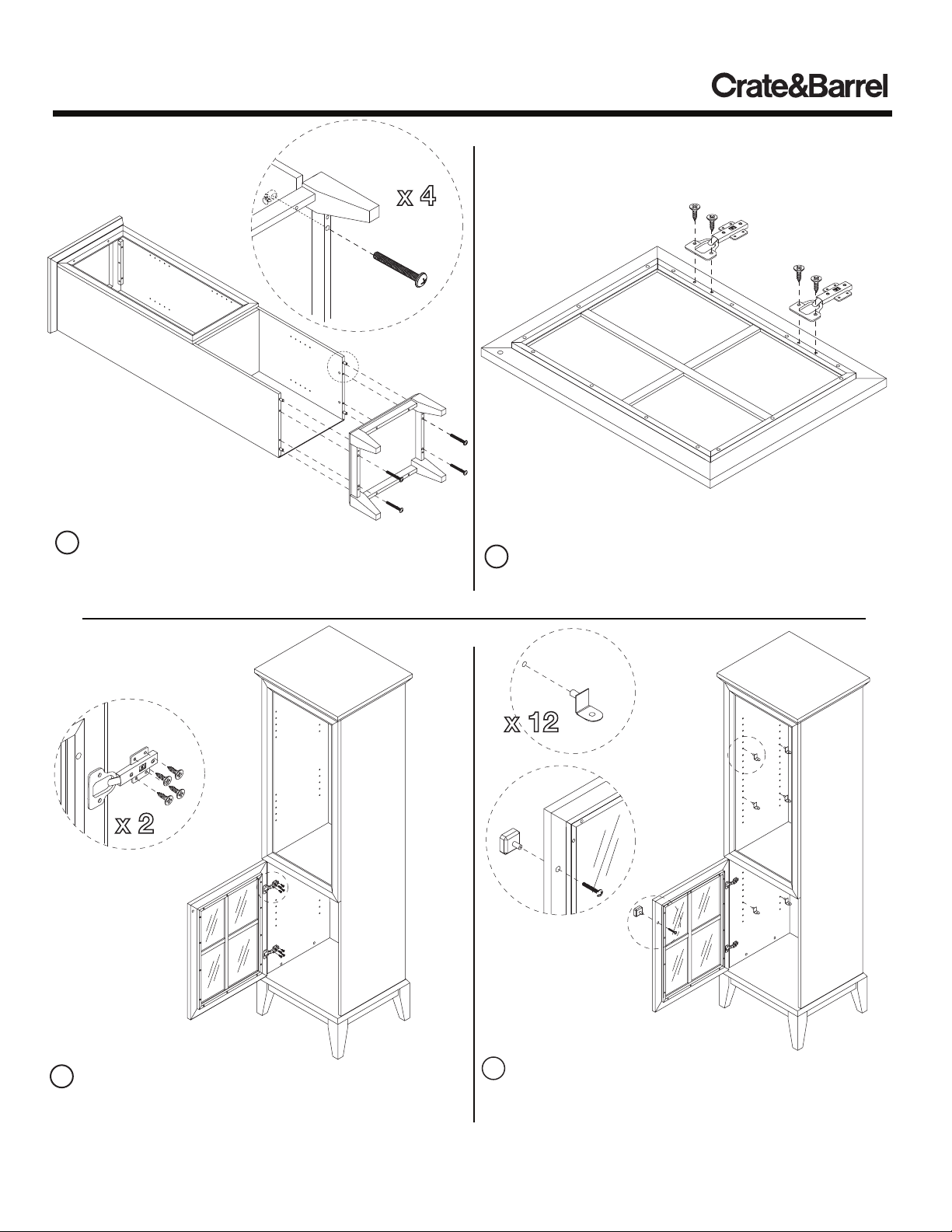

12 Fit dowels of assembly into corresponding holes of
base as shown. Secure base with 4 large bolts, using a
screwdriver. Make sure bolts securely engage in barrel nuts.
Refer to Hinge Adjustment
diagram for adjusting the
alignment of the door hinges
13 Attach 2 hinges to door frame with 2 hinge screws
per hinge. Secure, but do not over tighten, screws with a
screwdriver.
B
B
A
A
14 With assistance of another adult, position unit
upright as shown. Attach hinges to left side panel with
4 hinge screws per hinge as shown.
Made in China - r05Page 5 of 7
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
15 A) Attach pull to door frame with 1 pull bolt as
shown, using a screwdriver.
B) Insert 12 shelf supports at desired shelf heights.
Press supports firmly to secure.
PATERSON BATH TOWER
glass shelf
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth.
Do not use abrasive cleaners. Do not use
furniture wax or polish as the wood is finished
with a protective clear lacquer.
16 Carefully place 3 glass shelves onto shelf supports.
Make sure shelves are securely supported by each shelf
support. Assembly is now complete.

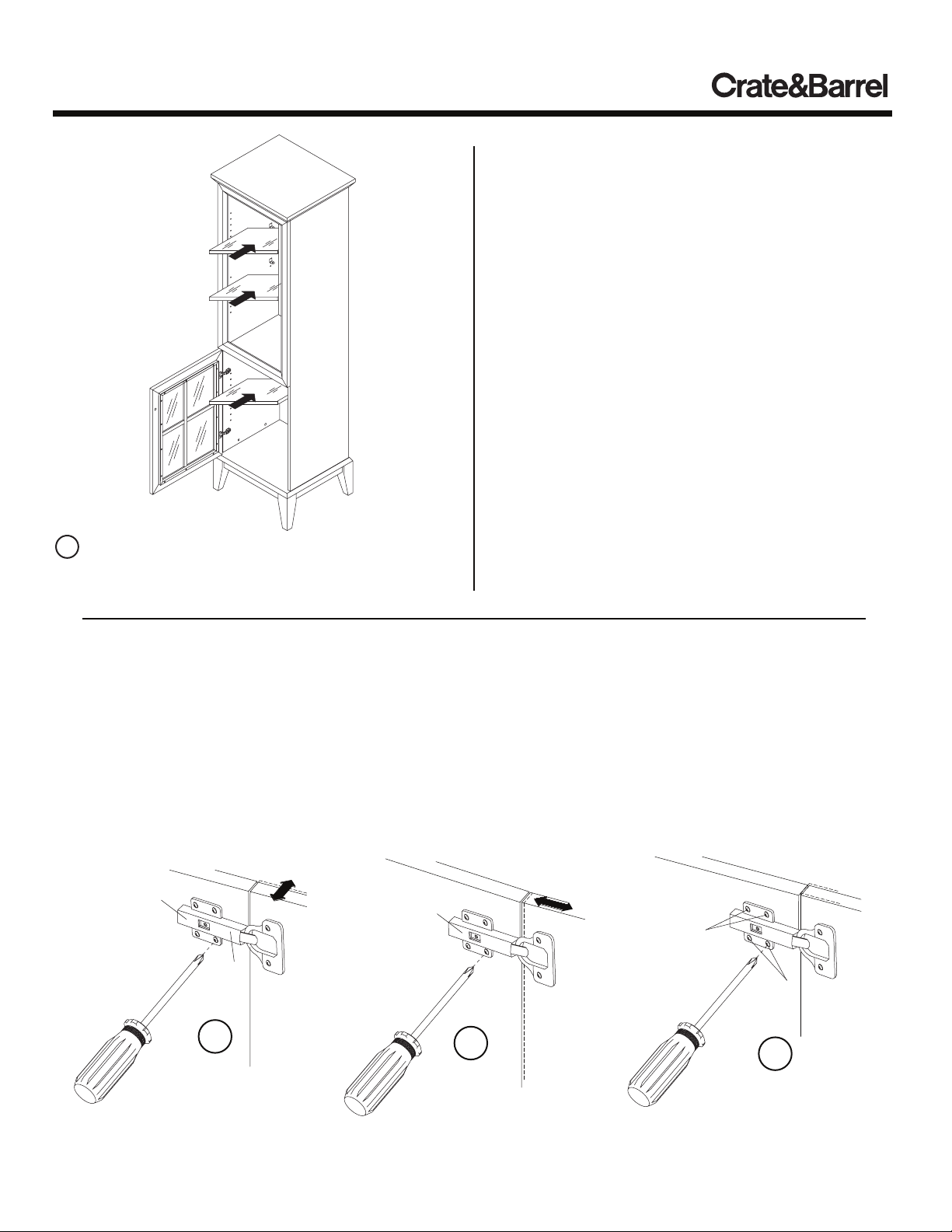

HINGE ADJUSTMENT
If the doors do not appear square or aligned,
loosen or tighten the appropriate screws on
each case hinge as illustrated.
1)
Side to side adjustment:
Loosen screw A, adjust gap
with screw B and re-tighten
screw A.A.
A
B
2) Depth adjustment:
Loosen screw A, push hinge arm
forwards or backwards, re-tighten
screw
A
3) Height adjustment:
Loosen screw C, adjust
door height and retighten screw C.
C
C
1
Made in China - r05Page 6 of 7
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
2
3
PATERSON BATH TOWER
wall
F
C
plastic
anchor
wall
bracket
strap
D
large
screw
small
A
screw
anti-tip
bracket

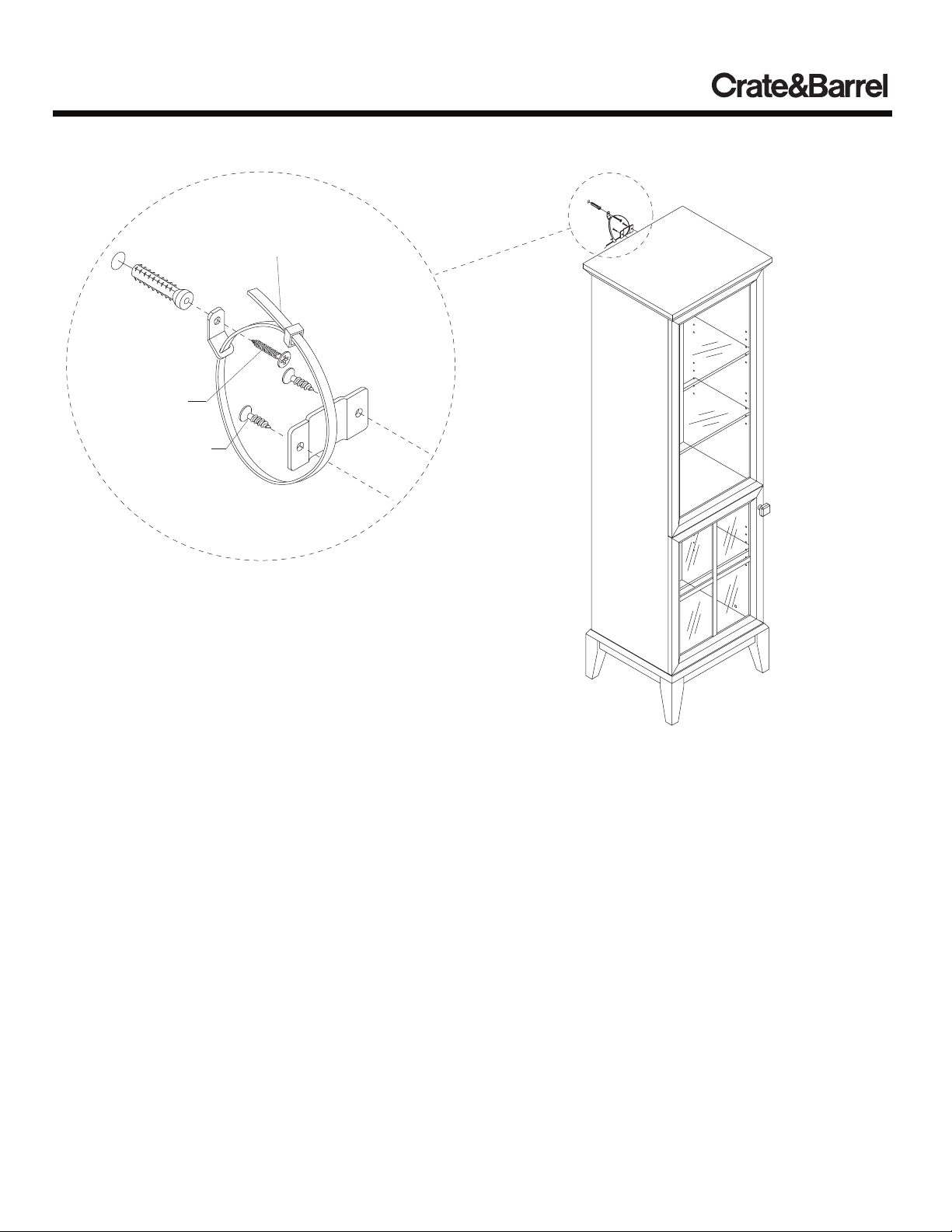

OPTIONAL WALL MOUNTING INSTRUCTIONS
NOTE: If you are unsure about your wall type or
what mounting method you should use, consult a
qualified professional or your local hardware store.
For added safety and stability, it is recommended that the wall mounting hardware be
installed. For safe mounting, it is essential to use wall anchors appropriate to your wall
type (i.e. plaster, drywall, concrete, etc.). Mount to wood studs whenever possible.
A) Attach anti-tip bracket to top of unit using 2 small screws as shown.
B) Determine the final location of unit. Mark position on the wall, approximately 2" below
the anti-tip bracket mounted to the back of the unit.
C) Drill a pilot ole in the wall stud. If the wall stud is not available, drill a hole in the wall
that is slightly smaller in diameter than the anchor. Gently tap the plastic anchor until the
flange of the anchor is flush with the wall.
D) Attach wall bracket to the wall by inserting 1 large screw, and into the plastic anchor
in the wall.
E) Place the unit so the anti-tip bracket on the back edge is aligned with the wall bracket
on the wall.
F) Lace one end of the wall strap through both brackets, and into the other end of the
strap.
G) Pull the strap tightly until secure.
Wall mounting assembly is now complete.
