Owner's Manual

CRRFrSMRH°

TARY LAW

160cc Honda Engine
Power-Propelled

22" Multi-Cut

Model No.

944.362201

OWE

CAUTION'.

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears Canada, Inc., Toronto, Ontario M5B 2B8

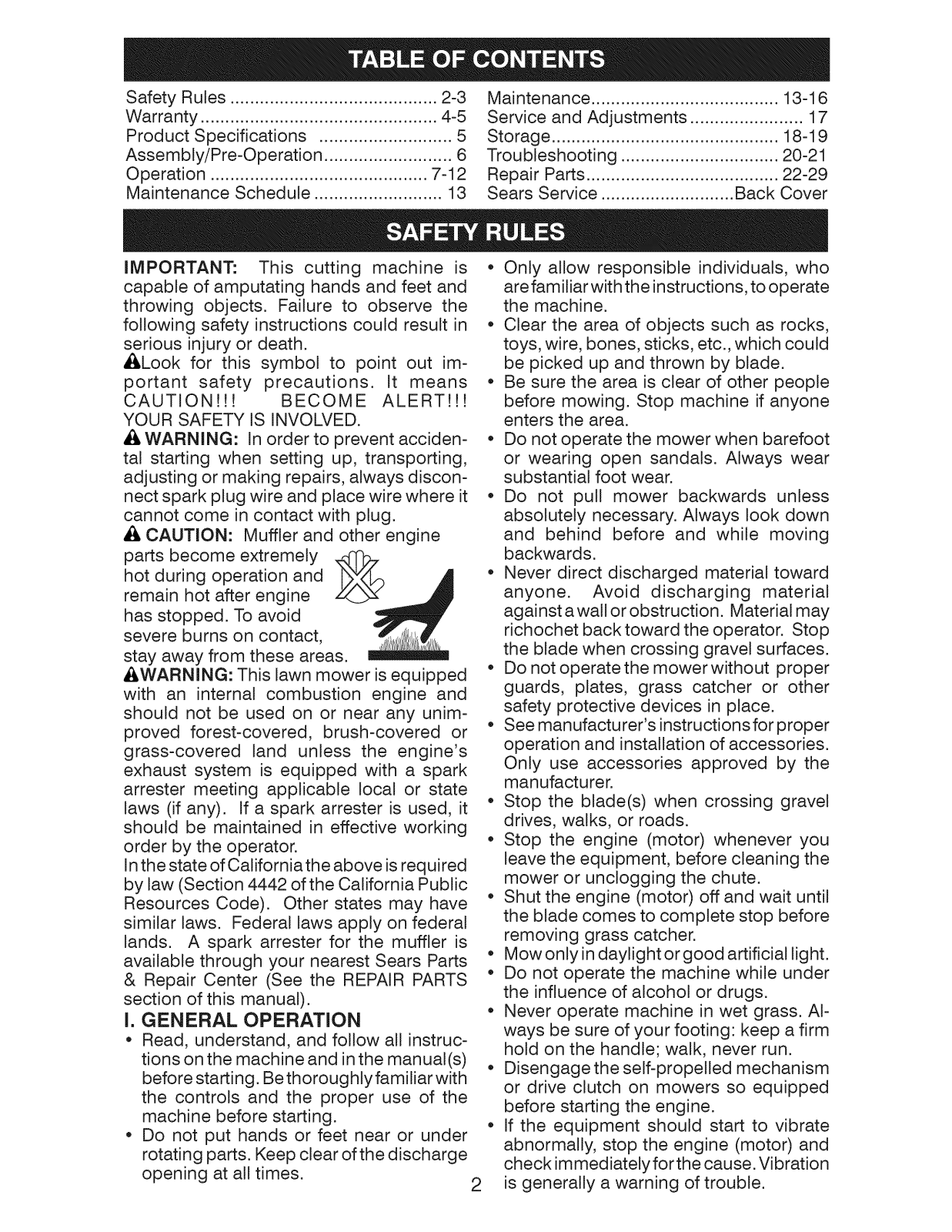

Safety Rules .......................................... 2-3

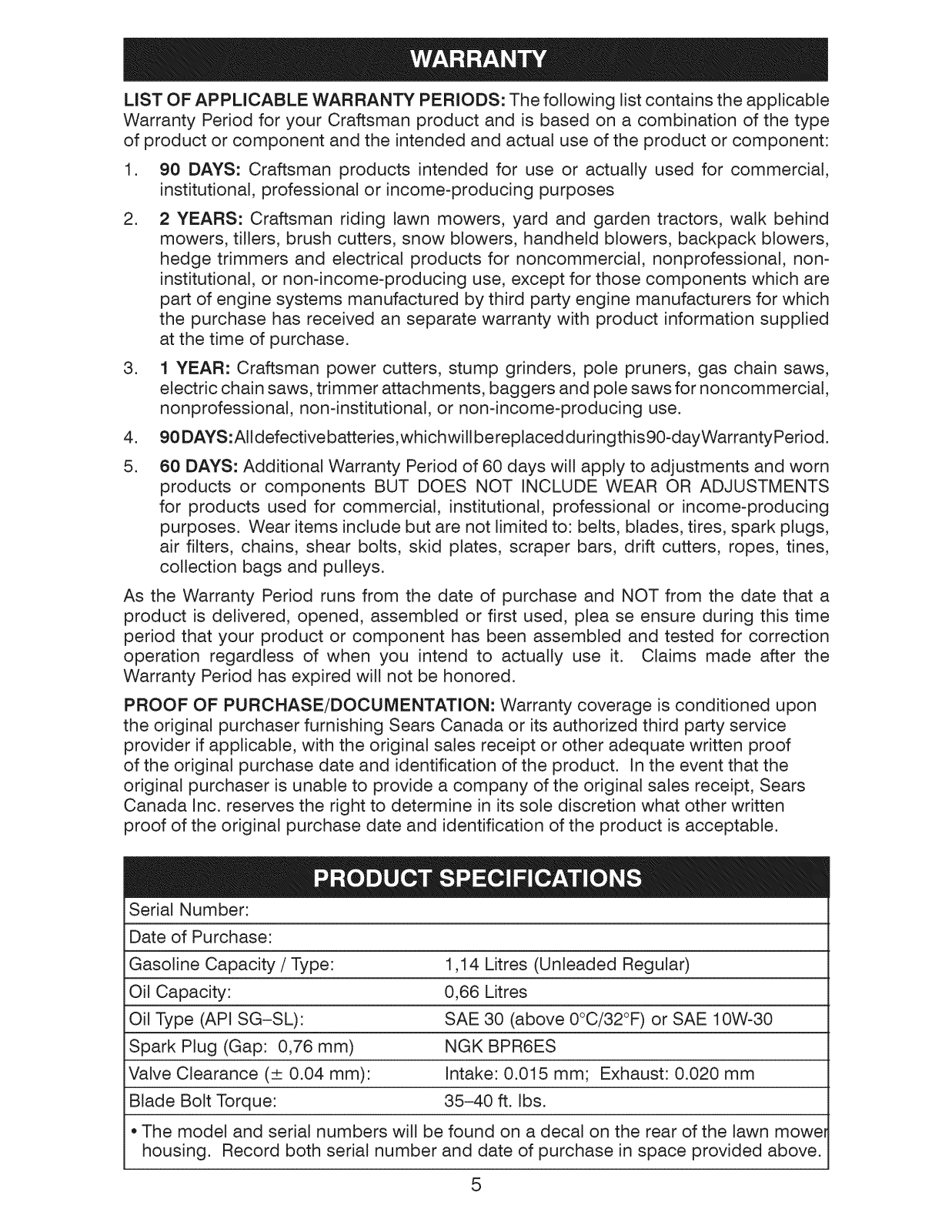

Warranty ................................................ 4-5

Product Specifications ........................... 5

Assembly/Pre-Operation .......................... 6

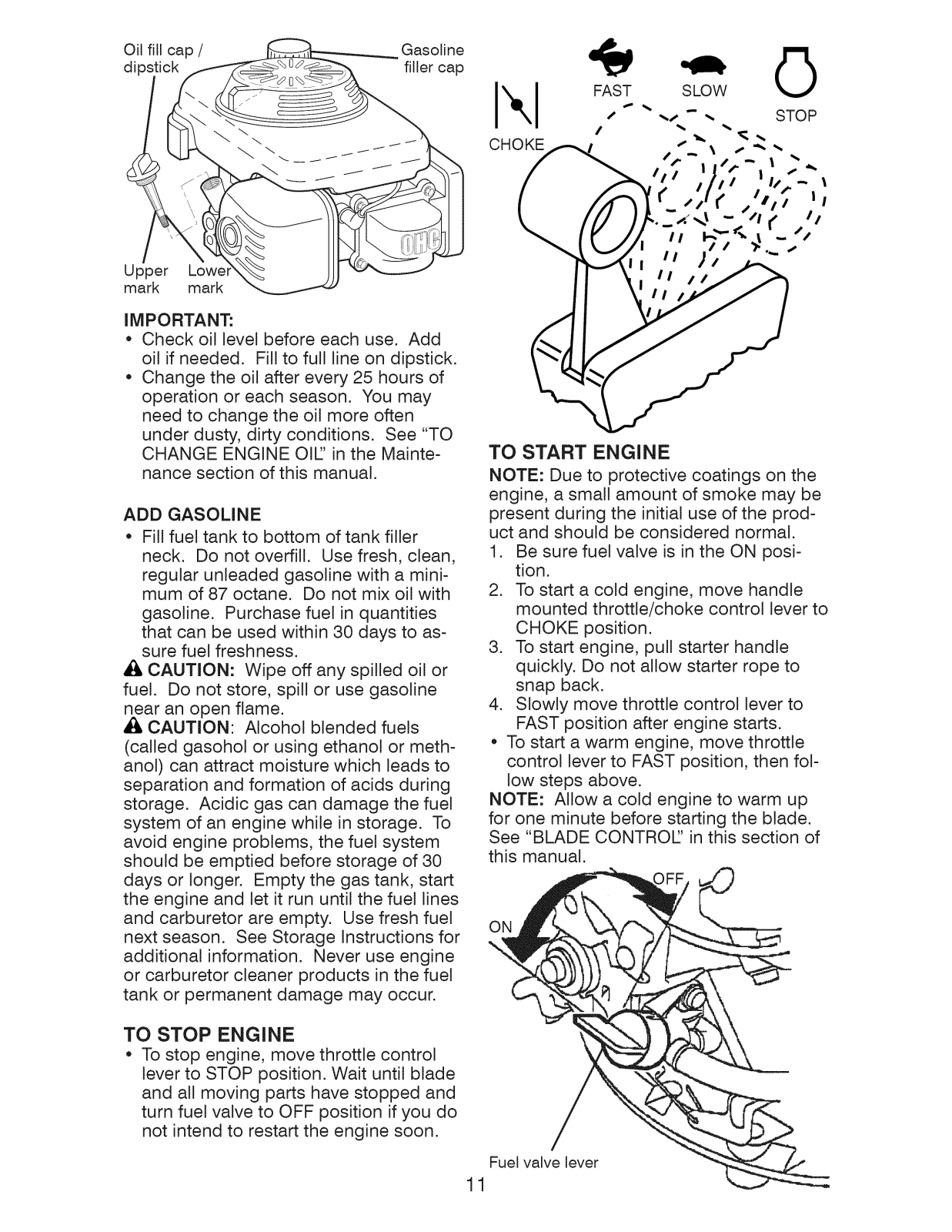

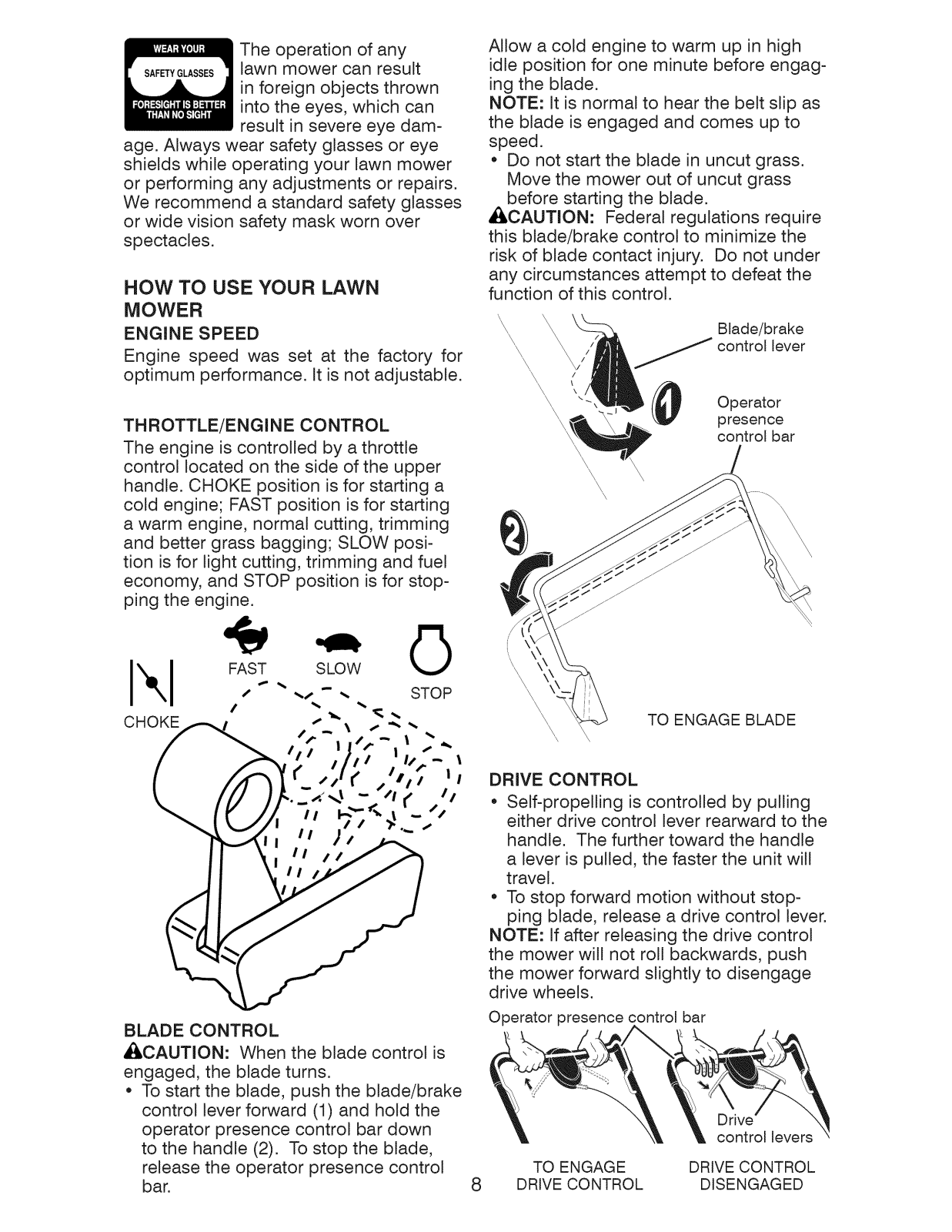

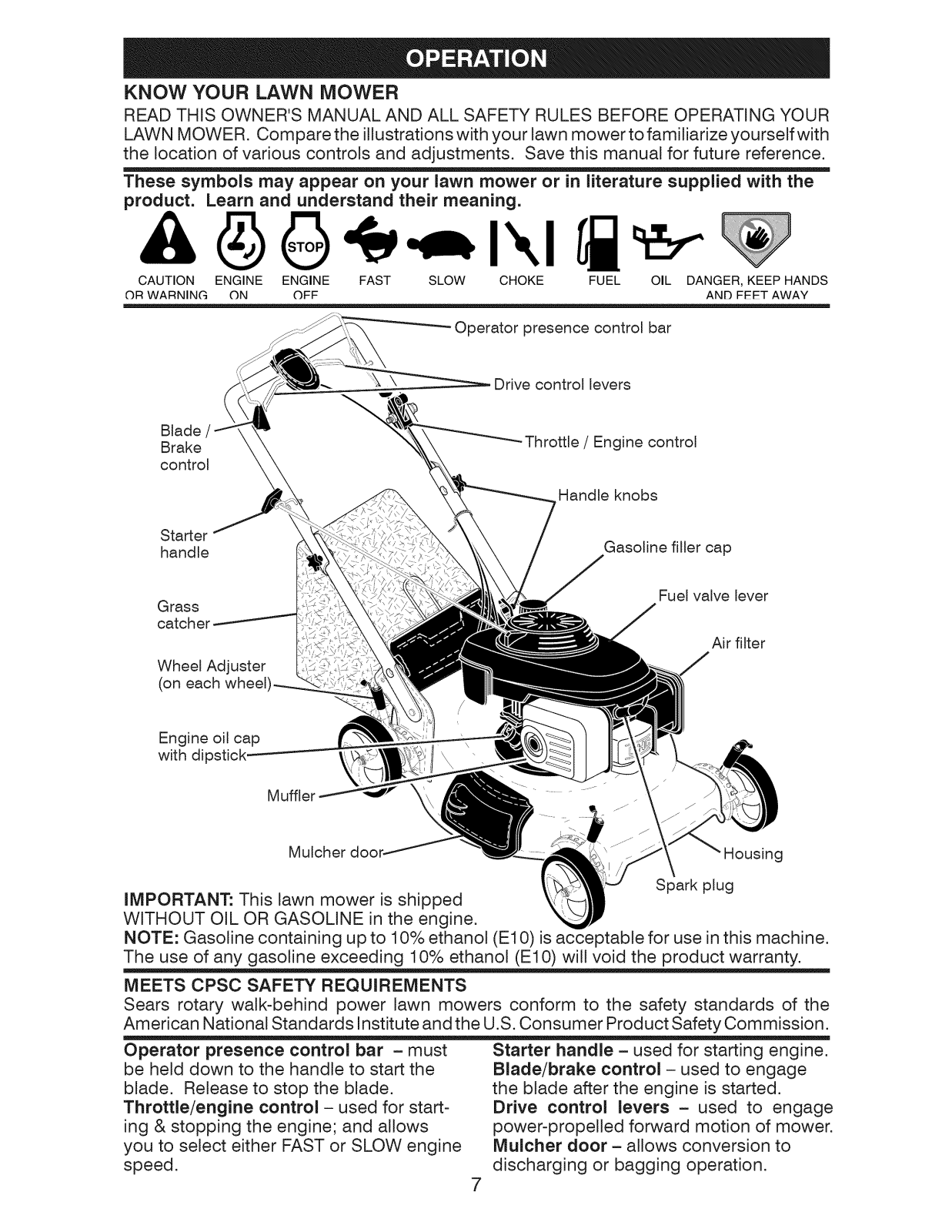

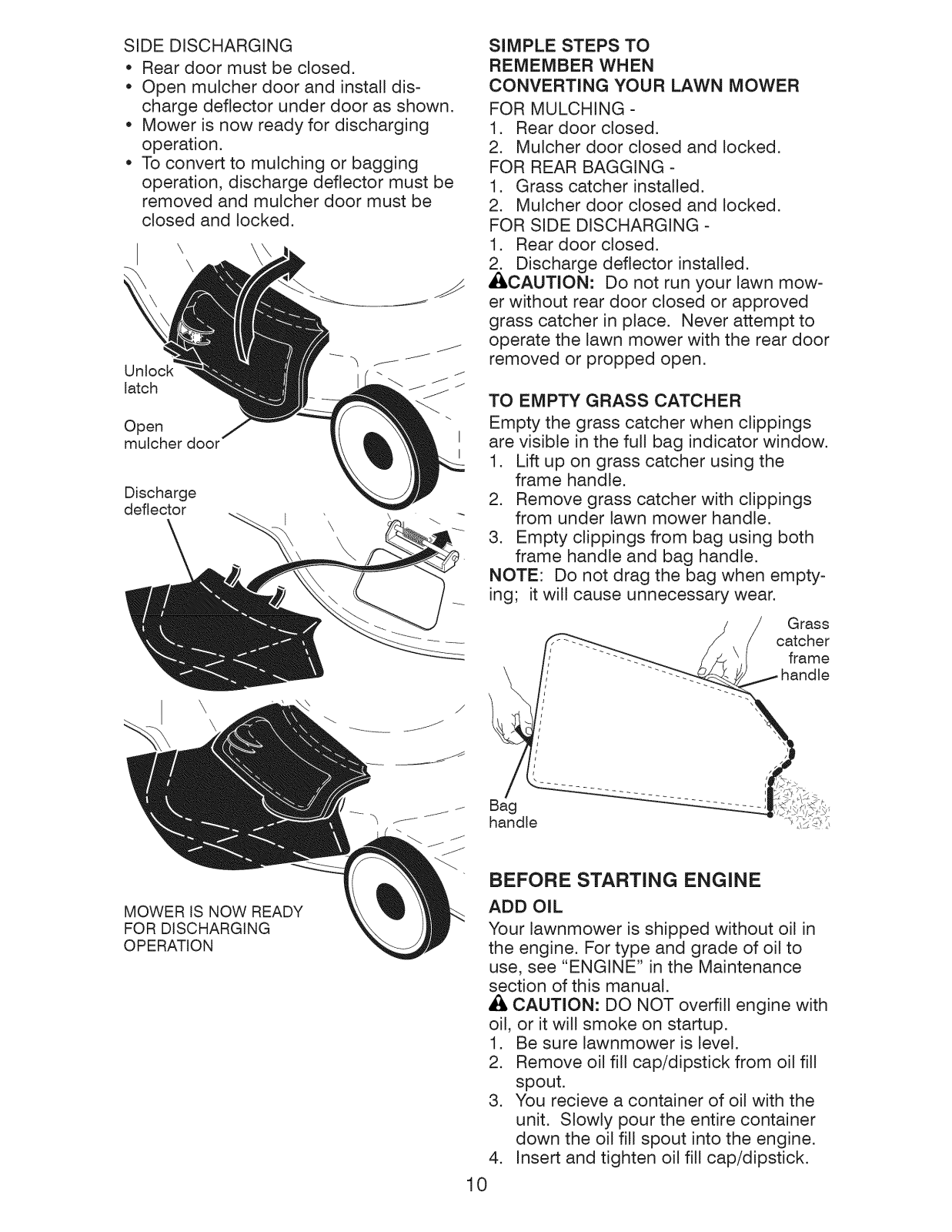

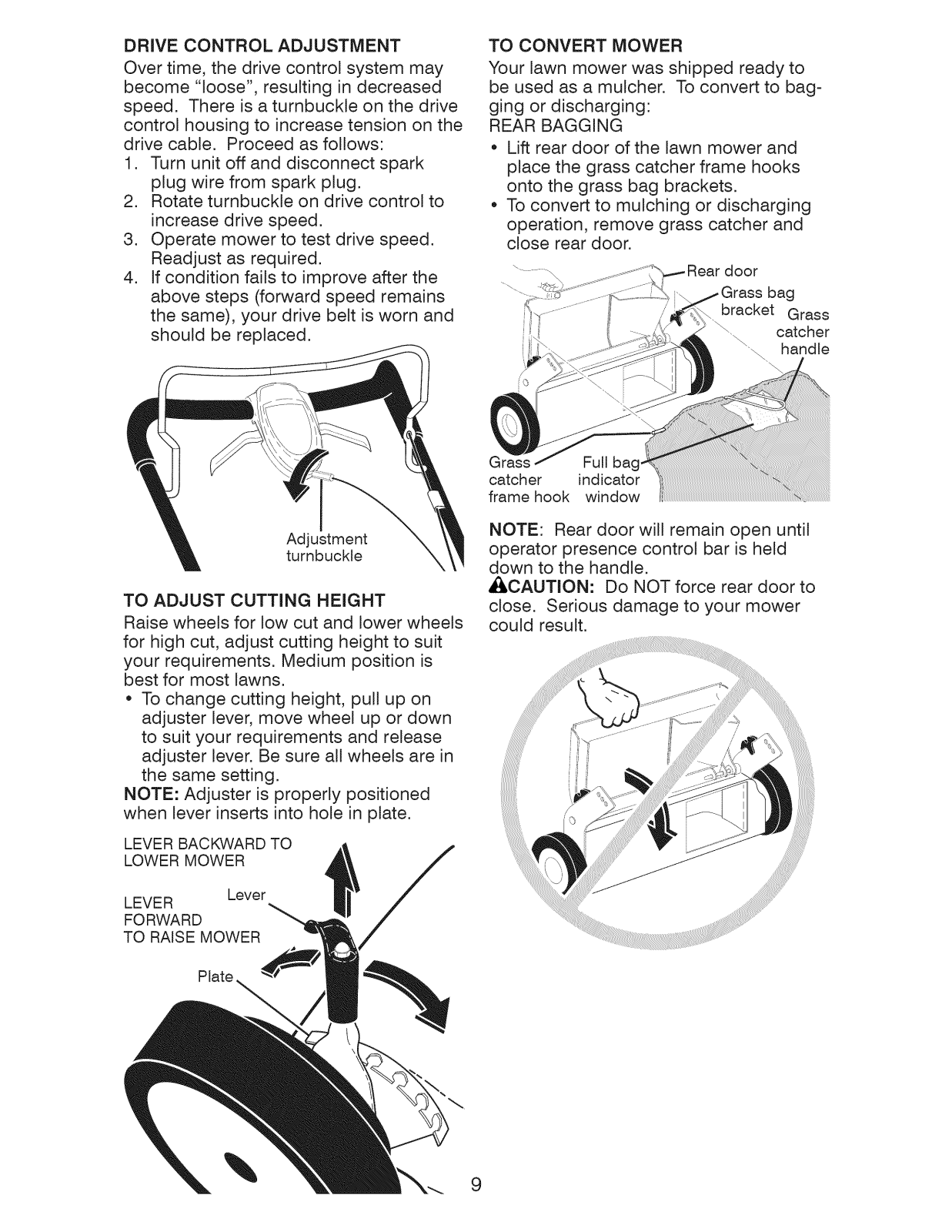

Operation ............................................ 7-12

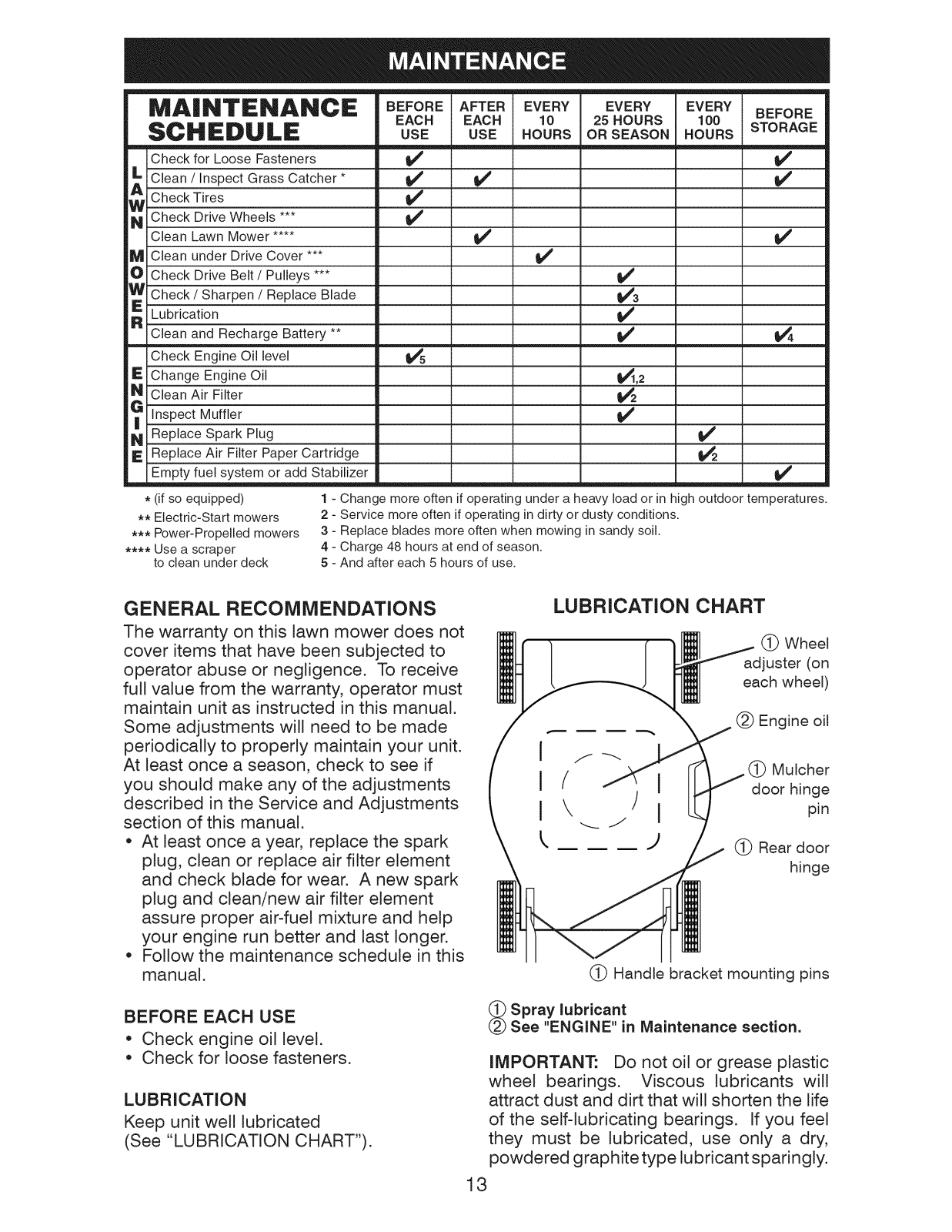

Maintenance Schedule .......................... 13

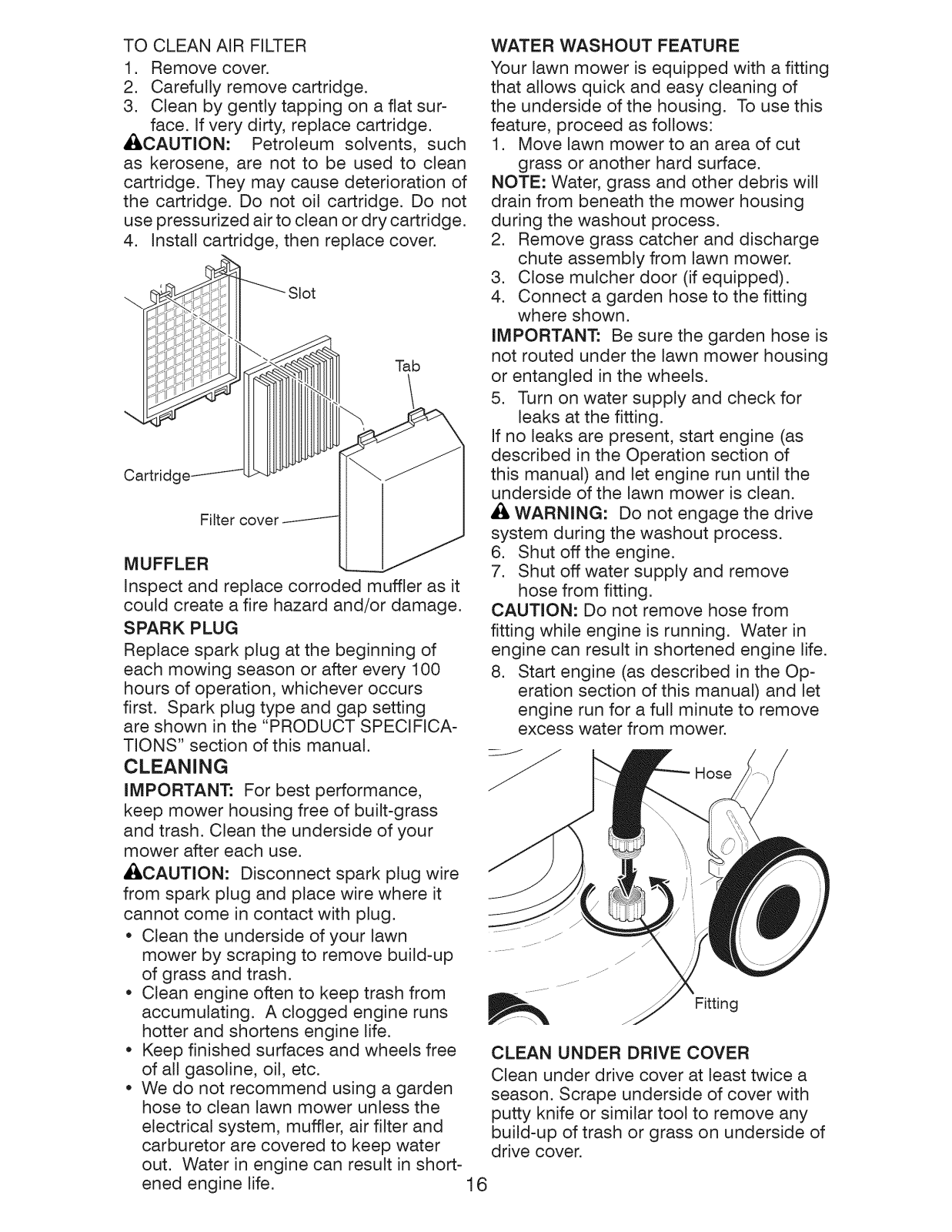

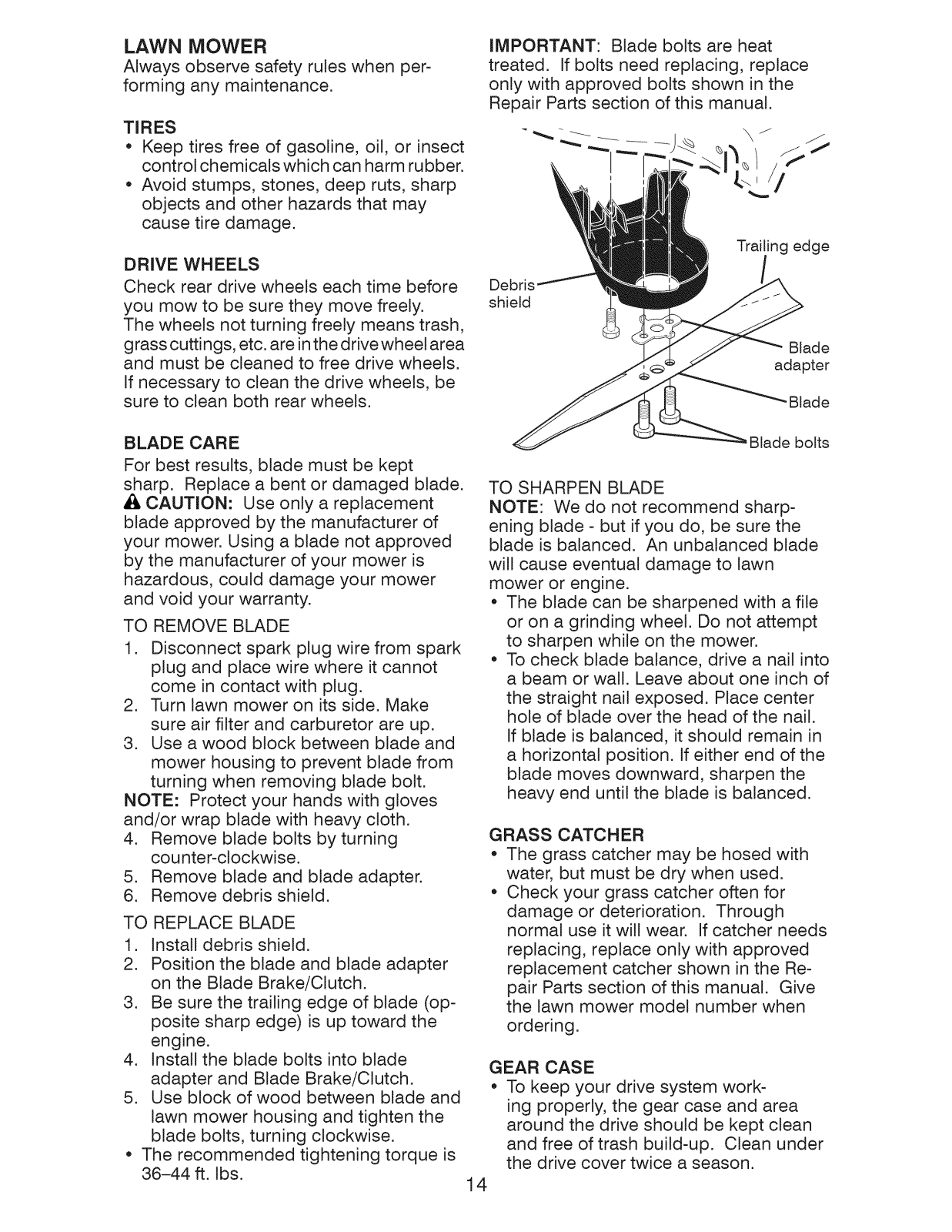

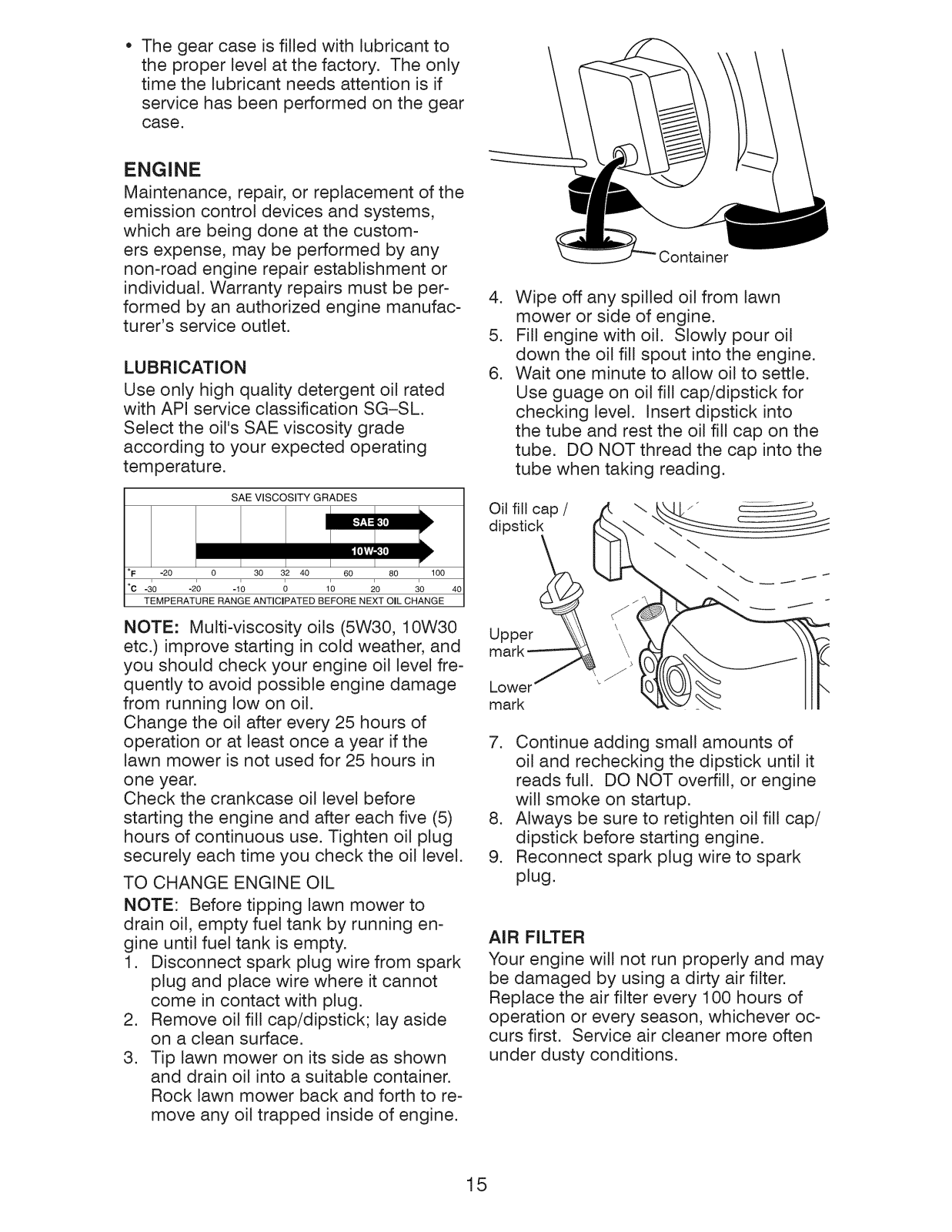

Maintenance ...................................... 13-16

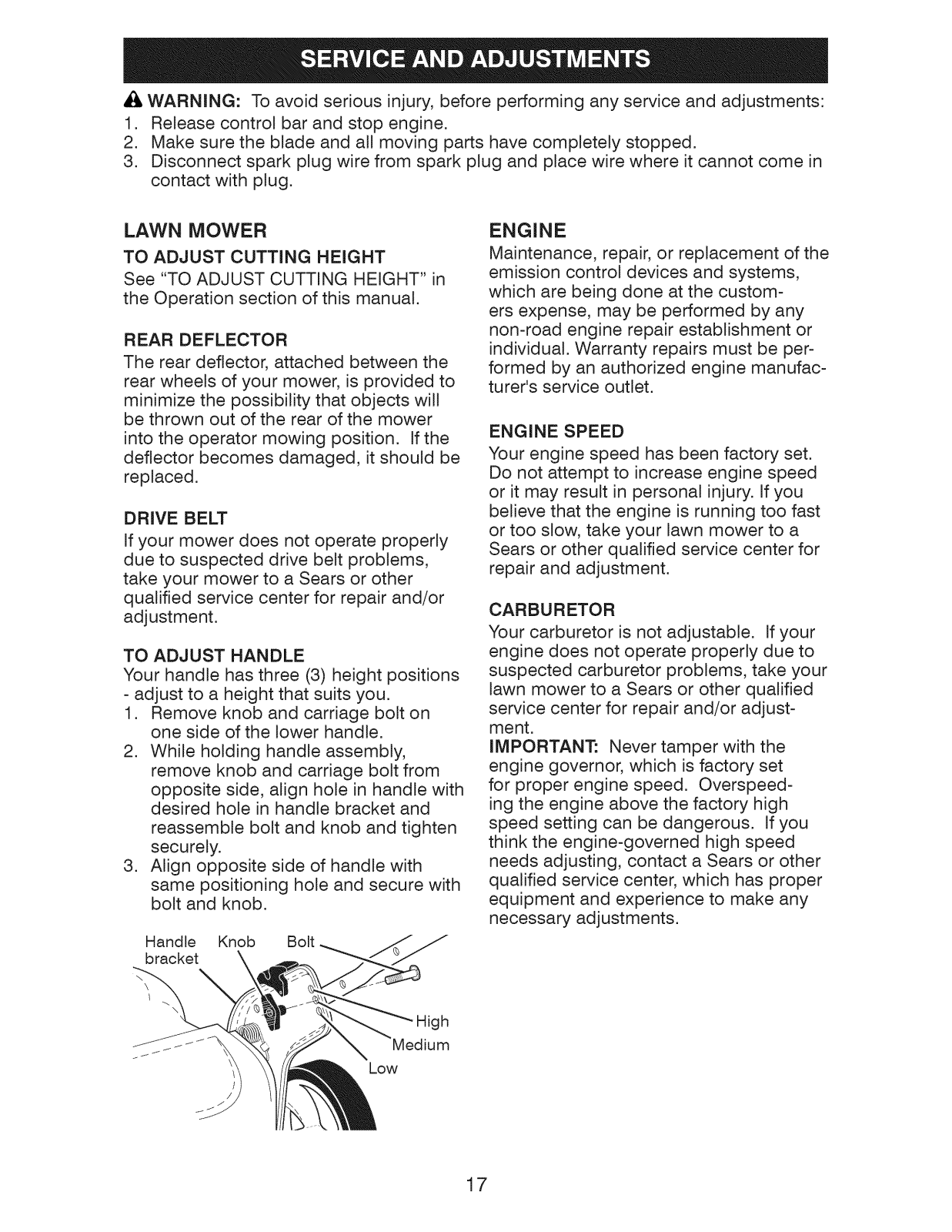

Service and Adjustments ....................... 17

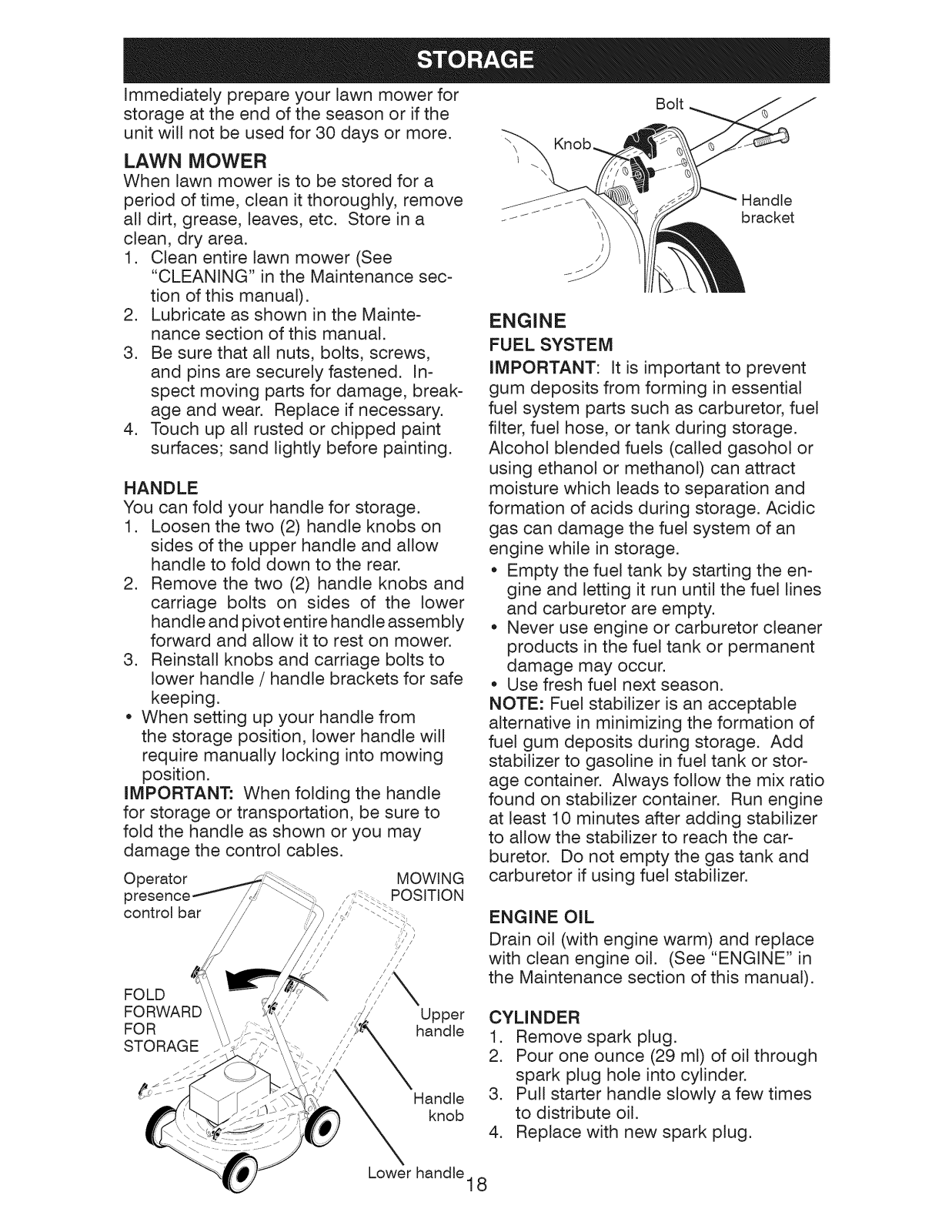

Storage .............................................. 18-19

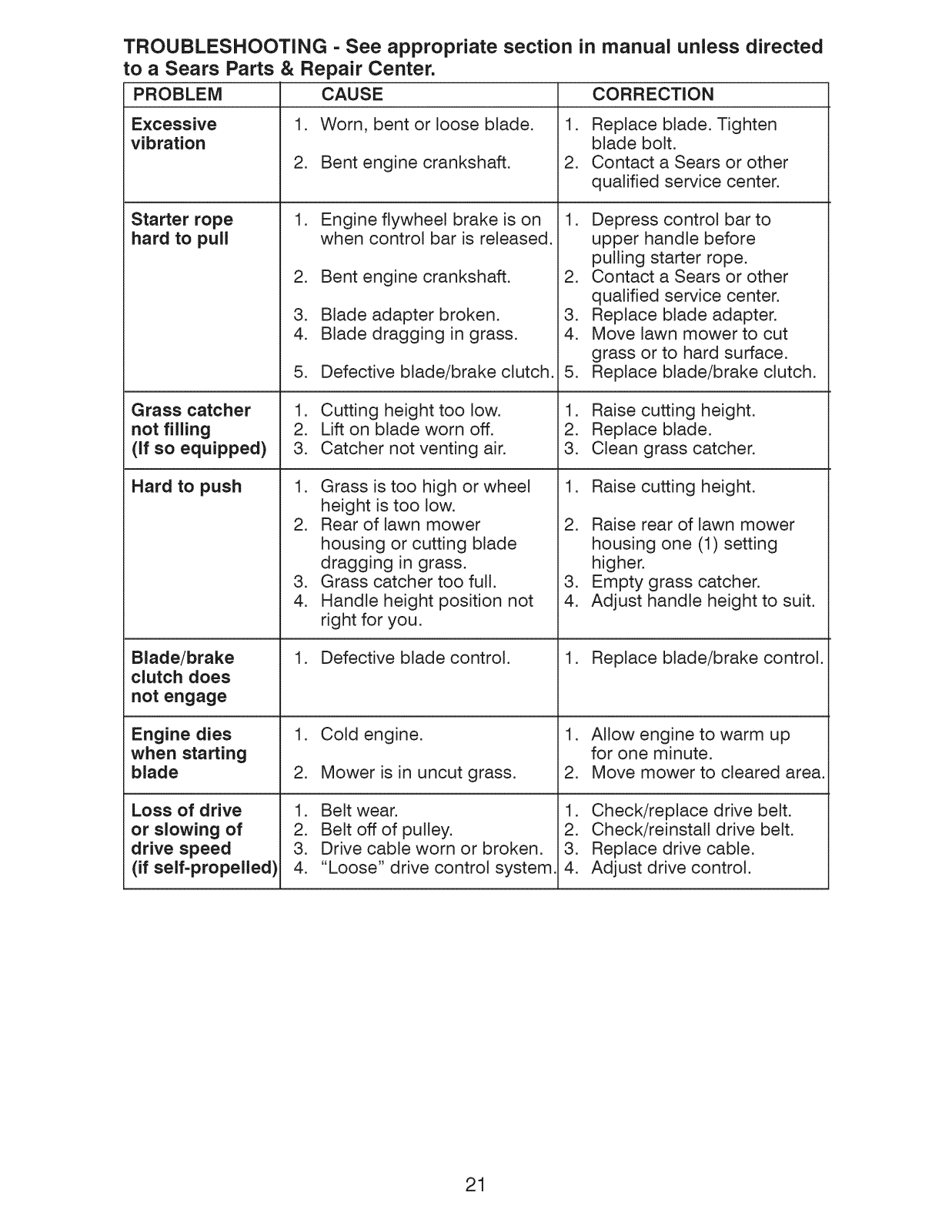

Troubleshooting ................................ 20-21

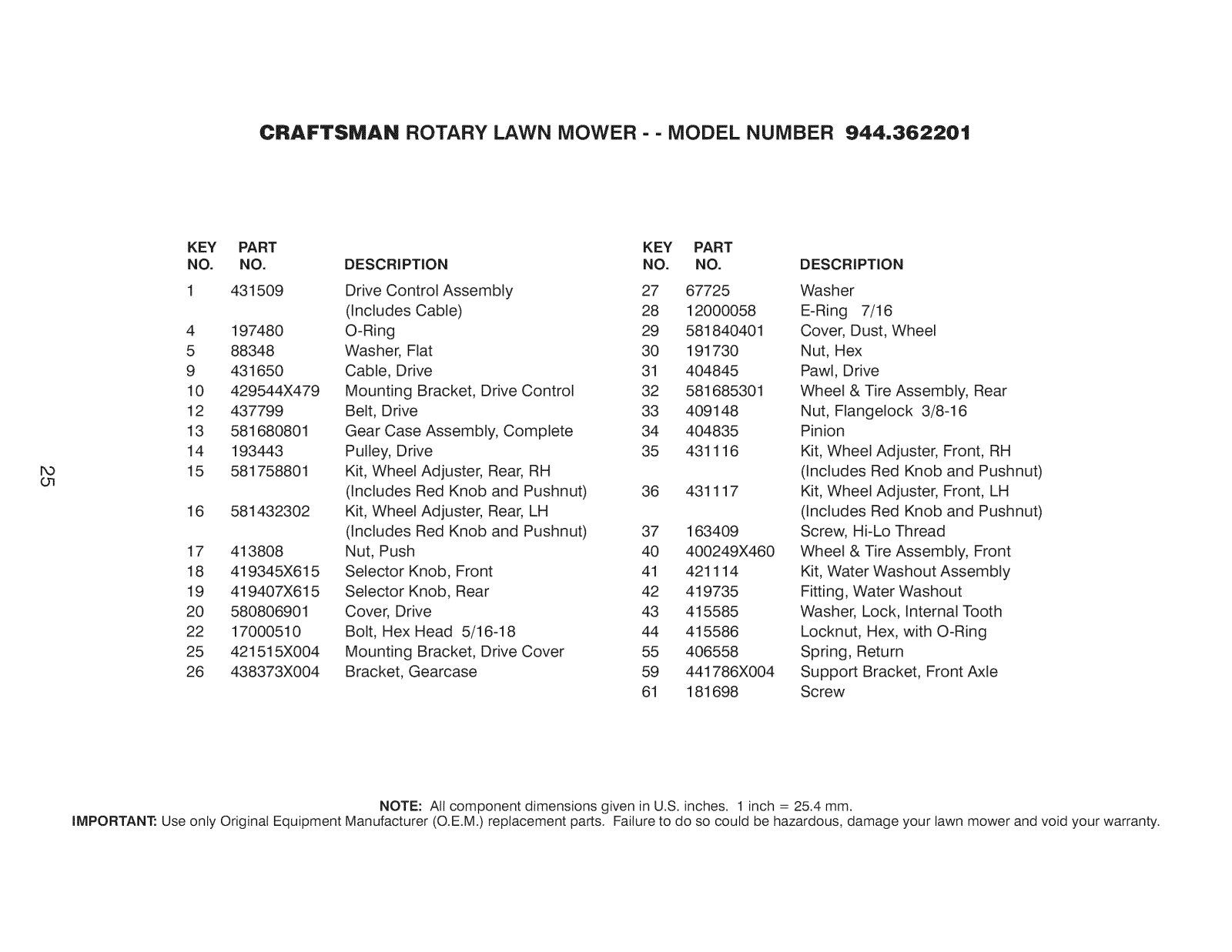

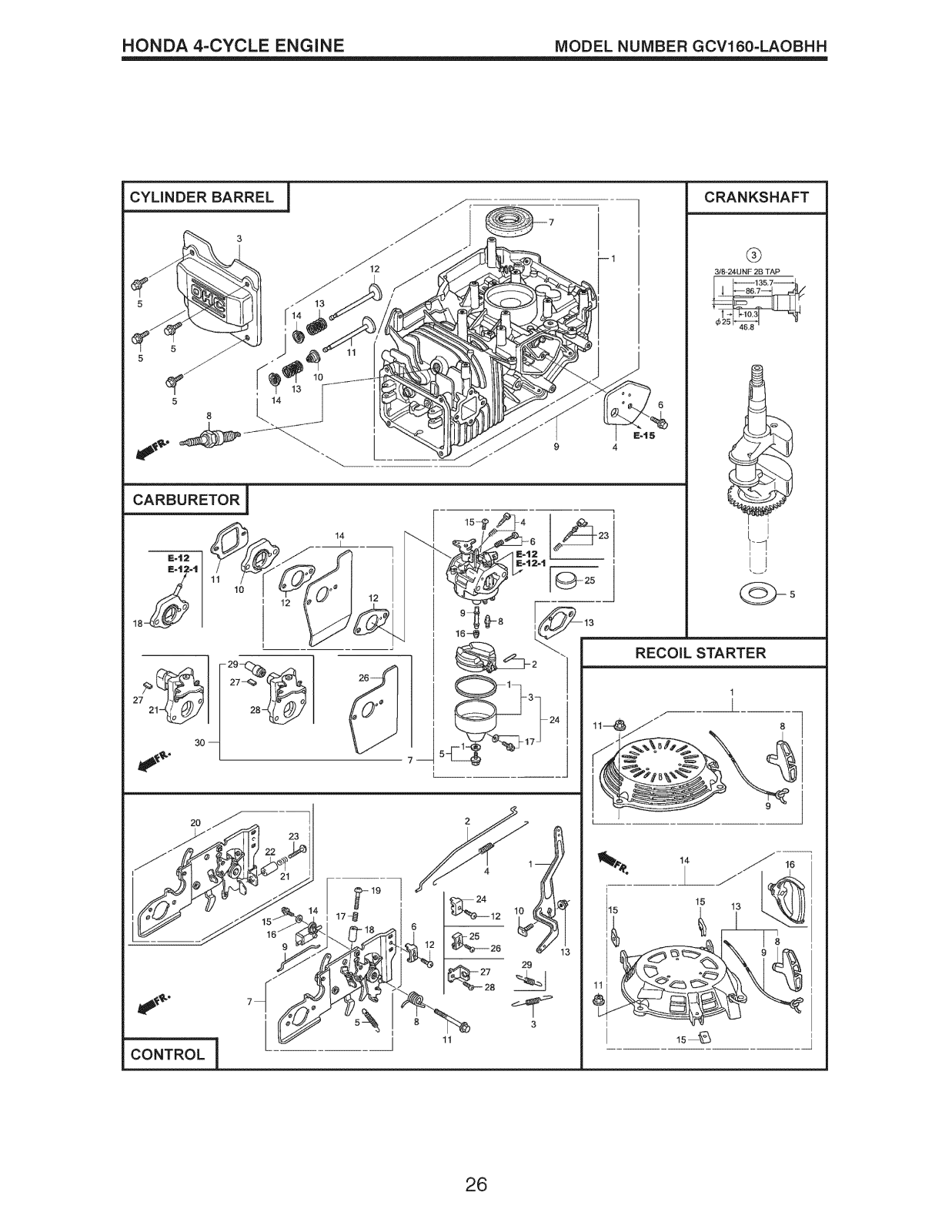

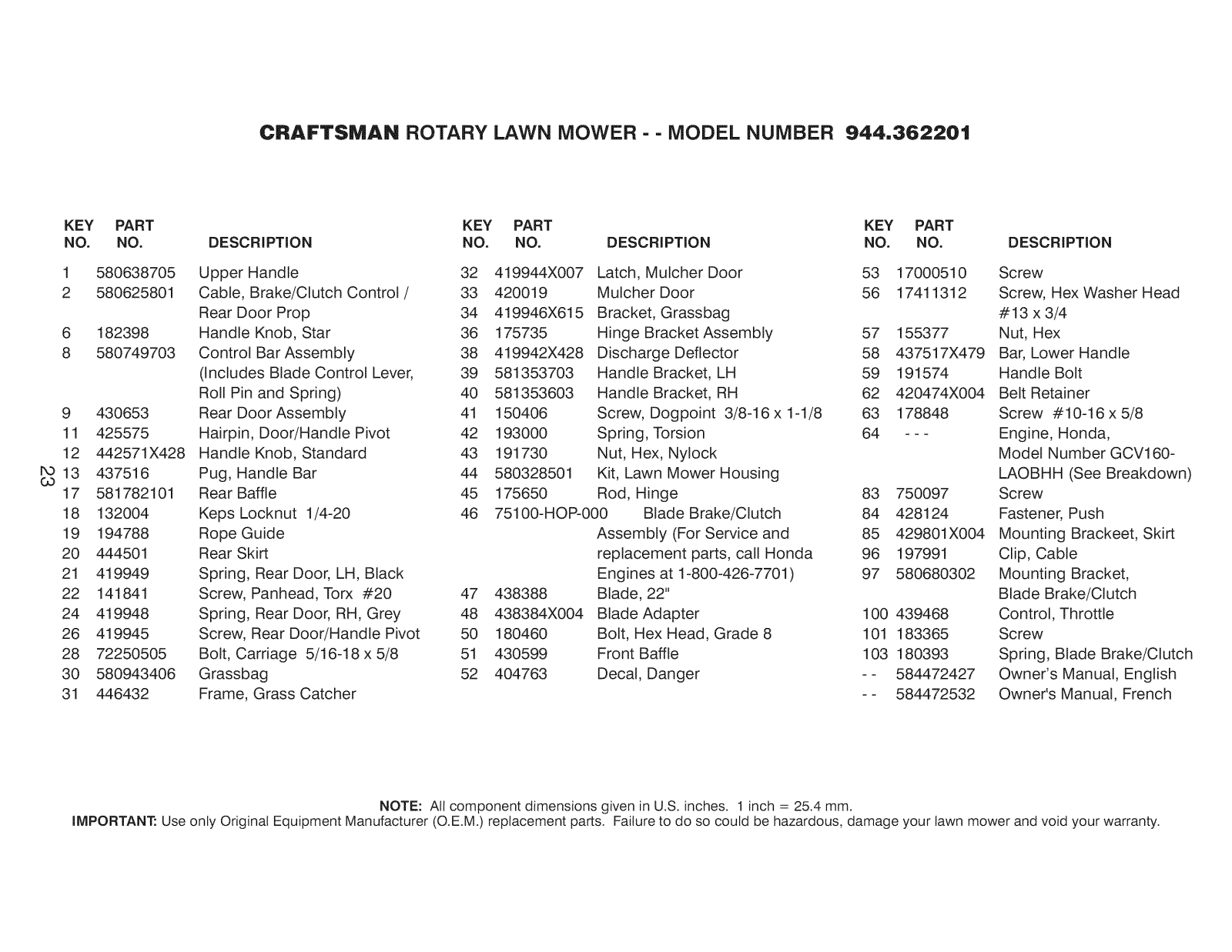

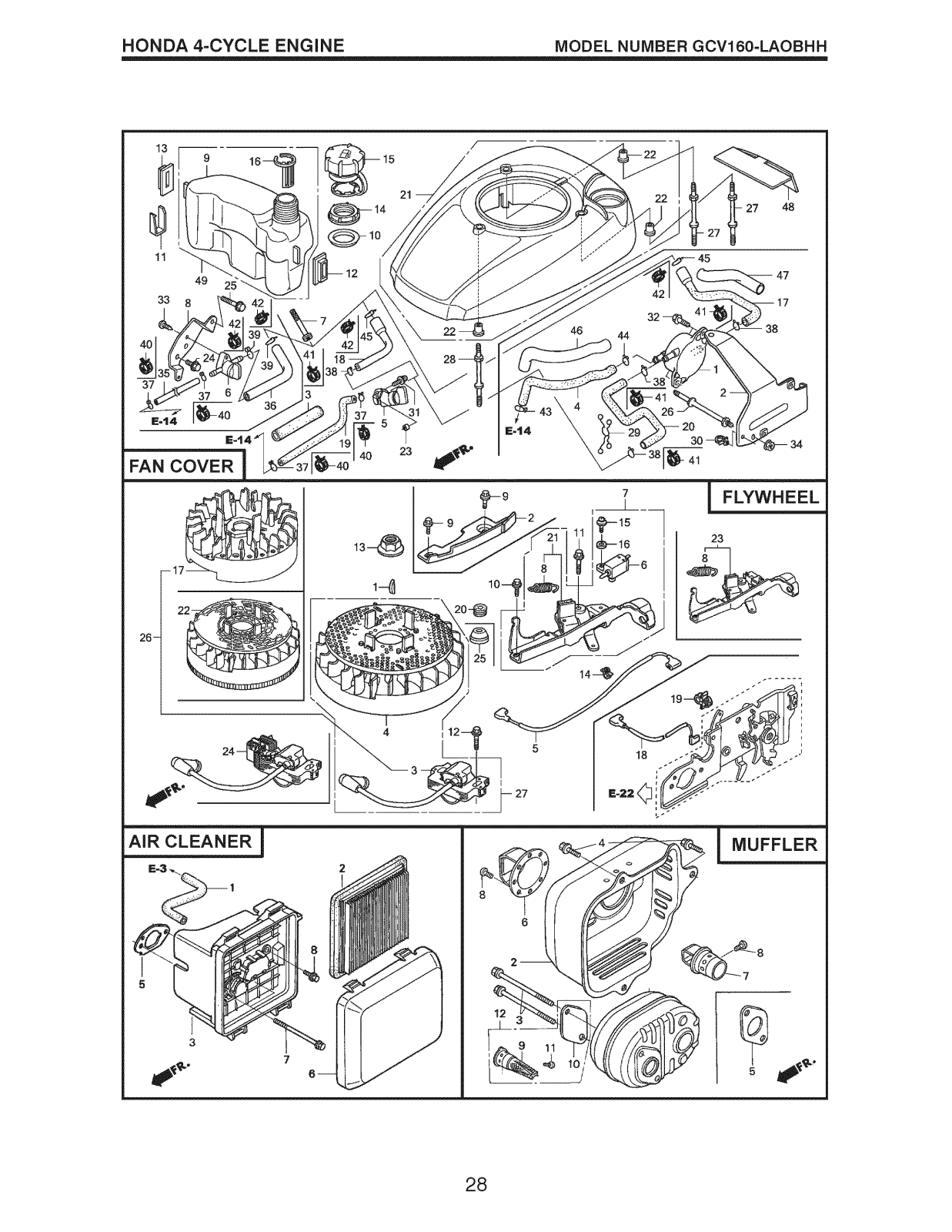

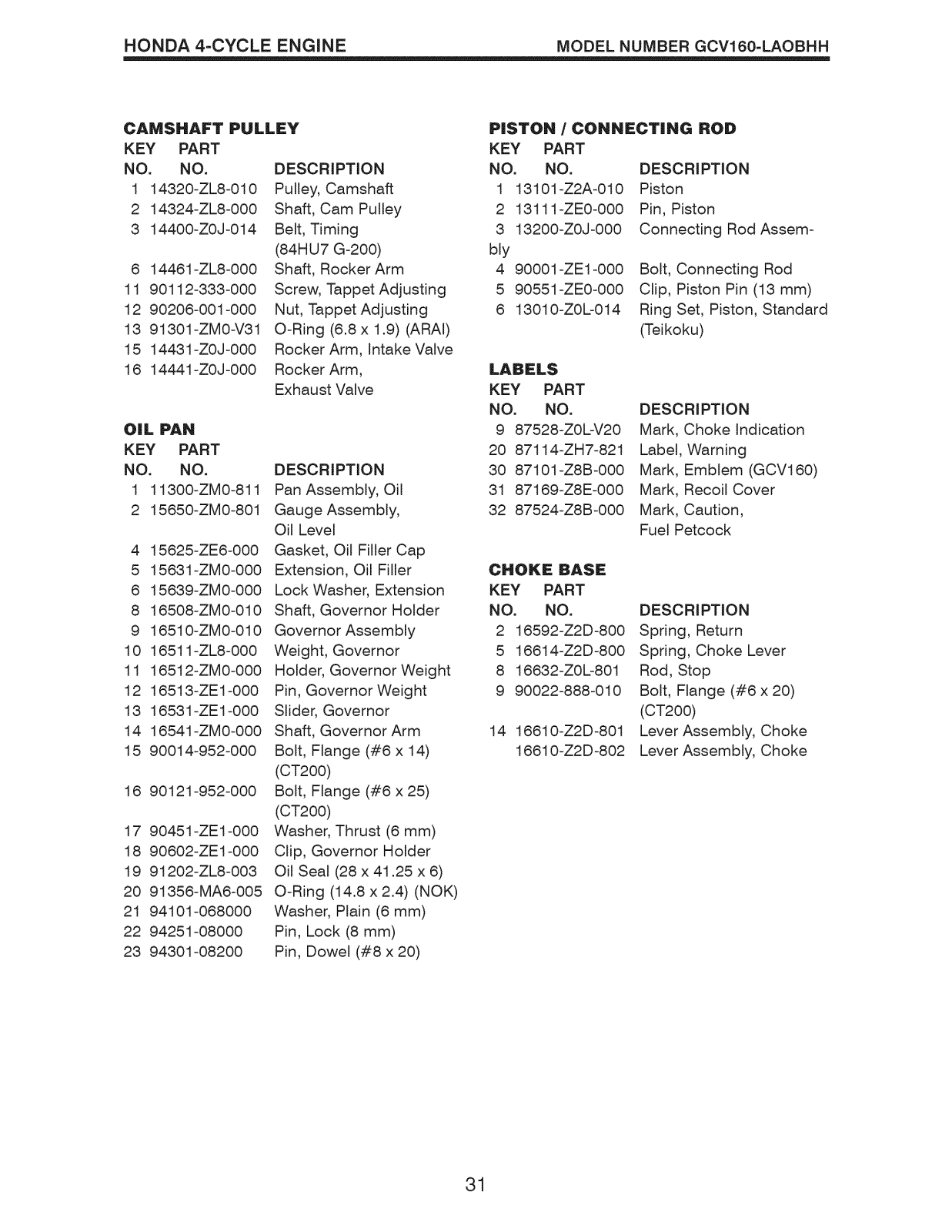

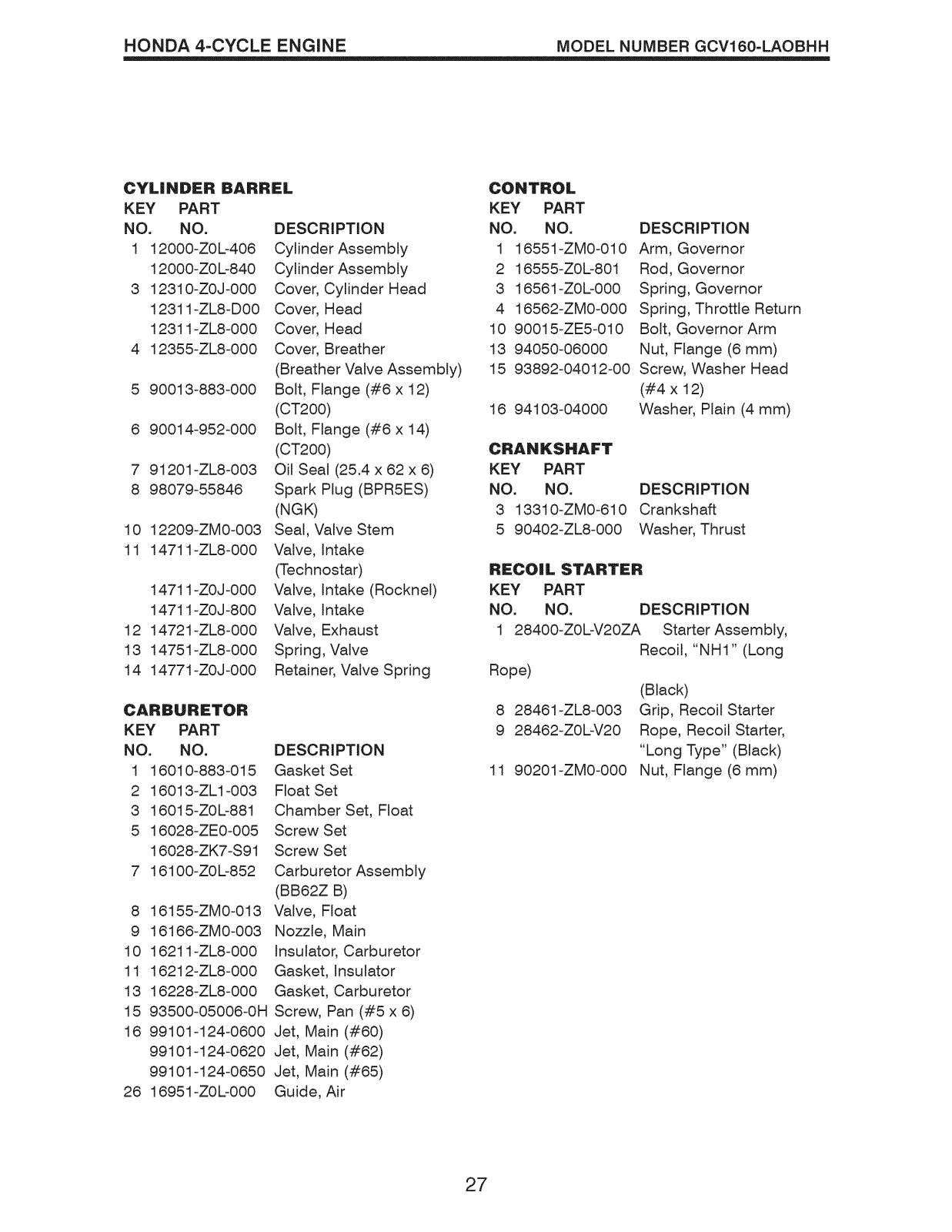

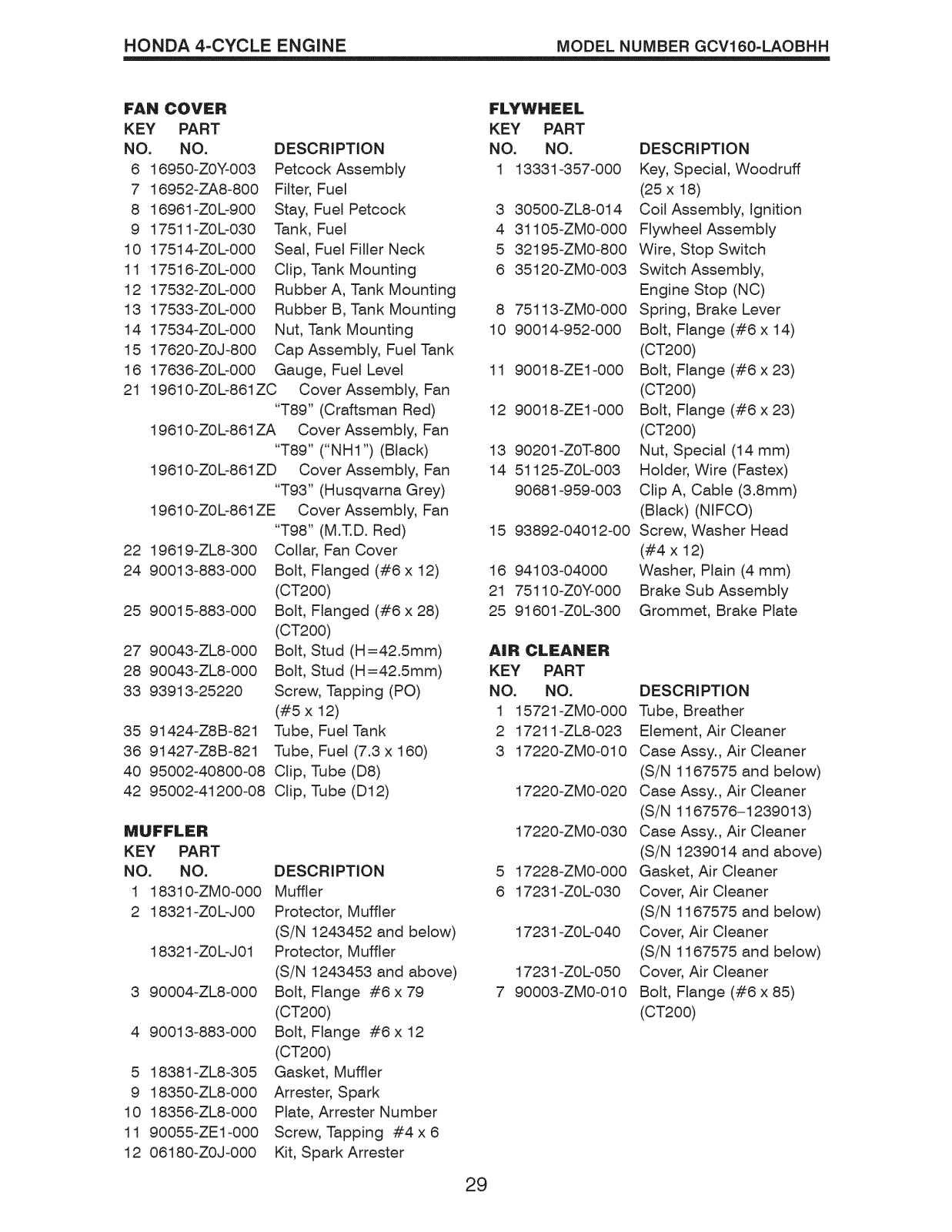

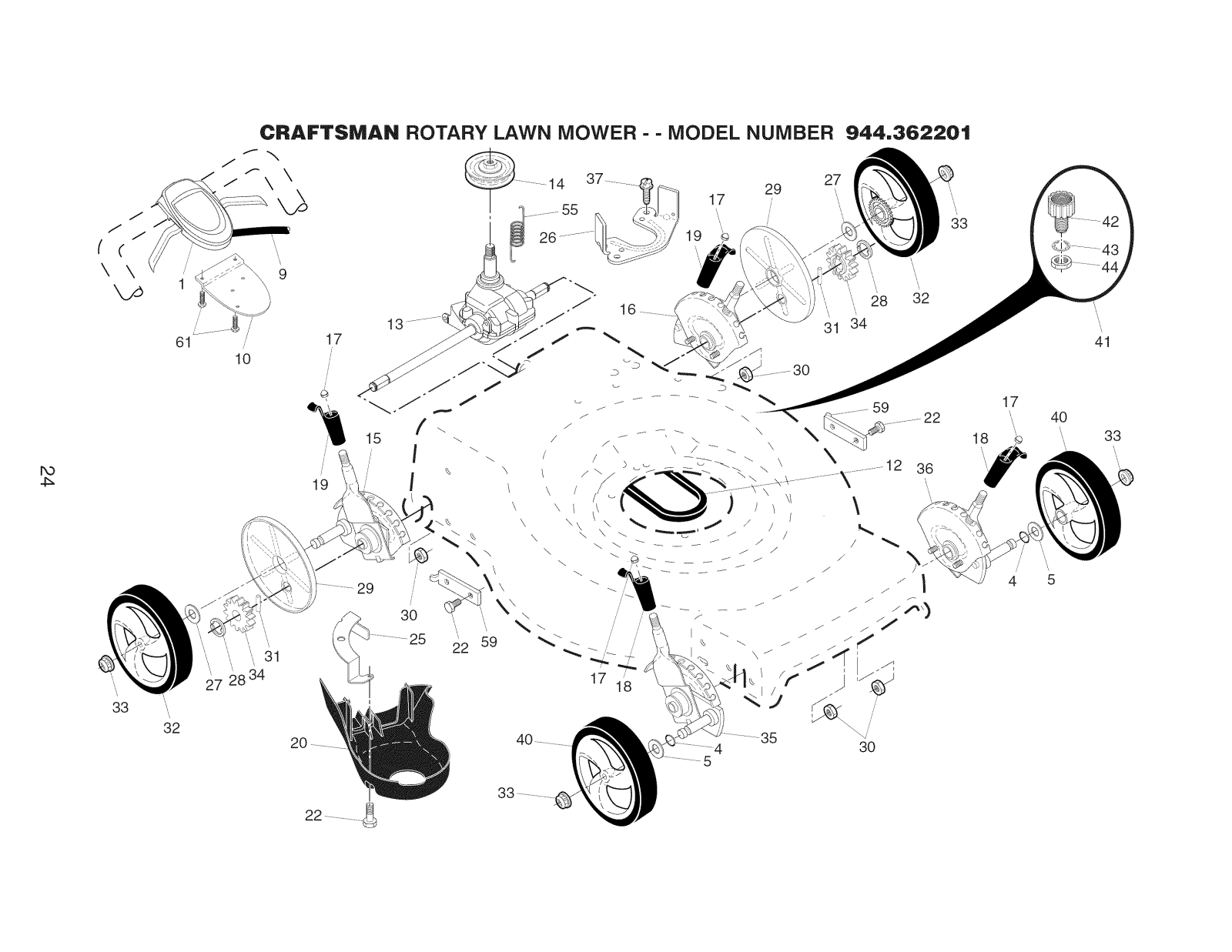

Repair Parts ....................................... 22-29

Sears Service ........................... Back Cover

IMPORTANT: This cutting machine is

capable of amputating hands and feet and
throwing objects. Failure to observe the

following safety instructions could result in
serious injury or death.
_i, Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOME ALERT!!!
YOUR SAFETY IS INVOLVED.

A WARNING: In order to prevent acciden-
tal starting when setting up, transporting,

adjusting or making repairs, always discon-

nect spark plug wire and place wire where it

cannot come in contact with plug.
A CAUTION: Muffler and other engine

parts become extremely
hot during operation and

remain hot after engine
has stopped. To avoid

severe burns on contact,
stay away from these areas.

._I,WARNING: This lawn mower is equipped
with an internal combustion engine and
should not be used on or near any unim-

proved forest-covered, brush-covered or
grass-covered land unless the engine's
exhaust system is equipped with a spark
arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it
should be maintained in effective working
order by the operator.

In the state of California the above is required

by law (Section 4442 of the California Public

Resources Code). Other states may have
similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is
available through your nearest Sears Parts

& Repair Center (See the REPAIR PARTS
section of this manual).

I. GENERAL OPERATION

• Read, understand, and follow all instruc-
tions on the machine and in the manual(s)

before starting. Be thoroughly familiar with
the controls and the proper use of the

machine before starting.

• Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times.

• Only allow responsible individuals, who
are familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,
toys, wire, bones, sticks, etc., which could
be picked up and thrown by blade.

• Be sure the area is clear of other people
before mowing. Stop machine if anyone

enters the area.

• Do not operate the mower when barefoot
or wearing open sandals. Always wear

substantial foot wear.

• Do not pull mower backwards unless
absolutely necessary. Always look down

and behind before and while moving
backwards.

• Never direct discharged material toward
anyone. Avoid discharging material

against a wall or obstruction. Material may
richochet back toward the operator. Stop
the blade when crossing gravel surfaces.

• Do not operate the mower without proper
guards, plates, grass catcher or other

safety protective devices in place.

• See manufacturer's instructionsfor proper
operation and installation of accessories.

Only use accessories approved by the
manufacturer.

• Stop the blade(s) when crossing gravel
drives, walks, or roads.

• Stop the engine (motor) whenever you
leave the equipment, before cleaning the
mower or unclogging the chute.

• Shut the engine (motor) off and wait until
the blade comes to complete stop before
removing grass catcher.

• Mowonlyin daylightorgood artificial light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Never operate machine in wet grass. Al-
ways be sure of your footing: keep a firm
hold on the handle; walk, never run.

• Disengage the self-propetled mechanism
or drive clutch on mowers so equipped
before starting the engine.

• If the equipment should start to vibrate
abnormally, stop the engine (motor) and
check im mediately for the cause. Vibration

2

is generally a warning of trouble.

• Always wear safety goggles or safety glass-
es with side shields when operating mower.

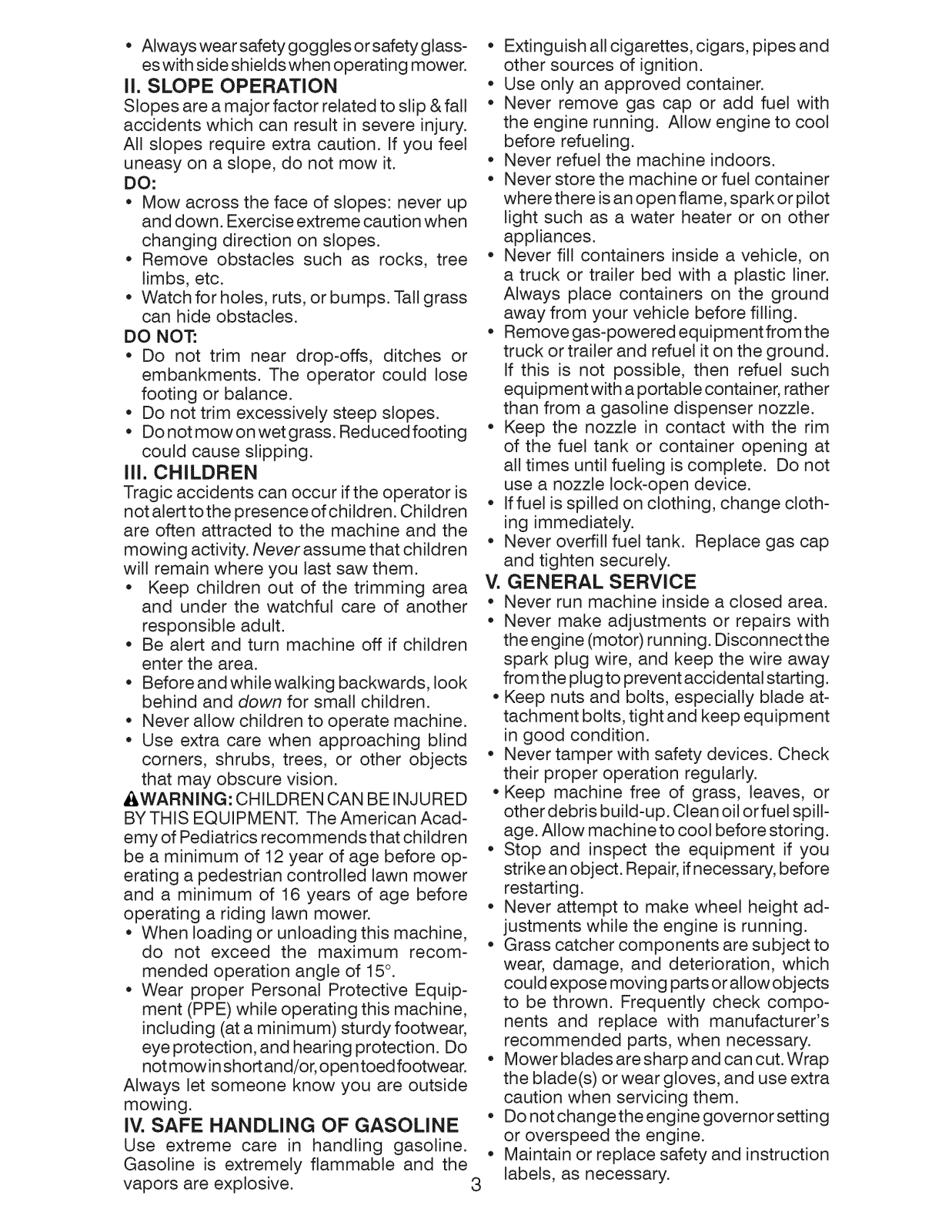

II. SLOPE OPERATION

Slopes are a major factor related to slip & fall
accidents which can result in severe injury.

All slopes require extra caution. If you feel

uneasy on a slope, do not mow it.
DO:

• Mow across the face of slopes: never up
and down. Exercise extreme caution when

changing direction on slopes.

• Remove obstacles such as rocks, tree
limbs, etc.

• Watch for holes, ruts, or bumps. Tall grass
can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or
embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Red uced footing

could cause slipping.

III. CHILDREN

Tragic accidents can occur if the operator is

not aterttothe presence of children. Children

are often attracted to the machine and the

mowing activity. Never assume that children

will remain where you last saw them.

• Keep children out of the trimming area
and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children
enter the area.

• Before and while walking backwards, look
behind and down for small children.

• Never allow children to operate machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects
that may obscure vision.

&WARNING: CHILDREN CAN BE INJURED

BY THIS EQUIPMENT. The American Acad-

emy of Pediatrics recommends that children

be a minimum of 12 year of age before op-
erating a pedestrian controlled lawn mower
and a minimum of 16 years of age before
operating a riding lawn mower.

• When loading or unloading this machine,
do not exceed the maximum recom-

mended operation angle of 15°.

• Wear proper Personal Protective Equip-
ment (PPE) while operating this machine,
including (at a minimum) sturdy footwear,
eye protection, and hearing protection. Do

not mowin short and/or, open toed footwear.

Always let someone know you are outside

mowing.

IV. SAFE HANDLING OF GASOLINE

Use extreme care in handling gasoline.

Gasoline is extremely flammable and the
vapors are explosive. 3

• Extinguish all cigarettes, cigars, pipes and
other sources of ignition.

• Use only an approved container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to cool
before refueling.

• Never refuel the machine indoors.

• Never store the machine or fuel container

where there is an open flame, spark or pilot
light such as a water heater or on other
appliances.

• Never fill containers inside a vehicle, on
a truck or trailer bed with a plastic liner.

Always place containers on the ground
away from your vehicle before filling.

• Remove gas-powered equipmentfrom the
truck or trailer and refuel it on the ground.

If this is not possible, then refuel such
equipment with a portable container, rather
than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim
of the fuel tank or container opening at
all times until fueling is complete. Do not
use a nozzle lock-open device.

• If fuel is spilled on clothing, change cloth-
ing immediately.

• Never overfill fuel tank. Replace gas cap
and tighten securely.

V. GENERAL SERVICE

• Never run machine inside a closed area.

• Never make adjustments or repairs with

the engine (motor) running. Disconnectthe
spark plug wire, and keep the wire away

from the plug to prevent accidental starting.

• Keep nuts and bolts, especially blade at-
tachment bolts, tight and keep equipment

in good condition.

• Never tamper with safety devices. Check
their proper operation regularly.

• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel spill-

age. Allow machineto coo! before storing.

• Stop and inspect the equipment if you
strike an object. Repair, ifnecessary, before

restarting.

• Never attempt to make wheel height ad-

justments while the engine is running.

• Grass catcher components are subject to
wear, damage, and deterioration, which
could expose moving parts or allow objects
to be thrown. Frequently check compo-
nents and replace with manufacturer's

recommended parts, when necessary.

• Mower blades are sharp and can cut. Wrap
the blade(s) or wear gloves, and use extra
caution when servicing them.

• Do not change the engine governor setting
or overspeed the engine.

• Maintain or replace safety and instruction
labels, as necessary.

GENERAL: Craftsman products are warranted to be free from defects in materials
or workmanship for a specific time period as set-out below (the "Warranty Period").
Warranties extend to the original purchaser of a Craftsman product only. Purchases
made through an online auction or through any website other than www.sears.ca are
excluded. The relevant Warranty Period commences on the original date of purchase.
Within this period, Sears Canada, Inc. will, at its sole option, repair or replace any
products or components which fail in normal use. Such repairs or replacement will be
made at no charge to the customer for parts or labor, provided that the customer shall be
responsible for any transportation cost.

EXCLUSIONS: This warranty does not cover failures due to normal wear, abuse, misuse,
neglect (including but not limited to the use of stale fuel, dirt, abrasives, moisture, rust,
corrosion, or any adverse reaction due to improper storage or use habits), improper
maintenance or failure to follow maintenance guidelines and/or instructions, failure to
operate the product in accordance with the owner's manual or any additional instructions
or information provided at the time of purchase or in subsequent communications with
the original purchaser, accident or unauthorized alterations or repairs made or attempted
by others. Also excluded from warranty coverage - except as provided below - are
the following: maintenance, adjustments, components subject to wear including but

not limited to: cosmetic components, belts, blades, blade adapters, bulbs, tires, filters,
guide bars, lubricants, seats, grips, recoil assy's, saw chains and bars, trimmer lines and
spools, spark plugs, starter ropers and tines, and discoloration resulting from ultraviolet
light. Any product missing the model and/or serial number identification label will be
disqualified from coverage under this warranty.

REPAIRS: Repairs have a 90 day warranty. If the defective product is still within the
Warranty Period, then the new warranty is 90 days from the date of repair or to the end of
the original Warranty Period, whichever period is longer.

DISCLAIMERS: THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE

EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER ORAL OR
WRITTEN (OTHER THAN AS STATED HEREIN), AND WHETHER EXPRESS, IMPLIED
OR STATUTORY, INCLUDING BUT NOT LIMITED TO ANY. THIS WARRANTY GIVES YOU

SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM PROVINCE TO PROVINCE.

IN NO EVENT SHALL SEARS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT
OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE

OR INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE PRODUCT. THE

EXCLUSIONS IN THIS PARAGRAPH SHALL NOT APPLY IN JURISDICATIONS WHERE
APPLICABLE LAW DOES NOT ALLOW FOR THE EXCLUSION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES. IN SUCH JURISDICTIONS, THIS PARAGRAPH SHALL

NOT APPLY, BUT THE REMAINING PROVISIONS OF THIS DOCUMENT SHALL REMAIN
VALI D.

Sears retains the exclusive right to repair or replace the product or offer a full refund of
the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND

EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.

CUSTOMER RESPONSIBILITIES: In additional to complying with all suggested
maintenance guidelines and instructions, customers' obligations shall include but shall
not be limited to: operating the product in accordance with the owner's manual or any
additional instructions or information provided at the time of purchase or in subsequent
communications to the purchaser from time to time, exhibit reasonable care in the use,
operation, maintenance, general upkeep and storage of the product. Failure to comply
with these requirements will void any applicable warranty.

4

LISTOFAPPLICABLE WARRANTYPERIODS:Thefollowing listcontainsthe applicable
WarrantyPeriodfor your Craftsmanproduct and is based on a combination of the type
of product or component andthe intended andactual use ofthe product or component:

1. 90 DAYS: Craftsman products intended for use or actually used for commercial,
institutional,professionalor income-producing purposes

.

2 YEARS: Craftsman riding lawn mowers, yard and garden tractors, walk behind

mowers, tillers, brush cutters, snow blowers, handheld blowers, backpack blowers,
hedge trimmers and electrical products for noncommercial, nonprofessional, non-
institutional, or non-income-producing use, except for those components which are
part of engine systems manufactured by third party engine manufacturers for which

the purchase has received an separate warranty with product information supplied

at the time of purchase.

3. 1 YEAR: Craftsman power cutters, stump grinders, pole pruners, gas chain saws,
electric chain saws, trimmer attachments, baggers and pole saws for noncommercial,

nonprofessional, non-institutional, or non-income-producing use.

4. 90DAYS:AIIdefectivebatteries,whichwillbereplaced duringthis90-dayWarrantyPeriod.

.

60 DAYS: Additional Warranty Period of 60 days will apply to adjustments and worn
products or components BUT DOES NOT INCLUDE WEAR OR ADJUSTMENTS

for products used for commercial, institutional, professional or income-producing

purposes. Wear items include but are not limited to: belts, blades, tires, spark plugs,
air filters, chains, shear bolts, skid plates, scraper bars, drift cutters, ropes, tines,

collection bags and pulleys.

As the Warranty Period runs from the date of purchase and NOT from the date that a

product is delivered, opened, assembled or first used, plea se ensure during this time

period that your product or component has been assembled and tested for correction
operation regardless of when you intend to actually use it. Claims made after the
Warranty Period has expired will not be honored.

PROOF OF PURCHASE/DOCUMENTATION: Warranty coverage is conditioned upon
the original purchaser furnishing Sears Canada or its authorized third party service

provider if applicable, with the original sales receipt or other adequate written proof
of the original purchase date and identification of the product. In the event that the
original purchaser is unable to provide a company of the original sales receipt, Sears
Canada Inc. reserves the right to determine in its sole discretion what other written

proof of the original purchase date and identification of the product is acceptable.

Serial Number:
Date of Purchase:

Gasoline Capacity / Type: 1,14 Litres (Unleaded Regular)
Oil Capacity: 0,66 Litres

Oil Type (API SG-SL): SAE 30 (above 0°C/32°F) or SAE 10W-30
Spark Plug (Gap: 0,76 mm) NGK BPR6ES

Valve Clearance (_+ 0.04 mm): Intake: 0.015 mm; Exhaust: 0.020 mm

Blade Bolt Torque: 35-40 ft. Ibs.

• The model and serial numbers will be found on a decal on the rear of the lawn mower
housing. Record both serial number and date of purchase in space provided above.

5

Read these instructions and this manual in its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

Your new lawn mower has been assembled at the factory with the exception of those

parts left unassembled for shipping purposes. To ensure safe and proper operation of

your lawn mower, all parts and hardware you assemble must be tightened securely. Use
the correct tools as necessary to ensure proper tightness. All parts such as nuts, wash-

ers, bolts, etc., necessary to complete the assembly have been placed in the parts bag.

TO REMOVE MOWER FROM CARTON

Bolt

1. Remove loose parts included with
mower.

\\

2. Cut down two end corners of carton
and lay end panel down flat.

3. Remove all packing materials except
padding between upper and lower

Handle
bracket

handle and padding holding operator
presence control bar to upper handle.

4. Roll lawn mower out of carton and
check carton thoroughly for additional

loose parts.

NOW TO SET UP YOUR MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise lower handle section to operating
position and align hole in handle with

one of three height positioning holes.

2. Insert handle bolt through handle and
bracket and secure with knob.

3. Repeat for opposite side of handle. ;3 _.

4. Remove protective padding, raise up-
per handle section into place on lower ._

handle and tighten both handle knobs.

5. Remove any packing material from
around control bar. ,

Your lawn mower handle can be adjusted '---_
for your mowing comfort. Refer to "AD-
JUST HANDLE" in the Service and Adjust- x-

ments section of this manual, i -_'

Operator
control bar

/

/

///

////

MOWING

POSITION

"\,!\\

TO ASSEMBLE GRASS CATCHER

1. Put grass catcher frame into grass bag
with rigid part of bag on the bottom.

Make sure the frame handle is outside
of the bag top.

2. Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

Frame

handle

/'-_,

Vinyl Frame

opening

ill

/I

Upper

handle

Handle

knob

Lower handle

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert mower

to bagging or discharging, see "TO CON-
VERT MOWER" in the Operation section

of this manual.

6

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR
LAWN MOWER. Com pare the illustrations with your lawn mower to familiarize yourself with

the location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON C)FF AND FEET AWAY

Operator presence control bar

Drive control levers

Blade
Brake
control

Starter
handle

Grass
catcher

Wheel Adjuster

(on each

Engine oil cap
with diF

Muffler

Mulcher

I-hrottle / Engine control

Handle knobs

Gasoline filler cap

Fuel valve lever

Air filter

g

IMPORTANT: This lawn mower is shipped

Spark plug

WITHOUT OIL OR GASOLINE in the engine,

NOTE: Gasoline containing up to 10% ethanol (El 0) is acceptable for use in this machine.

The use of any gasoline exceeding 10% ethanol (El 0) will void the product warranty.

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Commission.

Operator presence control bar = must

be held down to the handle to start the
blade. Release to stop the blade.

Throttle/engine control - used for start-

ing & stopping the engine; and allows

you to select either FAST or SLOW engine
speed.

Starter handle = used for starting engine.
Blade/brake control - used to engage

the blade after the engine is started.

Drive control levers - used to engage
power-propelled forward motion of mower.

Muicher door = allows conversion to
discharging or bagging operation.

7

Theoperation of any

SAFETYGLASSESlawn mower can result

in foreign objects thrown
into the eyes, which can

result in severe eye dam-

age. Always wear safety glasses or eye
shields while operating your lawn mower

or performing any adjustments or repairs.
We recommend a standard safety glasses
or wide vision safety mask worn over

spectacles.

HOW TO USE YOUR LAWN
MOWER

ENGINE SPEED

Engine speed was set at the factory for

optimum performance. It is not adjustable.

THROTTLE/ENGINE CONTROL
The engine is controlled by a throttle

control located on the side of the upper

handle. CHOKE position is for starting a

cold engine; FAST position is for starting
a warm engine, normal cutting, trimming
and better grass bagging; SLOW posi-
tion is for light cutting, trimming and fuel

economy, and STOP position is for stop-

ping the engine.

Allow a cold engine to warm up in high

idle position for one minute before engag-
ing the blade.

NOTE: It is normal to hear the belt slip as

the blade is engaged and comes up to
speed.

• Do not start the blade in uncut grass.
Move the mower out of uncut grass

before starting the blade.

_I_CAUTION: Federal regulations require
this blade/brake control to minimize the

risk of blade contact injury. Do not under

any circumstances attempt to defeat the
function of this control.

\ \

\\

\

\

\\

\\\

\\\\

Blade/brake

control lever

Operator

presence

control bar

FAST SLOW

IX

CHOKE_ ,''_\ _..

/ _ / _ I_"I'-iI s "

I .,_-_ !" i/t/ st.-

," ,,,, - -, STOP

\ ,,,, ,,

BLADE CONTROL
_I:;ILCAUTION: When the blade control is
engaged, the blade turns.

• To start the blade, push the blade/brake
control lever forward (1) and hold the

operator presence control bar down
to the handle (2). To stop the blade,

release the operator presence control
bar.

'\\\i

\\

\\x

TO ENGAGE BLADE

DRIVE CONTROL

• Self-propelling is controlled by pulling
either drive control lever rearward to the

handle. The further toward the handle
a lever is pulled, the faster the unit will

travel.

• To stop forward motion without stop-
ping blade, release a drive control lever.

NOTE: If after releasing the drive control

the mower will not roll backwards, push
the mower forward slightly to disengage

drive wheels.
Operator presence control bar

rive

control levers

TO ENGAGE

DRIVE CONTROL

8

DRIVE CONTROL

DISENGAGED

DRIVE CONTROL ADJUSTMENT

Over time, the drive control system may

become "loose", resulting in decreased
speed. There is aturnbuckle on the drive
control housing to increase tension on the

drive cable. Proceed as follows:

1. Turn unit off and disconnect spark
plug wire from spark plug.

2. Rotate turnbuckle on drive control to
increase drive speed.

3. Operate mower to test drive speed.
Readjust as required.

4. If condition fails to improve after the
above steps (forward speed remains

the same), your drive belt is worn and

should be replaced.

TO CONVERT MOWER
Your lawn mower was shipped ready to

be used as a mulcher. To convert to bag-

ging or discharging:

REAR BAGGING

• Lift rear door of the lawn mower and
place the grass catcher frame hooks

onto the grass bag brackets.

• To convert to mulching or discharging
operation, remove grass catcher and

close rear door.

bag

bracket Grass

catcher

handle

Grass Full bac
catcher indicator

frame hook window

Adjustment
turnbuckle

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower wheels

for high cut, adjust cutting height to suit
your requirements. Medium position is

best for most lawns.

• To change cutting height, pull up on
adjuster lever, move wheel up or down

to suit your requirements and release
adjuster lever. Be sure all wheels are in
the same setting.

NOTE: Adjuster is properly positioned

when lever inserts into hole in plate.

LEVER BACKWARD TO
LOWER MOWER

LEVER
FORWARD

TO RAISE MOWER

Lever

/

Plate

NOTE: Rear door will remain open until

operator presence control bar is held
down to the handle.

AOAUTION: Do NOT force rear door to
close. Serious damage to your mower

could result.

9

SIDE DISCHARGING

• Rear door must be closed.

• Open mulcher door and install dis-

charge deflector under door as shown.

• Mower is now ready for discharging
operation.

• To convert to mulching or bagging
operation, discharge deflector must be

removed and mulcher door must be
closed and locked.

Unlock
latch

Open
mulcher door

Discharge
deflector

\

SIMPLE STEPS TO

REMEMBER WHEN

CONVERTING YOUR LAWN MOWER

FOR MULCHING -

1. Rear door closed.

2. Mulcher door closed and locked.
FOR REAR BAGGING -

1. Grass catcher installed.

2. Mulcher door closed and locked.
FOR SIDE DISCHARGING -

1. Rear door closed.

_ Discharge deflector installed

CAUTION: Do not run your lawn mow-

er without rear door closed or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear door

removed or propped open.

TO EMPTY GRASS CATCHER

Empty the grass catcher when clippings

are visible in the full bag indicator window.

1. Lift up on grass catcher using the

frame handle.

2. Remove grass catcher with clippings

from under lawn mower handle.

3. Empty clippings from bag using both

frame handle and bag handle.
NOTE: Do not drag the bag when empty-
ing; it will cause unnecessary wear.

\

MOWER IS NOW READY
FOR DISCHARGING

OPERATION

Bag
handle

BEFORE STARTING ENGINE

ADD OIL
Your lawnmower is shipped without oil in

the engine. For type and grade of oil to

use, see "ENGINE" in the Maintenance

section of this manual.
_IbCAUTION: DO NOT overfill engine with

oil, or it will smoke on startup.

1. Be sure lawnmower is level.

2. Remove oil fill cap/dipstick from oil fill
spout.

3. You recieve a container of oil with the
unit. Slowly pour the entire container

down the oil fill spout into the engine.

4. Insert and tighten oil fill cap/dipstick.

10

Upper Lowe
mark mark

iMPORTANT:

• Check oil level before each use. Add
oil if needed. Fill to full line on dipstick.

• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions. See "TO

CHANGE ENGINE OIE' in the Mainte-
nance section of this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler
neck. Do not overfill. Use fresh, clean,
regular unleaded gasoline with a mini-

mum of 87 octane. Do not mix oil with
gasoline. Purchase fuel in quantities

that can be used within 30 days to as-
sure fuel freshness.

A CAUTION: Wipe off any spilled oil or
fue!. Do not store, spill or use gasoline

near an open flame.

CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or meth-

anol) can attract moisture which leads to
separation and formation of acids during

storage. Acidic gas can damage the fuel
system of an engine while in storage. To
avoid engine problems, the fue! system

should be emptied before storage of 30
days or longer. Empty the gas tank, start
the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the prod-
uct and should be considered normal.

1. Be sure fuel valve is in the ON posi-
tion.

2. To start a cold engine, move handle
mounted throttle/choke control lever to

CHOKE position.

3. To start engine, pull starter handle
quickly. Do not allow starter rope to
snap back.

4. Slowly move throttle control lever to
FAST position after engine starts.

• To start a warm engine, move throttle
control lever to FAST position, then fol-

low steps above.

NOTE: Allow a cold engine to warm up

for one minute before starting the blade.
See "BLADE CONTROl" in this section of

this manual.

ON

%

TO STOP ENGINE

* To stop engine, move throttle control

lever to STOP position. Wait until blade
and all moving parts have stopped and

turn fue! valve to OFF position if you do
not intend to restart the engine soon.

Fuel valve lever

11

MOWING TiPS

_I, CAUTION: Do not use de-thatcher

blade attachments on your mower. Such
attachments are hazardous, will damage
your mower and could void your warranty.

• Under certain conditions, such as very
tall grass, it may be necessary to raise

the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass

clippings. It may also be necessary to
reduce ground speed and/or run the

lawn mower over the area a second
time.

• For extremely heavy cutting, reduce the
width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most
cutting conditions, the engine speed

should be set in the FAST position.

• Pores in cloth grass catchers can be-
come filled with dirt and dust with use

and catchers will collect less grass. To
prevent this, regularly hose catcher off
with water and let dry before using.

• Keep top of engine around starter clear
and clean of grass clippings and chaff.

This will help engine air flow and extend
engine life.

MULCHING MOWING TiPS

iMPORTANT: For best performance,
keep mower housing free of built-up

grass and trash. See "CLEANING" in the

Maintenance section of this manual.

• The special mulching blade will recut
the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into
the grass and not be noticed. Also,
the mulched grass will biodegrade

quickly to provide nutrients for the lawn.
Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.
Wet grass tends to form clumps and

interferes with the mulching action. The
best time to mow your lawn is the early

afternoon. At this time the grass has
dried, yet the newly cut area will not be
exposed to direct sunlight.

• For best results, adjust the lawn mower

cutting height so that the lawn mower
cuts off only the top one-third of the
grass blades. If the lawn is overgrown

it will be necessary to raise the height
of cut to reduce pushing effort and to
keep from overloading the engine and
leaving clumps of mulched grass. For
extremely heavy grass, reduce your

width of cut by overlapping previously
cut path and mow slowly.

MAX 1/3

• Certain types of grass and grass

conditions may require that an area be
mulched a second time to completely

hide the clippings. When doing a sec-
ond cut, mow across (perpendicular) to

the first cut path.

• Change your cutting pattern from week
to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting
and graining of the lawn.

12

MAINTENANCE BEFOREAFTEREVERY

EACH EACH 10

SCHEDULE USE USE HOURS

Check for Loose Fasteners if

_ lean /Inspect Grass Catcher * If

Check Tires I/'

_ Check Drive Wheels 1t_

Clean Lawn Mower ....

M Clean under Drive Cover ***

O Check Drive Belt / Pulleys ***

W Check / Sharpen / Replace Blade

_ Lubrication

Clean and Recharge Battery **

-- Check Engine Oil level
I_ Change Engine Oil

N Clean Air Filter

_ Inspect Muffler

N Replace Spark Plug
I1=Replace Air Filter Paper Cartridge

Empty fuel system or add Stabilizer

* (if so equipped)

** Electric-Start mowers

*** Power-Propelled mowers

**** Use a scraper

to clean under deck

1 - Change more often if operating under a heavy load or in high outdoor temperatures.
2 - Service more often if operating in dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soil.
4 - Charge 48 hours at end of season.
5 - And after each 5 hours of use.

t/

t/

i,/

EVERY EVERY

25HOURS 100 STORAGE

OR SEASON HOURS

BEFORE

t/

i/
i,/
t/

i/

_,2

14

14
i/

t/
14

i/

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not
cover items that have been subjected to

operator abuse or negligence. To receive
full value from the warranty, operator must

maintain unit as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

At least once a season, check to see if
you should make any of the adjustments
described in the Service and Adjustments

section of this manual.

• At least once a year, replace the spark
plug, clean or replace air filter element

and check blade for wear. A new spark
plug and clean/new air filter element
assure proper air-fuel mixture and help
your engine run better and last longer.

• Follow the maintenance schedule in this
manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated
(See "LUBRICATION CHART").

LUBRiCATiON CHART

(_ Wheel

adjuster (on
each wheel)

(_) Engine oil

door hinge

(_ Rear door

(_) Handle bracket mounting pins

(_ Spray lubricant

See "ENGINE" in Maintenance section.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will
attract dust and dirt that will shorten the life

of the self-lubricating bearings. If you feel
they must be lubricated, use only a dry,

powdered graphitetype lubricant sparingly.

13

Mulcher

pin

hinge

LAWN MOWER

Always observe safety rules when per-
forming any maintenance.

TIRES

• Keep tires free of gasoline, oil, or insect
control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.

DRIVE WHEELS

Check rear drive wheels each time before
you mow to be sure they move freely.

The wheels not turning freely means trash,
grass cuttings, etc. are inthe drive wheel area

and must be cleaned to free drive wheels.

If necessary to clean the drive wheels, be

sure to clean both rear wheels.

IMPORTANT: Blade bolts are heat

treated. If bolts need replacing, replace
only with approved bolts shown in the

Repair Parts section of this manual.

Trailing edge

Debris

shield

Blade

adapter

'Blade

BLADE CARE
For best results, blade must be kept

sharp. Replace a bent or damaged blade.

CAUTION: Use only a replacement

blade approved by the manufacturer of

your mower. Using a blade not approved

by the manufacturer of your mower is
hazardous, could damage your mower

and void your warranty.

TO REMOVE BLADE

1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with plug.

2. Turn lawn mower on its side. Make
sure air filter and carburetor are up.

3. Use a wood block between blade and
mower housing to prevent blade from

turning when removing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

4. Remove blade bolts by turning
counter-clockwise.

5. Remove blade and blade adapter.

6. Remove debris shield.

TO REPLACE BLADE

1. Install debris shield.

2. Position the blade and blade adapter
on the Blade Brake/Clutch.

3. Be sure the trailing edge of blade (op-
posite sharp edge) is up toward the

engine.

4. Install the blade bolts into blade
adapter and Blade Brake/Clutch.

5. Use block of wood between blade and
lawn mower housing and tighten the

blade bolts, turning clockwise.

• The recommended tightening torque is
36-44 ft. Ibs.

Blade bolts

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade- but if you do, be sure the

blade is balanced. An unbalanced blade

will cause eventual damage to lawn

mower or engine.

• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, drive a nail into
a beam or wall. Leave about one inch of

the straight nail exposed. Place center

hole of blade over the head of the nail.
If blade is balanced, it should remain in

a horizontal position. If either end of the
blade moves downward, sharpen the

heavy end until the blade is balanced.

GRASS CATCHER

• The grass catcher may be hosed with
water, but must be dry when used.

• Check your grass catcher often for
damage or deterioration. Through

normal use it will wear. If catcher needs
replacing, replace only with approved

replacement catcher shown in the Re-
pair Parts section of this manual. Give

the lawn mower model number when

ordering.

G EAR CAS E

• To keep your drive system work-
ing properly, the gear case and area
around the drive should be kept clean
and free of trash build-up. Clean under

the drive cover twice a season.

14

The gear case is filled with lubricant to
the proper level at the factory. The only

time the lubricant needs attention is if
service has been performed on the gear

case.

ENGINE

Maintenance, repair, or replacement of the
emission control devices and systems,
which are being done at the custom-

ers expense, may be performed by any

non-road engine repair establishment or

individual. Warranty repairs must be per-
formed by an authorized engine manufac-

turer's service outlet.

LUBRICATION

Use only high quality detergent oil rated
with API service classification SG-SL.

Select the oil's SAE viscosity grade
according to your expected operating

temperature.

SAE VISCOSITY GRADES

_Io]

.

Wipe off any spilled oil from lawn

mower or side of engine.

5.

Fill engine with oil. Slowly pour oil
down the oil fill spout into the engine.

6.

Wait one minute to allow oil to settle.

Use guage on oil fill cap/dipstick for

checking level. Insert dipstick into
the tube and rest the oil fill cap on the
tube. DO NOT thread the cap into the

tube when taking reading.

Oil fill cap /
dipstick

°F -20 0 30 32 40 60 80 100

°c -_o -_; -_; ; 1; _o _o

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Multi-viscosity oils (5W30, 10W30

etc.) improve starting in cold weather, and
you should check your engine oil level fre-
quently to avoid possible engine damage
from running low on oil.
Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one year.
Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to
drain oil, empty fuel tank by running en-
gine until fuel tank is empty.

1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with plug.

2. Remove oil fill cap/dipstick; lay aside
on a clean surface.

3. Tip lawn mower on its side as shown
and drain oil into a suitable container.

Rock lawn mower back and forth to re-
move any oil trapped inside of engine.

40

Upper _

mark_

Lower "_
mark

7. Continue adding small amounts of
oil and rechecking the dipstick until it

reads full. DO NOT overfill, or engine

will smoke on startup.

8. Always be sure to retighten oil fill cap/
dipstick before starting engine.

9. Reconnect spark plug wire to spark
plug.

AIR FILTER

Your engine will not run properly and may

be damaged by using a dirty air filter.
Replace the air filter every 100 hours of

operation or every season, whichever oc-
curs first. Service air cleaner more often

under dusty conditions.

15

TOCLEANAIRFILTER

1. Remove cover.

2. Carefully remove cartridge.

3. Clean by gently tapping on a flat sur-
face. If very dirty, replace cartridge.

ACAUTION: Petroleum solvents, such
as kerosene, are not to be used to clean

cartridge. They may cause deterioration of
the cartridge. Do not oil cartridge. Do not

use pressurized air to clean or dry cartridge.

4. Install cartridge, then replace cover.

Tab

Cartridge

Filter

MUFFLER
Inspect and replace corroded muffler as it

could create a fire hazard and/or damage.

SPARK PLUG

Replace spark plug at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs

first. Spark plug type and gap setting
are shown in the "PRODUCT SPECIFICA-

TIONS" section of this manual.
CLEANING

IMPORTANT: For best performance,
keep mower housing free of built-grass

and trash. Clean the underside of your

mower after each use.

&CAUTION: Disconnect spark plug wire
from spark plug and place wire where it

cannot come in contact with plug.

• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.

• Clean engine often to keep trash from
accumulating. A clogged engine runs

hotter and shortens engine life.

• Keep finished surfaces and wheels free
of all gasoline, oil, etc.

• We do not recommend using a garden
hose to clean lawn mower unless the

electrical system, muffler, air filter and
carburetor are covered to keep water

out. Water in engine can result in short-
ened engine life.

WATER WASHOUT FEATURE

Your lawn mower is equipped with a fitting
that allows quick and easy cleaning of
the underside of the housing. To use this
feature, proceed as follows:

1. Move lawn mower to an area of cut
grass or another hard surface.

NOTE: Water, grass and other debris will
drain from beneath the mower housing

during the washout process.

2. Remove grass catcher and discharge
chute assembly from lawn mower.

3. Close mulcher door (if equipped).

4. Connect a garden hose to the fitting
where shown.

IMPORTANT: Be sure the garden hose is
not routed under the lawn mower housing
or entangled in the wheels.

5. Turn on water supply and check for
leaks at the fitting.

If no leaks are present, start engine (as
described in the Operation section of

this manual) and let engine run until the

underside of the lawn mower is clean.

• ILWARNING: Do not engage the drive
system during the washout process.

6. Shut off the engine.

7. Shut off water supply and remove

hose from fitting.

CAUTION: Do not remove hose from

fitting while engine is running. Water in

engine can result in shortened engine life.

8. Start engine (as described in the Op-

eration section of this manual) and let
engine run for a full minute to remove

excess water from mower.

Hose

Fitting

CLEAN UNDER DRIVE COVER

Clean under drive cover at least twice a
season. Scrape underside of cover with

putty knife or similar tool to remove any
build-up of trash or grass on underside of

drive cover.

16

A WARNING: To avoid serious injury, before performing any service and adjustments:

1. Release control bar and stop engine.

2. Make sure the blade and all moving parts have completely stopped.

3. Disconnect spark plug wire from spark plug and place wire where it cannot come in
contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your mower, is provided to
minimize the possibility that objects will

be thrown out of the rear of the mower
into the operator mowing position. If the

deflector becomes damaged, it should be

replaced.

DRIVE BELT

If your mower does not operate properly
due to suspected drive belt problems,
take your mower to a Sears or other
qualified service center for repair and/or

adjustment.

TO ADJUST HANDLE
Your handle has three (3) height positions

- adjust to a height that suits you.

1. Remove knob and carriage bolt on
one side of the lower handle.

2. While holding handle assembly,
remove knob and carriage bolt from

opposite side, align hole in handle with
desired hole in handle bracket and

reassemble bolt and knob and tighten
securely.

3. Align opposite side of handle with
same positioning hole and secure with

bolt and knob.

Handle Knob Bolt

bracket

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems,
which are being done at the custom-

ers expense, may be performed by any

non-road engine repair establishment or
individual. Warranty repairs must be per-

formed by an authorized engine manufac-
turer's service outlet.

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that the engine is running too fast
or too slow, take your lawn mower to a
Sears or other qualified service center for

repair and adjustment.

CARBURETOR

Your carburetor is not adjustable. If your
engine does not operate properly due to

suspected carburetor problems, take your

lawn mower to a Sears or other qualified
service center for repair and/or adjust-

ment.

IMPORTANT: Never tamper with the
engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high
speed setting can be dangerous. If you
think the engine-governed high speed

needs adjusting, contact a Sears or other
qualified service center, which has proper
equipment and experience to make any

necessary adjustments.

Low

17

Immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thoroughly, remove
all dirt, grease, leaves, etc. Store in a
clean, dry area.

1. Clean entire lawn mower (See
"CLEANING" in the Maintenance sec-

tion of this manual).

2. Lubricate as shown in the Mainte-
nance section of this manual.

3. Be sure that all nuts, bolts, screws,
and pins are securely fastened. In-

spect moving parts for damage, break-
age and wear. Replace if necessary.

4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.

HANDLE

You can fold your handle for storage.

1. Loosen the two (2) handle knobs on
sides of the upper handle and allow

handle to fold down to the rear.

2. Remove the two (2) handle knobs and
carriage bolts on sides of the lower

handle and pivot entire handle assembly

forward and allow it to rest on mower.

3. Reinstall knobs and carriage bolts to
lower handle / handle brackets for safe

keeping.

• When setting up your handle from
the storage position, lower handle will

require manually locking into mowing
position.

IMPORTANT: When folding the handle

for storage or transportation, be sure to
fold the handle as shown or you may

damage the control cables.
Operator MOWING

POSITION

control bar )

FOLD _/

// \,\\

/ 2 /

i i/

/ /

i /

II//X

FORWARD Upper
FOR handle

STORAGE jJ/

/

1 _ J i I

Handle

knob

Bolt

Handle
bracket

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage.

• Empty the fuel tank by starting the en-
gine and letting it run until the fuel lines
and carburetor are empty.

• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.

• Use fresh fuel next season.

NOTE: Fue! stabilizer is an acceptable

alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio
found on stabilizer container. Run engine
at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintenance section of this manual).

CYLINDER

1, Remove spark plug.

2. Pour one ounce (29 ml) of oii through

spark plug hole into cylinder.

3. Pull starter handle slowly a few times

to distribute oil,

4. Replace with new spark plug.

Lower handle 18

OTHER

• Do not store gasoline from one season
to another.

• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your unit indoors and
cover it to protect it from dust and dirt.

• Cover your unit with a suitable protec-
tive cover that does not retain moisture.

Do not use plastic. Plastic cannot
breathe, which allows condensation to

form and will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.
&CAUTION: Never store the lawn mower

with gasoline in the tank inside a building
where fumes may reach an open flame
or spark. Allow the engine to cool before
storing in any enclosure.

19

TROUBLESHOOTING - See appropriate section in manual unless directed
to a Sears Parts & Repair Center.

PROBLEM CAUSE CORRECTION

Does not start

Loss of power

,

Dirty air filter.

Out of fuel.

2.
Stale fuel.

3.

4.

Water in fuel.

5. Spark plug wire is
disconnected.

6. Bad spark plug.

7. Loose blade or broken

blade adapter.

8. Control bar in released

position.

9. Control bar defective.

10. Fuel valve lever (if so
equipped) in OFF position.

11. Weak battery (if equipped).

12. Disconnected battery
connector (if equipped).

13. Blown fuse (if equipped).

14. Engine control lever is

in STOP position.

.

Rear of lawn mower
housing or cutting blade

dragging in heavy grass.

.

Cutting too much grass.

3.

Dirty air filter.

4.

Buildup of grass, leaves,

and trash under mower.

5.

Too much oil in engine.

6.

Walking speed too fast.

1. Clean/replace air filter.

2. Fill fuel tank.

3. Drain fuel tank and refill tank
with fresh, clean gasoline.

4. Drain fuel tank and refill tank
with fresh, clean gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. Tighten blade bolt or

replace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

10. Turn fuel valve lever
to the ON position.

11. Charge battery.

12. Connect battery to engine.

13. Replace fuse.

14. Place engine control lever

in FAST position.

1. Raise cutting height.

2. Raise cutting height.

3. Clean/replace air filter.

4. Clean underside of mower
housing.

5. Check oil level.

6. Cut at slower walking speed.

Poor cut =
uneven

1.

Worn, bent or loose blade.

2.

Wheel heights uneven.

3.

Buildup of grass, leaves

and trash under mower.

1. Replace blade. Tighten
blade bolt.

2. Set all wheels at same
height.

3. Clean underside of
mower housing.

20

TROUBLESHOOTING - See appropriate section in manual unless directed
to a Sears Parts & Repair Center.

PROBLEM CORRECTION

CAUSE

Excessive

vibration

Starter rope

hard to pull

Grass catcher
not filling

(if so equipped)

Hard to push

1. Worn, bent or loose blade.

2. Bent engine crankshaft.

.

Engine flywhe!l brake is on

when control bar is released.

.

Bent engine crankshaft.

3.

Blade adapter broken.

4.

Blade dragging in grass.

5.

Defective blade/brake clutch.

1.

Cutting height too low.

2.

Lift on blade worn off.

3.

Catcher not venting air.

1.

Grass is too high or wheel
height is too low.

2.

Rear of lawn mower

housing or cutting blade
dragging in grass.

.

Grass catcher too full.

4.

Handle height position not

right for you.

1. Replace blade. Tighten
blade bolt.

2. Contact a Sears or other
qualified service center.

1. Depress control bar to
upper handle before

pulling starter rope.

2. Contact a Sears or other
qualified service center.

3. Replace blade adapter.

4. Move lawn mower to cut
grass or to hard surface.

5. Replace blade/brake clutch.

1. Raise cutting height.

2. Replace blade.

3. Clean grass catcher.

1. Raise cutting height.

2. Raise rear of lawn mower

housing one (1) setting
higher.

3. Empty grass catcher.

4. Adjust handle height to suit.

Blade/brake

clutch does
not engage

Engine dies

when starting

blade

Loss of drive

or slowing of
drive speed

(if self-propelled)

1. Defective blade control.

1. Cold engine.

2. Mower is in uncut grass.

1. Belt wear.

2. Belt off of pulley.

3. Drive cable worn or broken.

4. "Loose" drive control system.

1. Replace blade/brake control.

1. Allow engine to warm up
for one minute.

2. Move mower to cleared area.

1. Check/replace drive belt.

2. Check/reinstall drive belt.

3. Replace drive cable.

4. Adjust drive control.

21

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER

944.362201

bO
bO

3O

19

1

101 ),-

18

13

,," 58

/ / 84

/ /

// i I 96

/ I

56

'\

39 22

63

31

100

56

\

17

6

11

26 .....

24

22 ........

26

11

.............._ 21

28

53

/

103

....... 97

47

57

/

/I

5O

51

44

42

32

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 944.362201

KEY PART KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 580638705 Upper Handle 32 419944X007 Latch, Mulcher Door 53 17000510 Screw
2 580625801 Cable, Brake/Clutch Control/ 33 420019 Mulcher Door 56 17411312 Screw, Hex Washer Head

Rear Door Prop 34 419946X615 Bracket, Grassbag #13 x 3/4
6 182398 Handle Knob, Star 36 175735 Hinge Bracket Assembly 57 155377 Nut, Hex
8 580749703 Control Bar Assembly 38 419942X428 Discharge Deflector 58 437517X479 Bar, Lower Handle

(Includes Blade Control Lever, 39 581353703 Handle Bracket, LH 59 191574 Handle Bolt

Roll Pin and Spring) 40 581353603 Handle Bracket, RH 62 420474X004 Belt Retainer
9 430653 Rear Door Assembly 41 150406 Screw, Dogpoint 3/8-16 x 1-1/8 63 178848 Screw -#10-16 x 5/8

11 425575 Hairpin, Door/Handle Pivot 42 193000 Spring, Torsion 64 - - - Engine, Honda,
12 442571X428 Handle Knob, Standard 43 191730 Nut, Hex, Nylock Model Number GCV160-

bo 13 437516 Pug, Handle Bar 44 580328501 Kit, Lawn Mower Housing LAOBHH (See Breakdown)

o3

17 581782101 Rear Baffle 45 175650 Rod, Hinge 83 750097 Screw
18 132004 Keps Locknut 1/4-20 46 75100-HOP-000 Blade Brake/Clutch 84 428124 Fastener, Push
19 194788 Rope Guide Assembly (For Service and 85 429801X004 Mounting Brackeet, Skirt
20 444501 Rear Skirt replacement parts, call Honda 96 197991 Clip, Cable
21 419949 Spring, Rear Door, LH, Black Engines at 1-800-426-7701) 97 580680302 Mounting Bracket,

22 141841 Screw, Panhead, Torx -#20 47 438388 Blade, 22" Blade Brake/Clutch
24 419948 Spring, Rear Door, RH, Grey 48 438384X004 Blade Adapter 100 439468 Control, Throttle
26 419945 Screw, Rear Door/Handle Pivot 50 180460 Bolt, Hex Head, Grade 8 101 183365 Screw
28 72250505 Bolt, Carriage 5/16-18 x 5/8 51 430599 Front Baffle 103 180393 Spring, Blade Brake/Clutch
30 580943406 Grassbag 52 404763 Decal, Danger -- 584472427 Owner's Manual, English
31 446432 Frame, Grass Catcher -- 584472532 Owner's Manual, French

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

aMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 944,362201

r'o

4_

33

32

61

/

L

10

/

,/

17

,,,"

,/

19

30

25

22

2O

22 ............_,_

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 944.362201

['0
C_

KEY PART
NO. NO.

431509

4 197480
5 88348
9 431650
10 429544X479
12 437799
13 581680801
14 193443

15 581758801

16 581432302

17 413808
18 419345X615
19 419407X615
20 580806901

22 17000510
25 421515X004
26 438373X004

KEY PART

DESCRiPTiON

NO. NO.

Drive Control Assembly 27 67725
(Includes Cable) 28 12000058

O-Ring 29 581840401
Washer, Flat 30 191730
Cable, Drive 31 404845
Mounting Bracket, Drive Control 32 581685301

Belt, Drive 33 409148
Gear Case Assembly, Complete 34 404835

Pulley, Drive 35 431116
Kit, Wheel Adjuster, Rear, RH
(Includes Red Knob and Pushnut) 36 431117

Kit, Wheel Adjuster, Rear, LH
(Includes Red Knob and Pushnut) 37 163409
Nut, Push 40 400249X480
Selector Knob, Front 41 421114
Selector Knob, Rear 42 419735

Cover, Drive 43 415585
Bolt, Hex Head 5/16-18 44 415586

Mounting Bracket, Drive Cover 55 406558
Bracket, Gearcase 59 441786X004

61 181698

DESCRiPTiON

VVasher

E-Ring 7/16
Cover, Dust, Wheel

Nut, Hex
Pawl, Drive

Wheel & Tire Assembly, Rear

Nut, Flangelock 3/8-16
Pinion

Kit, Wheel Adjuster, Front, RH
(Includes Red Knob and Pushnut)
Kit, Wheel Adjuster, Front, LH

(Includes Red Knob and Pushnut)
Screw, Hi-Lo Thread

Wheel & Tire Assembly, Front

Kit, Water Washout Assembly
Fitting, Water Washout

VVasher, Lock, Internal Tooth

Locknut, Hex, with O-Ring
Spring, Return
Support Bracket, Front Axle

Screw

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 ram.

IMPORTANT." Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

HONDA 4-CYCLE ENGINE MODEL NUMBER GCV160-LAOBHH

CYLINDER BARREL ! /

F

CARBURETOR !

14 23 E ]

=.,2 %_'//_?j j _dl:l=, --, , ,

, "-.. "_ .4E-12 I , ,

CRANKSHAFT

®

3;8-24UNF 2B TAP

_86,7

b -135 7--

0525

'I __ _ _ l I " i 1 _. \'_--.--- RECOIL STAR_

129__ 26 f,p _-_2 ....

........

I .._/21 ii 4 /_/ '% " I ,-L

_ 24 . _5 I

4 17--f [ _2 10 ' I_s / 13 I

L__c_/" _ __ _ k____ _=___....

26

HONDA 4=CYCLE ENGINE MODEL NUMBER GCV160=LAOBHH

CYLINDER BARREL

KEY PART
NO. NO.

1 12000-ZOL-406

12000-ZOL-840

3 12310-ZOJ-000

1231 I-ZL8-D00
1231 I-ZL8-000

4 12355-ZL8-000

5 90013-883-000

6 90014-952-000

7 91201-ZL8-003
8 98079-55846

10 12209-ZM0-003
11 1471 I-ZL8-O00

14711 -ZOJ-O00

14711 -ZOJ-800
12 14721-ZL8-000
13 14751-ZL8-000
14 14771-ZOJ-O00

CARBURETOR

KEY PART
NO. NO.

1 16010-883-015

2 16013-ZL1-003
3 16015-ZOL-881
5 16028-ZE0-005

16028-ZK7-$91

7 16100-ZOL-852

8 16155-ZM0-013
9 16166-ZM0-003

10 16211 -ZL8-000
11 16212-ZL8-000

13 16228-ZL8-000
15 93500-05006-0H
16 99101-124-0600

99101-124-0620
99101-124-0650

26 16951-ZOL-000

DESCRIPTION
Cylinder Assembly

Cylinder Assembly
Cover, Cylinder Head
Cover, Head
Cover, Head
Cover, Breather

(Breather Valve Assembly)
Bolt, Flange (#6 x 12)
(CT200)
Bolt, Flange (#6 x 14)
(CT200)

Oil Seal (25.4 x 62 x 6)
Spark Plug (BPR5ES)

(NGK)
Seal, Valve Stem
Valve, intake

(Technostar)
Valve, Intake (Rocknel)

Valve, Intake
Valve, Exhaust
Spring, Valve

Retainer, Valve Spring

DESCRIPTION
Gasket Set

Float Set
Chamber Set, Float

Screw Set
Screw Set

Carburetor Assembly

(BB62Z B)
Valve, Float

Nozzle, Main

Insulator, Carburetor
Gasket, Insulator

Gasket, Carburetor
Screw, Pan (#5 x 6)

Jet, Main (#60)
Jet, Main (#62)

Jet, Main (#65)
Guide, Air

CONTROL

KEY PART
NO. NO. DESCRIPTION

1 16551-ZM0-010 Arm, Governor
2 16555-ZOL-801 Rod, Governor
3 16561-ZOL-000 Spring, Governor

4 16562-ZM0-000 Spring, Throttle Return
10 90015-ZE5-010 Bolt, Governor Arm
13 94050-06000 Nut, Flange (6 mm)

15 93892-04012-00 Screw, Washer Head

(#4 x 12)

16 94103-04000 Washer, Plain (4 mm)

CRANKSHAFT

KEY PART
NO. NO. DESCRIPTION

3 13310-ZM0-610 Crankshaft

5 90402-ZL8-000 Washer, Thrust

RECOIL STARTER

KEY PART
NO. NO. DESCRIPTION

1 28400-ZOL-V20ZA Starter Assembly,

Recoil, "NH1" (Long

Rope)

(Black)
8 28461-ZL8-003 Grip, Recoil Starter
9 28462-ZOL-V20 Rope, Recoil Starter,

"Long Type" (Black)

11 90201-ZM0-000 Nut, Flange (6 mm)

27

HONDA 4=CYCLE ENGINE MODEL NUMBER GCV160=LAOBHH

/

9 _ 15

21

14 27 48

45

49

33

8

12 47

AiR CLEANER !

i MUFFLER

7

28

HONDA 4=CYCLE ENGINE MODEL NUMBER GCV160=LAOBHH

FAN COVER

KEY PART
NO. NO.

6 16950-ZOY-003
7 16952-ZA8-800
8 16961-ZOL-900
9 1751 I-ZOL-030

10 17514-ZOL-000
11 17516-ZOL-000
12 17532-ZOL-000
13 17533-ZOL-000
14 17534-ZOL-000
15 17620-ZOJ-800
16 17636-ZOL-000

21

19610-ZOL-861ZC Cover Assembly, Fan

19610-ZOL-861ZA Cover Assembly, Fan

19610-ZOL-861ZD Cover Assembly, Fan

19610-ZOL-861ZE Cover Assembly, Fan

22 19619-ZL8-300
24 90013-883-000

25 90015-883-000

27 90043-ZL8-000
28 90043-ZL8-000
33 93913-25220

35 91424-Z8B-821
36 91427-Z8B-821
40 95002-40800-08
42 95002-41200-08

MUFFLER
KEY PART

NO. NO.

1 18310-ZM0-000

2 18321-ZOL-J00

18321 -ZOL-J01

3 90004-ZL8-000

4 90013-883-000

5 18381-ZL8-305

9 18350-ZL8-000
10 18356-ZL8-000
11 90055-ZE1-000
12 06180-ZOJ-000

DESCRIPTION

Petcock Assembly
Filter, Fuel

Stay, Fuel Petcock
Tank, Fuel

Seal, Fuel Filler Neck
Clip, Tank Mounting

Rubber A, Tank Mounting
Rubber B, Tank Mounting
Nut, Tank Mounting

Cap Assembly, Fuel Tank
Gauge, Fuel Level

"T89" (Craftsman Red)

"T89" ("NHI") (Black)

"T93" (Husqvarna Grey)

"T98" (M.T.D. Red)

Collar, Fan Cover

Bolt, Flanged (#6 x 12)
(CT200)
Bolt, Flanged (#6 x 28)
(CT200)
Bolt, Stud (H=42.5mm)
Bolt, Stud (H=42.5mm)

Screw, Tapping (PO)

(#5 x 12)

Tube, Fuel Tank
Tube, Fuel (7.3 x 160)
Clip, Tube (D8)
Clip, Tube (D12)

DESCRiPTiON

Muffler
Protector, Muffler
(S/N 1243452 and below)

Protector, Muffler
(S/N 1243453 and above)
Bolt, Flange #6 x 79
(CT200)
Bolt, Flange #6 x 12
(CT200)

Gasket, Muffler
Arrester, Spark

Plate, Arrester Number

Screw, Tapping #4 x 6

Kit, Spark Arrester

FLYWHEEL

KEY PART
NO. NO.

1 13331-357-000

3 30500-ZL8-014
4 31105-ZM0-000

5 32195-ZM0-800
6 35120-ZM0-003

8 75113-ZM0-000

10 90014-952-000

11 90018-ZE1-000

12 90018-ZE1-000

13 90201-ZOT-800
14 51125-ZOL-003

90681-959-003

15 93892-04012-00

16 94103-04000
21 75110-ZOY-000
25 91601-ZOL-300

AiR CLEANER

KEY PART

NO. NO.

1 15721-ZM0-000
2 17211-ZL8-023
3 17220-ZM0-010

17220-ZM0-020

17220-ZM0-030

5 17228-ZM0-000
6 17231-ZOL-030

17231 -ZOL-040

17231 -ZOL-050

7 90003-ZM0-010

DESCRIPTION

Key, Special, Woodruff
(25 x 18)

Coil Assembly, Ignition

Flywheel Assembly
Wire, Stop Switch
Switch Assembly,

Engine Stop (NC)
Spring, Brake Lever

Bolt, Flange (#6 x 14)

(CT200)

Bolt, Flange (#6 x 23)

(CT200)

Bolt, Flange (#6 x 23)

(CT200)

Nut, Special (14 mm)

Holder, Wire (Fastex)
Clip A, Cable (3.8mm)

(Black) (NIFCO)
Screw, Washer Head

(#4 x 12)
Washer, Plain (4 mm)

Brake Sub Assembly
Grommet, Brake Plate

DESCRiPTiON
Tube, Breather

Element, Air Cleaner
Case Assy., Air Cleaner

(S/N 1167575 and below)
Case Assy., Air Cleaner

(S/N 1167576-1239013)
Case Assy., Air Cleaner

(S/N 1239014 and above)
Gasket, Air Cleaner

Cover, Air Cleaner

(S/N 1167575 and below)
Cover, Air Cleaner

(S/N 1167575 and below)
Cover, Air Cleaner

Bolt, Flange (#6 x 85)

(CT200)

29

HONDA 4=CYCLE ENGINE MODEL NUMBER GCV160-LAOBHH

/ <;>

t

13 --4_

_ 1 [ 13

4

15

CAMSHAFT PULLEY

CONNECTING ROD 3 //_L 4:_L.. 4 I l_.J __ _']_''-

_I__*"

3O

HONDA 4=CYCLE ENGINE MODEL NUMBER GCV160=LAOBHH

CAMSHAFT PULLEY

KEY PART
NO. NO.

1 14320-ZL8-010
2 14324-ZL8-000
3 14400-ZOJ-014

6 14461-ZL8-000

11 90112-333-000
12 90206-001-000
13 91301-ZM0-V31
15 14431-ZOJ-000
16 14441-ZOJ-000

OIL PAN

KEY PART
NO. NO.

1 11300-ZM0-811
2 15650-ZM0-801

4 15625-ZE6-000
5 15631-ZM0-000
6 15639-ZM0-000
8 16508-ZM0-010
9 16510-ZM0-010

10 16511 -ZL8-000
11 16512-ZM0-000
12 16513-ZE1-000
13 16531-ZE1-000
14 16541-ZM0-000
15 90014-952-000

16 90121-952-000

17 90451-ZE1-000
18 90602-ZEI-000

19 91202-ZL8-003
20 91356-MA6-005
21 94101-068000
22 94251-08000
23 94301-08200

DESCRIPTION

Pulley, Camshaft

Shaft, Cam Pulley

Belt, Timing
(84HU7 G-200)

Shaft, Rocker Arm
Screw, Tappet Adjusting

Nut, Tappet Adjusting

O-Ring (6.8 x 1.9) (ARAI)

Rocker Arm, Intake Valve
Rocker Arm,

Exhaust Valve

DESCRIPTION

Pan Assembly, Oil

Gauge Assembly,
Oil Level

Gasket, Oil Filler Cap

Extension, Oil Filler

Lock Washer, Extension
Shaft, Governor Holder
Governor Assembly
Weight, Governor

Holder, Governor Weight

Pin, Governor Weight
Slider, Governor

Shaft, Governor Arm

Bolt, Flange (#6 x 14)

(CT200)

Bolt, Flange (#6 x 25)

(CT200)
Washer, Thrust (6 mm)
Clip, Governor Holder
Oil Seal (28 x 41.25 x 6)
O-Ring (14.8 x 2.4) (NOK)

Washer, Plain (6 mm)

Pin, Lock (8 mm)

Pin, Dowel (#8 x 20)

PISTON / CONNECTING ROD

KEY PART
NO. NO.

1 13101-Z2A-010
2 13111-ZE0-000
3 13200-ZOJ-000

bly

4 90001-ZEI-000
5 90551-ZE0-000
6 13010-ZOL-014

LABELS

KEY PART
NO. NO. DESCRIPTION

9 87528-ZOL-V20 Mark, Choke Indication

20 87114-ZH7-821 Label, Warning
30 87101-Z8B-000 Mark, Emblem (GCV160)

31 87169-Z8E-000 Mark, Recoil Cover
32 87524-Z8B-000 Mark, Caution,

CHOKE BASE

KEY PART
NO. NO.

2 16592-Z2D-800
5 16614-Z2D-800

8 16632-ZOL-801
9 90022-888-010

14 16610-Z2D-801

16610-Z2D-802

DESCRIPTION

Piston
Pin, Piston

Connecting Rod Assem-

Bolt, Connecting Rod

Clip, Piston Pin (13 mm)

Ring Set, Piston, Standard
(Teikoku)

Fuel Petcock

DESCRIPTION
Spring, Return

Spring, Choke Lever

Rod, Stop
Bolt, Flange (#6 x 20)
(CT200)
Lever Assembly, Choke

Lever Assembly, Choke

31

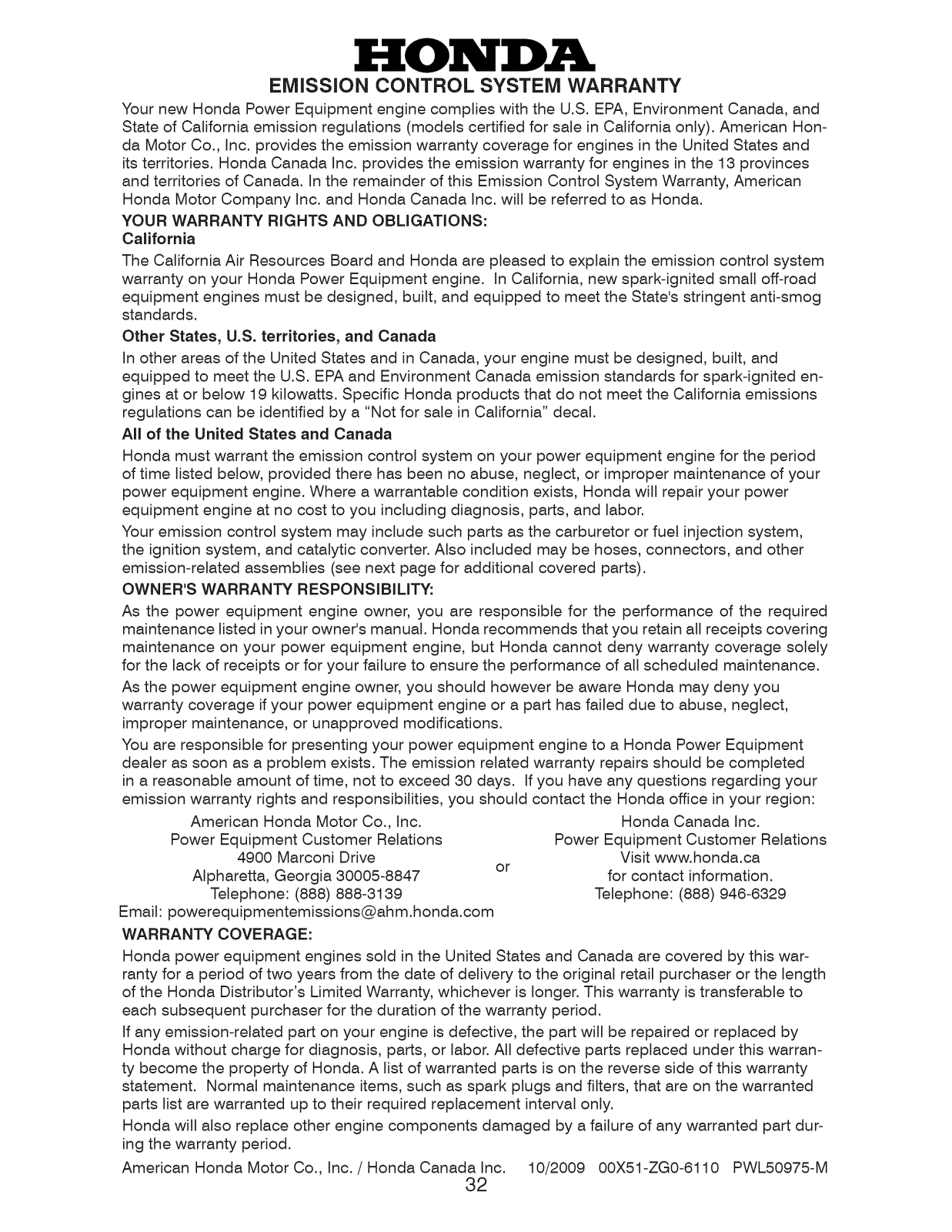

HONDA

EMiSSiON CONTROL SYSTEM WARRANTY

Your new Honda Power Equipment engine complies with the U.S. EPA, Environment Canada, and
State of California emission regulations (models certified for sale in California only). American Hon-

da Motor Co., Inc. provides the emission warranty coverage for engines in the United States and

itsterritories. Honda Canada inc. provides the emission warranty for engines in the 13 provinces

and territories of Canada. In the remainder of this Emission Control System Warranty, American

Honda Motor Company Inc. and Honda Canada Inc. will be referred to as Honda.
YOUR WARRANTY RIGHTS AND OBLiGATiONS:
California

The California Air Resources Board and Honda are pleased to explain the emission control system
warranty on your Honda Power Equipment engine. In California, new spark-ignited small off-road

equipment engines must be designed, built, and equipped to meet the State's stringent anti-smog
standards.

Other States, U.S. territories, and Canada

in other areas of the United States and in Canada, your engine must be designed, built, and
equipped to meet the U.S. EPA and Environment Canada emission standards for spark-ignited en-

gines at or below 19 kilowatts. Specific Honda products that do not meet the California emissions

regulations can be identified by a "Not for sale in California" decal.
All of the United States and Canada

Honda must warrant the emission control system on your power equipment engine for the period
of time listed below, provided there has been no abuse, neglect, or improper maintenance of your

power equipment engine. Where a warrantable condition exists, Honda will repair your power
equipment engine at no cost to you including diagnosis, parts, and labor.

Your emission control system may include such parts as the carburetor or fuel injection system,
the ignition system, and catalytic converter. Also included may be hoses, connectors, and other
emission-related assemblies (see next page for additional covered parts).
OWNER'S WARRANTY RESPONSiBiLiTY:

As the power equipment engine owner, you are responsible for the performance of the required

maintenance listed in your owner's manual. Honda recommends that you retain all receipts covering

maintenance on your power equipment engine, but Honda cannot deny warranty coverage solely
for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

As the power equipment engine owner, you should however be aware Honda may deny you
warranty coverage if your power equipment engine or a part has failed due to abuse, neglect,

improper maintenance, or unapproved modifications.
You are responsible for presenting your power equipment engine to a Honda Power Equipment

dealer as soon as a problem exists. The emission related warranty repairs should be completed

in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your
emission warranty rights and responsibilities, you should contact the Honda office in your region:

American Honda Motor Co., inc. Honda Canada inc.

Power Equipment Customer Relations Power Equipment Customer Relations

4900 Marconi Drive Visit www.honda.ca

AIpharetta, Georgia 30005-8847 for contact information.

Telephone: [phone] Telephone: [phone]

Email: [e-mail]

WARRANTY COVERAGE:

Honda power equipment engines sold in the United States and Canada are covered by this war-

ranty for a period of two years from the date of delivery to the original retail purchaser or the length
of the Honda Distributor's Limited Warranty, whichever is longer. This warranty is transferable to

each subsequent purchaser for the duration of the warranty period.

If any emission-related part on your engine is defective, the part will be repaired or replaced by

Honda without charge for diagnosis, parts, or labor. All defective parts replaced under this warran-
ty become the property of Honda. A list of warranted parts is on the reverse side of this warranty
statement. Normal maintenance items, such as spark plugs and filters, that are on the warranted

parts list are warranted up to their required replacement interval only.

Honda will also replace other engine components damaged by a failure of any warranted part dur-

ing the warranty period.
American Honda Motor Co., Inc. / Honda Canada Inc. 10/2009 00X51-ZG0-8110 PWL50975-M

or

32

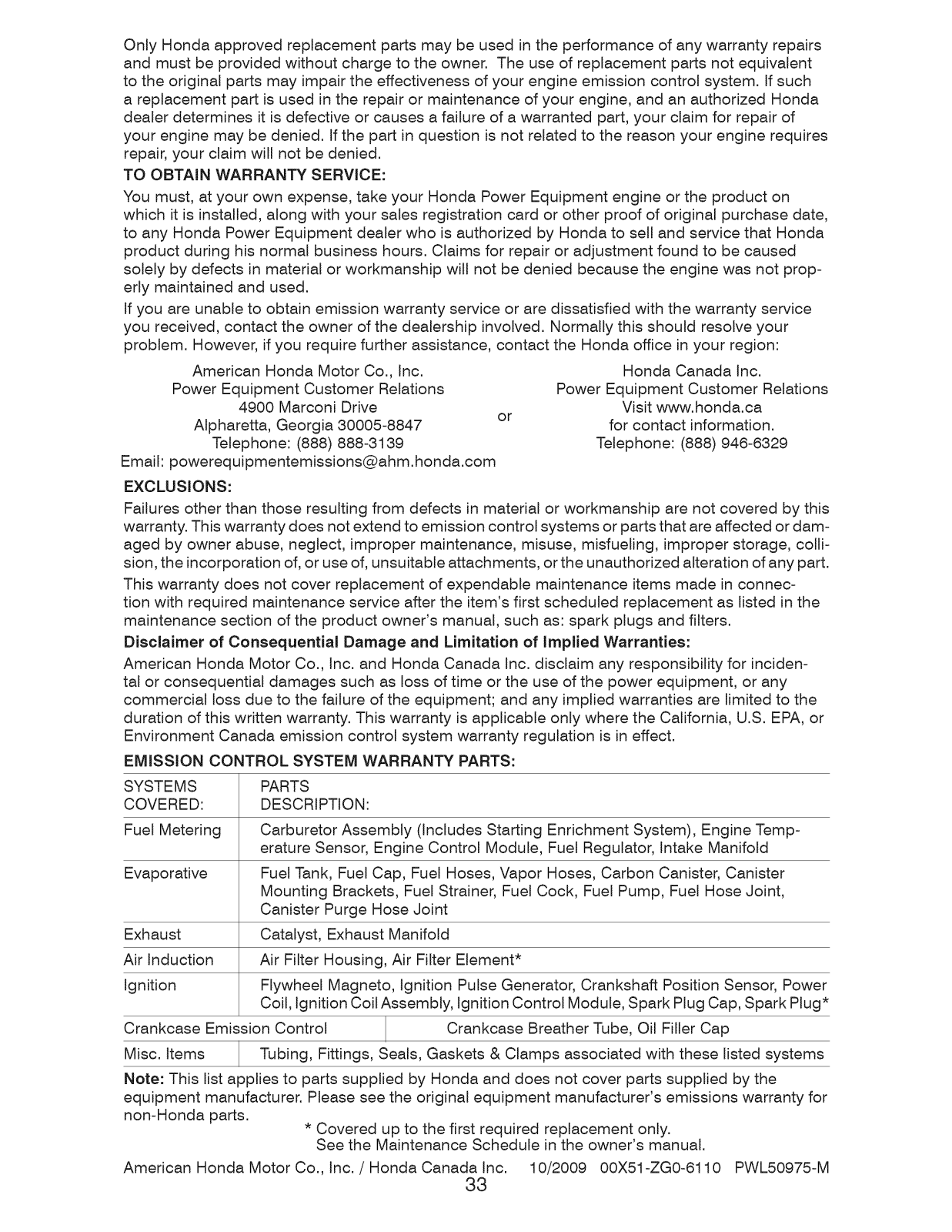

Only Honda approved replacement parts may be used in the performance of any warranty repairs

and must be provided without charge to the owner. The use of replacement parts not equivalent

to the original parts may impair the effectiveness of your engine emission control system. If such

a replacement part is used in the repair or maintenance of your engine, and an authorized Honda

dealer determines it is defective or causes a failure of a warranted part, your claim for repair of

your engine may be denied. If the part in question is not related to the reason your engine requires

repair, your claim will not be denied.

TO OBTAIN WARRANTY SERVICE:

You must, at your own expense, take your Honda Power Equipment engine or the product on

which it is installed, along with your sales registration card or other proof of original purchase date,

to any Honda Power Equipment dealer who is authorized by Honda to sell and service that Honda

product during his normal business hours. Claims for repair or adjustment found to be caused

solely by defects in material or workmanship will not be denied because the engine was not prop-

erly maintained and used.

If you are unable to obtain emission warranty service or are dissatisfied with the warranty service

you received, contact the owner of the dealership involved. Normally this should resolve your

problem. However, if you require further assistance, contact the Honda office in your region:

American Honda Motor Co., Inc. Honda Canada Inc.

Power Equipment Customer Relations Power Equipment Customer Relations

4900 Marconi Drive Visit www.honda.ca

Alpharetta, Georgia 30005-8847 for contact information.

Telephone: [phone] Telephone: [phone]

Emaih [e-mail]

EXCLUSIONS:

Failures other than those resulting from defects in material or workmanship are not covered by this
warranty. This warranty does not extend to emission control systems or parts that are affected or dam-
aged by owner abuse, neglect, improper maintenance, misuse, misfueling, improper storage, colli-

sion, the incorporation of, or use of, unsuitable attachments, orthe unauthorized alteration of any part.
This warranty does not cover replacement of expendable maintenance items made in connec-

tion with required maintenance service after the item's first scheduled replacement as listed in the

maintenance section of the product owner's manual, such as: spark plugs and filters.

Disclaimer of Consequential Damage and Limitation of Implied Warranties:
American Honda Motor Co., Inc. and Honda Canada Inc. disclaim any responsibility for inciden-

tal or consequential damages such as loss of time or the use of the power equipment, or any
commercial loss due to the failure of the equipment; and any implied warranties are limited to the

duration of this written warranty. This warranty is applicable only where the California, U.S. EPA, or

Environment Canada emission control system warranty regulation is in effect.

EMISSION CONTROL SYSTEM WARRANTY PARTS:
SYSTEMS PARTS

COVERED: DESCRIPTION:

or

Fuel Metering Carburetor Assembly (Includes Starting Enrichment System), Engine Temp-

erature Sensor, Engine Control Module, Fuel Regulator, Intake Manifold

Evaporative Fuel Tank, Fuel Cap, Fuel Hoses, Vapor Hoses, Carbon Canister, Canister

Mounting Brackets, Fuel Strainer, Fuel Cock, Fuel Pump, Fuel Hose Joint,

Canister Purge Hose Joint

Exhaust Catalyst, Exhaust Manifold
Air Induction Air Filter Housing, Air Filter Element*

Ignition Flywheel Magneto, Ignition Pulse Generator, Crankshaft Position Sensor, Power

Coil, Ignition Coil Assembly, Ignition Control Module, Spark Plug Cap, Spark Plug*

Crankcase Emission Control Crankcase Breather Tube, Oil Filler Cap

Misc. Items Tubing, Fittings, Seals, Gaskets & Clamps associated with these listed systems

Note: This list applies to parts supplied by Honda and does not cover parts supplied by the
equipment manufacturer. Please see the original equipment manufacturer's emissions warranty for

non-Honda parts.

American Honda Motor Co., Inc. / Honda Canada Inc. 10/2009 OOX51-ZGO-6110 PWL50975-M

* Covered up to the first required replacement only.

See the Maintenance Schedule in the owner's manual.

33

S_RV|C_ NOTES

34

S_RV|C_ NOTES

35

Just Call:

1-800-4-MY-HOME ®

(1-800-469-4663)

24 hours a day, 7 days a week

For the repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

For your nearest Sears Parts and Service location,

to bring in products like vacuums, lawn equipment and electronics.

For Sears Parts & Service, to order the replacement parts,

accessories and owner's manuals that you need to do-it-yourself.

www.sears.ca

To purchase or inquire about a Sears Maintenance Agreement, call:

1-800-361-6665

9 a.m.-11 p.m. Mon.- Fri.,EST, 9 a.m.- 4 p.m. Sat.

Pour service en fran(_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

(_)/TM Trademarks of Sears, Roebuck and Co. used under license by Sears Canada

MBMarqued_pos6e / MCMarque de commerce de Sears, Roebuck and Co. utilisee en vertu d'une licence de Sears Canada

584472427 Rev. 1 06.08. 5BY PrintedinU.S.A.
