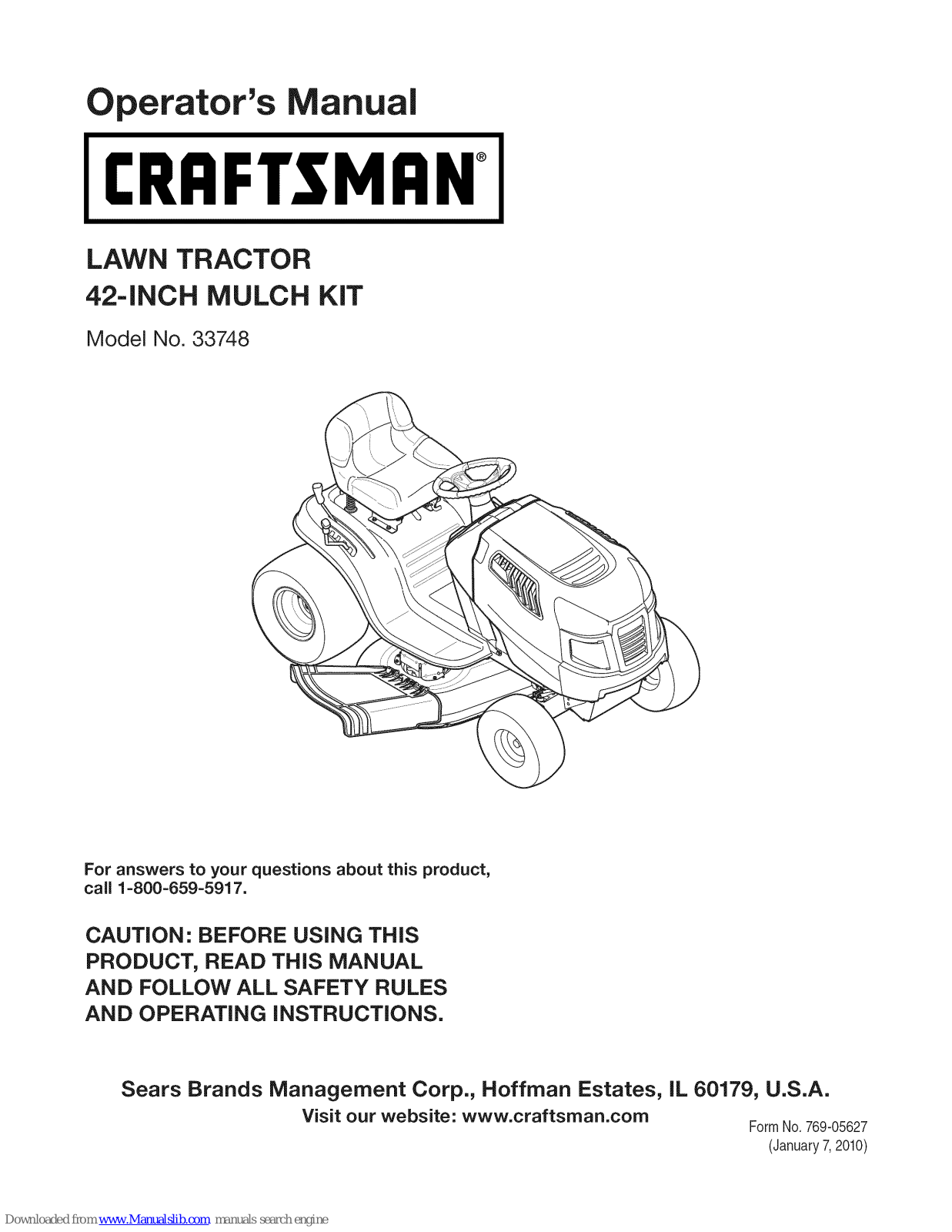

Craftsman 33748 Operator's Manual

perator_s nual

I:RRFrSMRN°

LAWN TRACTOR

42-iNCH MULCH KiT

Model No. 33748

For answers to your questions about this product,
call 1-800-659-5917.

CAUTION: BEFORE USING THiS
PRODUCT, READ THiS MANUAL

AND FOLLOW ALL SAFETY RULES
AND OPERATING iNSTRUCTiONS.

Sears Brands Management Corp., Hoffman Estates, IL 60179, U.S.A.

Visit our website:www.craftsman.com

FormNo769-05627

(January7,2010)

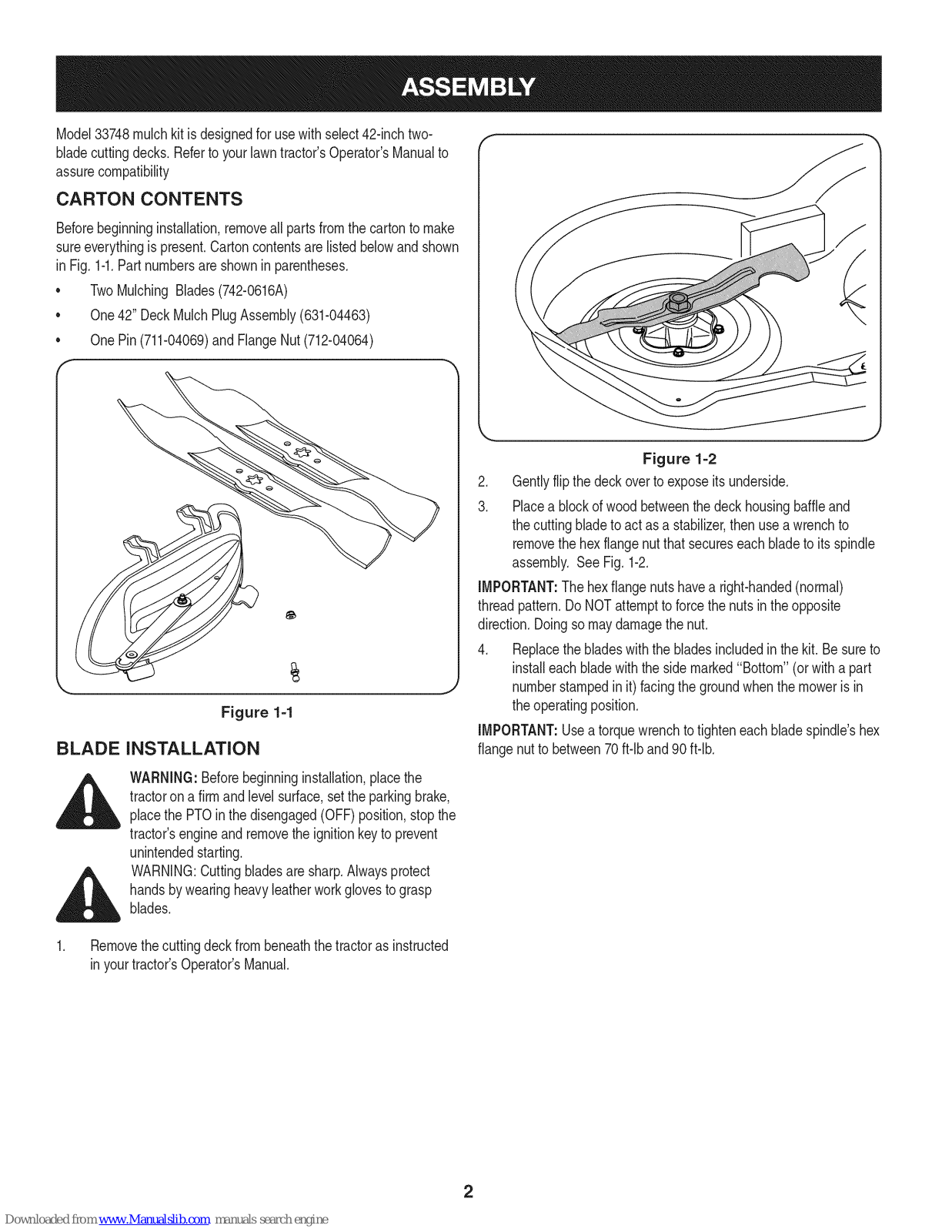

Model33748mulchkitisdesignedforusewithselect42-inchtwo-
bladecuttingdecks.Refertoyourlawntractor'sOperator'sManualto
assurecompatibility

CARTON CONTENTS

Beforebeginninginstallation,removeallpartsfromthecartontomake
sureeverythingispresent.Cartoncontentsarelistedbelowandshown
in Fig.1-1.Partnumbersare shownin parentheses.

• TwoMulching Blades(742-0616A)

• One42"DeckMulchPlugAssembly(631-04463)

• OnePin(711-04069)and FlangeNut(712-04064)

Figure 1=1

BLADE INSTALLATION

Figure 1=2

2. Gentlyflipthedeckovertoexposeits underside.

3. Placea blockofwoodbetweenthedeckhousingbaffleand
thecuttingbladeto actasastabilizer,thenusea wrenchto

removethehexflangenutthat secureseachbladeto itsspindle

assembly.SeeFig.1-2.

IMPORTANT:The hexflangenutshavea right-handed(normal)
threadpattern.DoNOTattempttoforcethe nutsinthe opposite
direction.Doingsomaydamagethenut.

4. Replacethebladeswiththebladesincludedinthekit.Besureto

installeachbladewiththesidemarked"Bottom"(orwitha part
numberstampedinit) facingthe groundwhenthe moweris in

theoperatingposition.

IMPORTANT:Usea torquewrenchtotighteneachbladespindle'shex
flangenut to between70ft-lband90 if-lb.

_IL WARNING:Beforebeginninginstallation,placethe

tractorona firmand levelsurface,setthe parkingbrake,

placethe PTOin the disengaged(OFF)position,stopthe

tractor'sengineandremovetheignitionkeytoprevent

unintendedstarting.

handsbywearingheavyleatherworkglovestograsp
WARNING:Cuttingbladesaresharp.Alwaysprotect

blades.

Removethe cuttingdeckfrombeneaththetractorasinstructed
inyourtractor'sOperator'sManual.

2

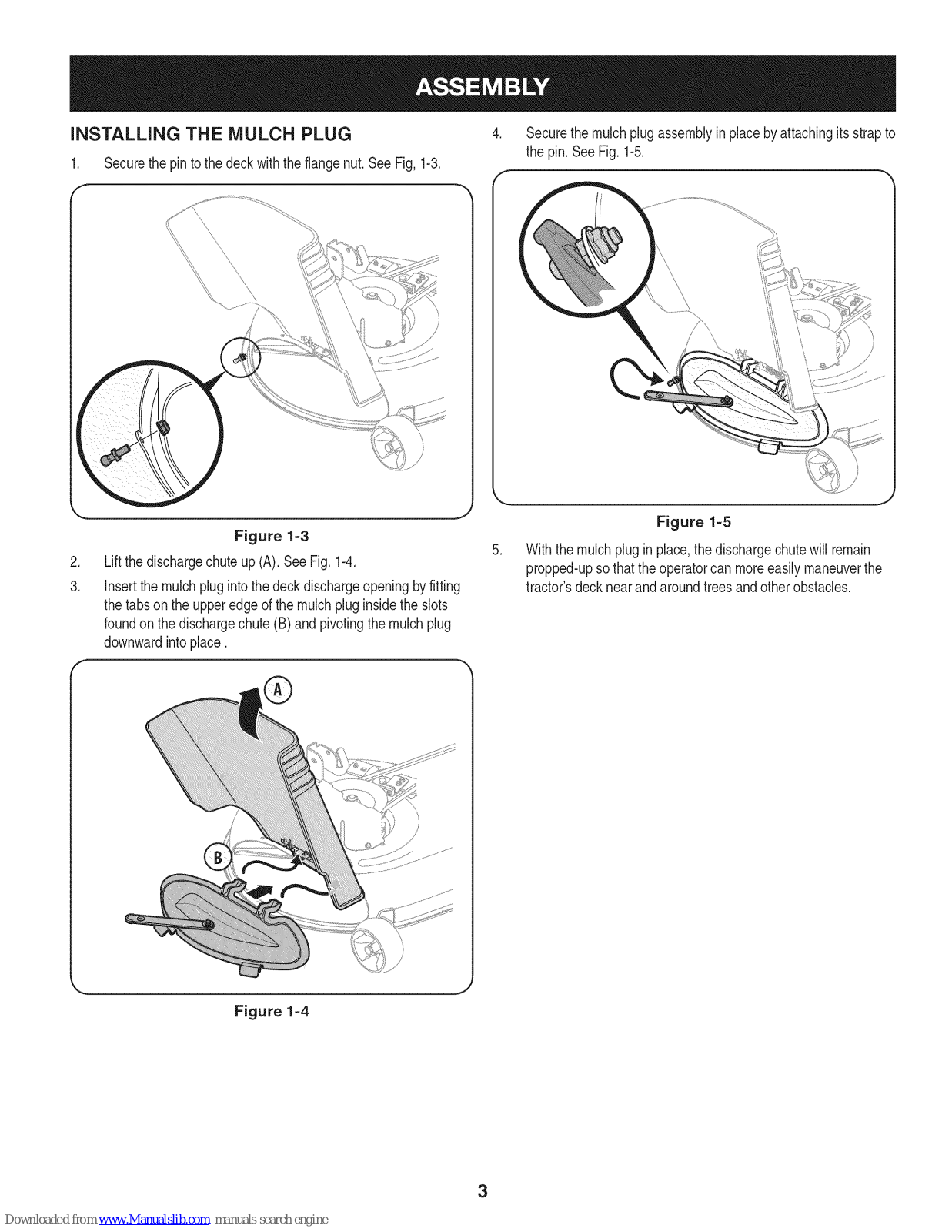

iNSTALLiNG THE MULCH PLUG

1. Securethepinto the deckwiththe flangenut.SeeFig,1-3.

Figure 1=3

.

Liftthedischargechuteup (A).SeeFig. 1-4.

3.

Insertthe mulchplugintothedeckdischargeopeningbyfitting
thetabson the upperedgeofthemulchpluginsidetheslots
foundonthedischargechute(B)and pivotingthemulchplug
downwardintoplace.

Securethe mulchplugassemblyin placeby attachingitsstrapto
thepin.SeeFig.1-5.

. J

Figure 1=5

Withthemulchpluginplace,thedischargechutewill remain
propped-upsothattheoperatorcanmoreeasilymaneuverthe

tractor'sdecknearandaroundtreesandotherobstacles.

Figure 1=4

3
