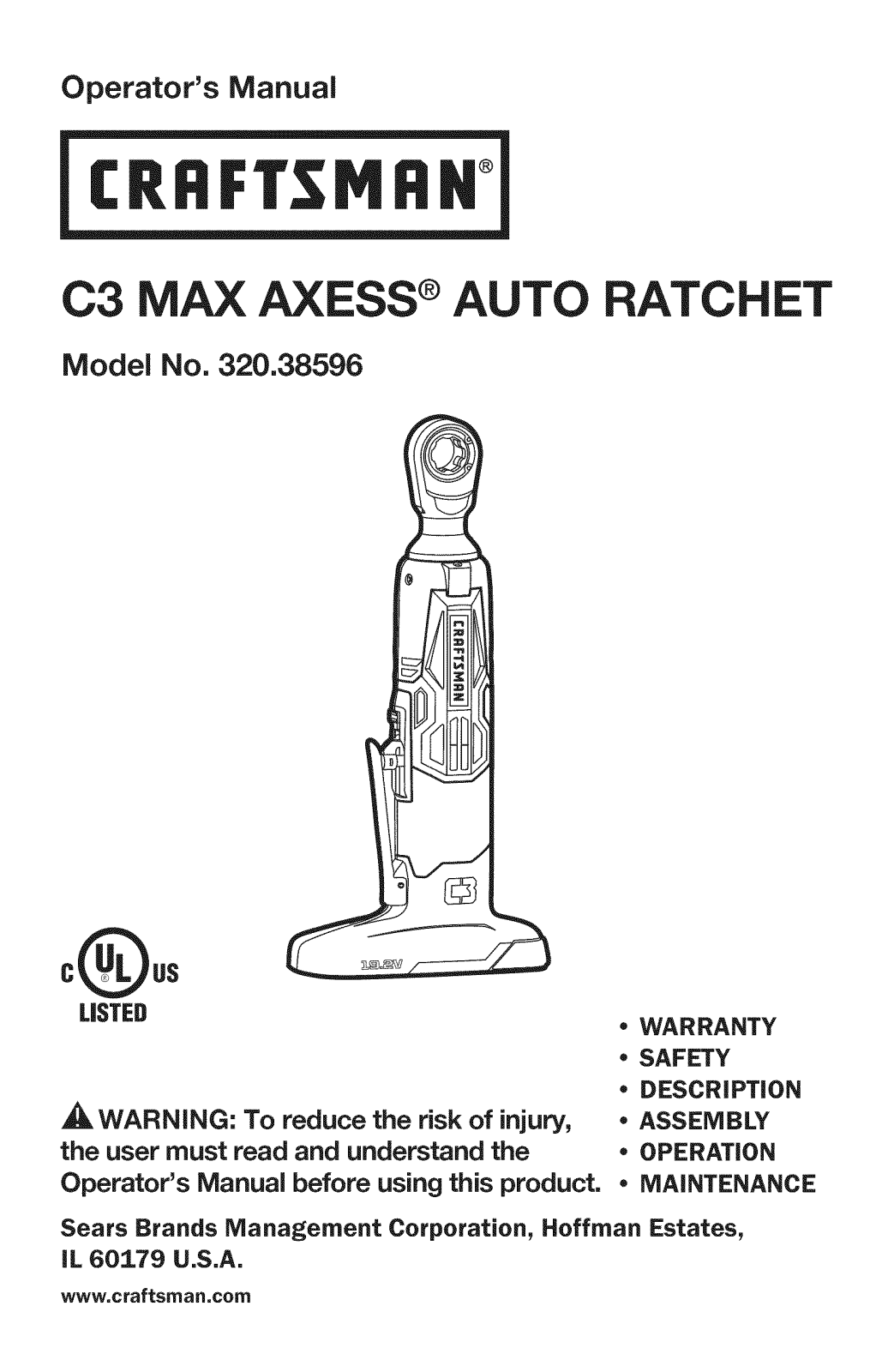

Craftsman 320.38596 User Manual

Operator's ManuaJ
®
C3 MAX AXESS ®AUTO RATCHET
Model No. 320.38596
* WARRANTY * SAFETY
* DESCRiPTiON
_WARNING: To reduce the risk of injury,
the user must read and understand the
Operator's Manual before using this product.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
www.craftsman.com
* ASSEMBLY * OPERATION
* MAINTENANCE

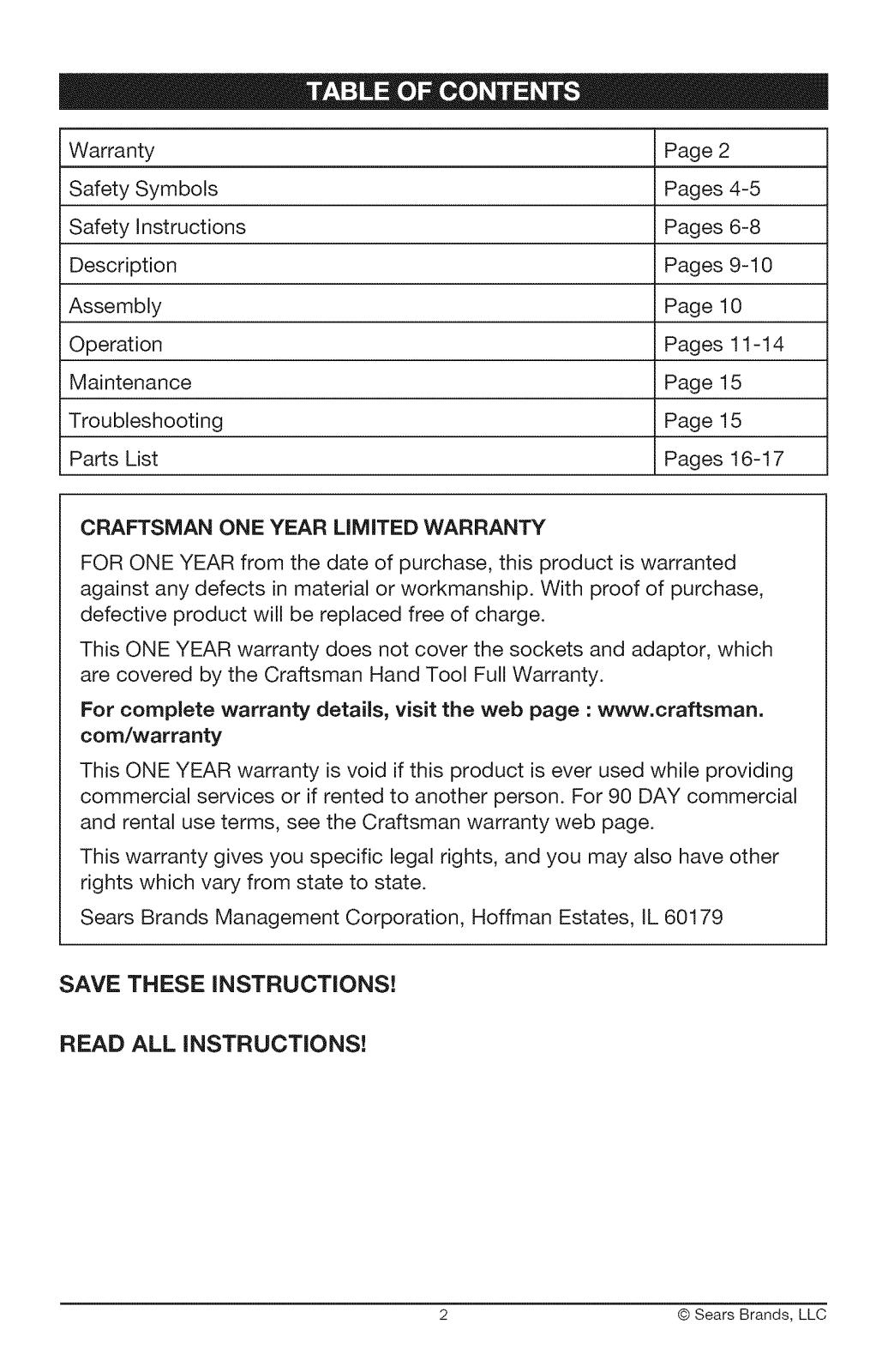

Warranty Page 2
Safety Symbols Pages 4-5 Safety Instructions Pages 6-8 Description Pages 9-10

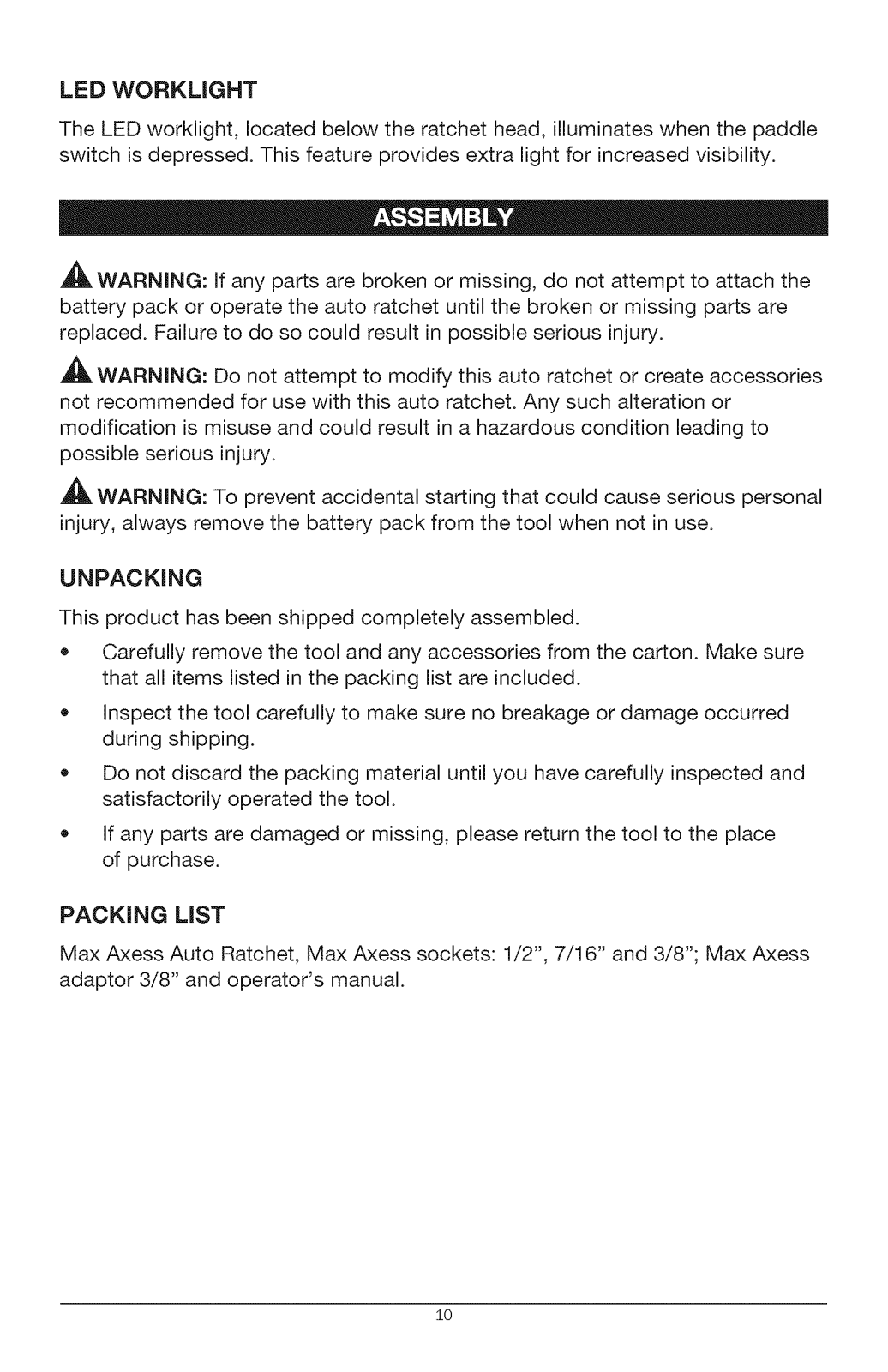

Assembly Page 10

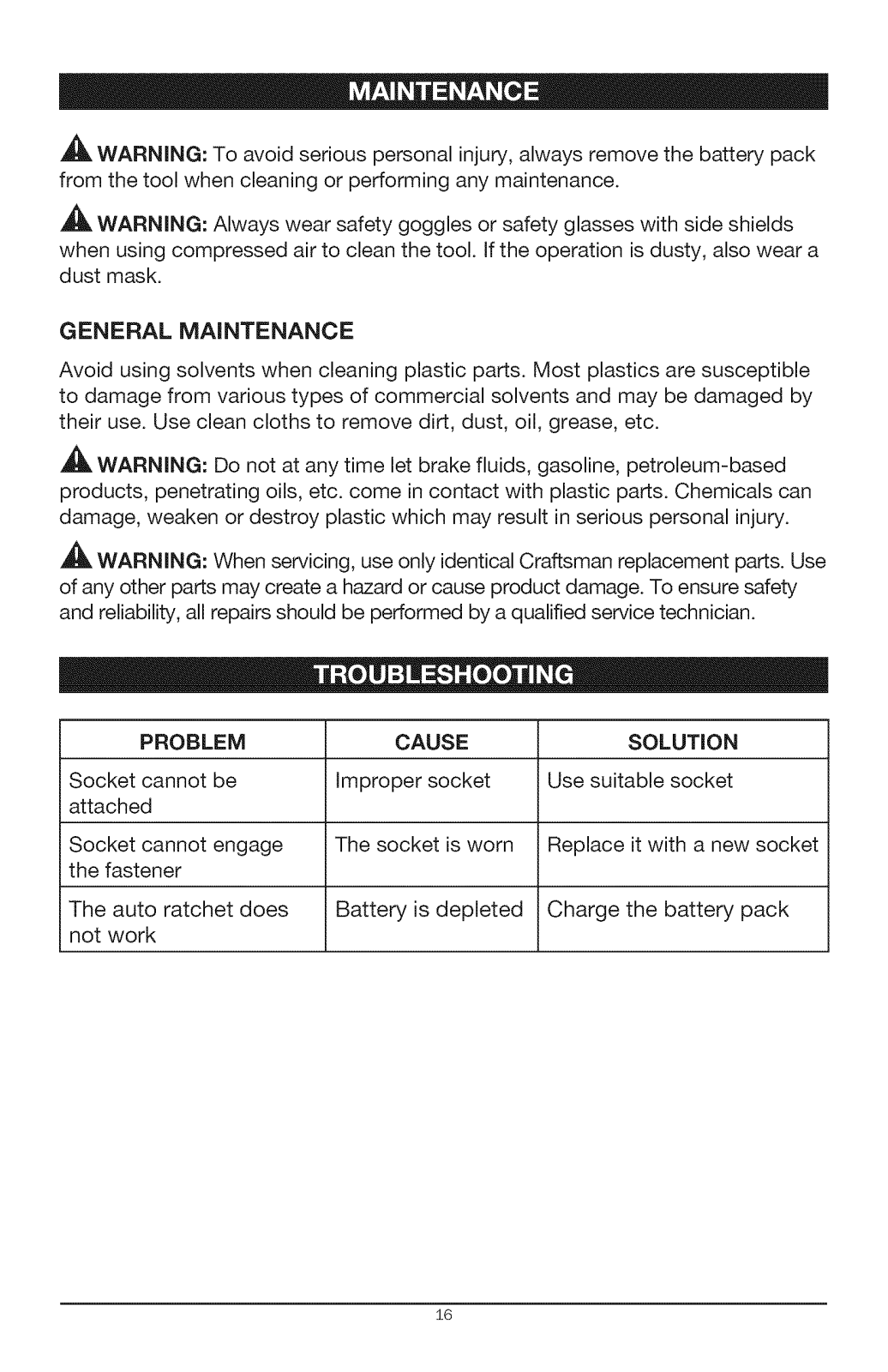

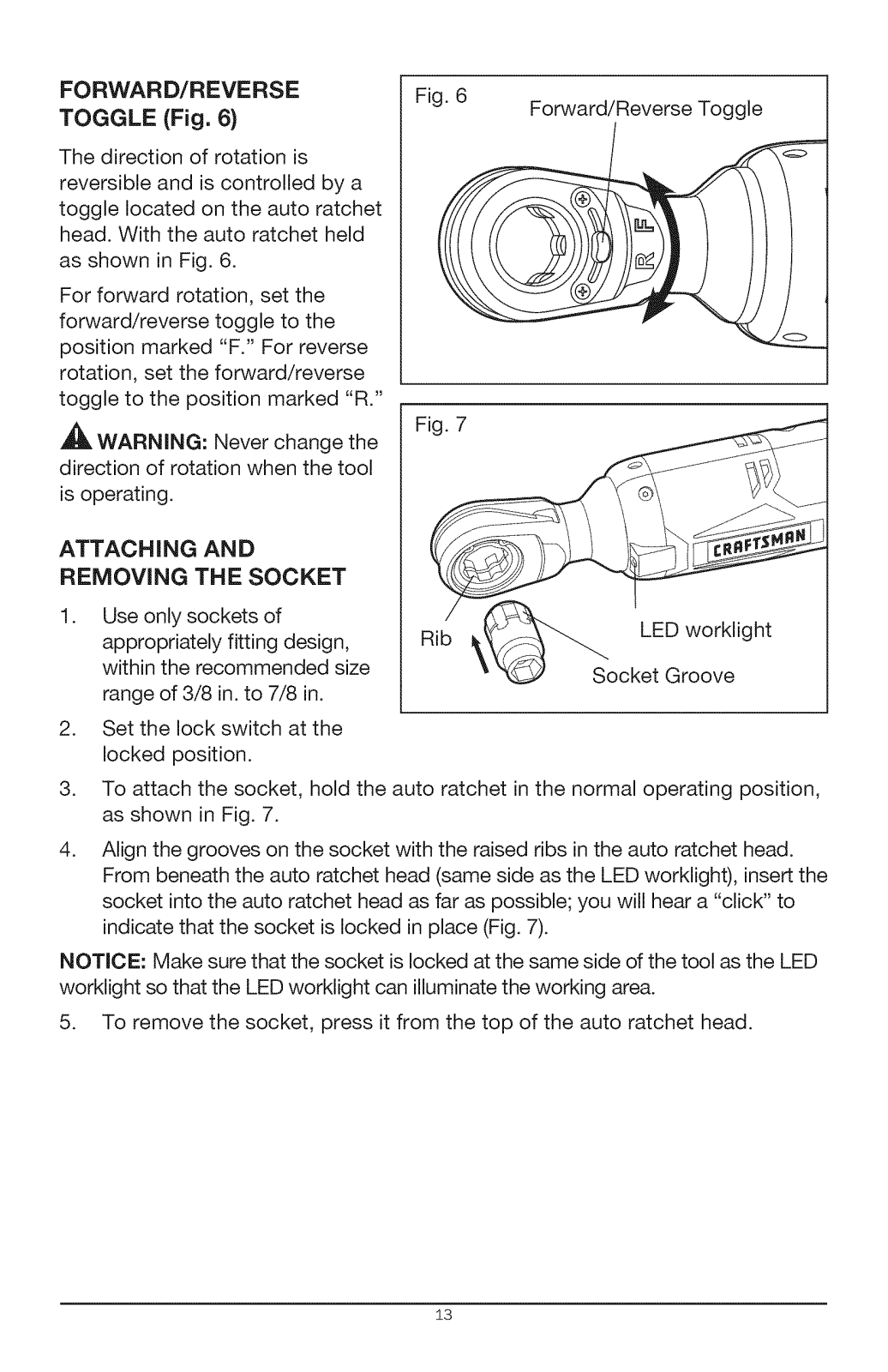

Operation Pages 11-14 Maintenance Page 15
Troubleshooting Page 15

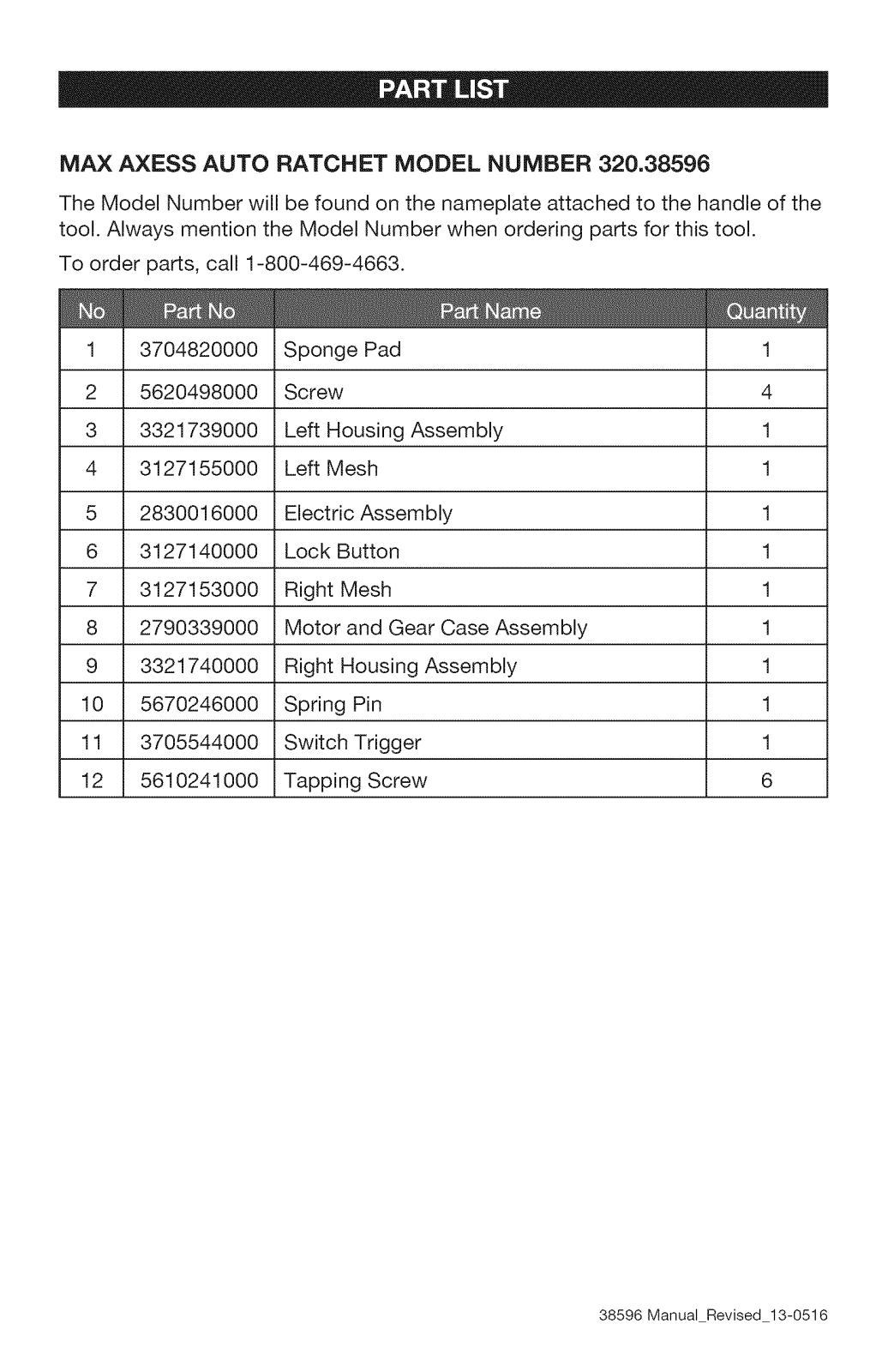

Parts List Pages 16-17
CRAFTSMAN ONE YEAR LiMiTED WARRANTY FOR ONE YEAR from the date of purchase, this product is warranted
against any defects in material or workmanship. With proof of purchase, defective product will be replaced free of charge.
This ONE YEAR warranty does not cover the sockets and adaptor, which
are covered by the Craftsman Hand Tool Full Warranty. For complete warranty details, visit the web page :www.craftsman.
corn/warranty
This ONE YEAR warranty is void if this product is ever used while providing
commercial services or if rented to another person. For 90 DAY commercial and rental use terms, see the Craftsman warranty web page.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state. Sears Brands Management Corporation, Hoffman Estates, IL 60179
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
2 © Sears Brands, LLC
This auto ratchet has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority
in the design of this product, making it easy to maintain and operate. _, DANGER: People with electronic devices, such as pacemakers, should
consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or
failure of the pacemaker. _,WARNING: Some dust created by power sanding, sawing, grinding, drilling
and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
* Lead from lead-based paints * Crystalline silica from bricks and cement and other masonry products, and
* Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemical: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

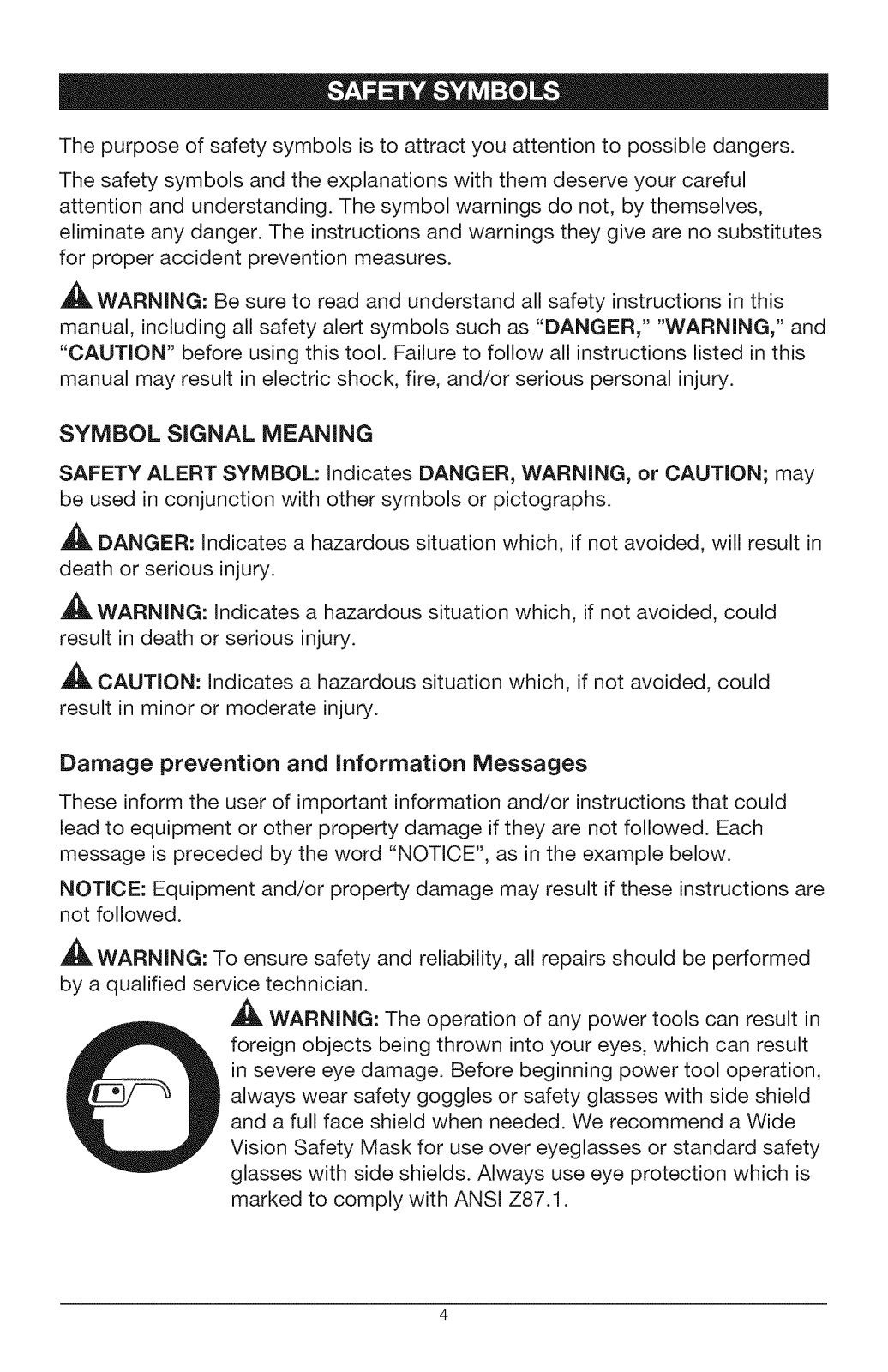

Thepurposeofsafetysymbolsistoattractyouattentionto possibledangers. Thesafetysymbolsandtheexplanationswiththemdeserveyourcareful
attentionandunderstanding.Thesymbolwarningsdonot,bythemselves, eliminateanydanger.Theinstructionsandwarningstheygivearenosubstitutes
forproperaccidentpreventionmeasures.
,_, WARNING: Be sure to read and understand all safety instructions in this manual, including all safety alert symbols such as "DANGER," "WARNING," and
"CAUTION" before using this tool. Failure to follow all instructions listed in this manual may result in electric shock, fire, and/or serious personal injury.
SYMBOL SIGNAL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION; may
be used in conjunction with other symbols or pictographs.
,_ DANGER: Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
,_, WARNING: Indicates a hazardous situation which, if not avoided, could
result in death or serious injury. _1_ CAUTION: Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Damage prevention and Information Messages
These inform the user of important information and/or instructions that could
lead to equipment or other property damage if they are not followed. Each message is preceded by the word "NOTICE", as in the example below.
NOTICE" Equipment and/or property damage may result if these instructions are not followed.
_WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician.
,_ WARNING: The operation of any power tools can result in
foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shield and a full face shield when needed. We recommend a Wide
Vision Safety Mask for use over eyeglasses or standard safety
glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.
SAVE THESE iNSTRUCTiONS
Some of these following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to
operate the tool better and more safely.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
iqO No-load Speed Rotational speed, at no load
] Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed,
Wet Conditions Alert locations.
Read The Operator's Manual read and understand operator's manual
O Always wear safety goggles or safety
Eye Protection glasses with side shields and a full face
Safety your safety.
Alert Precautions that involve
No-Hands Symbol blade will result in serious personal injury.
No-Hands Symbol blade will result in serious personal injury.
No-Hands Failure to keep your hands away from the
No-Hands Symbol Failure to keep your hands away from the
Symbol
orbits, etc., per minute
Do not expose to rain or use in damp
To reduce the risk of injury, user must before using this product.
shield when operating this product.
Failure to keep your hands away from the
Failure to keep your hands away from the
blade will result in serious personal injury.
blade will result in serious personal injury.
Hot Surface To reduce the risk of injury or damage,avoid contact with any hot surface.
5

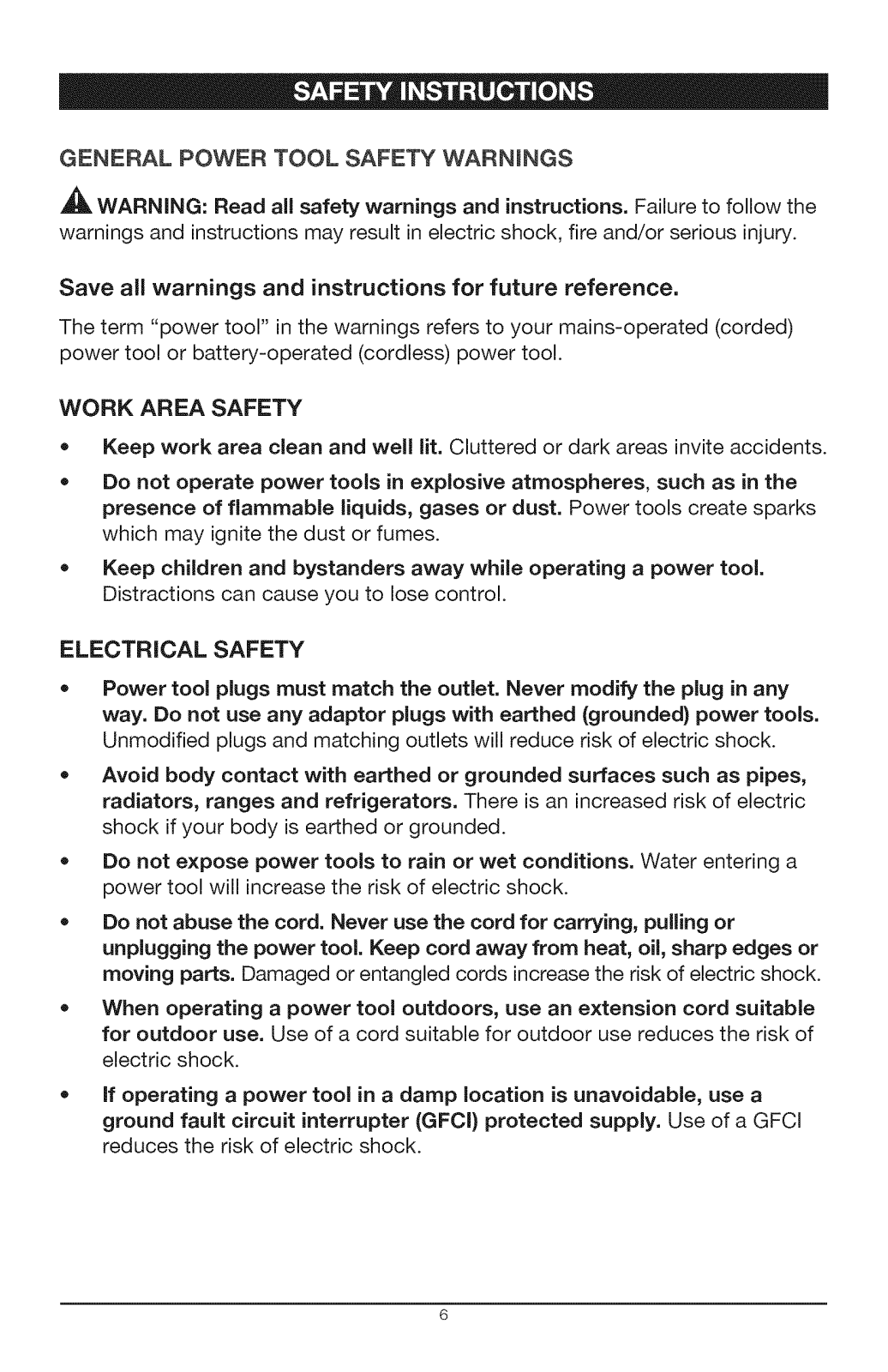

GENERAL POWER TOOL SAFETY WARNINGS
,_ WARNING: Read all safety warnings and instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adaptor plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock. if operating a power tool in a damp location is unavoidable, use a
ground fault circuit interrupter (GFCl} protected supply. Use of a GFCI reduces the risk of electric shock.
