Owner's Manual
I:RRFTSMRN®
CUTTING TOOL
Model No.
183.172510
CAUTION:
Before using this Cutting
Tool, read this manual and
follow all its Safety Rules
and Operating
Instructions,
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
Part. No, 183172510001 Rev, 1 11114/01
• Safety Instructions
• Accessories
• Assembly
• Operation
• Maintenance
• Parts List
• Espanol
![](/html/43/432f/432f1e2eca9d3528c366bf7345b63f4f297de3f267ec27ca5833a454f41af383/bg2.png)
SECTION PAGE
Warranty ........................................ 2
Product Specifications ...................... 2
Power Tool Safety ............................ 3
Cutting Tool Safety ........................... 4
Electrical Requirements & Safety ........ 5
Accessories .................................... 6
SECTION PAGE
Carton Contents .............................. 6, 7
Know Your Cutting Tool .................... 8
Assembly & Operation ...................... 9 - 17
Maintenance ................................... 17

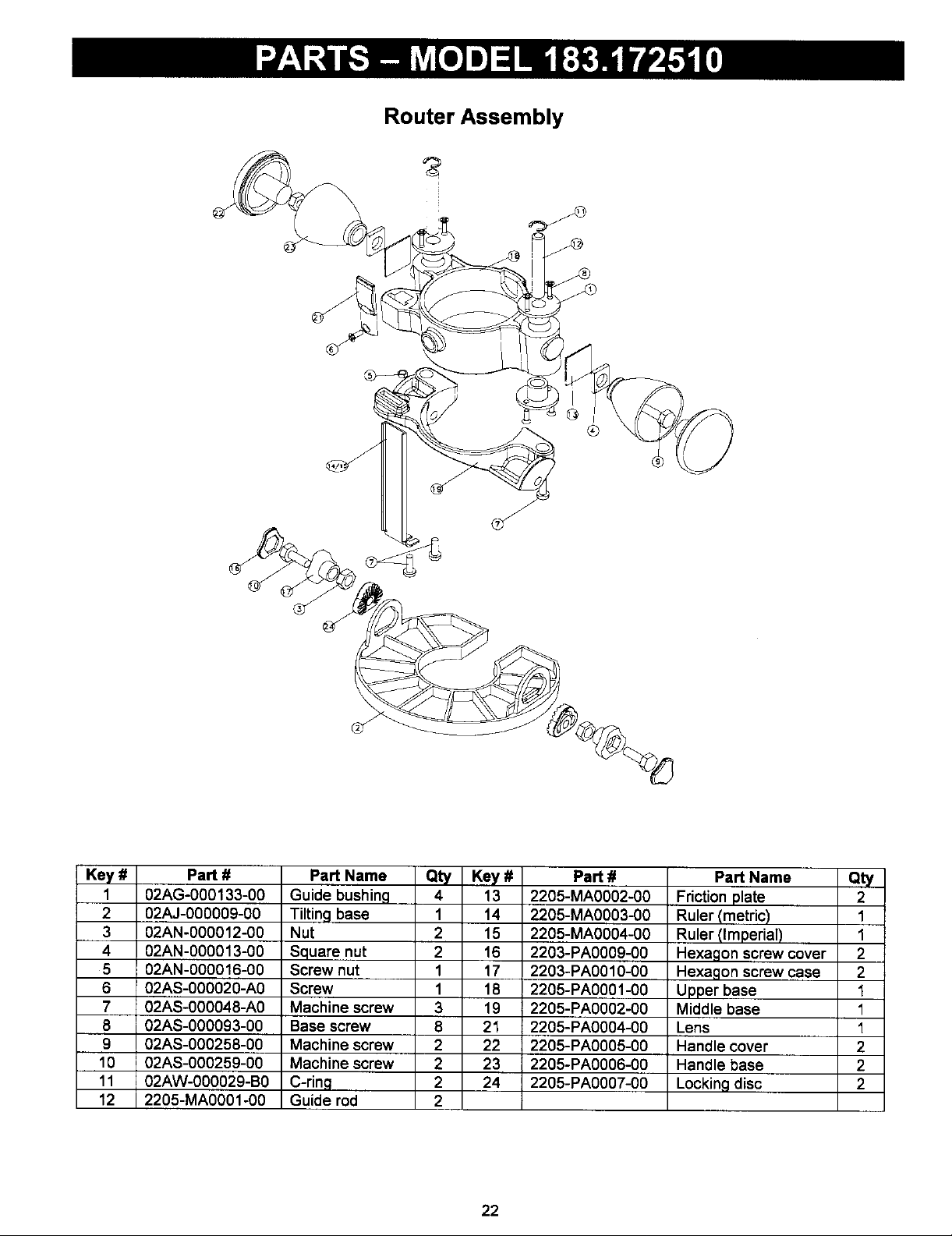

Repair Parts ................................... 18 - 22
Parts & Service Availability ................ 23
FULL ONE YEAR WARRANTY
If this Cutting Tool fails due to a defect in material or workmanship within one year of date of
purchase, Sears will at its option repair or replace it free of charge.
Return this Cutting Tool to a Sears Service Center for repair, or to place of purchase for
replacement.
This warranty gives you specific legal rights, and you may also have other rights which may vary
from state to state.
Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179
IA WARNING I :
Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains
chemicals known (to the State of California) to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks, cement and other masonry products
• Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well ventilated area and work with approved safety equipment such as
those dust masks that are specially designed to filter out microscopic particles.
Motor Rating ...................... 120V, 60Hz, AC
Amperes ........................... 4.0 Amperes
Speed (no load) .................. 30000 RPM
Motor Horsepower ...... 113HP (Maximum Developed)
Weight ..................... 3.75 kg
IA WARNINGI
To avoid electrical hazards, fire hazards or damage to the spiral cutter, use proper circuit protection.
This cutting tool is wired at the factory for 110-120 Volt operation. It must be connected to a 110-120 Volt 115
Ampere time delay fuse or curcuit breaker. To avoid shock or fire, replace power cord immediately if it is worn, cut
or damaged in any way.
Before using your cutting tool, it is critical that you read and understand these safety rules. Failure to follow these
rules could result in serious injury to you or damage to the cutting tool.
2
![](/html/43/432f/432f1e2eca9d3528c366bf7345b63f4f297de3f267ec27ca5833a454f41af383/bg3.png)
IA WARNINGJ
Before using your cutting tool, it is critical that you read and understand these safety rules.
Failure to follow these rules could result in serious injury to you or damage to the cutting tool.
Good safety practices are a combination of common
sense, staying alert and understanding how to use your
power tool. To avoid mistakes that could cause serious
injury, do not plug in your cutting tool until you have read
and understood the following safety rules:
1. READ and become familiar with this entire Owner's
Manual. LEARN the tool's applications, limitations and
possible hazards.
2. IA WARNINGI
Lock for thissymbol that identifies important safety
precautions. It means CAUTION! BECOME ALERT!
YOUR SAFETY IS INVOLVEDI
.
KEEP GUARDS IN PLACE and in working order.
4.
DO NOT USE IN A DANGEROUS ENVIRONMENT
such as damp or wet locations or exposure to rain.
Keep work area well lighted.
5.
DO NOT use power tools in the presence of
flammable liquids or gases.
6.
KEEP WORK AREA CLEAN. Cluttered areas and
workbenches invite accidents.
7. KEEP CHILDREN AWAY. All visitors should be kept
at a safe distance from the work area.
8. DO NOT FORCE THE TOOL. Itwill do the job better
and safer at the rate for which it was designed.
9. USE THE RIGHT TOOL. Do not force the tool or
attachment to do a job for which it isnot designed.
10. WEAR PROPER APPAREL. DO NOT wear loose
clothing, gloves, neckties, rings, bracelets or other
jewelry that may get caught inmoving parts. Non-slip
footwear is recommended. Wear protective hair
covering to contain long hair.
15.
REMOVE ADJUSTING KEYS AND WRENCHES.
Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool before
turning "ON".
16.
NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN THE POWER "OFF". Do not leave the tool
before it comes to a complete stop.
17.
NEVER STAND ON TOOL. Serious injurycould
occur if the tool is tipped or ifthe cutting tool is
unintentionally contacted.
18.
DO NOT OVER REACH. Keep proper footing and
balance at all times.
19.
MAINTAIN TOOLS WITH CARE. Keep tools sharp
and clean for most efficient and safest performance.
Follow instructions for lubricating and changing
accessones.
20.
CHECK FOR DAMAGED PARTS. Before further use
of the tool, a guard or other part that is damaged
should be carefully checked to ensure itwill operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
mounting and any other conditionsthat may affect its
safe operation. A guard or other part that is damaged
should be properly repaired or replaced.
21. MAKE WORKSHOP CHILD PROOF with padlocks,
master switches or by removing starter keys.
22. DO NOT operate the tool if you are under the
influence of any drugs, alcohol or medication that
could impair your ability to use the to01safely.
23. USE DUST COLLECTION SYSTEM wherever
possible. Dust generated from certain materials can
be hazardous to your health and in some cases, a fire
hazard. Always operate the power tool ina well
ventilated area with adequate dust removal.
11. WEAR A FACE MASK OR DUST MASK. Sawing,
cutting, drilling and sanding operations produce
hazardous dust.
12. DISCONNECT TOOLS FROM THE POWER
SOURCE before servicing and when changing
accessories such as blades, bits, cutters, etc.
13. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure the switch is inthe "OFF"
position before plugging into the power source.
14. USE ONLY RECOMMENDED ACCESSORIES.
Consult the Owner's Manual for recommended
accessories. The use of improper accessories may
cause injury to you or damage to the tool.
SAVETHESEINSTRUCTIONS FOR REFERENCE
24. ALWAYS WEAR EYE PROTECTION. Any power
your eyes which could cause
permanent eye damage. ALWAYS
tool can throw foreign objects into
wear safety goggles (not glasses)
that comply with ANSI safety
standard Z87.1. Everyday glasses have only impact
resistant lenses. They ARE NOT safety glasses.
Safety goggles are available at Sears.
IAWARNINGI
Glasses or goggles not in compliance with ANSI
Z87.1 could cause serious injury when they break.
3
![](/html/43/432f/432f1e2eca9d3528c366bf7345b63f4f297de3f267ec27ca5833a454f41af383/bg4.png)
IA WARNING]
For your safety, do not plug in your cutting tool or try
to use any accessory until it is completely assembled
and installed according to these instructions, and
until you have read and understood this Owner's
Manual.
11.
NEVER HOLD THE WORKPIECE IN ONE HAND
while operating the tool with the other hand.
12,
NEVER PLACE HANDS IN THE PATH OF THE
CUTTER AND UNDER THE WORKPIECE.
Failure to follow these safety rules will result in risk of
serious injury,
1. WEAR EYE PROTECTION. This highspeed tool will
throw particles from the workpiece during operation,
Make sure safety glasses have side shields.
2. USE FACE OR DUST MASK along with safety
goggles if cutting or routing operation is dusty. Make
sure work area is well ventilated,
3. USE HEARING PROTECTION, particularly during
extended periods of operation.
,
NEVER USE DULL OR DAMAGED BITS. Damaged
bits can break without warning. Dull bits may
overload the motor, cut slowly and are difficult to
control. They will also overheat and possibly break.
.
ALWAYS MAKE SURE THE WORKPIECE IS FREE
OF NAILS AND OTHER FOREIGN OBJECTS, Ifthe
bit strikes a nail it willjump sideways and possibly
break,
6. DO NOT USE THIS TOOL FOR DRILLING HOLES.
It is NOT intended to be used as a drill.
.
ALLOW CLEARANCE UNDER WORKPIECE for bit
to travel. Never place workpiece on hard surfaces
such as concrete etc. The bit may jump or break
when contacting a surface other than the one being
cut.
. ALWAYS SET THE DEPTH GUIDE TO THE
APPROPRIATE DEPTH. Use tool with the depth
guide fiat against the work surface for better control of
the tool.
9, NEVER USE THE TOOL WITHOUT THE SOLE
PLATE, PRECISION HANDLE OR ROUTER BASE
attached and appropriately adjusted.
13. NEVER START THE TOOL WHEN THE BIT IS
TOUCHING THE WORKPIECE. The bit may catch
the workpiece causing loss of control.
14. ALWAYS HOLD THE TOOL WITH TWO HANDS
DURING START-UP AND OPERATION. When
starting, motor torque will cause the tool totwist.
15. TURN OFF ALL CIRCUIT BREAKERS AND
REMOVE ALL FUSES in the work area when cutting
into walls or blind areas,
16, ALWAYS HOLD THE TOOL BYTHE INSULATED
GRIPPING SURFACES ON THE BODY OF THE
TOOL where there is any possibilityof the cutting bit
contacting hidden electrical wires or the cord of the
tool, Contact with "live" wires will make exposed
metal parts of the tool "live" causing an electrical
shock to the operator.
17. WHEN CUTTING DRYWALL ELECTRICAL OUTLET
OPENINGS using the outlet as a guide, always cut in
a counter clockwise direction. The natural tendency
of the tool to pull to the leftwill cause a "hugging"
action toward the outlet box, resulting in a neater cut.
18.
NEVER LAY THE TOOL DOWN UNTIL THE
CUTTING BIT COMES TO A COMPLETE STOP. A
spinning bit can come in contact with the surface and
pull it out of yourcontrol.
19. NEVER TOUCH THE CUTTING BIT IMMEDIATELY
AFTER USE. The bitwill be too hot to be handled
with bare hands and will burn your fingers.
20. ALWAYS RE-TIGHTEN COLLET AND ALL
ADJUSTMENTS before starting the tool after a cutting
bitor accessory has been changed. Loose bits and
adjustments can cause unexpected shifting of the tool,
resulting in loss of control and injuryfrom the bitor
cutting tool being thrown.
10. ALWAYS CLAMP WORKPIECE TO HOLD IT
STEADYWHEN CUTTING. This willfree both hands
for operating the tool,
SAVE THESE INSTRUCTIONS FOR REFERENCE
4
![](/html/43/432f/432f1e2eca9d3528c366bf7345b63f4f297de3f267ec27ca5833a454f41af383/bg5.png)
DIo]Ill :t Ill=Ill _l_-tnllW:lllll[o]_
[€llJla] =111_1:1."]I;[e] =_I::):t 1:1__.1[el _[e(e] t._e]._!
This cutting tool is double insulated to protect you from
electrical shock.
IA WARNINGI
Double insulated tools are equipped with a polarized
plug (one blade is wider than the other). This plug will
fit into a polarized outlet only one way. If the plug
does not fit fully into the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician to
install a polarized outlet. Do not alter the plug in any
way. Double insulation eliminates the need for the three
wire grounded power cord and grounded power supply
system.
Avoid body contact with grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock ifyour body is grounded.
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
Do not abuse the cord. Never use the cord to carry
the tool or pull the plug from the outlet. Keep cord
away from heat, oil, sharp edges and moving parts.
Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.
When operating a power tool outdoors, use an
outdoor extension cord marked "W-A" or "W". These
cords are rated foroutdoor use and reduce the risk of
electric shock.
IAWARNINGI
Always make sure the receptacle is polarized. If you
are not sure, have a qualified electrician check the
receptacle,
Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy
enough to carry the current the tool will draw. An
undersized cord will cause a drop in line voltage resulting
in loss of power and overheating. The table below shows
the correct size to use according to cord length and
nameplate ampere rating. If in doubt, use the next heavier
gauge. The smaller the gauge number the heavier the
cord.
Be sure your extension cord is properly wired and in
good condition. Always replace a damaged extension
cord or have itrepaired by a qualified electrician before
using it. Protect your extension cord from sharp objects,
excessive heat and damp or wet areas.
Use a separate electrical circuit for your power tools.
This circuit must not be less than 14 gauge wire and
should be protected with either a 15 Ampere time delay
fuse or circuit breaker. Before connecting the power tool
to the power source, make sure the switch is in the OFF
position and the power source is the same as indicated on
the nameplate. Running at lower voltage will damage the
motor.
IA WARNINGJ
Repair or replace damaged or worn extension cords
immediately.
Select the appropriate extension cord gauge and length
using the chart below.
MINIMUM GAUGE (AWG) EXTENSION CORDS
(120 Volt use only)
Ampe_
More Than
0
6
10
12
Rating Total length in _et
Not
More Than 25' 50' 100' 150'
6 18 16 16 14
10 18 16 14 12
12 16 16 14 12
16 14 12 N_Appli_ble
[,AwAR.,.G]
Keep the extension cord clear of the working area.
Position the cord so it will not get caught on the
workpiece, tools or any other obstructions while you
are working with the power tool.
5
![](/html/43/432f/432f1e2eca9d3528c366bf7345b63f4f297de3f267ec27ca5833a454f41af383/bg6.png)
r:Io_e]::_"!,._
AVAILABLE ACCESSORIES UNPACKING AND CHECKING CARTON CONTENTS
[A WARNING]
Use only accessories recommended for this cutting
tool. Follow instructions that accompany
accessories. Use of improper accessories may cause
injury to the operator or damage to the cutting tool.
Visit your Sears Hardware Department orsee the Sears
Power and Hand Tool Catalog for an assortment of
accessories recommended for use with this cutting tool:
• 1/8"Cutting Bits
• 118"Hobby Rotary Tool Accessories
Cutters
Polishers
;_ Sanders
Grinders
• Most ¼" Shank Router Bits
IA WARNINGI
Use only accessories designed for this cutting tool to
avoid severe injury or tool damage.
Do not use any accessory unless you have completely
read the instructions or Owner's Manual for that
accessory.
[,A WARNING I
If any part is missing or damaged, do not plug the
cutting tool into the power source until the missing or
damaged part is replaced and assembly is complete.
Carefully unpack the cutting tool and all its parts.
Compare against the "Cutting Tool Components" chart
below.
NOTE: See Page 7 for illustration of parts.
IA WARNINGI
To avoid fire or toxic reaction, never use gasoline,
naphtha, acetone, lacquer thinner or similar highly
volatile solvents to clean the cutting tool.
CUTTING TOOL COMPONENTS
KEY
A
B
C
D
E
F
G
H
I
J
K
L
M
Cutting Tool 1
Precision Handle with Sole Plate 1
Freehand Sole Plate Attachment 1
Circle Cutter Attachment (Optional) 1
Circle Cutter Installation Adapter 1
(Part of Circle Cutter attachment)
Router Base Attachment (Optional) 1
1/8" Collet Sleeve 1
1/4" Collet Sleeve 1
Lateral Style Drywall Cutter 1
Collet Wrench 1
Collet Wrench Holder 1
Owner's Manual 1
Carrying Case I
DESCRIPTION QTY
6
![](/html/43/432f/432f1e2eca9d3528c366bf7345b63f4f297de3f267ec27ca5833a454f41af383/bg7.png)
B __
E
G
A
H
L
C
D
Items D, E and F are optional attachments and must
NOTE: I
be purchased separately
j K
M
