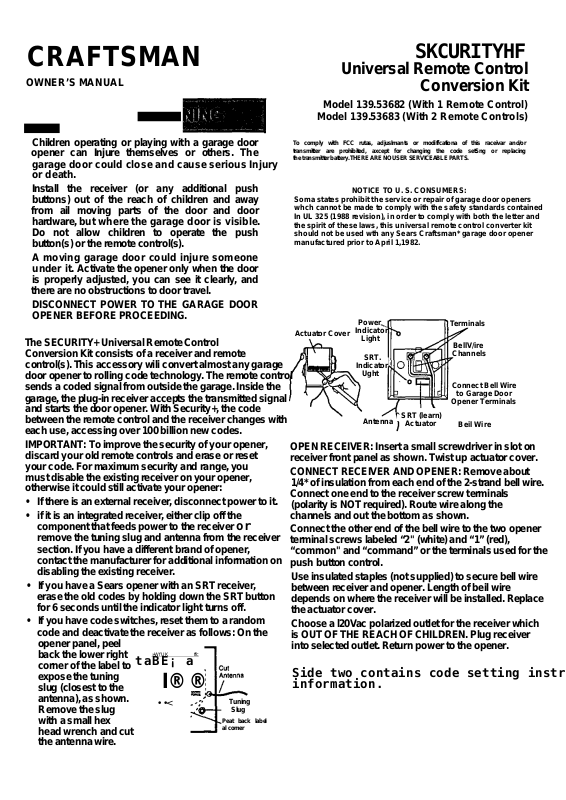

CRAFTSMAN

OWNER’S MANUAL

SKCURITYHF

Universal Remote Control

Conversion Kit

Model 139.53682 (With 1 Remote Control)

Model 139.53683 (With 2 Remote Controls)

Children operating or playing with a garage door
opener can Injure themselves or others. The

garage door could close and cause serious Injury
or death.

Install the receiver (or any additional push
buttons) out of the reach of children and away
from ail moving parts of the door and door
hardware, but where the garage door is visible.
Do not allow children to operate the push
button(s) or the remote control(s).

A moving garage door could injure someone

under it. Activate the opener only when the door

is properly adjusted, you can see it clearly, and
there are no obstructions to door travel.

DISCONNECT POWER TO THE GARAGE DOOR
OPENER BEFORE PROCEEDING.

The SECURITY+ Universal Remote Control
Conversion Kit consists of a receiver and remote

control(s). This accessory wili convert almost any garage
door opener to rolling code technology. The remote control
sends a coded signal from outside the garage. Inside the
garage, the plug-in receiver accepts the transmitted signal

and starts the door opener. With Security+, the code

between the remote control and the receiver changes with
each use, accessing over 100 billion new codes.

IMPORTANT: To improve the security of your opener,

discard your old remote controls and erase or reset

your code. For maximum security and range, you

must disable the existing receiver on your opener,

otherwise it could still activate your opener:

• If there is an external receiver, disconnect power to it.

• if it is an integrated receiver, either clip off the

component that feeds power to the receiver or
remove the tuning slug and antenna from the receiver
section. If you have a different brand of opener,
contact the manufacturer for additional information on
disabling the existing receiver.

• If you have a Sears opener with an SRT receiver,
erase the old codes by holding down the SRT button
for 6 seconds until the indicator light turns off.

• If you have code switches, reset them to a random
code and deactivate the receiver as follows: On the

opener panel, peel
back the lower right
corner of the label to

»Wf UK ffc

taBE¡ a

expose the tuning
slug (closest to the
antenna), as shown.

Remove the slug
with a small hex
head wrench and cut

I® ®

• •<

Tuning

Slug

Peat back label
al comer

the antenna wire.

To comply with FCC rutas, adjuslmants or modiffcationa of this raceivar and/or
transmitter are prohibited, axcept for changing the code setSng or replacing
the transmitter battery. THERE ARE NO USER SERVICEABLE PARTS.

Soma states prohibit the service or repair of garage door openers
whch cannot be made to comply with the safety standards contained
In UL 325 (1988 revision), in order to comply with both the letter and
the spirit of these laws, this universal remote control converter kit
should not be used wth any Sears Craftsman* garage door opener
manufactured prior to April 1,1982.

Actuator Cover

NOTICE TO U. S. CONSUMERS:

Power

Indicator

Light

SRT.

Indicator

Ught

Antenna

^ SRT (learn)

Actuator

Terminals

BellV/ire

Channels

Connect Bell Wire

to Garage Door

Opener Terminals

Beil Wire

OPEN RECEIVER: Insert a small screwdriver in slot on
receiver front panel as shown. Twist up actuator cover.

CONNECT RECEIVER AND OPENER: Remove about

1/4* of insulation from each end of the 2-strand bell wire.

Connect one end to the receiver screw terminals

(polarity is NOT required). Route wire along the

channels and out the bottom as shown.
Connect the other end of the bell wire to the two opener

terminal screws labeled “2" (white) and “1” (red),
“common" and “command” or the terminals used for the
push button control.

Use insulated staples (not supplied) to secure bell wire
between receiver and opener. Length of beil wire
depends on where the receiver will be installed. Replace
the actuator cover.

Choose a l20Vac polarized outlet for the receiver which
is OUT OF THE REACH OF CHILDREN. Plug receiver

into selected outlet. Return power to the opener.

Side two contains code setting instructions and service
information.

PROf^RAMMING THE RECEIVER

The receiver and remote control(s) have been
factory preset with a matching code. The door will
open when you press the LARGE push button. You
can activate yoUr opener with up to eight

SECURITY4> remote controls (with blue push
buttons) and one SECURITY+ Keyless Entry.

If you purchase additional remote controls to operate this
receiver:

1. Remove the receiver actuator cover.

2. Press and HOLD the selected remote control push

button (Illustration A).

3. Then press the SRT (learn) actuator on the receiver
(Illustration B). The adjacent indicator light will
FLASH. Release the remote control push button.

The opener will now operate when either the receiver
actuator or the remote control push button is pressed.

3-Function

Universal Receiver

Remote Control

Select a rennote control push

button to operate receiver

Keep batteries away from small children,

swallowed, promptly notify doctor.

If

NOTE: if the remote control push button is not held

down until the receiver indicator light flashes, the
receiver will not learn the code.

To erase ALL remote control codes from memory:
Press and HOLD receiver SRT actuator. Indicator
light alongside will glow. When the Indicator light

turns OFF (in about 6 seconds) ALL codes will be
erased.

THE REMOTE CONTROL BATTERIES

Open this end
first to avoid
cracking

housing

Twist
to open

The lithium batteries should
produce power for up to 5 years.

Replace batteries positive side

down, as follows: Use the visor

clip or screwdriver blade to pry
open the case as shown. To

replace the cover, insert the 3 tabs at the opposite end
and snap shut.

REPLACEMENT PARTS

Universal Receiver (complete)
Receiver Achrator Cover

Remote Control Housing Only (no circuit board)

Visor clip .............................................................................29B134 »Model Number • Part Description

3V 2032 Lithium Battery.......................................................10A20

(1 required for Remote Model 139.53681 B)

3V 2016 Lithium Battery

(2 required for Remote Model 139.53681) Call 7 am - 7 pm, 7 days a week

.....................................

................................................

......................................................

41A5041-1 When ordering parts, always provide the following

........

41A4926 information:
41A5032 , Product Type • Part Number

10A19 For the repair or replacement parts you need

1-800-366-PART

FOR REMOTE FOR remote (1-800-366-7278)

MODEU3953681 MOOa 139.53681 B

114A2125C

11997, Sears Roebuck and Company

All Rights Reserved

Printed in Mexico
