LOAD 8 Amp resistive and incandescent lighting
6 Amp fluorescent lighting
3 Amp compact fluorescent lighting
3 Amp low energy lighting
3 Amp low voltage lighting
(switch primary of transformer)
Fluorescent lighting
(max 6 fittings recommended)
For fluorescent lighting total power factor
correction capacitance must not exceed 40μF.
3 Amp fans and ventilation equipment
Switch SON lighting loads via a contactor
SUPPLY VOLTAGE 220-240 Volts AC 50 Hz
TIME OUT PERIOD Adjustable 10s to 30m
LIGHT LEVEL Light to dark
TERMINAL CAPACITY Sensor:2.5mm
2
Ceiling Rose:2.5mm
2
MATERIAL Flame retardant ABS
TYPE Class 2
TEMPERATURE -10°C to 35°C
CONFORMITY EMC-2004/108/EC
LVD-2006/95/EC
Part Numbers Specification
Detection Pattern
VITMR-EBDSPIR-B PIR presence detector
with ceiling rose
DBB Surface mounting
back-box
Ref #WD315 Issue 4
C.P. Electronics Ltd
Brent Crescent
London
NW10 7XR
United Kingdom
Tel: + 44 (0) 333 900 0671
Fax: + 44 (0) 333 900 0674
www.cpelectronics.co.uk
enquiry@cpelectronics.co.uk
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in
accordance with the latest edition of the IEE wiring regulations.
Due to our policy of continual product improvement CP Electronics reserves the right
to alter the specification of this product without prior notice.
VITMR-EBDSPIR-B PIR presence detector switches are designed to provide automatic control of lighting, heating or ventilation loads. They detect movement using a PIR sensor and turn the load on.
When an area is no longer occupied the load will switch off after an adjustable time out period. These
sensors are supplied pre-wired with a 3m lead and include a ceiling rose for ease of installation.
An adjustable internal light sensor provides additional energy saving in lighting applications. When an
area is occupied lighting is only switched on when the level of natural light is below a preset level.
When the unit is first powered up the PIR sensor will always detect immediately regardless of whether
the room is occupied.
Description and Operation
INTERNAL
DETECTOR WIRING
(for information only,
do not re-wire detector)
N
L
L/Out

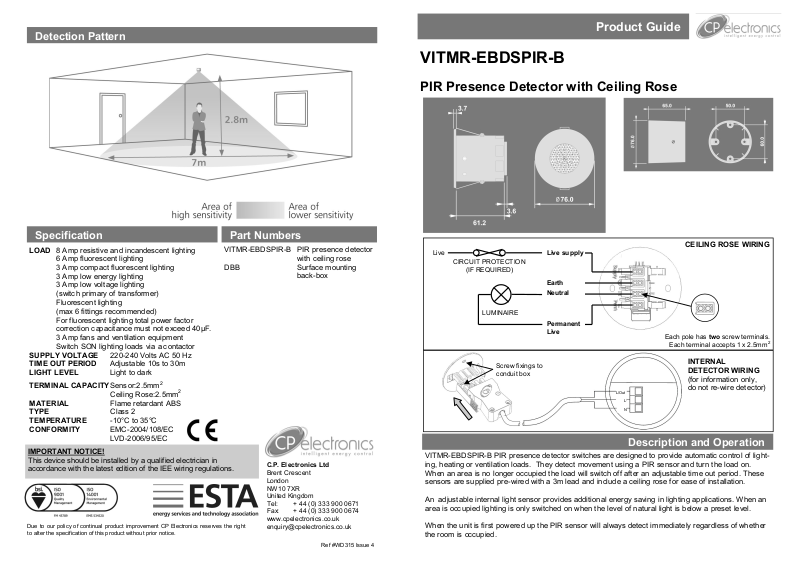

PIR Presence Detector with Ceiling Rose
Product Guide
VITMR-EBDSPIR-B
LUMINAIRE
Live
CIRCUIT PROTECTION
(IF REQUIRED)
Screw fixings to
conduit box
Each pole has two screw terminals.
Each terminal accepts 1 x 2.5mm2
Live supply
Earth
Neutral
Permanent
Live
CEILING ROSE WIRING
Installation
The detector should be sited so that the occupants of the room fall
inside the detection pattern shown overleaf, at a recommended height of
2.8m on the ceiling. Note that the lower the sensor is installed the
smaller the detection range will be, subject to the parameters shown on
the diagram.
Avoid direct sunlight entering the sensor.
Do not site within 1m of forced air heating
or ventilation.
Do not site within 1m of any lighting.
Do not fix to a vibrating surface.
Wire the product using the connector using the diagram on the front
page.
Mount using one of the two options above.
To switch from more than one position simply wire two or more units in
parallel.
Set the LUX level to maximum and the time to minimum.
Power the unit up—the load should come on immediately.
Vacate the room or remain very still and wait for the load to switch off
(should take no more than 2 minutes).
Check that the load switches on when movement is detected.
To set the final LUX level wait until the level of natural daylight is just
enough that lighting is required. Starting with the LUX control fully clock-
wise (at minimum), very slowly turn the control anti-clockwise until the
lights come on. Note that when the LUX control is at maximum then the
lights will always come on with occupancy.
Set the time required.
FLUSH FIXING
SURFACE FIXING
1 2
2 1
Hole Ø64mm
Warning - be careful bending
springs when mounting unit.
Pull out spring tab and rotate
spring arm as shown
50mm or 60mm fixing centres
LOAD DOES NOT COME ON
Check to see if the live supply to the circuit is good. Strap across
the PERMANENT L IVE and LIVE SUPPLY terminal to turn the
load on.
If the supply and wiring are good, check the LUX level setting.
Increase the LUX level setting to allow the controller to turn on at
higher ambient natural light level.
If the detection range is smaller than expected, check the diagram above. Rotating the sensor slightly may improve the range.
LIGHTS DO NOT GO OFF
Ensure that the area is left unoccupied for longer than the selected timer setting.
Make sure that the sensor is not adjacent to circulating air, heaters or lamps.
Fault Finding
Remove wiring
compartment cover
4
3 4
3
5
