CP Electronics GIMB User Manual

GIMB Product Guide
Batten mount PIR detector
Overview
The GIMB miniature PIR (passive infrared) presence detector provides automatic control of lighting loads. It is specifically designed for mounting onto a batten style luminaire.
The detector will switch incandescent, fluorescent, compact fluorescent and LED lighting.
The unit detects movement using a PIR sensor and turns the load on. When an area is no longer occupied the load will switch off after a 10 minute time out period.
A selection of fixing washers are supplied to aid fixing to a variety of luminaires.
Note: illustration shows an average of the walk across and walk towards figures below.
Walk towards Walk across
Detection diagram
Height Range Diameter
7m 16m
2.8m 9m
Height Range Diameter
7m 10m
2.8m 5m
Installation
Do not grip unit at the lens end. Hold the square body near the threaded end when installing and tightening the nut. Care must be taken to prevent damage to the lens and surrounding IP seal.
Components
Part Quantity
IP Spacer with silicone coating 1
Silicone washer 1
5º washer 1
5º spacer 1
M20 nut 1
Standard luminaire fitting
Mounting hole without key
Supplied
Mounting hole with key
Note. Key to be at top of sensor.
IP luminaire fitting
Note. Use the 5º spacers where the luminaire housing has a draft angle.
2
Important Ensure that the Silicone washer and/or the IP spacer are used to ensure IP rating.
Installation
The product is designed to be mounted directly to the outside of a luminaire. The detector should be sited so that the occupants of the room fall inside the detection pattern (shown opposite), at a recommended ceiling height of 2.8m. Note that the lower the sensor is installed the smaller the detection range will be, subject to the parameters shown on the detection diagram.
Do not site within 1m of forced air heating or ventilation..
Do not fix to a vibrating surface.

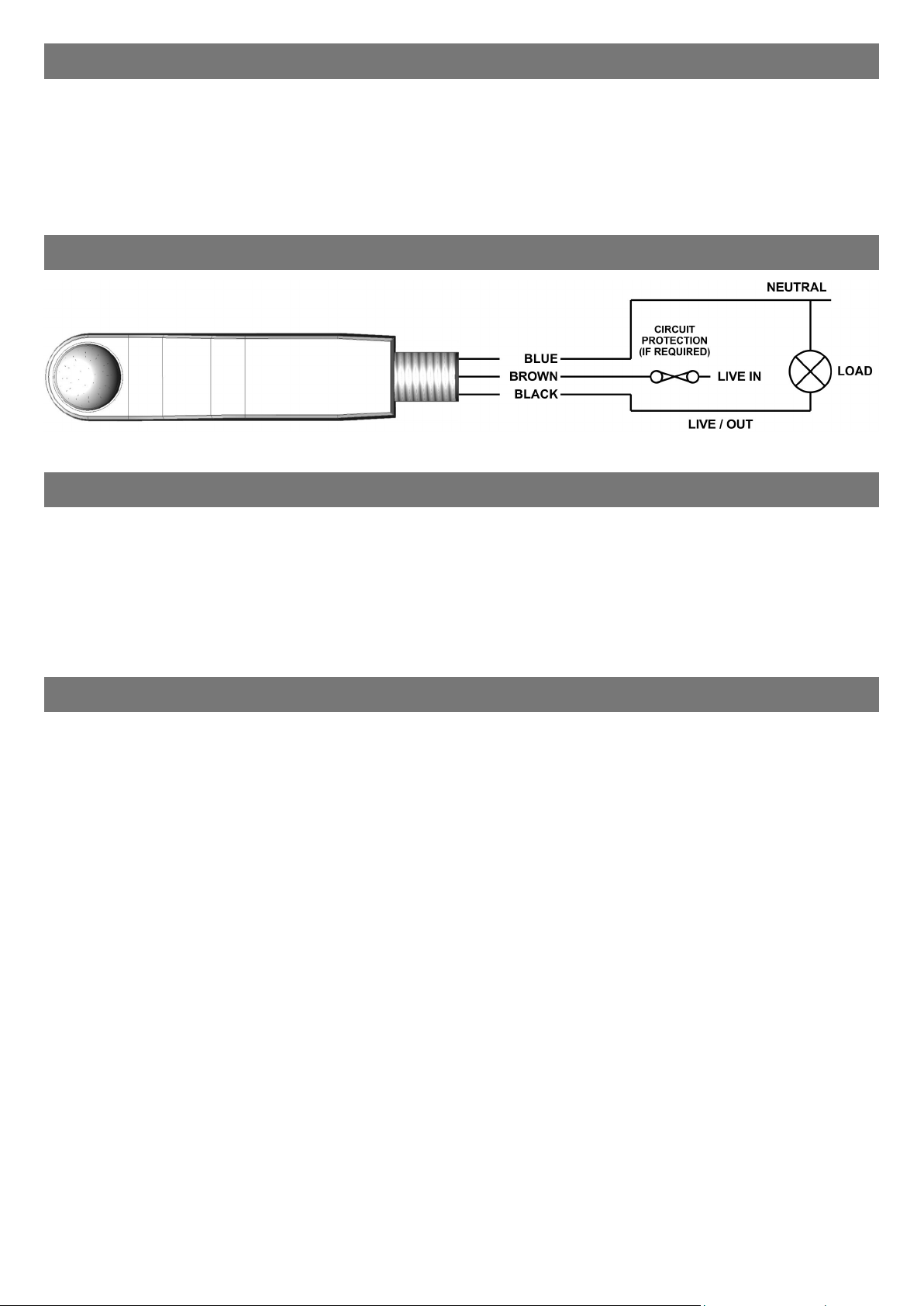

Wiring diagram
Power-up test procedure
When power is applied to the unit, the load will turn on immediately.
For the first 5 minutes of operation the time out period is 10 seconds to aid commissioning.
Vacate the room or remain very still for more than 10 seconds and wait for the load to switch off.
Check that the load switches on when movement is detected.
When the 5 minutes have elapsed the time out will be 10 minutes.
Fault finding
What if the load does not turn ON?
Check that the live supply to the circuit is good.
Check that the load is functioning by bypassing the sensor (e.g. link L and L/ Out).
What if the load does not turn OFF?
Ensure that the area is left unoccupied for longer than the 10 minute time out period.
3
Technical data
Dimensions See diagrams opposite. Weight 0.10kg Supply Voltage 230VAC +/- 10% Frequency 50Hz Maximum Switching Load 2 Amps fluorescent and
incandescent lighting.
2 Amps compact fluorescent
lighting. 2 Amps low energy lighting. 2 Amps low voltage lighting
(switch primary of transformer). Switch SON lighting loads via a
contactor. Power consumption On 799mW, Off 807mW Cable specification 1m 1/1.13 solid core cable
105ºC Temperature -10ºC to 35ºC Humidity 5 to 95% non-condensing Material Flame retardant ABS/PC Type Class 2 IP rating IP65
Compliance EMC-2004/108/EC
LVD-2006/95/EC
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
4
C.P. Electronics Ltd
Brent Crescent London NW10 7XR United Kingdom Tel: + 44 (0) 333 900 0671 Fax: + 44 (0) 333 900 0674 www.green-iswitches.co.uk enquiry@green-iswitches.co.uk
Ref: #WD639 Issue 3 Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
