OPERATING INSTRUCTIONS FOR MANUAL APPLICATORS
DISPENSING
Always use full trigger pulls.
To stop any product flow on, depress the release plate when dispensing is finished.
MAINTENANCE
To ensure good performance, the fulcrum pins in the handle should be lubricated with WD40
(or equivalent) after every 10 cartridges.
Always wipe off any adhesive using the manufactures recommended solvent before it has time to
cure.
Check the barrel screw, plungers, all external bolts and screws to assure they are tight. Tighten if
found loose.
Page 3

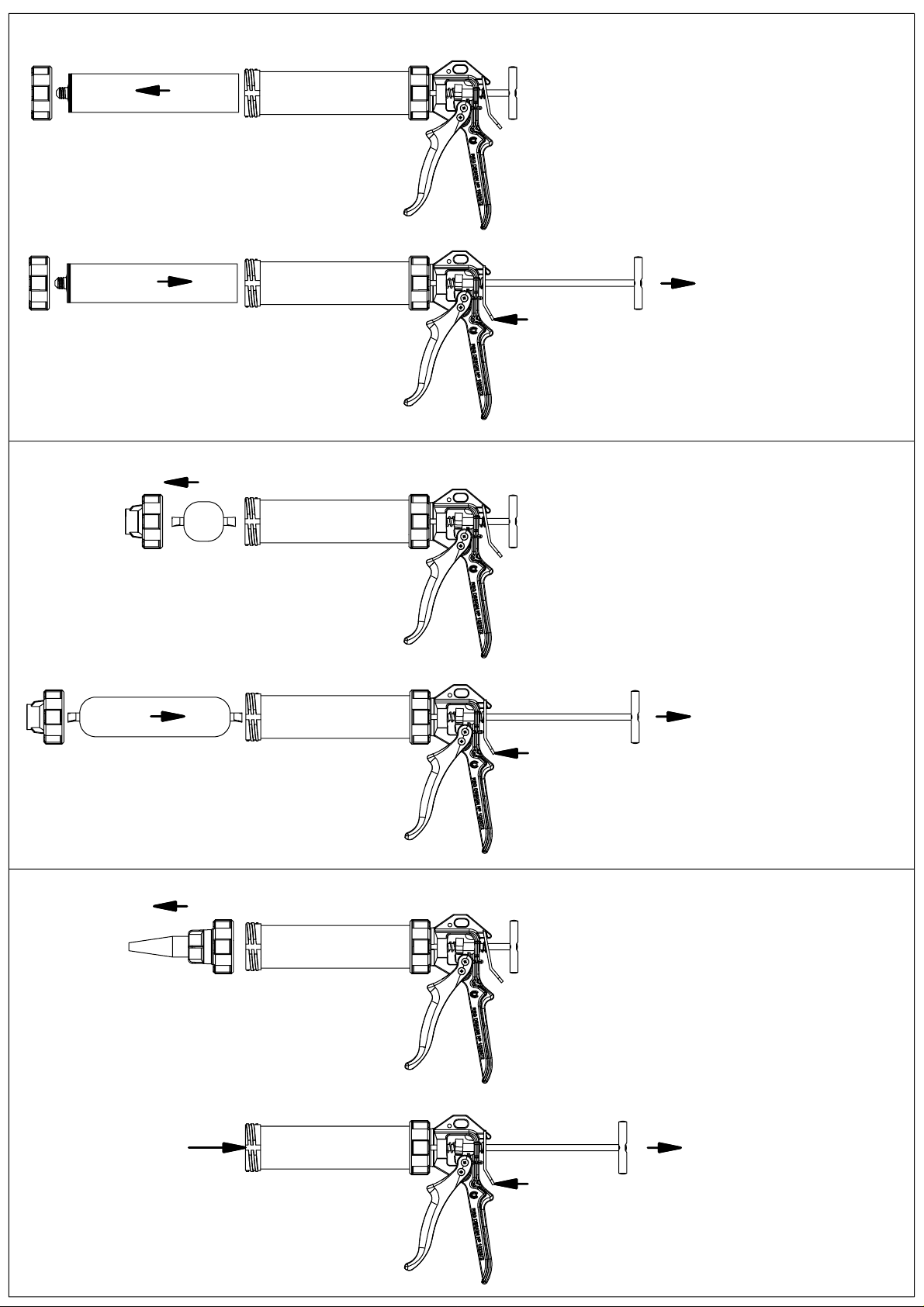

AVON CARTRIDGE
1) Remove cap and cartridge from gun
1
2) Depress and hold release plate
3) Retract rod until fully withdrawn
4) Insert new cartridge and replace cap
4
3
2
AVON SACHET
1
1) Remove cap/nozzle assembly and
used sachet slug from gun
2) Depress and hold release plate
3) Retract rod until fully withdrawn
4) Insert new sachet, snip end to
allow product out and replace
cap/nozzle assembly
4
3
This end of gun
to be immersed
in bulk material
2
AVON BULK
1
1) Remove cap/nozzle assembly,
ensure rod is fully forward
2) Depress and hold release plat e
3) Immerse end of barrel into bulk
material and draw rod fully rearwards
4) Re fit cap/nozzle
3
2
Page 4

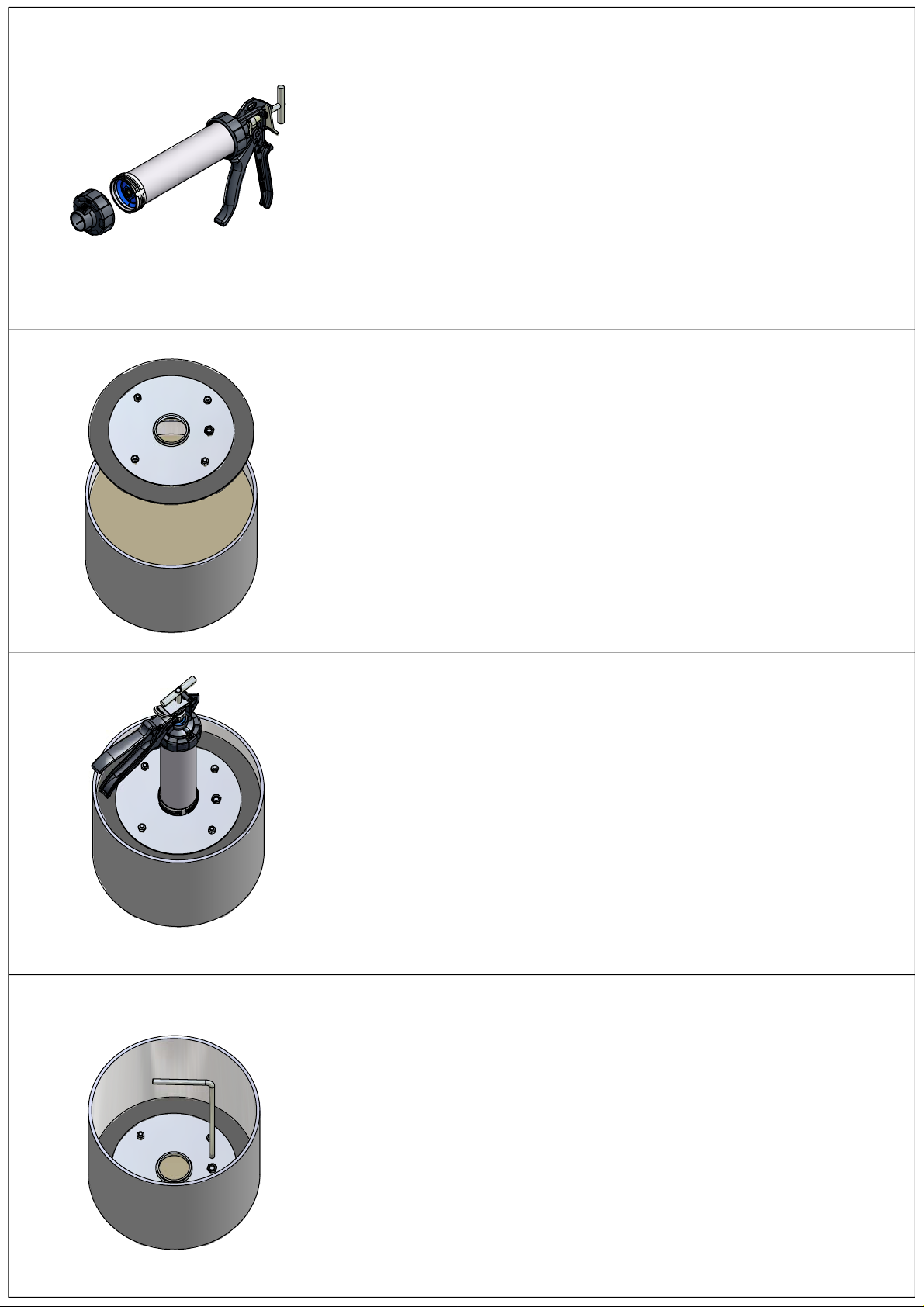

REMOVE CAP AND NOZZLE FROM GUN
ENSURE THE ROD IS FULLY FORWARD
PUSH FOLLOWER PLATE INTO THE BUCKET AND
ENSURE IT RESTS FLAT ON THE SURFACE OF
THE BULK MATERIAL
PLACE END OF GUN BARREL OVER FOLLOWER
PLATE LIP. DEPRESS THE RELEASE PLATE AND
DRAW BACK THE ROD, IN TURN DRAWING UP THE
MATERIAL INTO THE BARREL. ENSURE THE
BARREL STAYS FLUSH TO THE PLATE
ONCE ALL THE BULK HAS BEEN USED,
INSERT THE SUPPLIED HANDLE ROD
INTO THE OPEN NUT ON THE SURFACE
OF THE PLATE TO WITHDRAW THE
PLATE ASSEMBLY.
