Country Flame O2 User Manual

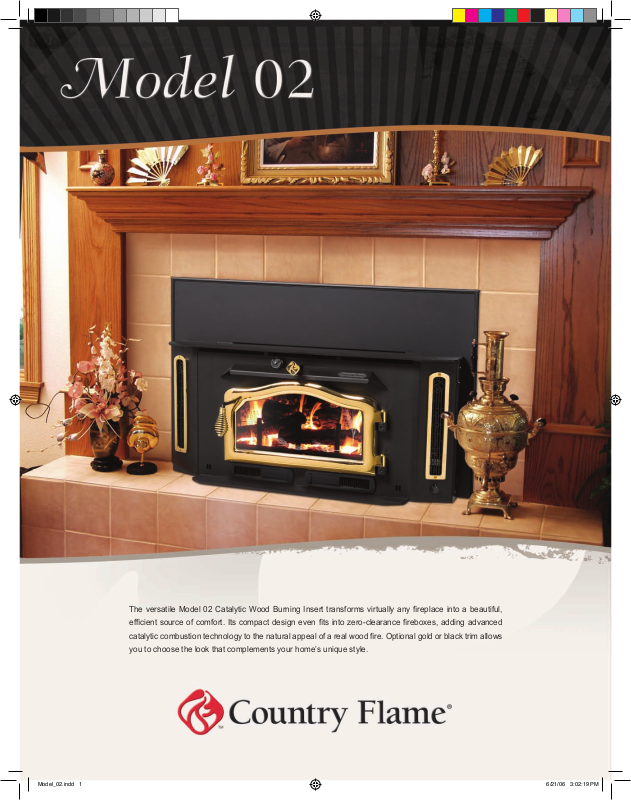

The versatile Model 02 Catalytic Wood Burning Insert transforms virtually any replace into a beautiful,
efcient source of comfort. Its compact design even ts into zero-clearance reboxes, adding advanced
catalytic combustion technology to the natural appeal of a real wood re. Optional gold or black trim allows
you to choose the look that complements your home’s unique style.
Gain Efficiency
With the Model 02 Catalytic Wood Burning Insert, you can turn your open-masonry or zero-clearance replace—formerly
a signicant point of heat loss—into an efcient source of warmth and savings. Features include:
• 72% Efciency
• Max Heating Capacity: 34,100 BTU
• Heavy Gauge Steel Construction
• 422 Pounds
Clean burn catalytic
combustor
Optional side
trim colors
(gold and black)
Optional door colors
(gold and black)
Minimum Fireplace Dimensions:
Opening Height
Opening Width
Depth
Width at Back
Temperature probe
Damper rod
Adjustable combustion
18”
28”
18”
22”
• Max Burn Time: 12 Hours
• Max Log Length: 20”
• Black or Gold Door & Trim Options
• 6” Flue Opening
Dual room air blowers
inlets
8”
• Air Wash Equipped for Cleaner Glass
• Dual Blowers Standard (125 CFM Each)
• Approved for Installation into
Zero-Clearance Wood Burning Fireplaces
Installation
With our optional trim skirt and leveling base plate,
you can easily trim off the lower louvers below the
zero-clearance rebox.
1/2”
41
24”
24”
12”
18”
17
V1002
1/8”
41
1/4”
1/2”
24
1/2”
7
1/2”
27
22”
1
”
3
/16
1/2”
17
3/4”
37
25”
1/2”
17
900 George Street • Marshfield, MO 65706
Phone: (417) 859-0990 Fax: (417) 859-0192
www.countryflame.com
