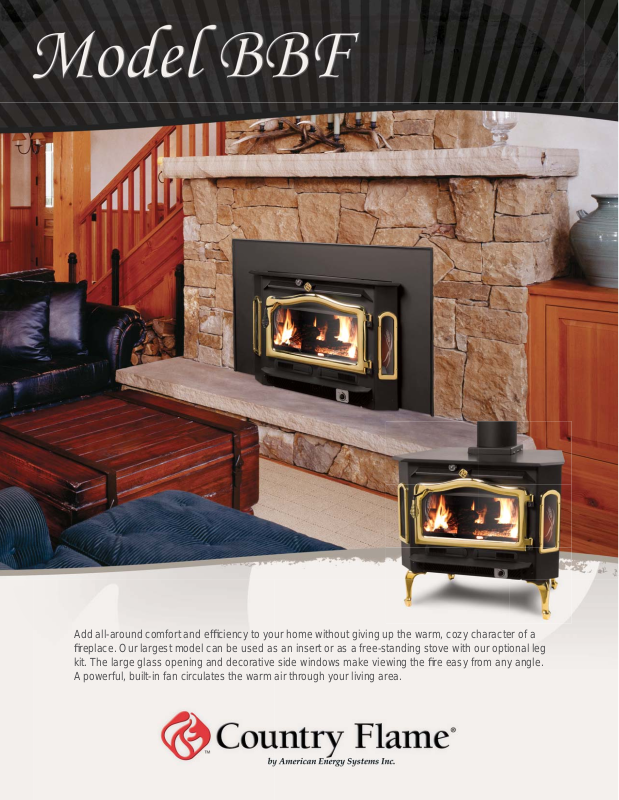

Country Flame BBF User Manual

Add all-around comfort and effi ciency to your home without giving up the warm, cozy character of a
fi replace. Our largest model can be used as an insert or as a free-standing stove with our optional leg
kit. The large glass opening and decorative side windows make viewing the fi re easy from any angle.
A powerful, built-in fan circulates the warm air through your living area.

Effi ciency with aesthetic appeal

The Model BBF Catalytic Wood Burning Insert or Stove brings new effi ciency to the natural attraction of
a wood fi re. Choose the option that suits your home better—fi replace insert or free-standing stove—and
enjoy added savings with the cozy comfort and ambience only a real wood fi re can offer.

• 72% Effi ciency

• Max Heating Capacity: 3,000 Sq. Ft.

• Max BTUs: 51,400

• Heavy Gauge Steel Construction (5/16" and
1/4" Double-Walled Firebox)

• 585 Pounds

Mantel / Fascia / Top Trim

26"

Side Wall

1/2"

49

21"

8"

BBF Insert

18"

Hearth Extension

Free-Standing
Stove Clearances

A. 21"
B. 20"
C. 20"
D. 8"
E. 18"

1/2"

23

48

Back Wall

Side Wall

"

• Max Burn Time: 12 Hours

• Max Log Length: 29"

• Gold or Black Door, Side Trim, & Leg Options

• 3.9 Cu. Ft. Firebox

• 8" Flue Opening

Installation

Insert approved for masonry fi replaces. Optional leg kit makes it a great
choice for almost any room in the house. Be sure to check the available
colors for door, side trim, and legs. See manual for exact specifi cations.

10"

Front Floor

Protector

Side Wall

Side Wall

1/2"

35

27"

5

"

3

/32

3/8"

30

8"

• Air Wash Equipped for Cleaner Door Glass

• Variable Speed, Temp-Controlled 600 CFM
Blower Standard

• Easy-Access Blower Tray

• Emissions: 3.0 Grams/Hr.

Hearth

Pad

Clean burn catalytic

Optional side

trim colors

(gold and black)

Optional door colors

(gold and black)

combustor

Temperature probe

600 CFM temp. controlled

variable speed blower

For zero-clearance applications, ask about our
Model 02 Catalytic Wood Burning Insert. For
non-catalytic options, see our Ovation series.

1/2"

25

14"

Damper rod

Firebrick

Adjustable

combustion

inlets

1/2"

23

1/2"

30

V1003

150 Michigan St. S.E., Hutchinson, MN 55350

Phone: [phone] Fax: [phone]

[e-mail]

www.countryfl ame.com
