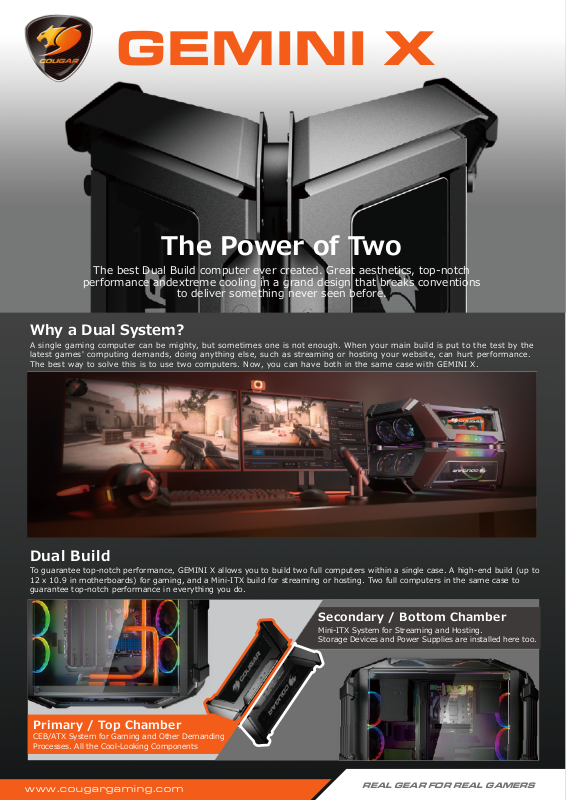

Cougar Gemini X User Manual
GEMINI X
The Power of Two
The best Dual Build computer ever created. Great aesthetics, top-notch
performance andextreme cooling in a grand design that breaks conventions
to deliver something never seen before.
Why a Dual System?
A single gaming computer can be mighty, but sometimes one is not enough. When your main build is put to the test by the
latest games' computing demands, doing anything else, such as streaming or hosting your website, can hurt performance.
The best way to solve this is to use two computers. Now, you can have both in the same case with GEMINI X.
Dual Build
To guarantee top-notch performance, GEMINI X allows you to build two full computers within a single case. A high-end build (up to
12 x 10.9 in motherboards) for gaming, and a Mini-ITX build for streaming or hosting. Two full computers in the same case to
guarantee top-notch performance in everything you do.
Secondary / Bottom Chamber
Mini-ITX System for Streaming and Hosting.
Storage Devices and Power Supplies are installed here too.
Primary / Top Chamber
CEB/ATX System for Gaming and Other Demanding
Processes. All the Cool-Looking Components
www.cougargaming.com
REAL GEAR FOR REAL GAMERS
GEMINI X
The Power of Two
Dual View
Vertical or Horizontal. Two ways of using GEMINI X that not only allow it to suit your space distribution; they also let you choose
which components you want to see. Some older parts in your case? Put the case horizontally and hide them in the secondary
chamber while the primary chamber shines in all its glory. What if everything you have is new and RGB? Then put it vertically for
everybody to see. The choice is always yours.
Dual Quality
Most aluminum cases' metal thickness is under 1 millimeter.
We did 3 millimeters. Most tempered glass cases use 4mm-thick
glass. We used extra-thick 5mm glass. As the premium case it is,
GEMINI X screams quality from every angle. Durable and robust,
this is a case you'll keep for many years to come.
Specifications
GEMINI X
Case Form Factor
Dimension (WxHxD)
Aluminum
Tempered Glass Cover
Primary
Motherboard Type
Expansion Slots
Left
Cooling System
I/O Panel
Water Cooling Support
Max. Graphic Cards Length
Max. CPU Cooler Height
PSU
Right
Rear
Left
Rear
Mini ITX / Micro ATX / ATX / CEB
8
120mm x 2
120mm x 2
120mm
USB 3.1 Gen2 Type-C x1 /
USB3.0 x 2/ Mic x 1 / Audio x 1
240mm / 120mm
240mm / 120mm
350 (mm) / 13.77 (in)
140 (mm) / 5.51 (in)
Standard ATX PS2
Dual Airflow
Two elongated chambers, with up to
five fans and a massive lateral vent
each, provide your components with
an uninterrupted and potent airflow
that will keep components'
temperatures under control while the
cable management space between
the two chambers allows heat to
dissipate. For extra cooling in the
primary chamber, it supports up to
two 240mm radiators.
Dual Tower
426 x 635 x 525 (mm) , 16.77 x 25 x 20.66 (In)
3mm thick
5mm thick
Secondary
Motherboard Type
3.5" Drive Bay
2.5" Drive Bay
Expansion Slots
Cooling System
I/O Panel
Max. Graphic Cards Length
Max. CPU Cooler Height
PSU
Mini ITX
4
4
2
Left
120mm x 2
Right
120mm x 2
Rear
120mm
USB 3.1 Gen2 Type-C x1 /
USB3.0 x 2/ Mic x 1 / Audio x 1
330 (mm) / 12.99 (in)
140 (mm) / 5.51 (in)
SFX
www.cougargaming.com
REAL GEAR FOR REAL GAMERS
