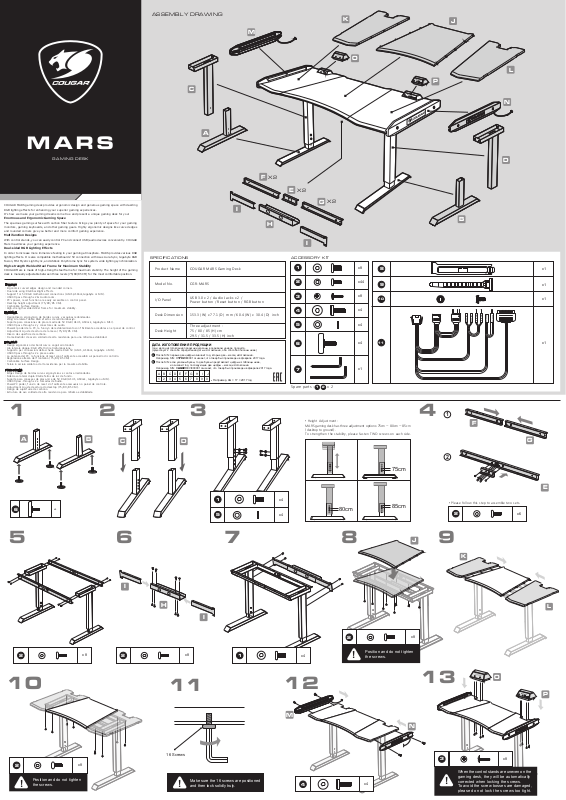

Cougar CGR-MARS operation manual

MARS

ASSEMBLY DRAWING

C

A

M

K

J

O

L

P

N

GAMING DESK

COUGAR MARS gaming desk provides ergonomic design and generous gaming space with dazzling

RGB lighting effects for enhancing your superior gaming experiences.

Itʼs how we make your gaming dreams come true and present a unique gaming desk for you!

Enormous and Ergonomic Gaming Space

The spacious gaming surface with carbon fiber texture brings you plenty of space for your gaming

monitors, gaming keyboards, and other gaming gears. Highly ergonomic designs like curved edges

and rounded corners give you better and more comfort gaming experience.

Multifunction Designs

With control stands, you can easily control PC and connect USB/audio devices conveniently. COUGAR

Mars maximizes your gaming experience.

Dual-sided RGB Lighting Effects

In order to increase more immersive feeling in your gaming atmosphere. MARS provides various RGB

lighting effects. It is also compatible motherboardsʼ 5V connection with Asus Aura Sync, Gigabyte RGB

Fusion, MSI Mystic Light Sync, and ASRock Polychrome Sync for system-wide lighting synchronization.

High-strength Welded Steel Frame for Maximum Stability

COUGAR Mars is made of high-strength steel frame for maximum stability. The height of the gaming

desk is manually adjustable between three levels (75/80/85 CM) for the most comfortable position.

ENGLISH

•Ergonomic curved edges design and rounded corners.

•Dual side wing: RGB backlight effects.

•Support for 5V RGB motherboard connections (ASUS,ASRock,Gigabyte or MSI).

•USB3.0 pass-through x2 & Audio Jacks.

•PC's power, reset function are easily accessible on control panel.

•Desktop height adjustment (75/80/85 CM).

•Carbonlike Surface Design.

•High-strength welded steel frame for maximum stability.

ESPAÑOL

•DesignDiseño ergonómico de bordes curvos y esquinas redondeadas.

•Wing Ala lateral doble: RGB efectos de retroiluminación.

•Soporte para conexiones de placa madre de 5V RGB (ASUS, ASRock, Gigabyte o MSI).

•USB3.0 pass-through x2 y conectores de audio.

•PowerEl poder de la PC, la función de restablecimiento son fácilmente accesibles en el panel de control.

•Adjustment Ajuste de altura de la mesa (75/80/85 CM).

•Diseño de superficie de carbono.

•Frame Bastidor de acero soldado de alta resistencia para una máxima estabilidad.

ITALIANO

•Design ergonomico dei bordi curvi e angoli arrotondati.

•Ala laterale doppia: RGB effetti di retroilluminazione.

•Supporto per connessioni della scheda madre RGB 5V (ASUS, ASRock, Gigabyte o MSI).

•USB3.0 pass-through x2 e prese audio.

•La potenza del PC, la funzione di reset sono facilmente accessibili sul pannello di controllo.

•Regolazione altezza del frontalino (75/80/85 CM).

•Carbonlike Surface Design.

•Telaio in acciaio saldato ad alta resistenza per la massima stabilità.

PORTUGUÊS

•Edges Design de bordas curvas ergonómicas e cantos arredondados.

•SideA asa lateral dupla: RGB efeitos de luz de fundo.

•Suporte para conexões de placa-mãe de 5V RGB (ASUS, ASRock, Gigabyte ou MSI).

•USB3.0 pass-through x2 e tomadas de áudio.

•PowerPC poder, função de reset são facilmente acessíveis no painel de controle.

•Adjustment Ajuste de altura do desktop (75/80/85 CM).

•Design de superfície de carbono.

•Estrutura de aço soldada de alta resistência para máxima estabilidade.

I

SPECIFICATIONS

Product Name COUGAR MARS Gaming Desk

Model No.

I/ O P anel

Desk Dimension

Desk Height

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)

A

После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.

После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,

B

и означают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.

A B C D E F G H I J
1 2 3 4 5 6 7 8 9 0

CGR-MARS

USB 3.0 x 2 / Audio Jacks x 2 /
Power button / Reset button / RGB button

153.3 (W) x 77.1 (D) mm / 60.4 (W) x 30.4 (D) inch

Three adjustment :
75 / 80 / 85 (H) cm

29.5 / 31.5 / 33.5 (H) inch

●

Например, AG = 17 = 2017 год

F

X2

H

E

X2

G

I

ACCESSORY KIT

1

2

3

4

5

6

7

Spare parts :

1 2

X2

x 2

x8

x44

x8

x4

x4

x4

x1

8

9

10

11

B

POWER SW

POWER SW

POWER SW

POWER SW

D

x1

x1

x1

RESET SW

RESET SW

x1

1

A

6

5

2 3 4

• Height Adjustment:
MARS gaming desk has three adjustment options: 75cm – 80cm – 85cm
(desktop to ground).
To strengthen the stability, please fasten TWO screws on each side.

B

C D

1

F

G

2

75cm

E

1

x4

5

6 7 8

x4

x4

80cm

85cm

J

• Please follow this step to assemble two sets.

2

9

x6

I

H

I

2

x8

10 12

2

11

x8

1

x4

2

Position and do not tighten
the screws.

!

K

L

x8

O

13

P

2

Position and do not tighten
the screws.

!

x8

16 Screws

!

Make sure the 16 screws are positioned
and then lock solidly truly.

M

4

x4

N

3

x8

When the control stands are uneven on the
gaming desk, they will be automatically
corrected when locking the screws.

!

To avoid the screw bosses are damaged,
please do not lock the screws too tight.

Mars Gaming Desk Connector Connecting dual side wing to controller

Controller

Mic connector

E

MIC SPK

Spk connector

F

Controller connector

C

Left wing

A

RGB connector

Right wing

B

RGB connector

D

USB 3.0

M

Left wing

A

RGB connector

Right wing

B

RGB connector

N

Connecting Controller to PC

STEP .1

5V Addressable RGB Header:
for Compatible ASUS, MSI ,
Gigabyte or ASRock Motherboards

Expand
other devices

Connect the Power SW &
Reset SW to Motherboard

POWER SW

POWER SW

RESET SW

POWER SW

POWER SW

SATA Connector
of the Power Supply
Cables

RESET SW

Side wing
connector

STEP .2

STEP .3

RGB connector

8

POWER SW

POWER SW

POWER SW

11

Connecting USB 3.0 to PC

x1

RESET SW

POWER SW

RESET SW

x1

Controller connector

C

Connecting Audio to PC

MIC

SPK

Controller Function

PC Power button

PC Reset button

RGB button

USB 3.0

HOW TO SWITCH BETWEEN RGB CONTROL MODES

Press and hold the RGB button for three seconds to Motherboard Driver RGB Control mode,
and the RGB button’s LED will be turn off. If you need to return to defalt mode, just press
the RGB button for one second.

Default: Control by RGB button

Press and hold the RGB button
for three seconds

Motherboard Driver RGB Control

Default : RGB Button Switch Mode

Flow

Yellow

>

>

Swift

Green

>

>

Breathing

Yellow-green

Press the RGB button
for one second

>

>

Red

Blue

>

>

Orange

Sky-blue

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR GAMING DESK

Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights granted under local law.
These rights may vary.

WARRANTY AGREEMENT

●

If the product has defects in material or manufacture, COUGAR will provide product repair and

replacement service within the warranty period.

●

Our warranty service is based on the date of the invoice or warranty card.

CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED

●

Any fault or damage caused by natural disasters (including storm, fire, flood, thunder, earthquake, etc).

●

Any fault or damage caused by accidental factors and man-made reasons (including hit, scrape, crash,

moving, compression, stain, corrosion, riot, misuse, malicious damage, etc).

●

Use in an improper operating environment (including high temperature, high humidity, water inflow, etc).

●

Inability to provide the product warranty card, purchase receipt or invoice to prove the product is still

within the warranty period and the shipping date of the product is out of warranty.

●

The warranty card has been altered or its number is hard to identify.

●

The warranty period has expired.

●

Any fault or damage caused by non-compliance with regulations stated on the user manual or improper,

rough and careless treatment.

●

Any fault or damage caused by use of parts not certified by COUGAR original manufacturer.

●

The problem is caused by improper repair or adjustment by the buyer or any manufacturer without

authorization from COUGAR.

●

The product is not acquired from an authorized distributor of the company or is acquired from illicit sources.

●

Paper carton, instruction and other accessories are not warranted.
DISCLAIMERS

●

COUGAR products should not be used as critical components in life support devices.

●

COUGAR is not liable for any damage of life and limb or damage or loss of property caused by or during
COUGAR products’ use as or with medical equipment, military equipment, traffic equipment and disaster
prevention systems.

●

COUGAR's warranty liability is limited to repair or replacement. The decision on whether to repair
or replace belongs exclusively to COUGAR.

●

COUGAR is, to the extent not prohibited by law, not liable for any damages; expenses; lost data,
revenues, savings or profits; or any incidental or consequential damages happened while the use
of a defective product from COUGAR or due to its use.

LEGAL NOTICES

This manual was created by Compucase Enterprise and may not be completely or partially
copied, passed on, distributed or stored without written consent by Compucase Enterprise.
COUGAR® is a registered brand of Compucase Enterprise Other product and company names
mentioned in this documentation may be brands or trademarks of their respective owners.
Compucase Enterprise reserves the right to make changes concerning the contents of the
manual and the technical data of the product without previous announcement.

MANUFACTURER CONTACT

Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C
Tel:[phone]

Service email : https://cougargaming.com/support/contact/upload/
Compucase Enterprise Co.,Ltd. All rights reserved. Made in China

WARNING

●

Please wear protective gloves when assembling the Desk. It is your own responsibility to use

>

>

appropriate protection to prevent any physical damage.

●

Do not use abrasive products or scrub energetically when cleaning. Please stick to gentle products

suitable for delicate materials.

●

All parts should be checked monthly to confirm their integrity and to make sure that the screws

are not loose.

●

If any part of the product is or appears to be damaged, missing or loose, please contact the local

distributor and do not use the product. WARNING

COUGAR USA Technical Service
Tel: [phone]
Mail: [e-mail]

Purple

>

Fuchsia

>

Pink

>

White

>

Lighting Off

www.cougargaming.com

facebook.com/cougargaming
youtube.com/user/COUGARGLOBAL
