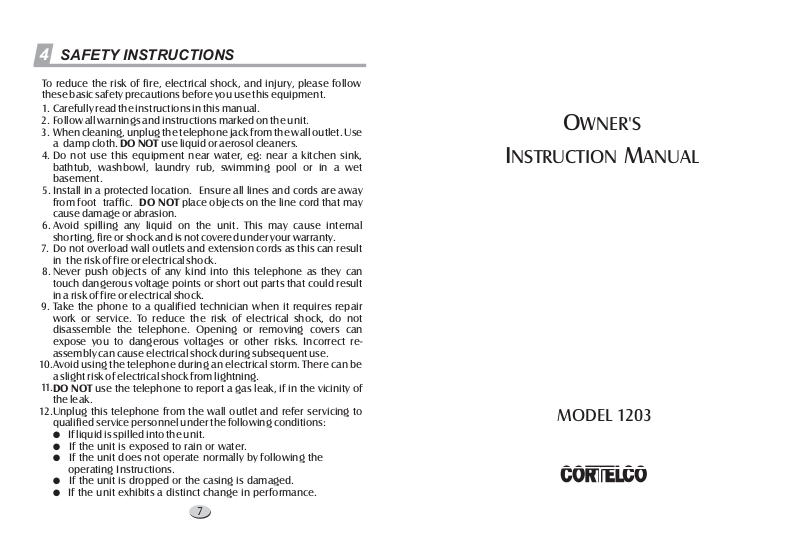

SAFETY INSTRUCTIONS
4
To reduce the risk of fire, electrical shock, and injury, please follow
these basic safety precautions before youuse this equipment.
1.
Carefully read the instructions in this manual.
2.
Follow all warnings and instructions marked onthe unit.
3.
When cleaning, unplug the telephone jack from the wall outlet. Use
a damp cloth. use liquid or aerosol cleaners.
Do not use this equipment near water, eg: near a kitchen sink,
4.
bathtub, washbowl, laundry rub, swimming pool or in a wet
basement.
Install in a protected location. Ensure all lines and cords are away
5.
from foot traffic. place objects on the line cord that may
cause damage or abrasion.
Avoid spilling any liquid on the unit. This may cause internal
6.
shorting, fireor shock and is not coveredunderyourwarranty.
Do not overload wall outlets and extension cords as this can result
7.
in the risk of fire or electrical shock.
Never push objects of any kind into this telephone as they can
8.
touch dangerous voltage points or short out parts that could result
in a risk of fire or electrical shock.
9.
Take the phone to a qualified technician when it requires repair
work or service. To reduce the risk of electrical shock, do not
disassemble the telephone. Opening or removing covers can
expose you to dangerous voltages or other risks. Incorrect reassembly can cause electricalshock during subsequent use.
Avoid using the telephone during an electrical storm. There can be
10.
a slight risk of electrical shock from lightning.
11.
DO NOT
the leak.
Unplug this telephone from the wall outlet and refer servicing to
12.
qualified service personnelunderthefollowingconditions:
l
If liquid is spilled into the unit.
l
If the unit is exposed to rain or water.
l
If the unit does not operate normally by following the
operating Instructions.
l
If the unit is dropped or the casing is damaged.
l
If the unit exhibits a distinct change in performance.
DO NOT
DO NOT
use the telephone to report a gas leak, if in the vicinity of
7
O
WNER'S
NSTRUCTION ANUAL
IM
MODEL 1203
LOCATION OF CONTROLS
1
Hook Switch
Memory
(M1~M5)
Message lamp
M1
M2
M3
M4
M5
VOL. VOL.
RING
SET
AUTO
PAUSE
FLASH
REDIAL
Memory
(M6~M10)
M6
M7
M8
M9
M10
VIP1
VIP2
MUTE
HOLD
SET
VIP
MUTE
HOLD
WALL INSTALLATION
3
1.
Slide the handset tab out and rotate it 180 degrees so that the hook
points up. This will hold the handset in the cradle when the phone is
mounted on the wall.
Remove the desk stand from the phone base (see diagram 2).
2.
Mount the phone on a standard telephone wall jack.
3.
Desk tab
position
Wall mount
tab position
Screw head
diagram 1
Wall
8.3cm
Handset
Speaker
Volume
AUTO
REDIAL
FLASH
diagram 3
diagram 2
1
6
B. To dial the number in memory
1.Lift the handset.
AUTO
2. Press .
3. Press the desiredMemory Button( ).
11. Hold button
To place a call on hold, press and hang up the handset. To retrieve the
call lift thehandset or go off hook on any other phoneconnectedto the line.
12. Headset button
The Headset jack will accept a 2.5mm headset plug. Please connect the
headset before beginning a call. Press button once to make or answera
call. Press itagaintoend the call.
13. Pause button
Pressing this button will insert a 3 second pause in the dialing sequence. This
is intended tobeusedwithmemor y dialing.
14. Phone resetting
Resetting the phone will erase all memory dial numbers and the redial
memory.
1.Lift the handset.
2. Dial *#0000*#.
3. Hang up the handset.
0~9
HOLD
Dialing mode
switch
Flash time
switch
Ringer volume
switch
5
2
OPERATIONS
2
1. Dial mode switch
This switch is located on the bottom of the telephone. For Tone Dialing, set
the switch to theTposition. For Pulse Dialing, set theswitchto the P position.
2.
Redial function
This feature allows you toredial the last phone number dialed.
a. Lift handset.
b. Press .REDIAL
3. Mute function
This feature allows you to turn off your telephone's microphone so that the
other party cannot hear you.
4. Flash button
Press FLASH instead of pressing the hook switch to activate services such as
Call Waiting or 3-Way Calling, or to activate certain PBX or Centrex features.
You may be required to press other buttons before or after you press .
Refer to the custom calling instructions provided by your local telephone
company or to the operatinginstructions providedwith your PBX.
5.
Flash time switch
You can adjust the flash time by using this switch located on the bottom of
your phone. There are3levelsavailable, , and (ms).
6. Ringer volume switch
There are 3 ringer levels ( , , and ). These may be selected by this
switch on the bottomofthetelephone.
HI LO OFF
100 300 600
FLASH
7. Speaker button
Use this button toactivatethe Speakerphone.
Turn on: Press the button. Hang up the handset if you are off hook.
A.
Turn off: To end a call, press the button. To continue a call, lift the
B.
handset.
8. Volume setting
Press the or buttons to adjust the receive volume during a
conversation. There are 4 levels. This button controls both the speaker and
handset receive levels.
9. One-touch memory
There are 12 memory locations( , and ) .
A. To store a number to memory
1.Lift the handset.
2. Press .
3. Dial the number to bestored(Press to insert a pause).
4. Press .
5. Press the desiredMemory Button.
B.
1.Lift the handset.
2. Press the desiredMemory Button.
10. Two-touch memory
There are 10two-touch memory locations.
A. To store a number to memory
1.
2.
3.
4.
5.
VOL.+ VOL.-
M1~M10 VIP1 VIP2
SET
SET
To dial a number stored in memory
Lift thehandset.
Press .
SET
Dial the number to bestored(Press to insert a pause).
Press .
SET
Press the desiredMemory Button( ).
PAUSE
PAUSE
0~9
3
4
