EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
Lab ID#: CR65001667
Receipt Date: Nov 19, 2018
Corsair RM650x (2018) (Sample #2)
Report: 20PS1667A
Test Date: Jun 18, 2020 Report Date: Jun 29, 2020
DUT INFORMATION
Brand Corsair
Manufacturer (OEM) Channel Well Technology
Series RMx
Model Number RPS0108
Serial Number 17477136000034430178
DUT Notes
DUT SPECIFICATIONS
Rated Voltage (Vrms) 100-240
Rated Current (Arms) 10-5
Rated Frequency (Hz) 47-63
Rated Power (W) 650
Type ATX12V
Cooling
Semi-Passive Operation ✓
Cable Design Fully Modular
135mm Rifle Bearing Fan
(NR135L)
POWER SPECIFICATIONS
Rail 3.3V 5V 12V 5VSB -12V
Max. Power
Total Max. Power (W) 650
Amps 25 25 54 3 0.8
Watts 130 648 15 9.6
CABLES AND CONNECTORS
Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-20AWG Yes
4+4 pin EPS12V (650mm) 1 1 18AWG Yes
6+2 pin PCIe (600mm+150mm) 2 4 18AWG Yes
SATA (520mm+110mm+110mm) 3 9 18AWG No
4 pin Molex (450mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (+100mm) 1 1 20AWG No
AC Power Cord (1430mm) - C13 coupler 1 1 18AWG -
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 1/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
Corsair RM650x (2018) (Sample #2)
RESULTS
Temperature Range (°C /°F) 30-32 / 86-89.6
ErP Lot 3/6 Ready ✓
(EU) No 617/2013 Compliance ✓
115V
Average Efficiency 87.299%
Efficiency With 10W (≤500W) or 2% (>500W) 54.449
Average Efficiency 5VSB 77.413%
Standby Power Consumption (W) 0.0329748
Average PF 0.990
Avg Noise Output 16.44 dB(A)
Efficiency Rating (ETA) ETA-A-
Noise Rating (LAMBDA) LAMBDA-A+
230V
Average Efficiency 89.268%
Average Efficiency 5VSB 77.253%
Standby Power Consumption (W) 0.0465607
Average PF 0.960
Avg Noise Output 16.35 dB(A)
Efficiency Rating (ETA) ETA-A-
Noise Rating (LAMBDA) LAMBDA-A+
TEST EQUIPMENT
Chroma 63601-5 x4
Electronic Loads
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
HOLD-UP TIME & POWER OK SIGNAL (230V)
Hold-Up Time (ms) 19.4
AC Loss to PWR_OK Hold Up Time (ms) 19.2
PWR_OK Inactive to DC Loss Delay (ms) 0.2
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 2/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
EFFICIENCY UNDER HIGH AMBIENT TEMPERATURE
Corsair RM650x (2018) (Sample #2)
INFO
The PSU`s efficiency under high ambient
temperatures with 115V and 230V input. For this
graph the results of the 10-110% load regulation
table are used
5VSB EFFICIENCY
INFO
This graph depicts the efficiency levels of the 5VSB
rail with 115V and 230V input
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 3/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
Corsair RM650x (2018) (Sample #2)
5VSB EFFICIENCY -115V (ERP LOT 3/6 & CEC)
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1
2
3
4
5
6
0.045A 0.227
71.609%
5.039V 0.317 115.14V
0.090A 0.454
75.667%
5.037V 0.600 115.14V
0.550A 2.763
79.011%
5.022V 3.497 115.14V
1.000A 5.008
78.140%
5.007V 6.409 115.14V
1.500A 7.490
77.600%
4.993V 9.652 115.14V
3.001A 14.829
75.910%
4.942V 19.535 115.14V
0.031
0.059
0.253
0.339
0.388
0.451
5VSB EFFICIENCY -230V (ERP LOT 3/6 & CEC)
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1
2
3
4
5
6
0.045A 0.227
66.569%
5.039V 0.341 230.27V
0.090A 0.454
72.408%
5.037V 0.627 230.27V
0.550A 2.763
77.612%
5.022V 3.560 230.27V
1.000A 5.008
78.043%
5.007V 6.417 230.27V
1.500A 7.489
77.719%
4.992V 9.636 230.27V
3.000A 14.823
76.811%
4.941V 19.298 230.26V
0.010
0.018
0.099
0.164
0.220
0.318
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 4/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
Corsair RM650x (2018) (Sample #2)
115V
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 5/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex

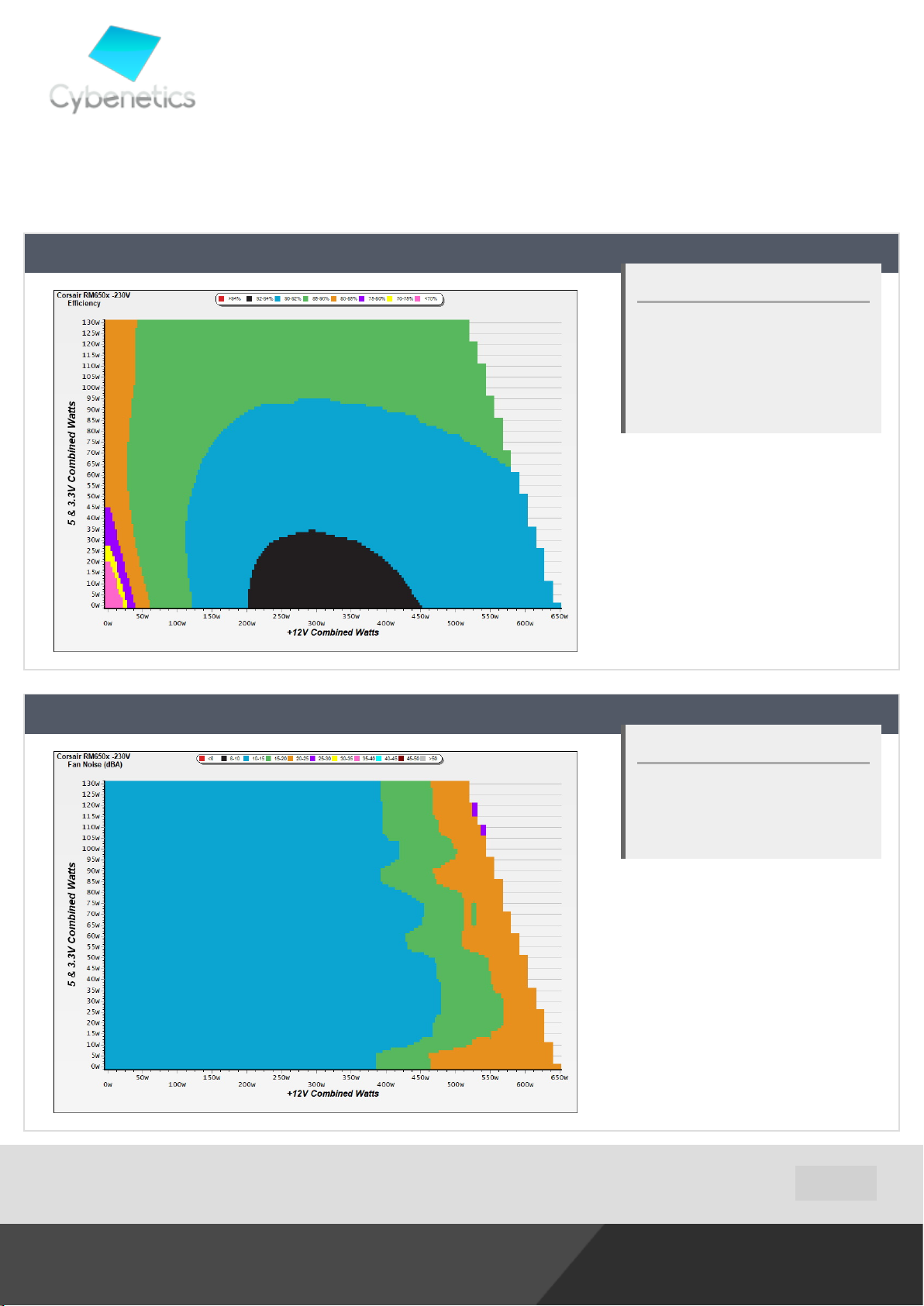

EFFICIENCY GRAPH 115V
Corsair RM650x (2018) (Sample #2)
INFO
This graph depicts the PSU’s efficiency throughout
its entire operational range. For the generation of
the efficiency and noise graphs we set our loaders
to auto mode through our custom-made software
before trying thousands of possible load
combinations
NOISE GRAPH 115V
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
INFO
The PSU’s noise in its entire operational range and
under 30-32 °C ambient is depicted in this graph.
The X axis represents the load on the +12V rail(s)
while the Y axis is the load on the minor rails
PAGE 6/15
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
VAMPIRE POWER -115V
Corsair RM650x (2018) (Sample #2)
INFO
This graph is generated by the PPA Standby Power
Analysis software which takes full control of the
power analyzer during the whole procedure. This
application features all of the EN50564 &
IEC62301 test limits for standby power software
testing
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 7/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
10-110% LOAD TESTS 115V
Test # 12V 5V 3.3V 5VSB
3.596A 1.993A 1.990A 1.001A 64.978
1
12.064V 5.016V 3.316V 4.995V 76.208 40.24°C 115.15V
8.226A 2.995A 2.991A 1.203A 130.067
2
12.053V 5.012V 3.312V 4.989V 146.109 40.40°C 115.14V
13.204A 3.495A 3.491A 1.406A 195.085
3
12.044V 5.009V 3.308V 4.980V 216.894 46.46°C 115.14V
18.196A 3.998A 3.994A 1.609A 260.106
4
12.030V 5.005V 3.304V 4.973V 288.633 47.83°C 115.14V
22.856A 5.001A 5.001A 1.813A 325.155
5
12.016V 5.001V 3.300V 4.966V 361.592 49.11°C 115.14V
DC/AC
(Watts)
Corsair RM650x (2018) (Sample #2)
Efficiency
85.264% 0 <6.0
89.021% 0 <6.0
89.945% 623 11.1
90.117% 624 11.2
89.923% 623 11.1
Fan Speed
(RPM)
PSU Noise
(dB[A])
Temps
(In/Out)
44.05°C 0.972
44.79°C 0.988
41.40°C 0.992
42.18°C 0.993
42.74°C 0.994
PF/AC
Volts
6
7
8
9
10
11
CL1
CL2
27.483A 6.005A 6.006A 2.001A 389.614
89.379% 623 11.1
12.003V 4.998V 3.296V 4.961V 435.914 49.85°C 115.14V
32.183A 7.012A 7.021A 2.221A 455.010
88.710% 783 18.9
11.990V 4.994V 3.292V 4.955V 512.916 51.61°C 115.13V
36.894A 8.004A 8.034A 2.426A 520.241
87.789% 946 25.7
11.977V 4.991V 3.287V 4.949V 592.601 52.29°C 115.13V
42.013A 8.525A 8.529A 2.427A 585.214
87.075% 1100 30.6
11.965V 4.987V 3.284V 4.947V 672.081 54.03°C 115.13V
46.881A 9.033A 9.056A 3.046A 650.050
86.239% 1222 34.0
11.952V 4.984V 3.280V 4.926V 753.780 55.71°C 115.12V
52.348A 9.035A 9.065A 3.048A 714.863
85.482% 1411 37.9
11.942V 4.982V 3.277V 4.923V 836.278 58.02°C 115.12V
0.102A 16.006A 15.998A 0.000A 133.779
79.947% 700 15.2
12.032V 4.991V 3.292V 5.058V 167.335 49.49°C 115.15V
54.019A 1.000A 1.000A 1.000A 659.652
87.231% 1219 33.8
11.966V 4.999V 3.293V 4.969V 756.210 55.97°C 115.13V
42.81°C 0.993
43.87°C 0.993
43.98°C 0.994
44.95°C 0.994
45.56°C 0.995
46.57°C 0.996
42.48°C 0.991
45.98°C 0.995
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 8/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
20-80W LOAD TESTS 115V
Test # 12V 5V 3.3V 5VSB
1.230A 0.499A 0.497A 0.199A 20.003
1
12.073V 5.021V 3.320V 5.016V 27.843 115.15V
2.460A 0.997A 0.995A 0.399A 39.995
2
12.069V 5.019V 3.318V 5.010V 49.480 115.15V
3.694A 1.496A 1.492A 0.600A 60.026
3
12.065V 5.017V 3.317V 5.005V 70.749 115.15V
4.922A 1.995A 1.993A 0.800A 79.978
4
12.061V 5.016V 3.315V 5.000V 92.171 115.15V
RIPPLE MEASUREMENTS 115V
DC/AC
(Watts)
Corsair RM650x (2018) (Sample #2)
Efficiency
71.842% 0 <6.0
80.831% 0 <6.0
84.844% 0 <6.0
86.771% 0 <6.0
Fan Speed
(RPM)
PSU Noise
(dB[A])
PF/AC Volts
0.860
0.944
0.967
0.977
Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.30mV 5.40mV 8.40mV 3.70mV Pass
20% Load 5.40mV 5.20mV 8.60mV 3.80mV Pass
30% Load 8.00mV 5.60mV 9.10mV 4.10mV Pass
40% Load 7.60mV 9.50mV 11.00mV 7.60mV Pass
50% Load 6.60mV 7.90mV 10.20mV 6.40mV Pass
60% Load 6.80mV 7.10mV 10.00mV 5.40mV Pass
70% Load 6.90mV 6.90mV 9.20mV 5.20mV Pass
80% Load 10.70mV 9.00mV 12.90mV 7.20mV Pass
90% Load 10.20mV 8.70mV 12.20mV 6.60mV Pass
100% Load 10.20mV 8.90mV 12.10mV 6.90mV Pass
110% Load 10.50mV 10.30mV 12.10mV 8.10mV Pass
Crossload1 11.30mV 8.90mV 12.60mV 6.60mV Pass
Crossload2 9.80mV 7.50mV 12.40mV 6.00mV Pass
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 9/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
Corsair RM650x (2018) (Sample #2)
230V
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 10/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
EFFICIENCY GRAPH 230V
Corsair RM650x (2018) (Sample #2)
INFO
This graph depicts the PSU’s efficiency throughout
its entire operational range. For the generation of
the efficiency and noise graphs we set our loaders
to auto mode through our custom-made software
before trying thousands of possible load
combinations
NOISE GRAPH 230V
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
INFO
The PSU’s noise in its entire operational range and
under 30-32 °C ambient is depicted in this graph.
The X axis represents the load on the +12V rail(s)
while the Y axis is the load on the minor rails
PAGE 11/15
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
VAMPIRE POWER -230V
Corsair RM650x (2018) (Sample #2)
INFO
This graph is generated by the PPA Standby Power
Analysis software which takes full control of the
power analyzer during the whole procedure. This
application features all of the EN50564 &
IEC62301 test limits for standby power software
testing
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 12/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
10-110% LOAD TESTS 230V
Test # 12V 5V 3.3V 5VSB
3.594A 1.994A 1.993A 1.001A 64.968
1
12.064V 5.016V 3.316V 4.994V 75.331 40.65°C 230.26V
8.225A 2.994A 2.989A 1.203A 130.039
2
12.053V 5.012V 3.311V 4.988V 144.057 40.72°C 230.27V
13.201A 3.494A 3.493A 1.406A 195.048
3
12.044V 5.008V 3.308V 4.980V 213.191 46.73°C 230.27V
18.196A 3.996A 3.996A 1.609A 260.059
4
12.028V 5.004V 3.304V 4.971V 282.808 47.71°C 230.27V
22.855A 5.001A 5.000A 1.813A 325.105
5
12.015V 5.000V 3.299V 4.965V 353.779 48.16°C 230.26V
DC/AC
(Watts)
Corsair RM650x (2018) (Sample #2)
Efficiency
86.243% 0 <6.0
90.269% 0 <6.0
91.490% 625 11.2
91.956% 625 11.2
91.895% 624 11.2
Fan Speed
(RPM)
PSU Noise
(dB[A])
Temps
(In/Out)
44.83°C 0.808
45.42°C 0.924
41.02°C 0.957
41.59°C 0.971
41.60°C 0.978
PF/AC
Volts
6
7
8
9
10
11
CL1
CL2
27.474A 6.007A 6.010A 2.000A 389.504
91.642% 624 11.2
12.003V 4.996V 3.295V 4.960V 425.026 50.43°C 230.27V
32.176A 7.013A 7.020A 2.222A 454.907
91.240% 733 16.7
11.990V 4.992V 3.291V 4.953V 498.582 51.22°C 230.27V
36.884A 8.003A 8.034A 2.427A 520.129
90.763% 937 25.1
11.978V 4.988V 3.287V 4.947V 573.063 52.22°C 230.27V
42.005A 8.529A 8.531A 2.428A 585.121
90.332% 1063 29.3
11.965V 4.985V 3.283V 4.945V 647.748 53.70°C 230.27V
46.865A 9.037A 9.059A 3.047A 649.946
89.792% 1228 34.1
11.954V 4.981V 3.279V 4.924V 723.838 55.71°C 230.27V
52.335A 9.042A 9.067A 3.050A 714.767
89.330% 1393 37.6
11.943V 4.979V 3.276V 4.920V 800.138 58.24°C 230.27V
0.101A 16.005A 16.000A 0.000A 133.736
81.951% 682 14.2
12.030V 4.989V 3.292V 5.056V 163.191 48.55°C 230.28V
54.014A 1.000A 1.000A 1.000A 659.640
90.620% 1219 33.8
11.967V 4.997V 3.291V 4.966V 727.915 55.01°C 230.27V
43.12°C 0.982
43.32°C 0.984
43.82°C 0.986
44.06°C 0.988
45.54°C 0.989
46.67°C 0.990
41.94°C 0.937
45.35°C 0.989
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 13/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
20-80W LOAD TESTS 230V
Test # 12V 5V 3.3V 5VSB
1.230A 0.497A 0.498A 0.199A 19.996
1
12.073V 5.021V 3.320V 5.016V 27.754 230.27V
2.460A 0.996A 0.994A 0.399A 39.986
2
12.069V 5.019V 3.318V 5.010V 49.037 230.27V
3.694A 1.495A 1.491A 0.600A 60.016
3
12.065V 5.017V 3.317V 5.005V 70.055 230.27V
4.922A 1.994A 1.990A 0.800A 79.968
4
12.062V 5.016V 3.315V 5.000V 90.912 230.27V
RIPPLE MEASUREMENTS 230V
DC/AC
(Watts)
Corsair RM650x (2018) (Sample #2)
Efficiency
72.047% 0 <6.0
81.543% 0 <6.0
85.670% 0 <6.0
87.962% 0 <6.0
Fan Speed
(RPM)
PSU Noise
(dB[A])
PF/AC Volts
0.482
0.678
0.789
0.850
Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.50mV 5.20mV 9.30mV 3.70mV Pass
20% Load 5.40mV 5.30mV 9.60mV 3.50mV Pass
30% Load 8.20mV 5.50mV 9.50mV 4.10mV Pass
40% Load 6.90mV 9.10mV 10.90mV 7.40mV Pass
50% Load 6.90mV 8.80mV 10.70mV 6.80mV Pass
60% Load 6.50mV 6.70mV 9.50mV 5.60mV Pass
70% Load 6.90mV 7.10mV 10.40mV 5.50mV Pass
80% Load 6.90mV 8.80mV 11.30mV 6.70mV Pass
90% Load 7.00mV 8.30mV 10.40mV 6.30mV Pass
100% Load 10.60mV 8.40mV 12.30mV 6.60mV Pass
110% Load 10.40mV 9.70mV 12.60mV 8.20mV Pass
Crossload1 11.00mV 9.00mV 13.40mV 7.00mV Pass
Crossload2 10.10mV 7.20mV 12.20mV 5.70mV Pass
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 14/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
Top side
Power specifications label
LEVEL CERTIFICATIONS
Anex
Corsair RM650x (2018) (Sample #2)
CERTIFICATIONS 115V
CERTIFICATIONS 230V
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 15/15
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
Loading...
