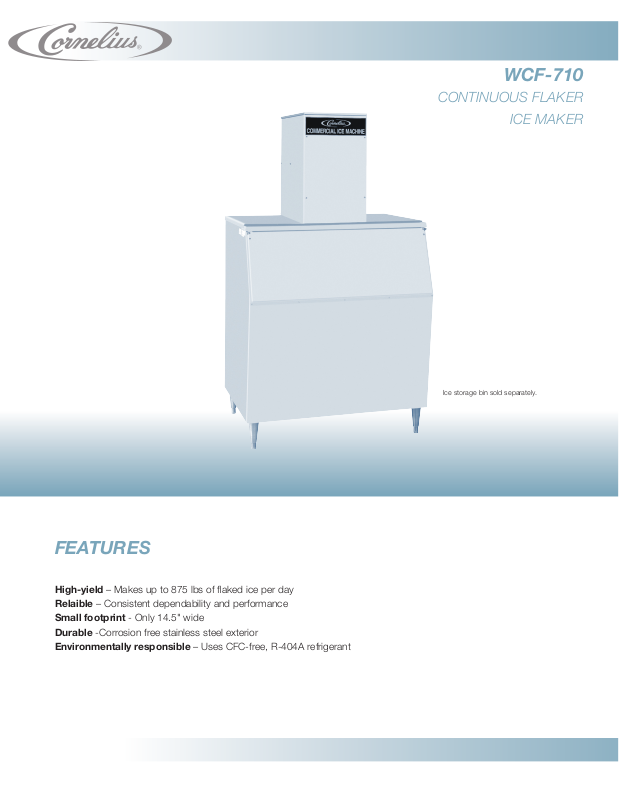

WCF-710
CONTINUOUS FLAKER
ICE MAKER
FEATURES
High-yield – Makes up to 875 lbs of flaked ice per day
Relaible – Consistent dependability and performance
Small footprint - Only 14.5" wide
Durable -Corrosion free stainless steel exterior
Environmentally responsible – Uses CFC-free, R-404A refrigerant
Ice storage bin sold separately.
25.50 in
14.50 in
Bin control probe
Front
3.50 in
2.06 in
WCF-710 Remote
25.00 in
14.21 in
8.00 in
1.76 in
1.25 in
Ice discharge
4.00 in
Water 1/4 Flare
Drain 3/8 Tygon Tube
Electrical 7/8 Diameter
Refrigerant, Suction Line
Refrigerant, Liquid Line
3.5 in
1.25 in
5.75 in
31⁄2"
21⁄16" 141⁄4"
Bottom View
Bin control probe
Ice discharge
⁄16"
3
10
+
11⁄2"
+ +
13
⁄16"
1
"
⁄4
⁄4"
1
3
1
1
+ +
⁄16"
⁄2"
3
1
2
1
Back View
(Air or Water Cooled
Inlet 3/8" FPT
Outlet 3/8" FPT
Drain 3/8" ID Tygon tube
Water in 1/4" flare
Electric 7/8" Dia.
21⁄16"
(Water cooled only)
(Water cooled only)
Ice making capacities
PART
NUMBER
MODEL
NUMBER
CONDENSER PRODUCTION 70˚/50˚
569200005 WCF-710A Air
90 80 70 60 50
Water Temperature Deg. F
50 70 90 100
Ambient Deg. F
875 lb (398 kg)
SHIPPING
WEIGHT
163 lb (74 kg)
569200080 WCF-710R* Remote 138 lb/63 kg
*WCF-1101R Remote requires WC1 Condenser and Line Set
1000
900
800
700
600
500
Capacity Lbs./24 hr.
115 V / 60 Hz 110-126 V569200006 WCF-710W Water
ELECTRICAL
VOLTAGE
RANGE
TECHNICAL SPECIFICATIONS
DESCRIPTION ................ Continuous ice flaker
COMPRESSOR ............... 3/4 HP
REFRIGERANT ............... CFC-Free, R-404A
MINIMUM CIRCUIT ............ 20 Amps
CABINET CONSTRUCTION ..... Stainless steel
IN THE U.S.A.
Ph: 800.238.3600
Fax: 800.258.0255
© 2014 CORNELIUS CATG8254-0214
For more information or to place an order, contact your sales representative or authorized distributor.
DIMENSIONS................. 24.5"H x 14.5"W x 25"D
(62.23 cm x 36.83 cm x
63.50 cm)
OPERATING WEIGHT .......... 152 lb (69 kg)
AGENCY LISTINGS ............
OUTSIDE THE U.S.A.
Ph: 763.488.8200
Email: webmaster@cornelius.com
101 Broadway Street West
Osseo, MN 55369
www.cornelius.com
