Cornelius WCF-710 User Manual
WCF-710

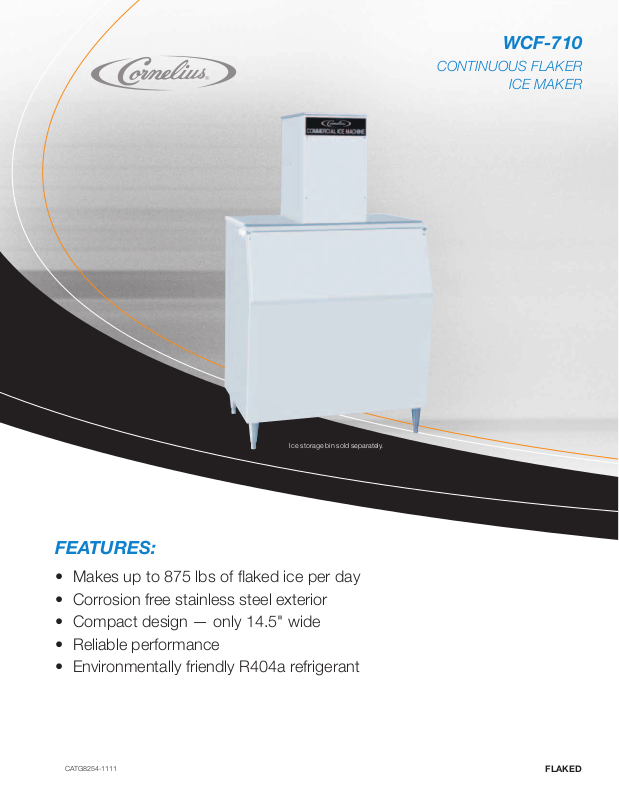

Continuous Flaker
iCe Maker
Ice storage bin sold separately.
FEATURES:
• Makes up to 875 lbs of flaked ice per day
• Corrosion free stainless steel exterior
• Compact design — only 14.5" wide
• Reliable performance
• Environmentally friendly R404a refrigerant
CATG8254-1111
flaked
Part
number
569200005 WCF-710A Air
model
number
Condenser ProduCtion 70˚/50˚
875 lb (398 kg)
shiPPing
weight
163 lb (74 kg)
569200080 WCF-710R* Remote 138 lb/63 kg
*WCF-1101R Remote requires WC1 Condenser and Line Set
eleCtriCal
115 V / 60 Hz 110-126 V569200006 WCF-710W Water
Voltage
range
25.50 in
14.50 in
Bin control probe
Front
3.50 in
2.06 in
WCF-710 Remote
25.00 in
14.21 in
8.00 in
1.76 in
1.25 in
Ice discharge
Water 1/4 Flare
Drain 3/8 Tygon Tube
4.00 in
Electrical 7/8 Diameter
Refrigerant, Suction Line
Refrigerant, Liquid Line
3.5 in
1.25 in
5.75 in
31⁄2"
21⁄16" 141⁄4"
Ice making capacities
90 80 70 60 50
Water Temperature Deg. F
50 70 90 100
Ambient Deg. F
Bin control probe
Ice discharge
Bottom View
1000
900
800
700
600
500
⁄16"
3
10
+
11⁄2"
+ +
13
⁄16"
1
Capacity Lbs./24 hr.
"
⁄4
⁄4"
1
3
1
1
+ +
⁄16"
⁄2"
3
1
2
1
Back View
(Air or Water Cooled
Inlet 3/8" FPT
Outlet 3/8" FPT
Drain 3/8" ID Tygon tube
Water in 1/4" flare
Electric 7/8" Dia.
21⁄16"
(Water cooled only)
(Water cooled only)
TECHNICAL SPECIFICATIONS:
DESCRIPTION . . . . . . . . . . . . . . . . Continuous ice flaker
COMPRESSOR . . . . . . . . . . . . . . . 3/4 HP
REFRIGERANT . . . . . . . . . . . . . . . CFC-Free, R-404A
MINIMUM CIRCUIT . . . . . . . . . . . . 20 Amps
CABINET CONSTRUCTION . . . . . Stainless steel
IN THE U.S.A.
Ph: 800.238.3600
Fax: 800.258.0255
© 2011 IMI CORNELIUS
For more information or to place an order, contact your sales representative or authorized distributor.
DIMENSIONS. . . . . . . . . . . . . . . . . 24.5"H x 14.5"W x 25"D
(62.23 cm x 36.83 cm x
63.50 cm)
OPERATING WEIGHT . . . . . . . . . . 152 lb (69 kg)
AGENCY LISTINGS . . . . . . . . . . . .
OUTSIDE THE U.S.A.
Ph: 763.488.8200
Email: webmaster@cornelius.com
101 Broadway Street West
Osseo, MN 55369
www.cornelius.com
