Cornelius WCF-2200 User Manual

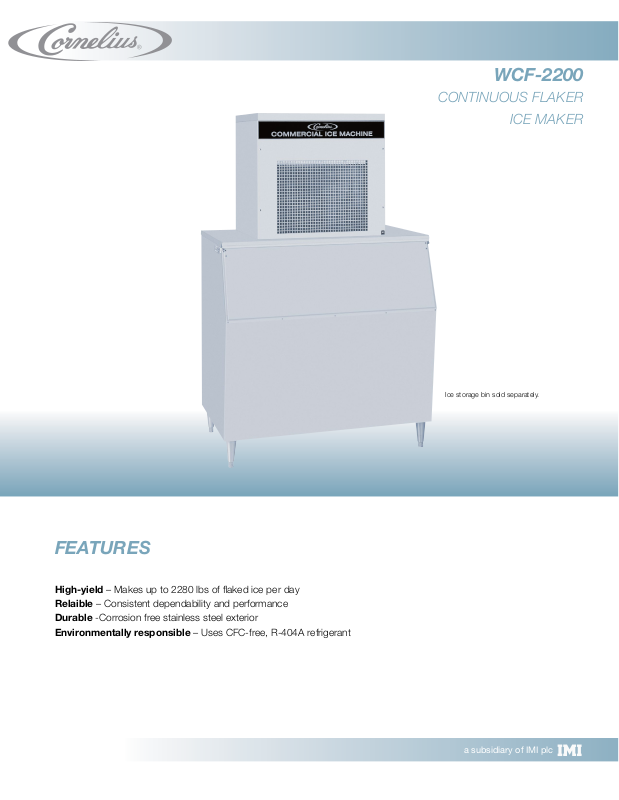

WCF-2200
continuous flaker
ice maker
FEATURES
High-yield – Makes up to 2280 lbs of flaked ice per day
Relaible – Consistent dependability and performance
Durable -Corrosion free stainless steel exterior
Environmentally responsible – Uses CFC-free, R-404A refrigerant
Ice storage bin sold separately.
a subsidiary of IMI plc
Ice making capacities
90 80 70 60 50
50 70 90 100
Water Temperature Degrees in Fahrenheit
Ambient Degrees in Fahrenheit
3000
2500
2000
1500
1000
500
0
Capacity Lbs./24 hr.
PART NO MODEL NO CONDENSER
PRODUCTION
70˚/50˚
ELECTRICAL VOLTAGE RANGE
569200082 WCF-2201A Air 2280 lb (1035 kg) 208-230 V / 60 Hz
569200335 WCF-2202A Air 1915 lb (869 kg) 208-230 V / 50 Hz
569200339 WCF-2201R* Remote 2280 lb (1035 kg)
*WCF-2201R Remote requires CR1200 condenser and line set.
TECHNICAL SPECIFICATIONS
COMPRESSOR ............... 2 HP
REFRIGERANT ............... CFC-Free, R-404A
MINIMUM CIRCUIT ............ 25 Amps
CABINET CONSTRUCTION ..... Stainless steel
DIMENSIONS................. 28"H x 30"W x 24"D
(71.12 cm x 76.2 cm x
60.96 cm)
OPERATING WEIGHT .......... 317 lb (144 kg)
SHIPPING WEIGHT ............342 lb (155 kg)
AGENCY LISTINGS ............
198-253 V
© 2012 IMI CORNELIUS
CATG8227-1212
IN THE U.S.A.
