IMI CORNELIUS INC g One Cornelius Place g Anoka, MN 55303-6234
Telephone (800) 238-3600 Facsimile (612) 422-3246
Installation Manual
1550 UNIVERSAL BEER DISPENSER
(R-404A REFRIGERANT)
Part No. 569000246
August 11, 1998
Revised: June 11, 1999
Control Code A
THIS DOCUMENT CONTAINS IMPORTANT INFORMATION
This Manual must be read and understood before installing or operating this equipment
IMI CORNELIUS INC; 1998–99
PRINTED IN U.S.A
TABLE OF CONTENTS
SAFETY INFORMATION 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RECOGNIZE SAFETY INFORMATION 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UNDERSTAND SIGNAL WORDS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FOLLOW SAFETY INSTRUCTIONS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CO2 (CARBON DIOXIDE) WARNING 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SHIPPING, STORING, OR RELOCATING UNIT 1. . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL INFORMATION 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL DESCRIPTION 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARRANTY REFERENCE INFORMATION 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESIGN DATA 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
THEORY OF OPERATION 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UNPACKING AND INSPECTION 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SELECTING LOCATION 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLING ELECTRICAL OUTLET (ITEM 4) 8. . . . . . . . . . . . . . . . . . . . . . . . . . .
SEALING UNIT TO FLOOR REQUIREMENT (UNIT NOT EQUIPPED WITH
HANDLE AND WHEELS) 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FILL WATER TANK AND START REFRIGERATION SYSTEM 8. . . . . . . . . . . . . .
CONNECTING CO2 SYSTEM TO BEER KEG TAPPERS 9. . . . . . . . . . . . . . . . .
CONNECTING BEER SOURCE SUPPLIES TO UNIT 9. . . . . . . . . . . . . . . . . . . . .
PREPARING UNIT FOR OPERATION 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UNIT OPERATION 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATOR’S INSTRUCTIONS 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page
PROPER BEER STORAGE 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATING CONTROLS 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BEER FAUCET 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UNIT POWER SWITCH (115 VAC, 60 HZ UNIT ONLY) 11. . . . . . . . . . . . . . . . . . . .
UNIT OPERATION 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DAILY PRE-OPERATION CHECK 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATING CLEARANCES 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTMENTS 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTING CO2 REGULATORS 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTING DISPENSED BEER FLOW RATE 12. . . . . . . . . . . . . . . . . . . . . . . . . . .
COOLING UNIT MAINTENANCE 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING CONDENSER COIL 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING ICE WATER BATH 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND SANITIZING 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DAILY CLEANING 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SANITIZING BEER SYSTEMS 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLENISHING CO2 SUPPLY 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLENISHING BEER SUPPLY 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING CO2 SYSTEM GAS CHECK VALVES 13. . . . . . . . . . . . . . . . . . . . . . . . . .
i
569000246
TABLE OF CONTENTS (cont’d)
SERVICE AND MAINTENANCE 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PREPARING UNIT FOR SHIPPING, RELOCATING, OR STORING 15. . . . . . . . . .
ADJUSTMENTS 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UNIT MAINTENANCE 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING CONDENSER COIL 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING ICE WATER BATH 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING WATER TANK 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND SANITIZING 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DAILY CLEANING 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SANITIZE BEER SYSTEMS 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLENISHING CO2 SUPPLY 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLENISHING BEER SUPPLY 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING CO2 GAS CHECK VALVE 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NO CO2 GAS PRESSURE ON BEER SYSTEMS. 25. . . . . . . . . . . . . . . . . . . . . . . . .
INSUFFICIENT CO2 GAS PRESSURE ON BEER SYSTEMS. 25. . . . . . . . . . . . . . .
DISPENSED BEER FLOW RATE TOO LOW. 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DISPENSED BEER FLOW RATE TOO HIGH. 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OFF-TASTE BEER (SOUR AND UNPALATABLE). 26. . . . . . . . . . . . . . . . . . . . . . . . .
DISPENSED BEER FLAT (DISAPPEARING FOAM). 26. . . . . . . . . . . . . . . . . . . . . . .
DISPENSED BEER TEMPERATURE TOO WARM 26. . . . . . . . . . . . . . . . . . . . . . . . .
EXCESSIVE FOAMING (WILD BEER) WHILE BEER IS BEING DISPENSED. 26.
COMPRESSOR DOES NOT OPERATE. 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COMPRESSOR WILL NOT STOP AFTER GLYCOL (COOLANT) HAS BEEN
SUFFICIENTLY COOLED. 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COMPRESSOR OPERATES CONTINUOUSLY BUT DOES NOT COOL
GLYCOL (COOLANT) SUFFICIENTLY. 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CONDENSER FAN MOTOR NOT OPERATING. 27. . . . . . . . . . . . . . . . . . . . . . . . . . .
REFRIGERATION COMPRESSOR NOT OPERATING 28. . . . . . . . . . . . . . . . . . . . .
WARRANTY 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page
LIST OF FIGURES
FIGURE 1. 1550 UNIVERSAL BEER DISPENSER 4. . . . . . . . . . . . . . . . . . . . . . . . .
FIGURE 2. FLOW DIAGRAM 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FIGURE 3. 1550 UNIVERSAL BEER DISPENSER 12. . . . . . . . . . . . . . . . . . . . . . . . .

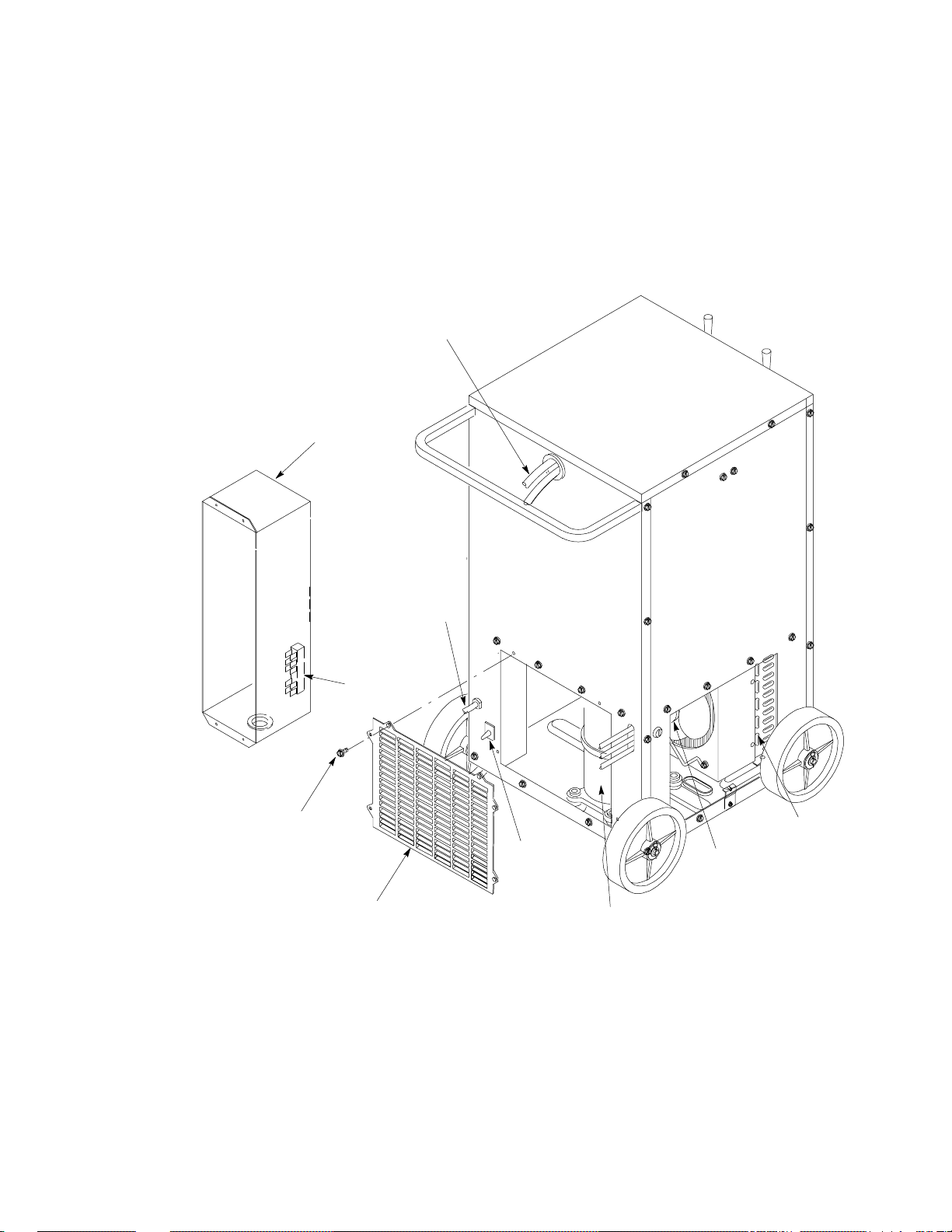

FIGURE 4. DISPENSER COMPONENTS 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FIGURE 5. PARTS IDENTIFICATION 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FIGURE 6. BEER FAUCET ADJUSTMENT 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FIGURE 7. CO2 GAS CHECK VALVE 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FIGURE 8. WIRING DIAGRAM 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LIST OF TABLES
TABLE 1. DESIGN DATA 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TABLE 2. LOOSE-SHIPPED PARTS 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
569000246
ii
SAFETY INFORMATION
Recognize Safety Information
This is the safety-alert symbol. When you see this
symbol on our machine or in this manual, be alert to
the potentially of personal injury.
Follow recommended precautions and safe operating
practices.
Understand Signal Words
A signal word - DANGER, WARNING, OR CAUTION
is used with the safety-alert symbol. DANGER identi-
fies the most serious hazards.
DANGER
Safety signs with signal word DANGER or WARNING
are typically near specific hazards.
General precautions are listed on CAUTION safety
signs. CAUTION also calls attention to safety messages in this manual.
WARNING
CAUTION
Follow Safety Instructions
Carefully read all safety messages in this manual and on your machine safety signs. Keep safety signs in
good condition. Replace missing or damaged safety signs. Learn how to operate the machine and how to
use the controls properly. Do not let anyone operate the machine without instructions. Keep your machine in
proper working condition. Unauthorized modifications to the machine may impair function and/or safety and
affect the machine life.
CO2 (Carbon Dioxide) Warning
CO2 Displaces Oxygen. Strict Attention must be observed in the prevention of CO2 (carbon dioxide)
gas leaks in the entire CO2 system. If a CO2 gas leak is suspected, particularly in a small area, im-
mediately ventilate the contaminated area before attempting to repair the leak. Personnel exposed to
high concentration of CO2 gas will experience tremors which are followed rapidly by loss of consciousness and suffocation.
Shipping, Storing, Or Relocating Unit
CAUTION: Before shipping, storing, or relocating this Unit, the beer systems must be sanitized and
all sanitizing solution must be purged from the beer systems. A freezing ambient temperature will
cause residual water remaining inside the Unit to freeze resulting in damage to internal components
of the Unit.
1 569000246
THIS PAGE LEFT BLANK INTENTIONALLY
2569000246
GENERAL INFORMATION
IMPORTANT: To the user of this manual – This manual is a guide for installing, operating, and main-
taining this equipment. Refer to the Table of Contents for page location for detailed information pertaining to questions that arise during installation, operation, service, or maintenance of this equipment.
GENERAL DESCRIPTION
The 1550 Universal Beer Dispenser (see Figure 1) is equipped with manually operated self-closing beer faucets.
The Unit that is not equipped with a handle and wheels may be installed free standing or under a counter or bar.
The Unit that is equipped with a handle and wheels makes it a mobile Unit. The refrigeration system is equipped
with a 3/4 H.P. compressor that is easily accessible for service and maintenance.
This Unit must be installed and serviced by a qualified Service Person. This Unit contains no User serviceable
parts.
Installation of LOOSE-SHIPPED PARTS (see Table 2), filling the water tank with water, connection to beer kegs
with regulated CO2 gas pressure, and connection to an electrical outlet with proper electrical requirements is all
that is required to set the Unit up for operation.
W ARRANTY REFERENCE INFORMATION
Warranty Registration Date
(to be filled out by customer)
Unit Part Number:
Serial Number:
Install Date:
Local Authorized
Service Center:
DESIGN DATA
Table 1. Design Data
Unit Part Numbers: See Unit Nameplate
Overall Dimensions:
Height 42-1/2 inches
Width 21-3/4-inches
Depth (with drip tray) 31–1/2 inches
Weights:
Shipping (1 Carton) 189 pounds
Dry Weight 170 pounds
With Water Tank Full of Water 403 pounds
Ice Bank Weight 120 pounds
Capacities:
Unit Water Bath (no ice bank) approx. 28 gallons
Refrigerant Requirement See Unit Nameplate
Ambient Operating Temperature 40° F to 100° F
3 569000246
Table 1. Design Data (cont’d)
Electrical Requirements:
Operating Voltage See Unit Nameplate
Current Draw See Unit Nameplate
THEORY OF OPERATION
(see Figure 2)
A CO2 cylinder delivers carbon dioxide (CO2) gas through adjustable CO2 regulators to the beer kegs. When
dispensing valves are opened, CO
through the Unit cooling coils, and on to the beer faucets resulting in cold beer being dispensed.
When the Unit power cord has been plugged into an electrical outlet and the main power switch on back of the
Unit (115 VAC, 60 Hz Units only) has been positioned in the ‘‘ON’’ (up) position, the compressor, condenser fan
motor, and agitator motor will start and begin forming an ice bank. When a full ice bank has been formed, the
compressor and condenser fan motor will stop but the agitator motor will continue to operate, circulating ice water bath in the water tank. The water tank ice bank sensing bulb will cycle the compressor and condenser fan
motor on and off as required to maintain a full ice bank.
gas pressure exerted upon the beer kegs pushes beer from the kegs,
2
FIGURE 1. 1550 UNIVERSAL BEER DISPENSER
4569000246
1550 UNIVERSAL
BEER DISPENSER
DISPENSING
FAUCET (2)
COIL NO. 1
1
LINE LEGEND
BEER
CO
2
COIL NO. 2
2
BEER KEG SECONDARY
CO
REGULATOR (2)
2
PRIMARY CO
REGULATOR
5
2
TEE
FITTING
CO
GAS
SHUTOFF
CO
2
VALVE (2)
2
CHECK VALVE (2)
BEER
SHUTOFF
VALVE
TEE
FITTING
COILS IN PARALLEL
1
COIL NO. 1
DISPENSING
FAUCET (2)
SEE NOTE 2
SYRUP TANK
CO2 QUICK
DISCONNECT
BEER KEG (2)
BEER KEG
TAPPER (2)
COIL NO. 2
SEE NOTE 1
NO. 2NO. 1
SYRUP TANK
COILS IN SERIES
(561600074 ONL Y)
LIQUID QUICK
DISCONNECT
2
1550 UNIVERSAL
BEER DISPENSER
569000246
CO2 CYLINDER
NOTE 1: THESE PARTS MUST BE INSTALLED IN UNIT BEER
NOTE 2: THESE PARTS MUST BE INSTALLED IN THE CO
FIGURE 2. FLOW DIAGRAM
INLET LINES CLOSE TO BEER KEG T APPERS TO
FACILITATE SANITIZING THE BEER SYSTEMS.
LINE TO FACILITATE CONNECTING CO
TANK CONTAINING SANITIZING SOLUTION.
TO SYRUP
2
2
THIS PAGE LEFT BLANK INTENTIONALLY
6569000246
INSTALLATION
This section covers unpacking and inspection, selecting location, installing Unit, preparing for operation, and
operation.
UNPACKING AND INSPECTION
NOTE: The Unit was thoroughly inspected before leaving the factory and the carrier has accepted and
signed for it. Any damage or irregularities should be noted at the time of delivery (or not later than 15
days from date of delivery) and immediately reported to the delivering carrier. Request a written inspection report from Claims Inspector to substantiate any necessary claim. File claim with the delivering
carrier, not with IMI Cornelius Inc.
Unpack Unit as follows:
1. After the Unit has been unpacked, remove shipping tape and other packing material.
2. Carefully inspect the Unit for evidence of damage. If evidence of damage or irregularities is present, file a
claim with the delivering carrier.
3. Unpack LOOSE-SHIPPED parts. Make sure all items are present and in good condition.
Table 2. Loose-Shipped Parts
Item
No. Part No. Name Qty.
1 186573039 Drip Tray 1
2 186642000 Cup Rest 1
3 319941000 Thread Rolling Screw, Hex Washer Hd; No. 8–32 By 1/2–in. Long 4
4 700768 Knob, Beer Valve (Perlick) 2
SELECTING LOCATION
CAUTION: This Unit is intended for indoor installation only. Do not install this Unit in an
outdoor environment which would expose it to the outside elements.
IMPORTANT: Ambient operating temperature for the Unit Must not exceed 100 F. Satisfactory
temperatures may be obtained using blowers, air conditioning, etc. Check local codes.
This Unit may be installed free standing or under a countertop or a bar.
1. Locate the Unit to provide the following minimum clearances:
A. A minimum of 12-inches clearance must be maintained above the Unit to the nearest obstruction .
B. 12–inches between back-side of the Unit and the wall.
C. 12-inches on each side of the Unit.
D. The front dide of the Unit must be unobstructed to allow air to enter the Unit.
WARNING: To avoid possible fatal electrical shock or serious injury to the operator, it is
required that a GFCI (ground fault circuit interrupt) be installed in the electrical circuit for
the 115 VAC, 60 Hz Units. It is required that an ELCB (earth leakage circuit breaker) be
installed in the electrical circuit for the 230 VAC, 50 Hz Units
7 569000246
2. The Unit must be installed near a properly grounded electrical outlet with proper electrical require-
ments.The electrical circuit must be properly fused (slow-blow type fuse) or the circuit must be connected
through an equivalent HACR circuit breaker.The electrical outlet must be accessible for ease of connecting
and disconnecting the Unit power cord. No other electrical equipment should be connected to this circuit.
REFER TO UNIT NAMEPLATE FOR THE REQUIRED POWER CIRCUIT OPERATING VOLTAGE, HZ,
AND THE MINIMUM CIRCUIT AMPACITY OF THE UNIT. ALL ELECTRICAL WIRING MUST CONFORM
TO NATIONAL AND LOCAL ELECTRICAL CODES.
3. Unit not equipped with handle and wheels.
Close to a permaneant drain to route drip tray drain hose, water tank drain hose, and the water tank
overflow tube.
INSTALLATION
WARNING: The Unit must be electrically grounded to avoid possible fatal electrical shock
or serious injury to the Operator. The Unit power cord is equipped with a three-prong plug.
If a three-hole (grounded) electrical outlet is not available, use an approved method to
ground the Unit.
SEALING UNIT TO FLOOR REQUIREMENT (UNIT NOT EQUIPPED WITH HANDLE AND WHEELS)
To comply with NSF International (NSF) requirements within the United States, the Unit must be sealed to the
floor and all access holes to the Unit base must be closed and sealed. Proceed as follows to seal Unit base to
the floor.
1. Place Unit in operating position.
2. Tilt Unit up to expose bottom of it’s base.
3. Liberally apply silastic sealant such as Dow Corning RTV 731 or equivalent around edges on bottom of the
Unit base.
NOTE: Do not move Unit after positioning or seal from Unit base to the floor will be broken.
4. Lower Unit into operating position to complete seal from Unit base to the floor.
5. Apply additional sealant around bottom of the Unit base. Seal must have a minimum radius of 1/2–inch to
prevent crevices and to insure a complete seal.
FILL WATER TANK AND START REFRIGERATION SYSTEM
1. Remove four screws securing the Unit top cover, then remove cover.
NOTE: Use low-mineral content water where a local water problem exist.
2. Make sure plug is secure in end of water tank drain hose inside the Unit.
3. Route water tank overflow tube out through hole in back of Unit cabinet to a permanent drain.
4. Fill water tank with clean water until water starts flowing from the overflow tube into the permanent drain.
5. Install Unit top cover and secure with four screws.
WARNING: The Unit must be electrically grounded to avoid possible fatal electrical shock
or serious injury to the operator. The Unit power cord is equipped with a three-prong plug.
If a three-hole (grounded) electrical outlet is not available, use an approved method to
ground the Unit.
8569000246
6. Make sure the main power switch (115 VAC, 60 Hz Unit), located on back side of the Unit, is in the “OFF”
(down) position.
7. Plug Unit power cord into electrical outlet. If Unit is 115 VAC, 60 Hz, place main power switch on back side
of the Unit in “ON” position.
8. The compressor, condenser fan motor, and the agitator motor will start and begin forming an ice bank.
When a full ice bank has been formed, the compressor and condenser fan motor will stop but the agitator
motor will continue to operate circulating ice water bath in the water tank. Water will continue to drip from
the water tank overflow tube until a full ice bank has been formed, then the tube may be stored inside the
Unit.
CONNECTING CO2 SYSTEM TO BEER KEG TAPPERS
(see Figure 2)
WARNING: CO2 displaces oxygen. Strict attention must be observed in the prevention of
CO2 (carbon dioxide) gas leaks in the entire CO2 and soft drink system. If a CO2 gas leak is
suspected, particularly in a small area, immediately ventilate the contaminated area before
attempting to repair the leak. Personnel exposed to high concentration of CO2 gas will experience
tremors which are followed rapidly by loss of consciousness and suffocation.
Connect CO
TAPPERS IN BEER KEGS AT THIS TIME.
system to beer keg tappers as shown in Figure 2. DO NOT INSTALL BEER KEG
2
CONNECTING BEER SOURCE SUPPLIES TO UNIT
(see Figure 2)
NOTE: The numbered Unit beer inlet lines are labeled to identify the beer faucets they serve. For example: The line labeled No. “1” is connected to system that provides beer to be dispensed from the No. 1
beer faucet (No. 1 beer faucet is faucet on right side when facing front of the Unit).
1. All Unit beer inlet lines internal connections have been made at the factory. Connect Unit beer inlet lines to
beer keg tappers as shown in Figure 2. DO NOT INSTALL BEER KEG TAPPERS IN BEER KEGS AT
THIS TIME.
NOTE: A short length of tubing, with a syrup tank liquid quick disconnect on it’s end (tubing, liquid
quick disconnects, and tee fittings not provided), must be installed in the beer lines close to the beer
keg tappers as shown in Figure 2). Purpose of the liquid quick disconnects is to enable a syrup tank
containing sanitizing solution to be connected into the beer systems.
A length of tubing, with a syrup tank CO2 quick disconnect on it’s end (parts not provided), must be
installed in one of the beer kegs tappers CO2 source line as shown in Figure 2). Purpose of the CO
quick disconnect is to connect regulated CO2 gas pressure to the syrup tank containing sanitizing
solution.
2
2. The beer systems should be sanitized at this time as instructed in SERVICE AND MAINTENANCE section
of this manual.
PREPARING UNIT FOR OPERATION
(see Figure 2)
1. Make sure primary and secondary CO2 regulators assemblies adjustment screws are backed out until all
tension is relieved from the adjusting screws springs.
2. Make sure shutoff valves, located in CO2 lines connected between the secondary CO2 regulators and the
beer kegs tappers, are in the closed positions.
9 569000246
3. Open the CO2 cylinder shutoff valve slightly to allow the primary CO2 regulator to fill with gas, then open
the valve fully to back-seat the valve. Back-seating the valve prevents leakage around the valve shaft.
4. Adjust the primary CO
regulator by loosening the regulator adjusting screw lock nut, then turn the adjust-
2
ing screw to the right (clockwise) until the gage reads 50-PSI. Tighten the adjustment screw lock nut after
adjustment has been completed.
5. Adjust beer kegs secondary CO
The beer kegs secondary CO
regulators as follows:
2
regulators pressures adjustments require calculations of each beer system
2
total beer system pressure. The total beer system pressure, required to push beer from the beer keg to the
dispensing faucet, is the result of computing the length of the beer line of a certain size, vertical line lift, and
internal beer keg pressure. The internal beer keg pressure differs from one beer brand to another. Contact
your local Beer Distributor for the proper secondary CO2 regulators pressure settings. Adjust the secondary CO2 regulators by loosening the adjusting screws lock nuts, then turn the adjusting screws to the right
(clockwise) until regulators gages register the recommended pressures. Tighten the adjustments screws
lock nuts after adjustments have been completed.
6. Install tappers in the beer kegs.
7. Open shutoff valves located in the CO2 lines connected between the secondary CO2 regulators and the
beer kegs tappers.
UNIT OPERATION
8. Dispense beer from the beer faucets until all air is purged from the beer systems.
9. Check beer systems for leaks and repair if evident.
10. Adjust beer faucets for beer flow rate as instructed in SERVICE AND MAINTENANCE section of this
manual.
10569000246
OPERATOR’S INSTRUCTIONS
This section covers operating controls, pre-operation check, Unit operation, and maintenance procedures that
may be performed by the Operator.
IMPORTANT: Only qualified Personnel should service internal components of the Unit.
PROPER BEER STORAGE
Beer is a perishable product that can be materially changed by improper handling. Undesirable dispensed beer
can be created by improper cooling of the beer or lack of cleaning/sanitizing the beer systems. Proper temperature control of stored beer is important. It helps retard growth of mold, yeast, and bacteria that are non-toxic but
do affect taste and appearance of the dispensed beer. These organisms can be satisfactorily controlled by
maintaining stored beer within a specified temperature range and regularly sanitizing the beer systems. Stored
beer temperature should be maintained at 33° F to 40° F.
OPERATING CONTROLS
(see Figure 3)
BEER FAUCET
The beer faucet lever needs only be pulled forward to dispense beer, then close faucet when cup or glass is full.
UNIT POWER SWITCH (115 VAC, 60 HZ UNIT ONLY)
The Unit power switch, located on back of the Unit. must be in the “ON” (up) position before Unit will operate.
UNIT OPERATION
1. If applicable, make sure drip tray drain hose is routed to a waste container or drain.
2. Make sure Unit power switch (115 VAC, 60 Hz Unit only), located on back side of the Unit, is in the “ON”
(up) position.
3. Hold cup or glass under the beer faucet. Pull beer faucet lever forward and dispense until cup or glass is
full, then close faucet.
DAILY PRE-OPERATION CHECK
1. Make sure CO
der”) portion of the dial. If so, CO2 cylinder is almost empty and must be replaced as instructed.
2. Be sure beer supply is sufficient. If not, replenish beer supply as instructed.
cylinder regulator assembly 1800 psi gage indicator is not in shaded (“change CO
2
cylin-
2
56900024611
BEER FAUCET (2)
DRIP TRAY/CUP REST
FIGURE 3. 1550 UNIVERSAL BEER DISPENSER
UNIT POWER SWITCH
(115 VAC, 60 HZ UNIT ONLY)
OPERATING CLEARANCES
Check area in front, back, sides, and above the Unit for obstructions. These areas must be kept clear at all
times. Listed below are the minimum clearances that must be maintained.
A. Clearance above the Unit ––––––––––––––––––––––––––––– 12 inches to nearest obstruction.
B. Clearance back of Unit ––––––––––––––––––––––––––––––– 12 inches to nearest obstruction.
C. Clearance on sides of Unit –––––––––––––––––––––––––––––12 inches to nearest obstruction.
D. Clearance on front of Unit ––––––––––––––––––––––––––––– Open
ADJUSTMENTS
ADJUSTING CO2 REGULATORS
(see Figure 2)
The CO2 regulators should be periodically checked for proper pressure settings and if necessary, be adjusted
by a qualified Service Person.
ADJUSTING DISPENSED BEER FLOW RATE
Dispensed beer flow rate of the dispensing faucets should be periodically checked and if necessary, be adjusted
by a qualified Service Person.
COOLING UNIT MAINTENANCE
CLEANING CONDENSER COIL
NOTE: Air circulation through the condenser coil, required to cool the coil, is drawn in through grille
on Unit front panel and is exhausted out through grilles on sides and back of the Unit. Restricting air
flow through the condenser coil will decrease cooling efficiency of the Unit.
Area in front, sides, and back of the Unit must be kept free of obstructions at all times which would
prevent air flow in and out of the Unit.
569000246 12
An excessive accumulation of dust, lint, and grease on the condenser coil will restrict air flow through the coil
which will decrease cooling efficiency of the Unit. The Unit condenser coil should be periodically cleaned to
maintain cooling efficiency of the Unit. Contact a qualified Service Person to clean the Unit condenser coil.
CHECKING ICE WATER BATH
A gurgle heard from the Unit while it is operating, indicates the water level in the water tank is low and more
water should be added to the tank. Contact a qualified Service Person to replenish the water tank water supply
and if necessary, also clean the water tank.
CLEANING AND SANITIZING
DAILY CLEANING
The Unit should be cleaned daily as instructed SERVICE AND MAINTENANCE section of this manual.
SANITIZING BEER SYSTEMS
The beer systems (tappers, beer lines, Unit beer cooling coils, and the beer faucets) should be completely sanitized at least every two weeks as instructed in SERVICE AND MAINTENANCE section of this manual.
REPLENISHING CO2 SUPPLY
WARNING: CO2 displaces oxygen. Strict attention must be observed in the prevention of
CO2 (carbon dioxide) gas leaks in the entire CO2 and soft drink system. If a CO2 gas leak is
suspected, particularly in a small area, immediately ventilate the contaminated area before
attempting to repair the leak. Personnel exposed to high concentration of CO2 gas will experience
tremors which are followed rapidly by loss of consciousness and suffocation.
NOTE: When indicator on CO2 cylinder regulator assembly 1800 psi gage is in shaded (‘‘change CO
cylinder’’) portion of dial, CO2 cylinder is almost empty and should be replaced.
The CO
supply should be checked daily and if necessary, replenished as instructed.
2
REPLENISHING BEER SUPPLY
The beer supply should be checked periodically and if necessary, replenished as instructed.
CLEANING CO
(see Figure 2)
The CO
and after any servicing or disruption of the CO
gas check must be inspected and serviced as instructed at least once a year under normal conditions
2
SYSTEM GAS CHECK VALVES
2
system.
2
2
56900024613
THIS PAGE LEFT BLANK INTENTIONALLY
569000246 14
SERVICE AND MAINTENANCE
This section describes the service and maintenance procedures to be performed on the Unit.
IMPORTANT: Only qualified Personnel should service the Unit internal components or electrical wiring.
WARNING: Disconnect electrical power from the Unit to prevent personnel injury before
attempting any internal maintenance. Only qualified personnel should service the internal
components or electrical wiring.
PREPARING UNIT FOR SHIPPING, RELOCATING, OR STORING
CAUTION: Before shipping, relocating, or storing the Unit, the beer cooling coils must be
sanitized, all sanitizing solution must be purged from the beer coils, the ice bank must be
melted, and all water must be drained from the water tank. A freezing ambient environment
will cause residual water remaining inside the Unit to freeze resulting in damage to internal
components of the Unit.
PERIODIC INSPECTION
1. Check Unit condenser coil (see Figure 5) for accumulation of dust, lint, or grease and if necessary, clean
the coil as instructed. Restriction of air flow through the condenser coil will decrease cooling efficiency of
the Unit.
2. Check area in front, back, sides, and above the Unit for obstructions. These areas must be kept clear at all
times. Listed below are the minimum clearances that must be maintained.
A. Clearance above the Unit ––––––––––––––––––––––––––––– 12 inches to nearest obstruction.
B. Clearance back of Unit ––––––––––––––––––––––––––––––– 12 inches to nearest obstruction.
C. Clearance on sides of Unit –––––––––––––––––––––––––––––12 inches to nearest obstruction.
D. Clearance on front of Unit ––––––––––––––––––––––––––––– Open
3. Check beer faucets for dripping that indicates leaking and repair as necessary.
ADJUSTMENTS
ADJUSTING CO2 REGULATORS
(see Figure 2)
NOTE: To readjust CO2 regulator to a lower setting, loosen adjusting screw lock nut, then turn screw to
the left (counterclockwise) until pressure gage reads 5-psi lower than new setting will be. Turn adjusting screw to the right (clockwise) until gage registers new setting, then tighten lock nut.
Adjusting Primary CO2 Regulator.
Adjust primary CO2 regulator by loosening regulator adjusting screw lock nut, then turn adjusting screw to the
right (clockwise) until gage registers 50-psi. Tighten adjustment screw lock nut after adjustment has been completed.
56900024615
UNIT BEER INLET
LINES (2)
POWER
UNIT POWER
SWITCH
(11 5 VAC UNIT ONLY)
DRIP TRAY
DRAIN HOSE
CORD
PLUG
WATER TANK
OVERFLOW TUBE
WATER TANK
DRAIN HOSE
TOP COVER
BEER FAUCET (2)
CUP REST
DRIP TRAY
COVER RETAINING
SCREW (4)
VALVE TRIM
PANEL
DRIP TRAY
DRAIN HOSE
RETAINING
SCREW (4)
ACCESS GRILLE (4)
AIR INTAKE
FIGURE 4. DISPENSER COMPONENTS
569000246 16
BEER INLET
LINES (2)
ELECTRICAL
CONTROL BOX
POWER CORD
TERMINAL
BLOCK
RETAINING
SCREW
UNIT POWER
SWITCH
(115 VAC
UNIT ONLY)
ACCESS
GRILLE
FIGURE 5. PARTS IDENTIFICATION
CONDENSER
COIL
CONDENSER
FAN MOTOR
COMPRESSOR
56900024617
Adjusting Beer Kegs Secondary CO
Regulators.
2
Beer kegs secondary CO2 regulators pressures adjustments require calculations of each beer system total beer
system pressure. Total beer system pressure, required to push beer from keg to faucet, is the result of computing length of beer line of a certain size, vertical line lift, and internal keg pressure. Internal keg pressure differs
from one beer brand to another
Contact your local Beer Distributor for proper secondary CO2 regulators pressure settings. Adjust secondary
CO2 regulators by loosening adjusting screws lock nuts, then turn adjusting screws to the right (clockwise) until
regulator gages register recommended pressures. Tighten adjustments screws lock nuts after adjustments have
been completed.
Adjusting Dispensed Beer Flow Rate.
(see Figure 6)
Adjust the beer flow rate at approximately 2-ounces per second by rotating the beer faucet compensator adjust-
ing screw to the left (counterclockwise) for a higher beer flow rate or to the right (clockwise) for a lower beer
flow rate.
CORNELIUS BEER FAUCET
BEER FLOW RATE
ADJUSTMENT
PERLICK BEER FAUCET
BEER FLOW RATE
ADJUSTMENT
FIGURE 6. BEER FAUCET ADJUSTMENT
UNIT MAINTENANCE
CLEANING CONDENSER COIL
(see Figure 5)
NOTE: Air circulation through the condenser coil, required to cool the coil, is drawn in through grille
on Unit front panel and is exhausted out through grilles on sides and back of the Unit. Restricting air
flow through the condenser coil will decrease cooling efficiency of the Unit.
Area in front, sides, and back of the Unit must be kept free of obstructions at all times which would
prevent air flow in and out of the Unit.
An excessive accumulation of dust, lint, and grease on the condenser coil will restrict air flow through the coil
which will decrease cooling efficiency of the Unit. The Unit condenser coil should be periodically cleaned by performing the following:
1. Unplug Unit power cord from electrical outlet.
569000246 18
2. Remove four screws securing air intake grille on the Unit front panel, then remove the grille.
3. Vacuum or use a soft brush to clean the condenser coil. If available, use low-pressure compressed air.
4. Install air intake grille on the Unit and secure with four screws.
5. Plug Unit power cord into electrical outlet.
CHECKING ICE WATER BATH
A “gurgle’ heard from the Unit, indicates water level in the water tank is low and more water should be added for
maximum product cooling. Before adding more water to the water tank, the ice water bath and the ice bank
should be checked for cleanliness and the water tank components checked for excessive mineral deposit
build-up.
1. Unplug Unit power cord from electrical outlet.
2. Remove four screws securing the Unit top cover, then remove cover.
3. Check condition of the ice water bath and the ice bank. The ice water bath should be clear and the ice
bank should be free of foreign particles.
4. Check agitator motor shaft and ice bank sensing bulb for excessive mineral deposit build-up.
5. If cleaning of water tank is necessary, refer to CLEANING WATER TANK in this section for cleaning
procedure.
6. Make sure end of water tank overflow tube is placed in a waste container. Fill water tank with clean water
until water starts flowing from overflow tube into the waste container. USE A LOW-MINERAL-CONTENT
WATER WHERE A LOCAL WATER PROBLEM EXIST.
7. Install Unit top cover and secure with four screws.
8. Plug Unit power cord into electrical outlet. After water has stopped dripping from the water tank overflow
tube, remove tube from the waste container and place back inside the Unit.
CLEANING WATER TANK
NOTE: The ice water bath should be changed as often as necessary to keep the water tank clean. A
convenient time to perform this operation is at the time the Unit is being sanitized. To save time, water
can be drained from the water tank while the Unit is being sanitized.
1. Unplug Unit power cord from electrical outlet.
2. Remove screws securing the Unit top cover, then remove cover.
3. Remove four screws securing either the side or the back access grille, then remove the grille.
4. Route water tank drain hose out hole in back of the Unit to a waste container or to a drain.
5. Remove plug from end of the drain hose and allow water to drain from the water tank.
NOTE: If ice bank is clear and contains no foreign particles, it does not have to be melted down. Skip
steps 6, 7, and 8 and proceed with step 9 .
6. If ice bank is dirty, allow it to melt. Hot water may be used to speed up melting.
CAUTION: Never use an ice pick or other instrument to remove ice from the evaporator coil.
Such practice can result in a punctured refrigerant circuit or damage to the water tank.
7. Wash inside of the water tank with a mild soap solution.
56900024619
8. Using a fiber brush, carefully clean mineral deposit build-up from the agitator motor shaft and the ice bank
sensing bulb.
9. Rinse all parts and flush water tank with clean water.
10. Install plug in end of the water tank drain hose, then place drain hose back inside the Unit.
11. Place end of the Unit water tank overflow tube in a waste container.
12. Fill water tank with clean water until water starts flowing from the overflow tube into the waste container.
USE A LOW-MINERAL-CONTENT WATER WHERE A LOCAL WATER PROBLEM EXIST.
13. Install Unit top cover and secure with four screws.
14. Plug Unit power cord into electrical outlet. Make sure compressor, condenser fan motor, and agitator motor
are operating.
15. After water has stopped dripping from the water tank overflow tube, remove tube from the waste container,
then place tube back inside the Unit.
16. Install access grille on the Unit and secure with screws.
CLEANING AND SANITIZING
DAILY CLEANING
NOTE: A drip tray that does not have a drain hose routed to a waste container or a permanent drain
must be removed from the Unit and be thoroughly cleaned. A drip tray that has a drip tray drain hose
routed to a waste container or a permanent drain may be cleaned in place on the Unit as follows:
1. Remove cup rest from the drip tray.
2. Wash drip tray in place on the Unit, then rinse drip tray with hot water allowing water to drain out through
the drip tray drain hose.
3. Wash cup rest, then rinse the cup rest with clean water. Install cup rest in the drip tray.
4. Clean all external surfaces of the Unit with a sponge. Rinse out the sponge with clean water, then wring
excess water out of the sponge and wipe off all external surfaces of the Unit. Wipe Unit dry with a clean
soft cloth. DO NOT USE ABRASIVE-TYPE CLEANERS.
SANITIZE BEER SYSTEMS
IMPORTANT: Only qualified Personnel should perform the sanitizing procedure on the beer system.
The beer systems (tappers, beer lines, Unit beer cooling coils, and the beer faucets) should be completely sanitized at least every two weeks using a non-scented household liquid bleach such as Hilex or Chlorox containing
a 5.25% sodium hypochlorite concentration. Proceed as follows to sanitize the beer system:
1. Close CO
line on beer system that will be sanitized.
shutoff valve in beer keg tapper CO2 line, then close beer shutoff valve in beer keg tapper beer
2
2. Remove beer keg tapper from the beer keg.
3. Using a clean empty syrup tank, prepare a full tank of non-scented liquid dishwasher detergent solution by
using 70° F (21° C) to 100° F (38° C) potable water and 0.5 oz. (15 ml) of liquid dishwasher detergent
(such as Joy, Ivory, etc.) to one gallon of potable water. Shake tank containing detergent solution to thoroughly mix the solution.
4. Connect CO2 line to tank containing detergent solution.
569000246 20
5. Connect tank containing detergent solution into the beer system.
6. Place waste container under applicable beer faucet.
7. Activate the beer faucet to permit detergent solution to purge beer out of the line, coil, and the beer faucet.
Continue to dispense until all beer has been purged from the beer system and only detergent solution is
dispensed from the beer faucet.
8. Disconnect tank containing detergent solution from the beer system.
9. Using a clean syrup tank, prepare sanitizing solution using 70° F (21° C) to 100° F (38° C) potable water
and 0.5 oz. (15 ml) of household liquid bleach such as non-scented Hi-Lex or Chlorox that contains a
5.25 % sodium hypochlorite concentration to one gallon of potable water. This mixture must not exceed
200 PPM of chlorine. Shake tank containing sanitizing solution to thoroughly mix the solution.
10. Connect tank containing sanitizing solution into the beer system.
11. Place waste container under the applicable beer faucet.
12. Activate the beer faucet to permit sanitizing solution to purge detergent solution out of the line, coil, and the
beer faucet. Continue to dispense until all detergent solution has been purged from the beer system and
until only sanitizing solution is dispensed.
13. Allow sanitizing solution to remain in the beer system for not less than 10-minutes or for more than 15-minutes.
14. Disconnect tank containing sanitizing solution from the beer system.
WARNING: Flush all sanitizing solution from the beer system as instructed. Residual
sanitizing solution left in the beer system could create a health hazard.
15. Connect tank containing potable water into the beer system.
16. Place waste container under the applicable beer faucet.
17. Activate the beer faucet to permit potable water to purge sanitizing solution out of the beer system. Continue to dispense until all sanitizing has been purged from the beer system and only potable water is
dispensed.
18. Disconnect tank containing potable water from the beer system.
19. Place the beer keg tapper in a pail container containing sanitizing. Completely wash the beer keg tapper in
the sanitizing solution, then thoroughly rinse the tapper with potable water.
20. Install beer keg tapper in beer keg.
21. Open CO
shutoff valve in beer keg tapper CO2 line, then open beer shutoff valve in beer keg tapper beer
2
line.
22. Place waste container under applicable beer faucet. Dispense from beer faucet until all potable water has
been purged from the beer system and only beer is dispensed.
23. Repeat preceding steps 1 through 22 to sanitize the other beer system.
REPLENISHING CO2 SUPPLY
NOTE: When indicator on CO2 cylinder regulator assembly 1800 psi gage is in shaded (‘‘change CO
cylinder’’) portion of dial, CO2 cylinder is almost empty and should be replaced.
CAUTION: Wear protective eyewear to avoid injury from gas-driven particles.
56900024621
2
WARNING: CO2 displaces oxygen. Strict attention must be observed in the prevention of
CO2 (carbon dioxide) gas leaks in the entire CO2 and soft drink system. If a CO2 gas leak is
suspected, particularly in a small area, immediately ventilate the contaminated area before
attempting to repair the leak. Personnel exposed to high concentration of CO2 gas will experience
tremors which are followed rapidly by loss of consciousness and suffocation.
1. Fully close (clockwise) CO2 cylinder valve.
2. Slowly loosen CO2 regulator assembly coupling nut allowing CO2 pressure to escape, then remove regulator assembly from empty CO2 cylinder.
3. Unfasten safety chain and remove empty CO2 cylinder.
WARNING: To avoid personal injury and/or property damage, always secure CO2 cylinder
in an upright position with safety chain to prevent it from falling over. Should the shutoff
valve become accidentally broken off, CO2 cylinder can cause serious personal injury.
4. Position CO2 cylinder and secure with safety chain.
5. Make sure gasket is in place inside CO2 regulator coupling nut, then install regulator on CO2 cylinder.
6. Open (counterclockwise) CO2 cylinder valve slightly to allow lines to slowly fill with gas, then open valve
fully to back-seat valve. (Back-seating valve prevents leakage around valve shaft).
7. Check CO2 connections for leaks.
REPLENISHING BEER SUPPLY
(see Figure 2)
1. Close CO2 and beer line shutoff valves for the empty beer keg.
2. Remove beer keg tapper from the empty beer keg.
3. Make sure beer keg tapper and top of the full beer keg are clean, then then install tapper in the keg.
4. Open CO2 and beer line shutoff valves.
QUAD RING
183294-000
BALL
183296-000
SPRING
183297000
RETAINER
183298000
BODY
183295000
*Quad ring seal must be replaced each
time check valve is serviced.
FIGURE 7. CO
569000246 22
GAS CHECK VALVE
2
CLEANING CO2 GAS CHECK VALVE
(see Figures 2 and 7)
CO
gas check valves must be inspected and serviced at least once a year under normal conditions and after
2
any servicing or disruption of the CO
VALVES ARE SERVICED.
system. ALWAYS REPLACE QUAD RING SEALS EACH TIME CHECK
2
56900024623
FIGURE 8. WIRING DIAGRAM
569000246 24
TROUBLESHOOTING
IMPORTANT: Only qualified Personnel should service internal components or electrical wiring.
WARNING: If repairs are to be made to the beer system, close shutoff valve in applicable
beer inlet line, then relieve system pressure before proceeding. If repairs are to be made to
the CO
system, shut off CO
2
then relieve system pressure before proceeding. If repairs are to be made to the refrigeration
system, make sure electrical power is disconnected from the Unit.
Trouble Probable Cause Remedy
TROUBLESHOOTING CO2 SYSTEM
supply, shut off beer keg tappers CO
2
lines shutoff valves,
2
NO CO2 GAS PRESSURE ON
A. Empty CO2 cylinder. A. Replenish CO2 supply as
BEER SYSTEMS.
B. CO2 shutoff valve closed at
C. CO2 shutoff valves in lines
D. CO2 regulators improperly
E. Leak in CO2 system. E. Repair leaks in CO2 system.
INSUFFICIENT CO2 GAS
A. Empty CO2 cylinder. A. Replenish CO2 supply as
PRESSURE ON BEER
SYSTEMS.
B. CO2 shutoff valve in CO
C. CO2 regulator improperly
D. Leak in CO2 system. D. Repair leak in CO2 system.
Trouble Probable Cause Remedy
TROUBLESHOOTING BEER SYSTEM
CO
cylinder.
2
leading to beer kegs tappers
closed.
adjusted.
system partially closed.
2
adjusted.
instructed.
B. Open CO2 shutoff valve at CO
2
cylinder.
C. Open CO2 shutoff valves in lines
leading to beer kegs tappers.
D. Adjust CO2 regulators as
instructed.
instructed.
B. Open CO2 shutoff valve all the
way.
C. Adjust CO2 regulator as
instructed.
DISPENSED BEER FLOW
RATE TOO LOW.
A. Beer faucet not properly
adjusted for beer flow rate.
B. Insufficient CO2/gas pressure
on beer system.
25 569000246
A. Adjust dispensed beer flow rate
as instructed.
B. Refer to ‘‘INSUFFICIENT CO
2
GAS PRESSURE ON BEER
SYSTEM’’ in this section.
Trouble RemedyProbable Cause
DISPENSED BEER FLOW
RATE TOO HIGH.
OFF-TASTE BEER (SOUR
AND UNPALATABLE).
DISPENSED BEER FLAT
(DISAPPEARING FOAM).
DISPENSED BEER
TEMPERATURE TOO WARM
A. Beer faucet not properly
adjusted for beer flow rate.
A. Beer system needs to be
cleaned and sanitized.
B. Beer spoilage (secondary
fermentation) due to
inadequate beer storage
C. Mixed beers. C. Clean and sanitize beer system,
A. Dirty beer glasses. A. Glasses must be free of all film.
B. CO2 regulators improperly
adjusted.
A. Electrical power Unit turned
off.
B. Unit power switch (115 VAC,
60 Hz Unit only) turned “OFF”.
C. Electrical circuit fuse blown or
circuit breaker tripped.
D. Glycol circulating pump power
switch in ‘‘OFF’’ (down)
position or inoperable pump or
motor.
A. Adjust dispensed beer flow rate
as instructed.
A. Clean and sanitize beer system
as instructed.
B. Rotate stock. Make sure oldest
beer in stock is used first.
then install new beer supply.
B. Adjust CO2 regulators as
instructed.
A. Restore electrical power to Unit.
B. Make sure power switch is turned
“OFF”.
C. Replace blown fuse or reset
circuit breaker.
D. Make sure circulating pump
power switch is in ‘‘ON’’ (up)
position or repair or replace pump
or motor.
EXCESSIVE FOAMING (WILD
BEER) WHILE BEER IS
BEING DISPENSED.
E. Cooling Unit POWER switch in
‘‘OFF’’ (down) position.
F. Inoperable Cooling Unit
refrigeration system.
A. Dispensed beer flow rate too
high.
B. Dispensed beer temperature
too warm.
E. Place Cooling Unit POWER
switch in ‘‘ON’’ (up) position.
F. Repair Cooling Unit refrigeration
system.
A. Beer flow rate should be
approximately 2-ounces per
second. Adjust beer flow rate as
instructed.
B. Refer to ‘‘DISPENSED BEER
TEMPERATURE TOO WARM’’ in
this section.
26569000246
Trouble Probable Cause Remedy
TROUBLESHOOTING COOLING UNIT REFRIGERATION SYSTEM
COMPRESSOR DOES NOT
OPERATE.
A. Glycol (coolant) sufficiently
cooled.
B. Cooling Unit POWER switch in
‘‘OFF’’ (down) position.
C. No power source (blown fuse
or tripped circuit breaker).
D. Low voltage. D. Voltage must be at least 103 VAC
E. Loose, disconnected, or
broken wiring.
F. Overload protector cut out;
overheated compressor.
Condenser fan motor not
operating as required.
G. Inoperative overload protector
or start relay.
H. Inoperative contactor. H. Replace contactor.
I. Inoperative control board. I. Replace control board.
A. Refrigeration not called for.
B. Place Cooling Unit POWER
switch in ‘‘ON’’ (up) position.
C. Replace blown fuse or reset
circuit breaker.
at compressor terminals when
compressor is trying to start.
E. Tighten connections or replace
broken wiring.
F. Compressor will cool enough to
restart. Refer to ‘‘CONDENSER
FAN MOTOR NOT OPERATING’’
in this section;
G. Replace inoperative part.
COMPRESSOR WILL NOT
STOP AFTER GLYCOL
(COOLANT) HAS BEEN
SUFFICIENTLY COOLED.
COMPRESSOR OPERATES
CONTINUOUSLY BUT DOES
NOT COOL GLYCOL
(COOLANT) SUFFICIENTLY.
CONDENSER FAN MOTOR
NOT OPERATING.
J. Evaporator or condenser outlet
temperature sensor
inoperative (open).
K. No voltage to control board. K. Check for loose or broken wiring.
L. Inoperative compressor. L. Replace compressor.
A. Glycol tank temperature
control inoperative.
B. Circuit board inoperative. B. Replace circuit board.
A. Cooling Unit located in
excessively hot area.
B. Air circulation through Cooling
Unit restricted.
A. Jumper cord loose or
disconnected from condenser
fan motor or compressor
terminals. Broken wire in cord.
J. Replace inoperative temperature
sensor.
Check transformer for 24 ± VA C
output.
A. Replace temperature control
sensor.
A. Refer to IMPORTANT note at
start of SELECTING COOLING
UNIT LOCATION in
INSTALLATION SECTION.
B. Clean air filter on back of Cooling
Unit as instructed.
A. Tighten connections or replace
cord.
B. Fan blade obstructed. B. Remove obstruction.
C. Inoperative condenser fan
motor.
NOTE: If overload protector cuts out compressor,condenser fan motor will continue to operate;
otherwise, troubleshooting condenser fan motor problems are same as for ‘‘COMPRESSOR DOES NOT
OPERATE’’ paragraph plus the preceding:
27 569000246
C. Replace condenser fan motor.
Trouble RemedyProbable Cause
REFRIGERATION
COMPRESSOR NOT
OPERATING
A. Refrigeration system
overheated. Clogged
condenser coil air intake filter.
B. Refrigeration system
overheated. Condenser fan
motor not operating.
C. Glycol tank temperature
control sensor inoperable.
Loose or broken sensor
electrical wire.
D. Glycol tank temperature
control sensor inoperable,
Inoperable sensor.
A. Clean air filter as instructed.
B. Replace condenser fan motor.
C. Check or repair sensor electrical
wire.
D. Replace sensor.
28569000246
IMI CORNELIUS INC.
ONE CORNELIUS PLACE
ANOKA, MN. 55303–6234
TELEPHONE (800) 238–3600
FACSIMILE (612) 422–3232
WARRANTY
IMI Cornelius Inc. warrants that all equipment and parts are free from defects in material and workmanship under normal use and service. For a copy of the warranty applicable to your Cornelius product, in
your country, please write, fax or telephone the IMI Cornelius office nearest you. Please provide the
equipment model number and the date of purchase.
IMI Cornelius Offices
AUSTRALIA D P.O. 210, D RIVERWOOD, D NSW 2210, AUSTRALIA D (61) 2 533 3122 D FAX (61) 2 534 2166
D AM LANGEN FELDE 32 D A-1222 D VIENNA, AUSTRIA D (43) 1 233 520 D FAX (43) 1-2335-2930
AUSTRIA
D BOSKAPELLEI 122 D B-2930 BRAASCHAAT, BELGIUM D (32) 3 664 0552 D FAX (32) 3 665 2307
BELGIUM
D RUA ITAOCARA 97 D TOMAS COELHO D RIO DE JANEIRO, BRAZIL D (55) 21 591 7150 D FAX (55) 21 593 1829
BRAZIL
D TYTHING ROAD ALCESTER D WARWICKSHIRE, B49 6 EU, ENGLAND D (44) 789 763 101 D FAX (44) 789 763 644
ENGLAND
D 71 ROUTE DE ST. DENIS D F-95170 DEUIL LA BARRE D PARIS, FRANCE D (33) 1 34 28 6200 D FAX (33) 1 34 28 6201
FRANCE
GERMANY
GREECE
HONG
ITALY
NEW
SINGAPORE
SPAIN
USA
D CARL LEVERKUS STRASSE 15 D D-4018 LANGENFELD, WEST GERMANY D (49) 2173 7930 D FAX (49) 2173 77 438
D 488 MESSOGION AVENUE D AGIA PARASKEVI D 153 42 D ATHENS, GREECE D (30) 1 600 1073 D FAX (30) 1 601 2491
KONG D 1104 TAIKOTSUI CENTRE D 11-15 KOK CHEUNG ST D TAIKOKTSUE, HONG KONG D (852) 789 9882 D FAX (852) 391 6222
D VIA PELLIZZARI 11 D 1-20059 D VIMARCATE, ITALY D (39) 39 608 0817 D FAX (39) 39 608 0814
ZEALAND D 20 LANSFORD CRES. D P.O. BOX 19-044 AVONDALE D AUCKLAND 7, NEW ZEALAND D (64) 9 8200 357 D FAX (64) 9 8200 361
D 16 TUAS STREET D SINGAPORE 2263 D (65) 862 5542 D FAX (65) 862 5604
D POLIGONO INDUSTRAIL D RIERA DEL FONOLLAR D E-08830 SANT BOI DE LLOBREGAT D BARCELONA, SPAIN D (34) 3 640 2839 D FAX (34) 3 654 3379
D ONE CORNELIUS PLACE D ANOKA, MINNESOTA D (612) 421-6120 D FAX (612) 422-3255
29 569000246
IMI CORNELIUS INC.
CORPORATE HEADQUARTERS:
One Cornelius Place
Anoka, Minnesota 55303-6234
(612) 421-6120
(800) 238-3600
301137000
Loading...
