QUEST ELITE 2000
ILLUSTRATED PARTS LIST
Release Date: February 17, 2011
Publication Number: 620048922IPL
Revision Date: May 24, 2016
Revision: L
Visit the Cornelius web site at www.cornelius.com for all your Literature needs.
The products, technical information, and instructions contained in this manual are subject to change without notice.
These instructions are not intended to cover all details or variations of the equipment, nor to provide for every possi
ble contingency in the installation, operation or maintenance of this equipment. This manual assumes that the person(s) working on the equipment have been trained and are skilled in working with electrical, plumbing, pneumatic,
and mechanical equipment. It is assumed that appropriate safety precautions are taken and that all local safety and
construction requirements are being met, in addition to the information contained in this manual.
This Product is warranted only as provided in Cornelius’ Commercial Warranty applicable to this Product and is subject to all of the restrictions and limitations contained in the Commercial Warranty.
Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting
from any of the following occurrences, including but not limited to, (1) other than normal and proper use and normal
service conditions with respect to the Product, (2) improper voltage, (3) inadequate wiring, (4) abuse, (5) accident,
(6) alteration, (7) misuse, (8) neglect, (9) unauthorized repair or the failure to utilize suitably qualified and trained per
sons to perform service and/or repair of the Product, (10) improper cleaning, (11) failure to follow installation, operating, cleaning or maintenance instructions, (12) use of “non-authorized” parts (i.e., parts that are not 100%
compatible with the Product) which use voids the entire warranty, (13) Product parts in contact with water or the
product dispensed which are adversely impacted by changes in liquid scale or chemical composition.
Contact Information:
To inquire about current revisions of this and other documentation or for assistance with any Cornelius product contact:
www.cornelius.com
800-238-3600
-
-
Trademarks and Copyrights:
This document contains proprietary information and it may not be reproduced in any way without permission from
Cornelius.
This document contains the original instructions for the unit described.
CORNELIUS INC
101 Regency Drive
Glendale Heights, IL
Tel: + 1 800-238-3600
Printed in U.S.A.
TABLE OF CONTENTS
Quest Elite Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2000 Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2000 Door Assembly Reference (Pushbutton & Portion Control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cabinet Assembly Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tank Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Refrigeration Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Platform Assembly Non Flush Non Soldout QST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Platform Assembly SLJ Flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Platform Assembly QLT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pump Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Bottle Adapter Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Valve Block Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Electrical Box Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
P/N 720301304 (For SLJ Dispensers Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Electrical Box Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
P/N 720521000 (For QLT Dispensers Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Generic Bottle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Recommended Spare Parts Based on 10 Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2000 Unit with Pushbuttons
2000 Unit with Portion Control
Quest Elite 2000 Illustrated Parts List Manual
QUEST ELITE UNITS
Figure 1.
Table 1. Top Quest 2000 Assembly
Part No. Description Model
721402100 QSTE, SLJ non flush, 2000, 115/60, Pushbutton, Non Illuminated QST Elite 2000
721402101 QSTE, SLJ non flush, 2000, 115/60, Pushbutton, Illuminated QST Elite 2000
721412101 QSTE, SLJ flush, 2000, 115/60, Pushbutton, Illuminated QST Elite 2000
721412111 QSTE, SLJ flush, 2000, 115/60, Portion, Illuminated QST Elite 2000
721402111 QSTE SLJ Non Flush, 2000, 115/60, Portion, Illuminated QST Elite 2000
721412201 QSTE, SLJ flush, 2000, 230/50, Pushbutton, Illuminated Quest Elite 2000
721412211 QSTE, SLJ flush, 2000, 230/50, Portion, Illuminated Quest Elite 2000
721422201 QSTE, QLT, 2000, 230/50, Pushbutton, Illuminated Quest Elite 2000
721422211 QSTE, QLT, 2000, 230/50, Portion, Illuminated Quest Elite 2000
721422311 QSTE QLT 2000, 220/60 Portion Illuminated Quest Elite 2000
721412301 QSTE SLJ Flush 2000, 220/60 Pushbutton Illuminated Quest Elite 2000
© 2011-2016, Cornelius Inc. - 1 - Publication Number: 620048922IPL
Quest Elite 2000 Illustrated Parts List Manual
16
2000 FINAL ASSEMBLY
Table 2. 2000 Final Assembly
Item Part No. Description
1 620047969 Hinge Top Cover, Quest Elite 2/4 FL
2 620047744 Merchndsr Assy Qst2 2FL
3 620054876 Side Panel LH. Quest Elite 2/4 FL
Drip Tray, Black W/Texture, Quest Elite
4 620049855
5 620708562 Cup Rest W/LOC Quest 2 STND 8.1 X
6 620048648 Splash Panel Guard, Quest Elite 2 FL
7 620715835 Nozzle Static Mixer ASMB
8 620049092 Tank Foamed Qste Finish 2FL
9 620054875 Side Panel RH. Quest Elite 2/4 FL
10 620050923 Rear Panel, Quest 2 FL
13 620048898 Top Panel W/Cut, QST Elite 2 FL
14 720704004 Door Catch, Female 2FL / 4FL
15 620049566
16 620047782 Pin Latch Cabinet Qst2 2FL/4FL
2 FL
Washer- Hinge Bottom QST Elite 2/
4FL
Figure 2.
Table 2. 2000 Final Assembly
Item Part No. Description
17 0704105 Screw MA #8-32 TRPH 16 SS
18 70178 Screw MA #8-32 TRPH 16 SS
620047429 Brkt, Drip Tray, Right, QST 2/4 FL
19
620047428 Brkt, Drip Tray, Left, QST 2/4 FL
20 37958 Leg Level 4”
21 720201440 Brkt, Catch Strike Plate QST-NT
22 720701405 Screw TB D6-18 PAPH 12 SS
* 620048922
* 620048649 Label System Wiring Diagram QS
* 620047943 Harness Door, QST2, 2FL (not shown)
* 620048959
* 11732
* 620049320
Kit Literature Pkg QST 2FL (not
shown)
Harness to Power Cord QST2, 2/4FL
(Not Shown)
Harness Assembly Platform SLJ 1000
(Not shown)
Harn Combined Compressor Condenser QST Elite 2/4FL (Not Shown)
Publication Number: 620048922IPL - 2 - © 2011-2016, Cornelius Inc.
Quest Elite 2000 Illustrated Parts List Manual
2000 DOOR ASSEMBLY REFERENCE (PUSHBUTTON & PORTION CONTROL)
Table 3. 2000 Door Assembly
Item Part No. Description
620047753
1
620047750
620047751
2
620047968
3 620047745 Merchandiser, Quest Elite, 2FL
45018001 Board Pushbutton SLJ
4
49280001 Board Portion Control SLJ
620047679-
5
100
6 620047754
7 620051427
8
720704005 Latch Door Male
9 620047759 Seal, Door, Quest Elite, 2FL
10 720500713 Switch Cut off 10 A MOM E6900A
11 620049097
Overlay Assembly, Pushbutton Control, Quest
Overlay Assembly, Portion Control,
Quest Elite, 2/4
Bezel, Pushbutton, Silver, Quest
Elite, 2/4 FL
Bezel, Portion Control, Silver, Quest
Elite, 2/4 FL
LED Quest PCBA Backlight Family
Assembly, Door Foamed, Quest Elite,
2FL
Switch Rocker Unmarkedv Qste 2/
4FL
Label Triangle Nozzle Indicator Mirror
Finish QST2 2/4FL
Figure 3.
Table 3. 2000 Door Assembly
Item Part No. Description
12 729011214
13 620047748 Latch Mounting Lock
14 620047761 Graphic, Generic, Quest Elite, 2FL
15 620047760 Lens, Quest Elite, 2FL
16 0704101 Screw MA 8-32 TRPH 12 SS
620052150
17 620052151
620052153 Label Daily Cleaning Qste Non Flush
629097007
*
629097008
729011218
*
729011219
* 620050925
Kit, Lock & Key Door Quest Elite 2FL/
4FL
Label Daily Flush & Cleaning Quest
Elite Qlt
Label Daily Flush & Cleaning SLJ
Flush
Kit 1, Flavor Strip Quest Elite, 2/4FL
(Not shown)
Kit 2, Flavor Strip Quest Elite, 2/4FL
(Not shown)
Kit, Conversion PB to PC, QSTE
2FL(Not Shown)
Kit, Conversion PC to PB, QSTE 2FL
(Not Shown)
Label Rocker Switch Details,
Qste,230v, 2/4fL (Not Shown)
© 2011-2016, Cornelius Inc. - 3 - Publication Number: 620048922IPL
Quest Elite 2000 Illustrated Parts List Manual
14
15
CABINET ASSEMBLY
REFERENCE
Table 4. Cabinet Assembly
Item Part No. Description
1
620049842
720506104 Fan Assembly 115/60/50 4.7 X 4.7X1.0
2
720506105 Fan Assembly 230/50/60 4.7 X 4.7 X1.0
3
620047512 Guard, Fan EBM 9000 & 4000
4
620049556
5
720509206
6
620047970 Trim Bottom W/Insert, Quest Elite, 2FL
7
720201479 Bracket Dual Nozzle Block Quest
Cabinet Assy QST Elite 2FL Modified
Drain
Cabinet Heat Exchanger, Quest Elite,
2FL
Fitting Push, Union Elbow, 3/8”X 1/2”
LG
Figure 4.
Table 4. Cabinet Assembly
Item Part No. Description
07040007 Screw Machine, #8-32 PAPH 28SS
8
720401801X Platform Assembly, Quest 4 SLJ Flush
720401809
9
720522100X Platform Asy Qlt Qst 2000
10
720532102 Platform Door, Quest 2FL
11
S3354 Gasket Sealing Bowl Spout
12 Grommet, Seal Platform Cover Quest
720703301
13
720201510 Shelf, Cabinet, Quest 2FL
14
720200206
15
620047775 Brkt Hinge QST2 2FL/4FL
Platform Asy No Flush No Soldout QST
Fitg Insrt 3/8"NPT PP
Publication Number: 620048922IPL - 4 - © 2011-2016, Cornelius Inc.
Quest Elite 2000 Illustrated Parts List Manual
TANK COVER ASSEMBLY
P/N 620047892
Figure 5.
Table 5. Tank Cover Assembly
Item Part No. Description
2 729011222 Kit Service Ice Probe Assy QSTE 2FL
720301304 Box Elec Asy QST2 SLJ
3
720521000 Box Elec Asy Dc QST2 QLT
4 720501502 Coil, Water, QUEST 2, 2FL
5 620049563 Coil, Refrigeration QUEST Elite 2FL
© 2011-2016, Cornelius Inc. - 5 - Publication Number: 620048922IPL
Quest Elite 2000 Illustrated Parts List Manual
REFRIGERATION FRAME ASSEMBLY
P/N 620047890 (115VAC), P/N 620049029 (230VAC), P/N 620050922 (220VAC)
Figure 6.
Publication Number: 620048922IPL - 6 - © 2011-2016, Cornelius Inc.
Quest Elite 2000 Illustrated Parts List Manual
Table 6.Refrigeration Frame Assembly
Item Part No. Description
629097391 Kit Comp 115V/60HZ QST 2 FL
1
629097392 Kit Comp 230V/50HZ QST 2 FL
629097393 Kit Comp 220V/60HZ QST 2 FL
3 620048659 Adapter, 1/4”FPT x 3/8”MF
620049959- 001 Cord Power Stra8ight IEC60320-C13 Family
620049959- 003 Cord, Service 230V
4 620049959- 007 Cord Serv 200V 60 HZ IEC 60906-1
620049959- 008 Cord Pwr ME Version QSTE 2/4FL
620049959- 009 Cord PWR Qste 2/4fl Cei-16/Vii Italian Plug
620042742 Agitator Motor Assembly 115V
5
620042741 Agitator Motor Assembly 230V/50
6
620047892 Tank Cover Assyembly, Quest Elit, 2FL
7 729011138 Kit GIBC Field Quest (Not Shown)
440000901 Control Ice Bank 230V Global
1
440000902 Control Ice Bank 120/60 QST
8 620047891 Valve Water W/Solenoid, Quest Elite, ? 2/4FL
9 620049857 Reducer, Elbow, 1/4” FPT x 3/8” Barb
10 620047114 2 Cubic Inches, Filter Dryer
560004366 Fan Axial Small
560003706 Fan, Condenser Assembly, 230V, Quest Elite 2FL
11
560004360 Motor- Fan 08W 120/60 Service
560004368 Grille Cond Fan Small
560004364 Shroud Cond Olympus Small
12
6775 Clip Tin CB14-832-4
47655 Transformer, 115V, Quest Elite 2/4FL
6200
13
620047654 Transformer, 230V, Quest Elite 2/4FL
14 9649 Washer Comp Mount
15 317781000 Bushing, Split
17 08474 Clip Spring
18 620051406 Suction HX Assembly, Quest Elite 2FL
19 620049560 Grommet Ae Comp QST2
20 620058692 Line Discharge Quest 2Fl
21 49034 Tube Tygon 3/8ID X 5/8
22 620054202 Brkt Solenoid Quest Elite 2/4FL
23 620049859 Tube Asy Water Inlet To HX QST2FL
© 2011-2016, Cornelius Inc. - 7 - Publication Number: 620048922IPL
Quest Elite 2000 Illustrated Parts List Manual

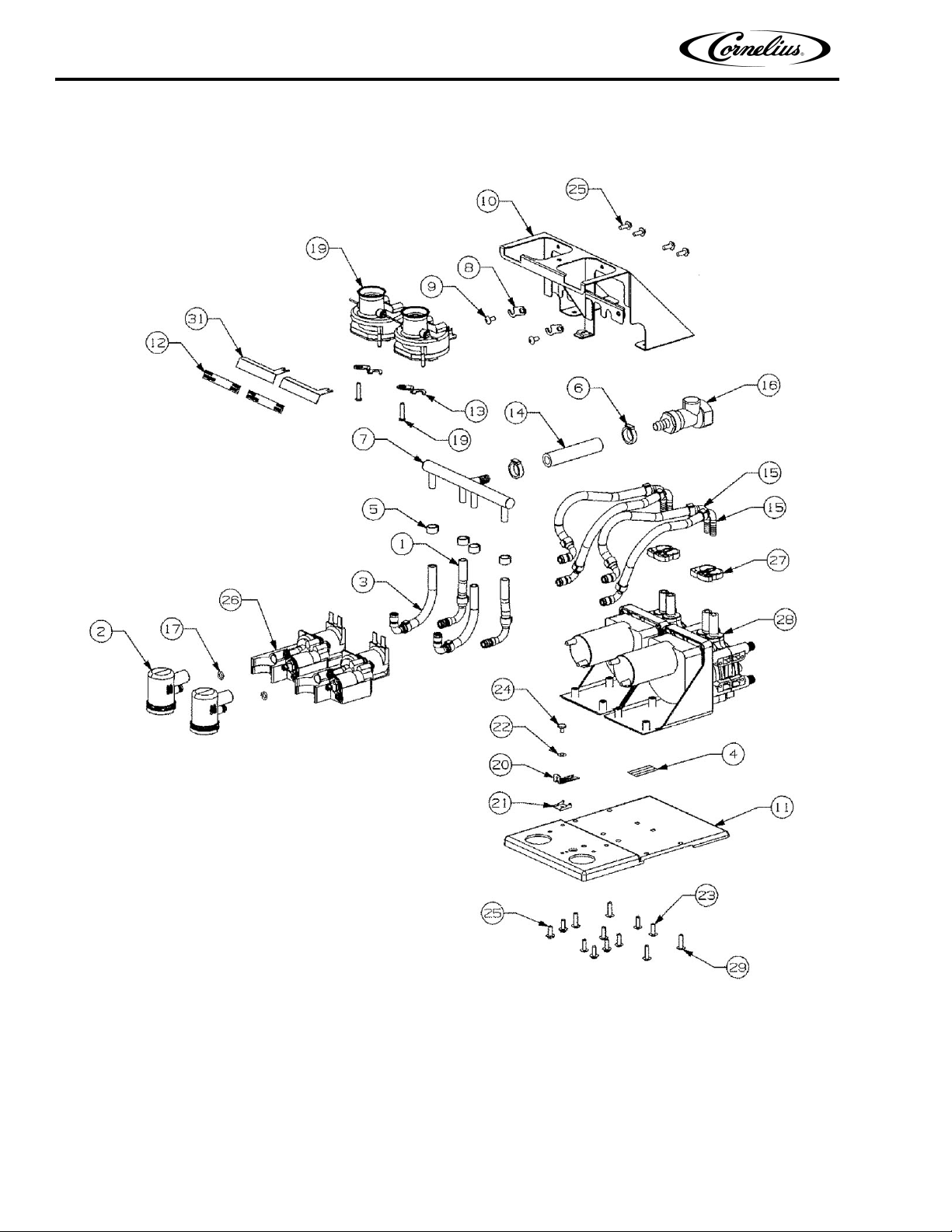

PLATFORM ASSEMBLY NON FLUSH NON SOLDOUT QST
P/N 720401809
Figure 7.
Publication Number: 620048922IPL - 8 - © 2011-2016, Cornelius Inc.
Quest Elite 2000 Illustrated Parts List Manual
Table 7.Platform Assy Non Flush Non Soldout QST
Item Part No. Description
740001713 Manifold Water In QST
1
720500033 Chamber Mixing QST4
2
724558601 Clip Tube Retainer QST
4
0704101 Screw MA 08-32 TRPH 12 SS
5
720201433 Brkt Asy Platform SLJ QST-NT
6
720202704 Base Platform SLJ QST IHOP
7
720704207 Washer Hold Down Hook RH Turn QST
8
720601338 Tube Asy Concentrate Out QST
9
720601339 Tube Asy Concentrate In QST
10
31525003 O-Ring 239ID 070CS 60DU BU-N
11
620046159 Adapter Caddy No Flush QST
13
45046 Latch #2 Medium SS
14
45047 Guide Latch #2 Med
15
45048 Washer Latch #2 Med
16
0704105 Screw MA 08-32 TRPH 16 SS
17
720800077 Rivet 125D 1/8
18
49478001 Screw Tc 08-18 Hxsl 14 Ss 25
19
45508200X Valve Block Asy QLT Generic
20
48195006 Clamp Hose .470ID
21
45185X Pump & Motor Asy 3-Roller
22
0704107 Screw #8-32 X 5/8 THMS SS
23
48114002 Clamp Oetr 669 Open STPLS #17.0
24
49034 Tube TYGON 3/8 IDX 5/8
25
720509104 Tube Asy Water Valve Inlet
26
720720498 Coupling In-line 3/8 ID HC35
27
© 2011-2016, Cornelius Inc. - 9 - Publication Number: 620048922IPL
Quest Elite 2000 Illustrated Parts List Manual
PLATFORM ASSEMBLY SLJ FLUSH
P/N 720401801X
Figure 8.
Publication Number: 620048922IPL - 10 - © 2011-2016, Cornelius Inc.
Quest Elite 2000 Illustrated Parts List Manual
Table 8. Platform Assembly SLJ Flush
Item Part No. Description
720509104 Tube Assembly Water Valve Inlet
1
720500033 Chamber Mixing QST4
2
720509105 Tube Assembly Water Rinse Inlet
3
48114004 Clamp Oetr 413Open STPLS #10.5
5
48114002 Clamp Oetr 669 Open STPLS #17.0
6
720509304 Manifold Water SS Quest 4
7
724558601 Clip Tube Retainer QST
8
0704101 Screw Machine 8-32 TRPH12SS
9
720201433 Bracket Assembly Platform SLJ QST IHOP
10
720202704 Base Platform SLJ QST IHOP
11
720901004 Label Dispense/Flush QST
12
720704207 Washer Hold Down Hook RH Turn QST
13
49034 Tube TYGON 3/8 IDX 5/8
14
720509103 Tube Assembly Suction Quest
15
720720498 Coupling In-line 3/8 ID HC35
16
31525003 O-ring 239 ID 070CS 60DU BU-N
17
11732 Harness Assembly Platform SLJ 1000(Not Shown)
18
45026X Adapter Bottle Assembly SL DIS P
19
45046 Latch #2 Medium SS
20
45047 Guide Latch #2 MED
21
45048 Washer Latch #2 MED
22
0704105 Screw MA 08-32 TRPH 16 SS
23
720701001 Rivet Platform Base QST
24
49478001 Screw Tc 08-18 Hxsl 14 Ss 25
25
45508200X Valve Block AS QLT Generic
26
48195006 Clamp Hose.470 ID
27
45185X Pump & Motor Assembly 3-Roller
28
0704107 Screw #8-30 2X 5/8 THMS SS
29
720501706 Cap Plug.093 ID X 50 Long 1/2 inch
30
720201434 Bracket Platform Label SLJ QST
31
© 2011-2016, Cornelius Inc. - 11 - Publication Number: 620048922IPL
Quest Elite 2000 Illustrated Parts List Manual
PLATFORM ASSEMBLY QLT
P/N 720522100X
Figure 9.
Publication Number: 620048922IPL - 12 - © 2011-2016, Cornelius Inc.
Quest Elite 2000 Illustrated Parts List Manual
Table 9. Platform Assembly QLT
Item Part No. Description
1 49478001 Screw Tc 08-18 Hxsl 14 Ss 25
2 0704105 Screw MA #8-32 TRPH 16SS
3 720701001 Rivet Platform Base Quest
4 11877 Jumper Assembly Read Flush QLT 180(Not Shown)
5 11887 Jumper Assembly Red Flush Switch AL(Not Shown)
6 11888 Harness Assembly Platform SLJT1000-2(Not Shown)
7 45046 Latch #2 Medium SS
8 45047 Guide Latch #2 MED
9 45048 Washer Latch #2 MED
10 45364001X Chamber Mixing Assembly QLT 180 Day
11 620051427 Switch Rocker Sealed
12 45508200X Valve Block Assembly QLT Generic
13 45514100X Pump Assembly QLT 180
14 45542 Manifold Bracket QLT 180 2 FLAV
15 55145 Wrap, Tye 5 1/2 inch Long(Not Shown)
16 720509312 Manifold Assembly Water QLT/QST2
17 720520301 Base Platform QLT QST2
18 720522011 Bracket Support Platform QST2
20 7245541 Label Run Flush QLT 180
21 7245821 Label Clean
22 720501429 Bracket Water Adjustment Cover QS
23 07115001 Screw TF 8-32 TRPH 12SS
© 2011-2016, Cornelius Inc. - 13 - Publication Number: 620048922IPL
Quest Elite 2000 Illustrated Parts List Manual
PUMP ASSEMBLY
P/N 45185X
Figure 10.
Table 10. Pump Assembly
em Part No. Description
It
1 45016001 Pump Gear Motor
2 45728001 Rotor Assembly (Thick Wall)
3 45050 Pump & Motor Mounting Block
4 720701407 Screw TH 08-32 PH 88 SS
5 0702905 Screw #8X3/4” FHMS
6 45098
* 45078 Pump Assembly (Items 2 & 7)
7 45727 Pump Body, Front/Rear
8 45283 Rubber Bushing W/Nutsert Insert
Pump Tubing Kit (Pump Tubing,
Clamps & Instructions)
Publication Number: 620048922IPL - 14 - © 2011-2016, Cornelius Inc.
Quest Elite 2000 Illustrated Parts List Manual
BOTTLE ADAPTER ASSEMBLY
P/N 45026X
Figure 11.
Table 11. Bottle Adapter Assembly
Item Part No. Description
1 45060001 Caddy Adapter, Top
2 45060002 Run & Flush Valve
3 45060003 Caddy Adapter, Bottom
4 620054216
5 31525064
6 31525061 O-Ring 1.489 inch ID X 0.070 inch DIA
* 45026100
© 2011-2016, Cornelius Inc. - 15 - Publication Number: 620048922IPL
O-RING .120 ID X .080 CS EP
70FDAIL5 QSTE
O-Ring 5/8 inch OD X 0.489 ID TFE/
SIL
O-Ring Kit (Includes All O-Rings
Needed to Rebuild Bottle Adapter)
Item Part No. Description
7 07015001 Screw, #8-18 HI-LO, PH
8 45043 Pin-Sensor, Sold Out
10 60068021 Switch, Snap Action
11 45076 Actuator Pin
12 60067086 Screw, #2-50 6X 7/16 inch PH, SS
13 45084001 Caddy Plate
14 31525014 O-Ring 5/8 inch OD X 0.489 ID
15 71822081 Washer Hold Down
16 49478001 Screw Tc 08-18 Hxsl 14 Ss 25
Table 11. Bottle Adapter Assembly
Quest Elite 2000 Illustrated Parts List Manual
VALVE BLOCK ASSEMBLY
P/N 45508200X
Table 12. Valve Block Assembly
Item Part No. Description
1 45506100 Valve Block
2 45586 Hold Down Washer
3 49612 Valve Port, Water
4 620711131 Seal Armature - Water Side
5 71860290 Armature
6 71815321 Retaining Ring, 0.242 ID
7 18367 Coil Spring, SS
8 740001883 O-ring 459id 040cs Epdm E-16
9 19695001 Guide
10 620710107 Gasket FFV/SEV
11 45518 Bracket, Valve Block
Figure 12.
Table 12. Valve Block Assembly
Item Part No. Description
12 49478001 Screw Tc 08-18 Hxsl 14 Ss 25
13 16779003 “C” Frame, Solenoid
14 48520001 Coil, 24VDC
15 0720406 Not #10-32 KEPS
16 60281001 Ceramic Sleeve, Syrup, FFV
17 60280002 Ceramic Piston, Water, FFV
18 316991000 O-ring Stem
19 7245699 Flow Control/Bonnet Assembly
20 48258005 Spring, Zero, FFV
23 45587 Hold Down Washer
* 48979103
Sleeve & Piston Asy Water Ceramic
(Include items 16, 17&18)
Publication Number: 620048922IPL - 16 - © 2011-2016, Cornelius Inc.
Quest Elite 2000 Illustrated Parts List Manual
ELECTRICAL BOX ASSEMBLY
P/N 720301304 (FOR SLJ DISPENSERS ONLY)
Figure 13.
Table 13. Electrical Box Assembly SLJ
Item Part No. Description
1 720521001 Electrical Box Quest 2000
2 07115001 Screw TF 8-32 TRPH 12 SS
3 45621 Label Pump Speed Switch
4 720901003 Label Wiring Electrical Box
5 45758 Label Fuse Rating
6 720301708
© 2011-2016, Cornelius Inc. - 17 - Publication Number: 620048922IPL
Wire Harness Internal Electrical Box
SLJ Quest 2000
Item Part No. Description
10 59328001 Fuse 6.25 A 250V SLJ
11 7245059 Fuse Holder
12 734801 Rivet, Pop
Table 13. Electrical Box Assembly SLJ
7 720504504 Voltage Regulator Assembly Quest
8 45432001 Rocker Switch Assembly
9 720521201 Cover Electrical Box Quest 2000
Quest Elite 2000 Illustrated Parts List Manual
ELECTRICAL BOX ASSEMBLY
P/N 720521000 (F
OR QLT DISPENSERS ONLY)
Figure 14.
Table 14. Electrical Box Assembly QLT
Item Part No. Description
1 07115001 Screw TF, #8-32 TRPH, 12 SS
2 45621 Label Pump Speed Switch
3 720901002 Label Wiring E-Box
4 45758 Label Fuse Rating
5 720522003
6 720521001 Electrical Box Quest 2000
Publication Number: 620048922IPL - 18 - © 2011-2016, Cornelius Inc.
Wire Harness Internal Electrical Box
QST 2000 QLT
Item Part No. Description
10 59328001 Fuse 6.25 AMP 250V SLJ
11 7245059 Fuse Holder
12 734801 Rivet, Pop
Table 14. Electrical Box Assembly QLT
7 720521500
8 45432001 Rocker Switch Assembly
9 720521201 Cover Electrical Box Quest 2000
Reg. Voltage Assembly QLT Quest
2000
Quest Elite 2000 Illustrated Parts List Manual
GENERIC BOTTLE ASSEMBLY
P/N 720401107
Figure 15.
Table 15. Generic Bottle Assembly
Item Part No. Description
1 720202010 Cap 400 Series QST
2 720401106 Bottle Refillable QST
3 45248 Adapter Assembly, Bottle
© 2011-2016, Cornelius Inc. - 19 - Publication Number: 620048922IPL
Quest Elite 2000 Illustrated Parts List Manual
RECOMMENDED SPARE PARTS BASED ON 10 UNITS
Qty. Part No. Description
1 560004360 Condenser Fan, Motor 115V, 60Hz
1 560004361 Condenser Fan, Motor 230VAC
1 560004364 Fan Shroud
1 560004368 Grill Fan
1 560004366 Fan Blade
1 560004360 Motor- Fan 08W 120/60 Service
2 18367 Spring, Coil S/S-Water Solenoid
4 45098 Pump Tubing Kit
1 620051427 Switch Rocker Unmarkedv QSTE 2/4FL
1 45432 Switch Rocker Sealed
2 720521500 Voltage Regulator Board, QLT
2 720504602 Voltage Regulator Board, SLJ
2 45016001 Pump Dear Motor
1 45026100 Bottle Adapter O-Ring Kit (all O-rings in bottle adapter)
1 45728001 Pump Rotor Assembly
1 48520001 Coil, 24 VDC, Valve Block
2 48979103 Spool & Sleeve Assembly W/31525- 060 O-Ring
1 440000902 Global Ice Bank Control
1 720520501 Drip Tray Grill
1 720500102 Drip Tray
1 720502800 Agitator Motor
2 720506104 Cabinet Fan, 115 VAC
1 720507101 Dispense Nozzle, Static Mixer, & O-Ring
1 720508801 Push Button Control Board
2 720508802 Portion Control Board
1 620047655 Transformer 120 V 60 Hz 26 V@ 4A2
1 620047891 Valve Water W/Solenoid QS T2 2/
1 620049856 Drip Tray Black W/ Texture QS T
1 720506104 Fan Assembly 115/60/50 4.7X4.7X1.0
1 620047654 Transformer 230V 60 230V 26V@4A2
1 620058693 Comp 230V/50HZ Qst 2/4FL Tcmseh
1 620058690 Comp 115V/60HZ Qst 2/4FL Tcmseh
1 620059657 Comp 220V/60HZ Qst 2/4FL Tcmseh
1 620059661 Relay Compressor TH0410YXA,115/60
1 620062280 Overload Olp For Compressor THA0410Y XA,115/60
1 620062281 Relay Compressor THA0412YXC , 230/50
1 620062282 Overload Olp For Compressor THA0412YXC, 230/5
1 620062283 Relay Compressor AZA0395YXP, 220/60
1 620062284 Overload Olp Compressor AZA0395YXP, 220/60
Publication Number: 620048922IPL - 20 - © 2011-2016, Cornelius Inc.
Cornelius Inc.
www.cornelius.com
Loading...
