Cornelius CCM2148RF21 User Manual

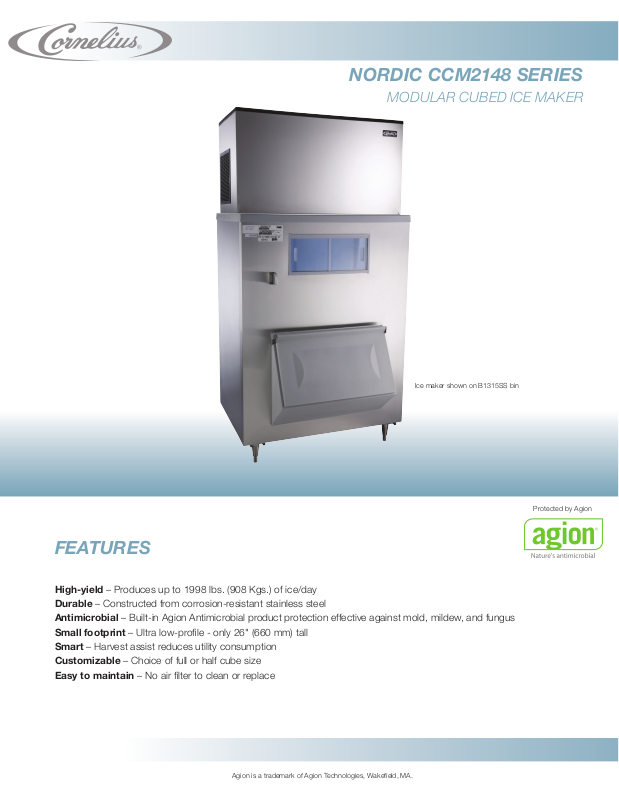

NORDIC CCM2148 SERIES
MODULAR CUBED ICE MAKER
Ice maker shown on B1315SS bin
FEATURES
High-yield – Produces up to 1998 lbs. (908 Kgs.) of ice/day
Durable – Constructed from corrosion-resistant stainless steel
Antimicrobial – Built-in Agion Antimicrobial product protection effective against mold, mildew, and fungus
Small footprint – Ultra low-profile - only 26" (660 mm) tall
Smart – Harvest assist reduces utility consumption
Customizable – Choice of full or half cube size
Easy to maintain – No air filter to clean or replace
Protected by Agion
Agion is a trademark of Agion Technologies, Wakefield, MA.
CONDENSER-WATER OUT
1/2" FPT (13 mm)
CONDENSER-WATER IN
1/2" FPT (13 mm)
4.38"
(111 mm)
HARDWARE FOR STRAP
MOUNTIN TO BI N
3.00"
(76 mm)
1.00"
(25 mm)
9.00"
(229 mm)
18.12"
(460 mm)
(536 mm)
21.12"
REAR VIEW
(WATER COOLED/REMOTE)
48.00"
(1219 mm)
7/8" (22 mm) KNOCK-OUT FOR
REMOTE CONNECTIONS
7/8" (22 mm) DIA HOLE FOR
ELEC TRICAL CONNECTIONS
ICEMAKER
WATER OUT
3/4" FPT (19 mm)
ICEMAKER
POTABLE
WATER IN
3/8" FPT (10 mm)
1.13"
(29 mm)
0.67"
(17 mm)
3.84"
9.00"
(229 mm)
DISCHARGE LINE, 1/2" (13 mm)
MALE QUICK CONNECT COUPLIN G
FOR USE WITH RT-325-404 OR RT-340-404
PRECHARGED LINE SET. (REMOTE ONLY)
LIQUID LINE, 3/8" (10 mm) MAL E
QUICK CONNECT COUPLING FOR USE
WITH RT-325-404 OR RT-340-404
PRECHARGED LINE SET. (REMOTE ONLY)
(98 mm)
22.24"
(565 mm)
20.49"
(521 mm)
2.63"
(67 mm)
Cube Size: Width Depth Heigth
Full 7/8" (22mm) 7/8" (22mm) 7/8" (22mm)
Half 3/8" (10mm) 7/8" (22mm) 7/8" (22mm)
Water Used-Gals.
Ice Prod.
per 24 hrs.
at 70° Air /
Cond.
MODEL NO.
CCM2148RF21
MODEL NO.
RC21002C
RT25
RT40
RT60
See Bin specification sheet for information on ice storage bins
* Represents cube size. For full cube substitute an “F”, for half cube substitute an “H”.
90° / 70° figures are rated in accordance with ARI Standard 810.
Unit
Remote 1998 (908) 1714 (779) 21.08 (80) n/a 5.7 35192 208-
Remote Condenser for 1 model CCM2148R (208-230/50-60/1/3 voltage) 155 (71)
25 ft. (7.6m) Precharged Tubing Kit for R-404A models 13 (6)
40 ft. (12m) Precharged Tubing Kit for R-404A models 18 (8)
60 ft. (18.2m) Precharged Tubing Kit for R-404A models 26 (12)
50° Water
lbs. (Kgs.)
Ice Prod.
per 24 hrs.
at 90° Air /
70° Water
lbs. (Kgs.)
(Ltrs.) per 100 lbs. of
ice 90° Air / 70° Water
Ice Prod.
Use
Description Shipping Weight
TECHNICAL SPECIFICATIONS
OPERATING LIMITS
NUMBER OF WIRES ........... 3 or 4
MAX. FUSE SIZE .............. 20, 30 or 50
RECOMMENDED BREAKER SIZE 40
SHIPPING WEIGHT LBS (KGS.) .. 50 Hz: 360 (164)
60 Hz: 375 (170)
AGENCY LISTINGS ............
Ambient Temp. Range Water 50° - 100°F (10° - 38°C)
Air Temp. Range Remote -20° - 100°F (-29° - 43°C)
Water Temp. Range 40° - 100°F (4.5° - 38°C)
Water Pressure Ice Maker Water in
Condenser Inlet Water
(Water cooled only)
Cond.
Use
Kilowatts
Used per
100 lbs.
of ice 90°
Air / 70°
Water
Heat
Rejection
(Btuh)
Electrical
Rating
230/60/1
lbs. (Kgs.)
Min. 20 psi (1.4 bar)
Max. 60 psi (4.1 bar)
Min. 20 psi (1.4 bar)
Max. 60 psi (4.1 bar)
Min.
Circuit
Amp.
33.7
© 2016 CORNELIUS
CG5067-0516
IN THE U.S.A.
Ph: 800.238.3600
Fax: 800.258.0255
For more information or to place an order, contact your sales representative or authorized distributor.
OUTSIDE THE U.S.A.
Ph: 763.488.8200
Email: webmaster@cornelius.com
101 Broadway Street West
Osseo, MN 55369
www.cornelius.com
