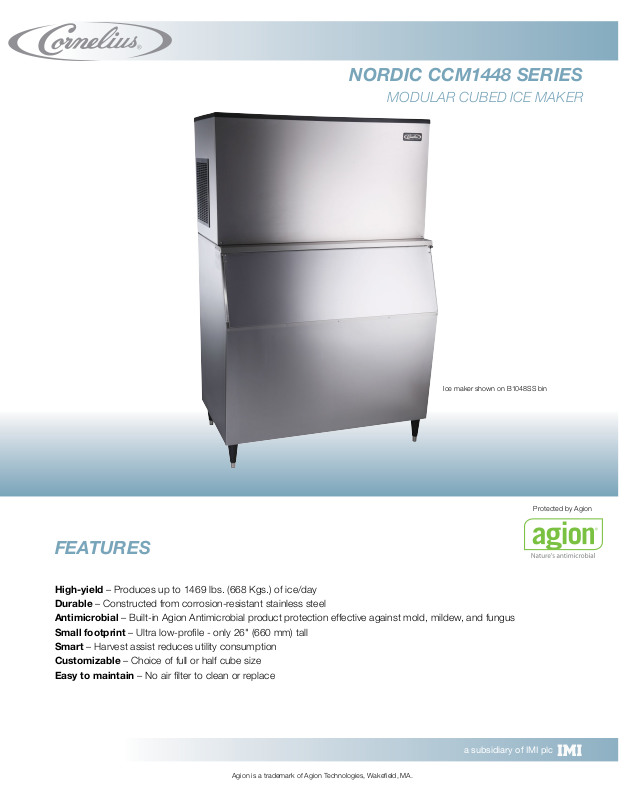

NORDIC CCm1448 SERIES
modular cubed ice maker
Ice maker shown on B1048SS bin
FEATURES
High-yield – Produces up to 1469 lbs. (668 Kgs.) of ice/day
Durable – Constructed from corrosion-resistant stainless steel
Antimicrobial – Built-in Agion Antimicrobial product protection effective against mold, mildew, and fungus
Small footprint – Ultra low-profile - only 26" (660 mm) tall
Smart – Harvest assist reduces utility consumption
Customizable – Choice of full or half cube size
Easy to maintain – No air filter to clean or replace
Protected by Agion
Agion is a trademark of Agion Technologies, Wakefield, MA.
a subsidiary of IMI plc
Dimensions and Air Flow
CONDENSER-WATER OUT
24"
Air Out Side of
icemaker
(813mm)
(610 mm)
32"
48"
(1219 mm)
Air in - Rear
of icemaker
(660 mm)
26"
(1880 mm)
Air Out Side of
icemaker
74"
AIR "IN"
CONDENSER SIDE
REAR VIEW
(AIR COOLED)
3.84"
(98 mm)
7/8" (22 mm) DIA HOLE
FOR ELECTRICAL
CONNECTIONS
ICEMAKER
WATER OUT
3/4" FPT (19 mm)
ICEMAKER
PORTABLE
WATER IN
3/8" FPT (10 mm)
1.13" (29 mm)
2.63"
(67 mm)
0.67"
(17 mm)
1/2" FPT (13 mm)
CONDENSER-WATER IN
3/8" FPT (10 mm)
22.24"
(565 mm)
20.49"
(521 mm)
(111 mm)
HARDWARE FOR STRAP
MOUNTIN TO BIN
3.00"
(76 mm)
4.38"
1.00"
(25 mm)
9.00"
(229 mm)
18.12"
(460 mm)
(536 mm)
REAR VIEW
(WATER COOLED/REMOTE)
21.12"
48.00"
(1219 mm)
7/8" (22 mm) KNOCK-OUT FOR
REMOTE CONNECTIONS
7/8" (22 mm) DIA HOLE FOR
ELEC TRICAL CONNECTIONS
ICEMAKER
WATER OUT
3/4" FPT (19 mm)
ICEMAKER
POTABLE
WATER IN
3/8" FPT (10 mm)
1.13"
(29 mm)
0.67"
(17 mm)
3.84"
(98 mm)
9.00"
(229 mm)
DISCHARGE LINE, 1/2" (13 mm)
MALE QUICK CONNECT COUPLING
FOR USE WITH RT-325-404 OR RT-340-404
PRECHARGED LINE SET. (REMOTE ONLY)
LIQUID LINE, 3/8" (10 mm) MALE
QUICK CONNECT COUPLING FOR USE
WITH RT-325-404 OR RT-340-404
PRECHARGED LINE SET. (REMOTE ONLY)
oPeraTiNG limiTS
Ambient Temp. Range Air & Water 50° - 110°F (10° - 43°C)
Water Temp. Range 40° - 100°F (4.5° - 38°C)
Water Pressure Ice Maker Water in
Condenser Inlet Water
(Water cooled only)
Min. 20 psi (1.4 bar)
Max. 60 psi (4.1 bar)
Min. 20 psi (1.4 bar)
Max. 60 psi (4.1 bar)
(67 mm)
22.24"
(565 mm)
20.49"
(521 mm)
2.63"
Water Used-Gals.
Ice Prod.
per 24 hrs.
at 70° Air /
Cond.
MODEL NO.
CCM1448AF21
CCM1448WF21
MODEL NO.
RC14002C
RT25
RT40
RT60
See Bin specification sheet for information on ice storage bins.
* Represents cube size. For full cube substitute an “F”, for half cube substitute an “H”.
Please note: air-cooled units require 6” (152 mm) clearance for air intake and exhaust.
Unit
Air 1469 (668) 1109 (504) 20.5 n/a 5.3 21957 208-
Water 1386 (630) 1239 (563) 22.8 122 4.2 21994 208-
Remote Condenser for 1 model CCM1448R (208-230/50-60/1 voltage) 100 (46)
25 ft. (7.6m) Precharged Tubing Kit for R-404A models 13 (6)
40 ft. (12m) Precharged Tubing Kit for R-404A models 18 (8)
60 ft. (18.2m) Precharged Tubing Kit for R-404A models 26 (12)
50° Water
lbs. (Kgs.)
Ice Prod.
per 24 hrs.
(Ltrs.) per 100 lbs. of
ice 90° Air / 70° Water
at 90° Air /
70° Water
lbs. (Kgs.)
Ice Prod.
Use
Description Shipping Weight lbs. (Kgs.)
Cond.
Use
Kilowatts
Used per
100 lbs.
of ice 90°
Air / 70°
Water
Heat
Rejection
(Btuh)
Electrical
Rating
230/60/1
230/60/1
Min.
Circuit
Amp.
26.1
17.8
TECHNICAL SPECIFICATIONS
NUMBER OF WIRES ........... 3
MAX. FUSE SIZE .............. Water 20,
Air/Remote 30
SHIPPING WEIGHT LBS (KGS.) .. 300 (136)
AGENCY LISTINGS ............
© 2012 IMI CORNELIUS
CG5064-1212
Cube Size: Width Depth Heigth
Full 7/8" (22mm) 7/8" (22mm) 7/8" (22mm)
Half 3/8" (10mm) 7/8" (22mm) 7/8" (22mm)
IN THE U.S.A.
Ph: 800.238.3600
Fax: 800.258.0255
OUTSIDE THE U.S.A.
Ph: 763.488.8200
Email: webmaster@cornelius.com
101 Broadway Street West
Osseo, MN 55369
www.cornelius.com
For more information or to place an order, contact your sales representative or authorized distributor.
