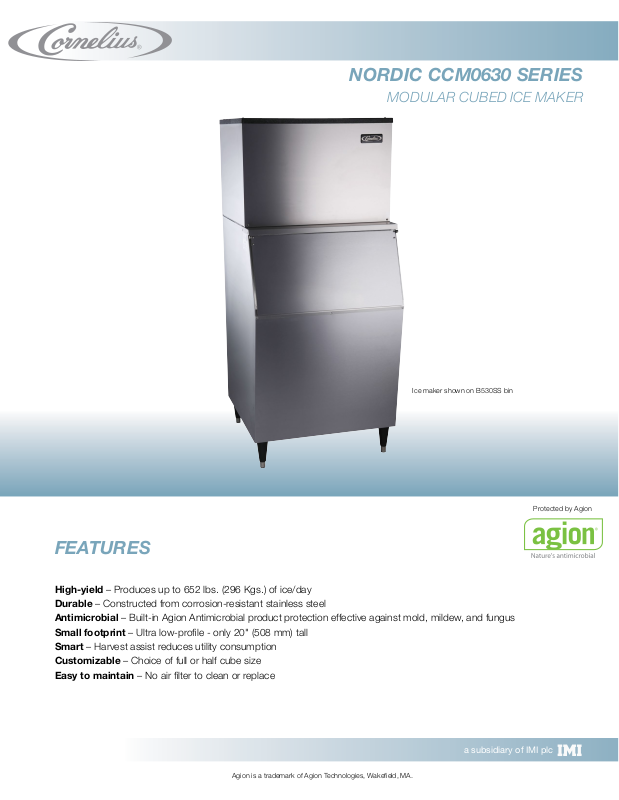

NORDIC CCm0630 SERIES
modular cubed ice maker
Ice maker shown on B530SS bin
FEATURES
High-yield – Produces up to 652 lbs. (296 Kgs.) of ice/day
Durable – Constructed from corrosion-resistant stainless steel
Antimicrobial – Built-in Agion Antimicrobial product protection effective against mold, mildew, and fungus
Small footprint – Ultra low-profile - only 20" (508 mm) tall
Smart – Harvest assist reduces utility consumption
Customizable – Choice of full or half cube size
Easy to maintain – No air filter to clean or replace
Protected by Agion
Agion is a trademark of Agion Technologies, Wakefield, MA.
a subsidiary of IMI plc
Dimensions and Air Flow
Air In-rear
of icemaker
24"
(610 mm)
32.31"
(821mm)
30"
(762 mm)
Air Out
(side discharge -
standard)
20"
(508 mm)
68"
(1727 mm)
oPeraTiNG limiTS
Ambient Temp. Range Air & Water 50° - 110°F (10° - 43°C)
Water Temp. Range 40° - 110°F (4.5° - 43°C)
Water Pressure Ice Maker Water in
Condenser Inlet Water
(Water cooled only)
Min. 20 psi (1.4 bar)
Max. 60 psi (4.1 bar)
Min. 20 psi (1.4 bar)
Max. 60 psi (4.1 bar)
Ice Prod.
per 24
hrs. at
70° Air
/ 50°
Cond.
MODEL NO.
CCM0630A*2
CCM0630WF2
CCM0630R*2
MODEL NO.
RC06002
RT25
RT40
RT60
See Bin specification sheet for information on Storage bins.
• Represents cube size. For full cube substitute an “F”, for half cube substitute an “h”.
Please note: air-cooled units require 6” (152 mm) clearance for air intake and exhaust.
Unit
Air 636 (289) 459 (209) 22.0 n/a 5.8 9523 230/60/1 9.9 16
Water 609 (277) 523 (238) 24.3 114 4.6 9684 230/60/1 7.4 16
Remote 555 (252) 474 (215) 27.9 n/a 6.2 10138 230/60/1 10.3 16
Remote Condenser for 1 model CCM0630R (208-230/50-60/1 voltage) 95 (43)
25 ft. (7.6m) Precharged tubing Kit for R-404A models 13 (6)
40 ft. (12m) Precharged tubing Kit for R-404A models 18 (8)
60 ft. (18.2m) Precharged tubing Kit for R-404A models 26 (12)
Water
lbs. (Kgs.)
Ice Prod.
per 24
hrs. at
90° Air
/ 70°
Water
lbs. (Kgs.)
Water Used-Gals.
(Ltrs.) per 100 lbs.
of ice 90° Air /
70° Water
Ice Prod.
Use
Description Shipping Weight lbs. (Kgs.)
Cond.
Use
Kilowatts
Used per
100 lbs.
of ice 90°
Air / 70°
Water
Heat
Rejection
(Btuh)
Electrical
Rating
Min.
Circuit
Amp.
Fuse
Size
TECHNICAL SPECIFICATIONS
NUMBER OF WIRES ........... 3
SHIPPING WEIGHT LBS (KGS.) .. 150 (68) - 175 (80)
AGENCY LISTINGS ............
© 2012 IMI CORNELIUS
CG5061-1212
Cube Size: Width Depth Heigth
Full 7/8" (22mm) 7/8" (22mm) 7/8" (22mm)
Half 3/8" (10mm) 7/8" (22mm) 7/8" (22mm)
IN THE U.S.A.
Ph: 800.238.3600
Fax: 800.258.0255
