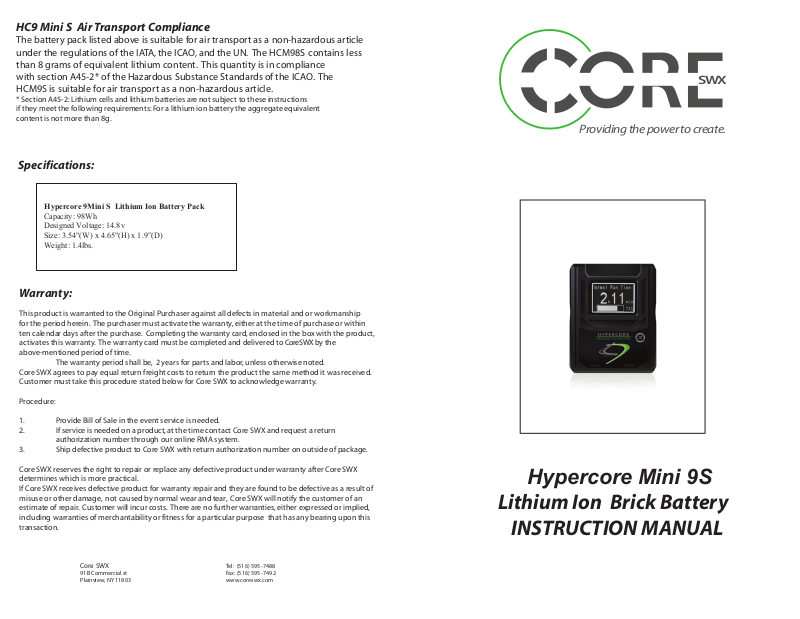

HC9 Mini S Air Transport Compliance
SWX
Providing the power to create.
The battery pack listed above is suitable for air transport as a non-hazardous article
under the regulations of the IATA, the ICAO, and the UN. The HCM98S contains less
than 8 grams of equivalent lithium content. This quantity is in compliance
with section A45-2* of the Hazardous Substance Standards of the ICAO. The
HCM9S is suitable for air transport as a non-hazardous article.
* Section A45-2: Lithium cells and lithium batteries are not subject to these instructions
if they meet the following requirements: For a lithium ion battery the aggregate equivalent
content is not more than 8g.
Specifications:
Hypercore 9Mini S Lithium Ion Battery Pack
Capacity: 98Wh
Designed Voltage: 14.8v
Size: 3.54"(W) x 4.65"(H) x 1.9”(D)
W eight: 1.4lbs.
Warranty:
This product is warranted to the Original Purchaser against all defects in material and or workmanship
for the period herein. The purchaser must activate the warranty, either at the time of purchase or within
ten calendar days after the purchase. Completing the warranty card, enclosed in the box with the product,
activates this warranty. The warranty card must be completed and delivered to Core SWX by the
above-mentioned period of time.
The warranty period shall be, 2 years for parts and labor, unless otherwise noted.
Core SWX agrees to pay equal return freight costs to return the product the same method it was received.
Customer must take this procedure stated below for Core SWX to acknowledge warranty.
Procedure:
1. Provide Bill of Sale in the event service is needed.
2. If service is needed on a product, at the time contact Core SWX and request a return
authorization number through our online RMA system.
3. Ship defective pro
Core SWX reserves the right to repair or replace any defective product under warranty after Core SWX
determines which is more practical.
If Core SWX receives defective product for warranty repair and they are found to be defective as a result of
misuse or other damage, not caused by normal wear and tear, Core SWX will notify the customer of an
estimate of repair. Customer will incur costs. There are no further warranties, either expressed or implied,
including warranties of merchantability or fitness for a particular purpose that has any bearing upon this
transaction.
Core SWX Tel: (516) 595 -7488
91B Commercial st Fax: (516) 595 -7492
Plainview, NY 11803 www.coreswx.com
duct to Core SWX with return authorization number on outside of package.
Hypercore Mini 9S
Lithium Ion Brick Battery
INSTRUCTION MANUAL
THIS BATTERY SHIPS IN STORAGE MODE.
Press the side LED button to awaken the LCD. If LCD doesn’t awaken,
press and hold the LED button for 20sec., then release, and press again
to awaken battery pack.
Thank you for your choice in purchasing a Core SWX Lithium Ion
Battery Pack. The battery is designed to improve and assist you in your
mobile powering requirements. Please read this manual to help you
understand and capitalize on the features of this battery.
Features:
• Intellicom RunTime LCD
• On-Board Microprocessor stores: Name, Serial Number, Voltage,
Temperature, Current, Chemistry Type, Charge Cycles, and
Date of Manufacturing. When used with a CoreSWX digital
charger, this information can be displayed.
• The Viewfinder Capacity Display communicates with the camera
to display your remaining battery capacity in your camera’s
viewfinder. This includes Sony, BMD and RED DSMC2 models.
• Four Stage, accurate, LED power gauge.
• No memory effect.
• Temperature, current, and voltage protection.
• NEW DuraCase provides a shock absorbing, non-slip shell to
protect the battery pack.
• Incorporated 2-pin powertap provides unregulated
power, as
well as a 5v USB.
Charging the Battery:
• CoreSWX HC batteries were designed to be used with CoreSWX
chargers. Any other charger may damage the battery and/or
the charger. Please contact us before using other chargers.
• CoreSWX batteries can be recharged in any charge condition.
• Charge the battery in ambient temperature range of between
0 C ~ 45 C. For best results, charge in an environment between
10 C ~ 30 C.
battery to reach maximum charge capacity.
o
o o
o
Charging in any other conditions will not allow the
Discharging the battery:
• Maximum continous discharge for the is 12A(144W) for the
HCM9S.
Intellicom RunTime LCD:
• The LCD automatically switches between 3 different phases;
Normal RT(based on default 30wh draw), Remaining RT(based
on actual draw, when in use), and Remaining Charge Time(when
connected to a charger).
• Press and hold the button for 1-2 seconds to activat
side LED
e the
backlight feature.
• During operation, the battery samples the current entering or
exiting the battery in 7 second intervals. During the charging
process, the charge current fluctuates, causing the Charge Time
readings to vary.
Power Gauge LEDs:
Remaining LED1 LED2 LED3 LED4
0% Off Off Off Off
less than 10% Blinking Off Off Off
10-25% On Off Off Off
26-50% On On Off Off
51-75% On On On Off
76-100% On On On On
The RunTime LCD and power gauge’s accuracy is dependent upon a
full charge and discharge. At least once every 2 months the battery
should be fully discharged and charged so the battery can relearn
the capacity of the battery.
Storage:
• Store the battery 25% charged in an environment between
10 C ~ 30 C.
charged due to minimal self-discharge.
Notes On Use:
• An increase in temperature is nor
o o
Every 2 months the battery should be
mal during charging and
discharging.
• Make sure to keep battery contacts clean.
• Do not attempt to disassemble the battery. Please contact
Core SWX for any service issues.
• Keep batteries seperated when transporting.
• Keep battery pack dry and avoid use in humid environments.
