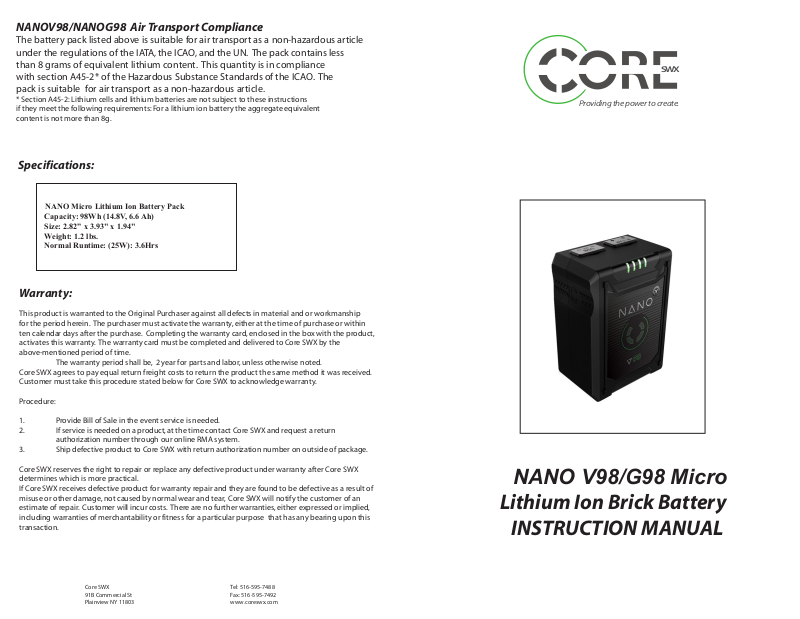

NANOV98/NANOG98 Air Transport Compliance
The battery pack listed above is suitable for air transport as a non-hazardous article
under the regulations of the IATA, the ICAO, and the UN. The pack contains less
than 8 grams of equivalent lithium content. This quantity is in compliance
with section A45-2* of the Hazardous Substance Standards of the ICAO. The
pack is suitable for air transport as a non-hazardous article.
* Section A45-2: Lithium cells and lithium batteries are not subject to these instructions
if they meet the following requirements: For a lithium ion battery the aggregate equivalent
content is not more than 8g.
Specifications:
NANO Micro Lithium Ion Battery Pack
Capacity: 98Wh (14.8V, 6.6 Ah)
Size: 2.82” x 3.93" x 1.94"
Weight: 1.2 lbs.
Normal Runtime: (25W): 3.6Hrs
Warranty:
This product is warranted to the Original Purchaser against all defects in material and or workmanship
for the period herein. The purchaser must activate the warranty, either at the time of purchase or within
ten calendar days after the purchase. Completing the warranty card, enclosed in the box with the product,
activates this warranty. The warranty card must be completed and delivered to Core SWX by the
above-mentioned period of time.
The warranty period shall be, 2 year for parts and labor, unless otherwise noted.
Core SWX agrees to pay equal return freight costs to return the product the same method it was received.
Customer must take this procedure stated below for Core SWX to acknowledge warranty.
SWX
Providing the power to create.
Procedure:
1. Provide Bill of Sale in the event service is needed.
2. If service is needed on a product, at the time contact Core SWX and request a return
authorization number through our online RMA system.
3. Ship defective product t
Core SWX reserves the right to repair or replace any defective product under warranty after Core SWX
determines which is more practical.
If Core SWX receives defective product for warranty repair and they are found to be defective as a result of
misuse or other damage, not caused by normal wear and tear, Core SWX will notify the customer of an
estimate of repair. Customer will incur costs. There are no further warranties, either expressed or implied,
including warranties of merchantability or fitness for a particular purpose that has any bearing upon this
transaction.
Core SWX Tel: 516-595-7488
91B Commercial St Fax: 516-595-7492
Plainview NY 11803 www.coreswx.com
o Core SWX with return authorization number on outside of package.
NANO V98/G98 Micro
Lithium Ion Brick Battery
INSTRUCTION MANUAL
Page 2
Thank you for your choice in purchasing a Core SWX Lithium Ion
Battery Pack. The battery is designed to improve and assist you in your
mobile powering requirements. Please read this manual to help you
understand and capitalize on the features of this battery.
Features:
• On-Board Microprocessor stores: Name, Serial Number, Voltage,
Temperature, Current, Chemistry Type, Charge Cycles, and
Date of Manufacturing. When used with a Core SWX digital
charger, this information can be displayed.
• The Viewfinder Capacity Display communicates with the camera
to display your remaining battery capacity in your camera’s
viewfinder.
• model adds support for battery capacity display in
This Nano
*(select camera models)
RED Cameras.
• Four Stage, accurate, LED power gauge.
• Temperature, current, and voltage protection.
• Incorporated 2-pin powertap provides unregulated power,
and 5v, 2A USB.
Hi-Draw Capabilities:
• The Core Nano line is unique in that the packs can sustain
up to 10A loads for continuous discharge. To keep the packs
working at optimal performance, we recommend monitoring
discharge when the battery packs get close to EOD(end of
discharge). If monitoring via voltage, this would be near
13v. The key to maximum service life is proper usage.
• Upon full (high load) discharge, we recommend allowing
the pack to cool for 30min. prior to recharge. Should the draw
be lower(5A/60w for example), you may recharge after usage.
Power Gauge LEDs:
Remaining LED1 LED2 LED3 LED4
0% Off Off Off Off
less than 10% Blinking Off Off Off
10-25% On Off Off Off
26-50% On On Off Off
51-75% On On On Off
76-100% On On On On
Charging the Bat
•
well as new and older Core SWX chargers. Please contact us
The NANO Micro packs will charge on most Li-ion chargers as
tery:
before using other chargers.
• Core SWX batteries can be recharged in any charge condition.
• Charge the battery in ambient temperature range of between
0 C ~ 45 C. For best results, charge in an environment between
10 C ~ 30 C.
o
o o
o
Charging in any other conditions will not allow the
battery to reach maximum charge capacity.
Discharging the battery:
• Maximum continous discharge is 10A(120w) for the NANO
Micro packs. .
• The 2-pin connector can be used to simultaneouly power a
camera and a 12vdc accessory. However, prior to using this
option combine the total draw of the camera and accessory to
make sure you are not drawing more than the recommended
discharge amount.
The power gauge’s accuracy is dependent upon a full charge and
discharge. At least once every 2 months the battery should be
fully discharged and charged so the battery can relearn
the capacity of the battery.
Storage:
• Store the battery 25% charged in an environment between
10 C ~ 30 C.
o o
Every 2 months the battery should be
charged due to minimal self-discharge.
Notes On Use:
• An increase in temperature is normal during charging and
discharging.
• Make sure to keep battery contacts clean.
• Do not attempt to disassemble the battery. Please contact
Core SWX for any service issues.
• Keep batteries seperated when transporting.
• Keep battery pack dry and avoid use in humid environments.
