Hypercore 150S Air Transport Compliance
This battery pack has special characteristics not making
it suitable for air transport without taking the required
actions. If it is utmost necessary to travel with this battery,
please contact Core SWX to find out what measures need to be
taken to safely transport this product.
Specifications:
Hypercore 150S Lithium Ion Battery Pack
Capacity: 150Wh
Designed Voltage: 14.8v
Size: 3.8"(W) x 5.87"(H) x 2"(D)
W eight: 2.4 lbs.
Warranty:
This product is warranted to the Original Purchaser against all defects in material and or workmanship
for the period herein. The purchaser must activate the warranty, either at the time of purchase or within
ten calendar days after the purchase. Completing the warranty card, enclosed in the box with the product,
activates this warranty. The warranty card must be completed and delivered to Core SWX by the
above-mentioned period of time.
The warranty period shall be, 2 years for parts and labor, unless otherwise noted.
Core SWX agrees to pay equal return freight costs to return the product the same method it was received.
Customer must take this procedure stated below for Core SWX to acknowledge warranty.
SWX
Procedure:
1. Provide Bill of Sale in the event service is needed.
2. If service is needed on a product, at the time contact Core SWX and request a return
authorization number through our online RMA system.
3. Ship defective product to Core SWX with return authoriz
Core SWX reserves the right to repair or replace any defective product under warranty after Core SWX
determines which is more practical.
If Core SWX receives defective product for warranty repair and they are found to be defective as a result of
misuse or other damage, not caused by normal wear and tear, Core SWX will notify the customer of an
estimate of repair. Customer will incur costs. There are no further warranties, either expressed or implied,
including warranties of merchantability or fitness for a particular purpose that has any bearing upon this
transaction.
Core SWX Tel: 516 595 7488
91B Commercial St. Fax: 516 595 7492
Plainview NY 11803 www.coreswx.com
ation number on outside of package.

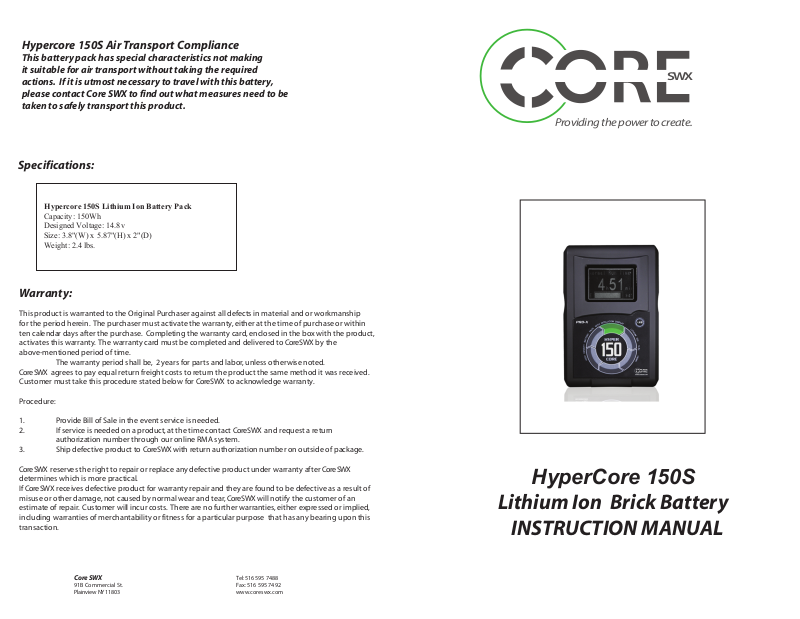

HyperCore 150S
Lithium Ion Brick Battery
INSTRUCTION MANUAL
Thank you for your choice in purchasing a Core SWX Lithium Ion
Battery Pack. The battery is designed to improve and assist you in your
mobile powering requirements. Please read this manual to help you
understand and capitalize on the features of this battery.
Features:
• Intellicom RunTime LCD
• On-Board Microprocessor stores: Name, Serial Number, Voltage,
Temperature, Current, Chemistry Type, Charge Cycles, and
Date of Manufacturing. When used with a Core SWX digital
charger, this information can be displayed.
• The Viewfinder Capacity Display communicates with the camera
to display your remaining battery capacity in your camera’s
viewfinder.
*(select camera models)
• Four Stage, accurate, LED power gauge.
• No memory effect.
• Temperature, current, and voltage protection.
• NEW DuraCase provides a shock absorbing, non-slip shell to
protect the battery pack.
• Incorporated 2-pin powertap provides unregulated power, as
well as a 5v USB.
Charging the Battery:
• Core SWX V-mount batteries will charge on MOST V-mount
Li-ion chargers as well as Core SWX chargers. Please contact us
before using other chargers.
• Core SWX batteries can be recharged in any charge condition.
• Charge the battery in ambient temperature range of between
0 C ~ 45 C. For best results, charge in an environment between
10 C ~ 30 C.
o
o o
o
Charging in any other conditions will not allow the
battery to reach maximum charge capacity.
Discharging the battery:
• Maximum continous discharge for the is 10A(120W) for the
HC150s.
• The 2-pin connector can be used to simultaneouly power a
camera and a 12vdc accessory. However, prior to using this
option combine the total draw of the camera and accessory to
make sure you are not drawing more than the recommended
discharge amount.
Intellicom RunTime LCD:
• The LCD automatically switches between 3 different phases;
Normal RT(based on default 30wh draw), Remaining RT(based
on actual draw, when in use), and Remaining Charge Time(when
connected to a charger).
• Press and hold the “Light” button f
or 1-2 seconds to activate the
backlight feature.
• During operation, the battery samples the current entering or
exiting the battery in 7 second intervals. During the charging
process, the charge current fluctuates, causing the Charge Time
readings to vary.
Power Gauge LEDs:
Remaining LED1 LED2 LED3 LED4
0% Off Off Off Off
less than 10% Blinking Off Off Off
10-25% On Off Off Off
26-50% On On Off Off
51-75% On On On Off
76-100% On On On On
The RunTime LCD and power gauge’s accuracy is dependent upon a
full charge and discharge. At least once every 2 months the battery
should be fully discharged and charged so the battery can relearn
the capacity of the battery.
Storage:
• Store the battery 25% charged in an environment between
10 C ~ 30 C.
charged due to minimal self-discharge.
Notes On Use:
• An increase in
o o
Every 2 months the battery should be
temperature is normal during charging and
discharging.
• Make sure to keep battery contacts clean.
• Do not attempt to disassemble the battery. Please contact
Core SWX for any service issues.
• Keep batteries seperated when transporting.
• Keep battery pack dry and avoid use in humid environments.
